springboot整合CAS实现单点登录

CAS服务端部署

服务端就是一个war，修改些配置，部署到tomcat的webapps目录就行了。以下是细节：

github下载地址：https://repo1.maven.org/maven2/org/apereo/cas/cas-server-webapp-tomcat/5.3.14/

如下图所示下载圈起来的就行

注意：这个war是人家打包好的

自己也可以上CAS的官网区下载，不过都是gradle工程的，附链接：

官网地址：CAS | Apereo点下载就跳转到github了

服务端的：Releases · apereo/cas · GitHub

客户端的：Releases · apereo/java-cas-client · GitHub

要修改的配置，首先解压cas的war

由于cas默认使用的是基于https协议,需要改为兼容使用http协议，打开对应你的目录文件：

cas\WEB-INF\classes\application.properties

加上以下配置

#使用http协议
cas.tgc.secure=false
cas.serviceRegistry.initFromJson=true

#由于https协议默认使用的端口为8443，还需我们修改为tomcat的8080端口

server.port=8080

修改HTTPSandIMAPS-10000001.json文件

把原来的serviceId内容改成如下

"serviceId" : "^(https|http|imaps)://.*",

兼容http修改完毕。

修改配置中的登录用户名密码

cas.authn.accept.users=jhl::jhl666888

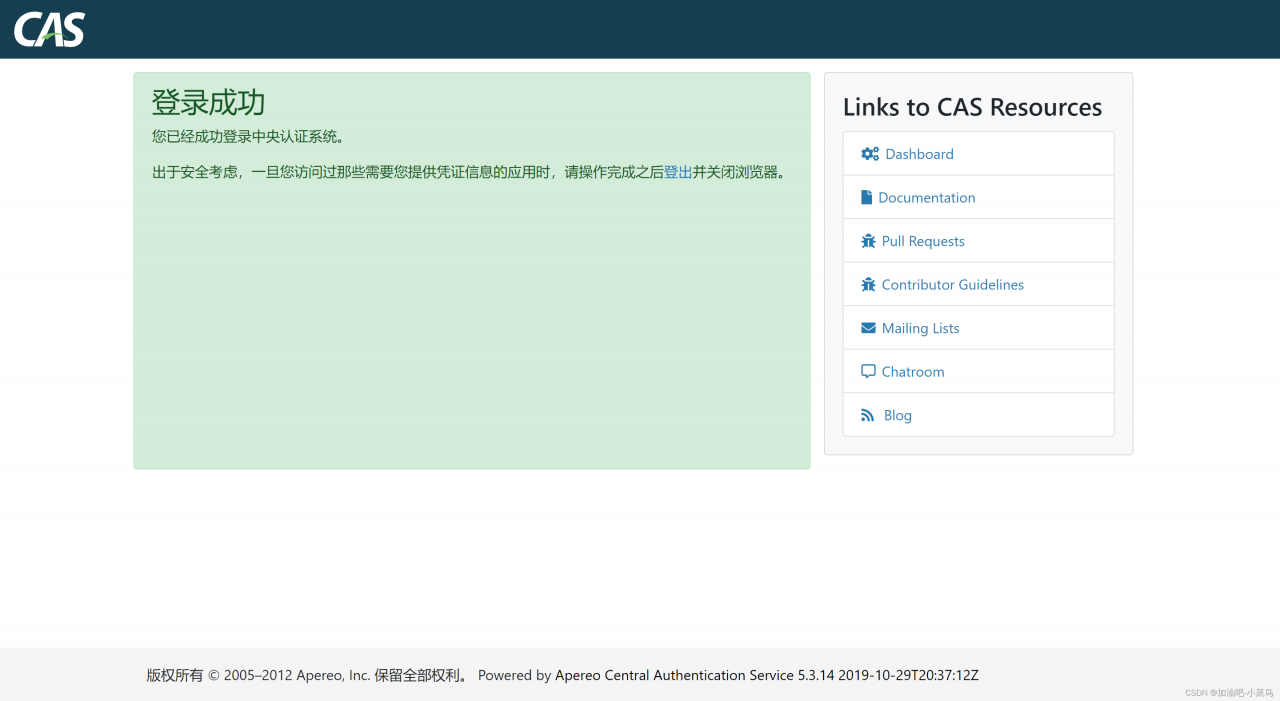

cas服务器端搭建完毕，重启tomcat 进行测试，在浏览器中输入下面地址，进行访问

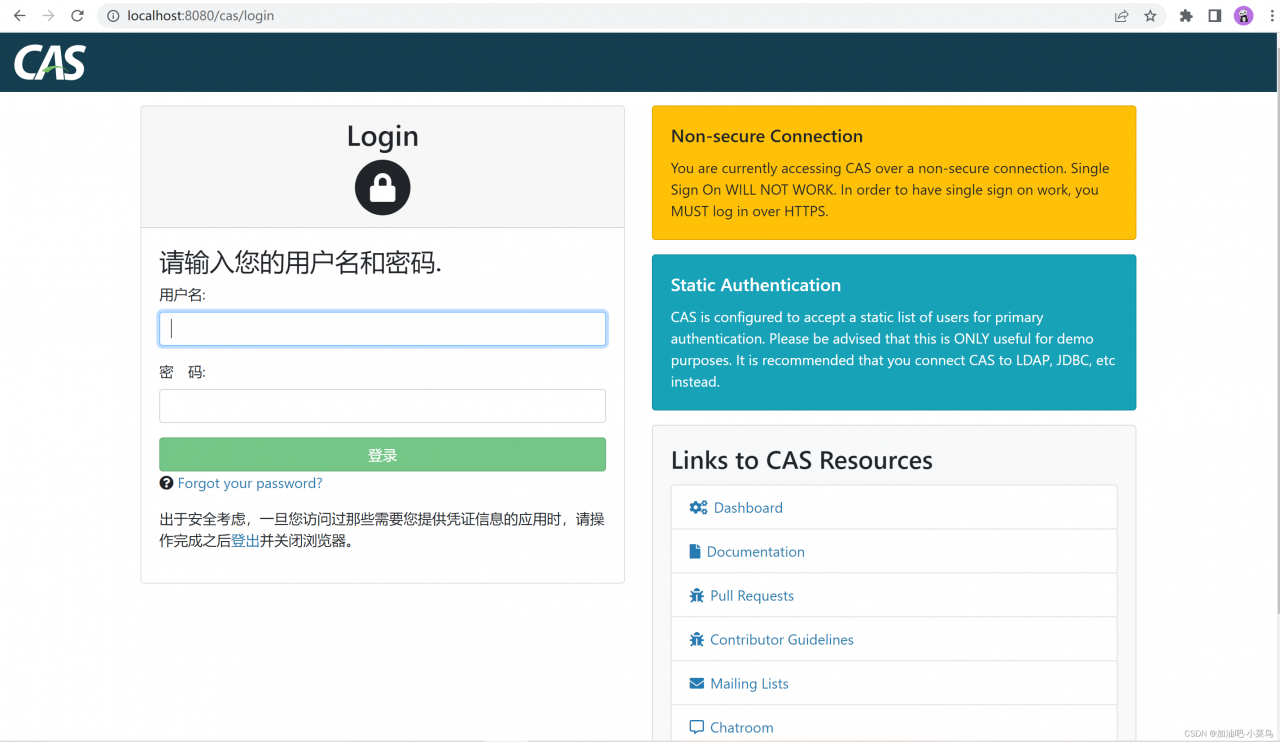

http://localhost:8080/cas/login就行了

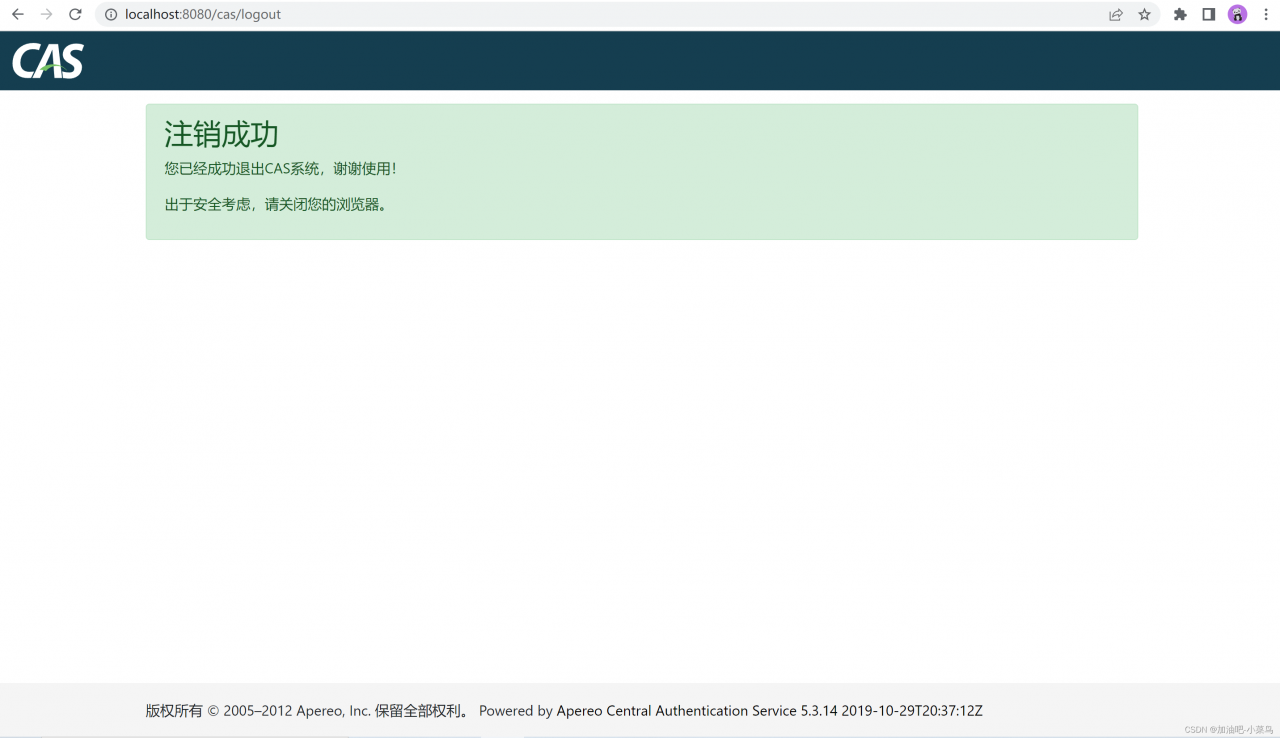

退出链接是http://localhost:8080/cas/logout

CAS客户端构建

添加依赖

<dependency>
    <groupId>net.unicon.cas</groupId>
    <artifactId>cas-client-autoconfig-support</artifactId>
    <version>1.4.0-GA</version>
</dependency>

启动类加上@EnableCasClient注解

@EnableCasClient
@SpringBootApplication
public class CasClient01Application {

    public static void main(String[] args) {
        SpringApplication.run(CasClient01Application.class, args);
    }

}

修改application.properties

server.port=8081
#cas服务端的地址
cas.server-url-prefix=http://localhost:8080/cas
#cas服务端的登录地址
cas.server-login-url=http://localhost:8080/cas/login
#当前服务器的地址(客户端)
cas.client-host-url=http://localhost:8081
#Ticket校验器使用Cas30ProxyReceivingTicketValidationFilter
cas.validation-type=cas3

写一个controller，加上这个接口

@RequestMapping("/sso-test1")
public String test1(HttpSession session){

    Assertion assertion = (Assertion)session.getAttribute(CONST_CAS_ASSERTION);
    AttributePrincipal principal = assertion.getPrincipal();
    String loginName = principal.getName();

    return "sso-test1，当前登录账户"+loginName;
}

再写另一个客户端，同理，不再赘述

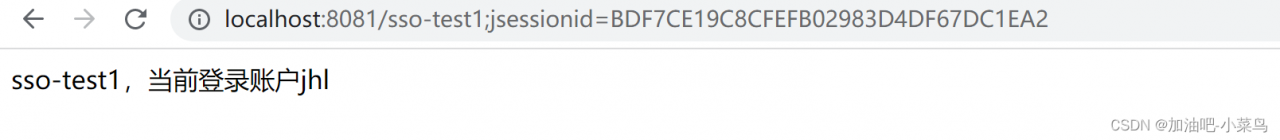

访问第一个客户端http://localhost:8081/sso-test1

登录之后再访问第二个http://localhost:8082/sso-test2就不用输入密码了

接下来写退出接口

/**
 * 退出 后自动重定向自定义接口
 * @param request
 * @return
 */
@RequestMapping("/system/logout1")
public String logout1(HttpServletRequest request) {
    HttpSession session = request.getSession();
    session.invalidate();
    return "redirect:http://localhost:8080/cas/logout?service=http://localhost:8081/system/logoutSuccess";

}

/**
 * 退出成功页
 * @return
 */
@RequestMapping("/system/logoutSuccess")
@ResponseBody
public String logoutSuccess() {
    return "test1成功退出！";
}

设置cas认证中心允许重定向跳转

打开你的cas认证中心里的 application.properties 文件，添加如下配置

 #退出登录后允许跳转
cas.logout.followServiceRedirects=true

新建config配置文件

package com.cas.casclient01;

import org.jasig.cas.client.authentication.AuthenticationFilter;
import org.jasig.cas.client.session.SingleSignOutFilter;
import org.jasig.cas.client.session.SingleSignOutHttpSessionListener;
import org.jasig.cas.client.util.HttpServletRequestWrapperFilter;
import org.jasig.cas.client.validation.Cas30ProxyReceivingTicketValidationFilter;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletListenerRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.EventListener;
import java.util.HashMap;
import java.util.Map;

@Configuration
public class Config {
    //cas认证服务中心地址
    private static final String CAS_SERVER_URL_PREFIX = "http://localhost:8080/cas/";

    //cas认证服务中心   系统登录地址
    private static final String CAS_SERVER_URL_LOGIN = "http://localhost:8080/cas/login";

    //你自己的客户端1的地址
    private static final String SERVER_NAME = "http://localhost:8081/";

    /**
     * description: 登录过滤器
     * @param: []
     * @return: org.springframework.boot.web.servlet.FilterRegistrationBean
     */
    @Bean
    public FilterRegistrationBean filterSingleRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new SingleSignOutFilter());
        // 设定匹配的路径
        registration.addUrlPatterns("/*");
        Map<String,String> initParameters = new HashMap<String, String>();
        initParameters.put("casServerUrlPrefix", CAS_SERVER_URL_PREFIX);
        registration.setInitParameters(initParameters);
        // 设定加载的顺序
        registration.setOrder(1);
        return registration;
    }


    /**
     * description:过滤验证器
     *     * @param: []
     * @return: org.springframework.boot.web.servlet.FilterRegistrationBean
     */
    @Bean
    public FilterRegistrationBean filterValidationRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new Cas30ProxyReceivingTicketValidationFilter());
        // 设定匹配的路径
        registration.addUrlPatterns("/*");
        Map<String,String>  initParameters = new HashMap<String, String>();
        initParameters.put("casServerUrlPrefix", CAS_SERVER_URL_PREFIX);
        initParameters.put("serverName", SERVER_NAME);
        initParameters.put("useSession", "true");
        registration.setInitParameters(initParameters);
        // 设定加载的顺序
        registration.setOrder(1);
        return registration;
    }


    /**
     * description:授权过滤器
     * @param: []
     * @return: org.springframework.boot.web.servlet.FilterRegistrationBean
     */
    @Bean
    public FilterRegistrationBean filterAuthenticationRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new AuthenticationFilter());
        // 设定匹配的路径
        registration.addUrlPatterns("/*");

        Map<String,String>  initParameters = new HashMap<String, String>();
        initParameters.put("casServerLoginUrl", CAS_SERVER_URL_LOGIN);
        initParameters.put("serverName", SERVER_NAME);


        //设置忽略  退出登录不用登录
        initParameters.put("ignorePattern", "/system/*");

        registration.setInitParameters(initParameters);
        // 设定加载的顺序
        registration.setOrder(1);
        return registration;
    }


    /**
     * wraper过滤器
     * @return
     */
    @Bean
    public FilterRegistrationBean filterWrapperRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new HttpServletRequestWrapperFilter());
        // 设定匹配的路径
        registration.addUrlPatterns("/*");
        // 设定加载的顺序
        registration.setOrder(1);
        return registration;
    }

    /**
     * 添加监听器
     * @return
     */
    @Bean
    public ServletListenerRegistrationBean<EventListener> singleSignOutListenerRegistration(){
        ServletListenerRegistrationBean<EventListener> registrationBean = new ServletListenerRegistrationBean<EventListener>();
        registrationBean.setListener(new SingleSignOutHttpSessionListener());
        registrationBean.setOrder(1);
        return registrationBean;
    }
}

客户端2也同样改造

http://localhost:8081/system/logout1访问客户端1的退出接口
