zookeeper之watcher

客户端可以在节点上注册监听器，当特定的事件发生后，zk会通知感兴趣的客户端。

我们在zkCli.sh客户端输入help命令，可以看到只有stat、ls、ls2、get四个命令可以增加watch事件。

我们想某个路径加监听器，ls path [watch]，watch代表是否添加watch，1代表是的。

下面我们来看一下java源码。

zookeeper版本：

<dependency>
	<groupId>org.apache.zookeeper</groupId>
	<artifactId>zookeeper</artifactId>
	<version>3.4.10</version>
</dependency>

那我们一般是怎么调用zookeeper的呢？首先定义一个Zookeeper对象

ZooKeeper zk = new ZooKeeper("199.198.956.901:2181", 5000, new ZKDemo());

多个IP用；隔开。其中 5000是session超时时间，new ZKDemo()是我们自定义的一个Watcher对象

public ZooKeeper(String connectString, int sessionTimeout, Watcher watcher, boolean canBeReadOnly) throws IOException {
        this.watchManager = new ZooKeeper.ZKWatchManager();
        LOG.info("Initiating client connection, connectString=" + connectString + " sessionTimeout=" + sessionTimeout + " watcher=" + watcher);
        this.watchManager.defaultWatcher = watcher;
        ConnectStringParser connectStringParser = new ConnectStringParser(connectString);
        HostProvider hostProvider = new StaticHostProvider(connectStringParser.getServerAddresses());
        this.cnxn = new ClientCnxn(connectStringParser.getChrootPath(), hostProvider, sessionTimeout, this, this.watchManager, getClientCnxnSocket(), canBeReadOnly);
        this.cnxn.start();
}

在初始化zookeeper的时候，会new一个ZooKeeper.ZKWatchManager()，ZooKeeper.ZKWatchManager()是客户端watcher管理器，并把我们刚才传进来的new ZKDemo()赋值给this.watchManager.defaultWatcher，作为客户端watcherManager的默认watcher，这个默认watcher主要用来监听keeperState里面定义的各种链接状态转换事件，

/** @deprecated */
@Deprecated
Unknown(-1),
Disconnected(0),
/** @deprecated */
@Deprecated
NoSyncConnected(1),
SyncConnected(3),
AuthFailed(4),
ConnectedReadOnly(5),
SaslAuthenticated(6),
Expired(-112);

由客户端持有，伴随整个zookeeper生命周期，而不是一次触发即消亡。我们运行一下代码观察一下（IP和端口改成自己的）：

public class ZKDemo implements Watcher {
	private static final CountDownLatch cdl = new CountDownLatch(1);

	public static void main(String[] args) throws IOException {
		ZooKeeper zk = new ZooKeeper("199.198.956.901:2181", 5000, new ZKDemo());
		System.out.println(zk.getState());

		try {
			cdl.await();
		} catch (Exception e) {
			System.out.println("ZK Session established.");
		}
	}

	@Override
	public void process(WatchedEvent event) {
		System.out.println("Receive watched event:" + event);
		if (KeeperState.SyncConnected == event.getState()) {
			cdl.countDown();
		}
	}
}

运行结果如下：

同步连接成功，其中state来源于Watcher接口的内部静态枚举类keeperState，type来源于EventType静态枚举类，path是指监控路径，此watcher监控的是链接状态，所以path为null。如果此时我们执行zkServer.sh stop zoo1.cfg:

会即刻被该defaultWatcher感知到：

Receive watched event:WatchedEvent state:Disconnected type:None path:null

下面我们来模拟一个创建节点的场景

//给路径/zookeeper下的所有子节点设置一个watch
List<String> list = zk.getChildren("/zookeeper", ZKDemo.createWatcher);

其中true-表示选择defaultWatcher，跟踪进去我们发现源码：

public byte[] getData(String path, boolean watch, Stat stat) throws KeeperException, InterruptedException {
    return this.getData(path, watch ? this.watchManager.defaultWatcher : null, stat);
}

此处我们不选择 defaultWatcher，自定义一个watcher，

public class CreateWatcher implements Watcher {
    @Override
    public void process(WatchedEvent watchedEvent) {
        System.out.println("watcher被触发：" + watchedEvent);
    }
}

我们在客户端1给路径 /zookeeper加watcher

public static void main(String[] args) throws IOException, KeeperException, InterruptedException {
	ZooKeeper zk = ZKDemo.getZk();
	System.out.println(zk.getState());
    //给路径/zookeeper设置一个watch
    List<String> list = zk.getChildren("/zookeeper", ZKDemo.createWatcher);
	try {
		cdl.await();
	} catch (Exception e) {
		System.out.println("ZK Session established.");
	}
}

我们在客户端2给路径/zookeeper下创建一个子节点/t1

        ZooKeeper zk = ZKDemo.getZk();
        try {
            Stat stat = zk.exists("/zookeeper/t1",null);
            if (stat != null) {
                zk.delete("/zookeeper/t1",stat.getVersion());//版本如果-1，删除所有版本
            }
            String re = zk.create("/zookeeper/t1","t1".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT);
            System.out.println(re);
        } catch (KeeperException e) {
            e.printStackTrace();
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

先启动客户端1

CONNECTING
Receive watched event:WatchedEvent state:SyncConnected type:None path:null

再启动客户端2

Receive watched event:WatchedEvent state:SyncConnected type:None path:null
/zookeeper/t1

此时我们观察客户端1，我们发现

watcher被触发：WatchedEvent state:SyncConnected type:NodeChildrenChanged path:/zookeeper

由此，我们可以看出客户端1监听到路径/zookeeper下面创建了新的节点。

那么客户端是如何发送watcher，服务端又是如何检测到这个节点添加了watcher，并在执行相关操作的时候触发watcher的呢？

看Zookeeper类我们发现，getChildren，exists，getData三个方法才能对节点加watcher，我们选择getChildren方法跟踪进去看一下，

    public List<String> getChildren(String path, Watcher watcher) throws KeeperException,         InterruptedException {
        PathUtils.validatePath(path);//验证路径，里面定义了路径规则，必须以/开头，长度，不能有特殊字符等。
        ZooKeeper.WatchRegistration wcb = null;
        if (watcher != null) {//如果客户端设置了watcher
            wcb = new ZooKeeper.ChildWatchRegistration(watcher, path);watcher
        }

        String serverPath = this.prependChroot(path);//对path进行加工传给server
        RequestHeader h = new RequestHeader();
        h.setType(8);
        GetChildrenRequest request = new GetChildrenRequest();
        request.setPath(serverPath);
        request.setWatch(watcher != null);//告诉服务端的本次请求是否带有watcher
        GetChildrenResponse response = new GetChildrenResponse();
        ReplyHeader r = this.cnxn.submitRequest(h, request, response, wcb);//提交请求到outgoingQueue，outgoingQueue是一个链表，先进先出，保证请求提交顺序
        if (r.getErr() != 0) {
            throw KeeperException.create(Code.get(r.getErr()), path);//返回错误码
        } else {
            return response.getChildren();//返回该路径下所有子节点集合
        }
    }

我们重点看一下

wcb = new ZooKeeper.ChildWatchRegistration(watcher, path);

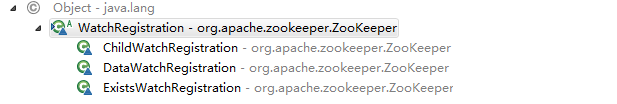

这段代码将watcher和path封装成ChildWatchRegistration对象，我们去看ChildWatchRegistration的父类WatchRegistration就会发现里面有一个register方法

public void register(int rc){
   if(shouldAddWatch(rc)){
       Map watches = getWatches(rc);
       synchronized(watches){
           Set watchers = (Set)watches.get(clientPath);
           if(watchers == null){
               watchers = new HashSet();
               watches.put(clientPath, watchers);
           }
           watchers.add(watcher);
        }
    }
 }

每当我们注册watcher的时候，先通过getWatches(rc)方法

protected Map getWatches(int rc){
    return watchManager.childWatches;
}

从当前zookeeper实例的watcherManager（ZKWatchManager客户端watcher管理器）属性中获取当前事件类型的全部watcher事件，然后添加一个新的watcher进去。childWatches是一个Map结构

private final Map dataWatches;
private final Map existWatches;
private final Map childWatches;

key是path，value是当前path下的所有Watcher（HashSet结构，因此，同一路径下同一类型watcher只能生效一次）。

由此可见，客户端在提交请求的时候，把watcher对象封装成ZooKeeper.ChildWatchRegistration对象并且告诉了服务器是否含有watcher。追踪submitRequest方法，到ClientCnxn.class的queuePacket方法，发现zookeeper把每个请求封装之后丢进了队列中

outgoingQueue.add(packet);

然后唤醒了客户端socket线程，sendThread.getClientCnxnSocket().wakeupCnxn()，ClientCnxnSocketNIO.class中的

doTransport方法，从这个方法中我们可以看出zookeeper底层用了java NIO 的selector模型，

synchronized(this)
{
    selected = selector.selectedKeys();
}

当发现有已经准备好的通道时就调用doIO方法处理请求。zookeeper基于TCP/IP协议将请求传输到服务端，那么服务端是如何解析请求的，又是如何注册watcher的呢？

服务端也有一个类似于ZooKeeper.ZKWatchManager的WatcherManager，在server包下，这个类是服务端用来管理watcher的类，客户端注册的watcher事件都会保存在这个类里面，这个类有两个重要的字段

private final HashMap<String, HashSet<Watcher>> watchTable = new HashMap();
private final HashMap<Watcher, HashSet<String>> watch2Paths = new HashMap();

watchTable定义了一个路径下的多个不同的watcher，下面我们来看一下这种数据结构如何在实际应用体现

List<String> list1 = zk.getChildren("/zookeeper", ZKDemo.createWatcher);
List<String> list2 = zk.getChildren("/zookeeper", ZKDemo.createWatcher);

这种情况下，我们运行后发现，watcher只被触发了一次

CONNECTING
Receive watched event:WatchedEvent state:SyncConnected type:None path:null
watcher被触发：WatchedEvent state:SyncConnected type:NodeChildrenChanged path:/zookeeper

如果我们向下面这样定义

List<String> list1 = zk.getChildren("/zookeeper", ZKDemo.createWatcher);
List<String> list2 = zk.getChildren("/zookeeper", new CreateWatcher());

watcher被触发了2次

CONNECTING
Receive watched event:WatchedEvent state:SyncConnected type:None path:null
watcher被触发：WatchedEvent state:SyncConnected type:NodeChildrenChanged path:/zookeeper
watcher被触发：WatchedEvent state:SyncConnected type:NodeChildrenChanged path:/zookeeper

所以同一种watcher其实指的是是否是同一个Watcher对象，通过以上例子我们也知道，如果想给一个路径下放多个watcher，多new几个Watcher对象就可以了。

watch2Paths定义了一个Watcher可以同时监听多个path，我们再来创建一个新的节点/se，我这里直接打开zkCli.sh来创建

zk.getChildren("/zookeeper", ZKDemo.createWatcher);//给路径/zookeeper加Watcher
zk.getChildren("/se", ZKDemo.createWatcher);//给路径/se加Watcher

触发 /zookeeper路径的Watcher

ZooKeeper zk = ZKDemo.getZk();
Stat stat = zk.exists("/zookeeper/t1",null);
if (stat != null) {
   zk.delete("/zookeeper/t1",stat.getVersion());
}
String re = zk.create("/zookeeper/t1","t1".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT);
System.out.println(re);

触发 /se路径的Watcher

ZooKeeper zk = ZKDemo.getZk();
Stat stat = zk.exists("/se/t1",null);
if (stat != null) {
   zk.delete("/se/t1",stat.getVersion());
}
String re = zk.create("/se/t1","t1".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT);
System.out.println(re);

都运行之后，我们可以观察到

CONNECTING
Receive watched event:WatchedEvent state:SyncConnected type:None path:null
watcher被触发：WatchedEvent state:SyncConnected type:NodeChildrenChanged path:/zookeeper
watcher被触发：WatchedEvent state:SyncConnected type:NodeChildrenChanged path:/se

由此可见，同一个Watcher对象是可以监听多个path的。

现在我们已经知道server是如何管理我们的各种Watcher事件的，下面我们来看一下是如何触发Watcher事件的。WatcherManager中有个方法是用来触发Watcher的

Set triggerWatch(String path, org.apache.zookeeper.Watcher.Event.EventType type, Set supress)

该方法中先从watchTable中获取该路径下的所有watcher对象watchers，然后再循环将watch2Paths中该watcher下的该path监听删除，并逐步调用process方法

do{
    if(!i$.hasNext())
        break;
    Watcher w = (Watcher)i$.next();
    if(supress == null || !supress.contains(w))
        w.process(e);
} while(true);

这个process方法是通知响应客户端，watcher已经被触发了，客户端收到通知，将watcher移除，并将这些Watches进行封装放入一个队列中，客户端有一个专用的线程去轮询这个队列，依次执行用户自定义的process方法。

参考文献：https://blog.csdn.net/dd864140130/article/details/50299687

原文链接：https://blog.csdn.net/qq_35689573/article/details/87925960
