1、代码

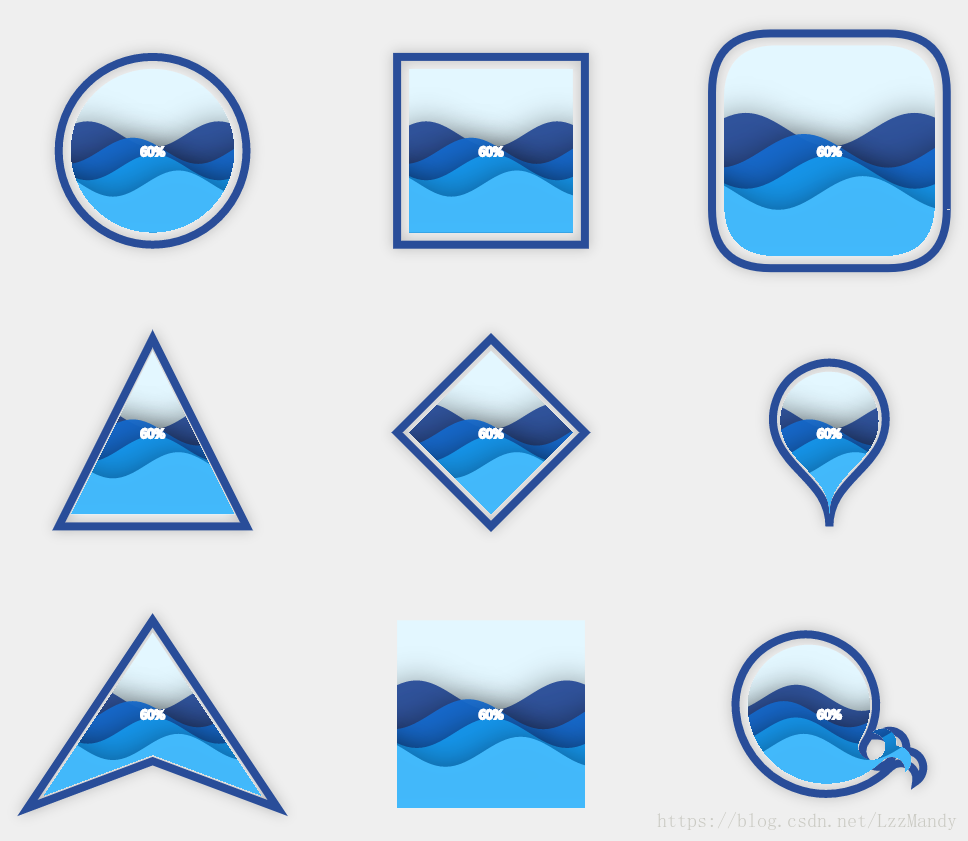

//1、one of the default symbols: 'circle', 'rect', 'roundRect', 'triangle', 'diamond', 'pin', 'arrow';
//2、'container': a shape that fully fills the container.
//3、an SVG path starting with 'path://'.
var option = {
    series: [{
        type: 'liquidFill',
        data: [0.6, 0.5, 0.4, 0.3],
        radius: '20%',
        shape: 'circle',//1圆
        center: ['20%', '20%']
    }, {
        type: 'liquidFill',
        data: [0.6, 0.5, 0.4, 0.3],
        radius: '20%',
        shape: 'rect',//2矩形
        center: ['50%', '20%']
    }, {
        type: 'liquidFill',
        data: [0.6, 0.5, 0.4, 0.3],
        radius: '25%',
        shape: 'roundRect',//3圆角矩形
        center: ['80%', '20%'],
    }, {
        type: 'liquidFill',
        data: [0.6, 0.5, 0.4, 0.3],
        radius: '20%',
        shape: 'triangle',//4三角形
        center: ['20%', '50%'],
    }, {
        type: 'liquidFill',
        data: [0.6, 0.5, 0.4, 0.3],
        radius: '20%',
        shape: 'diamond',//5钻石
        center: ['50%', '50%']
    }, {
        type: 'liquidFill',
        data: [0.6, 0.5, 0.4, 0.3],
        radius: '20%',
        shape: 'pin',//6别针
        center: ['80%', '50%']
    }, {
        type: 'liquidFill',
        data: [0.6, 0.5, 0.4, 0.3],
        radius: '20%',
        shape: 'arrow',//7箭头
        center: ['20%', '80%'],
    }, {
        type: 'liquidFill',
        data: [0.6, 0.5, 0.4, 0.3],
        radius: '20%',
        shape: 'container',//8集合
        center: ['50%', '80%'],
        outline: {
            show: false
        }
    }, {
        type: 'liquidFill',
        data: [0.6, 0.5, 0.4, 0.3],
        direction: 'left',
        radius: '20%',
        shape: 'path://M367.855,428.202c-3.674-1.385-7.452-1.966-11.146-1.794c0.659-2.922,0.844-5.85,0.58-8.719 c-0.937-10.407-7.663-19.864-18.063-23.834c-10.697-4.043-22.298-1.168-29.902,6.403c3.015,0.026,6.074,0.594,9.035,1.728 c13.626,5.151,20.465,20.379,15.32,34.004c-1.905,5.02-5.177,9.115-9.22,12.05c-6.951,4.992-16.19,6.536-24.777,3.271 c-13.625-5.137-20.471-20.371-15.32-34.004c0.673-1.768,1.523-3.423,2.526-4.992h-0.014c0,0,0,0,0,0.014 c4.386-6.853,8.145-14.279,11.146-22.187c23.294-61.505-7.689-130.278-69.215-153.579c-61.532-23.293-130.279,7.69-153.579,69.202 c-6.371,16.785-8.679,34.097-7.426,50.901c0.026,0.554,0.079,1.121,0.132,1.688c4.973,57.107,41.767,109.148,98.945,130.793 c58.162,22.008,121.303,6.529,162.839-34.465c7.103-6.893,17.826-9.444,27.679-5.719c11.858,4.491,18.565,16.6,16.719,28.643 c4.438-3.126,8.033-7.564,10.117-13.045C389.751,449.992,382.411,433.709,367.855,428.202z',//9svg
        center: ['80%', '80%']
    }, ]
};
