基于Spark的音乐专辑数据分析（scala）

  • Post author:
  • Post category:其他




前言

本项目所使用的数据及其编写的代码，可戳

https://download.csdn.net/download/atuo200/12716083

下载。本项目采用scala编写数据分析代码，若采用python编写数据分析代码，可参考

基于Spark的音乐专辑数据分析展示

。



数据来源

数据集albums.csv，包含了10万条音乐专辑的数据。主要字段说明如下：

  1. album_title：音乐专辑名称
  2. genre：专辑类型
  3. year_of_pub： 专辑发行年份
  4. num_of_tracks： 每张专辑中单曲数量
  5. num_of_sales：专辑销量
  6. rolling_stone_critic：滚石网站的评分
  7. mtv_critic：全球最大音乐电视网MTV的评分
  8. music_maniac_critic：音乐达人的评分



数据分析

下面对音乐专辑数据集albums.csv进行了一系列的分析，包括：

  1. 统计各类型专辑的数量；
  2. 统计各类型专辑的销量总数；
  3. 统计近20年每年发行的专辑数量和单曲数量；
  4. 统计总销量前五的专辑类型的各年份销量；

编写scala代码

mkdir musicCount
cd musicCount
mkdir -p src/main/scala
src/main/scala
vi musicCount.scala

import org.apache.spark.sql.SparkSession
import org.apache.spark.SparkContext
import java.io._

object App {
  def main(args:Array[String]){
    val conf = new SparkConf().setAppName("genreSales")
    val sc = new SparkContext(conf)
    val spark=SparkSession.builder().getOrCreate()
      //加载数据文件时这里采用本地文件系统，要确保各个spark节点相同路径下都有albums.csv；并也可采用hdfs文件系统，把albums.csv上传到hdfs中
    val df = spark.read.format("com.databricks.spark.csv").option("header", "true").option("inferSchema", "false").option("delimiter",",").load("file:///usr/local/spark/data/mllib/albums.csv")
    import spark.implicits._

    val genre_count = df.groupBy("genre").count()
    val genre_array = genre_count.filter(genre_count("count") > 2000)
    val result1 = genre_array.toJSON.collectAsList.toString
    val writer1 = new PrintWriter(new File("/usr/local/spark/data/music_diy/result1.json" ))
    writer1.write(result1)
    writer1.close()

    val genre_sales = df.select(df("genre"), df("num_of_sales")).rdd.map(v => (v(0).toString, v(1).toString.toInt)).reduceByKey(_+_).collect()
    val result2 = sc.parallelize(genre_sales).toDF().toJSON.collectAsList.toString
    val writer2 = new PrintWriter(new File("/usr/local/spark/data/music_diy/result2.json" ))
    writer2.write(result2)
    writer2.close()

    val tracksAndSales = df.select(df("year_of_pub"), df("num_of_tracks")).rdd.map(v => (v(0).toString.toInt, List(v(1).toString.toInt,1))).reduceByKey((x,y) => List(x(0) + y(0), x(1) + y(1))).sortByKey().collect()
    val result3 = sc.parallelize(tracksAndSales).toDF().toJSON.collectAsList.toString
    val writer3 = new PrintWriter(new File("/usr/local/spark/data/music_diy/result3.json" ))
    writer3.write(result3)
    writer3.close()


    val tmp = df.groupBy("genre").count()
    val genre_list = tmp.orderBy(tmp("count").desc).rdd.map(v=>v(0).toString).take(5)
    val genreYearHotArray = df.select(df("genre"), df("year_of_pub"), df("num_of_sales")).rdd.filter(v => genre_list.contains(v(0))).map(v => ((v(0).toString, v(1).toString.toInt), v(2).toString.toInt)).reduceByKey(_+_).collect()
    val result4 = sc.parallelize(genreYearHotArray).toDF().toJSON.collectAsList.toString
    val writer4 = new PrintWriter(new File("/usr/local/spark/data/music_diy/result4.json" ))
    writer4.write(result4)
    writer4.close()
    spark.close()
  }
  }

编写sbt打包文件

name := "peopleage project"
version := "1.0"
scalaVersion := "2.11.12"
libraryDependencies += "org.apache.spark" %% "spark-core" % "2.4.5"
libraryDependencies += "org.apache.spark" % "spark-sql_2.11" % "2.4.5"

对编写的scala数据分析代码进行打包，把打包完成后生成的jar包提交到spark-submit执行

cd /usr/local/spark/bin
./spark-submit --class "App" /usr/local/spark/mycode/musicCount/target/scala-2.11/peopleage-project_2.11-1.0.jar

执行完后在spark的master节点下的/usr/local/spark/data/music_diy/目录生成了相应的数据分析结果json文件

在这里插入图片描述



可视化实现

使用jquery读取json文件数据，利用echarts绘图，建立Flask应用程序渲染生成的数据图表html文件

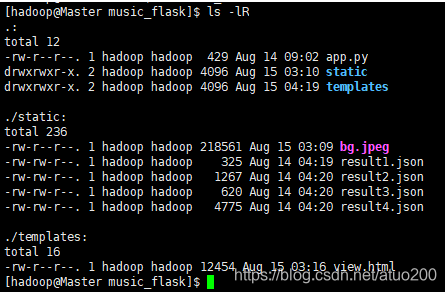

项目文件及结构如下

在这里插入图片描述

app.py

from flask import render_template,Flask

app = Flask(__name__)

@app.route('/view')
def req_file():
    return render_template("view.html")

if __name__ == '__main__':
    app.DEBUG=True
    app.run(debug=True, port=5000,host='0.0.0.0')

view.html

<!DOCTYPE html>
<html>

<head>
    <meta charset="utf-8">
    <title>小坨的太空站</title>
    <script src="https://cdn.bootcdn.net/ajax/libs/jquery/3.5.1/jquery.min.js"></script>
    <script src="https://cdn.bootcss.com/echarts/3.6.2/echarts.min.js"></script>
    <style>
        body {
            background-image: url("/static/bg.jpeg");
        }

        h1 {
            color: #fff;
        }

        #box1 {
            background-color: azure!important;
            display: inline-block;
        }

        #box2 {
            background-color: azure!important;
            display: inline-block;
        }

        .contain {
            text-align: center;
        }

        #box3 {
            background-color: azure!important;
            display: inline-block;
        }

        #box4 {
            background-color: azure!important;
            display: inline-block;
        }

        .public {
            width: 600px;
            height: 500px;
            padding: 10px;
            border: 1px solid #ccc;
            box-shadow: 0 0 8px #aaa inset;
        }

        .empty {
            height: 30px;
        }
    </style>
</head>

<body>
    <h1 align="center">Spark音乐专辑分析数据图表</h1>
    <div class="empty"></div>
    <div class="contain">
        <div id="box1" class="public"></div>
        <div id="box2" class="public"></div>
        <div id="box3" class="public"></div>
        <!-- <div id="box4" class="public"></div> -->
        <div id="box4" class="public"></div>
    </div>



    <script type="text/javascript">
        $.getJSON("/static/result1.json", function(data) {
            var name = []
            var value = []
            $.each(data, function(key, val) {
                name.push(val["genre"]);
                value.push({
                    "value": val["count"],
                    "name": val["genre"]
                })
            });

            var myChart1 = echarts.init(document.getElementById('box1'));

            // 指定图表的配置项和数据
            var option1 = {
                title: {
                    text: '各类型专辑的数量统计图',
                    x: 'left'
                },
                tooltip: {
                    trigger: 'item',
                    formatter: "{a} <br/>{b} : {c} ({d}%)"
                },
                legend: {
                    x: 'center',
                    y: 'bottom',
                    data: name
                },
                toolbox: {
                    show: true,
                    feature: {
                        mark: {
                            show: true
                        },
                        dataView: {
                            show: true,
                            readOnly: false
                        },
                        magicType: {
                            show: true,
                            type: ['pie', 'funnel']
                        },
                        restore: {
                            show: true
                        },
                        saveAsImage: {
                            show: true
                        }
                    }
                },
                calculable: true,
                series: [{
                    name: '半径模式',
                    type: 'pie',
                    radius: [30, 180],
                    center: ['50%', '50%'],
                    roseType: 'radius',
                    label: {
                        normal: {
                            show: false
                        },
                        emphasis: {
                            show: true
                        }
                    },
                    lableLine: {
                        normal: {
                            show: false
                        },
                        emphasis: {
                            show: true
                        }
                    },
                    data: value
                }]
            };
            myChart1.setOption(option1);
            // 使用刚指定的配置项和数据显示图表。
        })
    </script>

    <script type="text/javascript">
        $.getJSON("static/result2.json", function(data) {
            var dataAxis = []
            var dataValue = []

            $.each(data, function(key, val) {
                dataAxis.push(val["_1"]);
                dataValue.push(Math.abs(val["_2"]) / 1000000)
            });

            // 基于准备好的dom，初始化echarts实例
            var myChart2 = echarts.init(document.getElementById('box2'), 'light');

            var option2 = {
                title: {
                    text: '各类型专辑的销量统计图',
                    x: 'center',
                    // bottom: 10
                    padding: [0, 0, 15, 0]
                },
                color: ['#3398DB'],
                tooltip: {
                    trigger: 'axis',
                    axisPointer: { // 坐标轴指示器，坐标轴触发有效
                        type: 'shadow' // 默认为直线，可选为：'line' | 'shadow'
                    }
                },
                grid: {
                    left: '3%',
                    right: '4%',
                    bottom: '10%',
                    containLabel: true
                },
                xAxis: [{
                    type: 'category',
                    data: dataAxis,
                    axisTick: {
                        show: true,
                        alignWithLabel: true,
                        interval: 0
                    },
                    axisLabel: {
                        interval: 0,
                        rotate: 45,
                    }
                }],
                yAxis: [{
                    type: 'value',
                    name: 'Million Albums',
                    nameLocation: 'middle',
                    nameGap: 50
                }],
                series: [{
                    name: '直接访问',
                    type: 'bar',
                    barWidth: '60%',
                    data: dataValue
                }]
            };

            // 使用刚指定的配置项和数据显示图表。
            myChart2.setOption(option2);

        })
    </script>

    <script type="text/javascript">
        $.getJSON("static/result3.json", function(data) {
            var years_list = []
            var tracks_list = []
            var albums_list = []
            $.each(data, function(key, val) {
                years_list.push(val["_1"])
                tracks_list.push(val["_2"][0])
                albums_list.push(val["_2"][1])
            });

            var myChart3 = echarts.init(document.getElementById('box3'), 'light');
            var colors = ['#5793f3', '#d14a61', '#675bba'];

            var option3 = {
                title: {
                    text: '近20年的专辑数量和单曲数量的变化趋势',
                },
                tooltip: {
                    trigger: 'axis'
                },
                legend: {
                    x: 'center',
                    y: '25',
                    data: ['单曲数量', '专辑数量'],
                },
                toolbox: {
                    show: true,
                    feature: {
                        dataZoom: {
                            yAxisIndex: 'none'
                        },
                        dataView: {
                            readOnly: false
                        },
                        magicType: {
                            type: ['line', 'bar']
                        },
                        restore: {},
                        saveAsImage: {}
                    }
                },
                xAxis: {
                    type: 'category',
                    boundaryGap: false,
                    data: years_list,
                    boundaryGap: ['20%', '20%']
                },
                yAxis: {
                    type: 'value',
                    axisLabel: {
                        formatter: '{value}'
                    }
                },
                series: [{
                    name: '单曲数量',
                    type: 'bar',
                    data: tracks_list,
                    barWidth: 15,
                }, {
                    name: '专辑数量',
                    type: 'bar',
                    data: albums_list,
                    barGap: '-100%',
                    barWidth: 15,
                }]
            };
            // 使用刚指定的配置项和数据显示图表。
            myChart3.setOption(option3);

        })
    </script>

    <script type="text/javascript">
        $.getJSON("static/result4.json", function(data) {
            var items = {
                "Indie": [],
                "Pop": [],
                "Rap": [],
                "Latino": [],
                "Pop-Rock": []
            }
            $.each(data, function(key, val) {
                tmp = [val["_1"]["_2"], val["_2"]]
                items[val["_1"]["_1"]].push(tmp)
            });

            var myChart4 = echarts.init(document.getElementById('box4'));

            var option4 = {
                title: {
                    text: '堆叠区域图'
                },
                tooltip: {
                    trigger: 'axis',
                    axisPointer: {
                        type: 'cross',
                        label: {
                            backgroundColor: '#6a7985'
                        }
                    }
                },
                legend: {
                    data: ['Indie', 'Pop', 'Rap', 'Pop-Rock', 'Latino']
                },
                toolbox: {
                    feature: {
                        saveAsImage: {}
                    }
                },
                grid: {
                    left: '3%',
                    right: '4%',
                    bottom: '3%',
                    containLabel: true
                },
                xAxis: [{
                    type: 'category',
                    boundaryGap: false,
                    data: items['Indie'].map(v => v[0])
                }],
                yAxis: [{
                    type: 'value',
                    name: 'Million Albums',
                    nameLocation: 'middle',
                    nameGap: 30
                }],
                series: [{
                    name: 'Indie',
                    type: 'line',
                    stack: '总量',
                    areaStyle: {},
                    data: items["Indie"].map(v => v[1] / 1000000)
                }, {
                    name: 'Pop',
                    type: 'line',
                    stack: '总量',
                    areaStyle: {},
                    data: items["Pop"].map(v => v[1] / 1000000)
                }, {
                    name: 'Rap',
                    type: 'line',
                    stack: '总量',
                    areaStyle: {},
                    data: items["Rap"].map(v => v[1] / 1000000)
                }, {
                    name: 'Pop-Rock',
                    type: 'line',
                    stack: '总量',
                    areaStyle: {},
                    data: items["Pop-Rock"].map(v => v[1] / 1000000)
                }, {
                    name: 'Latino',
                    type: 'line',
                    stack: '总量',
                    label: {
                        normal: {
                            show: true,
                            position: 'top'
                        }
                    },
                    areaStyle: {},
                    data: items["Latino"].map(v => v[1] / 1000000)
                }]
            };
            myChart4.setOption(option4);
        });
    </script>
</body>
</html>

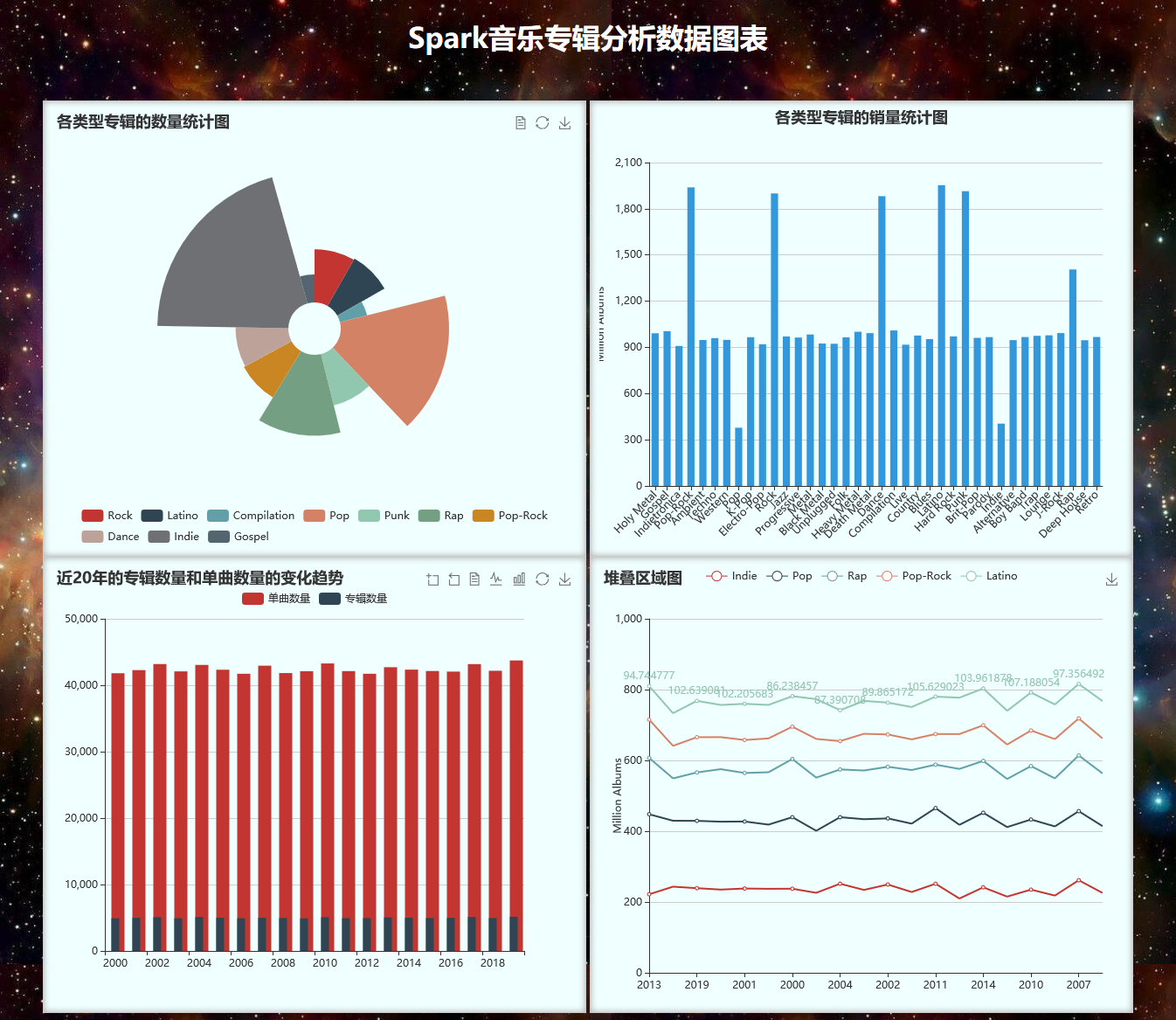

运行编写好的Flask应用程序，可得到以下数据图表

cd /usr/local/code/music_flask
python3 app.py

浏览器访问

http://Master:5000/view

在这里插入图片描述
