在train.py文件中找到Train类中的train函数修改如下：

 def train(self):
        # Create session
        tfconfig = tf.ConfigProto(allow_soft_placement=True)
        tfconfig.gpu_options.allow_growth = True
        sess = tf.Session(config=tfconfig)
        with sess.graph.as_default():
            tf.set_random_seed(cfg.FLAGS.rng_seed)
            layers = self.net.create_architecture(sess, "TRAIN", self.imdb.num_classes, tag='default')
            loss = layers['total_loss']
            lr = tf.Variable(cfg.FLAGS.learning_rate, trainable=False)
            momentum = cfg.FLAGS.momentum
            optimizer = tf.train.MomentumOptimizer(lr, momentum)
            gvs = optimizer.compute_gradients(loss)
            # Double bias
            # Double the gradient of the bias if set
            if cfg.FLAGS.double_bias:
                final_gvs = []
                with tf.variable_scope('Gradient_Mult'):
                    for grad, var in gvs:
                        scale = 1.
                        if cfg.FLAGS.double_bias and '/biases:' in var.name:
                            scale *= 2.
                        if not np.allclose(scale, 1.0):
                            grad = tf.multiply(grad, scale)
                        final_gvs.append((grad, var))
                train_op = optimizer.apply_gradients(final_gvs)
            else:
                train_op = optimizer.apply_gradients(gvs)
            # We will handle the snapshots ourselves
            self.saver = tf.train.Saver(max_to_keep=100000)
            # Write the train and validation information to tensorboard
            #print(self.tbdir)
            #writer = tf.summary.FileWriter(self.tbdir, sess.graph)
            #valwriter = tf.summary.FileWriter(self.tbvaldir)
        # Load weights
        # Fresh train directly from ImageNet weights
        print('Loading initial model weights from {:s}'.format(cfg.FLAGS.pretrained_model))
        variables = tf.global_variables()
        # Initialize all variables first
        sess.run(tf.variables_initializer(variables, name='init'))
        var_keep_dic = self.get_variables_in_checkpoint_file(cfg.FLAGS.pretrained_model)
        # Get the variables to restore, ignorizing the variables to fix
        variables_to_restore = self.net.get_variables_to_restore(variables, var_keep_dic)
        restorer = tf.train.Saver(variables_to_restore)
        restorer.restore(sess, cfg.FLAGS.pretrained_model)
        print('Loaded.')
        # Need to fix the variables before loading, so that the RGB weights are changed to BGR
        # For VGG16 it also changes the convolutional weights fc6 and fc7 to
        # fully connected weights
        self.net.fix_variables(sess, cfg.FLAGS.pretrained_model)
        print('Fixed.')
        sess.run(tf.assign(lr, cfg.FLAGS.learning_rate))
        last_snapshot_iter = 0
        it = []
        timer = Timer()
        iter = last_snapshot_iter + 1
        ##########jia
        Los=[]
        last_summary_time = time.time()
        while iter < cfg.FLAGS.max_iters + 1:
            # Learning rate
            if iter == cfg.FLAGS.step_size + 1:
                # Add snapshot here before reducing the learning rate
                # self.snapshot(sess, iter)
                sess.run(tf.assign(lr, cfg.FLAGS.learning_rate * cfg.FLAGS.gamma))
            timer.tic()
            # Get training data, one batch at a time
            blobs = self.data_layer.forward()
            #jia
            it.append(iter)
            # Compute the graph without summary
            try:
                rpn_loss_cls, rpn_loss_box, loss_cls, loss_box, total_loss = self.net.train_step(sess, blobs, train_op)
            except Exception:
                # if some errors were encountered image is skipped without increasing iterations
                print('image invalid, skipping')
                continue
            timer.toc()
            iter += 1
            # Display training information
            if iter % (cfg.FLAGS.display) == 0:
                print('iter: %d / %d, total loss: %.6f\n >>> rpn_loss_cls: %.6f\n '
                      '>>> rpn_loss_box: %.6f\n >>> loss_cls: %.6f\n >>> loss_box: %.6f\n ' % \
                      (iter, cfg.FLAGS.max_iters, total_loss, rpn_loss_cls, rpn_loss_box, loss_cls, loss_box))
                print('speed: {:.3f}s / iter'.format(timer.average_time))
            if iter % cfg.FLAGS.snapshot_iterations == 0:
                self.snapshot(sess, iter )
        ####jia
            Los.append(total_loss)
            print(it,Los)
            print(len(it),len(Los))
        if len(it)>=len(Los):
            idex=len(Los)
            it=it[0:idex]
            plt.plot(it, Los)
            plt.xlabel('iters')
            plt.ylabel('loss')
            plt.title("loss_iter_picture")
            plt.show()

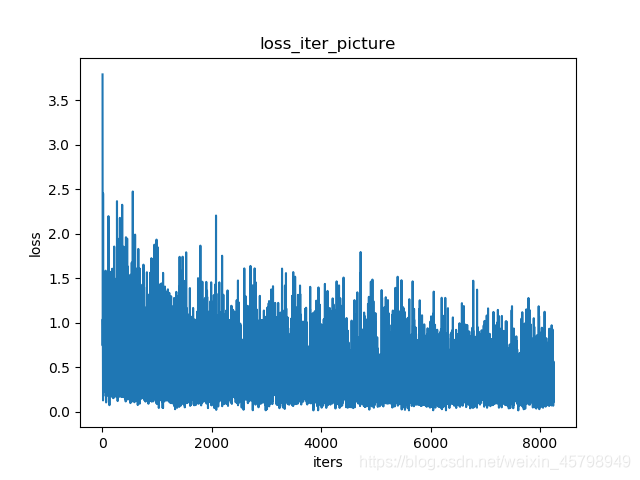

正常有log文件可以利用tensorboad进行数据可视化，但是这里没有log日志生成，于是将迭代次数与损失收集到两个列表中进行malplotlib绘制。

为了快速贴图仅迭代100次（但是好像有些震荡）
