1
、安装关联包
#
yum install -y net-snmp-utils net-snmp-perl net-snmp
2
、下载
zabbix-
3.2.4 tar
包
#
cd /usr/local/src/
#
wget
https://nchc.dl.sourceforge.net/project/zabbix/ZABBIX%20Latest%20Stable/3.2.4/zabbix-3.2.4.tar.gz
# tar -zxvfzabbix-3.2.4.tar.gz
3
、配置
#
cp -a/usr/local/src/zabbix-3.2.4/misc/snmptrap/zabbix_trap_receiver.pl /usr/bin/
#chmod +x
/usr/bin/zabbix_trap_receiver.pl
#
vi /etc/snmp/snmptrapd.conf
|
perl do “/usr/bin/zabbix_trap_receiver.pl”; |
#
vi /etc/zabbix/zabbix_server.conf
#
或者编辑
zabbix_proxy.conf
StartSNMPTrapper
=
1
SNMPTrapperFile
=
/tmp/zabbix_traps.tmp
#
该目录必须与
zabbix
_trap_receiver.pl
脚本中定义一致
# systemctl restart zabbix-server
4
、导入
mib
库
将
mib
库文件复制至
/usr/share/snmp/mibs
目录中并新建与配置
/etc/snmp/snmp.conf
文件。
mibs +JUNIPER-MIB:JUNIPER-FABRIC-CHASSIS:BGP4-MIB
5
、重启
snmptrapd
生效
#systemctl enable snmptrapd
#systemctl restart snmptrapd
# netstat -tunlp |grep 162
udp 0 0 0.0.0.0:162 0.0.0.0:* 4620/snmptrapd
6
、配置
snmptrap
存档
#
mkdir -p /var/log/zabbix_traps_archive
# vi
/etc/logrotate.d/zabbix_traps
|
|
7
、测试
#
snmptrap -v 1 -c public 127.0.0.1 ‘.1.3.6.1.6.3.1.1.5.4’ ‘0.0.0.0’ 633 ’55’ .1.3.6.1.6.3.1.1.5.4 s “eno16780032”
#
more /tmp/zabbix_traps.tmp
|
16:12:20 2017/03/21 ZBXTRAP 127.0.0.1 PDU INFO: notificationtype TRAP version 0 receivedfrom UDP: [127.0.0.1]:42462->[127.0.0.1]:162 errorstatus 0 messageid 0 community public transactionid 1 errorindex 0 requestid 0 VARBINDS: DISMAN-EVENT-MIB::sysUpTimeInstance type=67 value=Timeticks: (55) 0:00:00.55 SNMPv2-MIB::snmpTrapOID.0 type=6 value=OID: IF-MIB::linkUp.0.33 IF-MIB::linkUp type=4 value=STRING: “eno16780032” SNMP-COMMUNITY-MIB::snmpTrapCommunity.0 type=4 value=STRING: “public” SNMPv2-MIB::snmpTrapEnterprise.0 type=6 value=OID: IF-MIB::linkUp |
8
、配置
zabbix web
端

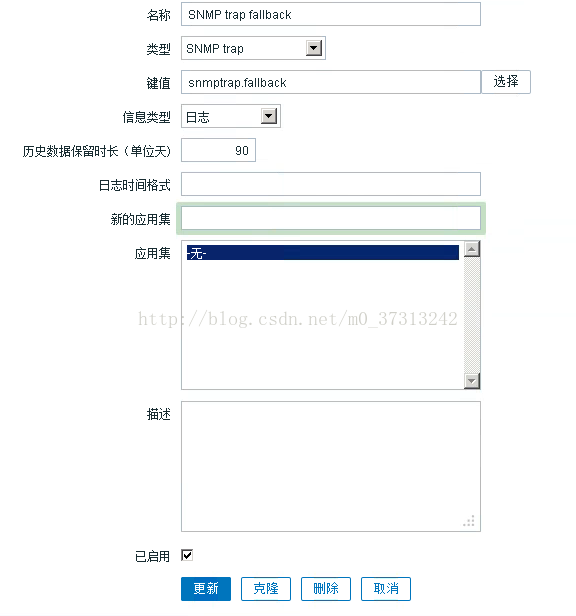

①新建模板
“TemplateSNMP trap fallback”
新建监控项：
Name: SNMP trap fallback
Type:
SNMP trap
Key:
snmptrap.fallback
Type of information:
Log
②新建模板“Template SNMP traps”
并链接至模板“
Template SNMP trap fallback
”

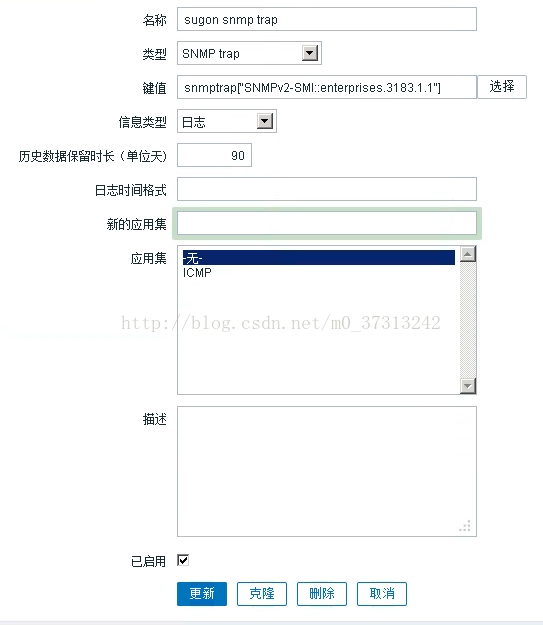

新建监控项：
snmptrap
test

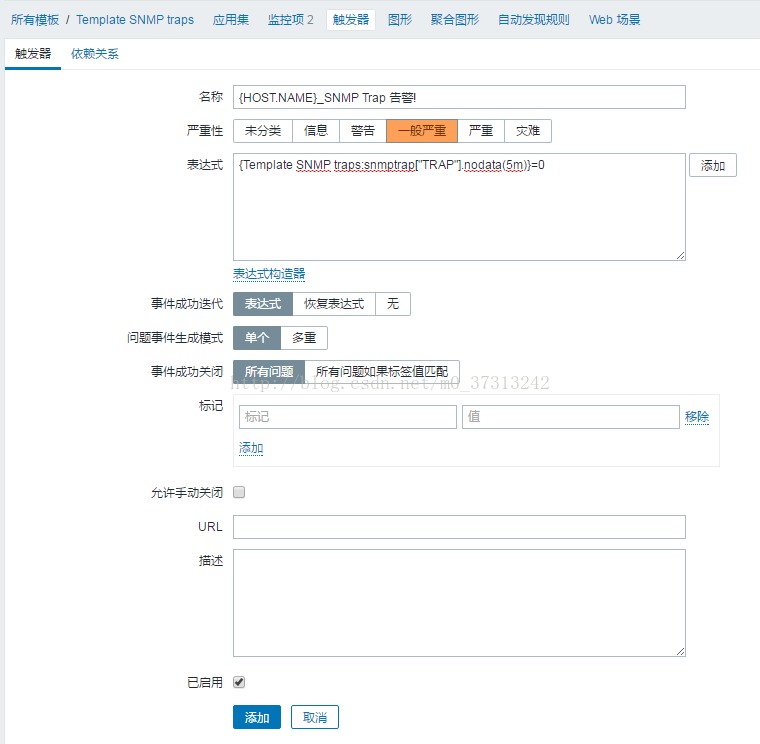

新建触发器
