SpringBoot之interceptor

今天将对SpringBoot中的拦截器interceptor从功能、实现、源码等方面进行分析。

何为拦截器

拦截器，在AOP(Aspect-Oriented Programming)中用于在某个方法或字段被访问之前，进行拦截，然后在之前或之后加入某些操作。拦截是AOP的一种实现策略。

拦截器作用

日志记录：记录请求信息的日志，以便进行信息监控、信息统计、计算PV（Page View）等
权限检查：如登录检测，进入处理器检测检测是否登录
性能监控：通过拦截器在进入处理器之前记录开始时间，在处理完后记录结束时间，从而得到该请求的处理时间。（反向代理，如apache也可以自动记录）；
通用行为：读取cookie得到用户信息并将用户对象放入请求，从而方便后续流程使用，还有如提取Locale、Theme信息等，只要是多个处理器都需要的即可使用拦截器实现。

拦截器实现

通过实现HandlerInterceptor接口，并重写该接口的三个方法来实现拦截器的自定义。

接口	接口名称	说明
preHandle	前置处理	在实际的Handle执行前执行；有Boolean类型的返回值，如果返回为False，则Handle本身及postHandle/afterCompletion以及后续的拦截器全部都不会再继续执行；为True则反之。
postHandle	后置处理	Handle执行后视图渲染前执行
afterCompletion	完成后处理	Handle执行且视图渲染完成后执行

运行流程如下：

拦截器执行顺序是按照Spring配置文件中定义的顺序而定的。
会先按照顺序执行所有拦截器的preHandle方法，一直遇到return false为止，比如第二个preHandle方法是return false，则第三个以及以后所有拦截器都不会执行。若都是return true，则按顺序加载完preHandle方法。
然后执行主方法（自己的controller接口），若中间抛出异常，则跟return false效果一致，不会继续执行postHandle，只会倒序执行afterCompletion方法。
在主方法执行完业务逻辑（页面还未渲染数据）时，按倒序执行postHandle方法。若第三个拦截器的preHandle方法return false，则会执行第二个和第一个的postHandle方法和afterCompletion（postHandle都执行完才会执行这个，也就是页面渲染完数据后，执行after进行清理工作）方法。（postHandle和afterCompletion都是倒序执行）

一般实现拦截器都是继承

HandlerInterceptorAdapter

这个类。这个类是实现AsyncHandlerInterceptor接口的抽象类，而AsyncHandlerInterceptor又是继承HandlerInterceptor的接口，额外提供了

afterConcurrentHandlingStarted

方法，该方法是用来处理异步请求的。这个方法会在Controller方法异步执行时开始执行，而Interceptor的postHandle方法则是需要等到Controller的异步执行完才能执行。异步请求先支持preHandle、然后执行afterConcurrentHandlingStarted。异步线程完成之后执行preHandle、postHandle、afterCompletion。

这里来看一下HandlerInterceptorAdapter的源码：

/*
 * Copyright 2002-2016 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.web.servlet.handler;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.AsyncHandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;

/**
 * Abstract adapter class for the {@link AsyncHandlerInterceptor} interface,
 * for simplified implementation of pre-only/post-only interceptors.
 *
 * @author Juergen Hoeller
 * @since 05.12.2003
 */
public abstract class HandlerInterceptorAdapter implements AsyncHandlerInterceptor {

	/**
	 * This implementation always returns {@code true}.
	 */
	@Override
	public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler)
			throws Exception {

		return true;
	}

	/**
	 * This implementation is empty.
	 */
	@Override
	public void postHandle(
			HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView)
			throws Exception {
	}

	/**
	 * This implementation is empty.
	 */
	@Override
	public void afterCompletion(
			HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)
			throws Exception {
	}

	/**
	 * This implementation is empty.
	 */
	@Override
	public void afterConcurrentHandlingStarted(
			HttpServletRequest request, HttpServletResponse response, Object handler)
			throws Exception {
	}

}

可见HandlerInterceptorAdapter它“empty”地实现了三个HandlerInterceptor的三个方法和AsyncHandlerInterceptor新增的处理异步方法。如果实现HandlerInterceptor接口的话，三个方法必须实现，不管需不需要，而HandlerInterceptorAdapter适配器，允许我们只实现需要的回调方法，这应该算是适配器设计模式的实现。

下面简单创建一个自定义的拦截器demo，继承HandlerInterceptorAdapter

。

public class LogInterceptor extends HandlerInterceptorAdapter {

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        System.out.println("================================== preHandle1 ===========================================");
        return true;
    }

    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
        System.out.println("================================== postHandle1 ===========================================");
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        System.out.println("================================== afterCompletion1 ===========================================");
    }

}

还需要创建一个配置类将该拦截器注入到spring容器中，这个配置类要实现WebMvcConfigurer。（继承WebMvcConfigurerAdapter类这种方式官方建议废弃）

@Configuration
public class WebConfig implements WebMvcConfigurer {

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(new LogInterceptor());
    }
}

HandlerInterceptor源码

直接上翻译后的源码：

public interface HandlerInterceptor {


	 /**
     * preHandle方法是进行处理器拦截用的，顾名思义，该方法将在Controller处理之前进行调用，SpringMVC中的Interceptor拦截器是链式的，可以同时存在
     * 多个Interceptor，然后SpringMVC会根据声明的前后顺序一个接一个的执行，而且所有的Interceptor中的preHandle方法都会在
     * Controller方法调用之前调用。SpringMVC的这种Interceptor链式结构也是可以进行中断的，这种中断方式是令preHandle的返
     * 回值为false，当preHandle的返回值为false的时候整个请求就结束了。
     */
	boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler)
	    throws Exception;


	/**
     * 这个方法只会在当前这个Interceptor的preHandle方法返回值为true的时候才会执行。postHandle是进行处理器拦截用的，它的执行时间是在处理器进行处理之
     * 后，也就是在Controller的方法调用之后执行，但是它会在DispatcherServlet进行视图的渲染之前执行，也就是说在这个方法中你可以对ModelAndView进行操
     * 作。这个方法的链式结构跟正常访问的方向是相反的，也就是说先声明的Interceptor拦截器该方法反而会后调用，这跟Struts2里面的拦截器的执行过程有点像，
     * 只是Struts2里面的intercept方法中要手动的调用ActionInvocation的invoke方法，Struts2中调用ActionInvocation的invoke方法就是调用下一个Interceptor
     * 或者是调用action，然后要在Interceptor之前调用的内容都写在调用invoke之前，要在Interceptor之后调用的内容都写在调用invoke方法之后。
     */
	void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView)
			throws Exception;


	/**
     * 该方法也是需要当前对应的Interceptor的preHandle方法的返回值为true时才会执行。该方法将在整个请求完成之后，也就是DispatcherServlet渲染了视图执行，
     * 这个方法的主要作用是用于清理资源的，当然这个方法也只能在当前这个Interceptor的preHandle方法的返回值为true时才会执行。
     */
	void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)
			throws Exception;

}

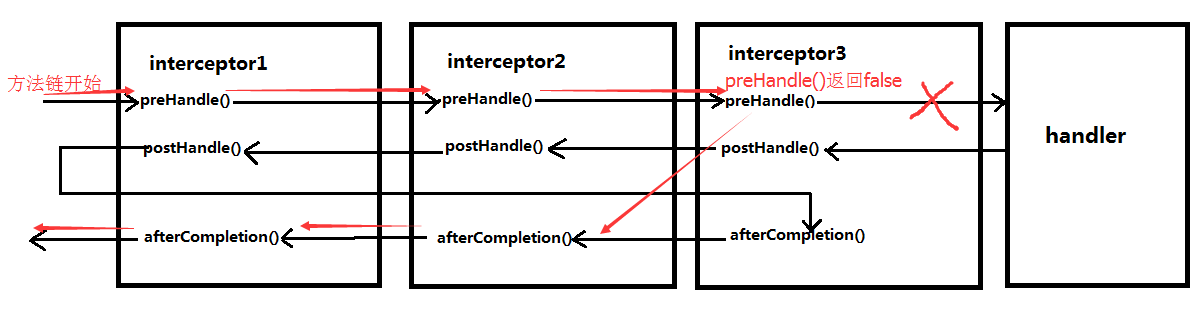

每一个拦截器都有一个preHandle()方法和postHandle()方法。在调用处理器之前后，都会调用拦截器。由许多个拦截器组成一个执行链，而这个执行链是以数组的形式存在。所以，执行这个执行链的中的所有拦截器的preHandle()方法是按照interceptor[]数组的正序执行的，也就是按数组下标从小到大执行每一个拦截器的preHandle()方法。而拦截器的postHandle()方法的执行是按照逆序执行的，也就是按照interceptor[]数组的下标从大到小的顺序执行拦截器中的postHandle()方法。而拦截器中的每一个afterCompletion()方法都是在渲染完视图以后按照interceptor[]数组的下标从大到小的顺序执行拦截器中的afterCompletion()方法，也就是说afterCompletion()方法的执行顺序跟postHandle()方法的执行顺序是一样的。如下图：

当然这是正常情况下的执行顺序，但是当某一个拦截器的preHandle()方法()返回false,那么handler(处理器就不会执行)。它会直接去掉用当前拦截器的前一个拦截器的afterCompletion()方法，从这个方法开始逆序执行。比如：这里的interceptor3的preHandle()方法返回false。那么就会直接调用interceptor2的afterCompletion()方法，并从这个方法开始逆序执行至结束。

HandlerInterceptor实现原理

下面结合SpringMVC来看一下拦截器的内部实现。源码上关键地方均加了注释。

首先，我们看一下
org.springframework.web.servlet.DispatcherServlet
doDispatch方法，在这里可见执行顺序：preHandle->controller对应的方法->postHandle->afterCompletion->afterConcurrentHandlingStarted。


    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;

        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            ModelAndView mv = null;
            Exception dispatchException = null;

            try {
                processedRequest = checkMultipart(request);
                multipartRequestParsed = (processedRequest != request);

                // Determine handler for the current request.
                mappedHandler = getHandler(processedRequest);
                if (mappedHandler == null || mappedHandler.getHandler() == null) {
                    noHandlerFound(processedRequest, response);
                    return;
                }

                // Determine handler adapter for the current request.
                HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

                // Process last-modified header, if supported by the handler.
                String method = request.getMethod();
                boolean isGet = "GET".equals(method);
                if (isGet || "HEAD".equals(method)) {
                    long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                    if (logger.isDebugEnabled()) {
                        logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
                    }
                    if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
                        return;
                    }
                }
                //调用已注册HandlerInterceptor的preHandle()方法
                if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                    return;
                }

                // 真正执行Controller对应的方法
                mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

                if (asyncManager.isConcurrentHandlingStarted()) {
                    return;
                }

                applyDefaultViewName(processedRequest, mv);
                //调用已注册HandlerInterceptor的postHandle()方法
                mappedHandler.applyPostHandle(processedRequest, response, mv);
            }
            catch (Exception ex) {
                dispatchException = ex;
            }
            catch (Throwable err) {
                // As of 4.3, we're processing Errors thrown from handler methods as well,
                // making them available for @ExceptionHandler methods and other scenarios.
                dispatchException = new NestedServletException("Handler dispatch failed", err);
            }
            processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
        }
        catch (Exception ex) {
            //调用已注册HandlerInterceptor的afterCompletion()方法
            triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
        }
        catch (Throwable err) {
            //调用已注册HandlerInterceptor的afterCompletion()方法
            triggerAfterCompletion(processedRequest, response, mappedHandler,
                    new NestedServletException("Handler processing failed", err));
        }
        finally {
            if (asyncManager.isConcurrentHandlingStarted()) {
                // Instead of postHandle and afterCompletion
                if (mappedHandler != null) {
                    //调用已注册HandlerInterceptor的afterConcurrentHandlingStarted()方法
                    mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
                }
            }
            else {
                // Clean up any resources used by a multipart request.
                if (multipartRequestParsed) {
                    cleanupMultipart(processedRequest);
                }
            }
        }
    }
    /**
     * Handle the result of handler selection and handler invocation, which is
     * either a ModelAndView or an Exception to be resolved to a ModelAndView.
     */
    private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
            HandlerExecutionChain mappedHandler, ModelAndView mv, Exception exception) throws Exception {

        boolean errorView = false;

        if (exception != null) {
            if (exception instanceof ModelAndViewDefiningException) {
                logger.debug("ModelAndViewDefiningException encountered", exception);
                mv = ((ModelAndViewDefiningException) exception).getModelAndView();
            }
            else {
                Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
                mv = processHandlerException(request, response, handler, exception);
                errorView = (mv != null);
            }
        }

        // Did the handler return a view to render?
        if (mv != null && !mv.wasCleared()) {
            render(mv, request, response);
            if (errorView) {
                WebUtils.clearErrorRequestAttributes(request);
            }
        }
        else {
            if (logger.isDebugEnabled()) {
                logger.debug("Null ModelAndView returned to DispatcherServlet with name '" + getServletName() +
                        "': assuming HandlerAdapter completed request handling");
            }
        }

        if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
            // Concurrent handling started during a forward
            return;
        }

        if (mappedHandler != null) {
            //调用已注册HandlerInterceptor的afterCompletion()方法
            mappedHandler.triggerAfterCompletion(request, response, null);
        }
    }

接下来看看 HandlerExecutionChain的applyPreHandle方法实现：


    /**
     * 执行注册到该请求上的所有HandlerInterceptor的 preHandle 方法
     */
    boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HandlerInterceptor[] interceptors = getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            for (int i = 0; i < interceptors.length; i++) {
                HandlerInterceptor interceptor = interceptors[i];
                if (!interceptor.preHandle(request, response, this.handler)) {
                    triggerAfterCompletion(request, response, null);
                    return false;
                }
                this.interceptorIndex = i;
            }
        }
        return true;
    }

    public HandlerInterceptor[] getInterceptors() {
        if (this.interceptors == null && this.interceptorList != null) {
            this.interceptors = this.interceptorList.toArray(new HandlerInterceptor[this.interceptorList.size()]);
        }
        return this.interceptors;
    }

HandlerExecutionChain的applyPostHandle方法实现：

    /**
     * 执行注册到该请求上的所有HandlerInterceptor的 postHandle 方法
     */
    void applyPostHandle(HttpServletRequest request, HttpServletResponse response, ModelAndView mv) throws Exception {
        HandlerInterceptor[] interceptors = getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            for (int i = interceptors.length - 1; i >= 0; i--) {
                HandlerInterceptor interceptor = interceptors[i];
                interceptor.postHandle(request, response, this.handler, mv);
            }
        }
    }

HandlerExecutionChain的triggerAfterCompletion方法实现：

    /**
     * 执行注册到该请求上的所有HandlerInterceptor的 afterCompletion 方法
     */
    void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, Exception ex)
            throws Exception {

        HandlerInterceptor[] interceptors = getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            for (int i = this.interceptorIndex; i >= 0; i--) {
                HandlerInterceptor interceptor = interceptors[i];
                try {
                    interceptor.afterCompletion(request, response, this.handler, ex);
                }
                catch (Throwable ex2) {
                    logger.error("HandlerInterceptor.afterCompletion threw exception", ex2);
                }
            }
        }
    }

最后，HandlerExecutionChain的applyAfterConcurrentHandlingStarted方法实现：


    /**
     * 执行注册到该请求上的所有AsyncHandlerInterceptor的 afterConcurrentHandlingStarted 方法
     */
    void applyAfterConcurrentHandlingStarted(HttpServletRequest request, HttpServletResponse response) {
        HandlerInterceptor[] interceptors = getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            for (int i = interceptors.length - 1; i >= 0; i--) {
                if (interceptors[i] instanceof AsyncHandlerInterceptor) {
                    try {
                        AsyncHandlerInterceptor asyncInterceptor = (AsyncHandlerInterceptor) interceptors[i];
                        asyncInterceptor.afterConcurrentHandlingStarted(request, response, this.handler);
                    }
                    catch (Throwable ex) {
                        logger.error("Interceptor [" + interceptors[i] + "] failed in afterConcurrentHandlingStarted", ex);
                    }
                }
            }
        }
    }

接下来，HandlerExecutionChain 内部的Interceptor数组是在什么时候初始化的呢？

来看看 HandlerExecutionChain 类的定义，源码如下：


package org.springframework.web.servlet;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.springframework.util.CollectionUtils;
import org.springframework.util.ObjectUtils;

public class HandlerExecutionChain {

    private static final Log logger = LogFactory.getLog(HandlerExecutionChain.class);

    private final Object handler;

    private HandlerInterceptor[] interceptors;

    private List<HandlerInterceptor> interceptorList;

    private int interceptorIndex = -1;

    public HandlerExecutionChain(Object handler) {
        this(handler, (HandlerInterceptor[]) null);
    }

    public HandlerExecutionChain(Object handler, HandlerInterceptor... interceptors) {
        if (handler instanceof HandlerExecutionChain) {
            HandlerExecutionChain originalChain = (HandlerExecutionChain) handler;
            this.handler = originalChain.getHandler();
            this.interceptorList = new ArrayList<HandlerInterceptor>();
            CollectionUtils.mergeArrayIntoCollection(originalChain.getInterceptors(), this.interceptorList);
            CollectionUtils.mergeArrayIntoCollection(interceptors, this.interceptorList);
        }
        else {
            this.handler = handler;
            this.interceptors = interceptors;
        }
    }

    /**
     * 向handler中添加interceptor
     */
    public void addInterceptor(HandlerInterceptor interceptor) {
        initInterceptorList().add(interceptor);
    }

    /**
     * 向handler中添加多个interceptor
     */
    public void addInterceptors(HandlerInterceptor... interceptors) {
        if (!ObjectUtils.isEmpty(interceptors)) {
            initInterceptorList().addAll(Arrays.asList(interceptors));
        }
    }

    private List<HandlerInterceptor> initInterceptorList() {
        if (this.interceptorList == null) {
            this.interceptorList = new ArrayList<HandlerInterceptor>();
            if (this.interceptors != null) {
                // An interceptor array specified through the constructor
                this.interceptorList.addAll(Arrays.asList(this.interceptors));
            }
        }
        this.interceptors = null;
        return this.interceptorList;
    }

    /**
     * 按顺序返回handler上的HandlerInterceptor列表
     */
    public HandlerInterceptor[] getInterceptors() {
        if (this.interceptors == null && this.interceptorList != null) {
            this.interceptors = this.interceptorList.toArray(new HandlerInterceptor[this.interceptorList.size()]);
        }
        return this.interceptors;
    }
}

HandlerExecutionChain 提供了addInterceptors()方法来添加HandlerInterceptor，那addInterceptors是在哪里被调用的呢？

回到DispatcherServlet 的 doDispatch方法中，如下：


    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;

        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            ModelAndView mv = null;
            Exception dispatchException = null;

            try {
                processedRequest = checkMultipart(request);
                multipartRequestParsed = (processedRequest != request);

                // 获取当前请求对应的handler
                mappedHandler = getHandler(processedRequest);
                if (mappedHandler == null || mappedHandler.getHandler() == null) {
                    noHandlerFound(processedRequest, response);
                    return;
                }
                ...
            }
            catch (Exception ex) {
                dispatchException = ex;
            }
            catch (Throwable err) {
                ...
            }
            processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
        }
        catch (Exception ex) {
            triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
        }
        catch (Throwable err) {
            triggerAfterCompletion(processedRequest, response, mappedHandler,
                    new NestedServletException("Handler processing failed", err));
        }
        finally {
            ...
        }
    }

    /**
     * 获取当前请求对应的HandlerExecutionChain
     */
    protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
        for (HandlerMapping hm : this.handlerMappings) {
            if (logger.isTraceEnabled()) {
                logger.trace(
                        "Testing handler map [" + hm + "] in DispatcherServlet with name '" + getServletName() + "'");
            }
            HandlerExecutionChain handler = hm.getHandler(request);
            if (handler != null) {
                return handler;
            }
        }
        return null;
    }

接着来看看HandlerMapping 的getHandler(request)方法，HandlerMapping是一个接口，getHandler(request)方法是在AbstractHandlerMapping中实现的，如下：


    @Override
    public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
        //获取请求对应的handler
        Object handler = getHandlerInternal(request);
        if (handler == null) {
            handler = getDefaultHandler();
        }
        if (handler == null) {
            return null;
        }
        // Bean name or resolved handler?
        if (handler instanceof String) {
            String handlerName = (String) handler;
            handler = getApplicationContext().getBean(handlerName);
        }
        //根据handler构造HandlerExecutionChain
        HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);
        if (CorsUtils.isCorsRequest(request)) {
            CorsConfiguration globalConfig = this.corsConfigSource.getCorsConfiguration(request);
            CorsConfiguration handlerConfig = getCorsConfiguration(handler, request);
            CorsConfiguration config = (globalConfig != null ? globalConfig.combine(handlerConfig) : handlerConfig);
            executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
        }
        return executionChain;
    }

    /**
     * 构造HandlerExecutionChain, 并初始化HandlerInterceptor
     */
    protected HandlerExecutionChain getHandlerExecutionChain(Object handler, HttpServletRequest request) {
        HandlerExecutionChain chain = (handler instanceof HandlerExecutionChain ?
                (HandlerExecutionChain) handler : new HandlerExecutionChain(handler));

        String lookupPath = this.urlPathHelper.getLookupPathForRequest(request);
        for (HandlerInterceptor interceptor : this.adaptedInterceptors) {
            if (interceptor instanceof MappedInterceptor) {
                MappedInterceptor mappedInterceptor = (MappedInterceptor) interceptor;
                if (mappedInterceptor.matches(lookupPath, this.pathMatcher)) {
                    chain.addInterceptor(mappedInterceptor.getInterceptor());
                }
            }
            else {
                chain.addInterceptor(interceptor);
            }
        }
        return chain;
    }

可见，在这里调用了addInterceptor，构造HandlerExecutionChain并初始化HandlerInterceptor。

该方法就是从adaptedInterceptors属性中，根据URL查找添加条件的Interceptor并组装成HandlerExecutionChain并返回。

此处是否满足条件的判断是根据添加拦截器配置时调用的addPathPatterns方法决定的。

那么，要是还想继续深究下去的话：

现在的问题就是adaptedInterceptors属性是如何初始化的。

通过分析AbstractHandlerMapping类，其adaptedInterceptors属性实际是在initInterceptors方法中根据interceptors来进行初始化的。现在的问题转变成interceptors这个属性是如何初始化的了。实际上这个属性是通过setInterceptors方法来设置的，但通过Alt+F7的搜索并未搜索到该方法是在哪个地方调用的。

我们换个思路，通过@EnableWebMvc来分析看通过addInterceptors方法配置的Interceptor在到底添加到哪去了。

前言已经分析，通过@EnableWebMvc注解实际上引入了DelegatingWebMvcConfiguration这个类；查看这个类，在其中有一方法被Autowired注解：

@Autowired(required = false)
public void setConfigurers(List<WebMvcConfigurer> configurers) {
    if (!CollectionUtils.isEmpty(configurers)) {
        this.configurers.addWebMvcConfigurers(configurers);
    }
}

通过查看Autowired注解定义，了解到当它使用在List参数的方法上时，会查找List所包含的对象类型的所有Bean然后进行注入。这也意味着，此处会将所有实现WebMvcConfigurer接口的类进行注入，然后添加到configurers属性中去；在此处，我们自定义的继承自WebMvcConfigurer的类会被注入。

再查看 DelegatingWebMvcConfiguration 这个类，它继承了 WebMvcConfigurationSupport 类。分析WebMvcConfigurationSupport，可以看到以下方法：

@Bean
public RequestMappingHandlerMapping requestMappingHandlerMapping() {
    RequestMappingHandlerMapping mapping = createRequestMappingHandlerMapping();
    mapping.setOrder(0);
    mapping.setInterceptors(getInterceptors());
    mapping.setContentNegotiationManager(mvcContentNegotiationManager());
    mapping.setCorsConfigurations(getCorsConfigurations());

    PathMatchConfigurer configurer = getPathMatchConfigurer();
    Boolean useSuffixPatternMatch = configurer.isUseSuffixPatternMatch();
    Boolean useRegisteredSuffixPatternMatch = configurer.isUseRegisteredSuffixPatternMatch();
    Boolean useTrailingSlashMatch = configurer.isUseTrailingSlashMatch();
    if (useSuffixPatternMatch != null) {
        mapping.setUseSuffixPatternMatch(useSuffixPatternMatch);
    }
    if (useRegisteredSuffixPatternMatch != null) {
        mapping.setUseRegisteredSuffixPatternMatch(useRegisteredSuffixPatternMatch);
    }
    if (useTrailingSlashMatch != null) {
        mapping.setUseTrailingSlashMatch(useTrailingSlashMatch);
    }

    UrlPathHelper pathHelper = configurer.getUrlPathHelper();
    if (pathHelper != null) {
        mapping.setUrlPathHelper(pathHelper);
    }

    PathMatcher pathMatcher = configurer.getPathMatcher();
    if (pathMatcher != null) {
        mapping.setPathMatcher(pathMatcher);
    }

    return mapping;
}

可以看到RequestMappingHandlerMapping类被注入Spring容器。

同时通过mapping.setInterceptors(getInterceptors())将所有的Interceptors设置到HandperMapping对象中。

这样就找到了ReuqestMappingHandlerMapping的setInterceptors方法调用处了。

接下来的问题就是此处调用的getInterceptors方法的实现：

protected final Object[] getInterceptors() {
    if (this.interceptors == null) {
        InterceptorRegistry registry = new InterceptorRegistry();
        addInterceptors(registry);
        registry.addInterceptor(new ConversionServiceExposingInterceptor(mvcConversionService()));
        registry.addInterceptor(new ResourceUrlProviderExposingInterceptor(mvcResourceUrlProvider()));
        this.interceptors = registry.getInterceptors();
    }
    return this.interceptors.toArray();
}

此处如果interceptors对象为空时，会调用addInterceptors方法；其实现在DelegatingWebMvcConfiguration类中：

@Override
protected void addInterceptors(InterceptorRegistry registry) {
    this.configurers.addInterceptors(registry);
}

在前文已经描述到，DelegatingWebMvcConfiguration类中的configurers属性会将所有继承了WebMvcConfigurer的配置类全部添加进去。如我们自定义的配置类；在此处调用DelegatingWebMvcConfiguration的addInterceptors方法时，实际就是调用各个WebMvcConfigurer对象的addInterceptors方法来完成自定义的Interceptor注册过程。

通过这一系列过程，RequestMappingHandlerMapping的getInterceptors方法就可以获取到所有自定义的Interceptor了。

完事！

注：

实现原理部分参考结合了

https://www.jianshu.com/p/b849f9919130

和https://blog.csdn.net/icarusliu/article/details/78833520，两位作者正好各分析了上半段和下半段的源码。

原文链接：https://blog.csdn.net/yyy0224/article/details/104734421

何为拦截器

拦截器作用

拦截器实现

HandlerInterceptor源码

HandlerInterceptor实现原理

你可能也喜欢
