powerDesigner我也是第一次用，之前并没有接触，为此我也百度了连接方法，自己捣鼓后也是成功了，避免遗忘还是记录一下连接步骤

我是用的同事发的安装包，版本相对老，新版没用过，大差不差吧

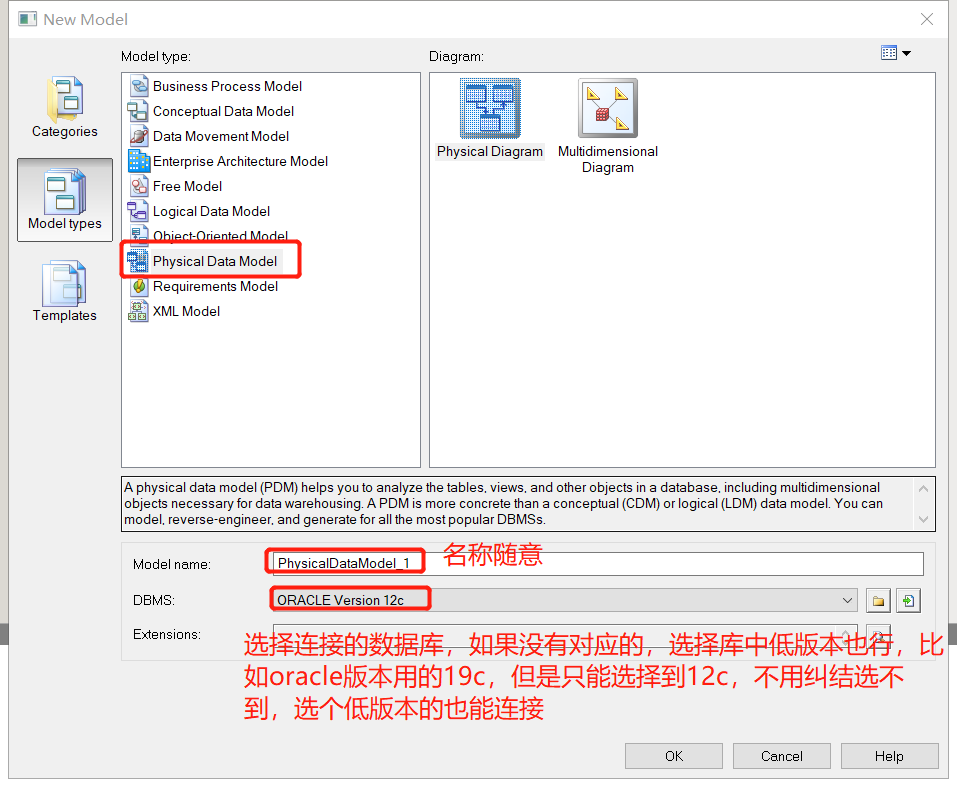

首先创建一个new model  然后选择model types下的Physical Data Model

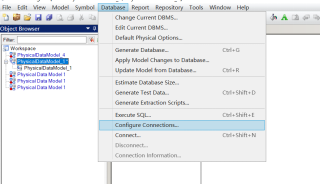

然后选择，database选项卡 选择配置连接

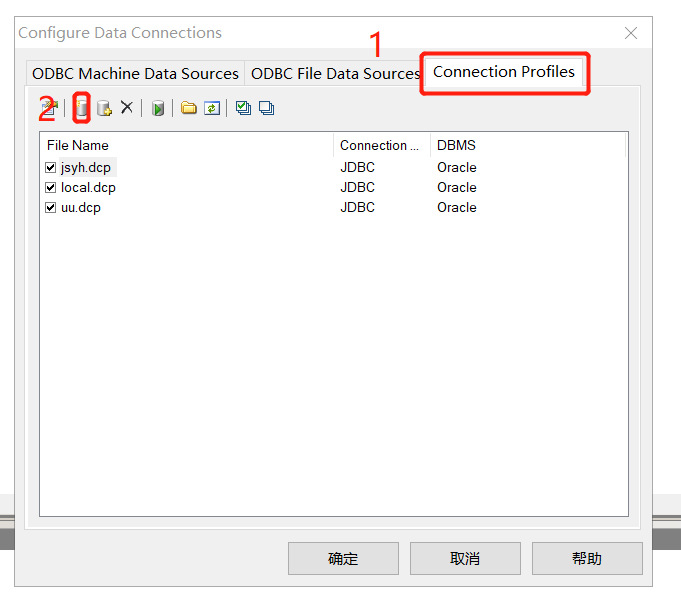

对话框中选择添加 连接

驱动包下载和配置环境变量自行百度，我就不介绍了

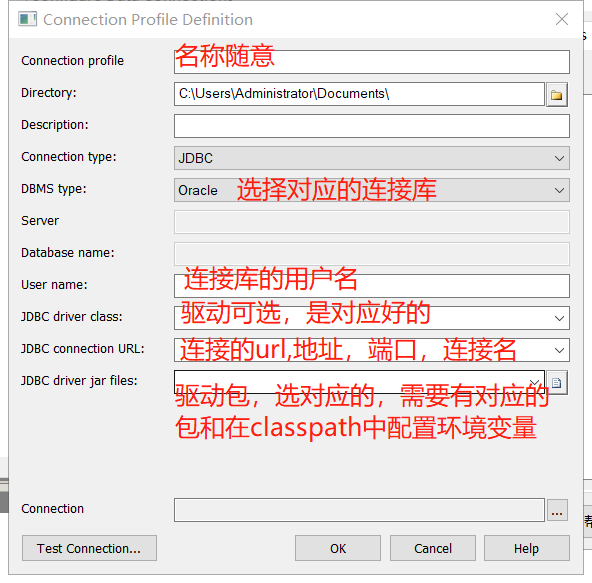

填写示例：

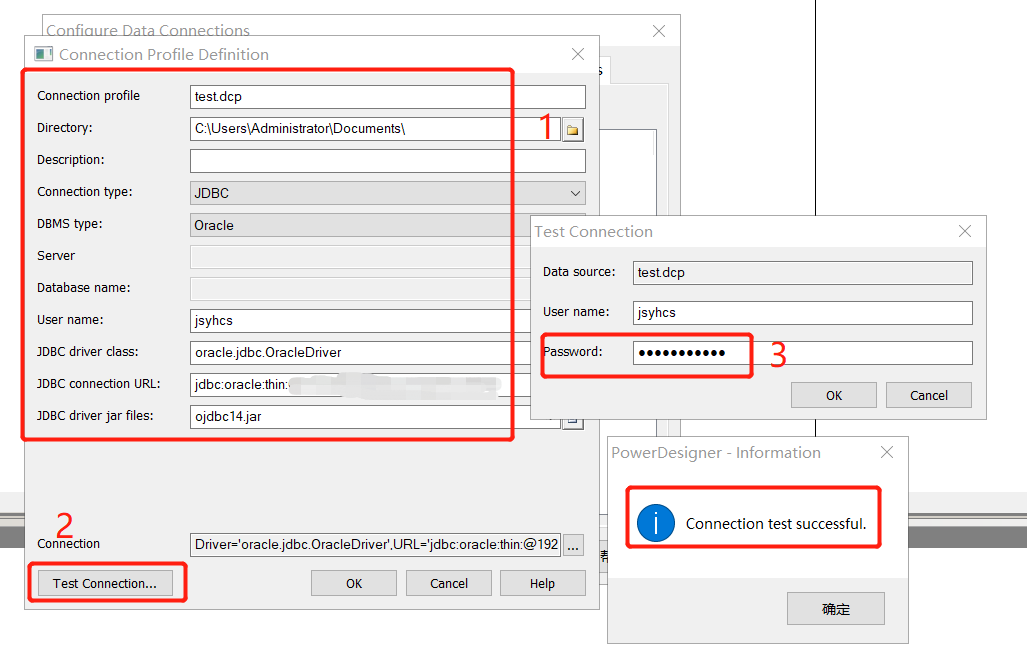

当出现了 连接成功即可用

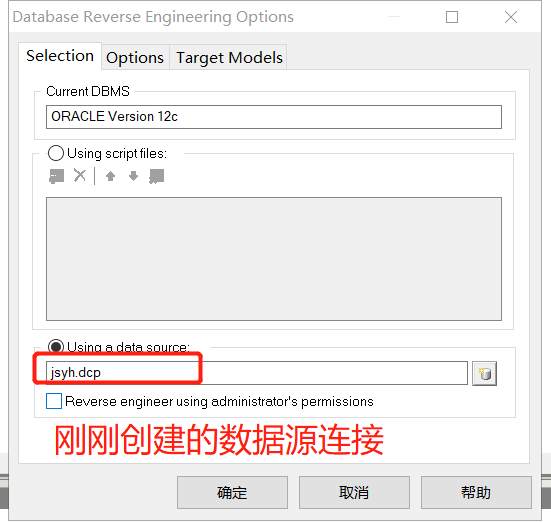

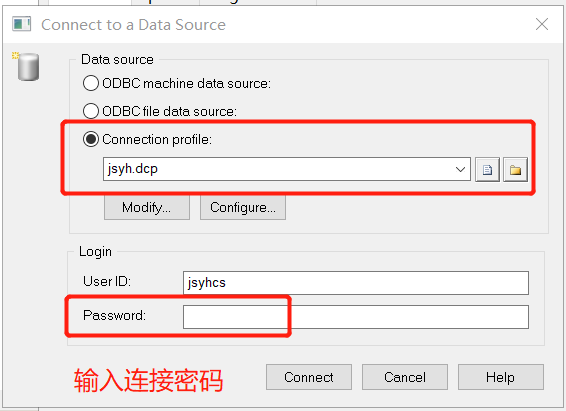

之后就可以从数据库导出pdm了 选择update model from database

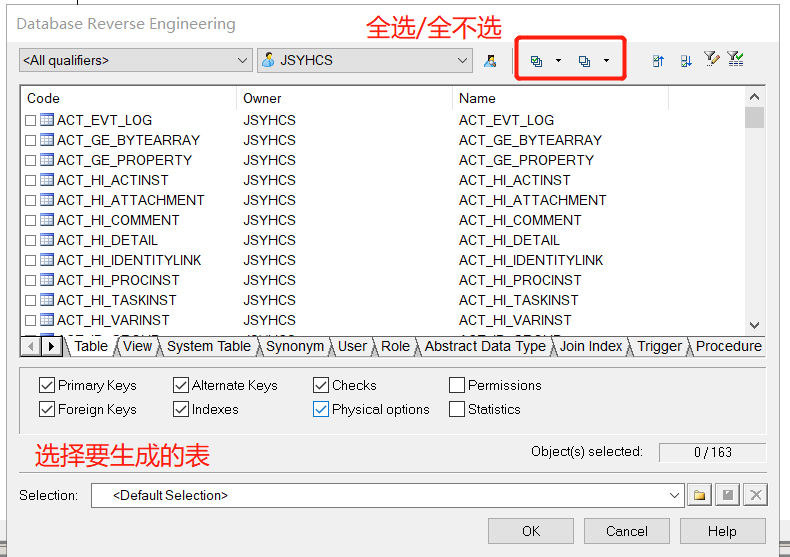

最后生成即可

生成后的name可以变换成数据库中注释内容，详情可参考

https://www.liangzl.com/get-article-detail-170360.html

怕连接失效，将代码复制过来

Ctrl+Shift+X后

Option   Explicit
    ValidationMode   =   True
    InteractiveMode   =   im_Batch
    Dim blankStr
    blankStr   =   Space(1)
    Dim   mdl   '   the   current   model

    '   get   the   current   active   model
    Set   mdl   =   ActiveModel
    If   (mdl   Is   Nothing)   Then
          MsgBox   "There   is   no   current   Model "
    ElseIf   Not   mdl.IsKindOf(PdPDM.cls_Model)   Then
          MsgBox   "The   current   model   is   not   an   Physical   Data   model. "
    Else
          ProcessFolder   mdl
    End   If

    Private   sub   ProcessFolder(folder)
    On Error Resume Next
          Dim   Tab   'running     table
          for   each   Tab   in   folder.tables
                if   not   tab.isShortcut   then
                      tab.name   =   tab.comment
                      Dim   col   '   running   column
                      for   each   col   in   tab.columns
                      if col.comment = "" or replace(col.comment," ", "")="" Then
                            col.name = blankStr
                            blankStr = blankStr & Space(1)
                      else
                            col.name = col.comment
                      end if
                      next
                end   if
          next

          Dim   view   'running   view
          for   each   view   in   folder.Views
                if   not   view.isShortcut   then
                      view.name   =   view.comment
                end   if
          next

          '   go   into   the   sub-packages
          Dim   f   '   running   folder
          For   Each   f   In   folder.Packages
                if   not   f.IsShortcut   then
                      ProcessFolder   f
                end   if
          Next
    end   sub
