气人的中文乱码
今天将R代码迁移到一个新的服务器上,之前用ggplot2画的图中文都是乱码,还弄了半天,就像下面的位置,现在已经处理好了。
本文记录一下这一次解决环境问题的乱码所用的方法。
安装环境
系统:unbuntu 16
R语言版本:3.4.4
方式一:直接安装中文字体
1、建立文件夹:/usr/shared/fonts/chinese
2、将windows的字体(c/windows/fonts)复制字体至文件夹中
3、 修改文件夹权限:chmod -R 755 /usr/share/fonts/chinese
4、mkfontscale(如果提示 mkfontscale: command not found,则需要安装# sudo apt-get install ttf-mscorefonts-installer)
5、mkfontdir
6、fc-cache -fv (如果提示 fc-cache: command not found,则需要安装# sudo apt-get install fontconfig)
这时画图可以直接通过family参数直接进行设置中文字体。
# 例如:
p = ggplot(plot_dat) +
geom_line(aes(x = date, y = freq, col = group)) +
geom_text(aes(x = date, y = freq, label = freq, group = group))
theme(text = element_text(family = 'SimSun')) # 最后这个设置字体

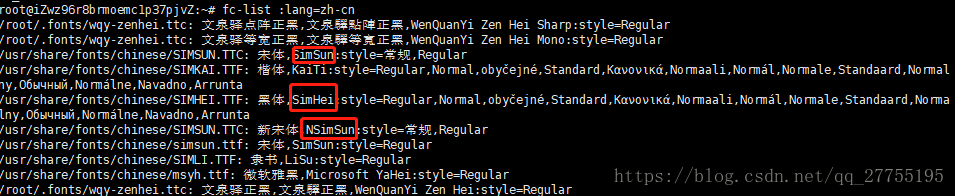

字体的设置你可以通过,
fc-list :lang=zh-cn
命令来查看,下图的红色框框
方式二:全都设置成中文环境
配置linux locale
系统中文语言配置查看Ubuntu当前系统编码

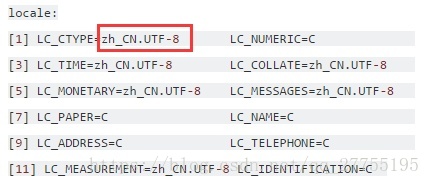

locale如果不是以下中文的信息(而是英文en_US.UTF-8)
按照以下步骤配置中文环境:
1)安装中文
locale-gen zh_CN.UTF-8
2)修改为中文环境
update-locale LANG=zh_CN.UTF-8
3)查看是否修改成功
cat /etc/default/locale
4)设置成功后,重启机器
5) 再次打开Rstuido-server,画一个包含中文的图,测试
# 例如,不用再指定字体就可以直接显示中文了
p = ggplot(plot_dat) +
geom_line(aes(x = date, y = freq, col = group)) +
geom_text(aes(x = date, y = freq, label = freq, group = group))

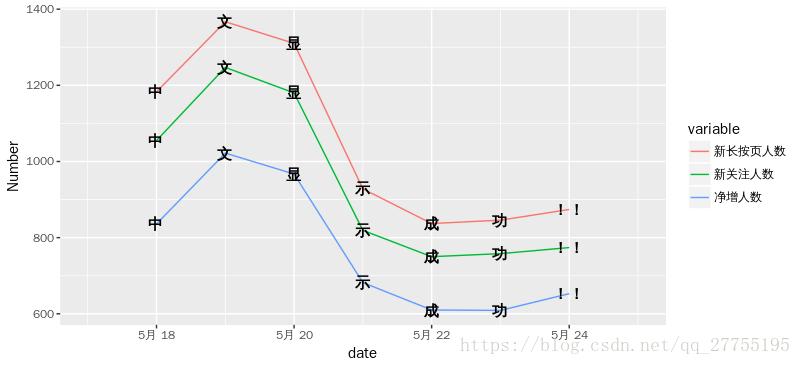

测试结果,Rsudio-server中,中文直接显示成功!
方式三:用showtext包
很尴尬的是我的Rstudio-server中文乱码都已经解决了,但是在Rshiny-server中仍然显示乱码。
所以能使用,showtext包进行设置了
# 在整体上设置字体
library(showtext)
showtext_auto()
font.add("SimSun", "/usr/share/fonts/chinese/SIMSUN.TTC") # 你的中文字体位置
# 画个带中文的图
p = ggplot(plot_dat) +
geom_line(aes(x = date, y = freq, col = group)) +
geom_text(aes(x = date, y = freq, label = freq, group = group), family="SimSun", fontface="bold")
更多关于 showtext包可以看这里
https://cosx.org/2014/01/showtext-interesting-fonts-and-graphs
