概览

seata client跟维持了一个连接，监听server端的消息，根据接到的消息判断是提交还是回滚。

客户端建立流程：

GlobalTransactionScanner.afterPropertiesSet()
   GlobalTransactionScanner.initClient()
      TMClient.init
        TmRpcClient.getInstance
             new TmRpcClient
                new RpcClientBootstrap

RpcClientBootstrap内部包装了netty的Bootstrap，其中会向Bootstrap绑定一个ClientHandler用来处理seata server返回来的消息

，最终通过Bootstrap建立与server端的连接。

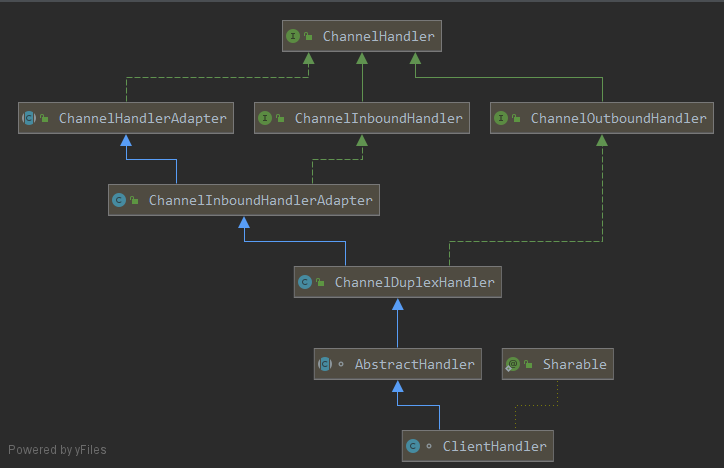

接下来就是核心处理逻辑了，先看看类图

这里ClientHandler实现了ChannelInboundHandler的channelRead()方法，netty在接收到消息（读事件）后，最终会调用channelRead，并传入读到的消息，具体细节可参考netty源码，所以，我们先来看下这个方法的执行流程

ClientHandler.channelRead

AbstractHandler.channelRead

ClientHandler.dispatch

RmMessageListener.onMessage

RmMessageListener会根据消息反序列化后的类型决定事物的提交与回滚

    @Override
    public void onMessage(RpcMessage request, String serverAddress) {
        Object msg = request.getBody();
        if (LOGGER.isInfoEnabled()) {
            LOGGER.info("onMessage:" + msg);
        }
        if (msg instanceof BranchCommitRequest) {
            handleBranchCommit(request, serverAddress, (BranchCommitRequest)msg);
        } else if (msg instanceof BranchRollbackRequest) {
            handleBranchRollback(request, serverAddress, (BranchRollbackRequest)msg);
        } else if (msg instanceof UndoLogDeleteRequest) {
            handleUndoLogDelete((UndoLogDeleteRequest) msg);
        }
    }

这里只说一下rollback，上面的rollback最终会到达AbstracRMHandler.doBranchRollback()

protected void doBranchRollback(BranchRollbackRequest request, BranchRollbackResponse response)
        throws TransactionException {
        String xid = request.getXid();
        long branchId = request.getBranchId();
        String resourceId = request.getResourceId();
        String applicationData = request.getApplicationData();
        if (LOGGER.isInfoEnabled()) {
            LOGGER.info("Branch Rollbacking: " + xid + " " + branchId + " " + resourceId);
        }
        BranchStatus status = getResourceManager().branchRollback(request.getBranchType(), xid, branchId, resourceId,
            applicationData);
        response.setXid(xid);
        response.setBranchId(branchId);
        response.setBranchStatus(status);
        if (LOGGER.isInfoEnabled()) {
            LOGGER.info("Branch Rollbacked result: " + status);
        }
    }

这里会从server发来的消息中获取xid等信息，然后调用AbstractUndoLogManager.undo方法

@Override
    public void undo(DataSourceProxy dataSourceProxy, String xid, long branchId) throws TransactionException {
        Connection conn = null;
        ResultSet rs = null;
        PreparedStatement selectPST = null;
        boolean originalAutoCommit = true;

        for (; ; ) {
            try {
                conn = dataSourceProxy.getPlainConnection();

                // The entire undo process should run in a local transaction.
                if (originalAutoCommit = conn.getAutoCommit()) {
                    conn.setAutoCommit(false);
                }

                // Find UNDO LOG
                selectPST = conn.prepareStatement(SELECT_UNDO_LOG_SQL);
                selectPST.setLong(1, branchId);
                selectPST.setString(2, xid);

                //拿到undo log
                rs = selectPST.executeQuery();

                boolean exists = false;
                while (rs.next()) {
                    exists = true;

                    // It is possible that the server repeatedly sends a rollback request to roll back
                    // the same branch transaction to multiple processes,
                    // ensuring that only the undo_log in the normal state is processed.
                    int state = rs.getInt(ClientTableColumnsName.UNDO_LOG_LOG_STATUS);
                    if (!canUndo(state)) {
                        if (LOGGER.isInfoEnabled()) {
                            LOGGER.info("xid {} branch {}, ignore {} undo_log", xid, branchId, state);
                        }
                        return;
                    }

                    String contextString = rs.getString(ClientTableColumnsName.UNDO_LOG_CONTEXT);
                    Map<String, String> context = parseContext(contextString);
                    byte[] rollbackInfo = getRollbackInfo(rs);

                    String serializer = context == null ? null : context.get(UndoLogConstants.SERIALIZER_KEY);
                    UndoLogParser parser = serializer == null ? UndoLogParserFactory.getInstance()
                        : UndoLogParserFactory.getInstance(serializer);
                    BranchUndoLog branchUndoLog = parser.decode(rollbackInfo);

                    try {
                        // put serializer name to local
                        setCurrentSerializer(parser.getName());
                        List<SQLUndoLog> sqlUndoLogs = branchUndoLog.getSqlUndoLogs();
                        if (sqlUndoLogs.size() > 1) {
                            Collections.reverse(sqlUndoLogs);
                        }
                        for (SQLUndoLog sqlUndoLog : sqlUndoLogs) {
                            TableMeta tableMeta = TableMetaCacheFactory.getTableMetaCache(dataSourceProxy.getDbType()).getTableMeta(
                                conn, sqlUndoLog.getTableName(), dataSourceProxy.getResourceId());
                            sqlUndoLog.setTableMeta(tableMeta);
                            AbstractUndoExecutor undoExecutor = UndoExecutorFactory.getUndoExecutor(
                                dataSourceProxy.getDbType(), sqlUndoLog);

                            //处理delete跟update的回滚
                            undoExecutor.executeOn(conn);
                        }
                    } finally {
                        // remove serializer name
                        removeCurrentSerializer();
                    }
                }

                // If undo_log exists, it means that the branch transaction has completed the first phase,
                // we can directly roll back and clean the undo_log
                // Otherwise, it indicates that there is an exception in the branch transaction,
                // causing undo_log not to be written to the database.
                // For example, the business processing timeout, the global transaction is the initiator rolls back.
                // To ensure data consistency, we can insert an undo_log with GlobalFinished state
                // to prevent the local transaction of the first phase of other programs from being correctly submitted.
                // See https://github.com/seata/seata/issues/489

                if (exists) {
                    deleteUndoLog(xid, branchId, conn);
                    conn.commit();
                    if (LOGGER.isInfoEnabled()) {
                        LOGGER.info("xid {} branch {}, undo_log deleted with {}", xid, branchId,
                            State.GlobalFinished.name());
                    }
                } else {
                    //执行insert的回滚
                    insertUndoLogWithGlobalFinished(xid, branchId, UndoLogParserFactory.getInstance(), conn);
                    conn.commit();
                    if (LOGGER.isInfoEnabled()) {
                        LOGGER.info("xid {} branch {}, undo_log added with {}", xid, branchId,
                            State.GlobalFinished.name());
                    }
                }

                return;
            } catch (SQLIntegrityConstraintViolationException e) {
                // Possible undo_log has been inserted into the database by other processes, retrying rollback undo_log
                if (LOGGER.isInfoEnabled()) {
                    LOGGER.info("xid {} branch {}, undo_log inserted, retry rollback", xid, branchId);
                }
            } catch (Throwable e) {
                if (conn != null) {
                    try {
                        conn.rollback();
                    } catch (SQLException rollbackEx) {
                        LOGGER.warn("Failed to close JDBC resource while undo ... ", rollbackEx);
                    }
                }
                throw new BranchTransactionException(BranchRollbackFailed_Retriable, String
                    .format("Branch session rollback failed and try again later xid = %s branchId = %s %s", xid,
                        branchId, e.getMessage()), e);

            } finally {
                try {
                    if (rs != null) {
                        rs.close();
                    }
                    if (selectPST != null) {
                        selectPST.close();
                    }
                    if (conn != null) {
                        if (originalAutoCommit) {
                            conn.setAutoCommit(true);
                        }
                        conn.close();
                    }
                } catch (SQLException closeEx) {
                    LOGGER.warn("Failed to close JDBC resource while undo ... ", closeEx);
                }
            }
        }
    }

这里做的事情就是拿到事务执行前后的数据镜像，然后解析成rollback sql去进行数据补偿

总结

当全局回滚发生时，server会发送一个回滚消息到client端，client接到回滚通知后，通过xid跟branchid找到对应的undolog，获取到事务执行前后的数据镜像，解析成反向sql进行补偿

同时，我们发现，下游服务不会主动的去rollback全局事务，所以，如果下游异常，但是上游的transcationInterceptor没有感知到这个异常，就不会触发全局回滚
