一、介绍
微信支付对于我们日常来说，并不陌生，也许我们日常都在用。现在我就讲一下微信支付的流程是怎么实现的，都有哪些步骤，以及注意点。
支付流程图：

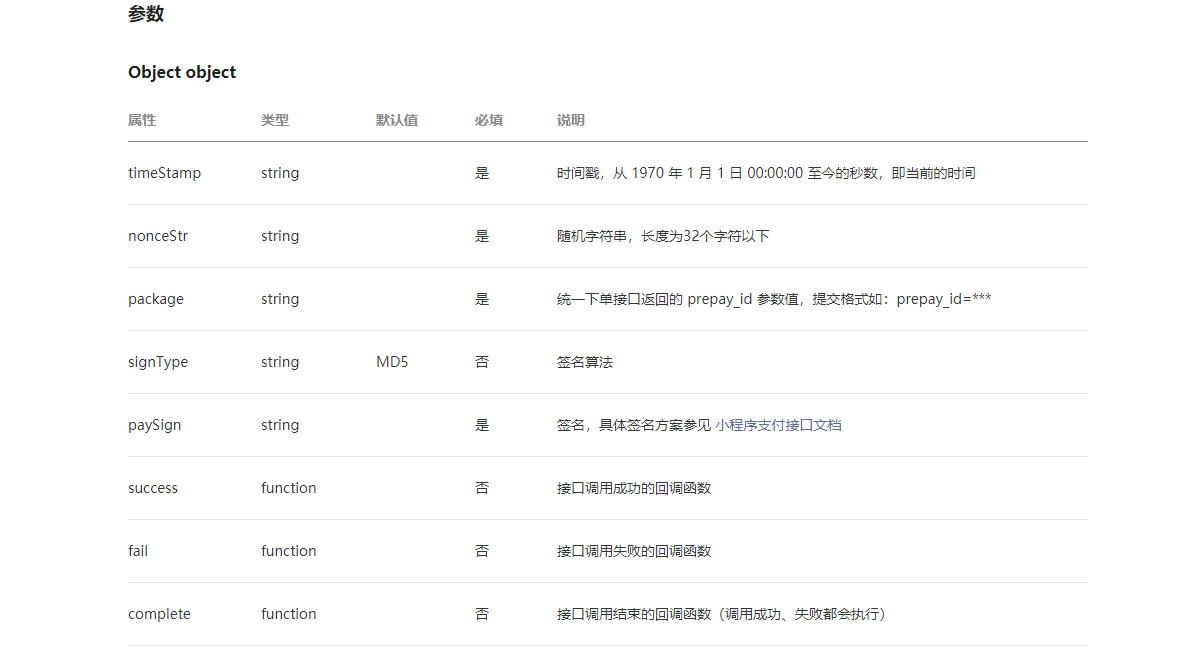

参数说明如图：
二、开发步骤
1、首先需要开通商户号，获取商户mch_id、mch_secret(密钥)
2、开通小程序或公众号，获取小程序或公众号appid、secret(密钥)
3、除了前面2步的准备环境，也就进入主流程步骤，分为3步如下：
3-1：封装有必要的微信支付参数并拉取微信支付API
3-2：对封装的参数进行提取并开始支付阶段，需要二次签名加密
3-3：当3-2步骤支付成功时，会调用回调函数，进行二次签名校验
注意：第一次签名必须保证与二次签名保持一致，否则会导致微信支付失败。【前面2步不讲】
一、封装并校验微信支付相关参数【相关工具类后面附上】
/**
* 微信支付
*
* @param orderPayVo
* @return
*/
@Override
public ResponseEntity<Object> payment(MiniOrderPayVo orderPayVo) {
if (orderPayVo == null) {
return HttpResponseSupport.error(HttpStatus.NOT_FOUND, "订单支付数据不能为空,请检查参数再试", "订单支付数据不能为空,请检查参数再试");
}
String orderNo = orderPayVo.getOrderNo();
if (StringUtil.isEmpty(orderNo)) {
return HttpResponseSupport.miniSuccess(MiniBusinessCodeEnum.USER_ORDER_NO, null);
}
Double money = orderPayVo.getMoney();
String uuid = orderPayVo.getUuid();
if (StringUtils.isBlank(uuid)){
log.info("预支付订单uuid为："+uuid);
return HttpResponseSupport.error(HttpStatus.NOT_FOUND,"订单uuid不能为空","订单uuid不能为空");
}
if (money <= 0) {
return HttpResponseSupport.miniSuccess(MiniBusinessCodeEnum.USER_MONEY, null);
}
//计算总价
BigDecimal amountPrice = new BigDecimal(money);
amountPrice = amountPrice.multiply(new BigDecimal("100")); // 将分转换为元
String totalFee = getTotalFee(amountPrice); // 订单金额处理
Map<String, String> data = new HashMap<>(16);
data.put("body", "xxx产品");
data.put("detail", "xxx产品");
data.put("out_trade_no", orderNo); // 订单号或外部流水号
data.put("fee_type", "CNY"); // 金额类型 默认CNY
data.put("total_fee", totalFee); //经过计算出来价格 单位为分
data.put("spbill_create_ip", WXProperty.WX_IP); // 终端ip
data.put("notify_url", WXProperty.WX_MINI_NOTIFY_URL); // 回调url
data.put("trade_type", "JSAPI"); // 所使用的交易类型 以小程序支付为例
data.put("openid", queryUserInfo()); // 用户openid
Map<String, String> resp = WXMninPaySupport.unifiedOrder(wxPayConfig, data);
if (resp == null) {
return HttpResponseSupport.error(HttpStatus.CONFLICT, "支付失败，请稍后重试！", "支付失败，请稍后重试");
}
//记录订单的uuid， 订单编号 以及 预支付uuid
resp.get("prepay_id"); // 预支付订单ID
resp.put("orderId", orderNo); // 订单编号
resp.put("uuid", uuid);
resp.put("total_fee",totalFee);
//开始支付
return wxPayInfo(resp);
}
二、开始调起微信支付
/**
* 开始支付接口
*
* @param resp
* @return
*/
public ResponseEntity<Object> wxPayInfo(Map<String, String> resp) {
String prePayId = resp.get("prepay_id");
String timeStamp = System.currentTimeMillis() / 1000 + "";
String nonceStr = com.github.wxpay.sdk.WXPayUtil.generateNonceStr();
Map<String, String> data2 = new HashMap<>(10);
data2.put("appId", resp.get("appid"));
data2.put("timeStamp", timeStamp);
data2.put("nonceStr", nonceStr);
String packages = "prepay_id=" + resp.get("prepay_id");
data2.put("package", packages);
data2.put("signType", "MD5");
String sign2 = null;
try {
sign2 = com.github.wxpay.sdk.WXPayUtil.generateSignature(data2, WXProperty.WX_MCH_SECRET);
} catch (Exception e) {
e.printStackTrace();
}
/*----------------------------------------------------*/
MiniWXPayVO result = new MiniWXPayVO();
result.setPrepayId(prePayId);
result.setNonceStr(nonceStr);
result.setPackageStr("prepay_id=" + prePayId);
result.setTimeStamp(new Long(System.currentTimeMillis() / 1000).toString());
result.setSignType("MD5"); // 采用MD5加密算法
result.setPaySign(sign2);
result.setOrderId(resp.get("orderId"));
result.setUuid(resp.get("uuid"));
return HttpResponseSupport.success(result);
}
三、支付成功后自动调用回调函数
/**
* 微信支付回调
*
* @param request
* @param response
* @return
*/
@Override
public void wxPayNotify(HttpServletRequest request, HttpServletResponse response) {
WxCallbackLogs logs = new WxCallbackLogs();
StringBuilder sb = null;
//获取主机ip
String remoteAddr = request.getRemoteAddr();
logs.setRemoteAddr(remoteAddr);
//获取请求url
String requestUrl = request.getRequestURL().toString();
logs.setRequestUrl(requestUrl);
//获取回调响应状态
int status = response.getStatus();
logs.setStatus(status);
try {
BufferedReader br = new BufferedReader(new InputStreamReader((ServletInputStream) request.getInputStream()));
String line = null;
sb = new StringBuilder();
while ((line = br.readLine()) != null) {
sb.append(line);
}
br.close();
} catch (IOException e) {
e.printStackTrace();
}
//sb为微信返回的xml
String notifyXml = sb.toString();
logs.setNotityContent(notifyXml);
String resXml = "";
log.info("接收到的报文：{}" , notifyXml);
try {
@SuppressWarnings("unchecked")
Map<String, String> map = PayUtil.doXMLParse(notifyXml); //解析接收过来的xml文件
String returnCode = map.get("return_code");
logs.setReturnCode(returnCode);
String resultCode = map.get("result_code");
logs.setResultCode(resultCode);
if ("SUCCESS".equals(returnCode) && "SUCCESS".equals(resultCode)) {
//验证签名是否正确
Map<String, String> validParams = PayUtil.paraFilter(map); //回调验签时需要去除sign和空值参数
String validStr = PayUtil.createLinkString(validParams);//把数组所有元素，按照“参数=参数值”的模式用“&”字符拼接成字符串
String sign = PayUtil.sign(validStr, WXProperty.WX_MCH_SECRET, "utf-8").toUpperCase();//拼装生成服务器端验证的签名
// 因为微信回调会有八次之多,所以当第一次回调成功了,那么我们就不再执行逻辑了
String ordersSn = map.get("out_trade_no");//商户订单号
logs.setOrdersSn(ordersSn);
String amountpaid = map.get("total_fee");//实际支付的订单金额:单位 分
String openid = map.get("openid");
logs.setOpenid(openid);
BigDecimal amountPay = (new BigDecimal(amountpaid).divide(new BigDecimal("100"))).setScale(2);//将分转换成元-实际支付金额:元
logs.setAmountPay(amountPay);
//根据微信官网的介绍，此处不仅对回调的参数进行验签，还需要对返回的金额与系统订单的金额进行比对等
if (sign.equals(map.get("sign"))) {
//处理业务逻辑 1、更新订单状态
UserOrderVo orderVo = queryUserOrderInfoByOrderNo(ordersSn);
if (orderVo != null) {
//更新状态信息
orderVo.setUuid(orderVo.getUuid());
orderVo.setPayStatus(2);
orderVo.setPayPrice(amountPay);
orderVo.setOpenId(openid);
Integer result = updOrderInfo(orderVo);
if (result > 0) {
log.info("更新订单状态成功！！！");
}
//通知微信服务器已经支付成功
resXml = "<xml>" + "<return_code><![CDATA[SUCCESS]]></return_code>"
+ "<return_msg><![CDATA[OK]]></return_msg>" + "</xml> ";
}
} else {
log.info("微信支付回调失败!签名不一致");
}
} else {
resXml = "<xml>" + "<return_code><![CDATA[FAIL]]></return_code>"
+ "<return_msg><![CDATA[报文为空]]></return_msg>" + "</xml> ";
}
} catch (Exception e) {
e.printStackTrace();
}
logs.setUuid(RandomNumberGenerate.generateNonceStr());
logs.setResult(resXml);
//添加回调日志信息
paymentMapper.addWxCallBackLogs(logs);
try {
log.info(resXml);
log.info("微信支付回调数据结束");
BufferedOutputStream out = new BufferedOutputStream(
response.getOutputStream());
out.write(resXml.getBytes());
out.flush();
out.close();
} catch (IOException e) {
e.printStackTrace();
}
}
四、微信支付相关工具类
/**
* 处理微信金额
* // public static final BigDecimal WXTOTALFEE = new BigDecimal("1");
* @param amountPrice
* @return
*/
@Override
public String getTotalFee(BigDecimal amountPrice) {
String totalFee = amountPrice.intValue() + "";
//当支付金额小于等于1时，只需付0.01
BigDecimal totalFeeTemp = new BigDecimal(totalFee);
if (WXConstant.WXTOTALFEE.compareTo(totalFeeTemp) > -1) {
totalFee = "1";
}
return totalFee;
}
public static Map<String, String> unifiedOrder(CommonWXPayConfig customsWXPayConfig, Map<String, String> data) {
WXPay wxPay = new WXPay(customsWXPayConfig, WXPayConstants.SignType.MD5);
if (data.size() < 1) {
return null;
}
try {
Map<String, String> resp = wxPay.unifiedOrder(data);
String returnCode = resp.get(WXConstant.WX_PAY_RERUEN_CODE);// return_code
String resultCode = resp.get(WXConstant.WX_PAY_RESULT_CODE);// result_code
if (StringUtils.equals(WXConstant.WX_PAY_SUCCESS, resultCode) && StringUtils.equals(WXConstant.WX_PAY_SUCCESS, returnCode)) { // SUCCESS
log.info("微信拉起支付结果：{}", resp);
return resp;
} else {
log.error("微信拉起支付失败结果：{}", resp);
return null;
}
} catch (Exception e) {
log.error("微信支付异常结果：{}", e.getMessage());
return null;
}
}
PayUtil：
public class PayUtil {
/**
* 签名字符串
*
* @param text 需要签名的字符串
* @param key 密钥
* @param input_charset 编码格式
* @return 签名结果
*/
public static String sign(String text, String key, String input_charset) {
text = text + "&key=" + key;
return DigestUtils.md5Hex(getContentBytes(text, input_charset));
}
/**
* 签名字符串
*
* @param text 需要签名的字符串
* @param sign 签名结果
* @param key 密钥
* @param input_charset 编码格式
* @return 签名结果
*/
public static boolean verify(String text, String sign, String key, String input_charset) {
text = text +"&key=" + key;
String mysign = DigestUtils.md5Hex(getContentBytes(text, input_charset)).toUpperCase();
if (mysign.equals(sign)) {
return true;
} else {
return false;
}
}
/**
* @param content
* @param charset
* @return
* @throws java.security.SignatureException
* @throws UnsupportedEncodingException
*/
public static byte[] getContentBytes(String content, String charset) {
if (charset == null || "".equals(charset)) {
return content.getBytes();
}
try {
return content.getBytes(charset);
} catch (UnsupportedEncodingException e) {
throw new RuntimeException("MD5签名过程中出现错误,指定的编码集不对,您目前指定的编码集是:" + charset);
}
}
private static boolean isValidChar(char ch) {
if ((ch >= '0' && ch <= '9') || (ch >= 'A' && ch <= 'Z') || (ch >= 'a' && ch <= 'z'))
return true;
if ((ch >= 0x4e00 && ch <= 0x7fff) || (ch >= 0x8000 && ch <= 0x952f))
return true;// 简体中文汉字编码
return false;
}
/**
* 除去数组中的空值和签名参数
*
* @param sArray 签名参数组
* @return 去掉空值与签名参数后的新签名参数组
*/
public static Map<String, String> paraFilter(Map<String, String> sArray) {
Map<String, String> result = new HashMap<String, String>();
if (sArray == null || sArray.size() <= 0) {
return result;
}
for (String key : sArray.keySet()) {
String value = sArray.get(key);
if (value == null || value.equals("") || key.equalsIgnoreCase("sign")
|| key.equalsIgnoreCase("sign_type")) {
continue;
}
result.put(key, value);
}
return result;
}
/**
* 把数组所有元素排序，并按照“参数=参数值”的模式用“&”字符拼接成字符串
*
* @param params 需要排序并参与字符拼接的参数组
* @return 拼接后字符串
*/
public static String createLinkString(Map<String, String> params) {
List<String> keys = new ArrayList<>(params.keySet());
Collections.sort(keys);
String prestr = "";
for (int i = 0; i < keys.size(); i++) {
String key = keys.get(i);
String value = params.get(key);
if (i == keys.size() - 1) {// 拼接时，不包括最后一个&字符
prestr = prestr + key + "=" + value;
} else {
prestr = prestr + key + "=" + value + "&";
}
}
return prestr;
}
/**
* @param requestUrl 请求地址
* @param requestMethod 请求方法
* @param outputStr 参数
*/
public static String httpRequest(String requestUrl, String requestMethod, String outputStr) {
// 创建SSLContext
StringBuffer buffer = null;
try {
URL url = new URL(requestUrl);
HttpURLConnection conn = (HttpURLConnection) url.openConnection();
conn.setRequestMethod(requestMethod);
conn.setDoOutput(true);
conn.setDoInput(true);
conn.connect();
//往服务器端写内容
if (null != outputStr) {
OutputStream os = conn.getOutputStream();
os.write(outputStr.getBytes("utf-8"));
os.close();
}
// 读取服务器端返回的内容
InputStream is = conn.getInputStream();
InputStreamReader isr = new InputStreamReader(is, "utf-8");
BufferedReader br = new BufferedReader(isr);
buffer = new StringBuffer();
String line = null;
while ((line = br.readLine()) != null) {
buffer.append(line);
}
br.close();
} catch (Exception e) {
e.printStackTrace();
}
return buffer.toString();
}
public static String urlEncodeUTF8(String source) {
String result = source;
try {
result = java.net.URLEncoder.encode(source, "UTF-8");
} catch (UnsupportedEncodingException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
return result;
}
/**
* 解析xml,返回第一级元素键值对。如果第一级元素有子节点，则此节点的值是子节点的xml数据。
*
* @param strxml
* @return
* @throws
* @throws IOException
*/
public static Map doXMLParse(String strxml) throws Exception {
if (null == strxml || "".equals(strxml)) {
return null;
}
Map m = new HashMap();
InputStream in = String2Inputstream(strxml);
SAXBuilder builder = new SAXBuilder();
Document doc = builder.build(in);
Element root = doc.getRootElement();
List list = root.getChildren();
Iterator it = list.iterator();
while (it.hasNext()) {
Element e = (Element) it.next();
String k = e.getName();
String v = "";
List children = e.getChildren();
if (children.isEmpty()) {
v = e.getTextNormalize();
} else {
v = getChildrenText(children);
}
m.put(k, v);
}
//关闭流
in.close();
return m;
}
/**
* 获取子结点的xml
*
* @param children
* @return String
*/
public static String getChildrenText(List children) {
StringBuffer sb = new StringBuffer();
if (!children.isEmpty()) {
Iterator it = children.iterator();
while (it.hasNext()) {
Element e = (Element) it.next();
String name = e.getName();
String value = e.getTextNormalize();
List list = e.getChildren();
sb.append("<" + name + ">");
if (!list.isEmpty()) {
sb.append(getChildrenText(list));
}
sb.append(value);
sb.append("</" + name + ">");
}
}
return sb.toString();
}
public static InputStream String2Inputstream(String str) {
return new ByteArrayInputStream(str.getBytes());
}
/**
* java对象转字符串
* @param <T> 泛型占位符
* @param obj T
* @return String
*/
public static <T> String toJson(T obj) {
Gson gson = new GsonBuilder().setDateFormat("yyyy-MM-dd HH:mm:ss").enableComplexMapKeySerialization().create();
return gson.toJson(obj);
}
}
CommonWXPayConfig：
@Configuration
public class CommonWXPayConfig implements WXPayConfig {
private byte[] certData;
@Override
public String getAppID() {
return WXProperty.WX_MINI_APP_ID; // 小程序或公众号appid
}
@Override
public String getMchID() {
return WXProperty.WX_MCH_ID; // 商户ID
}
@Override
public String getKey() {
return WXProperty.WX_MCH_SECRET; // 商户密钥
}
@Override
public InputStream getCertStream() {
return new ByteArrayInputStream(this.certData);
}
@Override
public int getHttpConnectTimeoutMs() {
return 8000;
}
@Override
public int getHttpReadTimeoutMs() {
return 10000;
}
}
wxpay-sdk：
<dependency>
<groupId>com.github.wxpay</groupId>
<artifactId>wxpay-sdk</artifactId>
<version>0.0.3</version>
</dependency>
最后，完整的微信支付就写完了，希望对你们有所帮助！！！
版权声明：本文为weixin_43322048原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
