一、背景概述：
1，环境配置
APNS：Apple Push Notification Service。本文对推送相关概念不再赘述，只侧重完整流程。
Demo 开发环境：Mac os 10.9.4 ，Xcode 6.0.1 ；测试设备：iphone 4s（ios 7.1）
服务端开发环境：mac 10.9.4 + php 5.4.24、
Demo 下载地址：
点击打开链接
2，APNS 相关博客
如对apns相关概念不清楚，可参考以下几个博客：(博客中部分内容重复，但总体来说，通读一遍，还是大有裨益的)
http://cshbbrain.iteye.com/blog/1859810 =》IOS 基于APNS消息推送原理与实现(JAVA后台)
http://www.cnblogs.com/qq78292959/archive/2012/07/16/2593651.html =》iOS消息推送机制的实现
http://blog.csdn.net/xunyn/article/details/8243573 =》APNS编程—-iOS真机测试消息推送
http://blog.csdn.net/wswqiang/article/details/8208581 =》IOS APNS 处理
http://eric-gao.iteye.com/blog/1567777 =》 IOS PEM 文件的生成
http://www.36coder.com/study/996.html =》PHP 实现APNS 推送
http://blog.csdn.net/sxfcct/article/details/7939082 =》 APNS 相关总结
（推荐）
3，APNS 接口
消息推送：
开发接口：gateway.sandbox.push.apple.com:2195
发布接口：gateway.push.apple.com:2195
反馈服务：
开发接口：feedback.sandbox.push.apple.com：2196
发布接口：产品接口：feedback.push.apple.com：2196
二、制作Push证书和Pem文件
1，新建一个App ID
新建流程不再赘述，这里只提醒两点：1》App ID Suffix 中，一定要选择Explicit App ID；2》App Services 中，记得勾选Push Notifications。这里以新建一个id为：com.eversoft.PushDemo 为例。
2，配置push开发证书

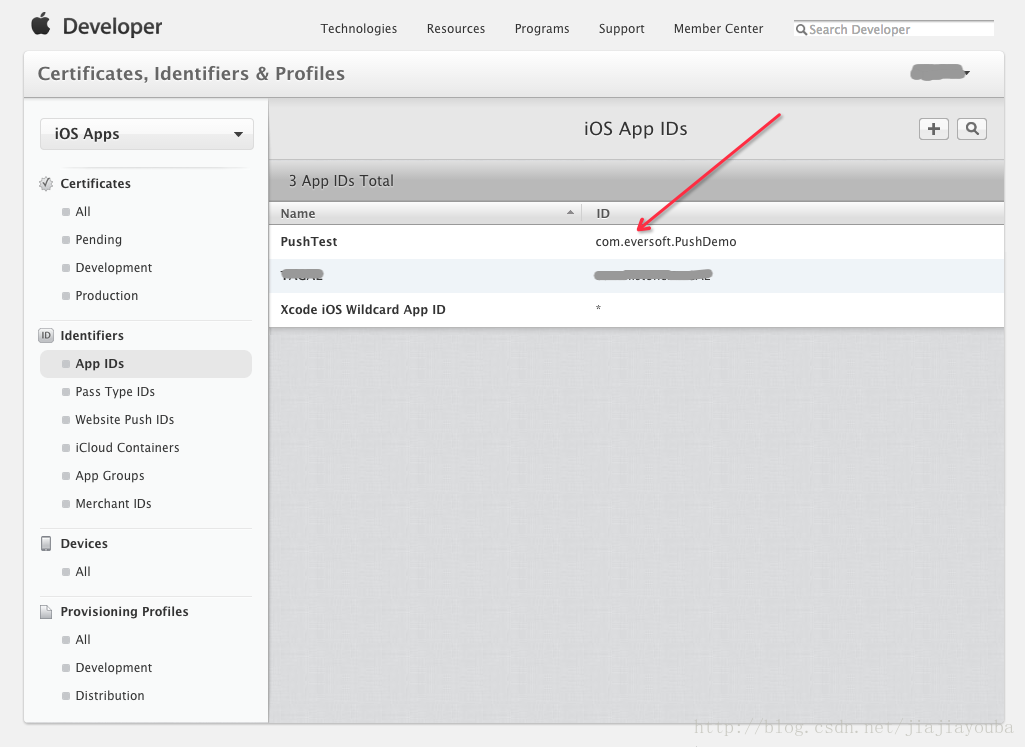

在App IDs中，选中刚才新建的App id：com.eversoft.PushDemo ，单击，展开详细信息属性。

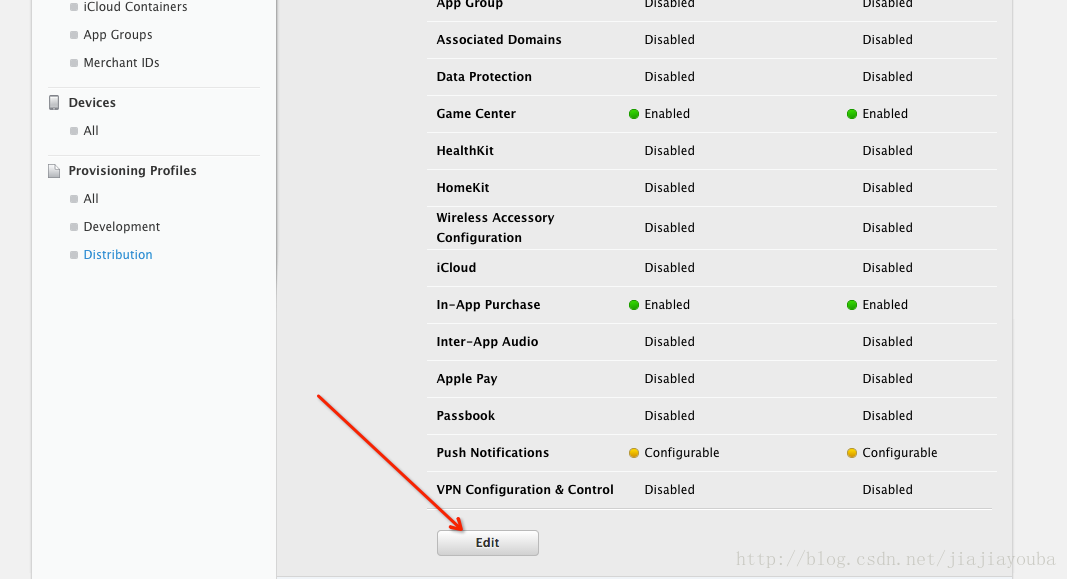

在详细信息属性中，单击下方的“Edit”按钮，

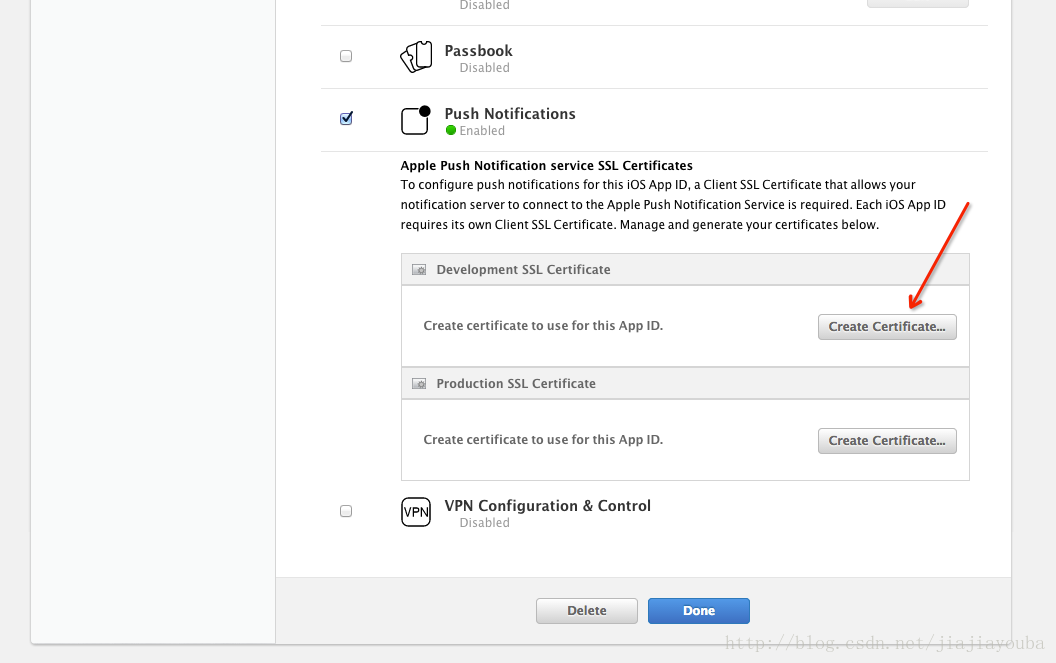

在新打开的编辑界面，单击“Create Certificate”，

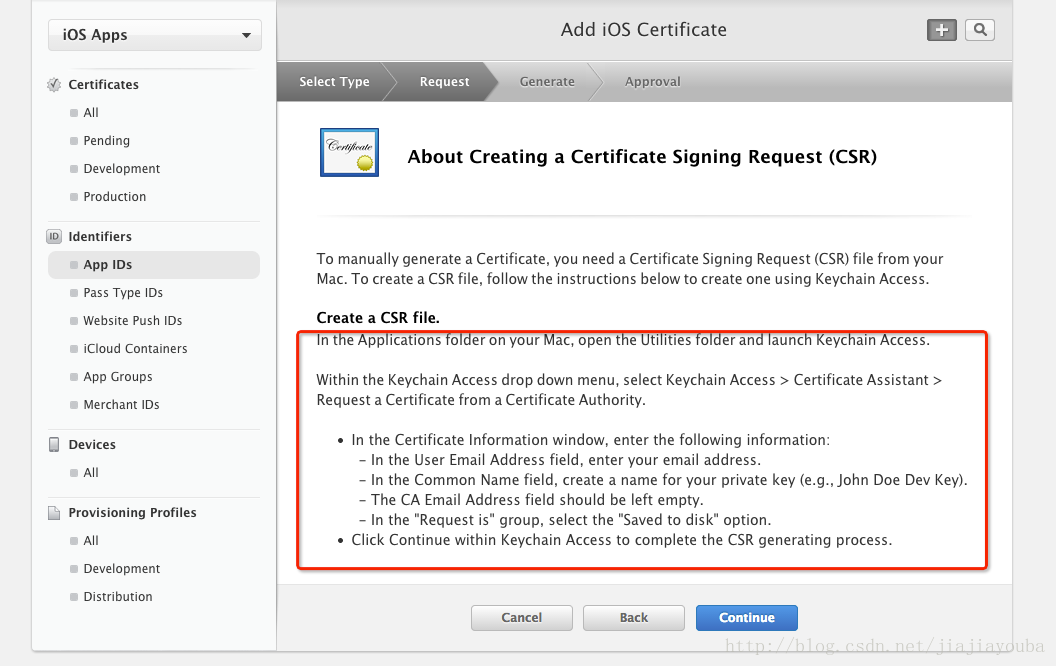

在新打开的界面中，会提示我们，创建一个csr 证书签名请求文件。具体的创建步骤，界面中已经给出了详细的英文说明。
在进行下一步之前，我们先按照英文说明，创建一个 CSR 文件。
- 在mac电脑上，打开应用程序 keychain（钥匙串访问）；
-

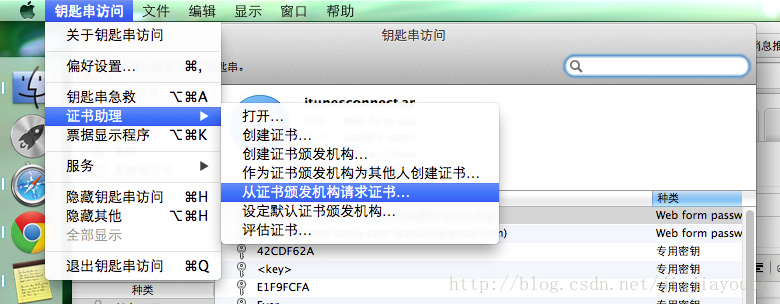

在keychain菜单栏中，依次选择“钥匙串访问”=》“证书助理”=》“从证书颁发机构请求证书”；
-

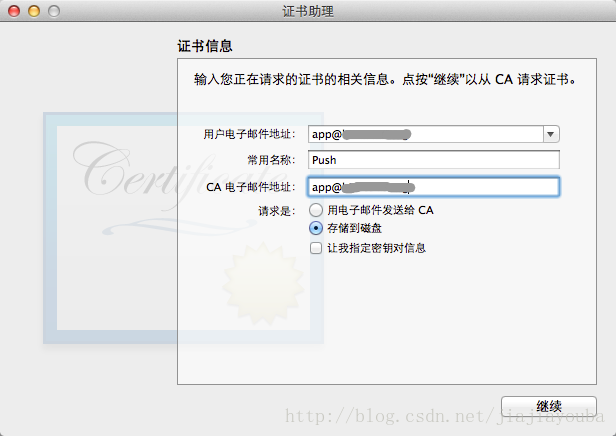

在新打开的“证书助理”界面中，填写用户电子邮件地址，常用名称，CA电子邮件地址，这两个邮件地址直接填写你的苹果账号的邮件地址即可，然后选择“存储到磁盘”，然后点击“继续”；
- 选择CSR文件保存位置，“存储”即可。至此， CSR 文件，制作完成。

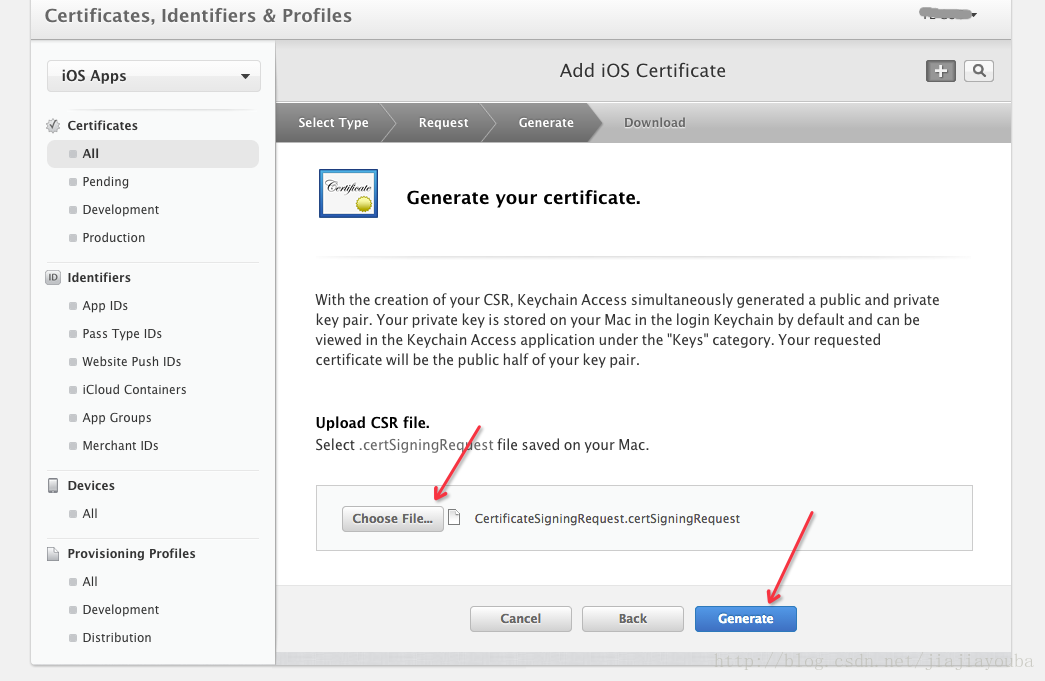

回到刚才我们的web页面上，点击“Continue”，进入下一页面；新的页面中，会要求我们上传刚才制作的csr文件，选择“Choose File”，找到我们刚才存储的csr文件，单击“打开”，最后，点击页面上的“Generate”按钮，到此，开发使用的push证书制作完毕。
证书生成成功后，选择“Download”，将制作好的证书下载到本地。然后双击下载的证书aps_development.cer，双击后，证书就自动导入到钥匙串中了。

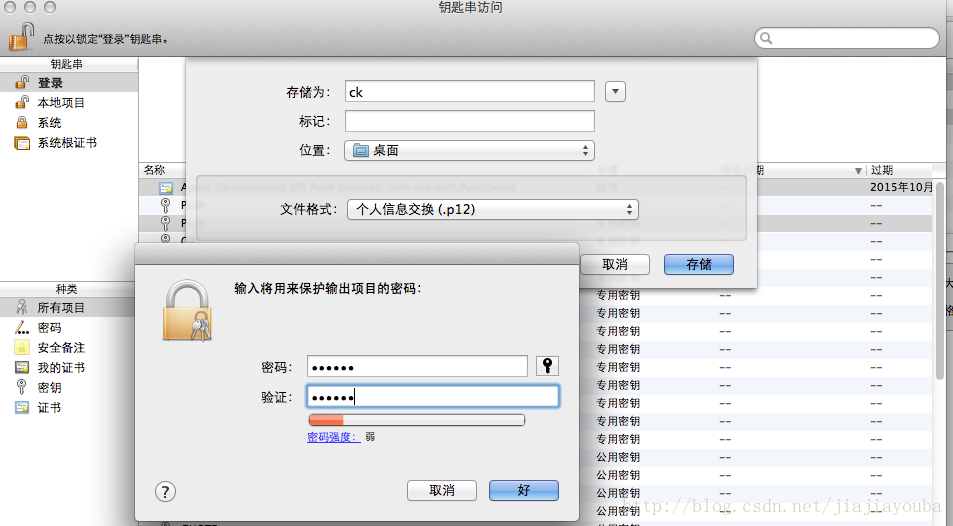

打开 keychain，左侧钥匙串选择“登录”，种类选择“所有项目”，在右侧窗口中，选中刚才导入的Apple Development IOS Push Services证书(不用选中专用密钥)，右键，选择导出，命名为：ck.p12 ，存储时，会提示输入保护密码，这里为演示方便，就输入了123456。之后又会要求输入电脑登录密码，输入即可。
3，生成PEM文件

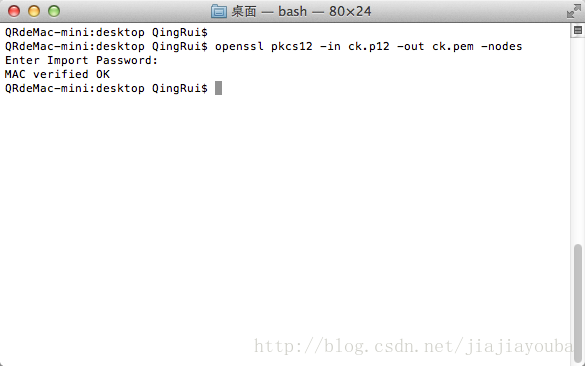

最后，打开终端，执行以下命令，生成pem文件
openssl pkcs12 -in ck.p12 -out ck.pem -nodes
执行时，会要求输入导入密码，这里输入刚才的保护密码123456即可。
到此，php 服务端使用的pem证书就制作完毕了。
Development PP 文件制作不再赘述。
三、IOS 代码编写
首先，在AppDelegate.m 中：
1，注册通知
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
// Override point for customization after application launch.
ViewController *mainCtrl=[[ViewController alloc] init];
self.window.rootViewController=mainCtrl;
//注册通知
if ([UIDevice currentDevice].systemVersion.doubleValue<8.0) {
[[UIApplication sharedApplication] registerForRemoteNotificationTypes:(UIRemoteNotificationTypeAlert | UIRemoteNotificationTypeSound | UIRemoteNotificationTypeBadge)];
}
else {
[[UIApplication sharedApplication] registerForRemoteNotifications];
[[UIApplication sharedApplication] registerUserNotificationSettings:[UIUserNotificationSettings settingsForTypes:UIUserNotificationTypeBadge|UIUserNotificationTypeSound|UIUserNotificationTypeAlert categories:nil]];
}
//判断是否由远程消息通知触发应用程序启动
if (launchOptions) {
//获取应用程序消息通知标记数（即小红圈中的数字）
NSInteger badge = [UIApplication sharedApplication].applicationIconBadgeNumber;
if (badge>0) {
//如果应用程序消息通知标记数（即小红圈中的数字）大于0，清除标记。
badge--;
//清除标记。清除小红圈中数字，小红圈中数字为0，小红圈才会消除。
[UIApplication sharedApplication].applicationIconBadgeNumber = badge;
NSDictionary *pushInfo = [launchOptions objectForKey:@"UIApplicationLaunchOptionsRemoteNotificationKey"];
//获取推送详情
NSString *pushString = [NSString stringWithFormat:@"%@",[pushInfo objectForKey:@"aps"]];
UIAlertView *alert=[[UIAlertView alloc] initWithTitle:@"finish Loaunch" message:pushString delegate:nil cancelButtonTitle:@"cancel" otherButtonTitles:nil, nil];
[alert show];
}
}
return YES;
}
2，注册通知后，获取device token
- (void)application:(UIApplication *)app didRegisterForRemoteNotificationsWithDeviceToken:(NSData *)deviceToken {
NSString *token = [NSString stringWithFormat:@"%@", deviceToken];
NSLog(@"My token is:%@", token);
//这里应将device token发送到服务器端
}
- (void)application:(UIApplication *)app didFailToRegisterForRemoteNotificationsWithError:(NSError *)error {
NSString *error_str = [NSString stringWithFormat: @"%@", error];
NSLog(@"Failed to get token, error:%@", error_str);
}
3，接收推送通知
- (void)application:(UIApplication *)application didReceiveRemoteNotification:(NSDictionary *)userInfo
{
[UIApplication sharedApplication].applicationIconBadgeNumber=0;
for (id key in userInfo) {
NSLog(@"key: %@, value: %@", key, [userInfo objectForKey:key]);
}
/* eg.
key: aps, value: {
alert = "\U8fd9\U662f\U4e00\U6761\U6d4b\U8bd5\U4fe1\U606f";
badge = 1;
sound = default;
}
*/
UIAlertView *alert=[[UIAlertView alloc] initWithTitle:@"remote notification" message:userInfo[@"aps"][@"alert"] delegate:nil cancelButtonTitle:@"cancel" otherButtonTitles:nil, nil];
[alert show];
}注意：app 前台运行时，会调用 remote notification；app后台运行时，点击提醒框，会调用remote notification，点击app 图标，不调用remote notification，没反应；app 没有运行时，点击提醒框，finishLaunching 中，launchOptions 传参，点击app 图标，launchOptions 不传参，不调用remote notification。
四、服务器端代码编写
此章不在IOS程序员职责范围之内，故只给出示例代码，不做深入讨论。
1，php 源码：
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="content-type" content="text/html;charset=utf-8">
<title>APNS</title>
</head>
<body>
<?php
/**
* @file apns.php
* @synopsis apple APNS class
* @author Yee, <rlk002@gmail.com>
* @version 1.0
* @date 2012-09-17 11:27:59
*/
class APNS
{
const ENVIRONMENT_PRODUCTION = 0;
const ENVIRONMENT_SANDBOX = 1;
const DEVICE_BINARY_SIZE = 32;
const CONNECT_RETRY_INTERVAL = 1000000;
const SOCKET_SELECT_TIMEOUT = 1000000;
const COMMAND_PUSH = 1;
const STATUS_CODE_INTERNAL_ERROR = 999;
const ERROR_RESPONSE_SIZE = 6;
const ERROR_RESPONSE_COMMAND = 8;
const PAYLOAD_MAXIMUM_SIZE = 256;
const APPLE_RESERVED_NAMESPACE = 'aps';
protected $_environment;
protected $_providerCertificateFile;
protected $_rootCertificationAuthorityFile;
protected $_connectTimeout;
protected $_connectRetryTimes = 3;
protected $_connectRetryInterval;
protected $_socketSelectTimeout;
protected $_hSocket;
protected $_deviceTokens = array();
protected $_text;
protected $_badge;
protected $_sound;
protected $_customProperties;
protected $_expiryValue = 604800;
protected $_customIdentifier;
protected $_autoAdjustLongPayload = true;
protected $asurls = array('ssl://gateway.push.apple.com:2195','ssl://gateway.sandbox.push.apple.com:2195');
protected $_errorResponseMessages = array
(
0 => 'No errors encountered',
1 => 'Processing error',
2 => 'Missing device token',
3 => 'Missing topic',
4 => 'Missing payload',
5 => 'Invalid token size',
6 => 'Invalid topic size',
7 => 'Invalid payload size',
8 => 'Invalid token',
self::STATUS_CODE_INTERNAL_ERROR => 'Internal error'
);
function __construct($environment,$providerCertificateFile)
{
if($environment != self::ENVIRONMENT_PRODUCTION && $environment != self::ENVIRONMENT_SANDBOX)
{
throw new Exception(
"Invalid environment '{$environment}'"
);
}
$this->_environment = $environment;
if(!is_readable($providerCertificateFile))
{
throw new Exception(
"Unable to read certificate file '{$providerCertificateFile}'"
);
}
$this->_providerCertificateFile = $providerCertificateFile;
$this->_connectTimeout = @ini_get("default_socket_timeout");
$this->_connectRetryInterval = self::CONNECT_RETRY_INTERVAL;
$this->_socketSelectTimeout = self::SOCKET_SELECT_TIMEOUT;
}
public function setRCA($rootCertificationAuthorityFile)
{
if(!is_readable($rootCertificationAuthorityFile))
{
throw new Exception(
"Unable to read Certificate Authority file '{$rootCertificationAuthorityFile}'"
);
}
$this->_rootCertificationAuthorityFile = $rootCertificationAuthorityFile;
}
public function getRCA()
{
return $this->_rootCertificationAuthorityFile;
}
protected function _connect()
{
$sURL = $this->asurls[$this->_environment];
$streamContext = stream_context_create(
array
(
'ssl' => array
(
'verify_peer' => isset($this->_rootCertificationAuthorityFile),
'cafile' => $this->_rootCertificationAuthorityFile,
'local_cert' => $this->_providerCertificateFile
)
)
);
$this->_hSocket = @stream_socket_client($sURL,$nError,$sError,$this->_connectTimeout,STREAM_CLIENT_CONNECT, $streamContext);
if (!$this->_hSocket)
{
throw new Exception
(
"Unable to connect to '{$sURL}': {$sError} ({$nError})"
);
}
stream_set_blocking($this->_hSocket, 0);
stream_set_write_buffer($this->_hSocket, 0);
return true;
}
public function connect()
{
$bConnected = false;
$retry = 0;
while(!$bConnected)
{
try
{
$bConnected = $this->_connect();
}catch (Exception $e)
{
if ($nRetry >= $this->_connectRetryTimes)
{
throw $e;
}else
{
usleep($this->_nConnectRetryInterval);
}
}
$retry++;
}
}
public function disconnect()
{
if (is_resource($this->_hSocket))
{
return fclose($this->_hSocket);
}
return false;
}
protected function getBinaryNotification($deviceToken, $payload, $messageID = 0, $Expire = 604800)
{
$tokenLength = strlen($deviceToken);
$payloadLength = strlen($payload);
$ret = pack('CNNnH*', self::COMMAND_PUSH, $messageID, $Expire > 0 ? time() + $Expire : 0, self::DEVICE_BINARY_SIZE, $deviceToken);
$ret .= pack('n', $payloadLength);
$ret .= $payload;
return $ret;
}
protected function readErrorMessage()
{
$errorResponse = @fread($this->_hSocket, self::ERROR_RESPONSE_SIZE);
if ($errorResponse === false || strlen($errorResponse) != self::ERROR_RESPONSE_SIZE)
{
return;
}
$errorResponse = $this->parseErrorMessage($errorResponse);
if (!is_array($errorResponse) || empty($errorResponse))
{
return;
}
if (!isset($errorResponse['command'], $errorResponse['statusCode'], $errorResponse['identifier']))
{
return;
}
if ($errorResponse['command'] != self::ERROR_RESPONSE_COMMAND)
{
return;
}
$errorResponse['timeline'] = time();
$errorResponse['statusMessage'] = 'None (unknown)';
if (isset($this->_aErrorResponseMessages[$errorResponse['statusCode']]))
{
$errorResponse['statusMessage'] = $this->_errorResponseMessages[$errorResponse['statusCode']];
}
return $errorResponse;
}
protected function parseErrorMessage($errorMessage)
{
return unpack('Ccommand/CstatusCode/Nidentifier', $errorMessage);
}
public function send()
{
if (!$this->_hSocket)
{
throw new Exception
(
'Not connected to Push Notification Service'
);
}
$sendCount = $this->getDTNumber();
$messagePayload = $this->getPayload();
foreach($this->_deviceTokens AS $key => $value)
{
$apnsMessage = $this->getBinaryNotification($value, $messagePayload, $messageID = 0, $Expire = 604800);
$nLen = strlen($apnsMessage);
$aErrorMessage = null;
if ($nLen !== ($nWritten = (int)@fwrite($this->_hSocket, $apnsMessage)))
{
$aErrorMessage = array
(
'identifier' => $key,
'statusCode' => self::STATUS_CODE_INTERNAL_ERROR,
'statusMessage' => sprintf('%s (%d bytes written instead of %d bytes)',$this->_errorResponseMessages[self::STATUS_CODE_INTERNAL_ERROR], $nWritten, $nLen)
);
}
}
}
public function addDT($deviceToken)
{
if (!preg_match('~^[a-f0-9]{64}$~i', $deviceToken))
{
throw new Exception
(
"Invalid device token '{$deviceToken}'"
);
}
$this->_deviceTokens[] = $deviceToken;
}
public function getDTNumber()
{
return count($this->_deviceTokens);
}
public function setText($text)
{
$this->_text = $text;
}
public function getText()
{
return $this->_text;
}
public function setBadge($badge)
{
if (!is_int($badge))
{
throw new Exception
(
"Invalid badge number '{$badge}'"
);
}
$this->_badge = $badge;
}
public function getBadge()
{
return $this->_badge;
}
public function setSound($sound = 'default')
{
$this->_sound = $sound;
}
public function getSound()
{
return $this->_sound;
}
public function setCP($name, $value)
{
if ($name == self::APPLE_RESERVED_NAMESPACE)
{
throw new Exception
(
"Property name '" . self::APPLE_RESERVED_NAMESPACE . "' can not be used for custom property."
);
}
$this->_customProperties[trim($name)] = $value;
}
protected function _getPayload()
{
$aPayload[self::APPLE_RESERVED_NAMESPACE] = array();
if (isset($this->_text))
{
$aPayload[self::APPLE_RESERVED_NAMESPACE]['alert'] = (string)$this->_text;
}
if (isset($this->_badge) && $this->_badge > 0)
{
$aPayload[self::APPLE_RESERVED_NAMESPACE]['badge'] = (int)$this->_badge;
}
if (isset($this->_sound))
{
$aPayload[self::APPLE_RESERVED_NAMESPACE]['sound'] = (string)$this->_sound;
}
if (is_array($this->_customProperties))
{
foreach($this->_customProperties as $propertyName => $propertyValue)
{
$aPayload[$propertyName] = $propertyValue;
}
}
return $aPayload;
}
public function setExpiry($expiryValue)
{
if (!is_int($expiryValue))
{
throw new Exception
(
"Invalid seconds number '{$expiryValue}'"
);
}
$this->_expiryValue = $expiryValue;
}
public function getExpiry()
{
return $this->_expiryValue;
}
public function setCustomIdentifier($customIdentifier)
{
$this->_customIdentifier = $customIdentifier;
}
public function getCustomIdentifier()
{
return $this->_customIdentifier;
}
public function getPayload()
{
$sJSONPayload = str_replace
(
'"' . self::APPLE_RESERVED_NAMESPACE . '":[]',
'"' . self::APPLE_RESERVED_NAMESPACE . '":{}',
json_encode($this->_getPayload())
);
$nJSONPayloadLen = strlen($sJSONPayload);
if ($nJSONPayloadLen > self::PAYLOAD_MAXIMUM_SIZE)
{
if ($this->_autoAdjustLongPayload)
{
$maxTextLen = $textLen = strlen($this->_text) - ($nJSONPayloadLen - self::PAYLOAD_MAXIMUM_SIZE);
if ($nMaxTextLen > 0)
{
while (strlen($this->_text = mb_substr($this->_text, 0, --$textLen, 'UTF-8')) > $maxTextLen);
return $this->getPayload();
}else
{
throw new Exception
(
"JSON Payload is too long: {$nJSONPayloadLen} bytes. Maximum size is " .
self::PAYLOAD_MAXIMUM_SIZE . " bytes. The message text can not be auto-adjusted."
);
}
}else
{
throw new Exception
(
"JSON Payload is too long: {$nJSONPayloadLen} bytes. Maximum size is " .
self::PAYLOAD_MAXIMUM_SIZE . " bytes"
);
}
}
return $sJSONPayload;
}
}
?>
<?php
date_default_timezone_set('PRC');
echo "we are young,test apns. -".date('Y-m-d h:i:s',time());
$rootpath = 'entrust_root_certification_authority.pem'; //ROOT证书地址
$cp = 'ck.pem'; //provider证书地址
$apns = new APNS(1,$cp);
try
{
//$apns->setRCA($rootpath); //设置ROOT证书
$apns->connect(); //连接
$apns->addDT('acc5150a4df26507a84f19ba145ca3c1be5842a6177511ce7c43d01badb1bd96'); //加入deviceToken
$apns->setText('这是一条测试信息'); //发送内容
$apns->setBadge(1); //设置图标数
$apns->setSound(); //设置声音
$apns->setExpiry(3600); //过期时间
$apns->setCP('custom operation',array('type' => '1','url' => 'http://www.google.com.hk')); //自定义操作
$apns->send(); //发送
echo ' sent ok';
}catch(Exception $e)
{
echo $e;
}
?>
</body>
</html>
2，启动 Apache
mac 自带apache，可直接运行php。
打开“终端(terminal)”，输入 sudo apachectl -v，可显示Apache的版本；
输入 sudo apachectl start，这样Apache就启动了。
编辑文件 /etc/apache2/httpd.conf , 把 LoadModule php5_module libexec/apache2/libphp5.so 前面的注释去掉；然后重启apache： sudo apachectl restart
打开Safari浏览器地址栏输入 “http://localhost”，可以看到内容为“It works!”的页面。其位
于“/Library/WebServer/Documents/”下，这就是Apache的默认根目录。
3，如何调试

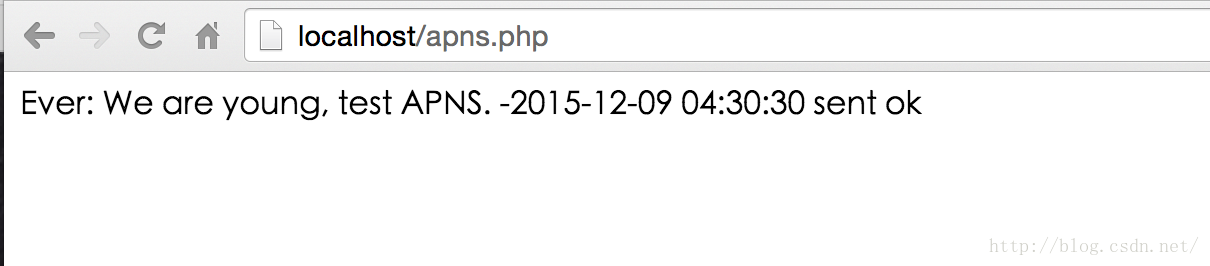

将服务器端写好的apns.php 文件以及生成的 ck.pem 文件，直接拷贝到 /Library/WebServer/Documents/ 下，在浏览器中，直接浏览： http://localhost/apns.php 。这样消息就发送到了苹果服务器。
版权声明：本文为jiajiayouba原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
