Pixel2Pixel：卡通照片真人化

项目链接：

Pixel2Pixel：卡通照片真人化

前言：

之前PaddleGAN的趣味应用如雨后春笋般地出现，非常多的项目都是xxx动漫化。当时就有一个很普通的想法为什么大家都会去搞动漫化，这很可能是因为二次元文化的原因，又或者是动漫化的应用、商业价值。就突然蹦出一个想法，为什么没人弄动漫真人化呢，然后我就去项目搜了，结果确实貌似没有人做这个项目。刚开始我以为我这个想法实现起来很难，到后面和大神们讨论后，其实觉得实现原理也很简单，就是把人像动漫化的数据集里面的标签互换。比如人像卡通化，就是A to B(A是真人，B是动漫，B是标签)。那么此次这个项目卡通人像化就是B to A(A是真人，B是动漫，A是标签).

先来看看实现效果

实现效果：

真人原图：

实现效果：

真人原图：

可以看到效果已经很逼真了！

1.下载安装包

import paddle
import paddle.nn as nn
from paddle.io import Dataset, DataLoader

import os
import cv2
import numpy as np
from tqdm import tqdm
import matplotlib.pyplot as plt

%matplotlib inline

2.解压数据

数据准备：

真人数据来自

seeprettyface

。

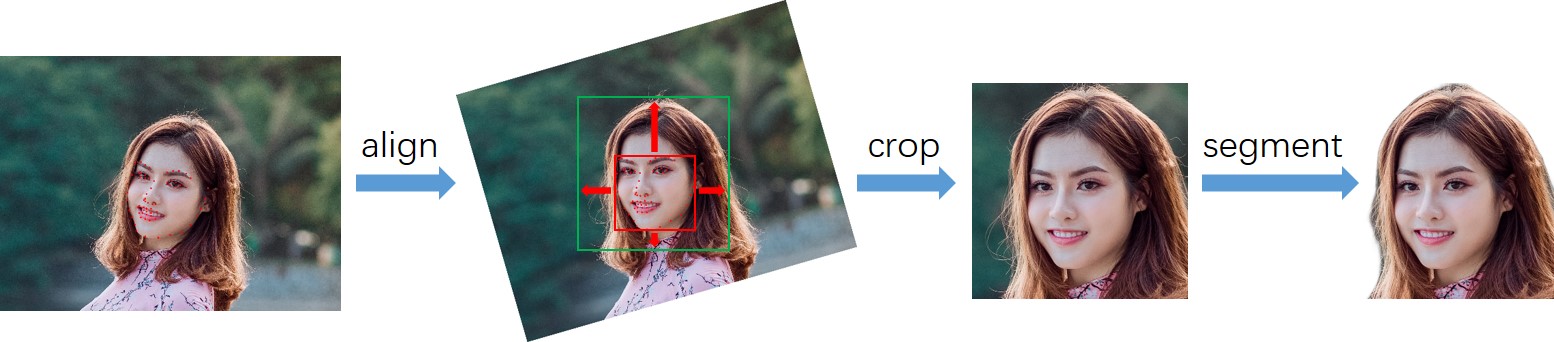

数据预处理（详情见

photo2cartoon

项目）。

使用

photo2cartoon

项目生成真人数据对应的卡通数据。

# 解压数据
!unzip -q data/data79149/cartoon_A2B.zip -d data/

3.数据可视化（已划分好数据集）

# 训练数据统计
train_names = os.listdir('data/cartoon_A2B/train')
print(f'训练集数据量: {len(train_names)}')

# 测试数据统计
test_names = os.listdir('data/cartoon_A2B/test')
print(f'测试集数据量: {len(test_names)}')

# 训练数据可视化
imgs = []
for img_name in np.random.choice(train_names, 3, replace=False):
    imgs.append(cv2.imread('data/cartoon_A2B/train/'+img_name))

img_show = np.vstack(imgs)[:,:,::-1]
plt.figure(figsize=(10, 10))
plt.imshow(img_show)
plt.show()

注意：

A代表真人，B代表卡通。源参考代码是A to B。本次实验项目是用 B to A

又因为数据集是把真人照片和卡通图片拼接在一起，利用划分宽度来区别原图与标签。例如源程序是用宽度[ : 256]分成真人（即原图），[256 : ]分成卡通（即标签）

要实现这个项目因此要把他们调换过来。

class PairedData(Dataset):
    def __init__(self, phase):
        super(PairedData, self).__init__()
        self.img_path_list = self.load_A2B_data(phase)    # 获取数据列表
        self.num_samples = len(self.img_path_list)        # 数据量

    def __getitem__(self, idx):
        img_A2B = cv2.imread(self.img_path_list[idx])     # 读取数据
        img_A2B = img_A2B.astype('float32') / 127.5 - 1.  # 归一化
        img_A2B = img_A2B.transpose(2, 0, 1)              # HWC -> CHW
        img_A = img_A2B[..., 256:]                        # 卡通图（原图）
        img_B = img_A2B[..., :256]                        # 真人图（标签）
        return img_A, img_B

    def __len__(self):
        return self.num_samples

    @staticmethod
    def load_A2B_data(phase):
        assert phase in ['train', 'test'], "phase should be set within ['train', 'test']"
        # 读取数据集，数据中每张图像包含照片和对应的卡通画。
        data_path = 'data/cartoon_A2B/'+phase
        return [os.path.join(data_path, x) for x in os.listdir(data_path)]

paired_dataset_train = PairedData('train')
paired_dataset_test = PairedData('test')

4.定义生成器

class UnetGenerator(nn.Layer):
    def __init__(self, input_nc=3, output_nc=3, ngf=64):
        super(UnetGenerator, self).__init__()

        self.down1 = nn.Conv2D(input_nc, ngf, kernel_size=4, stride=2, padding=1)
        self.down2 = Downsample(ngf, ngf*2)
        self.down3 = Downsample(ngf*2, ngf*4)
        self.down4 = Downsample(ngf*4, ngf*8)
        self.down5 = Downsample(ngf*8, ngf*8)
        self.down6 = Downsample(ngf*8, ngf*8)
        self.down7 = Downsample(ngf*8, ngf*8)

        self.center = Downsample(ngf*8, ngf*8)

        self.up7 = Upsample(ngf*8, ngf*8, use_dropout=True)
        self.up6 = Upsample(ngf*8*2, ngf*8, use_dropout=True)
        self.up5 = Upsample(ngf*8*2, ngf*8, use_dropout=True)
        self.up4 = Upsample(ngf*8*2, ngf*8)
        self.up3 = Upsample(ngf*8*2, ngf*4)
        self.up2 = Upsample(ngf*4*2, ngf*2)
        self.up1 = Upsample(ngf*2*2, ngf)

        self.output_block = nn.Sequential(
            nn.ReLU(),
            nn.Conv2DTranspose(ngf*2, output_nc, kernel_size=4, stride=2, padding=1),
            nn.Tanh()
        )

    def forward(self, x):
        d1 = self.down1(x)
        d2 = self.down2(d1)
        d3 = self.down3(d2)
        d4 = self.down4(d3)
        d5 = self.down5(d4)
        d6 = self.down6(d5)
        d7 = self.down7(d6)

        c = self.center(d7)

        x = self.up7(c, d7)
        x = self.up6(x, d6)
        x = self.up5(x, d5)
        x = self.up4(x, d4)
        x = self.up3(x, d3)
        x = self.up2(x, d2)
        x = self.up1(x, d1)

        x = self.output_block(x)
        return x


class Downsample(nn.Layer):
    # LeakyReLU => conv => batch norm
    def __init__(self, in_dim, out_dim, kernel_size=4, stride=2, padding=1):
        super(Downsample, self).__init__()

        self.layers = nn.Sequential(
            nn.LeakyReLU(0.2),
            nn.Conv2D(in_dim, out_dim, kernel_size, stride, padding, bias_attr=False),
            nn.BatchNorm2D(out_dim)
        )

    def forward(self, x):
        x = self.layers(x)
        return x


class Upsample(nn.Layer):
    # ReLU => deconv => batch norm => dropout
    def __init__(self, in_dim, out_dim, kernel_size=4, stride=2, padding=1, use_dropout=False):
        super(Upsample, self).__init__()

        sequence = [
            nn.ReLU(),
            nn.Conv2DTranspose(in_dim, out_dim, kernel_size, stride, padding, bias_attr=False),
            nn.BatchNorm2D(out_dim)
        ]

        if use_dropout:
            sequence.append(nn.Dropout(p=0.5))

        self.layers = nn.Sequential(*sequence)

    def forward(self, x, skip):
        x = self.layers(x)
        x = paddle.concat([x, skip], axis=1)
        return x

5.定义鉴别器

class NLayerDiscriminator(nn.Layer):
    def __init__(self, input_nc=6, ndf=64):
        super(NLayerDiscriminator, self).__init__()

        self.layers = nn.Sequential(
            nn.Conv2D(input_nc, ndf, kernel_size=4, stride=2, padding=1),
            nn.LeakyReLU(0.2),

            ConvBlock(ndf, ndf*2),
            ConvBlock(ndf*2, ndf*4),
            ConvBlock(ndf*4, ndf*8, stride=1),

            nn.Conv2D(ndf*8, 1, kernel_size=4, stride=1, padding=1),
            nn.Sigmoid()
        )

    def forward(self, input):
        return self.layers(input)


class ConvBlock(nn.Layer):
    # conv => batch norm => LeakyReLU
    def __init__(self, in_dim, out_dim, kernel_size=4, stride=2, padding=1):
        super(ConvBlock, self).__init__()

        self.layers = nn.Sequential(
            nn.Conv2D(in_dim, out_dim, kernel_size, stride, padding, bias_attr=False),
            nn.BatchNorm2D(out_dim),
            nn.LeakyReLU(0.2)
        )

    def forward(self, x):
        x = self.layers(x)
        return x

实例化生成器，鉴别器

generator = UnetGenerator()
discriminator = NLayerDiscriminator()

out = generator(paddle.ones([1, 3, 256, 256]))
print('生成器输出尺寸：', out.shape)

out = discriminator(paddle.ones([1, 6, 256, 256]))
print('鉴别器输出尺寸：', out.shape)

6.定义训练各项超参数

# 超参数
LR = 1e-4
BATCH_SIZE = 8
EPOCHS = 100

# 优化器
optimizerG = paddle.optimizer.Adam(
    learning_rate=LR,
    parameters=generator.parameters(),
    beta1=0.5,
    beta2=0.999)

optimizerD = paddle.optimizer.Adam(
    learning_rate=LR,
    parameters=discriminator.parameters(),
    beta1=0.5,
    beta2=0.999)

# 损失函数
bce_loss = nn.BCELoss()
l1_loss = nn.L1Loss()

# dataloader
data_loader_train = DataLoader(
    paired_dataset_train,
    batch_size=BATCH_SIZE,
    shuffle=True,
    drop_last=True
    )

data_loader_test = DataLoader(
    paired_dataset_test,
    batch_size=BATCH_SIZE
    )

训练效果

第一列是卡通（原图），第二列是真人图片（标签），第三列是学习出来的结果

刚开始学到的效果：

100epochs的效果：

我们可以看出已经有很好的效果

results_save_path = 'work/results'
os.makedirs(results_save_path, exist_ok=True)  # 保存每个epoch的测试结果

weights_save_path = 'work/weights'
os.makedirs(weights_save_path, exist_ok=True)  # 保存模型

for epoch in range(EPOCHS):
    for data in tqdm(data_loader_train):
        real_A, real_B = data

        optimizerD.clear_grad()
        # D(real)
        real_AB = paddle.concat((real_A, real_B), 1)
        d_real_predict = discriminator(real_AB)
        d_real_loss = bce_loss(d_real_predict, paddle.ones_like(d_real_predict))

        # D(fake)
        fake_B = generator(real_A).detach()
        fake_AB = paddle.concat((real_A, fake_B), 1)
        d_fake_predict = discriminator(fake_AB)
        d_fake_loss = bce_loss(d_fake_predict, paddle.zeros_like(d_fake_predict))

        # train D
        d_loss = (d_real_loss + d_fake_loss) / 2.
        d_loss.backward()
        optimizerD.step()

        optimizerG.clear_grad()
        # D(fake)
        fake_B = generator(real_A)
        fake_AB = paddle.concat((real_A, fake_B), 1)
        g_fake_predict = discriminator(fake_AB)
        g_bce_loss = bce_loss(g_fake_predict, paddle.ones_like(g_fake_predict))
        g_l1_loss = l1_loss(fake_B, real_B) * 100.
        g_loss = g_bce_loss + g_l1_loss

        # train G
        g_loss.backward()
        optimizerG.step()

    print(f'Epoch [{epoch+1}/{EPOCHS}] Loss D: {d_loss.numpy()}, Loss G: {g_loss.numpy()}')

    if (epoch+1) % 10 == 0:
        paddle.save(generator.state_dict(), os.path.join(weights_save_path, 'epoch'+str(epoch+1).zfill(3)+'.pdparams'))

        # test
        generator.eval()
        with paddle.no_grad():
            for data in data_loader_test:
                real_A, real_B = data
                break

            fake_B = generator(real_A)
            result = paddle.concat([real_A[:3], real_B[:3], fake_B[:3]], 3)

            result = result.detach().numpy().transpose(0, 2, 3, 1)
            result = np.vstack(result)
            result = (result * 127.5 + 127.5).astype(np.uint8)

        cv2.imwrite(os.path.join(results_save_path, 'epoch'+str(epoch+1).zfill(3)+'.png'), result)

        generator.train()

7.测试

# 为生成器加载权重
last_weights_path = os.path.join(weights_save_path, sorted(os.listdir(weights_save_path))[-1])
print('加载权重:', last_weights_path)

model_state_dict = paddle.load(last_weights_path)
generator.load_dict(model_state_dict)
generator.eval()

读取数据
test_names = os.listdir('data/cartoon_A2B/test')
# img_name = np.random.choice(test_names)
img_name = '01481.png'
img_A2B = cv2.imread('data/cartoon_A2B/test/'+img_name)
img_A = img_A2B[:, 256:]                                  # 卡通图（即输入）
img_B = img_A2B[:, :256]                                  # 真人图（即预测结果）

# img_A= cv2.imread('data/test4.png')
# img_A = img_A[:, 256:]

g_input = img_A.astype('float32') / 127.5 - 1             # 归一化
g_input = g_input[np.newaxis, ...].transpose(0, 3, 1, 2)  # NHWC -> NCHW
g_input = paddle.to_tensor(g_input)                       # numpy -> tensor

g_output = generator(g_input)
g_output = g_output.detach().numpy()                      # tensor -> numpy
g_output = g_output.transpose(0, 2, 3, 1)[0]              # NCHW -> NHWC
g_output = g_output * 127.5 + 127.5                       # 反归一化
g_output = g_output.astype(np.uint8)

img_show = np.hstack([img_A, g_output])[:,:,::-1]
plt.figure(figsize=(8, 8))
plt.imshow(img_show)
 numpy
g_output = g_output.transpose(0, 2, 3, 1)[0]              # NCHW -> NHWC
g_output = g_output * 127.5 + 127.5                       # 反归一化
g_output = g_output.astype(np.uint8)

img_show = np.hstack([img_A, g_output])[:,:,::-1]
plt.figure(figsize=(8, 8))
plt.imshow(img_show)
plt.show()

总结：

至此，动漫照片真人化项目就完成了，本次项目大部分基于参考项目，只是做了些许改动。

参考项目：

Pixel2Pixel：人像卡通化

关于作者

个人主页

感兴趣的方向为：目标检测，图像分类，图像分割等。

不定期更新感兴趣的CV比赛baseline等

个人荣誉：飞桨开发者技术专家（PPDE）

欢迎大家有问题留言交流学习，共同进步成长。
