1.swagger概述

号称世界上最流行的Api框架
RestFul Api文档在线自动生成工具=》Api文档与API定义同步更新
直接运行，可以在线测试接口

官网：https://swagger.io/

2.SpringBoot集成Swagger

2.1新建boot工程

2.2添加依赖 注意swagger版本与boot的版本

        <!-- https://mvnrepository.com/artifact/io.springfox/springfox-swagger2 -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/io.springfox/springfox-swagger-ui -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>

2.3 配置swagger

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
import java.util.ArrayList;


@Configuration
@EnableSwagger2
public class SwaggerConfig {
    @Bean
    Docket docket(){
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo());
    }
    ApiInfo apiInfo (){
        ApiInfo apiInfo = new ApiInfo("swagger测试",
                "描述信息",
                "version-1.0",
                "urn:tos",
                new Contact("作者", "http://1.2.3.4", "123@163.com"),
                "Apache 2.0",
                "http://www.apache.org/licenses/LICENSE-2.0",
                new ArrayList());
        return apiInfo;
    }
}

3.4访问

http://127.0.0.1:8080/swagger-ui.html

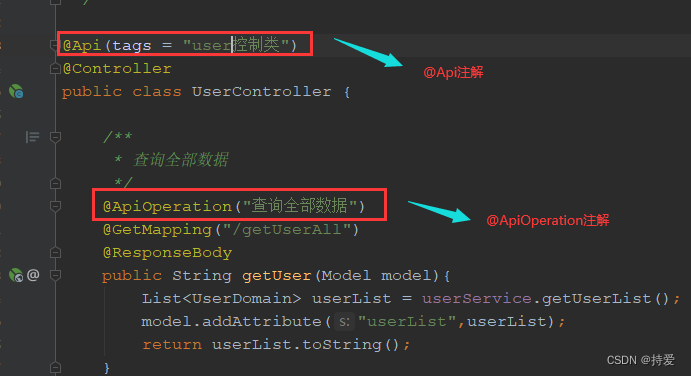

4swagger注解使用

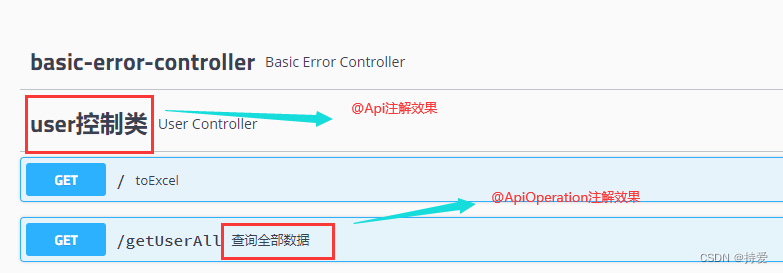

效果图：
