最近需要上k8s容器云平台，首先面临的就是安装问题，参考了官方文档也是踩了不少坑，在这里把使用kubeadm安装k8s的方法和踩的坑和大家分享一下。
一 前期准备：
我用来测试的环境是是centos7，如下
1 关闭防火墙
systemctl stop firewalld
systemctl disable firewalld
2 关闭swap内存
swapoff -a

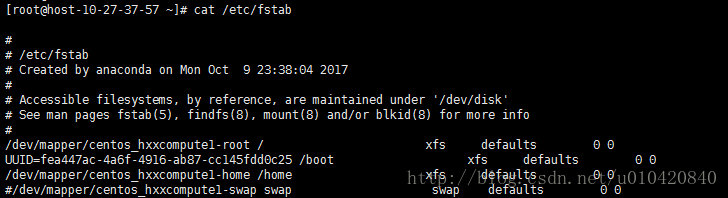

同时修改/etc/fstab文件，注释掉SWAP的自动挂载，
使用free -m确认swap已经关闭。

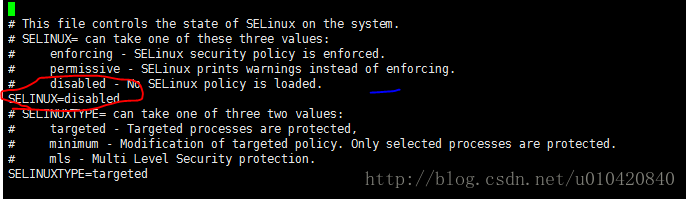

3 关闭selinux
vi /etc/sysconfig/selinux
将SELINUX修改为disabled
4 调整内核参数
修改/etc/sysctl.d/k8s.conf文件如下
[root@host-10-27-37-57 ~]# cat /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
5 修改sshd
echo “ClientAliveInterval 10” >> /etc/ssh/sshd_config
echo “TCPKeepAlive yes” >> /etc/ssh/sshd_config
systemctl restart sshd.service
二 安装
1 安装docker yum install -y docker-enginet 并重启docker服务
不同的yum源中docker的命名不尽相同 可以查看源中docker包的具体名称之后再安装
2 添加k8srepo 并安装kubeadm kubelet 和kubectl
[root@host-10-27-37-57 ~]# cat /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://packages.cloud.google.com/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://packages.cloud.google.com/yum/doc/yum-key.gpg https://packages.cloud.google.com/yum/doc/rpm-package-key.gpg
然后安装
yum install -y kubelet kubeadm kubectl
sudo systemctl enable kubelet && sudo systemctl start kubelet
3 上面的1和2两步需要在所有的节点安装 针对于master节点需要进行下面操作
(1)kubeadm init –kubernetes-version=v1.9.2 –pod-network-cidr=10.244.0.0/16
如果失败了可以kubeadm reset 重置一下 再重新试试,该命令如下：
kubeadm init –kubernetes-version=v1.9.2 –pod-network-cidr=10.244.0.0/16
[init] Using Kubernetes version: v1.9.2
[init] Using Authorization modes: [Node RBAC]
[preflight] Running pre-flight checks.
[WARNING SystemVerification]: docker version is greater than the most recently validated version. Docker version: 17.12.0-ce. Max validated version: 17.03
[WARNING FileExisting-crictl]: crictl not found in system path
[WARNING HTTPProxy]: Connection to “https://10.27.37.57:6443” uses proxy “http://15061125:fy8vs9@10.18.16.238:8181/”. If that is not intended, adjust your proxy settings
[WARNING HTTPProxyCIDR]: connection to “10.96.0.0/12” uses proxy “http://15061125:fy8vs9@10.18.16.238:8181/”. This may lead to malfunctional cluster setup. Make sure that Pod and Services IP ranges specified correctly as exceptions in proxy configuration
[WARNING HTTPProxyCIDR]: connection to “10.244.0.0/16” uses proxy “http://15061125:fy8vs9@10.18.16.238:8181/”. This may lead to malfunctional cluster setup. Make sure that Pod and Services IP ranges specified correctly as exceptions in proxy configuration
[preflight] Starting the kubelet service
[certificates] Generated ca certificate and key.
[certificates] Generated apiserver certificate and key.
[certificates] apiserver serving cert is signed for DNS names [host-10-27-37-57 kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 10.27.37.57]
[certificates] Generated apiserver-kubelet-client certificate and key.
[certificates] Generated sa key and public key.
[certificates] Generated front-proxy-ca certificate and key.
[certificates] Generated front-proxy-client certificate and key.
[certificates] Valid certificates and keys now exist in “/etc/kubernetes/pki”
[kubeconfig] Wrote KubeConfig file to disk: “admin.conf”
[kubeconfig] Wrote KubeConfig file to disk: “kubelet.conf”
[kubeconfig] Wrote KubeConfig file to disk: “controller-manager.conf”
[kubeconfig] Wrote KubeConfig file to disk: “scheduler.conf”
[controlplane] Wrote Static Pod manifest for component kube-apiserver to “/etc/kubernetes/manifests/kube-apiserver.yaml”
[controlplane] Wrote Static Pod manifest for component kube-controller-manager to “/etc/kubernetes/manifests/kube-controller-manager.yaml”
[controlplane] Wrote Static Pod manifest for component kube-scheduler to “/etc/kubernetes/manifests/kube-scheduler.yaml”
[etcd] Wrote Static Pod manifest for a local etcd instance to “/etc/kubernetes/manifests/etcd.yaml”
[init] Waiting for the kubelet to boot up the control plane as Static Pods from directory “/etc/kubernetes/manifests”.
[init] This might take a minute or longer if the control plane images have to be pulled.
[apiclient] All control plane components are healthy after 31.789435 seconds
[uploadconfig] Storing the configuration used in ConfigMap “kubeadm-config” in the “kube-system” Namespace
[markmaster] Will mark node host-10-27-37-57 as master by adding a label and a taint
[markmaster] Master host-10-27-37-57 tainted and labelled with key/value: node-role.kubernetes.io/master=””
[bootstraptoken] Using token: f184be.f642e5b3fe60b7a7
[bootstraptoken] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstraptoken] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstraptoken] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstraptoken] Creating the “cluster-info” ConfigMap in the “kube-public” namespace
[addons] Applied essential addon: kube-dns
[addons] Applied essential addon: kube-proxy
Your Kubernetes master has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
You should now deploy a pod network to the cluster.
Run “kubectl apply -f [podnetwork].yaml” with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
You can now join any number of machines by running the following on each node
as root:
kubeadm join –token f184be.f642e5b3fe60b7a7 10.27.37.57:6443 –discovery-token-ca-cert-hash sha256:d7079fa466b6c552ff79a2cca50d33919489ef25ebd15ff64e4eaa90d3110473 —-该命名会在后面用到，用来添加其他节点
(2)为了使得kubectl控制集群，需要做
对于非root用户
$ mkdir -p $HOME/.kube
$ sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
$ sudo chown $(id -u):$(id -g) $HOME/.kube/config
# 对于root用户
$ export KUBECONFIG=/etc/kubernetes/admin.conf
# 也可以直接放到~/.bash_profile
$ echo “export KUBECONFIG=/etc/kubernetes/admin.conf” >> ~/.bash_profile
(3)安装一个network addon
kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/v0.9.1/Documentation/kube-flannel.yml
安装完之后 使用

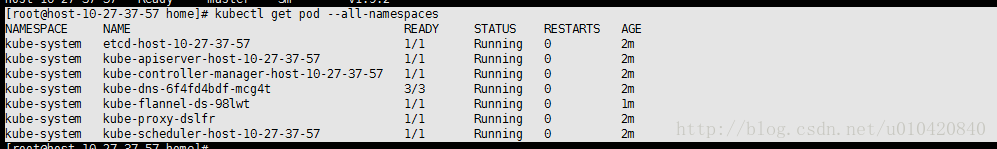

kubectl get pods –all-namespaces命令
看看kube-dns是否安装成功，当kube-dns 显示running则表示成功，如下：
（4）为了保证master的安全，master节点默认是不会被调度的。
当你只有单个节点的时候，或者想使用master节点的话可以使用
可以通过下面的命令取消这个限制
kubectl taint nodes –all node-role.kubernetes.io/master-
4 如果只有单个节点的话 上面的步骤已经可以搭建一个单节点的kubenetes环境，如果需要加入其他节点作为node节点进行下面操作：
登录其他节点，执行上面提到的
kubeadm join –token f184be.f642e5b3fe60b7a7 10.27.37.57:6443 –discovery-token-ca-cert-hash sha256:d7079fa466b6c552ff79a2cca50d33919489ef25ebd15ff64e4eaa90d3110473
命令，将其他节点加入kubenetes集群
常见的一些故障可以参考官方文档:
https://kubernetes.io/docs/setup/independent/troubleshooting-kubeadm/
安装中遇到的问题可以留言，我遇到过的就会解答
