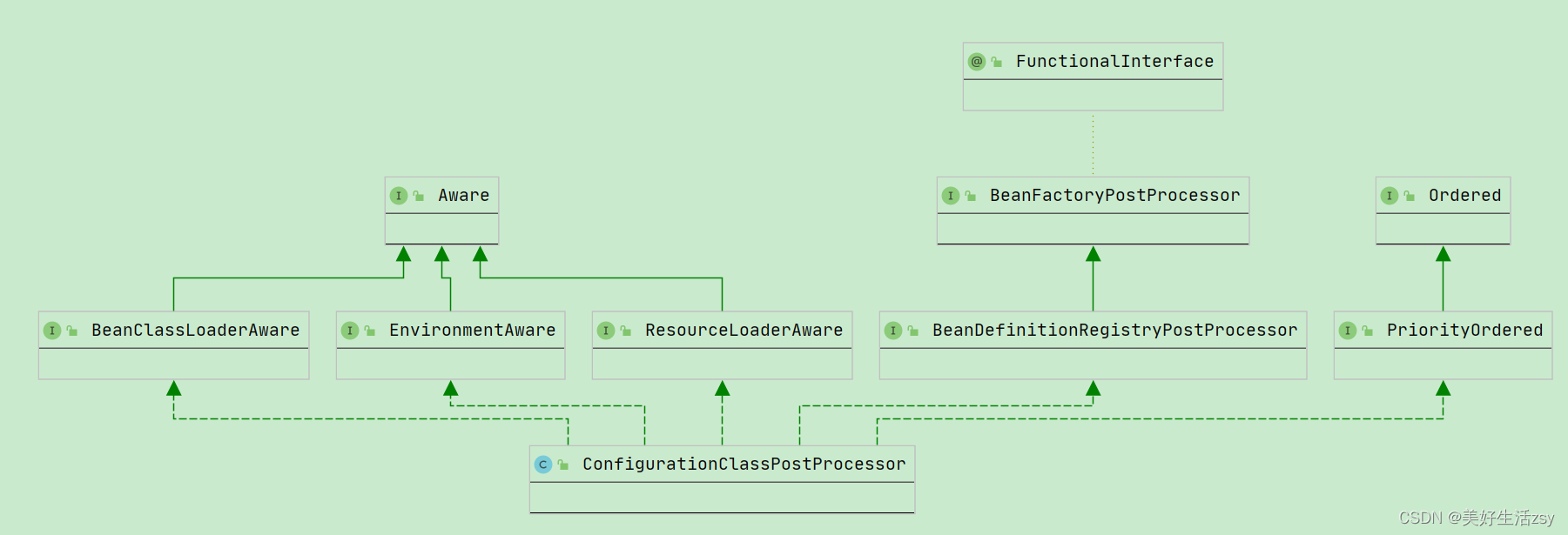

ConfigurationClassPostProcessor配置类处理器,该类实现了BeanClassLoaderAware,EnvironmentAware,ResourceLoaderAware,目的是用于bean实例化后回调填充对应的属性。
BeanDefinitionRegistryPostProcessor接口用于处理标注了@Configuration类的Bean的注册。
查找启动类
1.获取Spring容器中所有的BeanDefinition的名称
2. 判断这些配置类中是否有配置@Configuration注解,有则加入到configCandidates中,Spring Boot中就是Application类。
List<BeanDefinitionHolder> configCandidates = new ArrayList<>(); String[] candidateNames = registry.getBeanDefinitionNames(); for (String beanName : candidateNames) { BeanDefinition beanDef = registry.getBeanDefinition(beanName); if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) { if (logger.isDebugEnabled()) { logger.debug("Bean definition has already been processed as a configuration class: " + beanDef); } } else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) { configCandidates.add(new BeanDefinitionHolder(beanDef, beanName)); } } // Return immediately if no @Configuration classes were found if (configCandidates.isEmpty()) { return; }
声明配置类解析器
ConfigurationClassParser配置类解析器,这个类非常重要,目的是用于解析配置类
ConfigurationClassParser parser = new ConfigurationClassParser( this.metadataReaderFactory, this.problemReporter, this.environment, this.resourceLoader, this.componentScanBeanNameGenerator, registry); Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates); Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size()); do { parser.parse(candidates);
解析配置类
Condition条件是否满足
我们配置类中经常会定义类似@ConditionOnClass,@ConditionOnBean注解,该流程是用于判断该配置类中前置条件是否满足
if (metadata == null || !metadata.isAnnotated(Conditional.class.getName())) { return false; }
解析类成员
判断该类所有的内部类中有没有定义@Configuration注解的类,有则先进行内部类配置的解析。
if (configClass.getMetadata().isAnnotated(Component.class.getName())) { // Recursively process any member (nested) classes first processMemberClasses(configClass, sourceClass, filter); }
private void processMemberClasses(ConfigurationClass configClass, SourceClass sourceClass, Predicate<String> filter) throws IOException { Collection<SourceClass> memberClasses = sourceClass.getMemberClasses(); if (!memberClasses.isEmpty()) { List<SourceClass> candidates = new ArrayList<>(memberClasses.size()); for (SourceClass memberClass : memberClasses) { if (ConfigurationClassUtils.isConfigurationCandidate(memberClass.getMetadata()) && !memberClass.getMetadata().getClassName().equals(configClass.getMetadata().getClassName())) { candidates.add(memberClass); } } OrderComparator.sort(candidates); for (SourceClass candidate : candidates) { if (this.importStack.contains(configClass)) { this.problemReporter.error(new CircularImportProblem(configClass, this.importStack)); } else { this.importStack.push(configClass); try { processConfigurationClass(candidate.asConfigClass(configClass), filter); } finally { this.importStack.pop(); } } } } }
添加PropertySource
1. 判断该类中是否包含了@PropertySource注解,找到对应的文件进行解析成AnnotationAttributes的集合
2. 解析出该值添加到Environment中
for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable( sourceClass.getMetadata(), PropertySources.class, org.springframework.context.annotation.PropertySource.class)) { if (this.environment instanceof ConfigurableEnvironment) { processPropertySource(propertySource); } else { logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() + "]. Reason: Environment must implement ConfigurableEnvironment"); } }
private void addPropertySource(PropertySource<?> propertySource) { String name = propertySource.getName(); MutablePropertySources propertySources = ((ConfigurableEnvironment) this.environment).getPropertySources(); if (this.propertySourceNames.contains(name)) { // We've already added a version, we need to extend it PropertySource<?> existing = propertySources.get(name); if (existing != null) { PropertySource<?> newSource = (propertySource instanceof ResourcePropertySource ? ((ResourcePropertySource) propertySource).withResourceName() : propertySource); if (existing instanceof CompositePropertySource) { ((CompositePropertySource) existing).addFirstPropertySource(newSource); } else { if (existing instanceof ResourcePropertySource) { existing = ((ResourcePropertySource) existing).withResourceName(); } CompositePropertySource composite = new CompositePropertySource(name); composite.addPropertySource(newSource); composite.addPropertySource(existing); propertySources.replace(name, composite); } return; } } if (this.propertySourceNames.isEmpty()) { propertySources.addLast(propertySource); } else { String firstProcessed = this.propertySourceNames.get(this.propertySourceNames.size() - 1); propertySources.addBefore(firstProcessed, propertySource); } this.propertySourceNames.add(name); }
解析ComponentScans路径下所有的配置类
解析@ComponentScan路径下的所有配置类
Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable( sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class); if (!componentScans.isEmpty() && !this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) { for (AnnotationAttributes componentScan : componentScans) { // The config class is annotated with @ComponentScan -> perform the scan immediately Set<BeanDefinitionHolder> scannedBeanDefinitions = this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName()); // Check the set of scanned definitions for any further config classes and parse recursively if needed for (BeanDefinitionHolder holder : scannedBeanDefinitions) { BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition(); if (bdCand == null) { bdCand = holder.getBeanDefinition(); } if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) { parse(bdCand.getBeanClassName(), holder.getBeanName()); } } } }
解析Import注解
1. 获取@Import注解中定义的配置类
2. 调用SelectImport的selectImports方法,返回配置类信息
3. 针对返回的配置类迭代进行配置类解析
private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass, Collection<SourceClass> importCandidates, Predicate<String> exclusionFilter, boolean checkForCircularImports) { if (importCandidates.isEmpty()) { return; } if (checkForCircularImports && isChainedImportOnStack(configClass)) { this.problemReporter.error(new CircularImportProblem(configClass, this.importStack)); } else { this.importStack.push(configClass); try { for (SourceClass candidate : importCandidates) { if (candidate.isAssignable(ImportSelector.class)) { // Candidate class is an ImportSelector -> delegate to it to determine imports Class<?> candidateClass = candidate.loadClass(); ImportSelector selector = ParserStrategyUtils.instantiateClass(candidateClass, ImportSelector.class, this.environment, this.resourceLoader, this.registry); Predicate<String> selectorFilter = selector.getExclusionFilter(); if (selectorFilter != null) { exclusionFilter = exclusionFilter.or(selectorFilter); } if (selector instanceof DeferredImportSelector) { this.deferredImportSelectorHandler.handle(configClass, (DeferredImportSelector) selector); } else { String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata()); Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames, exclusionFilter); processImports(configClass, currentSourceClass, importSourceClasses, exclusionFilter, false); } } else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) { // Candidate class is an ImportBeanDefinitionRegistrar -> // delegate to it to register additional bean definitions Class<?> candidateClass = candidate.loadClass(); ImportBeanDefinitionRegistrar registrar = ParserStrategyUtils.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class, this.environment, this.resourceLoader, this.registry); configClass.addImportBeanDefinitionRegistrar(registrar, currentSourceClass.getMetadata()); } else { // Candidate class not an ImportSelector or ImportBeanDefinitionRegistrar -> // process it as an @Configuration class this.importStack.registerImport( currentSourceClass.getMetadata(), candidate.getMetadata().getClassName()); processConfigurationClass(candidate.asConfigClass(configClass), exclusionFilter); } } } catch (BeanDefinitionStoreException ex) { throw ex; } catch (Throwable ex) { throw new BeanDefinitionStoreException( "Failed to process import candidates for configuration class [" + configClass.getMetadata().getClassName() + "]", ex); } finally { this.importStack.pop(); } } }
获取所有标注了Bean注解的方法
1. 通过asm读取类的二进制信息获取Bean注解的方法,beanName为方法名
private Set<MethodMetadata> retrieveBeanMethodMetadata(SourceClass sourceClass) { AnnotationMetadata original = sourceClass.getMetadata(); Set<MethodMetadata> beanMethods = original.getAnnotatedMethods(Bean.class.getName()); if (beanMethods.size() > 1 && original instanceof StandardAnnotationMetadata) { // Try reading the class file via ASM for deterministic declaration order... // Unfortunately, the JVM's standard reflection returns methods in arbitrary // order, even between different runs of the same application on the same JVM. try { AnnotationMetadata asm = this.metadataReaderFactory.getMetadataReader(original.getClassName()).getAnnotationMetadata(); Set<MethodMetadata> asmMethods = asm.getAnnotatedMethods(Bean.class.getName()); if (asmMethods.size() >= beanMethods.size()) { Set<MethodMetadata> selectedMethods = new LinkedHashSet<>(asmMethods.size()); for (MethodMetadata asmMethod : asmMethods) { for (MethodMetadata beanMethod : beanMethods) { if (beanMethod.getMethodName().equals(asmMethod.getMethodName())) { selectedMethods.add(beanMethod); break; } } } if (selectedMethods.size() == beanMethods.size()) { // All reflection-detected methods found in ASM method set -> proceed beanMethods = selectedMethods; } } } catch (IOException ex) { logger.debug("Failed to read class file via ASM for determining @Bean method order", ex); // No worries, let's continue with the reflection metadata we started with... } } return beanMethods; }
加载配置类中的BeanDefinition信息
1. 检查哪些配置类需要进行跳过
2. 加载BeanMethod
private void loadBeanDefinitionsForConfigurationClass( ConfigurationClass configClass, TrackedConditionEvaluator trackedConditionEvaluator) { if (trackedConditionEvaluator.shouldSkip(configClass)) { String beanName = configClass.getBeanName(); if (StringUtils.hasLength(beanName) && this.registry.containsBeanDefinition(beanName)) { this.registry.removeBeanDefinition(beanName); } this.importRegistry.removeImportingClass(configClass.getMetadata().getClassName()); return; } if (configClass.isImported()) { registerBeanDefinitionForImportedConfigurationClass(configClass); } for (BeanMethod beanMethod : configClass.getBeanMethods()) { loadBeanDefinitionsForBeanMethod(beanMethod); } loadBeanDefinitionsFromImportedResources(configClass.getImportedResources()); loadBeanDefinitionsFromRegistrars(configClass.getImportBeanDefinitionRegistrars()); }
