配pytorch环境

1. 搭建名为ubteachers的虚拟环境

   conda create -n ubteachers python=3.7


2. 激活虚拟环境

   source activate ubteachers


3. 安装符合要求的pytorch（按照自己的cuda版本进行选择，在可选的torch版本中找到可以匹配detectron的torch版本）

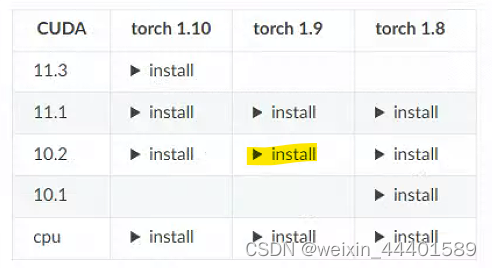

   按照下图选择torch版本：

   detectron官网




   conda install pytorch==1.9.0 torchvision==0.10.0 torchaudio==0.9.0 cudatoolkit=10.2 -c pytorch


安装detectron2

1.
   首先安装一些支持包

   。因为我的服务器网络时好时坏，故而有些包只能下载到本地、上传服务器进行安装，如果你的服务器可以联网，可以使用其他安装方式。需要安装的包有

   opencv，fvcore，Cython，pycocotools

   。

   pip install opencv-python


   conda install -c fvcore fvcore
   或
   pip install fvcore


   pip install -U Cython


   先下载

   pycocotools

   在本地，然后cd到cocoapi-master/PythonAPI下

   python setup.py build


   python setup.py install


   如果出现报错

No module named 'pycocotools._mask'

   ，可参考

   https://blog.csdn.net/hesongzefairy/article/details/105343439

   ，执行make命令。

2.
   再来安装detectron2

   。先从官网把

   detectron2

   下载到本地，

   不用进入子文件夹

   ：

   python -m pip install -e detectron2



   到此为止，detectron和环境搭建基本完成。


   在输入上面detectron2命令的时候，我出现了报错 could not find a version that satisfies the requirement timm



   解决方法：安装timm

   pip install timm


跑代码

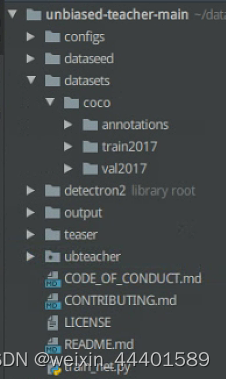

1. 下载官方代码和数据集coco2017，我的文件目录为



2. 输入命令：

   我只有一块GPU，故而

num-gups 1


   python train_net.py \
         --num-gpus 8 \
         --config configs/coco_supervision/faster_rcnn_R_50_FPN_sup1_run1.yaml \
          SOLVER.IMG_PER_BATCH_LABEL 16 SOLVER.IMG_PER_BATCH_UNLABEL 16


3. 出现报错及解决方案

   报错一：

module 'distutuils' has no attribute 'version'




   解决方法，


pip uninstall setuptools



pip install setuptools==59.5.0

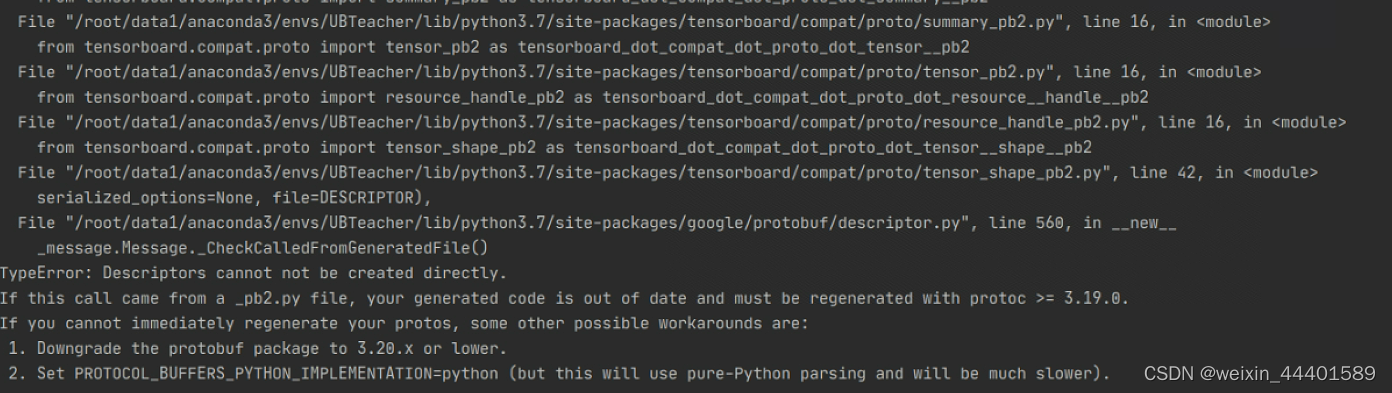

报错二：

descriptors cannot not be created directly




解决方法：

pip install protobuf==3.19.0


报错三（常见）

：

cannot import name 'FastRCNNOutputs'


参考链接

ImportError: cannot import name ‘FastRCNNOutputs’ #44

1. 将FastRCNNOutputs这个class复制到ubteacher/modeling/roi_heads/fast_rcnn.py

   class FastRCNNOutputs:
       """
       An internal implementation that stores information about outputs of a Fast R-CNN head,
       and provides methods that are used to decode the outputs of a Fast R-CNN head.
       """

       def __init__(
           self,
           box2box_transform,
           pred_class_logits,
           pred_proposal_deltas,
           proposals,
           smooth_l1_beta=0.0,
           box_reg_loss_type="smooth_l1",
       ):
           """
           Args:
               box2box_transform (Box2BoxTransform/Box2BoxTransformRotated):
                   box2box transform instance for proposal-to-detection transformations.
               pred_class_logits (Tensor): A tensor of shape (R, K + 1) storing the predicted class
                   logits for all R predicted object instances.
                   Each row corresponds to a predicted object instance.
               pred_proposal_deltas (Tensor): A tensor of shape (R, K * B) or (R, B) for
                   class-specific or class-agnostic regression. It stores the predicted deltas that
                   transform proposals into final box detections.
                   B is the box dimension (4 or 5).
                   When B is 4, each row is [dx, dy, dw, dh (, ....)].
                   When B is 5, each row is [dx, dy, dw, dh, da (, ....)].
               proposals (list[Instances]): A list of N Instances, where Instances i stores the
                   proposals for image i, in the field "proposal_boxes".
                   When training, each Instances must have ground-truth labels
                   stored in the field "gt_classes" and "gt_boxes".
                   The total number of all instances must be equal to R.
               smooth_l1_beta (float): The transition point between L1 and L2 loss in
                   the smooth L1 loss function. When set to 0, the loss becomes L1. When
                   set to +inf, the loss becomes constant 0.
               box_reg_loss_type (str): Box regression loss type. One of: "smooth_l1", "giou"
           """
           self.box2box_transform = box2box_transform
           self.num_preds_per_image = [len(p) for p in proposals]
           self.pred_class_logits = pred_class_logits
           self.pred_proposal_deltas = pred_proposal_deltas
           self.smooth_l1_beta = smooth_l1_beta
           self.box_reg_loss_type = box_reg_loss_type

           self.image_shapes = [x.image_size for x in proposals]

           if len(proposals):
               box_type = type(proposals[0].proposal_boxes)
               # cat(..., dim=0) concatenates over all images in the batch
               self.proposals = box_type.cat([p.proposal_boxes for p in proposals])
               assert (
                   not self.proposals.tensor.requires_grad
               ), "Proposals should not require gradients!"

               # "gt_classes" exists if and only if training. But other gt fields may
               # not necessarily exist in training for images that have no groundtruth.
               if proposals[0].has("gt_classes"):
                   self.gt_classes = cat([p.gt_classes for p in proposals], dim=0)

                   # If "gt_boxes" does not exist, the proposals must be all negative and
                   # should not be included in regression loss computation.
                   # Here we just use proposal_boxes as an arbitrary placeholder because its
                   # value won't be used in self.box_reg_loss().
                   gt_boxes = [
                       p.gt_boxes if p.has("gt_boxes") else p.proposal_boxes for p in proposals
                   ]
                   self.gt_boxes = box_type.cat(gt_boxes)
           else:
               self.proposals = Boxes(torch.zeros(0, 4, device=self.pred_proposal_deltas.device))
           self._no_instances = len(self.proposals) == 0  # no instances found

       def softmax_cross_entropy_loss(self):
           """
           Deprecated
           """
           _log_classification_stats(self.pred_class_logits, self.gt_classes)
           return cross_entropy(self.pred_class_logits, self.gt_classes, reduction="mean")

       def box_reg_loss(self):
           """
           Deprecated
           """
           if self._no_instances:
               return 0.0 * self.pred_proposal_deltas.sum()

           box_dim = self.proposals.tensor.size(1)  # 4 or 5
           cls_agnostic_bbox_reg = self.pred_proposal_deltas.size(1) == box_dim
           device = self.pred_proposal_deltas.device

           bg_class_ind = self.pred_class_logits.shape[1] - 1
           # Box delta loss is only computed between the prediction for the gt class k
           # (if 0 <= k < bg_class_ind) and the target; there is no loss defined on predictions
           # for non-gt classes and background.
           # Empty fg_inds should produce a valid loss of zero because reduction=sum.
           fg_inds = nonzero_tuple((self.gt_classes >= 0) & (self.gt_classes < bg_class_ind))[0]

           if cls_agnostic_bbox_reg:
               # pred_proposal_deltas only corresponds to foreground class for agnostic
               gt_class_cols = torch.arange(box_dim, device=device)
           else:
               # pred_proposal_deltas for class k are located in columns [b * k : b * k + b],
               # where b is the dimension of box representation (4 or 5)
               # Note that compared to Detectron1,
               # we do not perform bounding box regression for background classes.
               gt_class_cols = box_dim * self.gt_classes[fg_inds, None] + torch.arange(
                   box_dim, device=device
               )

           if self.box_reg_loss_type == "smooth_l1":
               gt_proposal_deltas = self.box2box_transform.get_deltas(
                   self.proposals.tensor, self.gt_boxes.tensor
               )
               loss_box_reg = smooth_l1_loss(
                   self.pred_proposal_deltas[fg_inds[:, None], gt_class_cols],
                   gt_proposal_deltas[fg_inds],
                   self.smooth_l1_beta,
                   reduction="sum",
               )
           elif self.box_reg_loss_type == "giou":
               fg_pred_boxes = self.box2box_transform.apply_deltas(
                   self.pred_proposal_deltas[fg_inds[:, None], gt_class_cols],
                   self.proposals.tensor[fg_inds],
               )
               loss_box_reg = giou_loss(
                   fg_pred_boxes,
                   self.gt_boxes.tensor[fg_inds],
                   reduction="sum",
               )
           else:
               raise ValueError(f"Invalid bbox reg loss type '{self.box_reg_loss_type}'")

           loss_box_reg = loss_box_reg / self.gt_classes.numel()
           return loss_box_reg

       def losses(self):
           """
           Deprecated
           """
           return {"loss_cls": self.softmax_cross_entropy_loss(), "loss_box_reg": self.box_reg_loss()}

       def predict_boxes(self):
           """
           Deprecated
           """
           pred = self.box2box_transform.apply_deltas(self.pred_proposal_deltas, self.proposals.tensor)
           return pred.split(self.num_preds_per_image, dim=0)

       def predict_probs(self):
           """
           Deprecated
           """
           probs = F.softmax(self.pred_class_logits, dim=-1)
           return probs.split(self.num_preds_per_image, dim=0)



2. 在这个py文件里添加

   from detectron2.layers import ShapeSpec, batched_nms, cat, cross_entropy, nonzero_tuple
   from fvcore.nn import giou_loss, smooth_l1_loss
   from detectron2.modeling.box_regression import Box2BoxTransform
   from detectron2.structures import Boxes

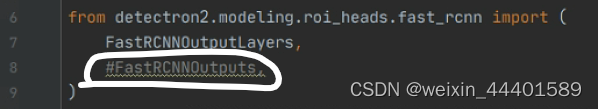

3. 注释掉py文件里的这里



至此，程序可以跑通。希望该文章对您所有帮助！
