声明：
本文参考于 https://blog.csdn.net/HXNLYW/article/details/104478142
本文仅用于补充，与工具类细节
工具类（注意字体路径，如果没有字体到他的Gitee上面下载）
import com.lowagie.text.pdf.BaseFont;
import com.lowagie.text.xml.xmp.XmpWriter;
import lombok.extern.slf4j.Slf4j;
import org.thymeleaf.TemplateEngine;
import org.thymeleaf.context.Context;
import org.w3c.dom.Document;
import org.xhtmlrenderer.pdf.ITextFontResolver;
import org.xhtmlrenderer.pdf.ITextRenderer;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletResponse;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import java.io.*;
import java.util.List;
import java.util.Map;
/**
* pdf处理工具类
*
* @author gourd.hu
* @version 1.0
*/
@Slf4j
public class PdfUtil {
/**
* 以文件流形式下载到浏览器
*
* @param templateEngine 配置
* @param templateName 模板名称
* @param listVars 模板参数集
* @param response HttpServletResponse
* @param fileName 下载文件名称
*/
public static void download(TemplateEngine templateEngine, String templateName, List<Map<String, Object>> listVars, HttpServletResponse response, String fileName) {
// 设置编码、文件ContentType类型、文件头、下载文件名
response.setCharacterEncoding(XmpWriter.UTF8);
response.setContentType("application/pdf");
try {
response.setHeader("Content-Disposition", "attachment;fileName=" +
new String(fileName.getBytes("gb2312"), "ISO8859-1"));
} catch (UnsupportedEncodingException e) {
log.error(e.getMessage(), e);
}
try (ServletOutputStream out = response.getOutputStream()) {
generateAll(templateEngine, templateName, out, listVars);
out.flush();
} catch (Exception e) {
log.error(e.getMessage(), e);
}
}
/**
* pdf下载到特定位置
*
* @param templateEngine 配置
* @param templateName 模板名称
* @param listVars 模板参数集
* @param filePath 下载文件路径
*/
public static void save(TemplateEngine templateEngine, String templateName, List<Map<String, Object>> listVars, String filePath) {
try (OutputStream out = new FileOutputStream(filePath);) {
generateAll(templateEngine, templateName, out, listVars);
out.flush();
} catch (Exception e) {
log.error(e.getMessage(), e);
}
}
/**
* pdf预览
*
* @param templateEngine 配置
* @param templateName 模板名称
* @param listVars 模板参数集
* @param response HttpServletResponse
*/
public static void preview(TemplateEngine templateEngine, String templateName, List<Map<String, Object>> listVars, HttpServletResponse response) {
try (ServletOutputStream out = response.getOutputStream()) {
generateAll(templateEngine, templateName, out, listVars);
out.flush();
} catch (Exception e) {
log.error(e.getMessage(), e);
}
}
/**
* 按模板和参数生成html字符串,再转换为flying-saucer识别的Document
*
* @param templateName 模板名称
* @param variables 模板参数
* @return Document
*/
private static Document generateDoc(TemplateEngine templateEngine, String templateName, Map<String, Object> variables) {
// 声明一个上下文对象，里面放入要存到模板里面的数据
final Context context = new Context();
context.setVariables(variables);
StringWriter stringWriter = new StringWriter();
try(BufferedWriter writer = new BufferedWriter(stringWriter)) {
templateEngine.process(templateName,context, writer);
writer.flush();
DocumentBuilder builder = DocumentBuilderFactory.newInstance().newDocumentBuilder();
return builder.parse(new ByteArrayInputStream(stringWriter.toString().getBytes()));
}catch (Exception e){
//ResponseEnum.TEMPLATE_PARSE_ERROR.assertFail(e);
}
return null;
}
/**
* 核心: 根据Thymeleaf 模板生成pdf文档
*
* @param templateEngine 配置
* @param templateName 模板名称
* @param out 输出流
* @param listVars 模板参数
* @throws Exception 模板无法找到、模板语法错误、IO异常
*/
private static void generateAll(TemplateEngine templateEngine, String templateName, OutputStream out, List<Map<String, Object>> listVars) throws Exception {
// 断言参数不为空
//ResponseEnum.TEMPLATE_DATA_NULL.assertNotEmpty(listVars);
ITextRenderer renderer = new ITextRenderer();
//设置字符集(宋体),此处必须与模板中的<body style="font-family: SimSun">一致,区分大小写,不能写成汉字"宋体"
ITextFontResolver fontResolver = renderer.getFontResolver();
//避免中文为空设置系统字体
fontResolver.addFont("static/fonts/simsun.ttf", BaseFont.IDENTITY_H, BaseFont.NOT_EMBEDDED);
// 如果linux下有问题，可使用以下方式解决。
// 有一个项目是用docker部署的，一直报错找不到simsun.ttf文件，但需要将simsun.ttf上传到/usr/share/fonts
//fontResolver.addFont(CommonUtil.isLinux() ? "/usr/share/fonts/simsun.ttf" : "static/fonts/simsun.ttf", BaseFont.IDENTITY_H, BaseFont.NOT_EMBEDDED);
//根据参数集个数循环调用模板,追加到同一个pdf文档中
//(注意:此处从1开始,因为第0是创建pdf,从1往后则向pdf中追加内容)
for (int i = 0; i < listVars.size(); i++) {
Document docAppend = generateDoc(templateEngine, templateName, listVars.get(i));
renderer.setDocument(docAppend, null);
//展现和输出pdf
renderer.layout();
if(i==0){
renderer.createPDF(out, false);
}else {
//写下一个pdf页面
renderer.writeNextDocument();
}
}
renderer.finishPDF(); //完成pdf写入
}
}
测试
import com.flo.util.PdfUtil;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.thymeleaf.TemplateEngine;
import javax.servlet.http.HttpServletResponse;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
@RestController
@RequestMapping(value = "/pdf")
@Api(value="pdf功能",tags={"4.pdf功能"})
public class PdfController {
@Autowired
private TemplateEngine templateEngine;
// @GetMapping(value = "preview")
// @ApiOperation(value="pdf预览")
// public void preview(HttpServletResponse response) {
// // 构造freemarker模板引擎参数,listVars.size()个数对应pdf页数
// List<Map<String,Object>> listVars = new ArrayList<>();
// Map<String,Object> variables = new HashMap<>(4);
// variables.put("title","测试预览PDF!");
variables.put("imageUrl",sslEnabled?"https://localhost:10001/imgs/sg.jpg":"http://localhost:10001/imgs/sg.jpg");
// List<Map<String,String>> demoList = new ArrayList<>();
// Map<String,String> demoMap = new HashMap<>(8);
// demoMap.put("name","哈哈");
// demoMap.put("nick","娃娃");
// demoMap.put("age","19");
// Map<String,String> demoMap2 = new HashMap<>(8);
// demoMap2.put("name","天天");
// demoMap2.put("nick","饭饭");
// demoMap2.put("age","14");
// demoList.add(demoMap);
// demoList.add(demoMap2);
// variables.put("demoList",demoList);
// Map<String,Object> variables2 = new HashMap<>(4);
// variables2.put("title","测试预览PDF2!");
// listVars.add(variables);
// listVars.add(variables2);
//
// PdfUtil.preview(templateEngine,"pdfPage",listVars,response);
// }
@GetMapping(value = "/download")
@ApiOperation(value="pdf下载")
public void download(HttpServletResponse response) {
List<Map<String,Object>> listVars = new ArrayList<>(1);
Map<String,Object> variables = new HashMap<>(4);
variables.put("title","测试下载PDF!");
//variables.put("imageUrl",sslEnabled?"https://localhost:10001/imgs/sg.jpg":"http://localhost:10001/imgs/sg.jpg");
List<Map<String,String>> demoList = new ArrayList<>();
Map<String,String> demoMap = new HashMap<>(8);
demoMap.put("name","哈哈");
demoMap.put("nick","娃娃");
demoMap.put("age","19");
Map<String,String> demoMap2 = new HashMap<>(8);
demoMap2.put("name","天天");
demoMap2.put("nick","饭饭");
demoMap2.put("age","14");
demoList.add(demoMap);
demoList.add(demoMap2);
variables.put("demoList",demoList);
listVars.add(variables);
PdfUtil.download(templateEngine,"pdfPage",listVars,response,System.getProperty("user.dir")+"/src/main/resources/static/uploadFile/"+"测试打印.pdf");
}
}

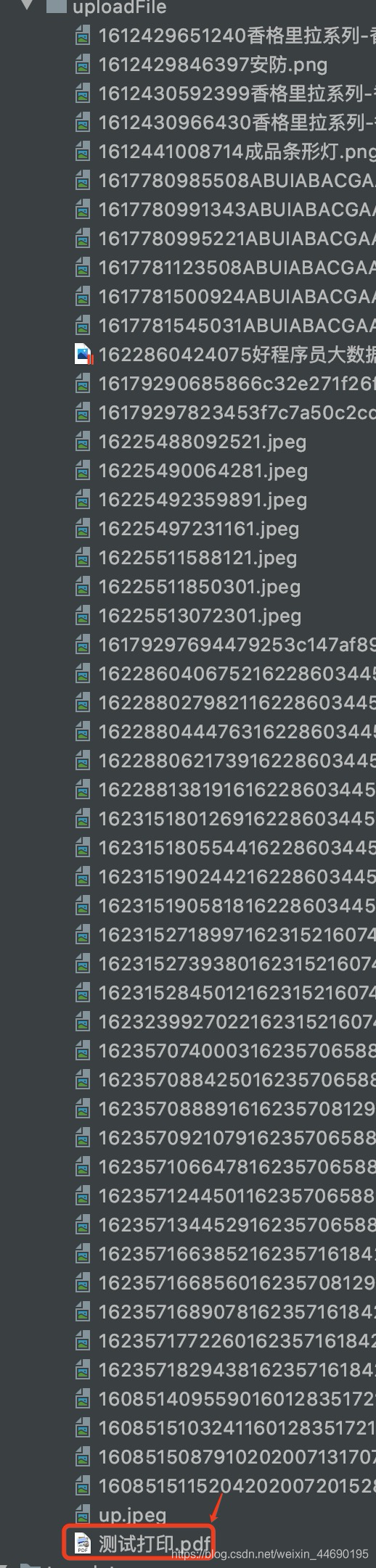

效果
