Kubernetes-DashBoard安装使用

  • Post author:
  • Post category:其他


在kubernetes中完成的所有操作都是通过命令行工具kubectl完成的。其实，为了提供更丰富的用户体验,kubernetes还开发了一个基于web的用户界面(Dashboard)。用户可以使用Dashboard部署容器化的应用，还可以监控应用的状态，执行故障排查以及管理kubernetes中各种资源。

#下载
wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.1.0/aio/deploy/recommended.yaml

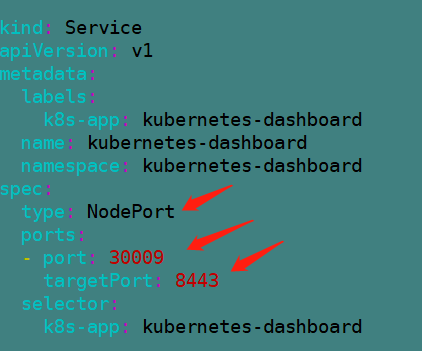

官方的kubernetes-dashboard.yaml文件中service的type类型为clusterIp(service默认类型)，这种方式要访问dashboard需要通过代理，所以我们改为NodePort方式，这样部署完后，就可以直接通过


kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  type: NodePort
  ports:
  - port: 30009
    targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard

kubectl apply -f recommended.yaml

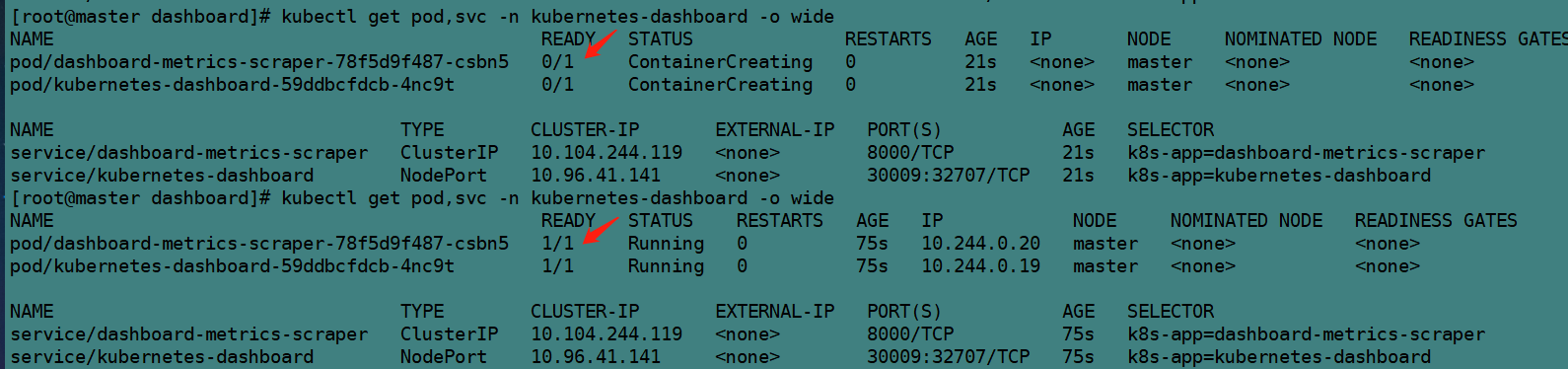

kubectl get pod,svc -n kubernetes-dashboard -o wide

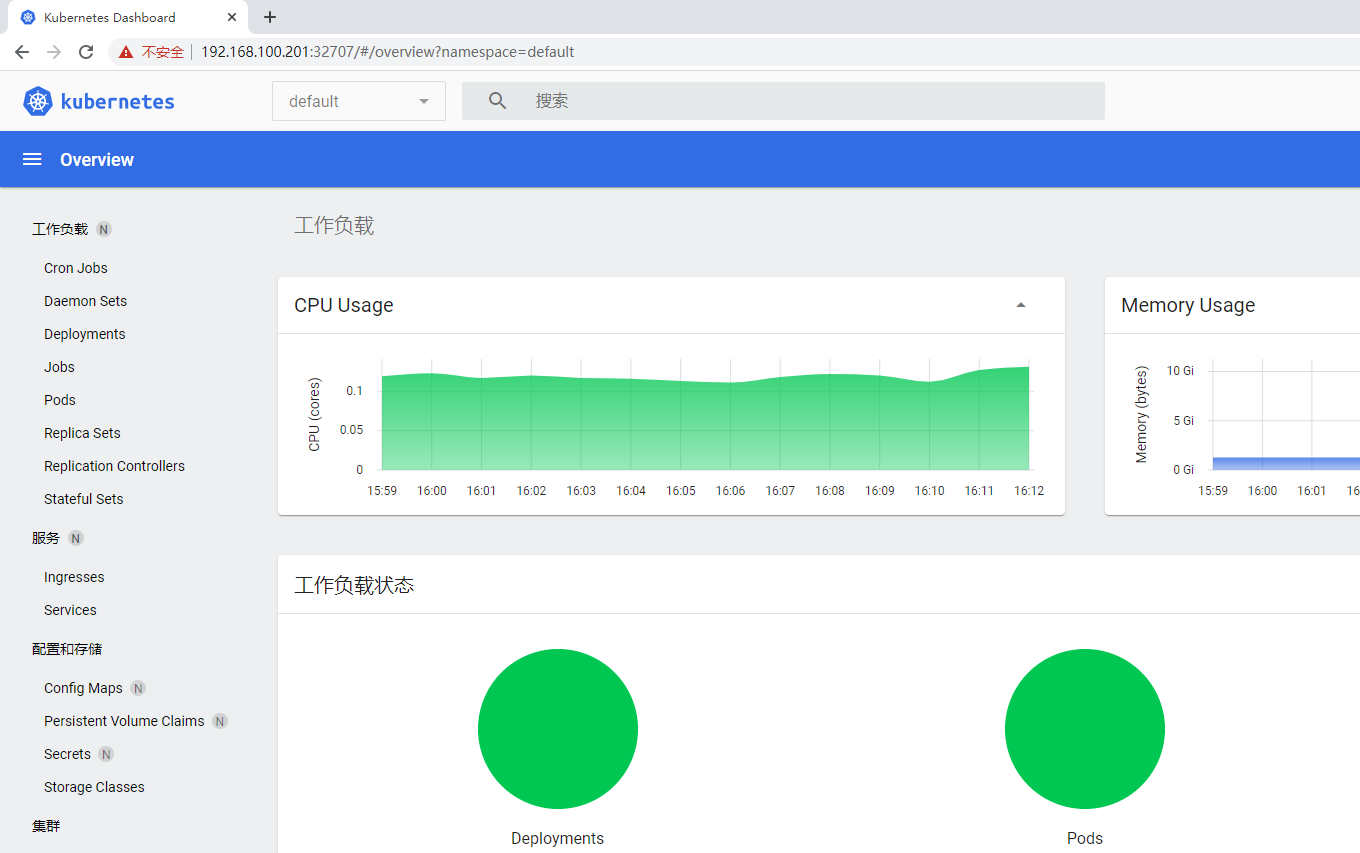

访问：

https://192.168.100.201:32707/#/login


使用创建的用户的token 登录

创建账户，获取token：

#创建账户
kubectl create serviceaccount dashboard-admin -n kubernetes-dashboard
#授权
kubectl create clusterrolebinding dashboard-admin-rb --clusterrole=cluster-admin --serviceaccount=kubernetes-dashboard:dashboard-admin
#获取账号token
kubectl get secrets -n kubernetes-dashboard |grep dashboard-admin
kubectl describe secrets dashboard-admin-token-27s7l -n kubernetes-dashboard

token:
eyJhbGciOiJSUzI1NiIsImtpZCI6IjFHOFZiQ0htSXFOTDVzeW5DUXprZHA5dS1PeERWbTRfeDExTFVpQ2VnX1EifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tMjdzN2wiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiYjY2NTdiMWEtZDE5My00MmM4LWE5NTYtNWRhNTUxYmY4ZmFmIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.ntLGXQlqitITjmST19lB9s9SbuwNLNDq6Z-9l6Oh8iv0EoGDVYdYqcUg8HLoNm3OMJTpalYh6MyfGLsIXST44pkjdjBssOcGu1GPVdCrw4QQWcBA9T5o9jndt81mcbxPMpay8tb99Cn-oBnL4YRA8duFhBQmyNwKCBApGVspd1UgQBF2Gmtpwy8PUY2_GZ7-aPDxOcFj1ffcjSMDWVTR5eNgPxNtiAXrEqOxUcDSH0xgKyPNmzpTstrppqXUJ9JUlQzptPhGw44PGb7_n_PaNz6eDG8HO_I982EVzZVM-sQLlCpXuqsOa_vH8P-5y6OB7AvOY1a0qcpB7WTCfsCCug
