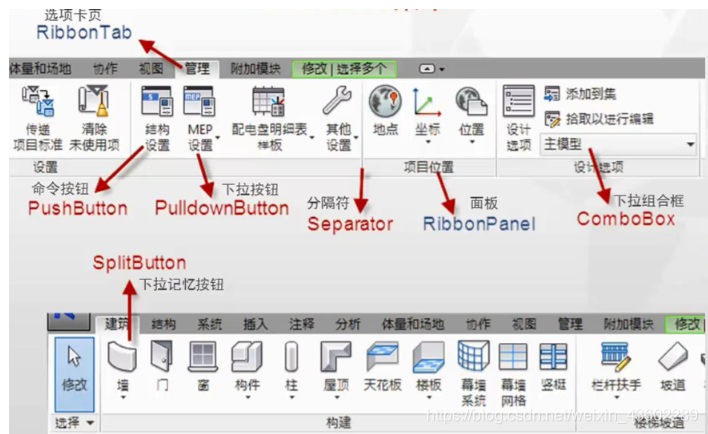

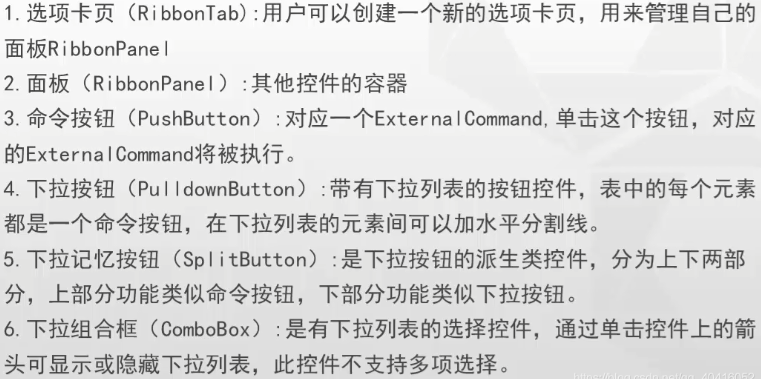

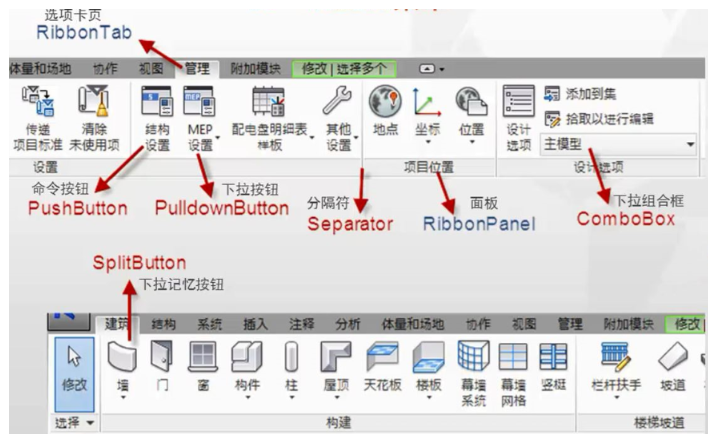

RibbonTab介绍

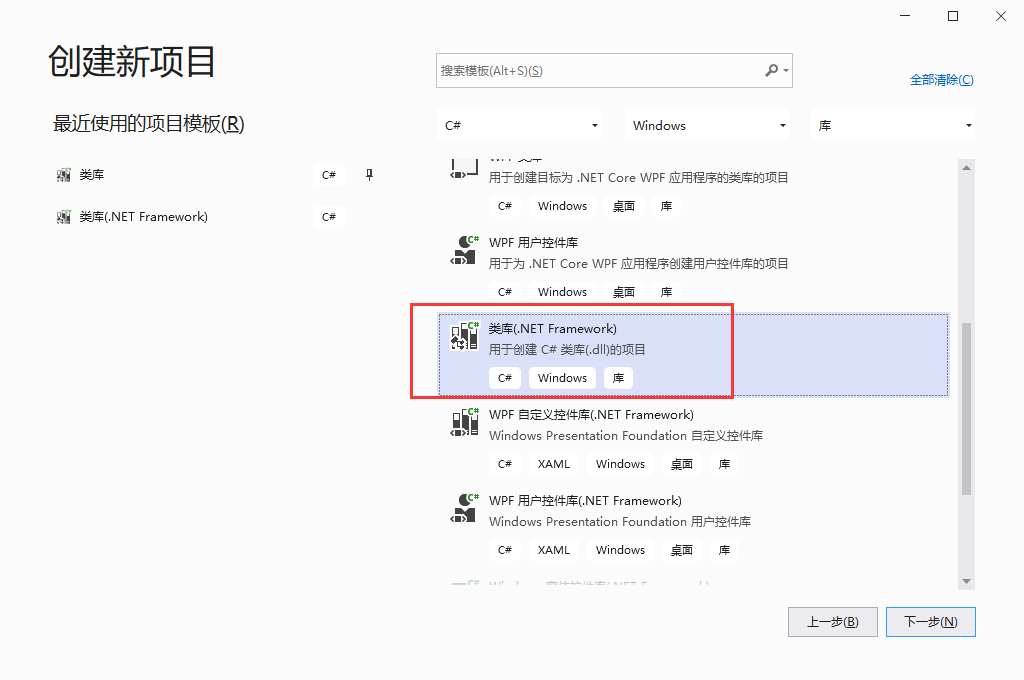

1. 创建项目


2. 添加引用

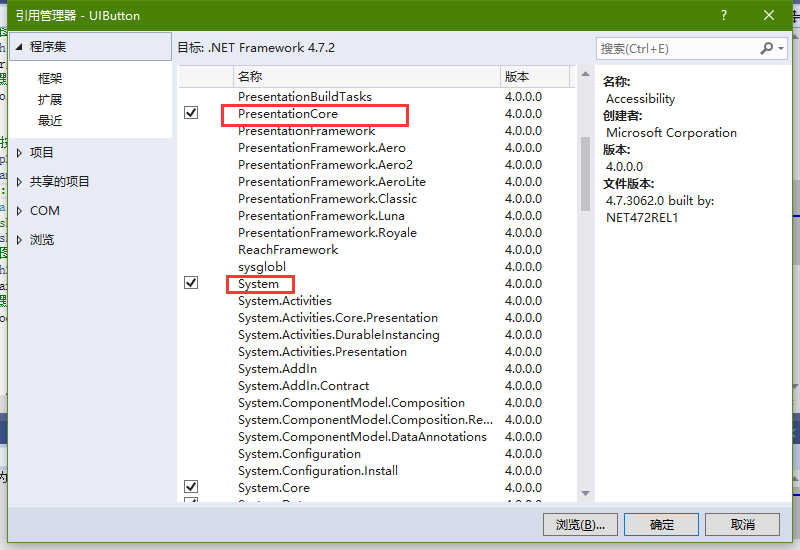

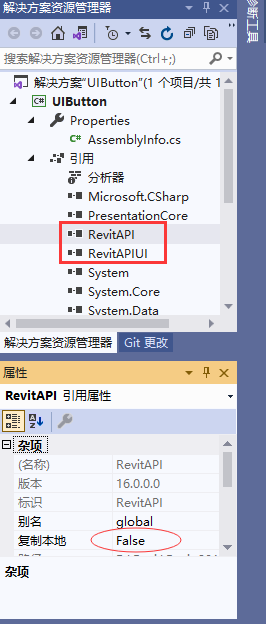

3添加制作位图需要添加的引用:PresentationCore、System.Xaml、WindowsBase

4. 创建类（选项版）`

   using System;
   using System.Collections.Generic;
   using System.Linq;
   using System.Text;
   using System.Threading.Tasks;
   using Autodesk.Revit.DB;
   using Autodesk.Revit.UI;
   using Autodesk.Revit.Attributes;

   using System.Windows.Media.Imaging;//需要添加引用:PresentationCore、    System.Xaml、WindowsBase
     using Autodesk.Revit.UI.Events;


namespace UIButton

{


[Transaction(TransactionMode.Manual)]

class IlluminationDesign :IExternalApplication

{


public Result OnShutdown(UIControlledApplication application)

{


return Result.Succeeded;

}

public Result OnStartup(UIControlledApplication application)

{


//【1】第一步：创建一个RibbonTab

application.CreateRibbonTab(“照明计算”);//new tab

//【2】第二步：在刚才的RibbonTab中创建 uIPanel

RibbonPanel rp = application.CreateRibbonPanel(“照明计算”, “选择光源”);

//【3】第三步：指定程序集的名称以及所使用的类名

string assemblyPath = @“D:\Desktop\VSdemo\UIButton\UIButton\bin\Debug\UIButton.dll”;

string classNameHelloRevit = “UIButton.HelloRevit”;

//【4】第四步：创建PushButton

PushButtonData pbd = new PushButtonData(“InnerNameRevit”, “灯具库”, assemblyPath, classNameHelloRevit);

//【4-1】将pushButton添加到面板中

PushButton pushButton = rp.AddItem(pbd) as PushButton;

//【4-2】添加图标

string imgPath = @“D:\Desktop\VSdemo\照明系统.png”;

pushButton.LargeImage = new BitmapImage(new Uri(imgPath));

//【4-3】设置默认信息

pushButton.ToolTip = “请选择合适的灯具”;

//【4-4】增加按钮

RibbonPanel rp2= application.CreateRibbonPanel(“照明计算”, “方案导出”);

string classNamefangan = “UIButton.fangan”;

//【4】第四步：创建PushButton

PushButtonData pbd2 = new PushButtonData(“InnerNameRevit”, “图纸和明细表”, assemblyPath, classNamefangan);

//【4-1】将pushButton添加到面板中

PushButton pushButton2 = rp2.AddItem(pbd2) as PushButton;

//【4-2】添加图标

string imgPath2 = @“D:\Desktop\VSdemo\明细表.png”;

pushButton2.LargeImage = new BitmapImage(new Uri(imgPath2));

//【4-3】设置默认信息

pushButton2.ToolTip = “生成图纸和明细表”;

return Result.Succeeded;

}

}

}`

5. 创建命令按钮`using Autodesk.Revit.Attributes;

   using Autodesk.Revit.DB;

   using Autodesk.Revit.UI;

   using System;

   using System.Collections.Generic;

   using System.Linq;

   using System.Text;

   using System.Threading.Tasks;

namespace UIButton

{


[Transaction(TransactionMode.Manual)]

public class HelloRevit : IExternalCommand

{

    public Result Execute(ExternalCommandData commandData, ref string message, ElementSet elements)
    {
        //获取当前文档
        Document doc = commandData.Application.ActiveUIDocument.Document;
        //显示Helioworld
        TaskDialog.Show("提示","方案生成完毕");
  return Result.Succeeded;
    }
      }

}

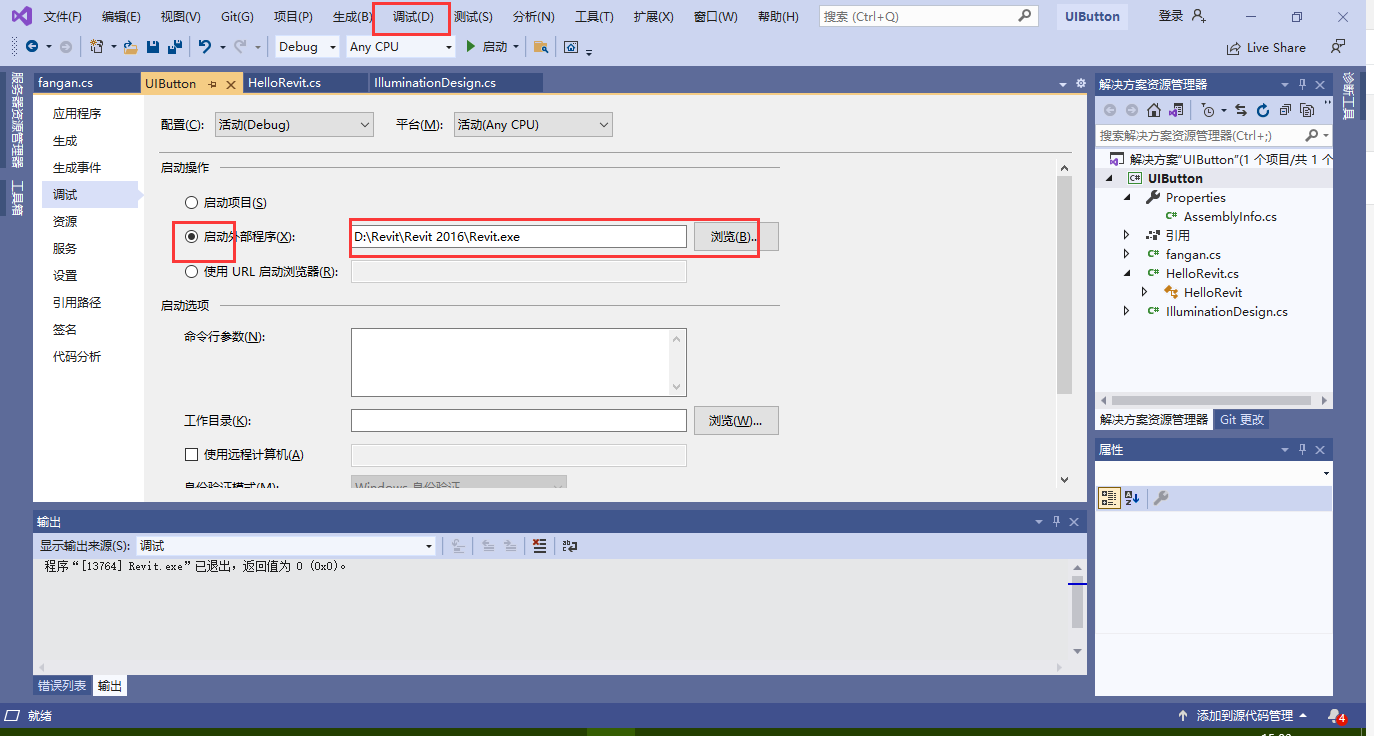

调试

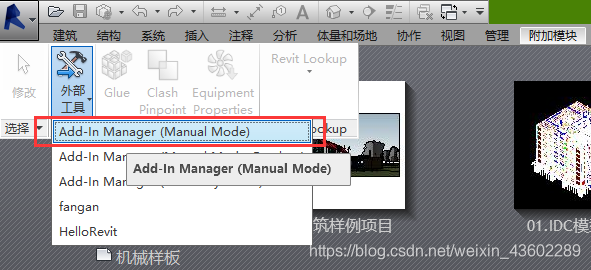

• 打开revit，加载外部程序





  load创建的VS项目所在路径，点save，选择saved checked items to Addin folder

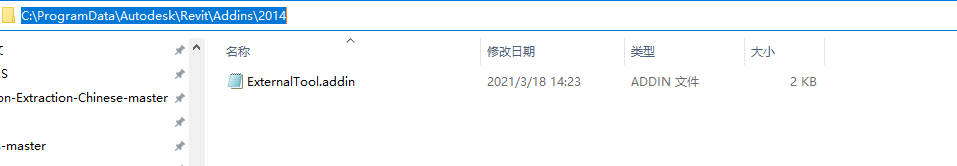

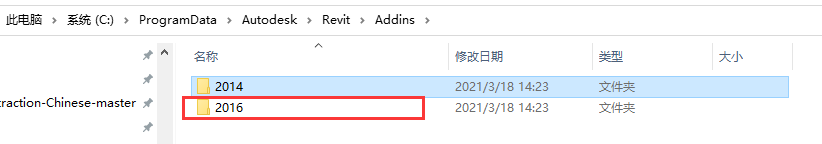

  此时C:\ProgramData\Autodesk\Revit\Addins\2014路径下产生.addin文件，复制进当前使用Revit版本下，我的是2016.

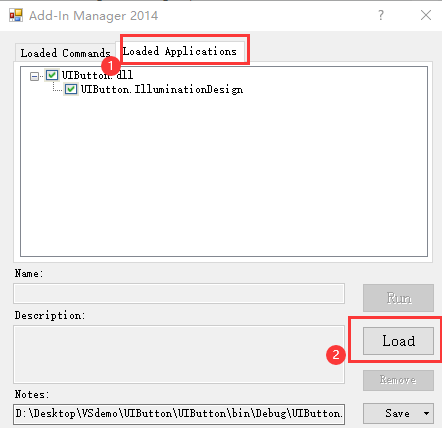

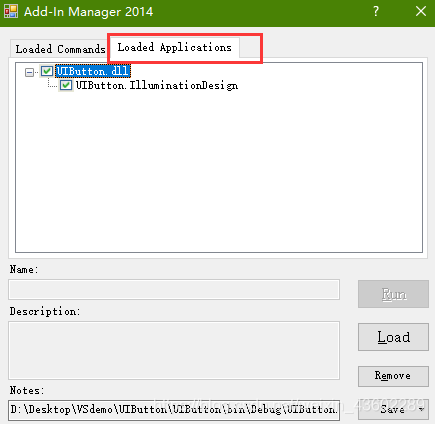

  再Load Applications


  添加刚刚的addin文件即可。（若显示没有文件，选择all files可见）
