之前我们项目的证书都是rsa的，这次本意是希望能升级到国密，但是理想过于丰满
一、GMSSL安装
# 下载
wget https://github.com/guanzhi/GmSSL/archive/master.zip
# 解压
unzip master.zip
# 进入目录
cd GmSSL-master
# 配置config指定目录
./config --prefix=/usr/local/gmssl
make
make install
# 查看版本，验证是否安装成功
cd /usr/local/gmssl/
bin/gmssl version
# 报错了，这是由于openssl库的位置不正确造成的
bin/gmssl: error while loading shared libraries: libssl.so.1.1: cannot open shared object file: No such file or directory
# 现在基本都是建立软连接，但是可能都没说清楚就会比较懵。
# 1.首先确认gmssl的安装路径，我的是/usr/local/gmssl
# 2.应该将gmssl目录下的lib下的对应文件建立软连接
# 3.确认以上两点后，执行下面的命令
ln -s /usr/local/gmssl/lib/libssl.so.1.1 /usr/lib64/libssl.so.1.1
ln -s /usr/local/gmssl/lib/libcrypto.so.1.1 /usr/lib64/libcrypto.so.1.1
# 再执行bin/gmssl version，则正常返回版本信息
二、使nginx支持国密
一开始我认认真真的自己编译了nginx和gmssl，换了几个版本，但是编译出来后ssl_protocols都不能使用GMTLS
所谓前人栽树后人乘凉果然有道理，于是我找到了这个
nginx-gm
但是说明比较简约，要不是我自己之前尝试编译了nginx和gmssl，可能现在还在坑里爬不出来
# 下载上面地址的程序并解压
unzip nginx-gm-master.zip
# 进入目录
cd nginx-gm-master/auto/lib/openssl
# 备份原文件
cp conf conf.bak
# 编辑conf,将全部 $OPENSSL/.openssl/修改为$OPENSSL/
vi conf
# 回到原目录
cd nginx-gm-master
# 修改一下 vi build.sh
# 主要修改了nginx安装完后的路径以及gmssl路径
./auto/configure \
--prefix=/usr/local/nginxgm \
--with-http_ssl_module \
--with-http_realip_module \
--with-http_addition_module \
--with-http_sub_module \
--with-http_dav_module \
--with-http_flv_module \
--with-http_mp4_module \
--with-http_gunzip_module \
--with-http_gzip_static_module \
--with-http_random_index_module \
--with-http_secure_link_module \
--with-http_stub_status_module \
--with-http_auth_request_module \
--with-threads \
--with-stream \
--with-stream_ssl_module \
--with-http_slice_module \
--with-mail \
--with-mail_ssl_module \
--with-file-aio \
--with-http_v2_module \
--with-openssl=/usr/local/gmssl
# 执行build.sh
sh build.sh
# 安装
make install
# 完成后/usr/local/nginxgm已有相关文件
三、sm2证书生成及验证
1.证书生成
# 1.以下命令在哪个目录执行的就会生成到哪个目录
# 2.openssl.cnf需要放在执行命令的目录下，主要修改了key usage，以便分别生成签名证书和加密证书,这个文件我附在本篇博客最后
# 3.这里-extfile openssl.cnf -extensions v3_ca既是为了区分前面和加密证书也是为了生成v3版本的证书，如果不加生成的是V1版本的
# 4.其实目前这里疑问还是挺多的，但是先上手再说
# 生成CA证书
/usr/local/gmssl/bin/gmssl ecparam -genkey -name sm2p256v1 -noout -out root.key
/usr/local/gmssl/bin/gmssl req -new -key root.key -out root.req -subj "/C=CN/ST=HeBei/L=ShiJiaZhuang/O=WYW/CN=root"
/usr/local/gmssl/bin/gmssl x509 -req -days 3650 -sm3 -in root.req -extfile openssl.cnf -extensions v3_ca -signkey root.key -out root.crt
# Server签名证书
/usr/local/gmssl/bin/gmssl ecparam -name sm2p256v1 -genkey -noout -out server.key
/usr/local/gmssl/bin/gmssl req -new -SM3 -key server.key -out server.csr -subj /C=CN/ST=HeBei/L=ShiJiaZhuang/O=WYW/CN="192.168.46.161"
/usr/local/gmssl/bin/gmssl x509 -req -SM3 -days 3650 -in server.csr -extfile openssl.cnf -extensions v3_req -CA root.crt -CAkey root.key -set_serial 1000000001 -out server.crt
# Server加密证书
/usr/local/gmssl/bin/gmssl ecparam -name sm2p256v1 -genkey -noout -out server_en.key
/usr/local/gmssl/bin/gmssl req -new -SM3 -key server_en.key -out server1.csr -subj /C=CN/ST=HeBei/L=ShiJiaZhuang/O=WYW/CN="192.168.46.161"
/usr/local/gmssl/bin/gmssl x509 -req -SM3 -days 3650 -in server1.csr -extfile openssl.cnf -extensions v3enc_req -CA root.crt -CAkey root.key -set_serial 1000002001 -out server_en.crt
# 客户端签名证书
/usr/local/gmssl/bin/gmssl ecparam -genkey -name sm2p256v1 -noout -out client.key
/usr/local/gmssl/bin/gmssl req -new -key client.key -out client.req -subj "/C=CN/ST=HeBei/L=ShiJiaZhuang/O=WYW/CN=alipay"
/usr/local/gmssl/bin/gmssl x509 -req -SM3 -days 3650 -in client.req -extfile openssl.cnf -extensions v3_req -CA root.crt -CAkey root.key -CAcreateserial -out client.crt
# 客户端加密证书
/usr/local/gmssl/bin/gmssl ecparam -genkey -name sm2p256v1 -noout -out client_en.key
/usr/local/gmssl/bin/gmssl req -new -key client_en.key -out client_en.req -subj "/C=CN/ST=HeBei/L=ShiJiaZhuang/O=WYW/CN=alipay"
/usr/local/gmssl/bin/gmssl x509 -req -SM3 -days 3650 -in client_en.req -CA root.crt -extfile openssl.cnf -extensions v3enc_req -CAkey root.key -CAcreateserial -out client_en.crt
2.验证
2.1 gmssl提供的验证方式
/usr/local/gmssl/bin/gmssl s_server -port 443 -key gmzs2/server.key -cert gmzs2/server.crt -dkey gmzs2/server_en.key -dcert gmzs2/server_en.crt -CAfile gmzs2/root.crt

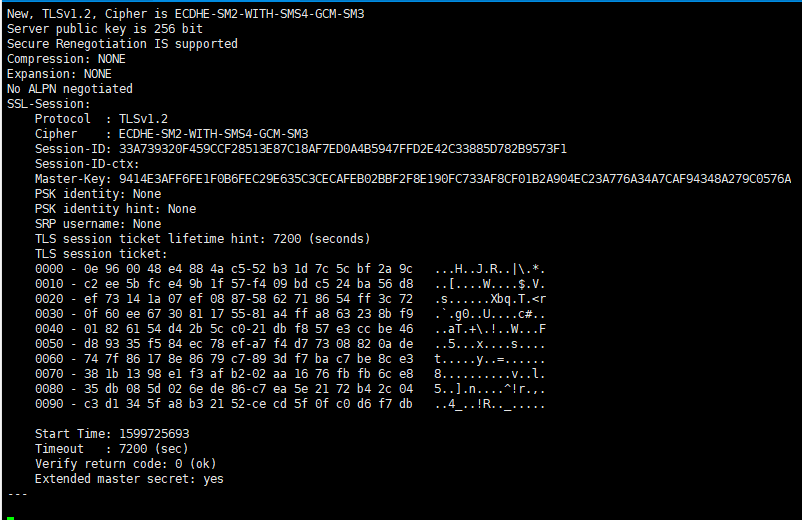

2.1.1 s_client验证
我们另外打开一个窗口，用s_client测试一下
/usr/local/gmssl/bin/gmssl s_client -connect localhost:443 -key gmzs2/client.key -cert gmzs2/client.crt -CAfile gmzs2/root.crt
这样也是ok的，在client端输入一些字符，s_server也能收到，哈哈哈哈，发出了莫名的笑声
就是这个client让我迷茫的一点是，为什么要带上根证书呢？
2.1.2 浏览器验证
这里我先用的密信浏览器，是能访问到的，360不行，可能需要后续研究
2.1 nginx验证
nginx-gm
回到我们刚才安装好的nginx，修改配置文件，这个说明里说需要配置三套证书（国密签名证书、国密加密证书、其他普通证书）
-0-在我积极的测试中发现其他普通证书指的是根证书，配置其他的都报错了。如下
# vi nginx.conf
server {
listen 443 ssl;
server_name localhost;
ssl_certificate /usr/local/gmzs2/server.crt;
ssl_certificate_key /usr/local/gmzs2/server.key;
ssl_certificate /usr/local/gmzs2/server_en.crt;
ssl_certificate_key /usr/local/gmzs2/server_en.key;
ssl_protocols TLSv1.2 TLSv1.3 GMTLS;
ssl_certificate /usr/local/gmzs2/root.crt;
ssl_certificate_key /usr/local/gmzs2/root.key;
ssl_session_cache shared:SSL:1m;
ssl_session_timeout 5m;
ssl_ciphers ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES128-GCM-SHA256:ECDHE-SM2-WITH-SMS4-GCM-SM3:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA384:DHE-RSA-AES256-SHA256:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA256:ECDHE-SM2-WITH-SMS4-SHA256:ECDHE-SM2-WITH-SMS4-SM3:ECDHE-ECDSA-AES256-SHA:ECDHE-RSA-AES256-SHA:DHE-RSA-AES256-SHA:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES128-SHA:DHE-RSA-AES128-SHA:RSA-PSK-AES256-GCM-SHA384:DHE-PSK-AES256-GCM-SHA384:RSA-PSK-CHACHA20-POLY1305:DHE-PSK-CHACHA20-POLY1305:ECDHE-PSK-CHACHA20-POLY1305:AES256-GCM-SHA384:PSK-AES256-GCM-SHA384:PSK-CHACHA20-POLY1305:RSA-PSK-AES128-GCM-SHA256:DHE-PSK-AES128-GCM-SHA256:AES128-GCM-SHA256:PSK-AES128-GCM-SHA256:AES256-SHA256:AES128-SHA256:ECDHE-PSK-AES256-CBC-SHA384:ECDHE-PSK-AES256-CBC-SHA:SRP-RSA-AES-256-CBC-SHA:SRP-AES-256-CBC-SHA:RSA-PSK-AES256-CBC-SHA384:DHE-PSK-AES256-CBC-SHA384:RSA-PSK-AES256-CBC-SHA:DHE-PSK-AES256-CBC-SHA:AES256-SHA:PSK-AES256-CBC-SHA384:PSK-AES256-CBC-SHA:ECDHE-PSK-AES128-CBC-SHA256:ECDHE-PSK-AES128-CBC-SHA:SRP-RSA-AES-128-CBC-SHA:SRP-AES-128-CBC-SHA:RSA-PSK-AES128-CBC-SHA256:DHE-PSK-AES128-CBC-SHA256:RSA-PSK-AES128-CBC-SHA:DHE-PSK-AES128-CBC-SHA:SM9-WITH-SMS4-SM3:SM9DHE-WITH-SMS4-SM3:SM2-WITH-SMS4-SM3:SM2DHE-WITH-SMS4-SM3:AES128-SHA:RSA-WITH-SMS4-SHA1:RSA-WITH-SMS4-SM3:PSK-AES128-CBC-SHA256:PSK-AES128-CBC-SHA;
# ssl_ciphers HIGH:!aNULL:!MD5;
ssl_prefer_server_ciphers on;
location / {
root html;
index index.html index.htm;
}
}
# 检查配置文件
sbin/nginx -t
# 无误后启动
sbin/nginx
我们打开密信浏览器进行验证，ok的，可以访问
四、用java生成客户端证书
其实这里我真的借鉴了很多代码，以下列上对我影响最大的两份开源代码，以表敬意。这两份开源代码让我对SM2数字证书从懵逼到稍微有那么一点了解，我最后写成的代码主要是生成客户端证书，所以都是从这里面借鉴的，供大家参考。
gmhelper
littleca
如果有需求简单也只需要生成客户端证书的也可以联系我。
吊销延期等操作只有RSA版本的，这个以后也可以写篇博客，现在网上流传的版本大多都过时了。
五、通信期望
1.其实这个我一开始还挺懵的，研究了一下发现好像现在没有对GMTLS的通信支持，比如携带sm2证书请求https接口这类的，其实这个初衷就是为了这个接口通信，尝试了但是都握手失败了，这个需要后续研究
2.但是还是记录一下我能解析携带sm2证书的步骤
//指定读取证书格式为PKCS12
KeyStore keyStore = KeyStore.getInstance("PKCS12");
一开始我指定读取证书格式为PKCS12，报了Unknown named curve: 1.2.156.10197.1.301这个错
Exception in thread "main" java.security.cert.CertificateParsingException: java.io.IOException: Unknown named curve: 1.2.156.10197.1.301
后来修改为这样
KeyStore keyStore = KeyStore.getInstance("PKCS12", "BC");
又报错
java.security.NoSuchProviderException: no such provider: BC
解决方法是修改该程序所用的jdk的jre/lib/security目录下的java.security，增加如下配置，这个数字是几可以按你文件里最后一个+1即可
security.provider.11=org.bouncycastle.jce.provider.BouncyCastleProvider
这样就能解析证书了，完整代码如下，大家调试的时候也可以配置上-Djavax.net.debug=all
package com.wyw.exchange.controller;
import java.io.BufferedReader;
import java.io.ByteArrayInputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.nio.file.StandardOpenOption;
import java.security.KeyStore;
import java.security.Security;
import javax.net.ssl.HostnameVerifier;
import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLSession;
import org.apache.http.HttpEntity;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.entity.InputStreamEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.ssl.SSLContexts;
public class TestController {
public static String sendRedEnvelope(String url, String param) throws Exception {
//PKCS12的密码
String PKCS12 = "123456";
//证书地址
String fileRoute = "F:\\cert\\client\\sm2\\client/1599630757129/client.p12";
//指定读取证书格式为PKCS12
//KeyStore keyStore = KeyStore.getInstance("PKCS12");
KeyStore keyStore = KeyStore.getInstance("PKCS12", "BC");
//读取本机存放的PKCS12证书文件
FileInputStream instream = new FileInputStream(new File(fileRoute));
try (InputStream is = Files.newInputStream(Paths.get(fileRoute),
StandardOpenOption.READ)) {
keyStore.load(is, PKCS12.toCharArray());
}
//指定TLS版本
SSLContext sslcontext = SSLContexts.custom()
.loadKeyMaterial(keyStore, PKCS12.toCharArray())
.build();
//设置httpclient的SSLSocketFactory
SSLConnectionSocketFactory sslsf = new SSLConnectionSocketFactory(
sslcontext,
new String[]{"TLSv1.2"},
null,
SSLConnectionSocketFactory.BROWSER_COMPATIBLE_HOSTNAME_VERIFIER);
CloseableHttpClient httpclient = HttpClients.custom()
.setSSLSocketFactory(sslsf)
.build();
StringBuffer stringBuffer = new StringBuffer();
try {
HttpPost httpPost = new HttpPost(url);
InputStream is = new ByteArrayInputStream(param.getBytes("UTF-8"));
//InputStreamEntity严格是对内容和长度相匹配的。用法和BasicHttpEntity类似
InputStreamEntity inputStreamEntity = new InputStreamEntity(is, is.available());
httpPost.setEntity(inputStreamEntity);
CloseableHttpResponse response = httpclient.execute(httpPost);
try {
HttpEntity entity = response.getEntity();
BufferedReader reader = new BufferedReader(new InputStreamReader(
entity.getContent(), "UTF-8"));
String inputLine;
while ((inputLine = reader.readLine()) != null) {
stringBuffer.append(inputLine);
}
} finally {
response.close();
}
} finally {
httpclient.close();
}
return stringBuffer.toString();
}
public static void main(String args[]) throws Exception {
sendRedEnvelope("https://192.168.46.161:443","123");
}
}
如上我的国密数字证书探索之旅也结束了，如果以上有任何问题的话请与我联系，多多指教！
——————–分割线，到这里就结束了，下面附openssl————————-
key usage扩展为Digital Signature, Non-Repudiation, Key Encipherment(e0)，证书可以用来加密和签名。
key usage扩展为Digital Signature没有加密功能，只能用来签名。
key usage扩展为keyEncipherment没有签名功能，只能用来加密。
openssl.cnf
#
# OpenSSL example configuration file.
# This is mostly being used for generation of certificate requests.
#
# This definition stops the following lines choking if HOME isn't
# defined.
HOME = .
RANDFILE = $ENV::HOME/.rnd
# Extra OBJECT IDENTIFIER info:
#oid_file = $ENV::HOME/.oid
oid_section = new_oids
# To use this configuration file with the "-extfile" option of the
# "openssl x509" utility, name here the section containing the
# X.509v3 extensions to use:
# extensions =
# (Alternatively, use a configuration file that has only
# X.509v3 extensions in its main [= default] section.)
[ new_oids ]
# We can add new OIDs in here for use by 'ca', 'req' and 'ts'.
# Add a simple OID like this:
# testoid1=1.2.3.4
# Or use config file substitution like this:
# testoid2=${testoid1}.5.6
# Policies used by the TSA examples.
tsa_policy1 = 1.2.3.4.1
tsa_policy2 = 1.2.3.4.5.6
tsa_policy3 = 1.2.3.4.5.7
####################################################################
[ ca ]
default_ca = CA_default # The default ca section
####################################################################
[ CA_default ]
dir = /usr/local/gmzs2 # Where everything is kept
certs = $dir/certs # Where the issued certs are kept
crl_dir = $dir/crl # Where the issued crl are kept
database = $dir/index.txt # database index file.
#unique_subject = no # Set to 'no' to allow creation of
# several certs with same subject.
new_certs_dir = $dir/newcerts # default place for new certs.
certificate = $dir/cacert.pem # The CA certificate
serial = $dir/serial # The current serial number
crlnumber = $dir/crlnumber # the current crl number
# must be commented out to leave a V1 CRL
crl = $dir/crl.pem # The current CRL
private_key = $dir/private/cakey.pem # The private key
RANDFILE = $dir/private/.rand # private random number file
x509_extensions = usr_cert # The extensions to add to the cert
# Comment out the following two lines for the "traditional"
# (and highly broken) format.
name_opt = ca_default # Subject Name options
cert_opt = ca_default # Certificate field options
# Extension copying option: use with caution.
# copy_extensions = copy
# Extensions to add to a CRL. Note: Netscape communicator chokes on V2 CRLs
# so this is commented out by default to leave a V1 CRL.
# crlnumber must also be commented out to leave a V1 CRL.
# crl_extensions = crl_ext
default_days = 365 # how long to certify for
default_crl_days= 30 # how long before next CRL
default_md = default # use public key default MD
preserve = no # keep passed DN ordering
# A few difference way of specifying how similar the request should look
# For type CA, the listed attributes must be the same, and the optional
# and supplied fields are just that :-)
policy = policy_match
# For the CA policy
[ policy_match ]
countryName = match
stateOrProvinceName = match
organizationName = match
organizationalUnitName = optional
commonName = supplied
emailAddress = optional
# For the 'anything' policy
# At this point in time, you must list all acceptable 'object'
# types.
[ policy_anything ]
countryName = optional
stateOrProvinceName = optional
localityName = optional
organizationName = optional
organizationalUnitName = optional
commonName = supplied
emailAddress = optional
####################################################################
[ req ]
default_bits = 2048
default_keyfile = privkey.pem
distinguished_name = req_distinguished_name
attributes = req_attributes
x509_extensions = v3_ca # The extensions to add to the self signed cert
# Passwords for private keys if not present they will be prompted for
# input_password = secret
# output_password = secret
# This sets a mask for permitted string types. There are several options.
# default: PrintableString, T61String, BMPString.
# pkix : PrintableString, BMPString (PKIX recommendation before 2004)
# utf8only: only UTF8Strings (PKIX recommendation after 2004).
# nombstr : PrintableString, T61String (no BMPStrings or UTF8Strings).
# MASK:XXXX a literal mask value.
# WARNING: ancient versions of Netscape crash on BMPStrings or UTF8Strings.
string_mask = utf8only
# req_extensions = v3_req # The extensions to add to a certificate request
[ req_distinguished_name ]
countryName = Country Name (2 letter code)
countryName_default = CN
countryName_min = 2
countryName_max = 2
stateOrProvinceName = State or Province Name (full name)
stateOrProvinceName_default = Some-State
localityName = Locality Name (eg, city)
0.organizationName = Organization Name (eg, company)
0.organizationName_default = Internet Widgits Pty Ltd
# we can do this but it is not needed normally :-)
#1.organizationName = Second Organization Name (eg, company)
#1.organizationName_default = World Wide Web Pty Ltd
organizationalUnitName = Organizational Unit Name (eg, section)
#organizationalUnitName_default =
commonName = Common Name (e.g. server FQDN or YOUR name)
commonName_max = 64
emailAddress = Email Address
emailAddress_max = 64
# SET-ex3 = SET extension number 3
[ req_attributes ]
challengePassword = A challenge password
challengePassword_min = 4
challengePassword_max = 20
unstructuredName = An optional company name
[ usr_cert ]
# These extensions are added when 'ca' signs a request.
# This goes against PKIX guidelines but some CAs do it and some software
# requires this to avoid interpreting an end user certificate as a CA.
basicConstraints=CA:FALSE
# Here are some examples of the usage of nsCertType. If it is omitted
# the certificate can be used for anything *except* object signing.
# This is OK for an SSL server.
# nsCertType = server
# For an object signing certificate this would be used.
# nsCertType = objsign
# For normal client use this is typical
# nsCertType = client, email
# and for everything including object signing:
# nsCertType = client, email, objsign
# This is typical in keyUsage for a client certificate.
# keyUsage = nonRepudiation, digitalSignature, keyEncipherment
# keyUsage = digitalSignature
keyUsage = keyEncipherment
# This will be displayed in Netscape's comment listbox.
nsComment = "OpenSSL Generated Certificate"
# PKIX recommendations harmless if included in all certificates.
subjectKeyIdentifier=hash
authorityKeyIdentifier=keyid,issuer
# This stuff is for subjectAltName and issuerAltname.
# Import the email address.
# subjectAltName=email:copy
# An alternative to produce certificates that aren't
# deprecated according to PKIX.
# subjectAltName=email:move
# Copy subject details
# issuerAltName=issuer:copy
#nsCaRevocationUrl = http://www.domain.dom/ca-crl.pem
#nsBaseUrl
#nsRevocationUrl
#nsRenewalUrl
#nsCaPolicyUrl
#nsSslServerName
# This is required for TSA certificates.
# extendedKeyUsage = critical,timeStamping
[ v3_req ]
# Extensions to add to a certificate request
basicConstraints = CA:FALSE
keyUsage = nonRepudiation, digitalSignature
[ v3enc_req ]
# Extensions to add to a certificate request
basicConstraints = CA:FALSE
keyUsage = keyAgreement, keyEncipherment, dataEncipherment
[ v3_ca ]
# Extensions for a typical CA
# PKIX recommendation.
subjectKeyIdentifier=hash
authorityKeyIdentifier=keyid:always,issuer
basicConstraints = critical,CA:true
# Key usage: this is typical for a CA certificate. However since it will
# prevent it being used as an test self-signed certificate it is best
# left out by default.
keyUsage = cRLSign, keyCertSign
# Some might want this also
# nsCertType = sslCA, emailCA
# Include email address in subject alt name: another PKIX recommendation
# subjectAltName=email:copy
# Copy issuer details
# issuerAltName=issuer:copy
# DER hex encoding of an extension: beware experts only!
# obj=DER:02:03
# Where 'obj' is a standard or added object
# You can even override a supported extension:
# basicConstraints= critical, DER:30:03:01:01:FF
[ crl_ext ]
# CRL extensions.
# Only issuerAltName and authorityKeyIdentifier make any sense in a CRL.
# issuerAltName=issuer:copy
authorityKeyIdentifier=keyid:always
[ proxy_cert_ext ]
# These extensions should be added when creating a proxy certificate
# This goes against PKIX guidelines but some CAs do it and some software
# requires this to avoid interpreting an end user certificate as a CA.
basicConstraints=CA:FALSE
# Here are some examples of the usage of nsCertType. If it is omitted
# the certificate can be used for anything *except* object signing.
# This is OK for an SSL server.
# nsCertType = server
# For an object signing certificate this would be used.
# nsCertType = objsign
# For normal client use this is typical
# nsCertType = client, email
# and for everything including object signing:
# nsCertType = client, email, objsign
# This is typical in keyUsage for a client certificate.
# keyUsage = nonRepudiation, digitalSignature, keyEncipherment
# This will be displayed in Netscape's comment listbox.
nsComment = "OpenSSL Generated Certificate"
# PKIX recommendations harmless if included in all certificates.
subjectKeyIdentifier=hash
authorityKeyIdentifier=keyid,issuer
# This stuff is for subjectAltName and issuerAltname.
# Import the email address.
# subjectAltName=email:copy
# An alternative to produce certificates that aren't
# deprecated according to PKIX.
# subjectAltName=email:move
# Copy subject details
# issuerAltName=issuer:copy
#nsCaRevocationUrl = http://www.domain.dom/ca-crl.pem
#nsBaseUrl
#nsRevocationUrl
#nsRenewalUrl
#nsCaPolicyUrl
#nsSslServerName
# This really needs to be in place for it to be a proxy certificate.
proxyCertInfo=critical,language:id-ppl-anyLanguage,pathlen:3,policy:foo
####################################################################
[ tsa ]
default_tsa = tsa_config1 # the default TSA section
[ tsa_config1 ]
# These are used by the TSA reply generation only.
dir = ./demoCA # TSA root directory
serial = $dir/tsaserial # The current serial number (mandatory)
crypto_device = builtin # OpenSSL engine to use for signing
signer_cert = $dir/tsacert.pem # The TSA signing certificate
# (optional)
certs = $dir/cacert.pem # Certificate chain to include in reply
# (optional)
signer_key = $dir/private/tsakey.pem # The TSA private key (optional)
signer_digest = sm3 # Signing digest to use. (Optional)
default_policy = tsa_policy1 # Policy if request did not specify it
# (optional)
other_policies = tsa_policy2, tsa_policy3 # acceptable policies (optional)
digests = sm3, sha256, sha384, sha512 # Acceptable message digests (mandatory)
accuracy = secs:1, millisecs:500, microsecs:100 # (optional)
clock_precision_digits = 0 # number of digits after dot. (optional)
ordering = yes # Is ordering defined for timestamps?
# (optional, default: no)
tsa_name = yes # Must the TSA name be included in the reply?
# (optional, default: no)
ess_cert_id_chain = no # Must the ESS cert id chain be included?
# (optional, default: no)
版权声明：本文为nmjuzi原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
