handler链调用机制示例

https://www.bilibili.com/video/BV1jK4y1s7GV?p=79

https://www.bilibili.com/video/BV1jK4y1s7GV?p=80

https://www.bilibili.com/video/BV1jK4y1s7GV?p=81

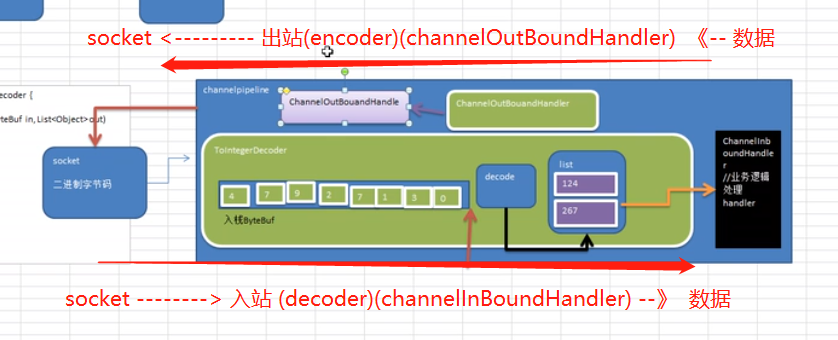

socket –> channel –>入栈

channel –> socket –> 出栈

(server)解码器–ProtobufDecoder : MessageToMessageDecoder : ChannelInboundHandlerAdapter

(client)编码器–ProtobufEncoder : MessageToMessageEncoder : ChannelOutboundHandlerAdapter : ChannelHandlerAdapter : ChannelHandler (I)

                        ByteToMessageDecoder

ByteToMessageDecoder 会对入栈数据进行缓冲，直到它准备好处理。

服务端的channelpipeline接收到客户端通过socket传过来的数据，解析

ToIntegerDecoder

当没有更多元素添加到List的时候，它的内容将会被发送给下一个ChannelInBoundHandler.

读数据（encoder）的顺序

socket channelPipeline

二进制数据 <– ToIntegerDecoder –> 业务处理器 ChannelInboundHandlerAdapter —>—|

二进制数据 <– ToIntegerEncoder <– 业务处理器 ChannelOutboundHandlerAdapter —<—|

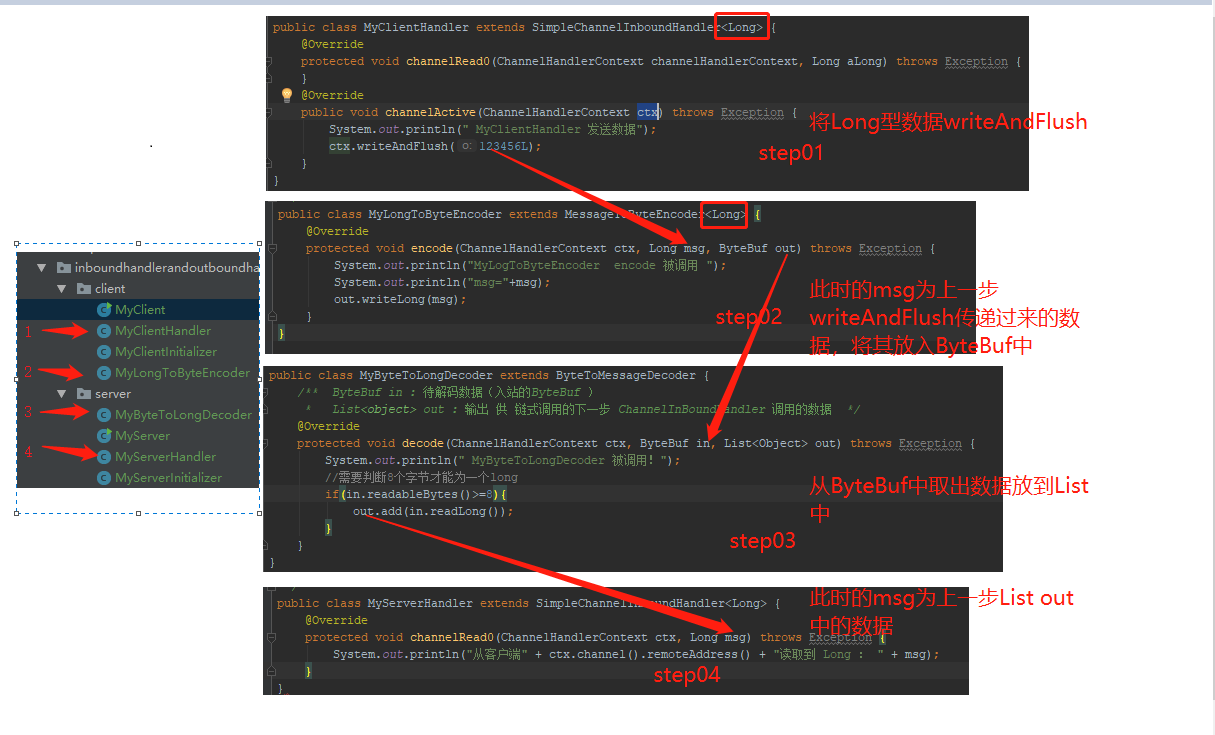

==========================客户端代码 ======================================

package com.atguigu.inboundhandlerandoutboundhandler.client;

import com.sun.corba.se.impl.orbutil.concurrent.Sync;
import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioSocketChannel;

/**
 * Author: tz_wl
 * Date: 2020/9/28 15:50
 * Content:
 */
public class MyClient {
    public static void main(String[] args) throws Exception {
        EventLoopGroup group = new NioEventLoopGroup();

        try {
            Bootstrap bootstrap = new Bootstrap();
            bootstrap.group(group)
                    .channel(NioSocketChannel.class)
                    .handler(new MyClientInitializer());

            ChannelFuture channelFuture = bootstrap.connect("localhost", 8087).sync();
            channelFuture.channel().closeFuture().sync();
        } finally {
            group.shutdownGracefully();
        }
    }
}

package com.atguigu.inboundhandlerandoutboundhandler.client;

import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.socket.SocketChannel;

/**
 * Author: tz_wl
 * Date: 2020/9/28 15:52
 * Content:
 */
public class MyClientInitializer extends ChannelInitializer<SocketChannel> {
    @Override
    protected void initChannel(SocketChannel sc) throws Exception {
        ChannelPipeline pipeline = sc.pipeline();

        //(再走这个)加入一个出站的 Encoder Handler
        pipeline.addLast(new MyLongToByteEncoder());
        //(先走这个)加入一个自定义的handler ,处理业务
        pipeline.addLast(new MyClientHandler());

    }
}

package com.atguigu.inboundhandlerandoutboundhandler.client;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;

/**
 * Author: tz_wl
 * Date: 2020/9/28 16:00
 * Content:
 */
public class MyClientHandler extends SimpleChannelInboundHandler<Long> {
    @Override
    protected void channelRead0(ChannelHandlerContext channelHandlerContext, Long aLong) throws Exception {
    }
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        System.out.println(" === step01 ====  MyClientHandler 发送数据");
        ctx.writeAndFlush(123456L);
    }
}

package com.atguigu.inboundhandlerandoutboundhandler.client;

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.MessageToByteEncoder;

/**
 * Author: tz_wl
 * Date: 2020/9/28 15:54
 * Content:
 */
public class MyLongToByteEncoder extends MessageToByteEncoder<Long> {
    @Override
    protected void encode(ChannelHandlerContext ctx, Long msg, ByteBuf out) throws Exception {
        System.out.println("=== step02 ====  MyLogToByteEncoder  encode 被调用 msg="+msg);
        out.writeLong(msg);
    }
}

=













服务端代码













=========

package com.atguigu.inboundhandlerandoutboundhandler.server;

import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;

/**
 * Author: tz_wl
 * Date: 2020/9/28 14:30
 * Content:
 */
public class MyServer {
    public static void main(String[] args) throws Exception {
        EventLoopGroup bossGroup = new NioEventLoopGroup(1);
        EventLoopGroup workerGroup = new NioEventLoopGroup();
        try {
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(bossGroup,workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .childHandler(new MyServerInitializer());
            ChannelFuture future = serverBootstrap.bind(8087).sync();
            future.channel().closeFuture().sync();
        } finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }

    }
}

package com.atguigu.inboundhandlerandoutboundhandler.server;

import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.socket.SocketChannel;

/**
 * Author: tz_wl
 * Date: 2020/9/28 14:34
 * Content:
 */
public class MyServerInitializer extends ChannelInitializer<SocketChannel> {
    @Override
    protected void initChannel(SocketChannel sc) throws Exception {
        ChannelPipeline pipeline = sc.pipeline();
        //入站的handler进行解码  MyByteToLongDecoder
        pipeline.addLast(new MyByteToLongDecoder());
        //自定义handler 处理业务逻辑
        pipeline.addLast(new MyServerHandler());
    }
}

package com.atguigu.inboundhandlerandoutboundhandler.server;

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.ByteToMessageDecoder;

import java.util.List;

/**
 * Author: tz_wl
 * Date: 2020/9/28 14:37
 * Content:
 */
public class MyByteToLongDecoder extends ByteToMessageDecoder {
    /**  ByteBuf in : 待解码数据（入站的ByteBuf ）
     *   List<object> out : 输出 供 链式调用的下一步 ChannelInBoundHandler 调用的数据  */
    @Override
    protected void decode(ChannelHandlerContext ctx, ByteBuf in, List<Object> out) throws Exception {
        System.out.println(" === step03 ====   MyByteToLongDecoder 被调用！");
        //需要判断8个字节才能为一个long
        if(in.readableBytes()>=8){
            out.add(in.readLong());
        }
    }
}

package com.atguigu.inboundhandlerandoutboundhandler.server;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;

/**
 * Author: tz_wl
 * Date: 2020/9/28 14:41
 * Content:
 */
public class MyServerHandler extends SimpleChannelInboundHandler<Long> {
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, Long msg) throws Exception {
        System.out.println(" === step04 ====  从客户端" + ctx.channel().remoteAddress() + "读取到 Long ： " + msg);
    }
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        cause.printStackTrace();
        ctx.close();
    }
}

https://www.bilibili.com/video/BV1jK4y1s7GV?p=83

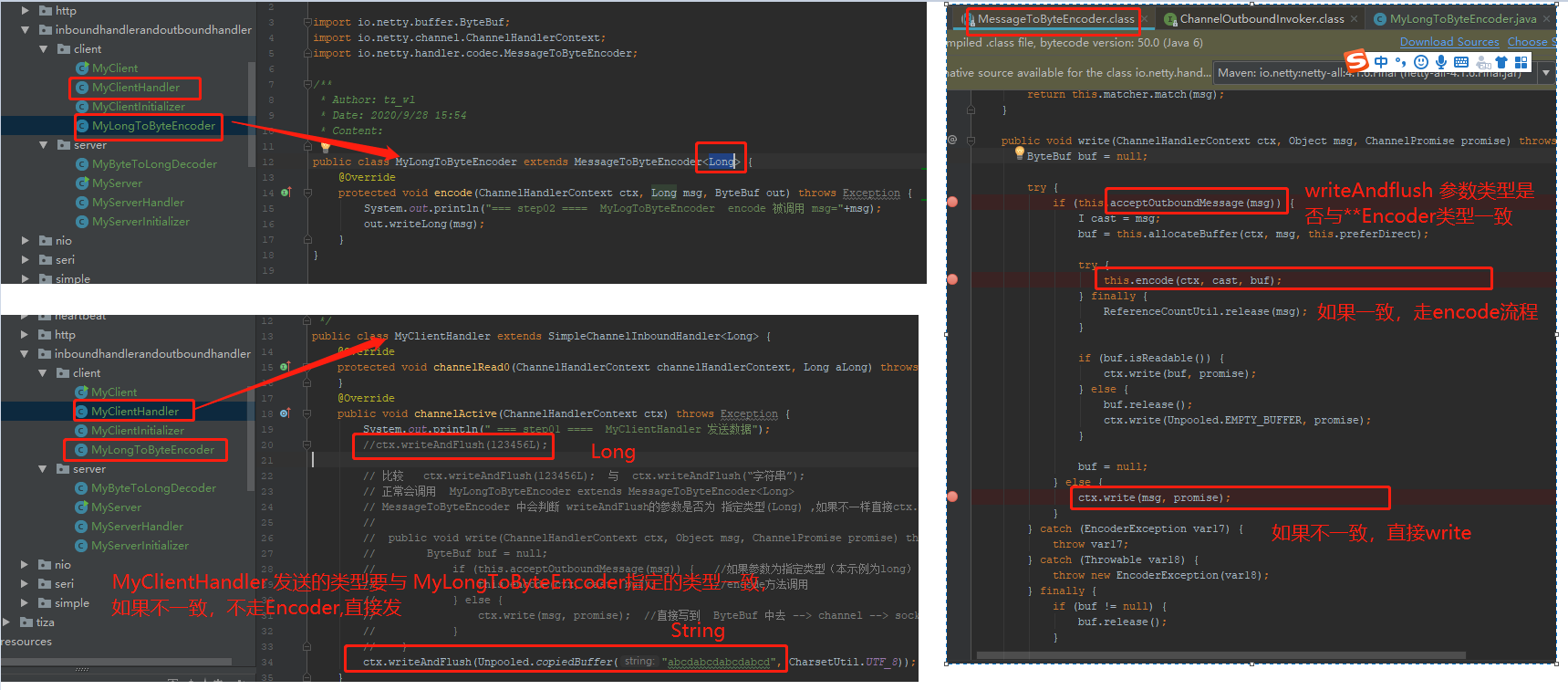

关于发送参数 一致性的问题
