spring 整合 RabbitMQ 3.9.11

rabbitmq 3.9.11

创建工程

不管用什么办法创建出一个空的工程出来，或者在已有工程里面创建一个新的module，下面只说创建新module的方法。

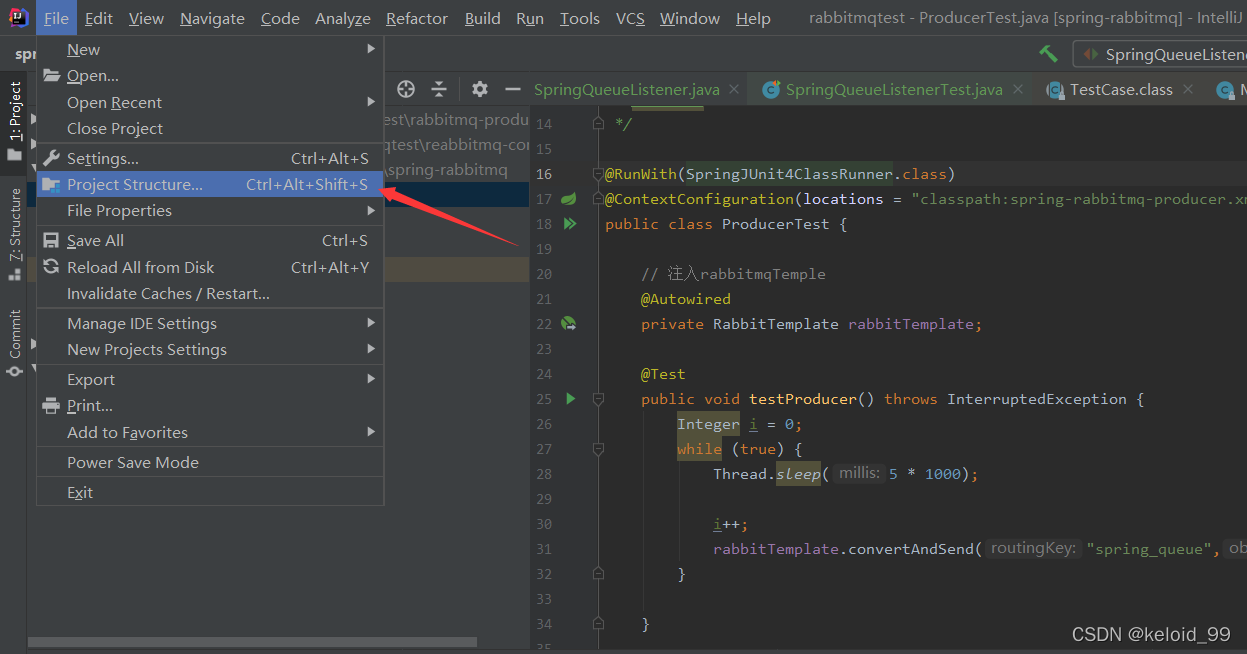

在菜单里选择Project Structure

在这里插入图片描述

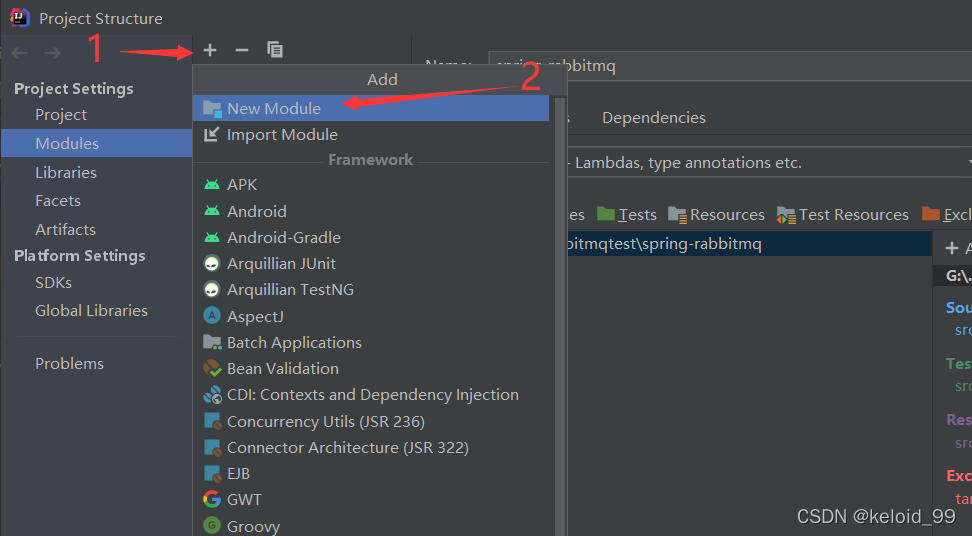

先点加号，再点New Module

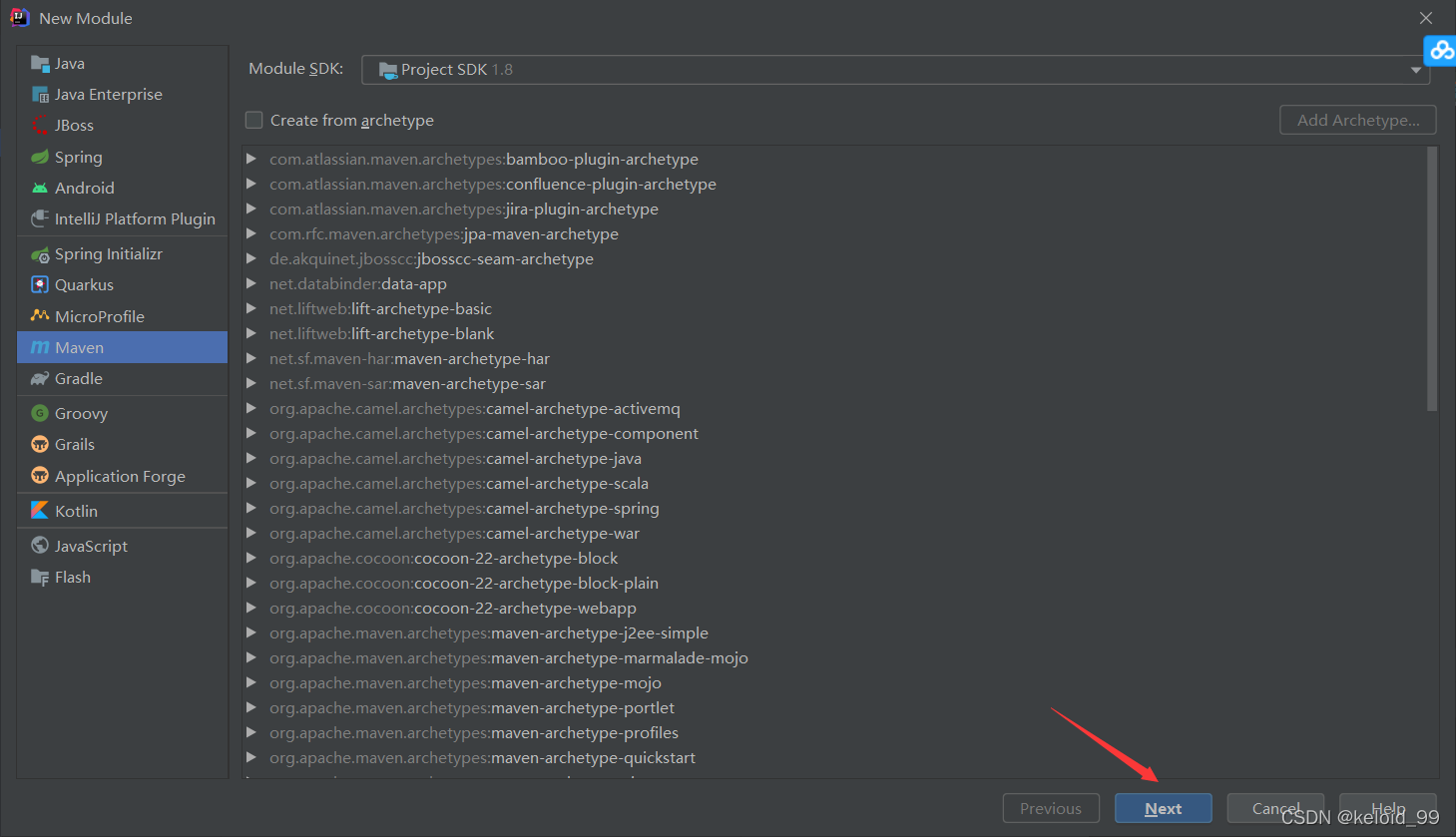

然后直接下一步

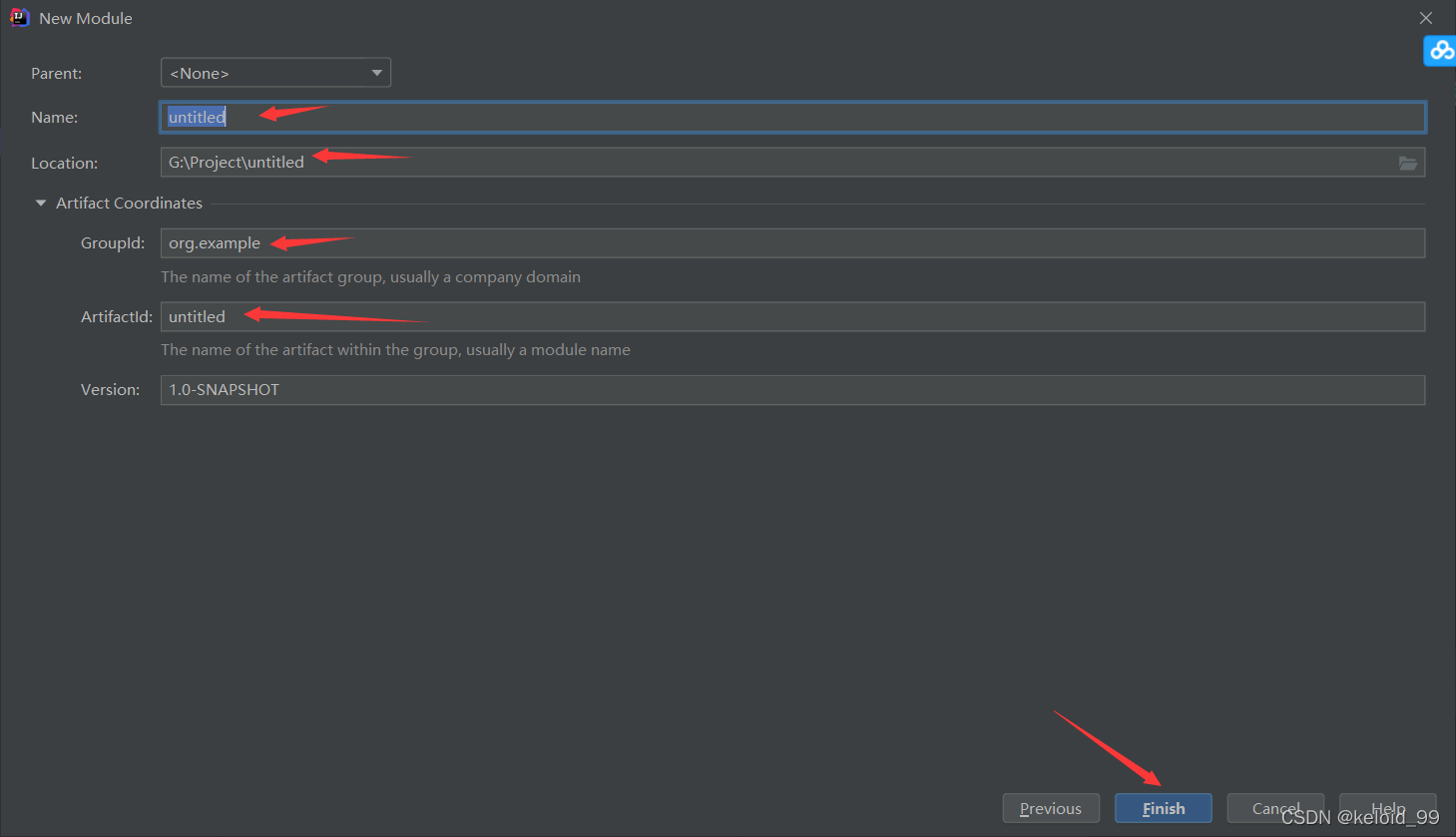

然后把Module名字，所在位置都填好之后直接finish

在idea中新建Module都是这么操作。

maven配置

直接把下面的配置信息根据需要粘贴到自己的pom.xml里面。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.itheima</groupId>
    <artifactId>spring-rabbitmq</artifactId>
    <version>1.0-SNAPSHOT</version>


    <dependencies>
        <!--spring 上下文-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>
        <!--spring整合amqp-->
        <dependency>
            <groupId>org.springframework.amqp</groupId>
            <artifactId>spring-rabbit</artifactId>
            <version>2.1.8.RELEASE</version>
        </dependency>

        <!--测试-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>5.2.10.RELEASE</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.0</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

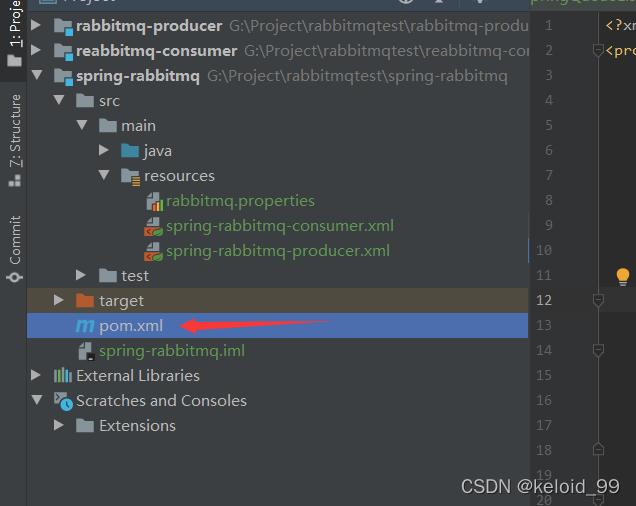

提醒一下：pom.xml的文件在下面这个位置

在这里插入图片描述

resource 配置文件

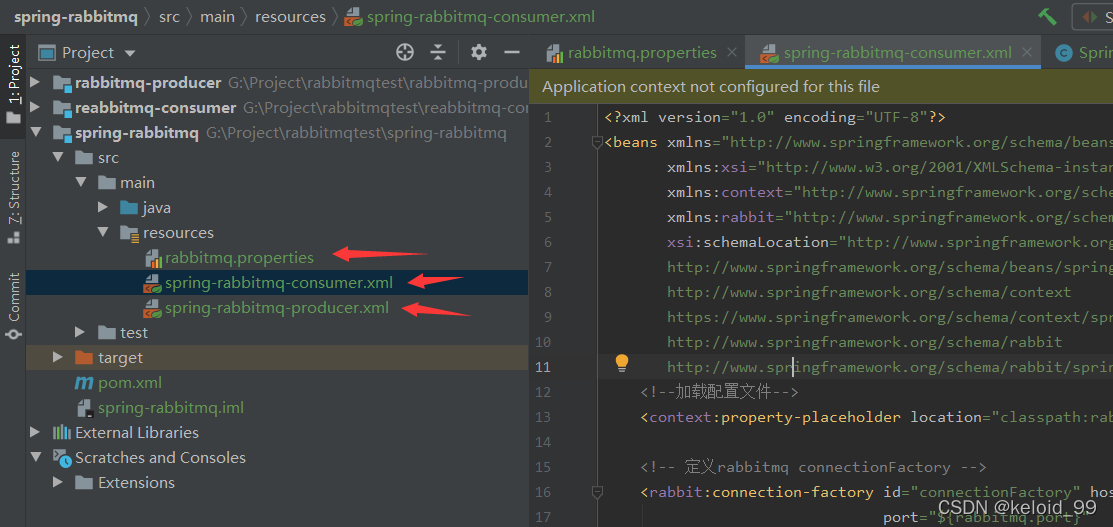

以下三个文件直接复制下面的代码就可以，把rabbitmq配置改成自己的就好了，bean什么的写成自己的

在这里插入图片描述

rabbitmq.properties

rabbitmq.host=127.5.19.118  (服务器ip)
rabbitmq.port=5672  （rabbitmq端口）
rabbitmq.username=admin   （rabbitmq用户名）
rabbitmq.password=11111  （rabbitmq密码）
rabbitmq.virtual-host=/itcast  （rabbitmq虚拟机）

spring-rabbitmq-consumer.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/rabbit
       http://www.springframework.org/schema/rabbit/spring-rabbit.xsd">
    <!--加载配置文件-->
    <context:property-placeholder location="classpath:rabbitmq.properties"/>

    <!-- 定义rabbitmq connectionFactory -->
    <rabbit:connection-factory id="connectionFactory" host="${rabbitmq.host}"
                               port="${rabbitmq.port}"
                               username="${rabbitmq.username}"
                               password="${rabbitmq.password}"
                               virtual-host="${rabbitmq.virtual-host}"/>

    <bean id="springQueueListener" class="com.itheima.springRabbitmq.consumer.SpringQueueListener"/>
<!--    <bean id="fanoutListener1" class="com.itheima.springRabbitmq.consumer.FanoutListener1"/>-->
<!--    <bean id="fanoutListener2" class="com.itheima.springRabbitmq.consumer.FanoutListener2"/>-->
<!--    <bean id="topicListenerStar" class="com.itheima.springRabbitmq.consumer.TopicListenerStar"/>-->
<!--    <bean id="topicListenerWell" class="com.itheima.springRabbitmq.consumer.TopicListenerWell"/>-->
<!--    <bean id="topicListenerWell2" class="com.itheima.springRabbitmq.consumer.TopicListenerWell2"/>-->

    <rabbit:listener-container connection-factory="connectionFactory" auto-declare="true">
        <rabbit:listener ref="springQueueListener" queue-names="spring_queue"/>
<!--        <rabbit:listener ref="fanoutListener1" queue-names="spring_fanout_queue_1"/>-->
<!--        <rabbit:listener ref="fanoutListener2" queue-names="spring_fanout_queue_2"/>-->
<!--        <rabbit:listener ref="topicListenerStar" queue-names="spring_topic_queue_star"/>-->
<!--        <rabbit:listener ref="topicListenerWell" queue-names="spring_topic_queue_well"/>-->
<!--        <rabbit:listener ref="topicListenerWell2" queue-names="spring_topic_queue_well2"/>-->
    </rabbit:listener-container>
</beans>

spring-rabbitmq-producer.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/rabbit
       http://www.springframework.org/schema/rabbit/spring-rabbit.xsd">
    <!--加载配置文件-->
    <context:property-placeholder location="classpath:rabbitmq.properties"/>

    <!-- 定义rabbitmq connectionFactory -->
    <rabbit:connection-factory id="connectionFactory" host="${rabbitmq.host}"
                               port="${rabbitmq.port}"
                               username="${rabbitmq.username}"
                               password="${rabbitmq.password}"
                               virtual-host="${rabbitmq.virtual-host}"/>
    <!--定义管理交换机、队列-->
    <rabbit:admin connection-factory="connectionFactory"/>

    <!--定义持久化队列，不存在则自动创建；不绑定到交换机则绑定到默认交换机
    默认交换机类型为direct，名字为：""，路由键为队列的名称-->
    <rabbit:queue id="spring_queue"  name="spring_queue" auto-declare="true"/>

    <!-- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~广播；所有队列都能收到消息~~~~~~~~~~~~~~~~~~~~~~~~~~~~ -->
    <!--定义广播交换机中的持久化队列，不存在则自动创建-->
    <rabbit:queue id="spring_fanout_queue_1" name="spring_fanout_queue_1" auto-declare="true"/>

    <!--定义广播交换机中的持久化队列，不存在则自动创建-->
    <rabbit:queue id="spring_fanout_queue_2" name="spring_fanout_queue_2" auto-declare="true"/>

    <!--定义广播类型交换机；并绑定上述两个队列-->
    <rabbit:fanout-exchange id="spring_fanout_exchange" name="spring_fanout_exchange" auto-declare="true">
        <rabbit:bindings>
            <rabbit:binding queue="spring_fanout_queue_1"/>
            <rabbit:binding queue="spring_fanout_queue_2"/>
        </rabbit:bindings>
    </rabbit:fanout-exchange>

    <!-- ~~~~~~~~~~~~~~~~~~~~~~~~~~~~通配符；*匹配一个单词，#匹配多个单词 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~ -->
    <!--定义广播交换机中的持久化队列，不存在则自动创建-->
    <rabbit:queue id="spring_topic_queue_star" name="spring_topic_queue_star" auto-declare="true"/>
    <!--定义广播交换机中的持久化队列，不存在则自动创建-->
    <rabbit:queue id="spring_topic_queue_well" name="spring_topic_queue_well" auto-declare="true"/>
    <!--定义广播交换机中的持久化队列，不存在则自动创建-->
    <rabbit:queue id="spring_topic_queue_well2" name="spring_topic_queue_well2" auto-declare="true"/>

    <rabbit:topic-exchange id="spring_topic_exchange" name="spring_topic_exchange" auto-declare="true">
        <rabbit:bindings>
            <rabbit:binding pattern="heima.*" queue="spring_topic_queue_star"/> <!--星号只能匹配一个单词-->
            <rabbit:binding pattern="heima.#" queue="spring_topic_queue_well"/> <!--井号匹配多个单词-->
            <rabbit:binding pattern="itcast.#" queue="spring_topic_queue_well2"/>
        </rabbit:bindings>
    </rabbit:topic-exchange>

    <!--定义rabbitTemplate对象操作可以在代码中方便发送消息-->
    <rabbit:template id="rabbitTemplate" connection-factory="connectionFactory"/>
</beans>

Producer

为了能测试执行代码，就写在测试类里面了。

rabbitTemplate.convertAndSend("spring_fanout_exchange","","fanout消息已经发送了");
当中的
spring_fanout_exchange
是绑定的上面 spring-rabbitmq-producer.xml 当中的对应的bean （
<rabbit:fanout-exchange id="spring_fanout_exchange" name="spring_fanout_exchange" auto-declare="true">
）,有关exchange绑定 queue的配置都在
spring-rabbitmq-producer.xml
当中。

package com.itheima.springRabbitmq;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

/**
 * @Author zhizekai
 * @Date 2022-1-11 15:48:45 15:48
 * @Version 2.0
 */

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "classpath:spring-rabbitmq-producer.xml")
public class ProducerTest {

    // 注入rabbitmqTemple
    @Autowired
    private RabbitTemplate rabbitTemplate;

    @Test
    public void testProducer() throws InterruptedException {
        Integer i = 0;
        while (true) {
            Thread.sleep(5 * 1000);

            i++;
            rabbitTemplate.convertAndSend("spring_queue","消息发送了"+i);
        }

    }

    @Test
    public void testFanout() {
        rabbitTemplate.convertAndSend("spring_fanout_exchange","","fanout消息已经发送了");
    }
    @Test
    public void testTopic() {
        rabbitTemplate.convertAndSend("spring_topic_exchange","heima.heeh.haha","topic消息已经发送了");
    }
}

Consumer

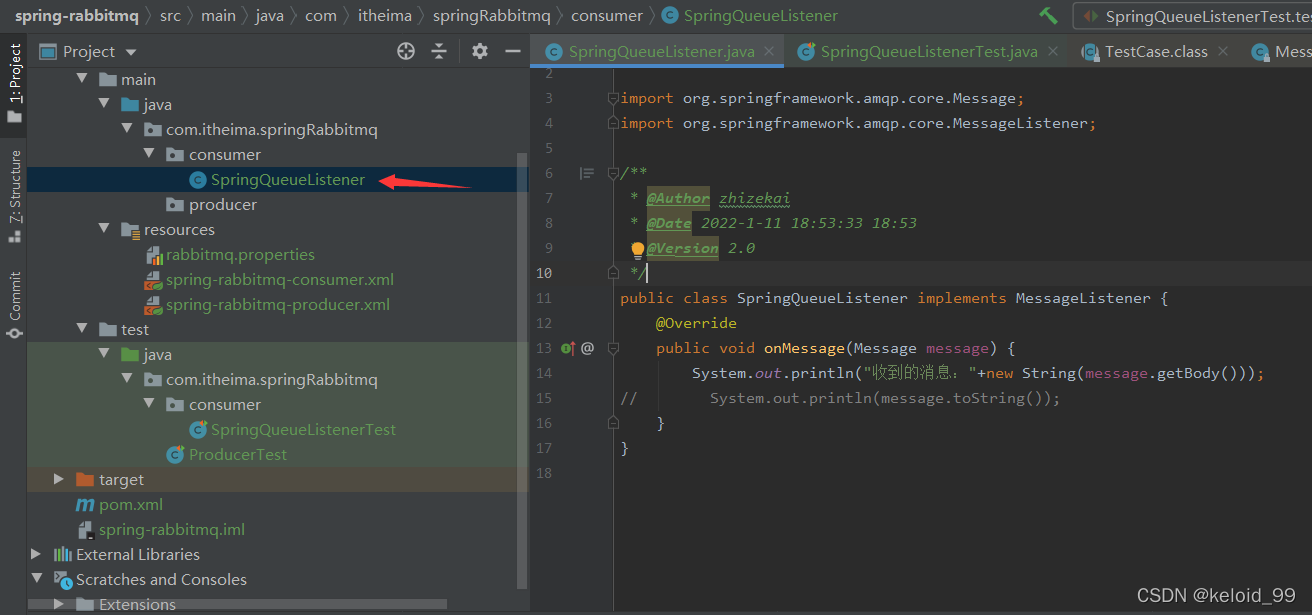

这个代码是跑起来自动监听的，实现一下
MessageListener
这个类，重写
onMessage
方法，
message.getBody()
就是消息内容

在这里插入图片描述

package com.itheima.springRabbitmq.consumer;

import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageListener;

/**
 * @Author zhizekai
 * @Date 2022-1-11 18:53:33 18:53
 * @Version 2.0
 */
public class SpringQueueListener implements MessageListener {
    @Override
    public void onMessage(Message message) {
        System.out.println("收到的消息："+new String(message.getBody()));
//        System.out.println(message.toString());
    }
}

测试代码

package com.itheima.springRabbitmq.consumer;

import junit.framework.TestCase;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

/**
 * @Author zhizekai
 * @Date 19:01
 * @Version 2.0
 */
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "classpath:spring-rabbitmq-consumer.xml")
public class SpringQueueListenerTest{

    @Test
    public void testOnMessage() throws InterruptedException {
        boolean flag = true;
        while (true) {
            Thread.sleep(5 * 1000);
            System.out.println("正在监听");
        }

    }
}
