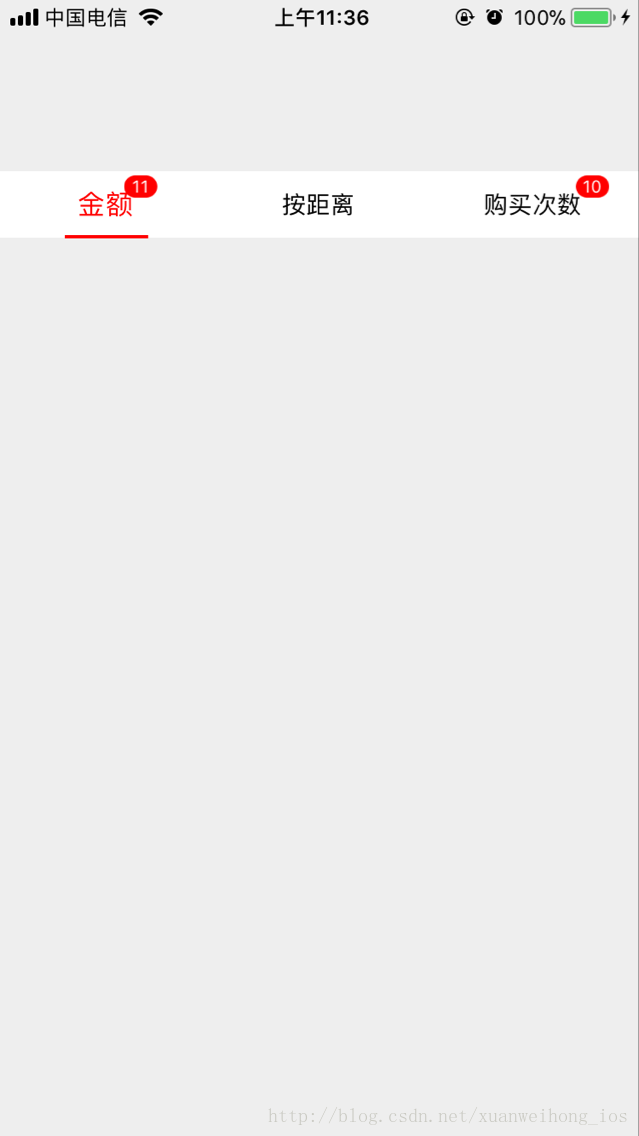

1.效果图：
2.CustomSegmentView.h
//
// CustomSegmentView.h
// YouOu
//
// Created by weihong xuan on 2017/2/9.
// Copyright © 2017年 weihong xuan. All rights reserved.
//
#import <UIKit/UIKit.h>
@protocol CustomSegDelegate <NSObject>
- (void)customSegmentedValueChanged:(UISegmentedControl *)segment;
@end
@interface CustomSegmentView : UIView<UIScrollViewDelegate>
@property (nonatomic, weak) id<CustomSegDelegate> delegate;
@property (nonatomic, strong) UIScrollView * customScr;
@property (nonatomic, strong) NSArray * titleArr;
@property (nonatomic, strong) UIFont * fontSize;
@property (nonatomic, assign) float View_W;
@property (nonatomic, assign) float itmeViewW;
/**
*
* background 背景色
* titleArr 文字Ary
* fontSize 文字Normal大小（选中时会+2）
* titleSelectColor 文字Select颜色
* normalColor 文字Normal颜色
* index 初始选中
*/
- (void)setSegmentWithBackground:(UIColor *)background titleArray:(NSArray *)titleArr titleFont:(UIFont *)fontSize titleLineSelectColor:(UIColor *)titleSelectColor normal:(UIColor *)normalColor withselectedIndex:(NSInteger)index;
-(void)setselectedIndex:(NSInteger)index;
//添加右角标
-(void)setRightTopLabelWithAry:(NSArray*)topNumAry;
@end
3.CustomSegmentView.m
//
// CustomSegmentView.m
// YouOu
//
// Created by weihong xuan on 2017/2/9.
// Copyright © 2017年 weihong xuan. All rights reserved.
//
#import "CustomSegmentView.h"
#define index_width 13.0
#define index_height 13.0
@interface CustomSegmentView ()
@property (nonatomic,strong) UIView * vLineRed;
@property (nonatomic,strong) UISegmentedControl * segChoose;
@end
@implementation CustomSegmentView
- (id)initWithFrame:(CGRect)frame{
self = [super initWithFrame: frame];
if (self) {
}
return self;
}
- (void)setSegmentWithBackground:(UIColor *)background titleArray:(NSArray *)titleArr titleFont:(UIFont *)fontSize titleLineSelectColor:(UIColor *)titleSelectColor normal:(UIColor *)normalColor withselectedIndex:(NSInteger)index{
for (UIView*tmpV in self.subviews) {
[tmpV removeFromSuperview];
}
BOOL isScr = YES;
_titleArr = [[NSArray alloc]initWithArray:titleArr];
_fontSize = fontSize;
_View_W = self.frame.size.width;
_itmeViewW = _View_W/titleArr.count;
if (titleArr.count>1) {
_customScr = [[UIScrollView alloc]initWithFrame:CGRectMake(0, 0, self.frame.size.width, self.frame.size.height)];
_customScr.backgroundColor = [UIColor clearColor];
_customScr.showsHorizontalScrollIndicator = NO;
_customScr.delegate = self;
_customScr.contentSize = CGSizeMake(_View_W, self.frame.size.height);
isScr = YES;
[self addSubview:_customScr];
}
else{
isScr = NO;
}
_segChoose = [[UISegmentedControl alloc]initWithFrame:CGRectMake(0, 0.5, _View_W, self.frame.size.height-1)];
_segChoose.backgroundColor = background;
_segChoose.tag = self.tag;
[_segChoose setTintColor:background];
_segChoose.layer.borderColor =background.CGColor;
for (int i = 0; i < titleArr.count; i ++) {
[_segChoose insertSegmentWithTitle:titleArr[i] atIndex:i animated:NO];
}
[_segChoose setTitleTextAttributes:@{NSFontAttributeName:fontSize,NSForegroundColorAttributeName:normalColor} forState:UIControlStateNormal];
float seleSize = fontSize.pointSize+2.0;
if (self.frame.size.width<301) {
seleSize = fontSize.pointSize+1.0;
}
[_segChoose setTitleTextAttributes:@{NSFontAttributeName:[UIFont systemFontOfSize:seleSize],NSForegroundColorAttributeName:titleSelectColor} forState:UIControlStateSelected];
[_segChoose addTarget:self action:@selector(segmentedValueChanged:) forControlEvents:UIControlEventValueChanged];
_segChoose.selectedSegmentIndex = index;
//选项卡红色的标识条
CGSize t_s = [self getTextWidth:_titleArr[index] withSize:CGSizeMake(_itmeViewW, 20) withFont:_fontSize];
_vLineRed = [[UIView alloc]initWithFrame:CGRectMake(index * _itmeViewW+(_itmeViewW-t_s.width-20)/2.0 , self.frame.size.height- 2, t_s.width+20, 2)];
_vLineRed.backgroundColor = titleSelectColor;
if (isScr==NO) {
[self addSubview:_segChoose];
[self addSubview:_vLineRed];
}
else{
[_customScr addSubview:_segChoose];
[_customScr addSubview:_vLineRed];
}
}
- (void)segmentedValueChanged:(UISegmentedControl *)seg{
CGSize t_s = [self getTextWidth:_titleArr[seg.selectedSegmentIndex] withSize:CGSizeMake(_itmeViewW, 20) withFont:_fontSize];
_vLineRed.frame = CGRectMake(seg.selectedSegmentIndex * _itmeViewW+(_itmeViewW-t_s.width-20)/2.0 , self.frame.size.height- 2, t_s.width+20, 2);
if ([_delegate respondsToSelector:@selector(customSegmentedValueChanged:)]) {
[_delegate customSegmentedValueChanged:_segChoose];
}
}
-(void)setselectedIndex:(NSInteger)index{
CGSize t_s = [self getTextWidth:_titleArr[index] withSize:CGSizeMake(_itmeViewW, 20) withFont:_fontSize];
_vLineRed.frame = CGRectMake(index * _itmeViewW+(_itmeViewW-t_s.width-20)/2.0 , self.frame.size.height- 2, t_s.width+20, 2);
_segChoose.selectedSegmentIndex = index;
}
//添加标记：
-(void)setRightTopLabelWithAry:(NSArray*)topNumAry{
for (int i=0; i<topNumAry.count; i++) {
[[_customScr viewWithTag:100+i] removeFromSuperview];
[[_customScr viewWithTag:200+i] removeFromSuperview];
}
for (int i=0; i<topNumAry.count; i++) {
NSString*titleStr = _titleArr[i];
CGSize titleSize = [self getTextWidth:titleStr withSize:CGSizeMake(_itmeViewW, 30) withFont:[UIFont systemFontOfSize:15]];
NSString * text = topNumAry[i];
UIView*superView = [[UIView alloc]initWithFrame:CGRectMake((_itmeViewW+titleSize.width)/2+_itmeViewW*i, 5, 5, 40)];
superView.backgroundColor = [UIColor clearColor];
[_customScr addSubview:superView];
superView.tag = 100+i;
if ((![text isEqualToString:@"0"])&&(![text isEqualToString:@""])) {
[self createRightTopIndexLabelWithSize:CGSizeMake(index_width, index_height) tag:200+i borderWidth:1.5 borderColor:[UIColor redColor].CGColor text:text font:[UIFont systemFontOfSize:10] textColor:[UIColor whiteColor] SuperView:superView];
}
}
}
//计算字的尺寸：
-(CGSize)getTextWidth:(NSString*)text withSize:(CGSize)size withFont:(UIFont*)font{
NSDictionary *attrs=@{NSFontAttributeName:font};
CGSize s=[text boundingRectWithSize:size options:NSStringDrawingTruncatesLastVisibleLine |
NSStringDrawingUsesLineFragmentOrigin |
NSStringDrawingUsesFontLeading attributes:attrs context:nil].size;
return s;
}
//右上角标记
- (UILabel *)createRightTopIndexLabelWithSize:(CGSize)size tag:(NSInteger)tag borderWidth:(CGFloat)borderWidth borderColor:(CGColorRef)borderColor text:(NSString *)text font:(UIFont *)font textColor:(UIColor *)textColor SuperView:(UIView *)superView{
CGFloat w = size.height/2;
CGRect superFrame = superView.frame;
CGFloat x = CGRectGetWidth(superFrame)-10;
CGFloat y = -2;
CGFloat height = size.height;
CGFloat width;
if (text.length == 1) {
width = size.width;
}else if (text.length == 2){
width = size.width*1.5;
}else {
width = size.width*2;
}
UILabel *label = [[UILabel alloc]initWithFrame:CGRectMake(x, y, width, height)];
label.backgroundColor = [UIColor redColor];
label.layer.cornerRadius = w;
label.layer.masksToBounds = YES;
label.layer.borderWidth = borderWidth;
label.layer.borderColor = borderColor;
label.text = text;
label.textColor = textColor;
label.font = font;
label.textAlignment = NSTextAlignmentCenter;
[superView addSubview:label];
return label;
}
@end
4.使用：
//
// ViewController.m
// testMP4
//
// Created by weihong xuan on 2017/6/5.
// Copyright © 2017年 weihong xuan. All rights reserved.
//
#import "ViewController.h"
#import "ZLImageViewDisplayView.h"
#import "CustomSegmentView.h"
#define UIColorFromRGB(rgbValue) [UIColor colorWithRed:((float)((rgbValue & 0xFF0000) >> 16))/255.0 green:((float)((rgbValue & 0xFF00) >> 8))/255.0 blue:((float)(rgbValue & 0xFF))/255.0 alpha:1.0]
@interface ViewController ()
@end
@implementation ViewController
- (void)viewDidLoad {
[super viewDidLoad];
self.view.backgroundColor = UIColorFromRGB(0xeeeeee);
_segmentView = [[CustomSegmentView alloc]initWithFrame:CGRectMake(0, 100, self.view.frame.size.width, 40)];
_segmentView.delegate = self;
[_segmentView setSegmentWithBackground:[UIColor whiteColor] titleArray:@[@"金额",@"按距离",@"购买次数"] titleFont:[UIFont systemFontOfSize:14] titleLineSelectColor:[UIColor redColor] normal:[UIColor blackColor] withselectedIndex:0];
[self.view addSubview:_segmentView];
}
//别忘了在.h文件里添加<CustomSegDelegate>
- (void)customSegmentedValueChanged:(UISegmentedControl *)segment{
NSLog(@"点击button----%ld",segment.selectedSegmentIndex);
[_segmentView setRightTopLabelWithAry:@[@"11",@"0",@"10"]];//如果没有可以去掉
}
@end
