InterProcessMutex实现zookeeper分布式锁原理


原理简介:

zookeeper实现分布式锁的原理就是多个节点同时在一个指定的节点下面

创建临时会话顺序节点

,谁创建的节点序号

最小

,谁就获得了锁,并且其他节点就

会监听序号比自己小的节点

,一旦序号

比自己小的节点被删除

了,其他节点就会得到相应的事件,然后查看自己

是否为序号最小的节点

,如果是,

则获取锁

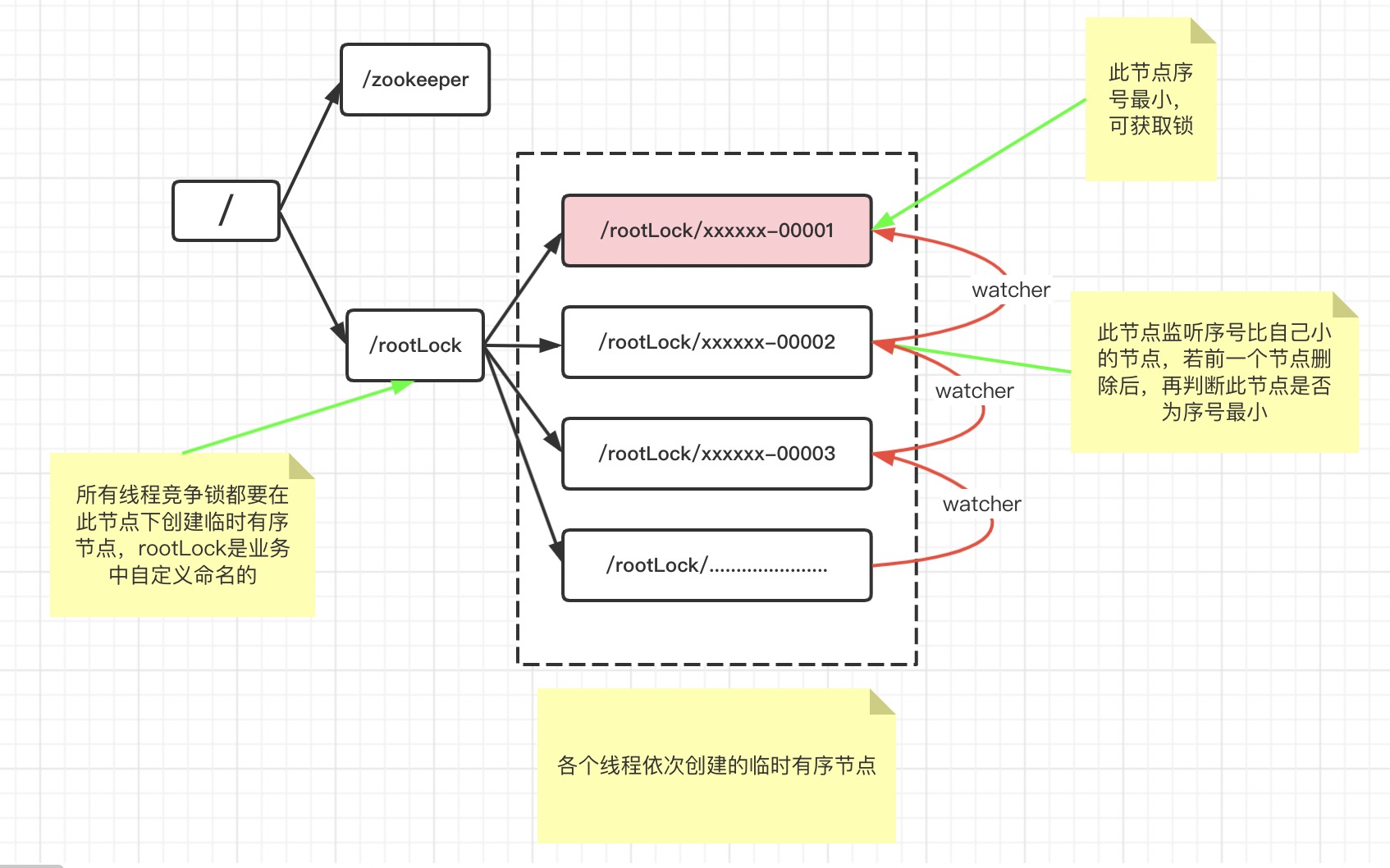

zookeeper节点图分析


在这里插入图片描述

InterProcessMutex实现的锁机制是公平且互斥的,公平的方式是按照每个请求的顺序进行排队的。

InterProcessMutex实现的InterProcessLock接口,InterProcessLock主要规范了如下几个方法:

// 获取互斥锁
public void acquire() throws Exception;
// 在给定的时间内获取互斥锁
public boolean acquire(long time, TimeUnit unit) throws Exception;
// 释放锁处理
public void release() throws Exception;
// 如果此JVM中的线程获取了互斥锁,则返回true
boolean isAcquiredInThisProcess();

接下来我们看看InterProcessMutex中的实现,它究竟有哪些属性,以及实现细节

public class InterProcessMutex implements InterProcessLock, Revocable<InterProcessMutex> {
    // LockInternals是真正实现操作zookeeper的类,它内部包含连接zookeeper客户端的CuratorFramework
    // LockInternals的具体实现后面我会讲到
    private final LockInternals internals;
  	// basePath是锁的根结点,所有的临时有序的节点都是basePath的子节点,
    private final String basePath;
    //
    private final ConcurrentMap<Thread, LockData> threadData = Maps.newConcurrentMap();
	// LockData封装了请求对应的线程(owningThread)、锁的重入的次数(lockCount)、线程对应的临时节点(lockPath)
    private static class LockData {
        final Thread owningThread;
        final String lockPath;
      	// 原子性的
        final AtomicInteger lockCount = new AtomicInteger(1);

        private LockData(Thread owningThread, String lockPath)
        {
            this.owningThread = owningThread;
            this.lockPath = lockPath;
        }
    }

    private static final String LOCK_NAME = "lock-";
    // 获取互斥锁,阻塞【InterProcessLock的实现】
    @Override
    public void acquire() throws Exception {
      	// 获取锁,一直等待
        if ( !internalLock(-1, null) ) {
            throw new IOException("Lost connection while trying to acquire lock: " + basePath);
        }
    }
    // 获取互斥锁,指定时间time【InterProcessLock的实现】
    @Override
    public boolean acquire(long time, TimeUnit unit) throws Exception {
        return internalLock(time, unit);
    }
    // 当前线程是否占用锁中【InterProcessLock的实现】
    @Override
    public boolean isAcquiredInThisProcess() {
        return (threadData.size() > 0);
    }
    //如果调用线程与获取互斥锁的线程相同,则执行一次互斥锁释放。如果线程已多次调用acquire,当此方法返回时,互斥锁仍将保留 【InterProcessLock的实现】
    @Override
    public void release() throws Exception {
        Thread currentThread = Thread.currentThread(); //当前线程
        LockData lockData = threadData.get(currentThread); //线程对应的锁信息
        if ( lockData == null ) {
            throw new IllegalMonitorStateException("You do not own the lock: " + basePath);
        }
      	// 因为获取到的锁是可重入的,对lockCount进行减1,lockCount=0时才是真正释放锁
        int newLockCount = lockData.lockCount.decrementAndGet();
        if ( newLockCount > 0 ) {
            return;
        }
        if ( newLockCount < 0 ) {
            throw new IllegalMonitorStateException("Lock count has gone negative for lock: " + basePath);
        }
        try {
          	// 到这里时lockCount=0,具体释放锁的操作交给LockInternals中的releaseLock方法实现
            internals.releaseLock(lockData.lockPath);
        }
        finally {
            threadData.remove(currentThread);
        }
    }
  	// 获取basePath根结点下的所有临时节点的有序集合
  	public Collection<String> getParticipantNodes() throws Exception {
        return LockInternals.getParticipantNodes(internals.getClient(), basePath, internals.getLockName(), internals.getDriver());
    }

  	boolean isOwnedByCurrentThread() {
        LockData lockData = threadData.get(Thread.currentThread());
        return (lockData != null) && (lockData.lockCount.get() > 0);
    }
  	protected String getLockPath() {
        LockData lockData = threadData.get(Thread.currentThread());
        return lockData != null ? lockData.lockPath : null;
    }
  	// acquire()中调用的internalLock()方法
  	private boolean internalLock(long time, TimeUnit unit) throws Exception {
        Thread currentThread = Thread.currentThread();
        LockData lockData = threadData.get(currentThread);
        if ( lockData != null ) {
            // 如果当前线程已经获取到了锁,那么将重入次数lockCount+1,返回true
            lockData.lockCount.incrementAndGet();
            return true;
        }
      	// attemptLock方法是获取锁的真正实现,lockPath是当前线程成功在basePath下创建的节点,若lockPath不为空代表成功获取到锁
        String lockPath = internals.attemptLock(time, unit, getLockNodeBytes());
        if ( lockPath != null ) {
          	// lockPath封装到当前线程对应的锁信息中
            LockData newLockData = new LockData(currentThread, lockPath);
            threadData.put(currentThread, newLockData);
            return true;
        }
        return false;
    }
}

接下来我们看看InterProcessMutex中使用的LockInternals类的实现细节

public class LockInternals {
    private final CuratorFramework                  client; // 连接zookeeper的客户端
    private final String                            path;	// 等于basePath,InterProcessMutex中传进来的
    private final String                            basePath; // 根结点
    private final LockInternalsDriver               driver; // 操作zookeeper节点的driver
    private final String                            lockName; // "lock-"
    private final AtomicReference<RevocationSpec>   revocable = new AtomicReference<RevocationSpec>(null);

    private final CuratorWatcher                    revocableWatcher = new CuratorWatcher() {
        @Override
        public void process(WatchedEvent event) throws Exception {
            if ( event.getType() == Watcher.Event.EventType.NodeDataChanged ) {
                checkRevocableWatcher(event.getPath());
            }
        }
    };
    // 监听节点的监听器,若被监听的节点有动静,则唤醒 notifyFromWatcher()=>notifyAll();
   	private final Watcher watcher = new Watcher() {
        @Override
        public void process(WatchedEvent event) {
            notifyFromWatcher();
        }
    };
   	private volatile int    maxLeases;
  	// 获取basePath的子节点,排序后的
  	public static List<String> getSortedChildren(CuratorFramework client, String basePath, final String lockName, final LockInternalsSorter sorter) throws Exception
    {
        List<String> children = client.getChildren().forPath(basePath);
        List<String> sortedList = Lists.newArrayList(children);
        Collections.sort
        (
            sortedList,
            new Comparator<String>()
            {
                @Override
                public int compare(String lhs, String rhs)
                {
                    return sorter.fixForSorting(lhs, lockName).compareTo(sorter.fixForSorting(rhs, lockName));
                }
            }
        );
        return sortedList;
    }
  	// 尝试获取锁【internalLock=>attemptLock】
  	String attemptLock(long time, TimeUnit unit, byte[] lockNodeBytes) throws Exception
    {	// 开始时间
        final long      startMillis = System.currentTimeMillis();
      	// 记录等待时间
        final Long      millisToWait = (unit != null) ? unit.toMillis(time) : null;
        final byte[]    localLockNodeBytes = (revocable.get() != null) ? new byte[0] : lockNodeBytes;
      	// 重试次数
        int             retryCount = 0;
      	// 当前节点
        String          ourPath = null;
      	// 是否获取到锁的标志
        boolean         hasTheLock = false;
      	// 是否放弃获取到标志
        boolean         isDone = false;
      	// 不停尝试获取
        while ( !isDone )
        {
            isDone = true;

            try
            {	// 创建当前线程对应的节点
                ourPath = driver.createsTheLock(client, path, localLockNodeBytes);
              	// internalLockLoop中获取
                hasTheLock = internalLockLoop(startMillis, millisToWait, ourPath);
            }
            catch ( KeeperException.NoNodeException e )
            {	// 是否可再次尝试
                if ( client.getZookeeperClient().getRetryPolicy().allowRetry(retryCount++, System.currentTimeMillis() - startMillis, RetryLoop.getDefaultRetrySleeper()) )
                {
                    isDone = false;
                }
                else
                {
                    throw e;
                }
            }
        }
		// 获取到锁后,返回当前线程对应创建的节点路径
        if ( hasTheLock )
        {
            return ourPath;
        }

        return null;
    }
  	// 循环获取【attemptLock=>internalLockLoop】
  	private boolean internalLockLoop(long startMillis, Long millisToWait, String ourPath) throws Exception
    {
        boolean     haveTheLock = false; // 是否拥有分布式锁
        boolean     doDelete = false;	// 是否需要删除当前节点
        try
        {
            if ( revocable.get() != null )
            {
                client.getData().usingWatcher(revocableWatcher).forPath(ourPath);
            }
			// 循环尝试获取锁
            while ( (client.getState() == CuratorFrameworkState.STARTED) && !haveTheLock )
            {	// 得到basePath下排序后的临时子节点
                List<String>        children = getSortedChildren();
              	// 获取之前创建的当前线程对应的子节点
                String              sequenceNodeName = ourPath.substring(basePath.length() + 1); // +1 to include the slash
				// 判断是否获取到锁,没有就返回监听路径
                PredicateResults    predicateResults = driver.getsTheLock(client, children, sequenceNodeName, maxLeases);
              	// 成功获取到
                if ( predicateResults.getsTheLock() )
                {
                    haveTheLock = true;
                }
                else
                {	// 没有获取到锁,监听前一个临时顺序节点
                    String  previousSequencePath = basePath + "/" + predicateResults.getPathToWatch();

                    synchronized(this)
                    {
                        try
                        {
					// 上一个临时顺序节点如果被删除,会唤醒当前线程继续竞争锁
                          client.getData().usingWatcher(watcher).forPath(previousSequencePath);
                            if ( millisToWait != null )
                            {
                                millisToWait -= (System.currentTimeMillis() - startMillis);
                                startMillis = System.currentTimeMillis();
                              	// 获取锁超时
                                if ( millisToWait <= 0 )
                                {
                                    doDelete = true;    // timed out - delete our node
                                    break;
                                }

                                wait(millisToWait);
                            }
                            else
                            {
                                wait();
                            }
                        }
                        catch ( KeeperException.NoNodeException e )
                        {
                            // it has been deleted (i.e. lock released). Try to acquire again
                        }
                    }
                }
            }
        }
        catch ( Exception e )
        {
            ThreadUtils.checkInterrupted(e);
            doDelete = true;
            throw e;
        }
        finally
        {
            if ( doDelete )
            {
              	// 因为获取锁超时,所以删除之前创建的临时子节点
                deleteOurPath(ourPath);
            }
        }
        return haveTheLock;
    }

  	private void deleteOurPath(String ourPath) throws Exception {
        try
        {
          	// 删除
            client.delete().guaranteed().forPath(ourPath);
        }
        catch ( KeeperException.NoNodeException e )
        {
            // ignore - already deleted (possibly expired session, etc.)
        }
    }

 }


StandardLockInternalsDriver

implements

LockInternalsDriver

	// 前面internalLockLoop方法中driver.getsTheLock执行的方法
	@Override
    public PredicateResults getsTheLock(CuratorFramework client, List<String> children, String sequenceNodeName, int maxLeases) throws Exception
    {
    	// 获取子节点在临时顺序节点列表中的位置
        int             ourIndex = children.indexOf(sequenceNodeName);
        // 检验子节点在临时顺序节点列表中是否有效
        validateOurIndex(sequenceNodeName, ourIndex);
        // 若当前子节点的位置<maxLeases,代表可获取锁【maxLeases默认=1,若ourIndex=0,代笔自己位置最小】
        boolean         getsTheLock = ourIndex < maxLeases;
        // getsTheLock=true,则不需要监听前maxLeases的节点【maxLeases默认=1,代表监听前面最靠近自己的节点】
        String          pathToWatch = getsTheLock ? null : children.get(ourIndex - maxLeases);

        return new PredicateResults(pathToWatch, getsTheLock);
    }

用InterProcessMutex在自己业务实现分布式锁,请点击此链接阅读
