seata本地配置以及搭配nacos进行配置

注：本文seata版本：seata-server-1.4.2，nacos版本为：nacos-server-2.0.1

一：基于本地配置


1、下载seata-server-1.4.2，打开conf文件夹，编辑registry.config,将registry以及config的type全部改为file，启动seata

![在这里插入图片描述](https://img-blog.csdnimg.cn/e8b23056e43b4dde91e0f32307ac9b3e.png


2、项目中引入依赖

    <dependency>
        <groupId>io.seata</groupId>
        <artifactId>seata-spring-boot-starter</artifactId>
        <version>${seata.spring.boot.starter.version}</version>
    </dependency>
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
        <version>${spring.cloud.starter.alibaba.seata.version}</version>
        <exclusions>
            <exclusion>
                <groupId>io.seata</groupId>
                <artifactId>seata-spring-boot-starter</artifactId>
            </exclusion>
        </exclusions>
    </dependency>

3、yml中进行配置

seata:
  enabled: true
  application-id: test
  tx-service-group: my_test_tx_group
  enable-auto-data-source-proxy: true
  service:
    vgroup-mapping:
      my_test_tx_group: default
    #disable-global-transaction: false
    default:
      grouplist: 127.0.0.1:8091
    #enable-degrade: false
  config:
    type: file
    file:
      name: file.conf
  registry:
    type: file
    file:
      name: file.conf

4、消费者调用接口时，需要在请求头中加入header,此请求头中的xid是用于分布式事务的上下文关联

headers.put(RootContext.KEY_XID.toLowerCase(), GlobalTransactionContext.getCurrentOrCreate().getXid());

5、生产者需配置一个过滤器，用于接收上文传递的xid

package com.future.dubbo.provider.config;

import io.seata.core.context.RootContext;
import org.apache.commons.lang3.StringUtils;
import org.springframework.stereotype.Component;

import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import java.io.IOException;

@Component
public class SeataFilter implements Filter {
    @Override
    public void init(FilterConfig filterConfig) throws ServletException {
    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) servletRequest;
        String xid = req.getHeader(RootContext.KEY_XID.toLowerCase());
        boolean isBind = false;
        if (StringUtils.isNotBlank(xid)) {
            RootContext.bind(xid);
            isBind = true;
        }
        try {
            filterChain.doFilter(servletRequest, servletResponse);
        } finally {
            if (isBind) {
                RootContext.unbind();
            }
        }
    }

    @Override
    public void destroy() {
    }
}

6、数据库中需加入一张事务表

/*
 Navicat Premium Data Transfer

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 80019
 Source Host           : localhost:3306
 Source Schema         : rabbit_mq2

 Target Server Type    : MySQL
 Target Server Version : 80019
 File Encoding         : 65001

 Date: 08/09/2021 14:43:40
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for undo_log
-- ----------------------------
DROP TABLE IF EXISTS `undo_log`;
CREATE TABLE `undo_log`  (
  `id` bigint(0) NOT NULL AUTO_INCREMENT,
  `branch_id` bigint(0) NOT NULL,
  `xid` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `context` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `rollback_info` longblob NOT NULL,
  `log_status` int(0) NOT NULL,
  `log_created` datetime(0) NOT NULL,
  `log_modified` datetime(0) NOT NULL,
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE INDEX `ux_undo_log`(`xid`, `branch_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 13 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of undo_log
-- ----------------------------

SET FOREIGN_KEY_CHECKS = 1;

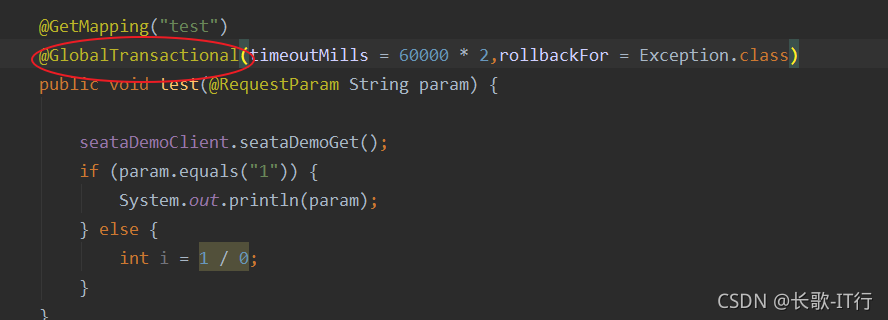

7、消费者消费接口，加入@GlobalTransactional注解



8、消费者调用接口进行消费

二：搭配nacos进行配置

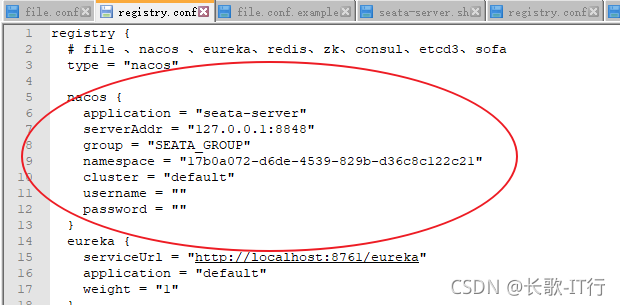

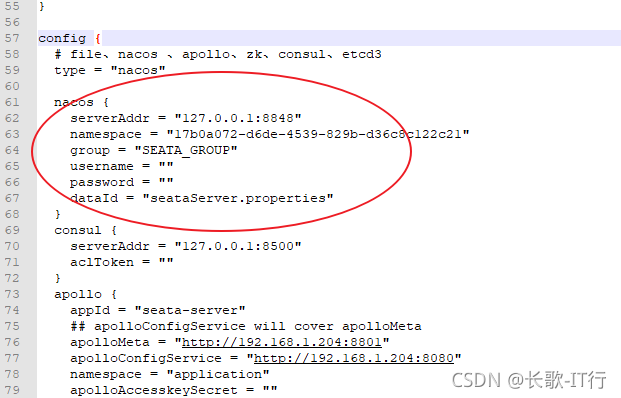

1、下载seata-server-1.4.2，打开conf文件夹，编辑registry.config,将registry以及config的type全部改为nacos,配置nacos配置信息，先启动nacos，再启动seata

2、nacos以及seata依赖

<dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-spring-boot-starter</artifactId>
            <version>1.4.0</version>
            <exclusions>
                <exclusion>
                    <groupId>io.seata</groupId>
                    <artifactId>seata-all</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-client</artifactId>
            <version>1.4.0</version>
        </dependency>
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-all</artifactId>
            <version>1.4.0</version>
            <exclusions>
                <exclusion>
                    <groupId>com.alibaba</groupId>
                    <artifactId>druid</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!--nacos依赖-->
        <!-- https://mvnrepository.com/artifact/com.alibaba.cloud/spring-cloud-starter-alibaba-nacos-config -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
            <version>2.2.5.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <version>2.2.5.RELEASE</version>
        </dependency>

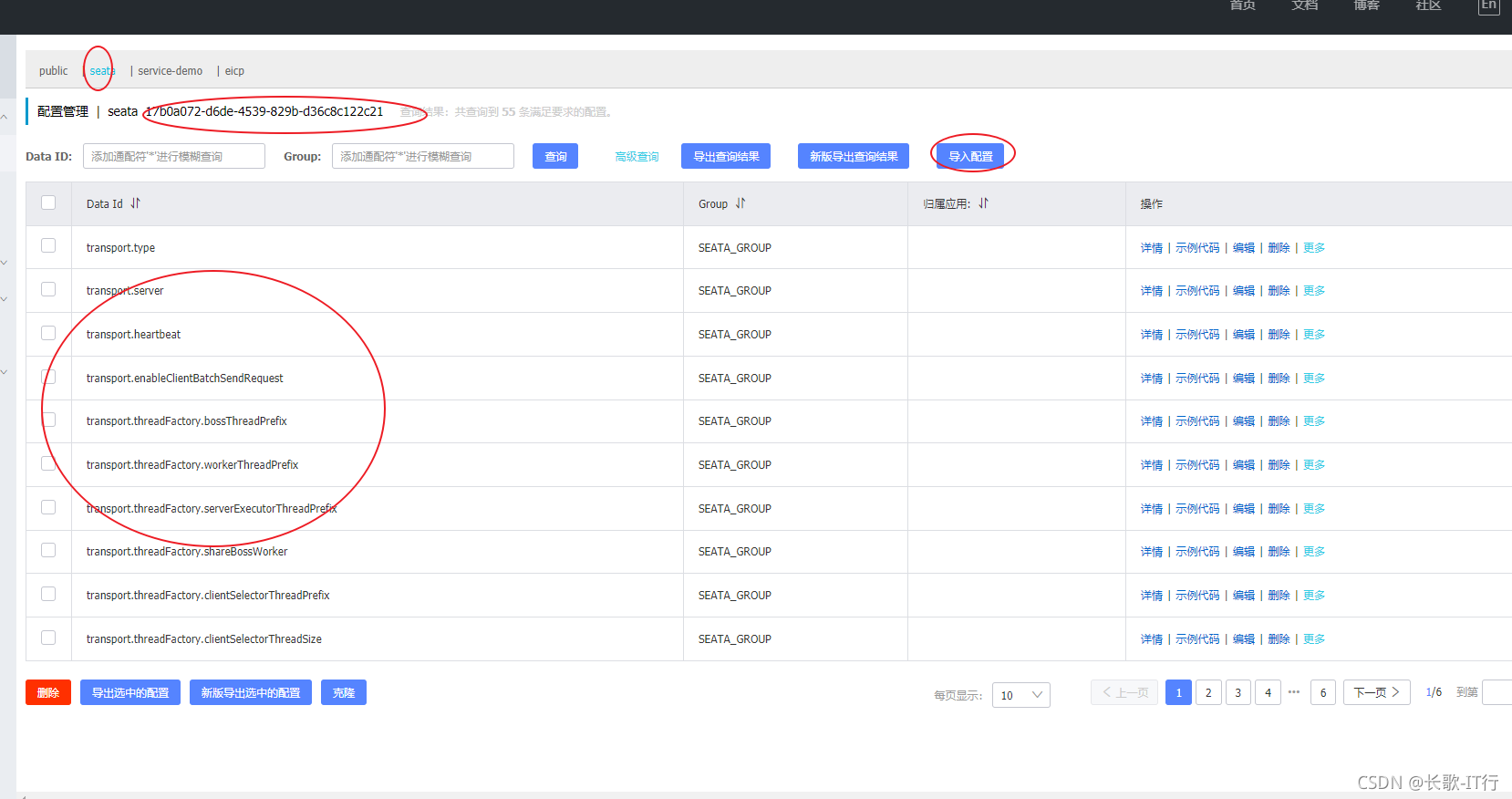

3、打开nacos将seata相应配置导入到相应的namespace,自行google，最终效果如下



4、yml配置

seata:
  enabled: true
  application-id: seata-server1
  tx-service-group: my_test_tx_group
  enable-auto-data-source-proxy: true
  config:
    type: nacos
    nacos:
      server-addr: 127.0.0.1:8848
      group: SEATA_GROUP
      username: nacos
      password: nacos
      namespace: 17b0a072-d6de-4539-829b-d36c8c122c21
  registry:
    type: nacos
    nacos:
      application: seata-server
      server-addr: 127.0.0.1:8848
      group: SEATA_GROUP
      username: nacos
      password: nacos
      namespace: 17b0a072-d6de-4539-829b-d36c8c122c21

5、消费者调用接口时，需要在请求头中加入header,此请求头中的xid是用于分布式事务的上下文关联

headers.put(RootContext.KEY_XID.toLowerCase(), GlobalTransactionContext.getCurrentOrCreate().getXid());

注：


消费者调用生产者进行消费时：如果采用的是feign框架

可进行优化，增加一个feign配置类，调用feign接口时，加入请求头

package com.future.dubbo.consumer.config;

import feign.RequestInterceptor;
import feign.RequestTemplate;
import io.seata.core.context.RootContext;
import io.seata.tm.api.GlobalTransactionContext;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.servlet.http.HttpServletRequest;

/**
 * @author gzq
 * @date 2021/9/8
 * <p>
 * Feign调用的时候添加请求头Token,用于seata的分布式事务xid的传递
 */
@Configuration
public class FeignConfiguration implements RequestInterceptor {

    @Override
    public void apply(RequestTemplate requestTemplate) {
        requestTemplate.header(RootContext.KEY_XID.toLowerCase(), GlobalTransactionContext.getCurrentOrCreate().getXid());
    }
}

6、生产者需配置一个过滤器，用于接收上文传递的xid

package com.future.dubbo.provider.config;

import io.seata.core.context.RootContext;
import org.apache.commons.lang3.StringUtils;
import org.springframework.stereotype.Component;

import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import java.io.IOException;

@Component
public class SeataFilter implements Filter {
    @Override
    public void init(FilterConfig filterConfig) throws ServletException {
    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) servletRequest;
        String xid = req.getHeader(RootContext.KEY_XID.toLowerCase());
        boolean isBind = false;
        if (StringUtils.isNotBlank(xid)) {
            RootContext.bind(xid);
            isBind = true;
        }
        try {
            filterChain.doFilter(servletRequest, servletResponse);
        } finally {
            if (isBind) {
                RootContext.unbind();
            }
        }
    }

    @Override
    public void destroy() {
    }
}

7、数据库中需加入一张事务表

/*
 Navicat Premium Data Transfer

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 80019
 Source Host           : localhost:3306
 Source Schema         : rabbit_mq2

 Target Server Type    : MySQL
 Target Server Version : 80019
 File Encoding         : 65001

 Date: 08/09/2021 14:43:40
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for undo_log
-- ----------------------------
DROP TABLE IF EXISTS `undo_log`;
CREATE TABLE `undo_log`  (
  `id` bigint(0) NOT NULL AUTO_INCREMENT,
  `branch_id` bigint(0) NOT NULL,
  `xid` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `context` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `rollback_info` longblob NOT NULL,
  `log_status` int(0) NOT NULL,
  `log_created` datetime(0) NOT NULL,
  `log_modified` datetime(0) NOT NULL,
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE INDEX `ux_undo_log`(`xid`, `branch_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 13 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of undo_log
-- ----------------------------

SET FOREIGN_KEY_CHECKS = 1;

8、消费者消费接口，加入@GlobalTransactional注解



9、消费者调用接口进行消费
