配置静态路由——默认路由

  • Post author:
  • Post category:其他



目录


一、拓扑图


二、配置过程


1、R-ZY-A路由配置命令


2、R-ZY-B路由配置命令


3、R-ZY-C路由配置命令


4、R-ZY-D路由配置命令


三、验证过程

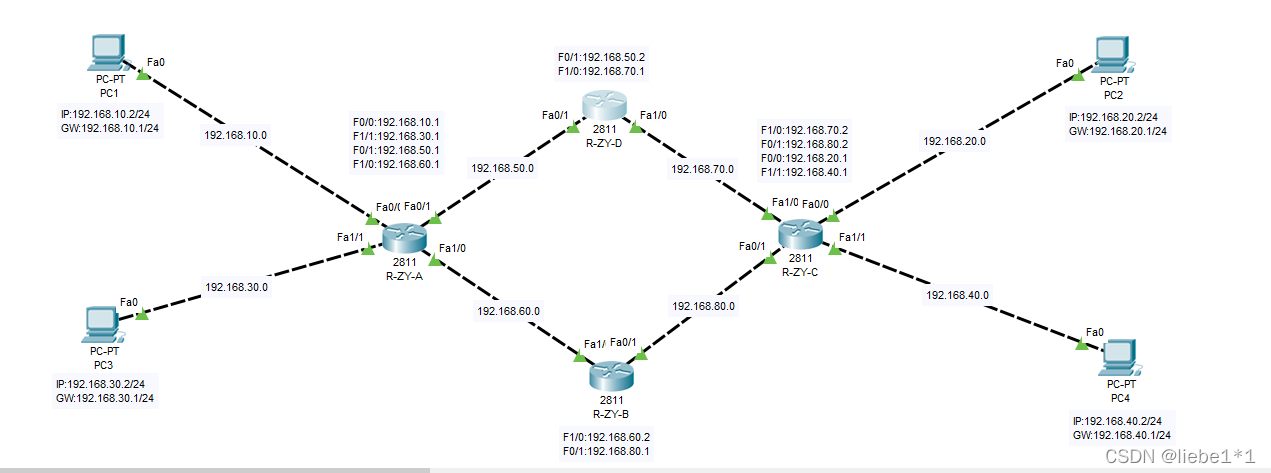

一、拓扑图

二、配置过程

1、


R-ZY-A路由配置命令


Router>enable
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R-ZY-A
R-ZY-A(config)#interface fastEthernet 0/0
R-ZY-A(config-if)#ip address 192.168.10.1 255.255.255.0
R-ZY-A(config-if)#no shutdown
R-ZY-A(config-if)#exit
R-ZY-A(config)#interface fastEthernet 1/1
R-ZY-A(config-if)#ip address 192.168.30.1 255.255.255.0
R-ZY-A(config-if)#no shutdown
R-ZY-A(config-if)#exit
R-ZY-A(config)#interface fastEthernet 0/1
R-ZY-A(config-if)#ip address 192.168.50.1 255.255.255.0
R-ZY-A(config-if)#no shutdown
R-ZY-A(config-if)#exit
R-ZY-A(config)#interface fastEthernet 1/0
R-ZY-A(config-if)#ip address 192.168.60.1 255.255.255.0
R-ZY-A(config-if)#no shutdown
R-ZY-A(config-if)#exit
R-ZY-A(config)#ip route 192.168.70.0 255.255.255.0 192.168.50.2
R-ZY-A(config)#ip route 192.168.80.0 255.255.255.0 192.168.50.2
R-ZY-A(config)#ip route 192.168.20.0 255.255.255.0 192.168.50.2
R-ZY-A(config)#ip route 192.168.40.0 255.255.255.0 192.168.50.2

2、


R-ZY-B路由配置命令


Router>enable
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R-ZY-B
R-ZY-B(config)#interface fastEthernet 1/0
R-ZY-B(config-if)#ip address 192.168.60.2 255.255.255.0
R-ZY-B(config-if)#no shutdown
R-ZY-B(config-if)#exit
R-ZY-B(config)#interface fastEthernet 0/1
R-ZY-B(config-if)#ip address 192.168.80.1 255.255.255.0
R-ZY-B(config-if)#no shutdown
R-ZY-B(config-if)#exit
R-ZY-B(config)#ip route 192.168.10.0 255.255.255.0 192.168.60.1
R-ZY-B(config)#ip route 192.168.30.0 255.255.255.0 192.168.60.1
R-ZY-B(config)#ip route 192.168.50.0 255.255.255.0 192.168.60.1
R-ZY-B(config)#ip route 192.168.70.0 255.255.255.0 192.168.80.2
R-ZY-B(config)#ip route 192.168.20.0 255.255.255.0 192.168.80.2
R-ZY-B(config)#ip route 192.168.40.0 255.255.255.0 192.168.80.2

3、


R-ZY-C路由配置命令


Router>enable
Router#configure
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R-ZY-C
R-ZY-C(config)#interface fastEthernet 1/0
R-ZY-C(config-if)#ip address 192.168.70.2 255.255.255.0
R-ZY-C(config-if)#no shutdown
R-ZY-C(config-if)#exit
R-ZY-C(config)#interface fastEthernet 0/1
R-ZY-C(config-if)#ip address 192.168.80.2 255.255.255.0
R-ZY-C(config-if)#no shutdown
R-ZY-C(config-if)#exit
R-ZY-C(config)#interface fastEthernet 0/0
R-ZY-C(config-if)#ip address 192.168.20.1 255.255.255.0
R-ZY-C(config-if)#no shutdown
R-ZY-C(config-if)#exit
R-ZY-C(config)#interface fastEthernet 1/1
R-ZY-C(config-if)#ip address 192.168.40.1 255.255.255.0
R-ZY-C(config-if)#no shutdown
R-ZY-C(config-if)#exit
R-ZY-C(config)#ip route 192.168.10.0 255.255.255.0 192.168.80.1
R-ZY-C(config)#ip route 192.168.30.0 255.255.255.0 192.168.80.1
R-ZY-C(config)#ip route 192.168.50.0 255.255.255.0 192.168.80.1
R-ZY-C(config)#ip route 192.168.60.0 255.255.255.0 192.168.80.1

4、


R-ZY-D路由配置命令


Router>enable
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname R-ZY-B
R-ZY-B(config)#interface fastEthernet 0/1
R-ZY-B(config-if)#ip address 192.168.50.2 255.255.255.0
R-ZY-B(config-if)#no shutdown
R-ZY-B(config-if)#exit
R-ZY-B(config)#interface fastEthernet 1/0
R-ZY-B(config-if)#ip address 192.168.70.1 255.255.255.0
R-ZY-B(config-if)#no shutdown
R-ZY-B(config-if)#exit
R-ZY-C(config)#ip route 192.168.10.0 255.255.255.0 192.168.50.1
R-ZY-C(config)#ip route 192.168.30.0 255.255.255.0 192.168.50.1
R-ZY-C(config)#ip route 192.168.60.0 255.255.255.0 192.168.50.1
R-ZY-C(config)#ip route 192.168.20.0 255.255.255.0 192.168.70.2
R-ZY-C(config)#ip route 192.168.40.0 255.255.255.0 192.168.70.2
R-ZY-C(config)#ip route 192.168.80.0 255.255.255.0 192.168.70.2

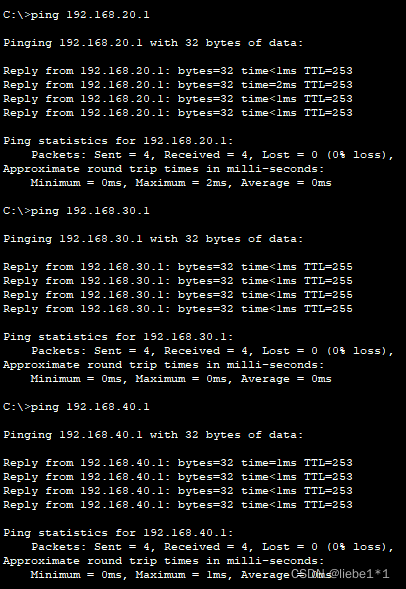

三、验证过程
