利用MATLAB编程绘图时,有时需要在标题、坐标轴中添加数学公式、希腊字母等特殊字符,此时利用LaTex语句即可完美插入相关内容,现将部分LaTex语法以及常用特殊符号汇总如下:

一、对MATLAB生成的图形标注

MATLAB图形中title、xlabel、ylabel、zlable、textbox、legend等的Interpreter属性包括latex、tex和none,其中默认为tex。需要使用LaTex时,将Interpreter属性设置为latex。在MATLAB中使用LaTex的格式有三种:

1、\( Latex Command \)
2、$ LaTex Command $
3、$$ LaTex Command $$

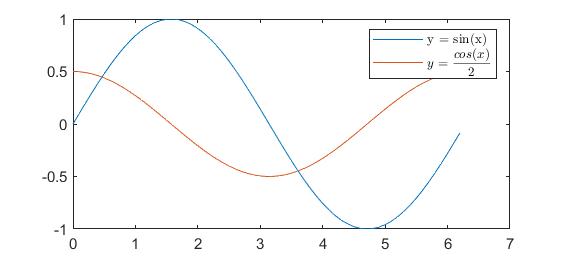

案例:

x = 0:0.1:2*pi;
y1 = sin(x);
y2 = cos(x)*0.5;
plot(x,y1,x,y2);
legend({'y = sin(x)','$$ y = \frac{cos(x)}{2}$$'},'interpreter','latex');
set(gcf,'unit','centimeters','Position',[4 2 12 5.5]); % 设置图片大小与位置

二、具体公式编辑

2.1 字符位置设置

序号 需求 函数字符结构 示例
1 上角标 ^{ } title( ‘$ a^2 + b^2 = c^2 $ ‘, ‘interpreter’, ‘latex’)
2 下角标 _{ } title( ‘$  a_2 + b_2 = c_{bd} $’, ‘interpreter’, ‘latex’ )

2.2 字符字体设置

1、字体加粗:\bf{ x }

2、字体倾斜1:\it{ x }

3、字体倾斜2:\sl{ x }

4、正常字体:\rm{ x }

5、设置字体名:\fontname{ 字体名 }

6、设置字体大小:\fontsize{ 字体大小 }

7、设置字体颜色:\color{ red }

可用颜色包括:red、green、yellow、magenta、blue、black、white、cyan、gray、barkGreen、orange、lightblue。

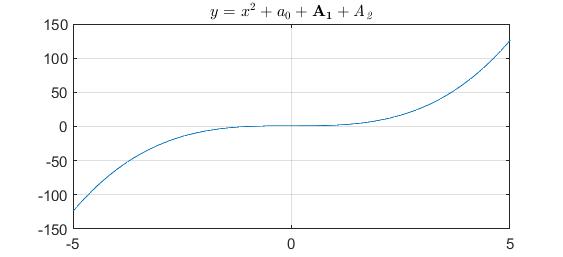

% Demo
x = -5:0.05:5;
y = x.^3 + 1;
plot(x,y);
grid on;
title('$y = x^2 + a_0 + \bf{A_1} + \it{A_2} + \sl{A_3}$','interpreter','latex');
set(gcf,'unit','centimeters','Position',[4 2 12 5.5]); % 设置图片大小与位置

2.3 具体公式编辑

1、求和运算:\sum_{ i=1 }^{ n }

2、积分运算:\int_{ x_1 }^{ x_2 }

3、极限运算:

$$\lim_{n \rightarrow \infty}$$    % n趋于无穷符号在lim正下方
$\lim_{n \rightarrow \infty}$      % n趋于无穷符号在lim右下角
% 区别是符号在正下方左右各用了2个$符号,符号在右下角左右各用了1个$符号

4、分式运算:\frac{ x^2 + y^2 } { x+y+z }

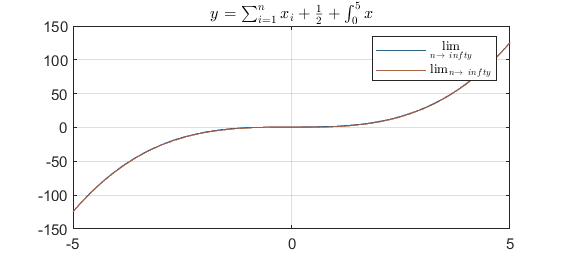

% Demo
x = -5:0.05:5;
y1 = x.^3 + 1;
y2 = x.^3 ;
plot(x,y1,x,y2);
grid on;
title('$ y = \sum_{i=1}^{n}x_{i} + \frac{1}{2} + \int_{0}^{5}x$','interpreter','latex');
legend({'$$\lim_{n \rightarrow \ infty}$$','$ \lim_{n \rightarrow \ infty} $'},'interpreter','latex')
set(gcf,'unit','centimeters','Position',[4 2 12 5.5]);% 设置图片大小与位置

5、根式运算:\sqrt{ x^2 + y^2 }

6、上划线:\overline{ x }

7、下划线:\underline{ x }

8、卧式花括号:\overbrace{ x+y+z }

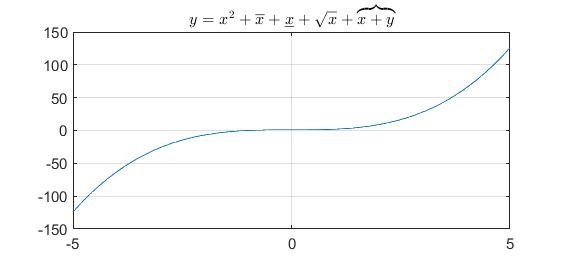

% Demo
x = -5:0.05:5;
y = x.^3 + 1;
plot(x,y);
grid on;
title('$y = x^2 + \overline{x} + \underline{x} + \sqrt{x} + \overbrace{x+y}$','interpreter','latex');
set(gcf,'unit','centimeters','Position',[4 2 12 5.5]); % 设置图片大小与位置

9、仰视花括号:\underbrace{ a+b+c }

10、戴帽命令:\hat{ x }、\check{ x }、\breve{ x }、\widehat{ A+B }、\widetilde{ a+b }、\vec{ x }、\vec{ \imath }

11、堆砌命令:\stackrel{ \rm def }{ = } f(x)

12、省略号:\cdots、\ldots、\vdots、\ddots

% Demo
x = -5:0.05:5;
y = x.^3 + 1;
plot(x,y);
grid on;
title('$\underbrace{x+y} + \hat{x} + \check{x} + \breve{x} + \vec{\imath} + y \stackrel{\rm def}{=} + \cdots + \ldots +\vdots +\ddots$ ','interpreter','latex');
set(gcf,'unit','centimeters','Position',[4 2 12 5.5]); % 设置图片大小与位置

三、特殊符号汇总

表1 特殊符号
序号 函数字符 表征符号 函数字符 表征符号 函数字符 表征符号
1


\alpha

α


\upsilon

υ


\sim

~

2


\angle


\phi

Φ


\leq

3


\ast


*


\chi

χ


\infty

4


\beta

β


\psi

ψ


\clubsuit

5


\gamma

γ


\omega

ω


\diamondsuit

6


\delta

δ


\Gamma

Γ


\heartsuit

7


\epsilon

ɛ


\Delta

Δ


\spadesuit

9


\zeta

ζ


\Theta

Θ


\leftrightarrow

10


\eta

η


\Lambda

Λ


\leftarrow

11


\theta

Θ


\Xi

Ξ


\Leftarrow

12


\vartheta

ϑ


\Pi

Π


\uparrow

13


\iota

ι


\Sigma

Σ


\rightarrow

14


\kappa

κ


\Upsilon

ϒ


\Rightarrow

15


\lambda

λ


\Phi

Φ


\downarrow

16


\mu

µ


\Psi

Ψ


\circ

º

17


\nu

ν


\Omega

Ω


\pm

±

18


\xi

ξ


\forall


\geq

19


\pi

π


\exists


\propto

20


\rho

ρ


\ni


\partial

21


\sigma

σ


\cong


\bullet

22


\varsigma

ς


\approx


\div

÷

23


\tau

τ


\Re


\neq

24


\equiv


\oplus


\aleph

25


\Im


\cup


\wp

26


\otimes


\subseteq


\oslash

27


\cap


\in


\supseteq

28


\supset


\lceil


\subset

29


\int

\

cdot

·


\o

ο

30


\rfloor

\

neg

¬


\nabla

31

\

lfloor

\

times

x

\

ldots

32


\perp

\

surd

\

prime

´

33

\

wedge

\

varpi

ϖ

\0

34

\

rceil

\

rangle

\

mid

|

35

\

vee

\

langle

\

copyright

©
