Skywalking的告警模块源码解析，带你探索它的前世今生

本文基于Skywalking8.4.0，所贴代码皆添加了注释

告警模块的介绍和使用请参看

【弄nèng – Skywalking】入门篇（三）—— Skywalking告警模块使用


官方文档：


http://skywalking.apache.org/docs/main/v8.4.0/en/setup/backend/backend-alarm/

一. 告警处理类简介

告警模块中处理逻辑涉及到的类及其职责介绍

AlarmModule

org.apache.skywalking.oap.server.core.alarm.AlarmModule，继承 ModuleDefine 抽象类

报警模块定义了报警实现者的主入口，SkyWalking支持报警实现可插拔

• services()：返回MetricsNotify的实现类NotifyHandler

AlarmModuleProvider

org.apache.skywalking.oap.server.core.alarm.provider.AlarmModuleProvider，实现 ModuleProvider 抽象类，Alarm模块的提供者Provider。在准备阶段ModuleDefine中调用，运行

prepare()

进行准备操作

• prepare()： 加载alarm-settings.yml

	@Override
    public void prepare() throws ServiceNotProvidedException, ModuleStartException {
        Reader applicationReader;
        try {
        	// 1.加载alarm-settings.yml
            applicationReader = ResourceUtils.read("alarm-settings.yml");
        } catch (FileNotFoundException e) {
            throw new ModuleStartException("can't load alarm-settings.yml", e);
        }
        RulesReader reader = new RulesReader(applicationReader);
        // 解析alarm-settings.yml，转换成Rules，包括List<AlarmRule> rules和List<String> webhooks;
        Rules rules = reader.readRules();
		// 转换成AlarmRulesWatcher, 包括构建RunningRule集合
        alarmRulesWatcher = new AlarmRulesWatcher(rules, this);

        notifyHandler = new NotifyHandler(alarmRulesWatcher);
        // 注入持久化Callback
        notifyHandler.init(new AlarmStandardPersistence());
        // 为这个MetricsNotify提供程序的服务注册一个实现
        this.registerServiceImplementation(MetricsNotify.class, notifyHandler);
    }

• createConfigBeanIfAbsent()： 返回AlarmSettings
• name()：提供这名字，default

AlarmRulesWatcher

将Rules转换成RunningRule，构建Map<String, List> runningContext，metricsName对应RunningRule集合

和Map<AlarmRule, RunningRule> alarmRuleRunningRuleMap 规则和RunningRule对应MAP

-notify(Rules newRules)

	void notify(Rules newRules) {
        Map<AlarmRule, RunningRule> newAlarmRuleRunningRuleMap = new HashMap<>();
        Map<String, List<RunningRule>> newRunningContext = new HashMap<>();

        newRules.getRules().forEach(rule -> {
            /*
             * If there is already an alarm rule that is the same as the new one, we'll reuse its
             * corresponding runningRule, to keep its history metrics
             */
            RunningRule runningRule = alarmRuleRunningRuleMap.getOrDefault(rule, new RunningRule(rule));

            newAlarmRuleRunningRuleMap.put(rule, runningRule);

            String metricsName = rule.getMetricsName();

            List<RunningRule> runningRules = newRunningContext.computeIfAbsent(metricsName, key -> new ArrayList<>());

            runningRules.add(runningRule);
        });

        this.rules = newRules;
        this.runningContext = newRunningContext;
        this.alarmRuleRunningRuleMap = newAlarmRuleRunningRuleMap;
        log.info("Update alarm rules to {}", rules);
    }

NotifyHandler

告警服务的实现类，处理告警逻辑


属性：

• private final AlarmCore core; 告警核心处理
• private final AlarmRulesWatcher alarmRulesWatcher;

方法

• notify(Metrics metrics)： 接收Metrics，根据scope封装MetaInAlarm信息，获取MetricsName所有的RunningRule集合，遍历执行

in()

  添加到Window中

    @Override
    public void notify(Metrics metrics) {
        WithMetadata withMetadata = (WithMetadata) metrics;
        MetricsMetaInfo meta = withMetadata.getMeta();
        int scope = meta.getScope();

        if (!DefaultScopeDefine.inServiceCatalog(scope) && !DefaultScopeDefine.inServiceInstanceCatalog(scope)
            && !DefaultScopeDefine.inEndpointCatalog(scope) && !DefaultScopeDefine.inServiceRelationCatalog(scope)
            && !DefaultScopeDefine.inServiceInstanceRelationCatalog(scope) && !DefaultScopeDefine.inEndpointRelationCatalog(scope)) {
            return;
        }

        MetaInAlarm metaInAlarm;
        if (DefaultScopeDefine.inServiceCatalog(scope)) {
            final String serviceId = meta.getId();
            final IDManager.ServiceID.ServiceIDDefinition serviceIDDefinition = IDManager.ServiceID.analysisId(
                serviceId);
            ServiceMetaInAlarm serviceMetaInAlarm = new ServiceMetaInAlarm();
            serviceMetaInAlarm.setMetricsName(meta.getMetricsName());
            serviceMetaInAlarm.setId(serviceId);
            serviceMetaInAlarm.setName(serviceIDDefinition.getName());
            metaInAlarm = serviceMetaInAlarm;
        } else if (DefaultScopeDefine.inServiceInstanceCatalog(scope)) {
            final String instanceId = meta.getId();
            final IDManager.ServiceInstanceID.InstanceIDDefinition instanceIDDefinition = IDManager.ServiceInstanceID.analysisId(
                instanceId);
            final IDManager.ServiceID.ServiceIDDefinition serviceIDDefinition = IDManager.ServiceID.analysisId(
                instanceIDDefinition.getServiceId());
            ServiceInstanceMetaInAlarm instanceMetaInAlarm = new ServiceInstanceMetaInAlarm();
            instanceMetaInAlarm.setMetricsName(meta.getMetricsName());
            instanceMetaInAlarm.setId(instanceId);
            instanceMetaInAlarm.setName(instanceIDDefinition.getName() + " of " + serviceIDDefinition.getName());
            metaInAlarm = instanceMetaInAlarm;
        } else if (DefaultScopeDefine.inEndpointCatalog(scope)) {
            final String endpointId = meta.getId();
            final IDManager.EndpointID.EndpointIDDefinition endpointIDDefinition = IDManager.EndpointID.analysisId(
                endpointId);
            final IDManager.ServiceID.ServiceIDDefinition serviceIDDefinition = IDManager.ServiceID.analysisId(
                endpointIDDefinition.getServiceId());

            EndpointMetaInAlarm endpointMetaInAlarm = new EndpointMetaInAlarm();
            endpointMetaInAlarm.setMetricsName(meta.getMetricsName());
            endpointMetaInAlarm.setId(meta.getId());
            endpointMetaInAlarm.setName(
                endpointIDDefinition.getEndpointName() + " in " + serviceIDDefinition.getName());
            metaInAlarm = endpointMetaInAlarm;
        } else if (DefaultScopeDefine.inServiceRelationCatalog(scope)) {
            final String serviceRelationId = meta.getId();
            final IDManager.ServiceID.ServiceRelationDefine serviceRelationDefine = IDManager.ServiceID.analysisRelationId(
                serviceRelationId);
            final IDManager.ServiceID.ServiceIDDefinition sourceIdDefinition = IDManager.ServiceID.analysisId(
                serviceRelationDefine.getSourceId());
            final IDManager.ServiceID.ServiceIDDefinition destIdDefinition = IDManager.ServiceID.analysisId(
                serviceRelationDefine.getDestId());
            ServiceRelationMetaInAlarm serviceRelationMetaInAlarm = new ServiceRelationMetaInAlarm();
            serviceRelationMetaInAlarm.setMetricsName(meta.getMetricsName());
            serviceRelationMetaInAlarm.setId(serviceRelationId);
            serviceRelationMetaInAlarm.setName(sourceIdDefinition.getName() + " to " + destIdDefinition.getName());
            metaInAlarm = serviceRelationMetaInAlarm;
        } else if (DefaultScopeDefine.inServiceInstanceRelationCatalog(scope)) {
            final String instanceRelationId = meta.getId();
            final IDManager.ServiceInstanceID.ServiceInstanceRelationDefine serviceRelationDefine = IDManager.ServiceInstanceID.analysisRelationId(
                instanceRelationId);

            final IDManager.ServiceInstanceID.InstanceIDDefinition sourceIdDefinition = IDManager.ServiceInstanceID.analysisId(
                serviceRelationDefine.getSourceId());
            final IDManager.ServiceID.ServiceIDDefinition sourceServiceId = IDManager.ServiceID.analysisId(
                sourceIdDefinition.getServiceId());
            final IDManager.ServiceInstanceID.InstanceIDDefinition destIdDefinition = IDManager.ServiceInstanceID.analysisId(
                serviceRelationDefine.getDestId());
            final IDManager.ServiceID.ServiceIDDefinition destServiceId = IDManager.ServiceID.analysisId(
                destIdDefinition.getServiceId());

            ServiceInstanceRelationMetaInAlarm instanceRelationMetaInAlarm = new ServiceInstanceRelationMetaInAlarm();
            instanceRelationMetaInAlarm.setMetricsName(meta.getMetricsName());
            instanceRelationMetaInAlarm.setId(instanceRelationId);
            instanceRelationMetaInAlarm.setName(sourceIdDefinition.getName() + " of " + sourceServiceId.getName()
                + " to " + destIdDefinition.getName() + " of " + destServiceId.getName());
            metaInAlarm = instanceRelationMetaInAlarm;
        } else if (DefaultScopeDefine.inEndpointRelationCatalog(scope)) {
            final String endpointRelationId = meta.getId();
            final IDManager.EndpointID.EndpointRelationDefine endpointRelationDefine = IDManager.EndpointID.analysisRelationId(
                endpointRelationId);
            final IDManager.ServiceID.ServiceIDDefinition sourceService = IDManager.ServiceID.analysisId(
                endpointRelationDefine.getSourceServiceId());
            final IDManager.ServiceID.ServiceIDDefinition destService = IDManager.ServiceID.analysisId(
                endpointRelationDefine.getDestServiceId());

            EndpointRelationMetaInAlarm endpointRelationMetaInAlarm = new EndpointRelationMetaInAlarm();
            endpointRelationMetaInAlarm.setMetricsName(meta.getMetricsName());
            endpointRelationMetaInAlarm.setId(endpointRelationId);
            endpointRelationMetaInAlarm.setName(endpointRelationDefine.getSource() + " in " + sourceService.getName()
                + " to " + endpointRelationDefine.getDest() + " in " + destService.getName());
            metaInAlarm = endpointRelationMetaInAlarm;
        } else {
            return;
        }
		// MetricsName对应的RunningRule集合
        List<RunningRule> runningRules = core.findRunningRule(meta.getMetricsName());
        if (runningRules == null) {
            return;
        }
		// 遍历执行，如果metrics的实体（服务，端口等）在rule的include中，则根据timeBucket添加到该runningRule的values中
        runningRules.forEach(rule -> rule.in(metaInAlarm, metrics));
    }

RunningRule

告警规则执行类，计算指标值


方法

• in(MetaInAlarm meta, Metrics metrics)：添加metrics到window中
• moveTo(LocalDateTime targetTime)：移动窗口
• check()：检查条件，决定是否触发报警，告警阈值实际判断逻辑

	public Optional<AlarmMessage> checkAlarm() {
        if (isMatch()) {
            /*
             * When
             * 1. Metrics value threshold triggers alarm by rule
             * 2. Counter reaches the count threshold;
             * 3. Isn't in silence stage, judged by SilenceCountdown(!=0).
             */
            counter++;
            if (counter >= countThreshold && silenceCountdown < 1) {
                silenceCountdown = silencePeriod;
                return Optional.of(new AlarmMessage());
            } else {
                silenceCountdown--;
            }
        } else {
            silenceCountdown--;
            if (counter > 0) {
                counter--;
            }
        }
        return Optional.empty();
    }

Window

一个指标窗口，基于警报规则#period。这个窗口随时间滑动，只保留最近的N(period)桶

方法

• add(Metrics metrics)：添加桶
• moveTo(LocalDateTime current) 移除桶

AlarmEntrance

告警服务数据入口，判断有误初始化alarm模块，找到NotifyHandler，传送数据

• forward(Metrics metrics): 转发数据到NotifyHandler

AlarmNotifyWorker

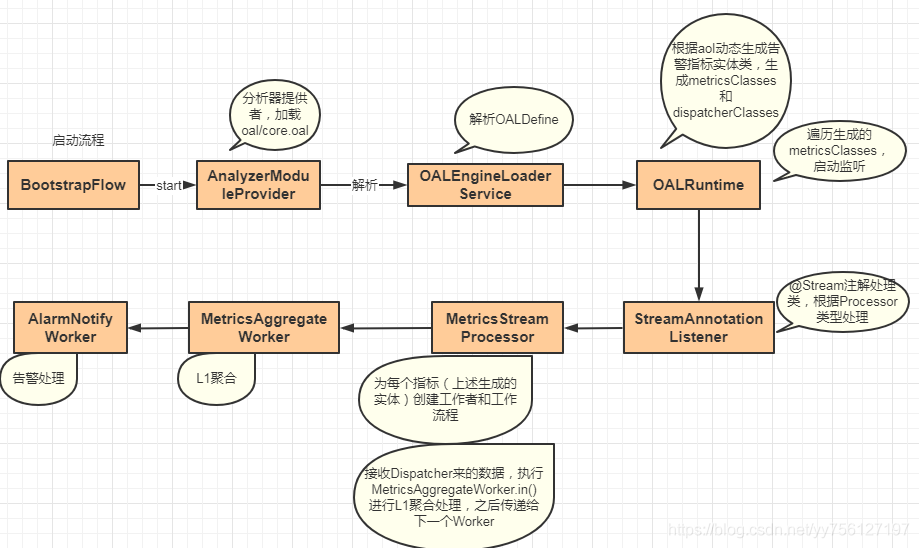

报警通知Worker，接受Metrics，做一个简单的路由到报警核心。在MetricsAggregateWorker进行L1聚合之后执行告警工作。

• in(Metrics metrics)： 转发数据给NotifyHandler处理（根据SCOPE封装对象） –》 遍历所有本scope的rule， rule列表通过解析alarm-setting,yaml得到–》 rule.in 判断metricsNAME是否相同，添加到windows里

AlarmCallback

回调，包括webhook，持久化等等

		allCallbacks.add(new WebhookCallback(alarmRulesWatcher));
        allCallbacks.add(new GRPCCallback(alarmRulesWatcher));
        allCallbacks.add(new SlackhookCallback(alarmRulesWatcher));
        allCallbacks.add(new WechatHookCallback(alarmRulesWatcher));
        allCallbacks.add(new DingtalkHookCallback(alarmRulesWatcher));
        allCallbacks.add(new FeishuHookCallback(alarmRulesWatcher));

AlarmCore

告警核心处理，根据告警设置，包括某些时间窗口的指标值。通过使用它的内部定时器

*触发器和报警规则来决定是否发送报警到数据库和webhook(s)

• start(List allCallbacks)：在NotifyHandler初始化时调用，启动告警定时任务10s执行一次

    public void start(List<AlarmCallback> allCallbacks) {
        LocalDateTime now = LocalDateTime.now();
        lastExecuteTime = now;
        Executors.newSingleThreadScheduledExecutor().scheduleAtFixedRate(() -> {
            try {
                final List<AlarmMessage> alarmMessageList = new ArrayList<>(30);
                LocalDateTime checkTime = LocalDateTime.now();
                int minutes = Minutes.minutesBetween(lastExecuteTime, checkTime).getMinutes();
                boolean[] hasExecute = new boolean[]{false};
                // 遍历所有窗口数据
                alarmRulesWatcher.getRunningContext().values().forEach(ruleList -> ruleList.forEach(runningRule -> {
                // 如果与上次间隔大于1分钟，则执行窗口里的runningRule
                    if (minutes > 0) {
                    	// 移动窗口
                        runningRule.moveTo(checkTime);
                        /*
                         * Don't run in the first quarter per min, avoid to trigger false alarm.
                         */
                         // 秒刻度大于15
                        if (checkTime.getSecondOfMinute() > 15) {
                            hasExecute[0] = true;
                            // runningRule.check()执行告警计算逻辑，产生告警信息
                            alarmMessageList.addAll(runningRule.check());
                        }
                    }
                }));
                // Set the last execute time, and make sure the second is `00`, such as: 18:30:00
                if (hasExecute[0]) {
                    lastExecuteTime = checkTime.minusSeconds(checkTime.getSecondOfMinute());
                }
				// 如果存在告警，则进行符合告警判断
                if (alarmMessageList.size() > 0) {
                    if (alarmRulesWatcher.getCompositeRules().size() > 0) {
                    	// 复合告警处理逻辑
                        List<AlarmMessage> messages = alarmRulesWatcher.getCompositeRuleEvaluator().evaluate(alarmRulesWatcher.getCompositeRules(), alarmMessageList);
                        alarmMessageList.addAll(messages);
                    }
                    // 回调处理告警信息
                    List<AlarmMessage> filteredMessages = alarmMessageList.stream().filter(msg -> !msg.isOnlyAsCondition()).collect(Collectors.toList());
                    allCallbacks.forEach(callback -> callback.doAlarm(filteredMessages));
                }
            } catch (Exception e) {
                LOGGER.error(e.getMessage(), e);
            }
        }, 10, 10, TimeUnit.SECONDS);
    }

• runningRule.moveTo(checkTime) 移动后窗口，切记period不要设置成1,因为最后一个bucket最多保留20s的数据

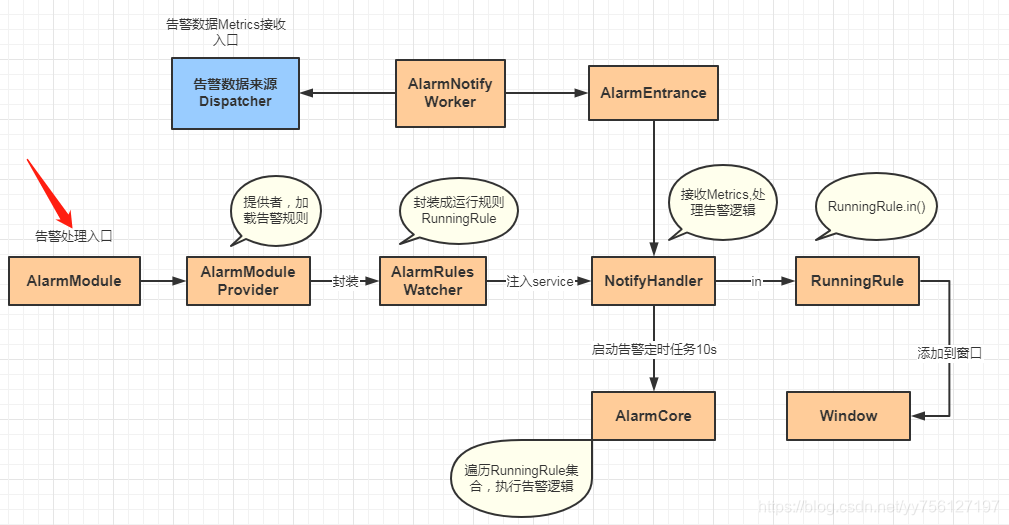

告警处理逻辑

以上是告警处理过程中涉及到类，整体的告警处理逻辑如下：

二. 告警规则动态配置

告警模块中规则动态读取涉及到的类及其职责介绍

告警模块在准备阶段会初始化告警规则，AlarmModuleProvider加载alarm-setting.yml

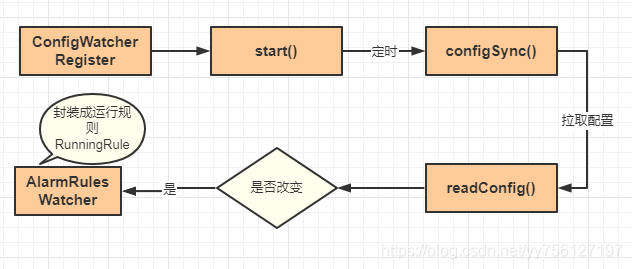

当我们使用动态配置alarm-setting.yml的时候，处理流程，涉及到的类及其职责介绍如下：

更多关于skywalking动态配置请看

官方文档–动态配置

我们以grpc方式动态配置进行讲解，其他原理相同，只是接收数据方式不同

ConfigWatcherRegister

配置监听默认实现者，实现 DynamicConfigurationService


方法

• start()：启动定时任务读取配置
• configSync()： 同步配置

	void configSync() {

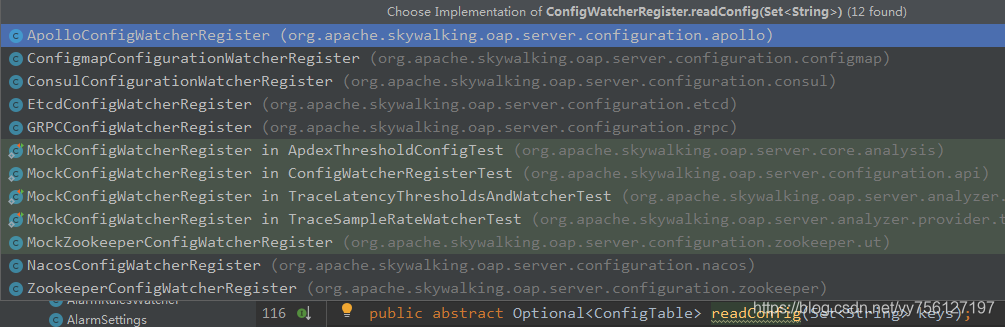

		// 主动拉取配置，readConfig根据不同的数据源使用不同的实现类
        Optional<ConfigTable> configTable = readConfig(register.keys());

        // Config table would be null if no change detected from the implementation.
        configTable.ifPresent(config -> {
            config.getItems().forEach(item -> {
            	// alarm.default.alarm-settings
                String itemName = item.getName();
                WatcherHolder holder = register.get(itemName);
                if (holder != null) {
                    ConfigChangeWatcher watcher = holder.getWatcher();
                    String newItemValue = item.getValue();
                    if (newItemValue == null) {
                        if (watcher.value() != null) {
                            // Notify watcher, the new value is null with delete event type.
                            watcher.notify(
                                new ConfigChangeWatcher.ConfigChangeEvent(null, ConfigChangeWatcher.EventType.DELETE));
                        } else {
                            // Don't need to notify, stay in null.
                        }
                    } else {
                        if (!newItemValue.equals(watcher.value())) {
                        	// 新值与旧值不同则更新配置，也就是调用AlarmRulesWatcher.notify() 重新获取RunningRule集合
                            watcher.notify(new ConfigChangeWatcher.ConfigChangeEvent(
                                newItemValue,
                                ConfigChangeWatcher.EventType.MODIFY
                            ));
                        } else {
                            // Don't need to notify, stay in the same config value.
                        }
                    }
                } else {
                    LOGGER.warn("Config {} from configuration center, doesn't match any watcher, ignore.", itemName);
                }
            });

            LOGGER.trace("Current configurations after the sync." + LINE_SEPARATOR + register.toString());
        });
    }

• readConfig() 读取配置，根据不同的数据源使用不同的实现类



动态告警配置逻辑

三. 告警数据来源

前面介绍了告警处理和告警规则动态配置，告警处理的NotifyHandler.notify(Metrics metrics)： 接收Metrics进行告警处理。但是谁把告警Metrics传递过来呢，接下来我们继续探究万恶之源

BootstrapFlow

流程启动类

• start(): 加载启动执行的ModuleProvider，为其注入service和调用provider.start()。其中AnalyzerModuleProvider就是分析器提供者

AnalyzerModuleProvider

分析器提供者，加载oal/core.oal 解析成 OALDefine

• start()：

    @Override
    public void start() throws ModuleStartException {
        // load official analysis
        // 加载oal
        getManager().find(CoreModule.NAME)
                    .provider()
                    .getService(OALEngineLoaderService.class)
                    .load(CoreOALDefine.INSTANCE);

        DynamicConfigurationService dynamicConfigurationService = getManager().find(ConfigurationModule.NAME)
                                                                              .provider()
                                                                              .getService(
                                                                                  DynamicConfigurationService.class);
        dynamicConfigurationService.registerConfigChangeWatcher(thresholds);
        dynamicConfigurationService.registerConfigChangeWatcher(uninstrumentedGatewaysConfig);
        dynamicConfigurationService.registerConfigChangeWatcher(traceSampleRateWatcher);

        segmentParserService.setListenerManager(listenerManager());

        processService.start(meterConfigs);
    }

OALEngineLoaderService

aol加载处理类

-load(): 解析OALDefine

    public void load(OALDefine define) throws ModuleStartException {
        if (oalDefineSet.contains(define)) {
            // each oal define will only be activated once
            return;
        }
        try {
            OALEngine engine = loadOALEngine(define);
            StreamAnnotationListener streamAnnotationListener = new StreamAnnotationListener(moduleManager);
            // 设置@stream注解监听器
            engine.setStreamListener(streamAnnotationListener);
            // 设置Dispatcher监听器
            engine.setDispatcherListener(moduleManager.find(CoreModule.NAME)
                                                      .provider()
                                                      .getService(SourceReceiver.class)
                                                      .getDispatcherDetectorListener());
			// 调用OALRuntime.start
            engine.start(OALEngineLoaderService.class.getClassLoader());
            // 调用OALRuntime.notifyAllListeners
            engine.notifyAllListeners();

            oalDefineSet.add(define);
        } catch (ReflectiveOperationException | OALCompileException e) {
            throw new ModuleStartException(e.getMessage(), e);
        }
    }

OALRuntime

OAL Runtime是类生成引擎，它从OAL脚本定义加载生成的类，这个运行时动态加载

• start(): 解析aol,生成运行时类
• generateClassAtRuntime(): 根据aol动态生成告警指标实体类，生成metricsClasses 和 dispatcherClasses，并将其注入类加载器。根据MetricsName为类名metricsStmt.getMetricsName() + “Metrics”，并为实体类添加@Stream。

  动态生成的包含一些OAL function类的metrics ,和一些doMetricsName方法，dispatcher,source。其中dispatcher有调用MetricsStreamProcessor.getInstance().in(metrics);
• notifyAllListeners(): 遍历生成的metricsClasses，启动监听，监听@Stream注解（索引名，scope,处理器，把产生的dispatcherClasses添加到全局Dispatcher中 key :scope, value: List

notifyAllListeners()

    @Override
    public void notifyAllListeners() throws ModuleStartException {
        for (Class metricsClass : metricsClasses) {
            try {
                streamAnnotationListener.notify(metricsClass);
            } catch (StorageException e) {
                throw new ModuleStartException(e.getMessage(), e);
            }
        }
        for (Class dispatcherClass : dispatcherClasses) {
            try {
                dispatcherDetectorListener.addIfAsSourceDispatcher(dispatcherClass);
            } catch (Exception e) {
                throw new ModuleStartException(e.getMessage(), e);
            }
        }
    }

StreamAnnotationListener

@Stream注解处理类，根据Processor类型处理，以上生成的metricsClasses注解@Sream中processor=MetricsStreamProcessor


notify()

    @Override
    public void notify(Class aClass) throws StorageException {
        if (aClass.isAnnotationPresent(Stream.class)) {
            Stream stream = (Stream) aClass.getAnnotation(Stream.class);

            if (stream.processor().equals(RecordStreamProcessor.class)) {
                RecordStreamProcessor.getInstance().create(moduleDefineHolder, stream, aClass);
            } else if (stream.processor().equals(MetricsStreamProcessor.class)) {
                MetricsStreamProcessor.getInstance().create(moduleDefineHolder, stream, aClass);
            } else if (stream.processor().equals(TopNStreamProcessor.class)) {
                TopNStreamProcessor.getInstance().create(moduleDefineHolder, stream, aClass);
            } else if (stream.processor().equals(NoneStreamProcessor.class)) {
                NoneStreamProcessor.getInstance().create(moduleDefineHolder, stream, aClass);
            } else if (stream.processor().equals(ManagementStreamProcessor.class)) {
                ManagementStreamProcessor.getInstance().create(moduleDefineHolder, stream, aClass);
            } else {
                throw new UnexpectedException("Unknown stream processor.");
            }
        } else {
            throw new UnexpectedException(
                    "Stream annotation listener could only parse the class present stream annotation.");
        }
    }

MetricsStreamProcessor

流式计算，指标Stream聚合处理器


属性

• entryWorkers： Metrics处理器 MetricsAggregateWorker集合，(@Stream注解类里的processor和metrics实体封装得到MetricsAggregateWorker)

方法

• create(): 为每个指标（上述生成的实体）创建工作者和工作流程 （包括AlarmNotifyWorker和MetricsAggregateWorker）
• in(Metrics metrics): 接收Dispatcher来的数据，执行MetricsAggregateWorker.in() 进行L1聚合处理，之后传递给下一个Worker

MetricsAggregateWorker

提供了内存中的指标合并功能。这个聚合叫做L1聚合，它合并后的数据刚刚接收分析。属于同一实体、指标类型和时间的指标bucket, L1聚合将它们合并成一个指标对象，以减少不必要的内存和网络

• onWork(): 处理数据

    private void onWork(List<Metrics> metricsList) {
        metricsList.forEach(metrics -> {
            aggregationCounter.inc();
            // 执行Metrics实体里的combine() 进行函数计算
            mergeDataCache.accept(metrics);
        });

		// 传递给下一个worker
        mergeDataCache.read().forEach(
            data -> {
                if (log.isDebugEnabled()) {
                    log.debug(data.toString());
                }
                nextWorker.in(data);
            }
        );
    }

DispatcherManager

• forward(Source source) 接收数据转发所有的本scope的Dispatcher，例如sourceaDispatcher把数据给MetricsStreamProcessor，MetricsStreamProcessor在交给具体MetricsAggregateWorker处理和AlarmNotifyWorker， MetricsRemoteWorker等处理器处理
• MetricsRemoteWorker: 将L1聚合后的数据通过grpc发送到远程AGG角色oap
• AlarmNotifyWorker:将聚合后的数据进行告警处理，接

#一.告警处理--AlarmNotifyWorker


至此整个告警流程首尾相连！

告警数据来源流程图

接图1告警来源入口，整个告警流程首尾相连！

项目推荐

IT-CLOUD

:IT服务管理平台，集成基础服务，中间件服务，监控告警服务等。


IT-CLOUD-ACTIVITI6

:Activiti教程源码。博文在本CSDN Activiti系列中。


IT-CLOUD-ELASTICSEARCH

:elasticsearch教程源码。博文在本CSDN elasticsearch系列中。


IT-CLOUD-KAFKA

:spring整合kafka教程源码。博文在本CSDN kafka系列中。


IT-CLOUD-KAFKA-CLIENT

:kafka client教程源码。博文在本CSDN kafka系列中。

开源项目，持续更新中，喜欢请 Star~
