首先需要第三方控件PagerSlidingTabStrip-master的使用。
ListView放入Fragment,之后再放入ViewPager中。
准备工作:三方控件PagerSlidingTabStrip-master的导入,下载PagerSlidingTabStrip-master,点击File中New中的Import Module,找到PagerSlidingTabStrip-master存放的位置,点击PagerSlidingTabStrip-master下的builder,根据自己的build,修改PagerSlidingTabStrip-master的build。
步骤:1.建立需要传入的新闻类,命名为News。
2.建立Activity,命名为FragmentPager,建立Fragment命名为pagerFragment。
3.建立ListView,以及ListView适配器命名MyListViewAdapter 将ListView放入Fragment中。
4.建立MyfragmentAdapter适配器,将Fragment与ViewPager。

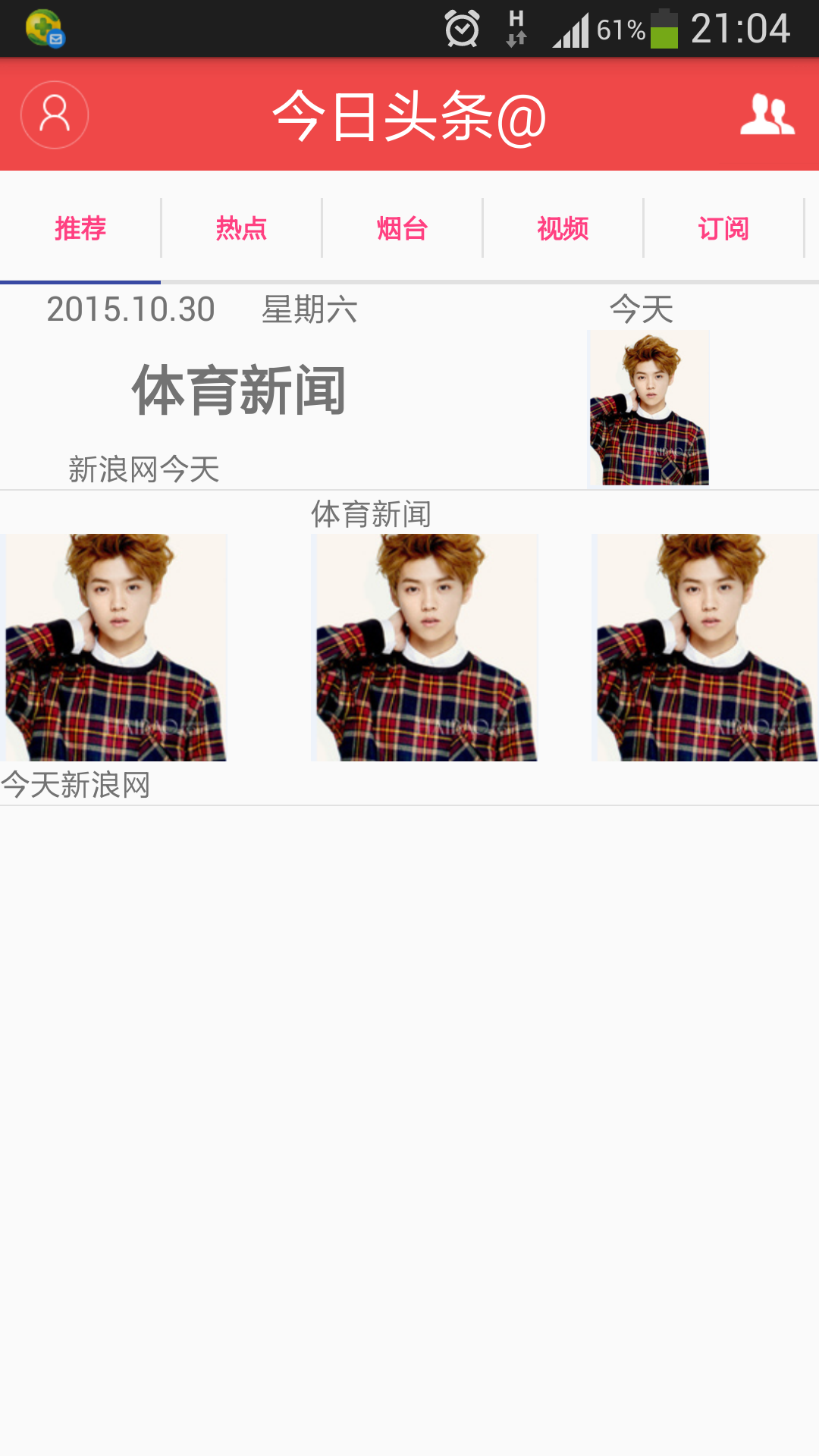

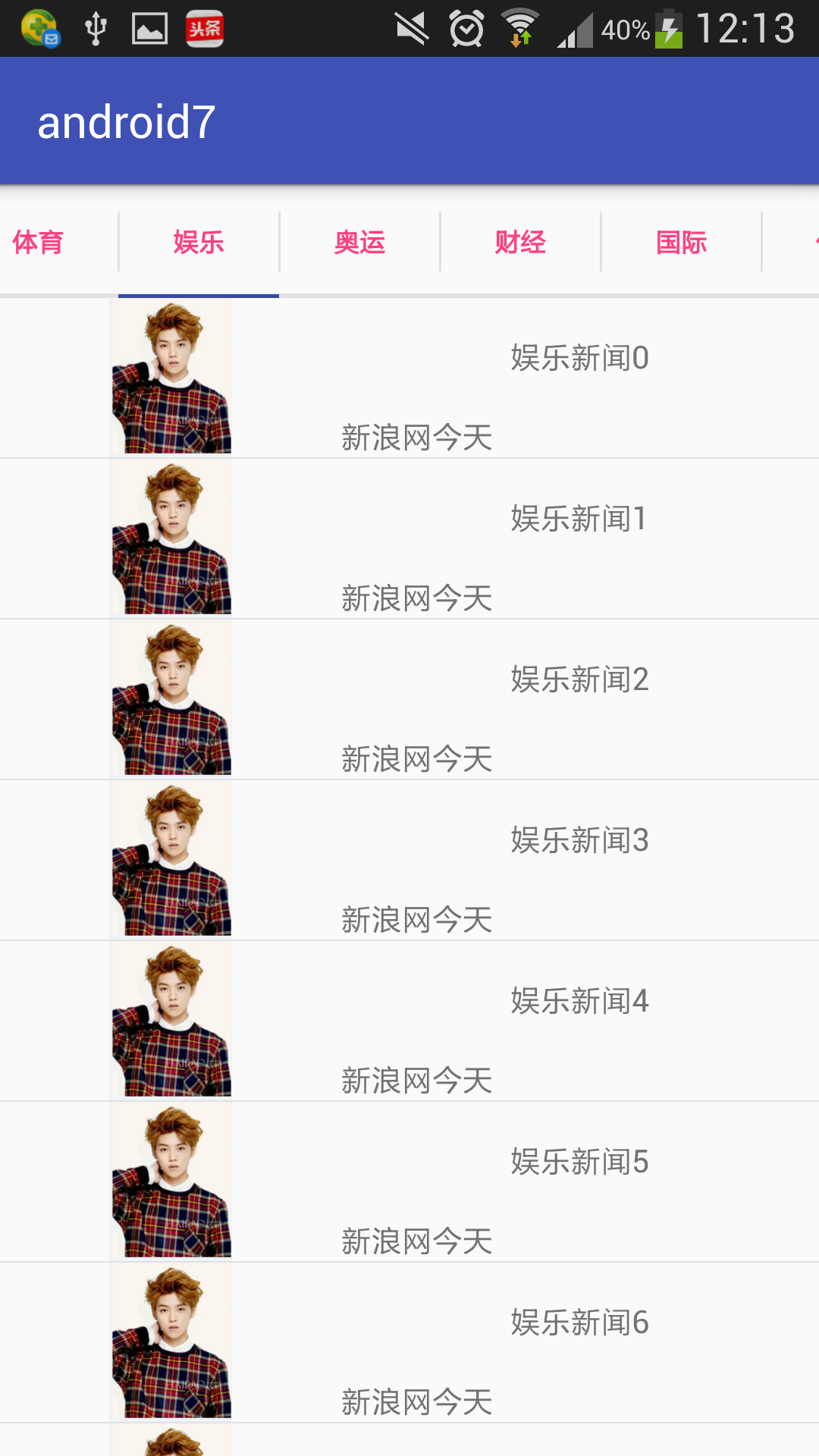

效果图之一:
以下为代码及具体实现过程
首先是:建立News,将属性写出,简单的get/set方法,构造参数,要实现一个页面多种布局,我们需要多个构造参数,这里使用了两种,记得我们需要构造一个空的构造函数,以防报错。
public class News implements Parcelable{
private String title;
private String pubDate;
private String from;
private int img;
private int img1;
private int img2;
private int img3;
public News(int img3, String title, String pubDate, String from, int img1, int img2) {
this.img3 = img3;
this.title = title;
this.pubDate = pubDate;
this.from = from;
this.img1 = img1;
this.img2 = img2;
}
public int getImg3() {
return img3;
}
public void setImg3(int img3) {
this.img3 = img3;
}
public int getImg2() {
return img2;
}
public void setImg2(int img2) {
this.img2 = img2;
}
public int getImg1() {
return img1;
}
public void setImg1(int img1) {
this.img1 = img1;
}
public News() {
}
public News(String title, String pubDate, String from, int img) {
this.title = title;
this.pubDate = pubDate;
this.from = from;
this.img = img;
}
protected News(Parcel in) {
title = in.readString();
pubDate = in.readString();
from = in.readString();
img = in.readInt();
}
public static final Creator<News> CREATOR = new Creator<News>() {
@Override
public News createFromParcel(Parcel in) {
return new News(in);
}
@Override
public News[] newArray(int size) {
return new News[size];
}
};
public String getTitle() {
return title;
}
public void setTitle(String title) {
this.title = title;
}
public String getPubDate() {
return pubDate;
}
public void setPubDate(String pubDate) {
this.pubDate = pubDate;
}
public int getImg() {
return img;
}
public void setImg(int img) {
this.img = img;
}
public String getFrom() {
return from;
}
public void setFrom(String from) {
this.from = from;
}
@Override
public int describeContents() {
return 0;
}
@Override
public void writeToParcel(Parcel dest, int flags) {
dest.writeString(title);
dest.writeString(pubDate);
dest.writeString(from);
dest.writeInt(img);
}
}
FragmentPager
package com.edu.jereh.android7;
import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.support.v4.view.ViewPager;
import android.support.v7.app.AppCompatActivity;
import com.astuetz.PagerSlidingTabStrip;
import com.edu.jereh.android7.adapter.MyfragmentAdapter;
import com.edu.jereh.android7.fragment.pagerFragment;
import java.util.ArrayList;
import java.util.List;
public class FragmentPager extends AppCompatActivity {
private ViewPager vp;
private PagerSlidingTabStrip pst;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_fragment_pager);
getSupportActionBar().hide();
vp=(ViewPager)findViewById(R.id.vp);
pst=(PagerSlidingTabStrip)findViewById(R.id.pst);
List<Fragment> list=new ArrayList<>();
List<String> titles=new ArrayList<>();
titles.add("推荐");
titles.add("热点");
titles.add("烟台");
titles.add("视频");
titles.add("订阅");
titles.add("体育");
titles.add("娱乐");
titles.add("奥运");
titles.add("财经");
titles.add("国际");
for(int i=1;i<10;i++){
Fragment fragment=new pagerFragment();
Bundle bundle=new Bundle();
bundle.putInt("arg",i);
fragment.setArguments(bundle);
list.add(fragment);
}
MyfragmentAdapter ma=new MyfragmentAdapter(
getSupportFragmentManager(),list,titles);
vp.setAdapter(ma);
//ViewPage自带滑动
// vp.setPageTransformer(true,new ZoomOutPageTransformer());
vp.setPageTransformer(true,new DepthPageTransformer());
pst.setIndicatorColor(getResources().getColor(R.color.colorPrimary));//边框颜色
pst.setIndicatorHeight(5);
//pst.setShouldExpand(true);//平分,当它小的时候让它铺满整个屏幕
pst.setTextColor(getResources().getColor(R.color.colorAccent));//字的颜色
pst.setViewPager(vp);
}
}
pagerFragment
public class pagerFragment extends Fragment {
public pagerFragment() {
// Required empty public constructor
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
// Inflate the layout for this fragment
return inflater.inflate(R.layout.fragment_pager, container, false);
}
@Override
public void onActivityCreated(Bundle savedInstanceState) {
super.onActivityCreated(savedInstanceState);
//TextView tv=(TextView)getView().findViewById(R.id.tv);
int []a= new int[]{R.mipmap.a,R.mipmap.b,R.mipmap.c,R.mipmap.d,R.mipmap.e,R.mipmap.f,R.mipmap.g,R.mipmap.h,R.mipmap.i,R.mipmap.j,R.mipmap.k,R.mipmap.l,R.mipmap.m,R.mipmap.n};
ListView lv=(ListView)getView().findViewById(R.id.lv);
final List<News> list=new ArrayList<>();
MyListViewAdapter ma=new MyListViewAdapter(list,getActivity());
lv.setAdapter(ma);
final Bundle bundle=getArguments();
lv.setOnItemClickListener(new AdapterView.OnItemClickListener() {
@Override
public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
// News news=list.get(position);
//弹出点击新闻的Title传值
News news=list.get(position);
Intent intent=new Intent(getActivity(), IntentActivity.class);
intent.putExtra("obj",news);
//intent.putExtra("obj", news);
Bundle bundle1=new Bundle();
bundle1.putString("arg1", "今天是七月七");
intent.putExtra("bundle",bundle1);
startActivity(intent);
}
});
if(bundle!=null){
int arg=bundle.getInt("arg");
// lv.setText("我是Fragment"+arg);
switch (arg){
case 1:
// for(int i=0;i<a.length;i++){
// list.add(new News("体育新闻"+i,"今天","新浪网",a[i]));
// }
list.add(new News("体育新闻","今天","新浪网",R.mipmap.lh2));
list.add(new News(R.mipmap.lh2,"体育新闻","今天","新浪网",R.mipmap.lh2,R.mipmap.lh2));
ma.notifyDataSetChanged();
break;
case 2:
for(int i=0;i<20;i++){
list.add(new News("娱乐新闻"+i,"今天","新浪网",R.mipmap.lh2));
}
ma.notifyDataSetChanged();
break;
case 3:
for(int i=0;i<20;i++){
list.add(new News("财经新闻"+i,"今天","新浪网",R.mipmap.lh3));
}
ma.notifyDataSetChanged();
break;
case 4:
for(int i=0;i<20;i++){
list.add(new News("军事新闻"+i,"今天","新浪网",R.mipmap.lh4));
}
ma.notifyDataSetChanged();
break;
}
}
}
}
MyfragmentAdapter继承于FragmentPagerAdapter
public class MyfragmentAdapter extends FragmentPagerAdapter {
private List<Fragment> list;
private List<String> titles;
public MyfragmentAdapter(FragmentManager fm, List<Fragment> list,List<String> titles) {
super(fm);
this.list=list;
this.titles=titles;
}
@Override
public Fragment getItem(int position) {
return list.get(position);
}
@Override
public int getCount() {
return list.size();
}
@Override
public CharSequence getPageTitle(int position) {
return titles.get(position);
}
}
MyListViewAdapter继承于BaseAdapter
public class MyListViewAdapter extends BaseAdapter {
private List<News> list;
private List<String> titles;
private Context context;
private final int TYPE1=0;//声明常量大写
private final int TYPE2=1 ;
public MyListViewAdapter(List<News> list, Context context) {
this.context = context;
this.list = list;
}
@Override
public int getCount() {
return list.size();
}
@Override
public Object getItem(int position) {
return list.get(position);
}
@Override
public long getItemId(int position) {
return 0;
}
public int getViewTypeCount() {
return 2;
}
@Override
public int getItemViewType(int position) {
// News news=list.get(position);
if(list.get(position).getImg1()==0){
return TYPE1;
}else{
return TYPE2;
}
}
@Override
public View getView(int position, View convertView, ViewGroup parent) {
ViewHolder vh;
int type=getItemViewType(position);
if(convertView == null){
vh=new ViewHolder();
if(type==0){
convertView= LayoutInflater.from(context).inflate(R.layout.list_layout,null);
vh.img=(ImageView)convertView.findViewById(R.id.img);
vh.title=(TextView)convertView.findViewById(R.id.title);
vh.pubDate=(TextView)convertView.findViewById(R.id.pubDate);
vh.from=(TextView)convertView.findViewById(R.id.from);
convertView.setTag(vh);
}else {
convertView= LayoutInflater.from(context).inflate(R.layout.list_layout2,null);
vh.title=(TextView)convertView.findViewById(R.id.title);
vh.pubDate=(TextView)convertView.findViewById(R.id.time);
vh.from=(TextView)convertView.findViewById(R.id.from);
vh.img1=(ImageView)convertView.findViewById(R.id.iv1);
vh.img2=(ImageView)convertView.findViewById(R.id.iv2);
vh.img3=(ImageView)convertView.findViewById(R.id.iv3);
convertView.setTag(vh);
}
}else{
vh=(ViewHolder)convertView.getTag();
}
News news=list.get(position);
if(type==0){
vh.img.setImageResource(news.getImg());
vh.title.setText(news.getTitle());
vh.pubDate.setText(news.getPubDate());
vh.from.setText(news.getFrom());
}else{
vh.title.setText(news.getTitle());
vh.pubDate.setText(news.getPubDate());
vh.from.setText(news.getFrom());
vh.img1.setImageResource(news.getImg1());
vh.img2.setImageResource(news.getImg2());
vh.img3.setImageResource(news.getImg3());
}
return convertView;
}
private class ViewHolder{
ImageView img;
TextView title;
TextView pubDate;
TextView from;
ImageView img1;
ImageView img2;
ImageView img3;
}
}
MyTabHostAdapter继承于FragmentPagerAdapter
public class MyTabHostAdapter extends FragmentPagerAdapter {
private List<Fragment> list;
public MyTabHostAdapter(FragmentManager fm, List<Fragment> list) {
super(fm);
this.list= list;
}
@Override
public Fragment getItem(int position) {
return list.get(position);
}
@Override
public int getCount() {
return list.size();
}
}
FragmentTab继承于Fragment
public class FragmentTab extends Fragment {
public FragmentTab() {
// Required empty public constructor
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
// Inflate the layout for this fragment
return inflater.inflate(R.layout.fragment_fragment_tab, container, false);
}
@Override
public void onActivityCreated(Bundle savedInstanceState) {
super.onActivityCreated(savedInstanceState);
TextView tv=(TextView)getView().findViewById(R.id.tv);
Log.d("====","89");
Bundle bundle=getArguments();
if(bundle!=null){
int arg = bundle.getInt("arg");
tv.setText("我是Fragment"+(arg+1));
}
}
}
IntentActivity
public class IntentActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_intent);
TextView tv=(TextView)findViewById(R.id.tv);
Intent intent=getIntent();
// News news= (News) intent.getSerializableExtra("obj");
News news= intent.getParcelableExtra("obj");
Bundle bundle=intent.getBundleExtra("bundle");
String arg=bundle.getString("arg1");
//String str=news.getTitle();
StringBuilder sbld=new StringBuilder();
sbld.append(arg);
sbld.append("\n");
sbld.append(news.getTitle());
sbld.append(news.getPubDate());
sbld.append(news.getFrom());
//sbld.append(news.getImg().toString());
tv.setText(sbld.toString());
}
}
TabHostFragment继承于Fragment
public class TabHostFragment extends Fragment {
// TODO: Rename parameter arguments, choose names that match
// the fragment initialization parameters, e.g. ARG_ITEM_NUMBER
private static final String ARG_PARAM1 = "param1";
private static final String ARG_PARAM2 = "param2";
// TODO: Rename and change types of parameters
private String mParam1;
private String mParam2;
private OnFragmentInteractionListener mListener;
public TabHostFragment() {
// Required empty public constructor
}
/**
* Use this factory method to create a new instance of
* this fragment using the provided parameters.
*
* @param param1 Parameter 1.
* @param param2 Parameter 2.
* @return A new instance of fragment TabHostFragment.
*/
// TODO: Rename and change types and number of parameters
public static TabHostFragment newInstance(String param1, String param2) {
TabHostFragment fragment = new TabHostFragment();
Bundle args = new Bundle();
args.putString(ARG_PARAM1, param1);
args.putString(ARG_PARAM2, param2);
fragment.setArguments(args);
return fragment;
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
if (getArguments() != null) {
mParam1 = getArguments().getString(ARG_PARAM1);
mParam2 = getArguments().getString(ARG_PARAM2);
}
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
// Inflate the layout for this fragment
return inflater.inflate(R.layout.fragment_tab_host, container, false);
}
// TODO: Rename method, update argument and hook method into UI event
public void onButtonPressed(Uri uri) {
if (mListener != null) {
mListener.onFragmentInteraction(uri);
}
}
@Override
public void onAttach(Context context) {
super.onAttach(context);
if (context instanceof OnFragmentInteractionListener) {
mListener = (OnFragmentInteractionListener) context;
} else {
throw new RuntimeException(context.toString()
+ " must implement OnFragmentInteractionListener");
}
}
@Override
public void onDetach() {
super.onDetach();
mListener = null;
}
/**
* This interface must be implemented by activities that contain this
* fragment to allow an interaction in this fragment to be communicated
* to the activity and potentially other fragments contained in that
* activity.
* <p/>
* See the Android Training lesson <a href=
* "http://developer.android.com/training/basics/fragments/communicating.html"
* >Communicating with Other Fragments</a> for more information.
*/
public interface OnFragmentInteractionListener {
// TODO: Update argument type and name
void onFragmentInteraction(Uri uri);
}
}
最后是效果图展示:
