注意：
该文章 是 根据 https://github.com/opsnull/follow-me-install-kubernetes-cluster （
follow-me-install-kubernetes-cluster
） 一步步做的。
若有版权问题请留言，谢谢！
其中自己根据实际情况做了若干变动。
里面的
ip
与实际对应如下
(
有的地方
ip
或许没改
)
：
|
10.64.3.7 |
192.168.1.206 |
etcd-host0 |
|
10.64.3.8 |
192.168.1.207 |
etcd-host1 |
|
10.64.3.86 |
192.168.1.208 |
etcd-host2 |
01-组件版本和集群环境
集群组件和版本
- Kubernetes 1.6.2
- Docker 17.04.0-ce
- Etcd 3.1.6
- Flanneld 0.7.1 vxlan 网络
- TLS 认证通信 (所有组件，如 etcd、kubernetes master 和 node)
- RBAC 授权
- kubelet TLS BootStrapping
- kubedns、dashboard、heapster (influxdb、grafana)、EFK (elasticsearch、fluentd、kibana) 插件
- 私有 docker registry，使用 ceph rgw 后端存储，TLS + HTTP Basic 认证
集群机器
-
192.168.1.206
master、registry
192.168.1.207
node01
192.168.1.208
node02
本着测试的目的，etcd 集群、kubernetes master 集群、kubernetesnode 均使用这三台机器。
初始化系统，关闭 firewalld selinux .
分发集群环境变量定义脚本
把全局变量定义脚本拷贝到所有机器的
/root/local/bin
目录
：
$ cp environment.sh /root/local/bin
$
vi /etc/profile
source /root/local/bin/environment.sh
:wq
192.168.1.206
environment.sh
|
#!/usr/bin/bash BOOTSTRAP_TOKEN=”41f7e4ba8b7be874fcff18bf5cf41a7c” # 最好使用 主机未用的网段 来定义服务网段和 Pod 网段 # 服务网段 (Service CIDR），部署前路由不可达，部署后集群内使用IP:Port可达 SERVICE_CIDR=”10.254.0.0/16″ # POD 网段 (Cluster CIDR），部署前路由不可达，**部署后**路由可达(flanneld保证) CLUSTER_CIDR=”172.30.0.0/16″ # 服务端口范围 (NodePort Range) export NODE_PORT_RANGE=”8400-9000″ # etcd 集群服务地址列表 export ETCD_ENDPOINTS=”https://192.168.1.206:2379,https://192.168.1.207:2379,https://192.168.1.208:2379″ # flanneld 网络配置前缀 export FLANNEL_ETCD_PREFIX=”/kubernetes/network” # kubernetes 服务 IP (一般是 SERVICE_CIDR 中第一个IP) export CLUSTER_KUBERNETES_SVC_IP=”10.254.0.1″ # 集群 DNS 服务 IP (从 SERVICE_CIDR 中预分配) export CLUSTER_DNS_SVC_IP=”10.254.0.2″ # 集群 DNS 域名 export CLUSTER_DNS_DOMAIN=”cluster.local.” export NODE_NAME=etcd-host0 # 当前部署的机器名称(随便定义，只要能区分不同机器即可) export NODE_IP=192.168.1.206 # 当前部署的机器 IP export NODE_IPS=”192.168.1.206 192.168.1.207 192.168.1.208″ # etcd 集群所有机器 IP # etcd 集群间通信的IP和端口 export ETCD_NODES=etcd-host0=https://192.168.1.206:2380,etcd-host1=https://192.168.1.207:2380,etcd-host2=https://192.168.1.208:2380 # 导入用到的其它全局变量：ETCD_ENDPOINTS、FLANNEL_ETCD_PREFIX、CLUSTER_CIDR export PATH=/root/local/bin:$PATH export MASTER_IP=192.168.1.206 # 替换为 kubernetes maste 集群任一机器 IP export KUBE_APISERVER=”https://${MASTER_IP}:6443″ |
192.168.1.207
environment.sh
|
#!/usr/bin/bash BOOTSTRAP_TOKEN=”41f7e4ba8b7be874fcff18bf5cf41a7c” # 最好使用 主机未用的网段 来定义服务网段和 Pod 网段 # 服务网段 (Service CIDR），部署前路由不可达，部署后集群内使用IP:Port可达 SERVICE_CIDR=”10.254.0.0/16″ # POD 网段 (Cluster CIDR），部署前路由不可达，**部署后**路由可达(flanneld保证) CLUSTER_CIDR=”172.30.0.0/16″ # 服务端口范围 (NodePort Range) export NODE_PORT_RANGE=”8400-9000″ # etcd 集群服务地址列表 export ETCD_ENDPOINTS=”https://192.168.1.206:2379,https://192.168.1.207:2379,https://192.168.1.208:2379″ # flanneld 网络配置前缀 export FLANNEL_ETCD_PREFIX=”/kubernetes/network” # kubernetes 服务 IP (一般是 SERVICE_CIDR 中第一个IP) export CLUSTER_KUBERNETES_SVC_IP=”10.254.0.1″ # 集群 DNS 服务 IP (从 SERVICE_CIDR 中预分配) export CLUSTER_DNS_SVC_IP=”10.254.0.2″ # 集群 DNS 域名 export CLUSTER_DNS_DOMAIN=”cluster.local.” export NODE_NAME=etcd-host1 # 当前部署的机器名称(随便定义，只要能区分不同机器即可) export NODE_IP=192.168.1.207 # 当前部署的机器 IP export NODE_IPS=”192.168.1.206 192.168.1.207 192.168.1.208″ # etcd 集群所有机器 IP # etcd 集群间通信的IP和端口 export ETCD_NODES=etcd-host0=https://192.168.1.206:2380,etcd-host1=https://192.168.1.207:2380,etcd-host2=https://192.168.1.208:2380 # 导入用到的其它全局变量：ETCD_ENDPOINTS、FLANNEL_ETCD_PREFIX、CLUSTER_CIDR export PATH=/root/local/bin:$PATH export MASTER_IP=192.168.1.206 # 替换为 kubernetes maste 集群任一机器 IP export KUBE_APISERVER=”https://${MASTER_IP}:6443″ |
192.168.1.208
environment.sh
|
#!/usr/bin/bash BOOTSTRAP_TOKEN=”41f7e4ba8b7be874fcff18bf5cf41a7c” # 最好使用 主机未用的网段 来定义服务网段和 Pod 网段 # 服务网段 (Service CIDR），部署前路由不可达，部署后集群内使用IP:Port可达 SERVICE_CIDR=”10.254.0.0/16″ # POD 网段 (Cluster CIDR），部署前路由不可达，**部署后**路由可达(flanneld保证) CLUSTER_CIDR=”172.30.0.0/16″ # 服务端口范围 (NodePort Range) export NODE_PORT_RANGE=”8400-9000″ # etcd 集群服务地址列表 export ETCD_ENDPOINTS=”https://192.168.1.206:2379,https://192.168.1.207:2379,https://192.168.1.208:2379″ # flanneld 网络配置前缀 export FLANNEL_ETCD_PREFIX=”/kubernetes/network” # kubernetes 服务 IP (一般是 SERVICE_CIDR 中第一个IP) export CLUSTER_KUBERNETES_SVC_IP=”10.254.0.1″ # 集群 DNS 服务 IP (从 SERVICE_CIDR 中预分配) export CLUSTER_DNS_SVC_IP=”10.254.0.2″ # 集群 DNS 域名 export CLUSTER_DNS_DOMAIN=”cluster.local.” export NODE_NAME=etcd-host2 # 当前部署的机器名称(随便定义，只要能区分不同机器即可) export NODE_IP=192.168.1.208 # 当前部署的机器 IP export NODE_IPS=”192.168.1.206 192.168.1.207 192.168.1.208″ # etcd 集群所有机器 IP # etcd 集群间通信的IP和端口 export ETCD_NODES=etcd-host0=https://192.168.1.206:2380,etcd-host1=https://192.168.1.207:2380,etcd-host2=https://192.168.1.208:2380 # 导入用到的其它全局变量：ETCD_ENDPOINTS、FLANNEL_ETCD_PREFIX、CLUSTER_CIDR export PATH=/root/local/bin:$PATH export MASTER_IP=192.168.1.206 # 替换为 kubernetes maste 集群任一机器 IP export KUBE_APISERVER=”https://${MASTER_IP}:6443″ |
02-创建CA证书和秘钥
创建 CA 证书和秘钥
kubernetes
系统各组件需要使用
TLS
证书对通信进行加密，本文档使用
CloudFlare
的 PKI工具集
cfssl
来生成Certificate Authority (CA) 证书和秘钥文件，CA 是自签名的证书，用来签名后续创建的其它 TLS 证书。
安装 CFSSL
$ wget
https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
$ chmod +x cfssl_linux-amd64
$ sudo mv cfssl_linux-amd64 /root/local/bin/cfssl
$ wget
https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
$ chmod +x cfssljson_linux-amd64
$ sudo mv cfssljson_linux-amd64 /root/local/bin/cfssljson
$ wget
https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64
$ chmod +x cfssl-certinfo_linux-amd64
$ sudo mv cfssl-certinfo_linux-amd64 /root/local/bin/cfssl-certinfo
$
export
PATH=/root/local/bin:$PATH
$ mkdir ssl
$
cd
ssl
$ cfssl print-defaults config
>
config.json
$ cfssl print-defaults csr
>
csr.json
以上工具
每个节点都要安装
创建 CA (Certificate Authority)
创建 CA 配置文件：
$ cat ca-config.json
{
“signing”
: {
“default”
: {
“expiry”
:
“8760h”
},
“profiles”
: {
“kubernetes”
: {
“usages”
: [
“signing”
,
“key encipherment”
,
“server auth”
,
“client auth”
],
“expiry”
:
“8760h”
}
}
}
}
- ca-config.json：可以定义多个 profiles，分别指定不同的过期时间、使用场景等参数；后续在签名证书时使用某个 profile；
- signing：表示该证书可用于签名其它证书；生成的 ca.pem 证书中 CA=TRUE；
- server auth：表示 client 可以用该 CA 对 server 提供的证书进行验证；
- client auth：表示 server 可以用该 CA 对 client 提供的证书进行验证；
创建 CA 证书签名请求：
$ cat ca-csr.json
{
“CN”
:
“kubernetes”
,
“key”
: {
“algo”
:
“rsa”
,
“size”
: 2048
},
“names”
: [
{
“C”
:
“CN”
,
“ST”
:
“BeiJing”
,
“L”
:
“BeiJing”
,
“O”
:
“k8s”
,
“OU”
:
“System”
}
]
}
- “CN”：Common Name，kube-apiserver 从证书中提取该字段作为请求的用户名 (User Name)；浏览器使用该字段验证网站是否合法；
- “O”：Organization，kube-apiserver 从证书中提取该字段作为请求用户所属的组 (Group)；
生成 CA 证书和私钥：
$ cfssl gencert -initca ca-csr.json
|
cfssljson -bare ca
$ ls ca
*
ca-config.json ca.csr ca-csr.json ca-key.pem ca.pem
$
分发证书
将生成的 CA 证书、秘钥文件、配置文件拷贝到所有机器的
/etc/kubernetes/ssl
目录下
$ sudo mkdir -p /etc/kubernetes/ssl
$ sudo cp ca
*
/etc/kubernetes/ssl
$
校验证书（这个是个例子）
以校验 kubernetes 证书(后续部署 master 节点时生成的)为例：
使用 openssl 命令
$ openssl x509 -noout -text -in kubernetes.pem
…
Signature Algorithm:sha256WithRSAEncryption
Issuer: C=CN, ST=BeiJing,L=BeiJing, O=k8s, OU=System, CN=Kubernetes
Validity
Not Before: Apr 5 05:36:00 2017 GMT
Not After
:
Apr 5 05:36:00 2018GMT
Subject: C=CN, ST=BeiJing,L=BeiJing, O=k8s, OU=System, CN=kubernetes
…
X509v3 extensions:
X509v3 Key Usage:critical
Digital Signature, KeyEncipherment
X509v3 Extended KeyUsage:
TLS Web ServerAuthentication, TLS Web Client Authentication
X509v3 Basic Constraints:critical
CA:FALSE
X509v3 Subject KeyIdentifier:
DD:52:04:43:10:13:A9:29:24:17:3A:0E:D7:14:DB:36:F8:6C:E0:E0
X509v3 Authority KeyIdentifier:
keyid:44:04:3B:60:BD:69:78:14:68:AF:A0:41:13:F6:17:07:13:63:58:CD
X509v3 Subject Alternative Name:
DNS:kubernetes,DNS:kubernetes.default, DNS:kubernetes.default.svc,DNS:kubernetes.default.svc.cluster, DNS:kubernetes.default.svc.cluster.local,IP Address:127.0.0.1, IP Address:10.64.3.7, IP Address:10.254.0.1
…
- 确认 Issuer 字段的内容和 ca-csr.json 一致；
- 确认 Subject 字段的内容和 kubernetes-csr.json 一致；
- 确认 X509v3 Subject Alternative Name 字段的内容和 kubernetes-csr.json 一致；
- 确认 X509v3 Key Usage、Extended Key Usage 字段的内容和 ca-config.json 中 kubernetes profile 一致；
使用 cfssl-certinfo 命令
$ cfssl-certinfo -certkubernetes.pem
…
{
“subject”
:{
“common_name”
:
“kubernetes”
,
“country”
:
“CN”
,
“organization”
:
“k8s”
,
“organizational_unit”
:
“System”
,
“locality”
:
“BeiJing”
,
“province”
:
“BeiJing”
,
“names”
:[
“CN”
,
“BeiJing”
,
“BeiJing”
,
“k8s”
,
“System”
,
“kubernetes”
]
},
“issuer”
:{
“common_name”
:
“Kubernetes”
,
“country”
:
“CN”
,
“organization”
:
“k8s”
,
“organizational_unit”
:
“System”
,
“locality”
:
“BeiJing”
,
“province”
:
“BeiJing”
,
“names”
:[
“CN”
,
“BeiJing”
,
“BeiJing”
,
“k8s”
,
“System”
,
“Kubernetes”
]
},
“serial_number”
:
“174360492872423263473151971632292895707129022309”
,
“sans”
:[
“kubernetes”
,
“kubernetes.default”
,
“kubernetes.default.svc”
,
“kubernetes.default.svc.cluster”
,
“kubernetes.default.svc.cluster.local”
,
“127.0.0.1”
,
”
192.168.1.206
”
,
”
192.168.1.207
”
,
”
192.168.1.208
”
,
“10.254.0.1”
],
“not_before”
:
“2017-04-05T05:36:00Z”
,
“not_after”
:
“2018-04-05T05:36:00Z”
,
“sigalg”
:
“SHA256WithRSA”
,
…
03-部署高可用Etcd集群
部署高可用 etcd 集群
kuberntes 系统使用 etcd存储所有数据，本文档介绍部署一个三节点高可用 etcd 集群的步骤，这三个节点复用 kubernetes master 机器，分别命名为
etcd-host0
、
etcd-host1
、
etcd-host2
：
-
etcd-host0：
192.168.1.206
-
etcd-host1：
192.168.1.207
-
etcd-host2：
192.168.1.208
使用的变量
本文档用到的变量定义如下
（一开始已经加入
environment.sh
脚本里了
）
：
$
export
NODE_NAME=etcd-host0
#当前部署的机器名称(随便定义，只要能区分不同机器即可)
$
export
NODE_IP=
192.168.1.206
# 当前部署的机器 IP
$
export
NODE_IPS=
”
192.168.1.206 192.168.1.207 192.168.1.208
”
# etcd 集群所有机器 IP
$
# etcd 集群间通信的IP和端口
$
export
ETCD_NODES=etcd-host0=https://
192.168.1.206
:2380,etcd-host1=https://
192.168.1.207
:2380,etcd-host2=https://
192.168.1.208
:2380
$
#导入用到的其它全局变量：ETCD_ENDPOINTS、FLANNEL_ETCD_PREFIX、CLUSTER_CIDR
$
source
/root/local/bin/environment.sh
$
下载二进制文件
到
https://github.com/coreos/etcd/releases
页面下载最新版本的二进制文件：
$ wget
https://github.com/coreos/etcd/releases/download/v3.1.6/etcd-v3.1.6-linux-amd64.tar.gz
$ tar -xvf etcd-v3.1.6-linux-amd64.tar.gz
$ sudo mv etcd-v3.1.6-linux-amd64/etcd
*
/root/local/bin
$
创建 TLS 秘钥和证书
为了保证通信安全，客户端(如 etcdctl) 与 etcd 集群、etcd集群之间的通信需要使用 TLS 加密，本节创建 etcd TLS 加密所需的证书和私钥。
创建 etcd 证书签名请求：
$ cat
>
etcd-csr.json
<<EOF
{
“CN”: “etcd”,
“hosts”: [
“127.0.0.1”,
“${NODE_IP}”
],
“key”: {
“algo”: “rsa”,
“size”: 2048
},
“names”: [
{
“C”: “CN”,
“ST”: “BeiJing”,
“L”: “BeiJing”,
“O”: “k8s”,
“OU”: “System”
}
]
}
EOF
-
hosts 字段指定授权使用该证书的 etcd 节点 IP；
生成 etcd 证书和私钥：
$ cfssl gencert-ca=/etc/kubernetes/ssl/ca.pem \
-ca-key=/etc/kubernetes/ssl/ca-key.pem\
-config=/etc/kubernetes/ssl/ca-config.json \
-profile=kubernetes etcd-csr.json
|
cfssljson -bare etcd
$ ls etcd
*
etcd.csr etcd-csr.json etcd-key.pem etcd.pem
$ sudo mkdir -p /etc/etcd/ssl
$ sudo mv etcd
*
.pem /etc/etcd/ssl
$ rm etcd.csr etcd-csr.json
创建 etcd 的 systemd unit 文件
$ sudo mkdir -p /var/lib/etcd
# 必须先创建工作目录
$ cat
>
etcd.service
<<EOF
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
Documentation=https://github.com/coreos
[Service]
Type=notify
WorkingDirectory=/var/lib/etcd/
ExecStart=/root/local/bin/etcd\\
–name=${NODE_NAME} \\
–cert-file=/etc/etcd/ssl/etcd.pem \\
–key-file=/etc/etcd/ssl/etcd-key.pem \\
–peer-cert-file=/etc/etcd/ssl/etcd.pem \\
–peer-key-file=/etc/etcd/ssl/etcd-key.pem \\
–trusted-ca-file=/etc/kubernetes/ssl/ca.pem\\
–peer-trusted-ca-file=/etc/kubernetes/ssl/ca.pem \\
–initial-advertise-peer-urls=https://${NODE_IP}:2380 \\
–listen-peer-urls=https://${NODE_IP}:2380 \\
–listen-client-urls=https://${NODE_IP}:2379,http://127.0.0.1:2379 \\
–advertise-client-urls=https://${NODE_IP}:2379 \\
–initial-cluster-token=etcd-cluster-0 \\
–initial-cluster=${ETCD_NODES} \\
–initial-cluster-state=new \\
–data-dir=/var/lib/etcd
Restart=on-failure
RestartSec=5
LimitNOFILE=65536
[Install]
WantedBy=multi-user.target
EOF
-
指定
etcd
的工作目录和数据目录为
/var/lib/etcd
，需在启动服务前创建这个目录；
-
为了保证通信安全，需要指定 etcd 的公私钥(cert-file和key-file)、Peers 通信的公私钥和 CA 证书(peer-cert-file、peer-key-file、peer-trusted-ca-file)、客户端的CA证书（trusted-ca-file）；
-
–initial-cluster-state
值为
new
时，
–name
的参数值必须位于
–initial-cluster
列表中；
完整 unit 文件见：
etcd.service
启动 etcd 服务
$ sudo mv etcd.service/etc/systemd/system/
$ sudo systemctl daemon-reload
$ sudo systemctl
enable
etcd
$ sudo systemctl start etcd
$ systemctl status etcd
$
最先启动的 etcd 进程会卡住一段时间，等待其它节点上的 etcd进程加入集群，为正常现象。
在所有的 etcd 节点重复上面的步骤，直到所有机器的 etcd 服务都已启动。
验证服务
部署完 etcd 集群后，在任一 etcd 集群节点上执行如下命令：
$
for
ip
in
${NODE_IPS}
; do
ETCDCTL_API=3 /root/local/bin/etcdctl\
–endpoints=https://${ip}:2379 \
–cacert=/etc/kubernetes/ssl/ca.pem\
–cert=/etc/etcd/ssl/etcd.pem\
–key=/etc/etcd/ssl/etcd-key.pem\
endpoint health
; done
预期结果：
2017-07-0517:11:58.103401 I | warning: ignoring ServerName for user-provided CA forbackwards compatibility is deprecated
https://192.168.1.206:2379
is healthy:successfully committed proposal: took = 81.247077ms
2017-07-0517:11:58.356539 I | warning: ignoring ServerName for user-provided CA forbackwards compatibility is deprecated
https://192.168.1.207:2379
is healthy:successfully committed proposal: took = 12.073555ms
2017-07-0517:11:58.523829 I | warning: ignoring ServerName for user-provided CA forbackwards compatibility is deprecated
https://192.168.1.208:2379
is healthy:successfully committed proposal: took = 5.413361ms
04-部署Kubectl命令行工具
部署 kubectl 命令行工具
kubectl 默认从
~/.kube/config
配置文件获取访问kube-apiserver 地址、证书、用户名等信息，如果没有配置该文件，执行命令时出错：
$ kubectl get pods
The connection to the server localhost:8080 was refused – did you specify theright host or port
?
本文档介绍下载和配置 kubernetes 集群命令行工具 kubectl 的步骤。
需要将下载的 kubectl二进制程序和生成的
~/.kube/config
配置文件拷贝到所有使用 kubectl命令的机器。
使用的变量
本文档用到的变量定义如下
（一开始已经加入
environment.sh
脚本里了
）
：
$
export
MASTER_IP=
192.168.1.206
#
在主节点
206
上操作
$
export
KUBE_APISERVER=
“https://
${MASTER_IP}
:6443″
$
-
变量 KUBE_APISERVER 指定 kubelet 访问的 kube-apiserver 的地址，后续被写入
~/.kube/config
配置文件；
下载 kubectl
$ wget
https://dl.k8s.io/v1.6.2/kubernetes-client-linux-amd64.tar.gz
$ tar -xzvf kubernetes-client-linux-amd64.tar.gz
$ sudo cp kubernetes/client/bin/kube
*
/root/local/bin/
$ chmod a+x /root/local/bin/kube
*
$
export
PATH=/root/local/bin:$PATH
$
创建 admin 证书
kubectl 与 kube-apiserver 的安全端口通信，需要为安全通信提供 TLS证书和秘钥。
创建 admin 证书签名请求
$ cat admin-csr.json
{
“CN”
:
“admin”
,
“hosts”
: [],
“key”
: {
“algo”
:
“rsa”
,
“size”
: 2048
},
“names”
: [
{
“C”
:
“CN”
,
“ST”
:
“BeiJing”
,
“L”
:
“BeiJing”
,
“O”
:
“system:masters”
,
“OU”
:
“System”
}
]
}
-
后续
kube-apiserver
使用
RBAC
对客户端(如
kubelet
、
kube-proxy
、
Pod
)请求进行授权；
-
kube-apiserver
预定义了一些
RBAC
使用的
RoleBindings
，如
cluster-admin
将 Group
system:masters
与 Role
cluster-admin
绑定，该 Role 授予了调用
kube-apiserver
所有 API的权限；
-
O 指定该证书的 Group 为
system:masters
，
kubelet
使用该证书访问
kube-apiserver
时 ，由于证书被 CA 签名，所以认证通过，同时由于证书用户组为经过预授权的
system:masters
，所以被授予访问所有 API 的权限；
-
hosts 属性值为空列表；
生成 admin 证书和私钥：
$ cfssl gencert-ca=/etc/kubernetes/ssl/ca.pem \
-ca-key=/etc/kubernetes/ssl/ca-key.pem\
-config=/etc/kubernetes/ssl/ca-config.json \
-profile=kubernetes admin-csr.json
|
cfssljson -bare admin
$ ls admin
*
admin.csr admin-csr.json admin-key.pem admin.pem
$ sudo mv admin
*
.pem /etc/kubernetes/ssl/
$ rm admin.csr admin-csr.json
$
创建 kubectl kubeconfig 文件
$
# 设置集群参数
$ kubectl config set-cluster kubernetes \
–certificate-authority=/etc/kubernetes/ssl/ca.pem \
–embed-certs=true \
–server=${KUBE_APISERVER}
$
# 设置客户端认证参数
$ kubectl config set-credentials admin \
–client-certificate=/etc/kubernetes/ssl/admin.pem \
–embed-certs=true \
–client-key=/etc/kubernetes/ssl/admin-key.pem
$
# 设置上下文参数
$ kubectl config set-context kubernetes \
–cluster=kubernetes \
–user=admin
$
# 设置默认上下文
$ kubectl config use-context kubernetes
-
admin.pem
证书 O 字段值为
system:masters
，
kube-apiserver
预定义的 RoleBinding
cluster-admin
将 Group
system:masters
与 Role
cluster-admin
绑定，该 Role 授予了调用
kube-apiserver
相关 API 的权限；
-
生成的 kubeconfig 被保存到
~/.kube/config
文件；
分发 kubeconfig 文件
将
~/.kube/config
文件拷贝到运行
kubelet
命令的机器的
~/.kube/
目录下。
05-部署Flannel网络
部署 Flannel 网络
kubernetes 要求集群内各节点能通过 Pod 网段互联互通，本文档介绍使用Flannel 在所有节点 (Master、Node) 上创建互联互通的 Pod 网段的步骤。
使用的变量
本文档用到的变量定义如下：
$
export
NODE_IP=
192.168.1.206
# 当前部署节点的 IP
$
# 导入用到的其它全局变量：ETCD_ENDPOINTS、FLANNEL_ETCD_PREFIX、CLUSTER_CIDR
$
source
/root/local/bin/environment.sh
$
创建 TLS 秘钥和证书
etcd 集群启用了双向 TLS 认证，所以需要为 flanneld 指定与 etcd集群通信的 CA 和秘钥。
创建 flanneld 证书签名请求：
$ cat
>
flanneld-csr.json
<<EOF
{
“CN”: “flanneld”,
“hosts”: [],
“key”: {
“algo”: “rsa”,
“size”: 2048
},
“names”: [
{
“C”: “CN”,
“ST”: “BeiJing”,
“L”: “BeiJing”,
“O”: “k8s”,
“OU”: “System”
}
]
}
EOF
-
hosts 字段为空；
生成 flanneld 证书和私钥：
$ cfssl gencert-ca=/etc/kubernetes/ssl/ca.pem \
-ca-key=/etc/kubernetes/ssl/ca-key.pem\
-config=/etc/kubernetes/ssl/ca-config.json \
-profile=kubernetes flanneld-csr.json
|
cfssljson -bare flanneld
$ ls flanneld
*
flanneld.csr flanneld-csr.json flanneld-key.pem flanneld.pem
$ sudo mkdir -p /etc/flanneld/ssl
$ sudo mv flanneld
*
.pem /etc/flanneld/ssl
$ rm flanneld.csr flanneld-csr.json
向 etcd 写入集群 Pod 网段信息
注意：本步骤只需在第一次部署 Flannel 网络时执行，后续在其它节点上部署 Flannel时无需再写入该信息！
$ /root/local/bin/etcdctl \
–endpoints=${ETCD_ENDPOINTS}\
–ca-file=/etc/kubernetes/ssl/ca.pem\
–cert-file=/etc/flanneld/ssl/flanneld.pem\
–key-file=/etc/flanneld/ssl/flanneld-key.pem \
set
${FLANNEL_ETCD_PREFIX}/config
‘{“Network”:”‘
${CLUSTER_CIDR}
‘”, “SubnetLen”: 24, “Backend”:{“Type”: “vxlan”}}’
-
flanneld 目前版本 (v0.7.1) 不支持 etcd v3，故使用 etcd v2 API 写入配置 key 和网段数据；
-
写入的 Pod 网段(${CLUSTER_CIDR}，172.30.0.0/16) 必须与 kube-controller-manager 的
–cluster-cidr
选项值一致；
安装和配置 flanneld
下载 flanneld
$ mkdir flannel
$ wget
https://github.com/coreos/flannel/releases/download/v0.7.1/flannel-v0.7.1-linux-amd64.tar.gz
$ tar -xzvf flannel-v0.7.1-linux-amd64.tar.gz -C flannel
$ sudo cp flannel/{flanneld,mk-docker-opts.sh} /root/local/bin
$
创建 flanneld 的 systemd unit 文件
$ cat
>
flanneld.service
<<
EOF
[Unit]
Description=Flanneld overlay address etcdagent
After=network.target
After=network-online.target
Wants=network-online.target
After=etcd.service
Before=docker.service
[Service]
Type=notify
ExecStart=/root/local/bin/flanneld \\
-etcd-cafile=/etc/kubernetes/ssl/ca.pem\\
-etcd-certfile=/etc/flanneld/ssl/flanneld.pem \\
-etcd-keyfile=/etc/flanneld/ssl/flanneld-key.pem \\
-etcd-endpoints=${ETCD_ENDPOINTS}\\
-etcd-prefix=${FLANNEL_ETCD_PREFIX}
ExecStartPost=/root/local/bin/mk-docker-opts.sh -k DOCKER_NETWORK_OPTIONS -d/run/flannel/docker
Restart=on-failure
[Install]
WantedBy=multi-user.target
RequiredBy=docker.service
EOF
-
mk-docker-opts.sh 脚本将分配给 flanneld 的 Pod 子网网段信息写入到
/run/flannel/docker
文件中，后续 docker 启动时使用这个文件中参数值设置 docker0 网桥；
-
flanneld 使用系统缺省路由所在的接口和其它节点通信，对于有多个网络接口的机器（如，内网和公网），可以用
-iface
选项值指定通信接口(上面的 systemd unit 文件没指定这个选项)；
完整 unit 见
flanneld.service
启动 flanneld
$ sudo cp flanneld.service/etc/systemd/system/
$ sudo systemctl daemon-reload
$ sudo systemctl
enable
flanneld
$ sudo systemctl start flanneld
$ systemctl status flanneld
$
检查 flanneld 服务
$ journalctl -u flanneld
|
grep
‘Lease acquired’
$ ifconfig flannel.1
$
检查分配给各 flanneld 的 Pod 网段信息
$
# 查看集群 Pod 网段(/16)
$ /root/local/bin/etcdctl \
–endpoints=${ETCD_ENDPOINTS}\
–ca-file=/etc/kubernetes/ssl/ca.pem\
–cert-file=/etc/flanneld/ssl/flanneld.pem\
–key-file=/etc/flanneld/ssl/flanneld-key.pem \
get${FLANNEL_ETCD_PREFIX}/config
{
“Network”
:
“172.30.0.0/16”
,
“SubnetLen”
: 24,
“Backend”
: {
“Type”
:
“vxlan”
} }
$
# 查看已分配的 Pod 子网段列表(/24)
$ /root/local/bin/etcdctl \
–endpoints=${ETCD_ENDPOINTS}\
–ca-file=/etc/kubernetes/ssl/ca.pem\
–cert-file=/etc/flanneld/ssl/flanneld.pem\
–key-file=/etc/flanneld/ssl/flanneld-key.pem \
ls ${FLANNEL_ETCD_PREFIX}/subnets
2017-07-0517:27:46.007743 I | warning: ignoring ServerName for user-provided CA forbackwards compatibility is deprecated
/kubernetes/network/subnets/172.30.43.0-24
/kubernetes/network/subnets/172.30.44.0-24
/kubernetes/network/subnets/172.30.45.0-24
$
# 查看某一 Pod 网段对应的 flanneld 进程监听的 IP 和网络参数
$ /root/local/bin/etcdctl \
–endpoints=${ETCD_ENDPOINTS}\
–ca-file=/etc/kubernetes/ssl/ca.pem\
–cert-file=/etc/flanneld/ssl/flanneld.pem\
–key-file=/etc/flanneld/ssl/flanneld-key.pem \
get${FLANNEL_ETCD_PREFIX}/subnets/172.30.
43
.0-24
2017-07-0517:28:34.116874 I | warning: ignoring ServerName for user-provided CA forbackwards compatibility is deprecated
{“PublicIP”:”192.168.1.207″,”BackendType”:”vxlan”,”BackendData”:{“VtepMAC”:”52:73:8c:2f:ae:3c”}}
确保各节点间 Pod 网段能互联互通
在各节点上部署完 Flannel 后，查看已分配的 Pod 子网段列表(/24)
$ /root/local/bin/etcdctl\
–endpoints=${ETCD_ENDPOINTS}\
–ca-file=/etc/kubernetes/ssl/ca.pem\
–cert-file=/etc/flanneld/ssl/flanneld.pem\
–key-file=/etc/flanneld/ssl/flanneld-key.pem \
ls${FLANNEL_ETCD_PREFIX}/subnets
/kubernetes/network/subnets/172.30.
43
.0-24
/kubernetes/network/subnets/172.30.
44
.0-24
/kubernetes/network/subnets/172.30.
45
.0-24
当前三个节点分配的 Pod 网段分别是：172.30.
43
.0-24、172.30.
44
.0-24、172.30.
45
.0-24。
06-部署Master节点
部署 master 节点
kubernetes master 节点包含的组件：
-
kube-apiserver
-
kube-scheduler
-
kube-controller-manager
目前这三个组件需要部署在同一台机器上：
-
kube-scheduler
、
kube-controller-manager
和
kube-apiserver
三者的功能紧密相关；
-
同时只能有一个
kube-scheduler
、
kube-controller-manager
进程处于工作状态，如果运行多个，则需要通过选举产生一个 leader；
本文档介绍部署单机 kubernetes master 节点的步骤，没有实现高可用master 集群。
计划后续再介绍部署 LB 的步骤，客户端(kubectl、kubelet、kube-proxy) 使用 LB 的 VIP 来访问 kube-apiserver，从而实现高可用 master 集群。
master 节点与 node 节点上的 Pods 通过 Pod 网络通信，所以需要在master 节点上部署 Flannel 网络。
使用的变量
本文档用到的变量定义如下：
$
export
MASTER_IP=
192.168.1.206
# 替换为当前部署的 master 机器 IP
$
#导入用到的其它全局变量：SERVICE_CIDR、CLUSTER_CIDR、NODE_PORT_RANGE、ETCD_ENDPOINTS、BOOTSTRAP_TOKEN
$
source
/root/local/bin/environment.sh
$
下载最新版本的二进制文件
有两种下载方式：
-
从
github release 页面
下载发布版 tarball，解压后再执行下载脚本
$ wget
https://github.com/kubernetes/kubernetes/releases/download/v1.6.2/kubernetes.tar.gz
$ tar -xzvf kubernetes.tar.gz
…
$
cd
kubernetes
$ ./cluster/get-kube-binaries.sh
…
-
从
CHANGELOG
页面
下载
client
或
server
tarball 文件
server
的 tarball
kubernetes-server-linux-amd64.tar.gz
已经包含了
client
(
kubectl
) 二进制文件，所以不用单独下载
kubernetes-client-linux-amd64.tar.gz
文件；
$
# wget
https://dl.k8s.io/v1.6.2/kubernetes-client-linux-amd64.tar.gz
$ wget
https://dl.k8s.io/v1.6.2/kubernetes-server-linux-amd64.tar.gz
$ tar -xzvf kubernetes-server-linux-amd64.tar.gz
…
$
cd
kubernetes
$ tar -xzvf kubernetes-src.tar.gz
将二进制文件拷贝到指定路径：
$ sudo cp -rserver/bin/{kube-apiserver,kube-controller-manager,kube-scheduler,kubectl,kube-proxy,kubelet}/root/local/bin/
$
安装和配置 flanneld
创建 kubernetes 证书
创建 kubernetes 证书签名请求
$ cat
>
kubernetes-csr.json
<<EOF
{
“CN”: “kubernetes”,
“hosts”: [
“127.0.0.1”,
“${MASTER_IP}”,
“${CLUSTER_KUBERNETES_SVC_IP}”,
“kubernetes”,
“kubernetes.default”,
“kubernetes.default.svc”,
“kubernetes.default.svc.cluster”,
“kubernetes.default.svc.cluster.local”
],
“key”: {
“algo”: “rsa”,
“size”: 2048
},
“names”: [
{
“C”: “CN”,
“ST”: “BeiJing”,
“L”: “BeiJing”,
“O”: “k8s”,
“OU”: “System”
}
]
}
EOF
-
如果 hosts 字段不为空则需要指定授权使用该证书的 IP 或域名列表，所以上面分别指定了当前部署的 master 节点主机 IP；
-
还需要添加 kube-apiserver 注册的名为
kubernetes
的服务 IP (Service Cluster IP)，一般是 kube-apiserver
–service-cluster-ip-range
选项值指定的网段的第一个IP，如 “10.254.0.1”；
$ kubectl get svc kubernetes
NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes 10.254.0.1
<
none
>
443/TCP 1d
生成 kubernetes 证书和私钥
$ cfssl gencert-ca=/etc/kubernetes/ssl/ca.pem \
-ca-key=/etc/kubernetes/ssl/ca-key.pem\
-config=/etc/kubernetes/ssl/ca-config.json \
-profile=kubernetes kubernetes-csr.json
|
cfssljson -bare kubernetes
$ ls kubernetes
*
kubernetes.csr kubernetes-csr.json kubernetes-key.pem kubernetes.pem
$ sudo mkdir -p /etc/kubernetes/ssl/
$ sudo mv kubernetes
*
.pem /etc/kubernetes/ssl/
$ rm kubernetes.csr kubernetes-csr.json
配置和启动 kube-apiserver
创建 kube-apiserver 使用的客户端 token 文件
kubelet 首次启动时向 kube-apiserver发送 TLS Bootstrapping 请求，kube-apiserver 验证 kubelet 请求中的 token 是否与它配置的 token.csv一致，如果一致则自动为 kubelet生成证书和秘钥。
（这个
token
只要
master
做一次）
$
# 导入的 environment.sh 文件定义了 BOOTSTRAP_TOKEN 变量
$ cat
>
token.csv
<<EOF
${BOOTSTRAP_TOKEN},kubelet-bootstrap,10001,”system:kubelet-bootstrap”
EOF
$ mv token.csv /etc/kubernetes/
$
创建 kube-apiserver 的 systemd unit 文件
$ cat
>
kube-apiserver.service
<<EOF
[Unit]
Description=KubernetesAPI Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target
[Service]
ExecStart=/root/local/bin/kube-apiserver\\
–admission-control=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,ResourceQuota\\
–advertise-address=${MASTER_IP} \\
–bind-address=${MASTER_IP} \\
–insecure-bind-address=${MASTER_IP} \\
–authorization-mode=RBAC \\
–runtime-config=rbac.authorization.k8s.io/v1alpha1 \\
–kubelet-https=true \\
–experimental-bootstrap-token-auth \\
–token-auth-file=/etc/kubernetes/token.csv\\
–service-cluster-ip-range=${SERVICE_CIDR} \\
–service-node-port-range=${NODE_PORT_RANGE}\\
–tls-cert-file=/etc/kubernetes/ssl/kubernetes.pem \\
–tls-private-key-file=/etc/kubernetes/ssl/kubernetes-key.pem \\
–client-ca-file=/etc/kubernetes/ssl/ca.pem\\
–service-account-key-file=/etc/kubernetes/ssl/ca-key.pem \\
–etcd-cafile=/etc/kubernetes/ssl/ca.pem \\
–etcd-certfile=/etc/kubernetes/ssl/kubernetes.pem \\
–etcd-keyfile=/etc/kubernetes/ssl/kubernetes-key.pem \\
–etcd-servers=${ETCD_ENDPOINTS} \\
–enable-swagger-ui=true \\
–allow-privileged=true \\
–apiserver-count=3 \\
–audit-log-maxage=30 \\
–audit-log-maxbackup=3 \\
–audit-log-maxsize=100 \\
–audit-log-path=/var/lib/audit.log \\
–event-ttl=1h \\
–v=2
Restart=on-failure
RestartSec=5
Type=notify
LimitNOFILE=65536
[Install]
WantedBy=multi-user.target
EOF
-
kube-apiserver 1.6 版本开始使用 etcd v3 API 和存储格式；
-
–authorization-mode=RBAC
指定在安全端口使用 RBAC 授权模式，拒绝未通过授权的请求；
-
kube-scheduler、kube-controller-manager 一般和 kube-apiserver 部署在同一台机器上，它们使用非安全端口和 kube-apiserver通信;
-
kubelet、kube-proxy、kubectl 部署在其它 Node 节点上，如果通过安全端口访问 kube-apiserver，则必须先通过 TLS 证书认证，再通过 RBAC 授权；
-
kube-proxy、kubectl 通过在使用的证书里指定相关的 User、Group 来达到通过 RBAC 授权的目的；
-
如果使用了 kubelet TLS Boostrap 机制，则不能再指定
–kubelet-certificate-authority
、
–kubelet-client-certificate
和
–kubelet-client-key
选项，否则后续 kube-apiserver 校验 kubelet 证书时出现 ”x509: certificate signed by unknown authority“ 错误；
-
–admission-control
值必须包含
ServiceAccount
，否则部署集群插件时会失败；
-
–bind-address
不能为
127.0.0.1
；
-
–service-cluster-ip-range
指定 Service Cluster IP 地址段，该地址段不能路由可达；
-
–service-node-port-range=${NODE_PORT_RANGE}
指定 NodePort 的端口范围；
-
缺省情况下 kubernetes 对象保存在 etcd
/registry
路径下，可以通过
–etcd-prefix
参数进行调整；
完整 unit 见
kube-apiserver.service
启动 kube-apiserver
$ sudo cp kube-apiserver.service/etc/systemd/system/
$ sudo systemctl daemon-reload
$ sudo systemctl
enable
kube-apiserver
$ sudo systemctl start kube-apiserver
$ sudo systemctl status kube-apiserver
$
配置和启动 kube-controller-manager
创建 kube-controller-manager 的 systemd unit 文件
$ cat
>
kube-controller-manager.service
<<EOF
[Unit]
Description=KubernetesController Manager
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
[Service]
ExecStart=/root/local/bin/kube-controller-manager\\
–address=127.0.0.1 \\
–master=http://${MASTER_IP}:8080 \\
–allocate-node-cidrs=true \\
–service-cluster-ip-range=${SERVICE_CIDR} \\
–cluster-cidr=${CLUSTER_CIDR} \\
–cluster-name=kubernetes \\
–cluster-signing-cert-file=/etc/kubernetes/ssl/ca.pem \\
–cluster-signing-key-file=/etc/kubernetes/ssl/ca-key.pem \\
–service-account-private-key-file=/etc/kubernetes/ssl/ca-key.pem \\
–root-ca-file=/etc/kubernetes/ssl/ca.pem \\
–leader-elect=true \\
–v=2
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
EOF
-
–address
值必须为
127.0.0.1
，因为当前 kube-apiserver 期望 scheduler 和 controller-manager 在同一台机器，否则：
$ kubectl get componentstatuses
NAME STATUS MESSAGE ERROR
controller-manager Unhealthy Get
http://127.0.0.1:10252/healthz
: dial tcp 127.0.0.1:10252: getsockopt: connection refused
scheduler Unhealthy Get
http://127.0.0.1:10251/healthz
: dial tcp 127.0.0.1:10251: getsockopt: connection refused
参考：
https://github.com/kubernetes-incubator/bootkube/issues/64
-
–master=http://{MASTER_IP}:8080
：使用非安全 8080 端口与 kube-apiserver 通信；
-
–cluster-cidr
指定 Cluster 中 Pod 的 CIDR 范围，该网段在各 Node 间必须路由可达(flanneld保证)；
-
–service-cluster-ip-range
参数指定 Cluster 中 Service 的CIDR范围，该网络在各 Node 间必须路由不可达，必须和 kube-apiserver 中的参数一致；
-
–cluster-signing-*
指定的证书和私钥文件用来签名为 TLS BootStrap 创建的证书和私钥；
-
–root-ca-file
用来对 kube-apiserver 证书进行校验，指定该参数后，才会在Pod 容器的 ServiceAccount 中放置该 CA 证书文件；
-
–leader-elect=true
部署多台机器组成的 master 集群时选举产生一处于工作状态的
kube-controller-manager
进程；
完整 unit 见
kube-controller-manager.service
启动 kube-controller-manager
$ sudo cp kube-controller-manager.service /etc/systemd/system/
$ sudo systemctl daemon-reload
$ sudo systemctl
enable
kube-controller-manager
$ sudo systemctl start kube-controller-manager
$
配置和启动 kube-scheduler
创建 kube-scheduler 的 systemd unit 文件
$ cat
>
kube-scheduler.service
<<EOF
[Unit]
Description=KubernetesScheduler
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
[Service]
ExecStart=/root/local/bin/kube-scheduler\\
–address=127.0.0.1 \\
–master=http://${MASTER_IP}:8080 \\
–leader-elect=true \\
–v=2
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
EOF
-
–address
值必须为
127.0.0.1
，因为当前 kube-apiserver 期望 scheduler 和 controller-manager 在同一台机器；
-
–master=http://{MASTER_IP}:8080
：使用非安全 8080 端口与 kube-apiserver 通信；
-
–leader-elect=true
部署多台机器组成的 master 集群时选举产生一处于工作状态的
kube-controller-manager
进程；
完整 unit 见
kube-scheduler.service
。
启动 kube-scheduler
$ sudo cp kube-scheduler.service/etc/systemd/system/
$ sudo systemctl daemon-reload
$ sudo systemctl
enable
kube-scheduler
$ sudo systemctl start kube-scheduler
$
验证 master 节点功能
$ kubectl getcomponentstatuses
NAME STATUS MESSAGE ERROR
controller-manager Healthy ok
scheduler Healthy ok
etcd-0 Healthy {
“health”
:
“true”
}
etcd-1 Healthy {
“health”
:
“true”
}
etcd-2 Healthy {
“health”
:
“true”
}
07-部署Node节点
部署 Node 节点
kubernetes Node 节点包含如下组件：
- flanneld
- docker
- kubelet
- kube-proxy
使用的变量
本文档用到的变量定义如下：
$
# 替换为 kubernetesmaster 集群任一机器 IP
$
export
MASTER_IP=1
92.168.1.206
$
export
KUBE_APISERVER=
“https://
${MASTER_IP}
:6443″
$
# 当前部署的节点 IP
$
export
NODE_IP=1
92.168.1.206
$
#导入用到的其它全局变量：ETCD_ENDPOINTS、FLANNEL_ETCD_PREFIX、CLUSTER_CIDR、CLUSTER_DNS_SVC_IP、CLUSTER_DNS_DOMAIN、SERVICE_CIDR
$
source
/root/local/bin/environment.sh
$
安装和配置 flanneld
安装和配置 docker
下载最新的 docker 二进制文件
$ wget
https://get.docker.com/builds/Linux/x86_64/docker-17.04.0-ce.tgz
$ tar -xvf docker-17.04.0-ce.tgz
$ cp docker/docker
*
/root/local/bin
$ cp docker/completion/bash/docker /etc/bash_completion.d/
$
创建 docker 的 systemd unit 文件
$ catdocker.service
[Unit]
Description=Docker Application ContainerEngine
Documentation=http://docs.docker.io
[Service]
Environment=
“PATH=/root/local/bin:/bin:/sbin:/usr/bin:/usr/sbin”
EnvironmentFile=-/run/flannel/docker
ExecStart=/root/local/bin/dockerd –log-level=error$DOCKER_NETWORK_OPTIONS
ExecReload=/bin/kill -s HUP$MAINPID
Restart=on-failure
RestartSec=5
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
Delegate=yes
KillMode=process
[Install]
WantedBy=multi-user.target
- dockerd 运行时会调用其它 docker 命令，如 docker-proxy，所以需要将 docker 命令所在的目录加到 PATH 环境变量中；
- flanneld 启动时将网络配置写入到 /run/flannel/docker 文件中的变量 DOCKER_NETWORK_OPTIONS，dockerd 命令行上指定该变量值来设置 docker0 网桥参数；
- 如果指定了多个 EnvironmentFile 选项，则必须将 /run/flannel/docker 放在最后(确保 docker0 使用 flanneld 生成的 bip 参数)；
- 不能关闭默认开启的 –iptables 和 –ip-masq 选项；
- 如果内核版本比较新，建议使用 overlay 存储驱动；
-
docker 从 1.13 版本开始，可能将 iptables FORWARD chain的默认策略设置为DROP，从而导致 ping 其它 Node 上的 Pod IP 失败，遇到这种情况时，需要手动设置策略为 ACCEPT：
$ sudo iptables -P FORWARD ACCEPT
$
-
为了加快 pull image 的速度，可以使用国内的仓库镜像服务器，同时增加下载的并发数。(如果 dockerd 已经运行，则需要重启 dockerd 生效。)
$ cat /etc/docker/daemon.json
{
“registry-mirrors”
: [
”
https://docker.mirrors.ustc.edu.cn
”
,
“hub-mirror.c.163.com”
],
“max-concurrent-downloads”
: 10
}
完整 unit 见
docker.service
启动 dockerd
$ sudo cp docker.service/etc/systemd/system/docker.service
$ sudo systemctl daemon-reload
$ sudo systemctl stop firewalld
$ sudo systemctl disable firewalld
$ sudo iptables -F
&&
sudo iptables -X
&&
sudo iptables -F -t nat
&&
sudo iptables -X -t nat
$ sudo systemctl
enable
docker
$ sudo systemctl start docker
$
- 需要关闭 firewalld，否则可能会重复创建的 iptables 规则；
- 最好清理旧的 iptables rules 和 chains 规则；
检查 docker 服务
$ docker version
$
安装和配置 kubelet
kubelet 启动时向 kube-apiserver 发送 TLSbootstrapping 请求，需要先将 bootstrap token 文件中的 kubelet-bootstrap 用户赋予system:node-bootstrapper 角色，然后 kubelet 才有权限创建认证请求(certificatesigningrequests)：
（这个只要在第一个
node
节点上执行一次）
$ kubectl create clusterrolebindingkubelet-bootstrap –clusterrole=system:node-bootstrapper–user=kubelet-bootstrap
$
- –user=kubelet-bootstrap 是文件 /etc/kubernetes/token.csv 中指定的用户名，同时也写入了文件 /etc/kubernetes/bootstrap.kubeconfig；
下载最新的 kubelet 和 kube-proxy 二进制文件
$ wget
https://dl.k8s.io/v1.6.2/kubernetes-server-linux-amd64.tar.gz
$ tar -xzvf kubernetes-server-linux-amd64.tar.gz
$
cd
kubernetes
$ tar -xzvf kubernetes-src.tar.gz
$ sudo cp -r ./server/bin/{kube-proxy,kubelet} /root/local/bin/
$
创建 kubelet bootstrapping kubeconfig 文件
$
# 设置集群参数
$ kubectl config set-cluster kubernetes \
–certificate-authority=/etc/kubernetes/ssl/ca.pem \
–embed-certs=true \
–server=${KUBE_APISERVER} \
–kubeconfig=bootstrap.kubeconfig
$
# 设置客户端认证参数
$ kubectl config set-credentials kubelet-bootstrap \
–token=${BOOTSTRAP_TOKEN} \
–kubeconfig=bootstrap.kubeconfig
$
# 设置上下文参数
$ kubectl config set-context default \
–cluster=kubernetes \
–user=kubelet-bootstrap \
–kubeconfig=bootstrap.kubeconfig
$
# 设置默认上下文
$ kubectl config use-context default –kubeconfig=bootstrap.kubeconfig
$ mv bootstrap.kubeconfig /etc/kubernetes/
- –embed-certs 为 true 时表示将 certificate-authority 证书写入到生成的 bootstrap.kubeconfig 文件中；
- 设置 kubelet 客户端认证参数时没有指定秘钥和证书，后续由 kube-apiserver 自动生成；
创建 kubelet 的 systemd unit 文件
$ sudo mkdir /var/lib/kubelet
# 必须先创建工作目录
$ cat
>
kubelet.service
<<EOF
[Unit]
Description=KubernetesKubelet
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=docker.service
Requires=docker.service
[Service]
WorkingDirectory=/var/lib/kubelet
ExecStart=/root/local/bin/kubelet\\
–address=${NODE_IP} \\
–hostname-override=${NODE_IP} \\
–pod-infra-container-image=registry.access.redhat.com/rhel7/pod-infrastructure:latest\\
–experimental-bootstrap-kubeconfig=/etc/kubernetes/bootstrap.kubeconfig\\
–kubeconfig=/etc/kubernetes/kubelet.kubeconfig \\
–require-kubeconfig \\
–cert-dir=/etc/kubernetes/ssl \\
–cluster-dns=${CLUSTER_DNS_SVC_IP} \\
–cluster-domain=${CLUSTER_DNS_DOMAIN} \\
–hairpin-mode promiscuous-bridge \\
–allow-privileged=true \\
–serialize-image-pulls=false \\
–logtostderr=true \\
–v=2
ExecStopPost=/sbin/iptables-A INPUT -s 10.0.0.0/8 -p tcp –dport 4194 -j ACCEPT
ExecStopPost=/sbin/iptables-A INPUT -s 172.16.0.0/12 -p tcp –dport 4194 -j ACCEPT
ExecStopPost=/sbin/iptables-A INPUT -s 192.168.0.0/16 -p tcp –dport 4194 -j ACCEPT
ExecStopPost=/sbin/iptables-A INPUT -p tcp –dport 4194 -j DROP
Restart=on-failure
RestartSec=5
[Install]
WantedBy=multi-user.target
EOF
- –address 不能设置为 127.0.0.1，否则后续 Pods 访问 kubelet 的 API 接口时会失败，因为 Pods 访问的 127.0.0.1 指向自己而不是 kubelet；
- 如果设置了 –hostname-override 选项，则 kube-proxy 也需要设置该选项，否则会出现找不到 Node 的情况；
- –experimental-bootstrap-kubeconfig 指向 bootstrap kubeconfig 文件，kubelet 使用该文件中的用户名和 token 向 kube-apiserver 发送 TLS Bootstrapping 请求；
- 管理员通过了 CSR 请求后，kubelet 自动在 –cert-dir 目录创建证书和私钥文件(kubelet-client.crt 和 kubelet-client.key)，然后写入 –kubeconfig 文件(自动创建 –kubeconfig 指定的文件)；
- 建议在 –kubeconfig 配置文件中指定 kube-apiserver 地址，如果未指定 –api-servers 选项，则必须指定 –require-kubeconfig 选项后才从配置文件中读取 kue-apiserver 的地址，否则 kubelet 启动后将找不到 kube-apiserver (日志中提示未找到 API Server），kubectl get nodes 不会返回对应的 Node 信息;
- –cluster-dns 指定 kubedns 的 Service IP(可以先分配，后续创建 kubedns 服务时指定该 IP)，–cluster-domain 指定域名后缀，这两个参数同时指定后才会生效；
- kubelet cAdvisor 默认在所有接口监听 4194 端口的请求，对于有外网的机器来说不安全，ExecStopPost 选项指定的 iptables 规则只允许内网机器访问 4194 端口；
完整 unit 见
kubelet.service
启动 kubelet
$ sudo cp kubelet.service/etc/systemd/system/kubelet.service
$ sudo systemctl daemon-reload
$ sudo systemctl
enable
kubelet
$ sudo systemctl start kubelet
$ systemctl status kubelet
$
通过 kubelet 的 TLS 证书请求
kubelet 首次启动时向 kube-apiserver 发送证书签名请求，必须通过后kubernetes 系统才会将该 Node 加入到集群。
查看未授权的 CSR 请求：
$ kubectl get csr
NAME AGE REQUESTOR CONDITION
csr-2b308 4m kubelet-bootstrap Pending
$ kubectl get nodes
No resources found.
通过 CSR 请求：
$ kubectl certificate approvecsr-2b308
certificatesigningrequest
“csr-2b308”
approved
$ kubectl get nodes
NAME STATUS AGE VERSION
10.64.3.7 Ready 49m v1.6.2
自动生成了 kubelet kubeconfig 文件和公私钥：
$ ls -l/etc/kubernetes/kubelet.kubeconfig
-rw——- 1 root root 2284 Apr 7 02:07/etc/kubernetes/kubelet.kubeconfig
$ ls -l /etc/kubernetes/ssl/kubelet
*
-rw-r–r– 1 root root 1046 Apr 7 02:07/etc/kubernetes/ssl/kubelet-client.crt
-rw——- 1 root root 227 Apr 7 02:04 /etc/kubernetes/ssl/kubelet-client.key
-rw-r–r– 1 root root 1103 Apr 7 02:07/etc/kubernetes/ssl/kubelet.crt
-rw——- 1 root root 1675 Apr 7 02:07/etc/kubernetes/ssl/kubelet.key
配置 kube-proxy
创建 kube-proxy 证书
创建 kube-proxy 证书签名请求：
$ catkube-proxy-csr.json
{
“CN”
:
“system:kube-proxy”
,
“hosts”
: [],
“key”
: {
“algo”
:
“rsa”
,
“size”
: 2048
},
“names”
: [
{
“C”
:
“CN”
,
“ST”
:
“BeiJing”
,
“L”
:
“BeiJing”
,
“O”
:
“k8s”
,
“OU”
:
“System”
}
]
}
- CN 指定该证书的 User 为 system:kube-proxy；
- kube-apiserver 预定义的 RoleBinding system:node-proxier 将User system:kube-proxy 与 Role system:node-proxier 绑定，该 Role 授予了调用 kube-apiserver Proxy 相关 API 的权限；
- hosts 属性值为空列表；
生成 kube-proxy 客户端证书和私钥：
$ cfssl gencert-ca=/etc/kubernetes/ssl/ca.pem \
-ca-key=/etc/kubernetes/ssl/ca-key.pem\
-config=/etc/kubernetes/ssl/ca-config.json \
-profile=kubernetes kube-proxy-csr.json
|
cfssljson -bare kube-proxy
$ ls kube-proxy
*
kube-proxy.csr kube-proxy-csr.json kube-proxy-key.pem kube-proxy.pem
$ sudo mv kube-proxy
*
.pem /etc/kubernetes/ssl/
$ rm kube-proxy.csr kube-proxy-csr.json
$
创建 kube-proxy kubeconfig 文件
$
# 设置集群参数
$ kubectl config set-cluster kubernetes \
–certificate-authority=/etc/kubernetes/ssl/ca.pem \
–embed-certs=true \
–server=${KUBE_APISERVER} \
–kubeconfig=kube-proxy.kubeconfig
$
# 设置客户端认证参数
$ kubectl config set-credentials kube-proxy \
–client-certificate=/etc/kubernetes/ssl/kube-proxy.pem \
–client-key=/etc/kubernetes/ssl/kube-proxy-key.pem \
–embed-certs=true \
–kubeconfig=kube-proxy.kubeconfig
$
# 设置上下文参数
$ kubectl config set-context default \
–cluster=kubernetes \
–user=kube-proxy \
–kubeconfig=kube-proxy.kubeconfig
$
# 设置默认上下文
$ kubectl config use-context default –kubeconfig=kube-proxy.kubeconfig
$ mv kube-proxy.kubeconfig /etc/kubernetes/
- 设置集群参数和客户端认证参数时 –embed-certs 都为 true，这会将 certificate-authority、client-certificate 和 client-key 指向的证书文件内容写入到生成的 kube-proxy.kubeconfig 文件中；
- kube-proxy.pem 证书中 CN 为 system:kube-proxy，kube-apiserver 预定义的 RoleBinding cluster-admin 将User system:kube-proxy 与 Role system:node-proxier 绑定，该 Role 授予了调用 kube-apiserver Proxy 相关 API 的权限；
创建 kube-proxy 的 systemd unit 文件
$ sudo mkdir -p /var/lib/kube-proxy
# 必须先创建工作目录
$ cat
>
kube-proxy.service
<<EOF
[Unit]
Description=KubernetesKube-Proxy Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target
[Service]
WorkingDirectory=/var/lib/kube-proxy
ExecStart=/root/local/bin/kube-proxy\\
–bind-address=${NODE_IP} \\
–hostname-override=${NODE_IP} \\
–cluster-cidr=${SERVICE_CIDR} \\
–kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig \\
–logtostderr=true \\
–v=2
Restart=on-failure
RestartSec=5
LimitNOFILE=65536
[Install]
WantedBy=multi-user.target
EOF
- –hostname-override 参数值必须与 kubelet 的值一致，否则 kube-proxy 启动后会找不到该 Node，从而不会创建任何 iptables 规则；
- –cluster-cidr 必须与 kube-apiserver 的 –service-cluster-ip-range 选项值一致；
- kube-proxy 根据 –cluster-cidr 判断集群内部和外部流量，指定 –cluster-cidr 或 –masquerade-all 选项后 kube-proxy 才会对访问 Service IP 的请求做 SNAT；
- –kubeconfig 指定的配置文件嵌入了 kube-apiserver 的地址、用户名、证书、秘钥等请求和认证信息；
- 预定义的 RoleBinding cluster-admin 将User system:kube-proxy 与 Role system:node-proxier 绑定，该 Role 授予了调用 kube-apiserver Proxy 相关 API 的权限；
完整 unit 见
kube-proxy.service
启动 kube-proxy
$ sudo cp kube-proxy.service/etc/systemd/system/
$ sudo systemctl daemon-reload
$ sudo systemctl
enable
kube-proxy
$ sudo systemctl start kube-proxy
$ systemctl status kube-proxy
$
验证集群功能
定义文件：
$ cat nginx-ds.yml
apiVersion: v1
kind: Service
metadata:
name: nginx-ds
labels:
app: nginx-ds
spec:
type: NodePort
selector:
app: nginx-ds
ports:
– name: http
port: 80
targetPort: 80
—
apiVersion: extensions/v1beta1
kind: DaemonSet
metadata:
name: nginx-ds
labels:
addonmanager.kubernetes.io/mode:Reconcile
spec:
template:
metadata:
labels:
app: nginx-ds
spec:
containers:
– name: my-nginx
image: nginx:1.7.9
ports:
– containerPort: 80
创建 Pod 和服务：
$ kubectl create -fnginx-ds.yml
service
“nginx-ds”
created
daemonset
“nginx-ds”
created
检查节点状态
$ kubectl get nodes
NAME STATUS AGE VERSION
192.168.1.206 Ready 1d v1.6.2
192.168.1.207 Ready 1d v1.6.2
192.168.1.208 Ready 1d v1.6.2
都为Ready 时正常。
检查各 Node 上的 Pod IP 连通性
$ kubectl get pods -o wide
|
grepnginx-ds
nginx-ds-6ktz8 1/1 Running 0 5m 172.30.
43
.19 1
92.168.1.206
nginx-ds-6ktz9 1/1 Running 0 5m 172.30.
44
.20 1
92.168.1.207
可见，nginx-ds 的 PodIP 分别是 172.30.43.19、172.30.44.20，在所有 Node 上分别 ping 这两个 IP，看是否连通。
检查服务 IP 和端口可达性
$ kubectl get svc
|
grep nginx-ds
nginx-ds 10.254.136.178
<
nodes
>
80:8744/TCP 11m
可见：
- 服务IP：10.254.136.178
- 服务端口：80
- NodePort端口：8744
在所有 Node 上执行：
$ curl 10.254.136.178
# `kubectl get svc |grep nginx-ds`输出中的服务 IP
$
预期输出 nginx 欢迎页面内容。
检查服务的 NodePort 可达性
在所有 Node 上执行：
$
export
NODE_IP=1
92.168.1.207
# 当前 Node 的 IP
$
export
NODE_PORT=8744
# `kubectl get svc|grep nginx-ds` 输出中 80 端口映射的 NodePort
$ curl ${NODE_IP}:${NODE_PORT}
$
预期输出 nginx 欢迎页面内容。
08-部署DNS插件
部署 kubedns 插件
官方文件目录：
kubernetes/cluster/addons/dns
使用的文件：
$ ls
*
.yaml
*
.base
kubedns-cm.yaml kubedns-sa.yaml kubedns-controller.yaml.base kubedns-svc.yaml.base
已经修改好的 yaml 文件见：
dns
。
系统预定义的 RoleBinding
预定义的 RoleBinding
system:kube-dns
将 kube-system命名空间的
kube-dns
ServiceAccount 与
system:kube-dns
Role 绑定， 该 Role 具有访问kube-apiserver DNS 相关 API 的权限；
$ kubectl get clusterrolebindingssystem:kube-dns -o yaml
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
annotations:
rbac.authorization.kubernetes.io/autoupdate:
“true”
creationTimestamp:2017-04-06T17:40:47Z
labels:
kubernetes.io/bootstrapping:rbac-defaults
name: system:kube-dns
resourceVersion:
“56”
selfLink:/apis/rbac.authorization.k8s.io/v1beta1/clusterrolebindingssystem%3Akube-dns
uid:2b55cdbe-1af0-11e7-af35-8cdcd4b3be48
roleRef:
apiGroup:rbac.authorization.k8s.io
kind: ClusterRole
name:system:kube-dns
subjects:
– kind: ServiceAccount
name: kube-dns
namespace: kube-system
kubedns-controller.yaml
中定义的 Pods 时使用了
kubedns-sa.yaml
文件定义的
kube-dns
ServiceAccount，所以具有访问kube-apiserver DNS 相关 API 的权限；
配置 kube-dns ServiceAccount
无需修改；
配置
kube-dns
服务
$ diff kubedns-svc.yaml.basekubedns-svc.yaml
30c30
<
clusterIP: __PILLAR__DNS__SERVER__
—
>
clusterIP: 10.254.0.2
-
需要将 spec.clusterIP 设置为
集群环境变量
中变量
CLUSTER_DNS_SVC_IP
值，这个 IP 需要和 kubelet 的
—cluster-dns
参数值一致；
配置
kube-dns
Deployment
$ diff kubedns-controller.yaml.basekubedns-controller.yaml
58c58
<
image:gcr.io/google_containers/k8s-dns-kube-dns-amd64:1.14.1
—
>
image:xuejipeng/k8s-dns-kube-dns-amd64:v1.14.1
88c88
<
—domain=__PILLAR__DNS__DOMAIN__.
—
>
—domain=cluster.local.
92c92
<
__PILLAR__FEDERATIONS__DOMAIN__MAP__
—
>
#__PILLAR__FEDERATIONS__DOMAIN__MAP__
110c110
<
image:gcr.io/google_containers/k8s-dns-dnsmasq-nanny-amd64:1.14.1
—
>
image:xuejipeng/k8s-dns-dnsmasq-nanny-amd64:v1.14.1
129c129
<
—server=/__PILLAR__DNS__DOMAIN__/127.0.0.1#10053
—
>
—server=/cluster.local./127.0.0.1#10053
148c148
<
image:gcr.io/google_containers/k8s-dns-sidecar-amd64:1.14.1
—
>
image:xuejipeng/k8s-dns-sidecar-amd64:v1.14.1
161,162c161,162
<
—probe=kubedns,127.0.0.1:10053,kubernetes.default.svc.__PILLAR__DNS__DOMAIN__,5,A
<
—probe=dnsmasq,127.0.0.1:53,kubernetes.default.svc.__PILLAR__DNS__DOMAIN__,5,A
—
>
—probe=kubedns,127.0.0.1:10053,kubernetes.default.svc.cluster.local.,5,A
>
—probe=dnsmasq,127.0.0.1:53,kubernetes.default.svc.cluster.local.,5,A
-
–domain
为
集群环境文档
变量
CLUSTER_DNS_DOMAIN
的值；
-
使用系统已经做了 RoleBinding 的
kube-dns
ServiceAccount，该账户具有访问 kube-apiserver DNS 相关 API 的权限；
执行所有定义文件
$
pwd
/root/kubernetes-git/cluster/addons/dns
$ ls
*
.yaml
kubedns-cm.yaml kubedns-controller.yaml kubedns-sa.yaml kubedns-svc.yaml
$ kubectl create -f
.
$
检查 kubedns 功能
新建一个 Deployment
$ cat my-nginx.yaml
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
name: my-nginx
spec:
replicas: 2
template:
metadata:
labels:
run: my-nginx
spec:
containers:
– name: my-nginx
image: nginx:1.7.9
ports:
– containerPort: 80
$ kubectl create -f my-nginx.yaml
$
Export 该 Deployment,生成
my-nginx
服务
$ kubectl expose deploymy-nginx
$ kubectl get services –all-namespaces
|
grepmy-nginx
default my-nginx 10.254.86.48
<
none
>
80/TCP 1d
创建另一个 Pod，查看
/etc/resolv.conf
是否包含
kubelet
配置的
–cluster-dns
和
–cluster-domain
，是否能够将服务
my-nginx
解析到上面显示的 ClusterIP
10.254.86.48
$ cat pod-nginx.yaml
apiVersion: v1
kind: Pod
metadata:
name: nginx
spec:
containers:
– name: nginx
image: nginx:1.7.9
ports:
– containerPort: 80
$ kubectl create -f pod-nginx.yaml
$ kubectl
exec
nginx -i -t — /bin/bash
root@nginx:/
# cat/etc/resolv.conf
nameserver 10.254.0.2
search default.svc.cluster.local svc.cluster.local cluster.localtjwq01.ksyun.com
options ndots:5
root@nginx:/
# ping my-nginx
PING my-nginx.default.svc.cluster.local (10.254.86.48): 48 databytes
^C— my-nginx.default.svc.cluster.local ping statistics —
2 packets transmitted, 0 packets received, 100% packet loss
root@nginx:/
# ping kubernetes
PING kubernetes.default.svc.cluster.local (10.254.0.1): 48 databytes
^C— kubernetes.default.svc.cluster.local ping statistics —
1 packets transmitted, 0 packets received, 100% packet loss
root@nginx:/
# pingkube-dns.kube-system.svc.cluster.local
PING kube-dns.kube-system.svc.cluster.local (10.254.0.2): 48 databytes
^C— kube-dns.kube-system.svc.cluster.local ping statistics —
1 packets transmitted, 0 packets received, 100% packet loss
附件：
kubedns-cm.yaml
|
apiVersion: v1 kind: ConfigMap metadata: name: kube-dns namespace: kube-system labels: addonmanager.kubernetes.io/mode: EnsureExists |
kubedns-controller.yaml
|
apiVersion: extensions/v1beta1 kind: Deployment metadata: name: kube-dns namespace: kube-system labels: k8s-app: kube-dns kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile spec: # replicas: not specified here: # 1. In order to make Addon Manager do not reconcile this replicas parameter. # 2. Default is 1. # 3. Will be tuned in real time if DNS horizontal auto-scaling is turned on. strategy: rollingUpdate: maxSurge: 10% maxUnavailable: 0 selector: matchLabels: k8s-app: kube-dns template: metadata: labels: k8s-app: kube-dns annotations: scheduler.alpha.kubernetes.io/critical-pod: ” spec: tolerations: – key: “CriticalAddonsOnly” operator: “Exists” volumes: – name: kube-dns-config configMap: name: kube-dns optional: true containers: – name: kubedns image: xuejipeng/k8s-dns-kube-dns-amd64:v1.14.1 resources: # TODO: Set memory limits when we’ve profiled the container for large # clusters, then set request = limit to keep this container in # guaranteed class. Currently, this container falls into the # “burstable” category so the kubelet doesn’t backoff from restarting it. limits: memory: 170Mi requests: cpu: 100m memory: 70Mi livenessProbe: httpGet: path: /healthcheck/kubedns port: 10054 scheme: HTTP initialDelaySeconds: 60 timeoutSeconds: 5 successThreshold: 1 failureThreshold: 5 readinessProbe: httpGet: path: /readiness port: 8081 scheme: HTTP # we poll on pod startup for the Kubernetes master service and # only setup the /readiness HTTP server once that’s available. initialDelaySeconds: 3 timeoutSeconds: 5 args: – –domain=cluster.local. – –dns-port=10053 – –config-dir=/kube-dns-config – –v=2 #__PILLAR__FEDERATIONS__DOMAIN__MAP__ env: – name: PROMETHEUS_PORT value: “10055” ports: – containerPort: 10053 name: dns-local protocol: UDP – containerPort: 10053 name: dns-tcp-local protocol: TCP – containerPort: 10055 name: metrics protocol: TCP volumeMounts: – name: kube-dns-config mountPath: /kube-dns-config – name: dnsmasq image: xuejipeng/k8s-dns-dnsmasq-nanny-amd64:v1.14.1 livenessProbe: httpGet: path: /healthcheck/dnsmasq port: 10054 scheme: HTTP initialDelaySeconds: 60 timeoutSeconds: 5 successThreshold: 1 failureThreshold: 5 args: – -v=2 – -logtostderr – -configDir=/etc/k8s/dns/dnsmasq-nanny – -restartDnsmasq=true – — – -k – –cache-size=1000 – –log-facility=- – –server=/cluster.local./127.0.0.1#10053 – –server=/in-addr.arpa/127.0.0.1#10053 – –server=/ip6.arpa/127.0.0.1#10053 ports: – containerPort: 53 name: dns protocol: UDP – containerPort: 53 name: dns-tcp protocol: TCP
# see: resources: requests: cpu: 150m memory: 20Mi volumeMounts: – name: kube-dns-config mountPath: /etc/k8s/dns/dnsmasq-nanny – name: sidecar image: xuejipeng/k8s-dns-sidecar-amd64:v1.14.1 livenessProbe: httpGet: path: /metrics port: 10054 scheme: HTTP initialDelaySeconds: 60 timeoutSeconds: 5 successThreshold: 1 failureThreshold: 5 args: – –v=2 – –logtostderr – –probe=kubedns,127.0.0.1:10053,kubernetes.default.svc.cluster.local.,5,A – –probe=dnsmasq,127.0.0.1:53,kubernetes.default.svc.cluster.local.,5,A ports: – containerPort: 10054 name: metrics protocol: TCP resources: requests: memory: 20Mi cpu: 10m dnsPolicy: Default # Don’t use cluster DNS. serviceAccountName: kube-dns |
kubedns-sa.yaml
|
apiVersion: v1 kind: ServiceAccount metadata: name: kube-dns namespace: kube-system labels: kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile |
kubedns-svc.yaml
|
apiVersion: v1 kind: Service metadata: name: kube-dns namespace: kube-system labels: k8s-app: kube-dns kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile kubernetes.io/name: “KubeDNS” spec: selector: k8s-app: kube-dns clusterIP: 10.254.0.2 ports: – name: dns port: 53 protocol: UDP – name: dns-tcp port: 53 protocol: TCP |
09-部署Dashboard插件
部署 dashboard 插件
官方文件目录：
kubernetes/cluster/addons/dashboard
使用的文件：
$ ls
*
.yaml
dashboard-controller.yaml dashboard-rbac.yaml dashboard-service.yaml
-
新加了
dashboard-rbac.yaml
文件，定义 dashboard 使用的 RoleBinding。
由于
kube-apiserver
启用了
RBAC
授权，而官方源码目录的
dashboard-controller.yaml
没有定义授权的ServiceAccount，所以后续访问
kube-apiserver
的 API 时会被拒绝，前端界面提示：
解决办法是：定义一个名为 dashboard 的ServiceAccount，然后将它和 Cluster Role view 绑定，具体参考
dashboard-rbac.yaml文件
。
已经修改好的 yaml 文件见：
dashboard
。
配置dashboard-service
$ diff dashboard-service.yaml.origdashboard-service.yaml
10a11
>
type: NodePort
-
指定端口类型为 NodePort，这样外界可以通过地址 nodeIP:nodePort 访问 dashboard；
配置dashboard-controller
20a21
>
serviceAccountName: dashboard
23c24
<
image:gcr.io/google_containers/kubernetes-dashboard-amd64:v1.6.0
—
>
image:cokabug/kubernetes-dashboard-amd64:v1.6.0
-
使用名为 dashboard 的自定义 ServiceAccount；
执行所有定义文件
$
pwd
/root/kubernetes/cluster/addons/dashboard
$ ls
*
.yaml
dashboard-controller.yaml dashboard-rbac.yaml dashboard-service.yaml
$ kubectl create -f
.
$
检查执行结果
查看分配的 NodePort
$ kubectl get serviceskubernetes-dashboard -n kube-system
NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes-dashboard 10.254.224.130
<
nodes
>
80:30312/TCP 25s
-
NodePort 30312映射到 dashboard pod 80端口；
检查 controller
$ kubectl get deploymentkubernetes-dashboard -nkube-system
NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE
kubernetes-dashboard 1 1 1 1 3m
$ kubectl get pods -n kube-system
|
grepdashboard
kubernetes-dashboard-1339745653-pmn6z 1/1 Running 0 4m

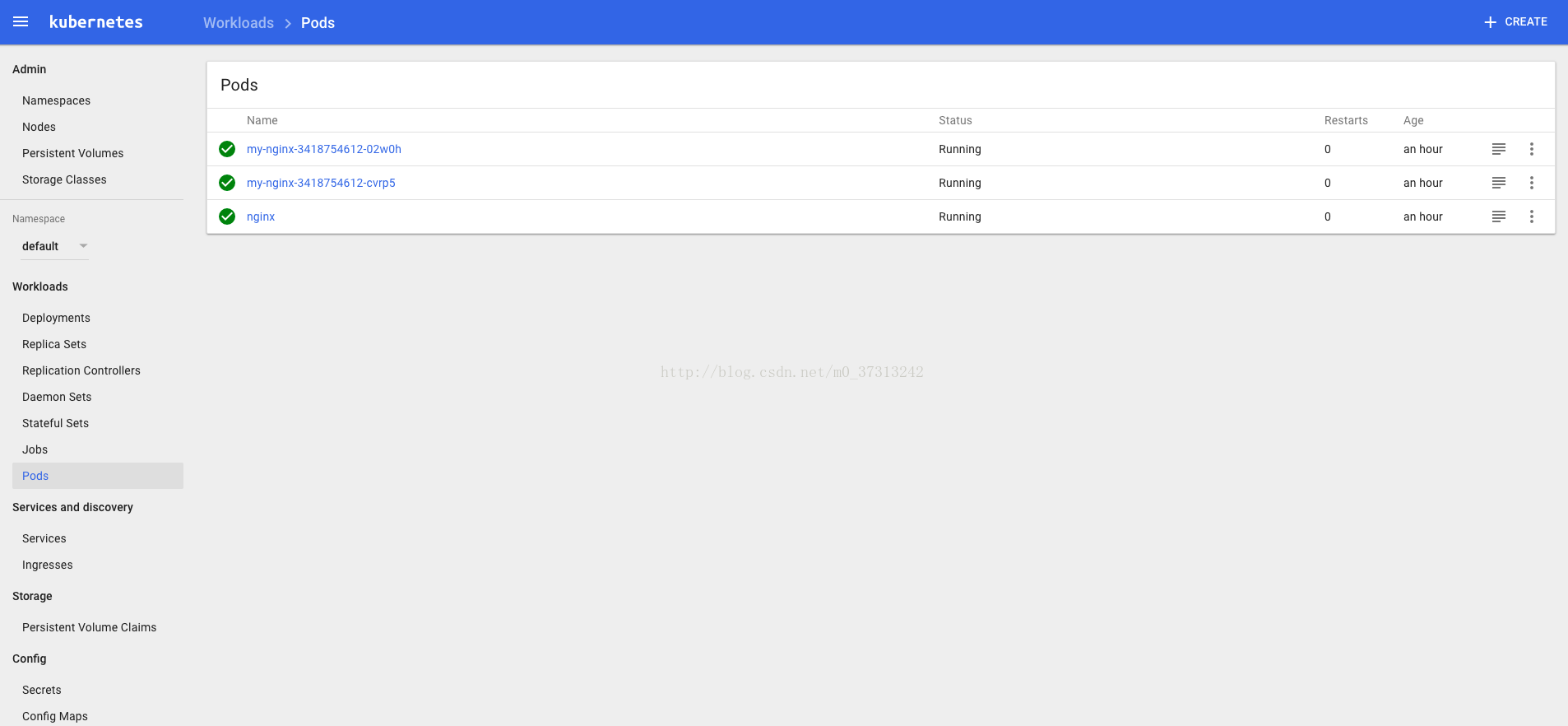

访问dashboard
-
kubernetes-dashboard 服务暴露了 NodePort，可以使用
http://NodeIP:nodePort
地址访问 dashboard；
-
通过 kube-apiserver 访问 dashboard；
-
通过 kubectl proxy 访问 dashboard：
通过 kubectl proxy 访问 dashboard
启动代理
$ kubectl proxy –address=
‘
192.168.1.206
‘
–port=8086 –accept-hosts=
‘^*$’
Starting to serve on
192.168.1.206
:8086
-
需要指定
–accept-hosts
选项，否则浏览器访问 dashboard 页面时提示 “Unauthorized”；
浏览器访问 URL：
http://
192.168.1.206
:8086/ui
自动跳转到：
http://
192.168.1.206
:8086/api/v1/proxy/namespaces/kube-system/services/kubernetes-dashboard/#/workload?namespace=default
通过 kube-apiserver 访问dashboard
获取集群服务地址列表
$ kubectlcluster-info
Kubernetes master is running at
https://1
92.168.1.206
:6443
KubeDNS is running at
https://
192.168.1.206
:6443/api/v1/proxy/namespaces/kube-system/services/kube-dns
kubernetes-dashboard is running at
https://1
92.168.1.206
:6443/api/v1/proxy/namespaces/kube-system/services/kubernetes-dashboard
由于 kube-apiserver 开启了 RBAC 授权，而浏览器访问kube-apiserver 的时候使用的是匿名证书，所以访问安全端口会导致授权失败。这里需要使用非安全端口访问 kube-apiserver：
浏览器访问 URL：
http://1
92.168.1.206
:8080/api/v1/proxy/namespaces/kube-system/services/kubernetes-dashboard
由于缺少 Heapster 插件，当前dashboard 不能展示 Pod、Nodes 的 CPU、内存等 metric 图形；
附件：
dashboard-controller.yaml
|
apiVersion: extensions/v1beta1 kind: Deployment metadata: name: kubernetes-dashboard namespace: kube-system labels: k8s-app: kubernetes-dashboard kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile spec: selector: matchLabels: k8s-app: kubernetes-dashboard template: metadata: labels: k8s-app: kubernetes-dashboard annotations: scheduler.alpha.kubernetes.io/critical-pod: ” spec: serviceAccountName: dashboard containers: – name: kubernetes-dashboard image: cokabug/kubernetes-dashboard-amd64:v1.6.0 resources: # keep request = limit to keep this container in guaranteed class limits: cpu: 100m memory: 50Mi requests: cpu: 100m memory: 50Mi ports: – containerPort: 9090 livenessProbe: httpGet: path: / port: 9090 initialDelaySeconds: 30 timeoutSeconds: 30 tolerations: – key: “CriticalAddonsOnly” operator: “Exists” |
dashboard-rbac.yaml
|
apiVersion: v1 kind: ServiceAccount metadata: name: dashboard namespace: kube-system
—
kind: ClusterRoleBinding apiVersion: rbac.authorization.k8s.io/v1alpha1 metadata: name: dashboard subjects: – kind: ServiceAccount name: dashboard namespace: kube-system roleRef: kind: ClusterRole name: cluster-admin apiGroup: rbac.authorization.k8s.io |
dashboard-service.yaml
|
apiVersion: v1 kind: Service metadata: name: kubernetes-dashboard namespace: kube-system labels: k8s-app: kubernetes-dashboard kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile spec: type: NodePort selector: k8s-app: kubernetes-dashboard ports: – port: 80 targetPort: 9090 |
10-部署Heapster插件
部署 heapster 插件
到
heapster release 页面
下载最新版本的 heapster
$ wget
https://github.com/kubernetes/heapster/archive/v1.3.0.zip
$ unzip v1.3.0.zip
$ mv v1.3.0.zip heapster-1.3.0
$
官方文件目录：
heapster-1.3.0/deploy/kube-config/influxdb
$
cd
heapster-1.3.0/deploy/kube-config/influxdb
$ ls
*
.yaml
grafana-deployment.yaml heapster-deployment.yaml heapster-service.yaml influxdb-deployment.yaml
grafana-service.yaml heapster-rbac.yaml influxdb-cm.yaml influxdb-service.yaml
-
新加了
heapster-rbac.yaml
和
influxdb-cm.yaml
文件，分别定义 RoleBinding 和 inflxudb 的配置；
已经修改好的 yaml 文件见：
heapster
。
配置 grafana-deployment
$ diff grafana-deployment.yaml.origgrafana-deployment.yaml
16c16
<
image:gcr.io/google_containers/heapster-grafana-amd64:v4.0.2
—
>
image:lvanneo/heapster-grafana-amd64:v4.0.2
40,41c40,41
<
# value:/api/v1/proxy/namespaces/kube-system/services/monitoring-grafana/
<
value: /
—
>
value:/api/v1/proxy/namespaces/kube-system/services/monitoring-grafana/
>
#value: /
-
如果后续使用 kube-apiserver 或者 kubectl proxy 访问 grafana dashboard，则必须将
GF_SERVER_ROOT_URL
设置为
/api/v1/proxy/namespaces/kube-system/services/monitoring-grafana/
，否则后续访问grafana时访问时提示找不到
http://10.64.3.7:8086/api/v1/proxy/namespaces/kube-system/services/monitoring-grafana/api/dashboards/home
页面；
配置 heapster-deployment
$ diff heapster-deployment.yaml.origheapster-deployment.yaml
13a14
>
serviceAccountName: heapster
16c17
<
image:gcr.io/google_containers/heapster-amd64:v1.3.0-beta.1
—
>
image:lvanneo/heapster-amd64:v1.3.0-beta.1
-
使用的是自定义的、名为 heapster 的 ServiceAccount；
配置 influxdb-deployment
influxdb 官方建议使用命令行或 HTTP API 接口来查询数据库，从 v1.1.0版本开始默认关闭 admin UI，将在后续版本中移除 admin UI 插件。
开启镜像中 admin UI的办法如下：先导出镜像中的 influxdb 配置文件，开启admin 插件后，再将配置文件内容写入 ConfigMap，最后挂载到镜像中，达到覆盖原始配置的目的。相关步骤如下：
注意：无需自己导出、修改和创建ConfigMap，可以直接使用放在 manifests 目录下的
ConfigMap文件
。
$
# 导出镜像中的 influxdb 配置文件
$ docker run –rm –entrypoint
‘cat’
-ti lvanneo/heapster-influxdb-amd64:v1.1.1/etc/config.toml
>
config.toml.orig
$ cp config.toml.orig config.toml
$
# 修改：启用 admin 接口
$ vim config.toml
$ diff config.toml.orig config.toml
35c35
<
enabled =
false
—
>
enabled =
true
$
# 将修改后的配置写入到 ConfigMap对象中
$ kubectl create configmap influxdb-config –from-file=config.toml -n kube-system
configmap
“influxdb-config”
created
$
# 将 ConfigMap 中的配置文件挂载到Pod 中，达到覆盖原始配置的目的
$ diff influxdb-deployment.yaml.orig influxdb-deployment.yaml
16c16
<
image:gcr.io/google_containers/heapster-influxdb-amd64:v1.1.1
—
>
image:lvanneo/heapster-influxdb-amd64:v1.1.1
19a20,21
>
– mountPath: /etc/
>
name:influxdb-config
22a25,27
>
– name: influxdb-config
>
configMap:
>
name: influxdb-config
配置 monitoring-influxdb Service
$ diff influxdb-service.yaml.originfluxdb-service.yaml
12a13
>
type: NodePort
15a17,20
>
name: http
>
– port: 8083
>
targetPort: 8083
>
name: admin
-
定义端口类型为 NodePort，额外增加了 admin 端口映射，用于后续浏览器访问 influxdb 的 admin UI 界面；
执行所有定义文件
$
pwd
/root/heapster-1.3.0/deploy/kube-config/influxdb
$ ls
*
.yaml
grafana-deployment.yaml heapster-deployment.yaml heapster-service.yaml influxdb-deployment.yaml
grafana-service.yaml heapster-rbac.yaml influxdb-cm.yaml influxdb-service.yaml
$ kubectl create -f
.
$
检查执行结果
检查 Deployment
$ kubectl get deployments -nkube-system
|
grep -E
‘heapster|monitoring’
heapster 1 1 1 1 1m
monitoring-grafana 1 1 1 1 1m
monitoring-influxdb 1 1 1 1 1m
检查 Pods
$ kubectl get pods -n kube-system
|
grep -E
‘heapster|monitoring’
heapster-3273315324-tmxbg 1/1 Running 0 11m
monitoring-grafana-2255110352-94lpn 1/1 Running 0 11m
monitoring-influxdb-884893134-3vb6n 1/1 Running 0 11m
检查 kubernets dashboard 界面，看是显示各 Nodes、Pods 的CPU、内存、负载等利用率曲线图；
访问 grafana
-
通过 kube-apiserver 访问：
获取 monitoring-grafana 服务 URL
$ kubectl cluster-info
Kubernetes master is running at
https://10.64.3.7:6443
Heapster is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/heapster
KubeDNS is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/kube-dns
kubernetes-dashboard is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/kubernetes-dashboard
monitoring-grafana is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/monitoring-grafana
monitoring-influxdb is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/monitoring-influxdb
$
由于 kube-apiserver 开启了 RBAC 授权，而浏览器访问 kube-apiserver 的时候使用的是匿名证书，所以访问安全端口会导致授权失败。这里需要使用非安全端口访问 kube-apiserver：
浏览器访问 URL：
http://10.64.3.7:8080/api/v1/proxy/namespaces/kube-system/services/monitoring-grafana
-
通过 kubectl proxy 访问：
创建代理
$ kubectl proxy –address=
‘10.64.3.7’
–port=8086 –accept-hosts=
‘^*$’
Starting to serve on 10.64.3.7:8086
浏览器访问 URL：
http://10.64.3.7:8086/api/v1/proxy/namespaces/kube-system/services/monitoring-grafana
访问 influxdb admin UI
获取 influxdb http 8086 映射的 NodePort
$ kubectl get svc -n kube-system
|
grep influxdb
monitoring-influxdb 10.254.255.183
<
nodes
>
8086:8670/TCP,8083:8595/TCP 21m
通过 kube-apiserver 的非安全端口访问influxdb 的 admin UI 界面：
http://10.64.3.7:8080/api/v1/proxy/namespaces/kube-system/services/monitoring-influxdb:8083/
在页面的 “Connection Settings” 的 Host 中输入 node IP，Port 中输入 8086 映射的 nodePort 如上面的 8670，点击 “Save” 即可：
附件：
grafana-deployment.yaml
|
apiVersion: extensions/v1beta1 kind: Deployment metadata: name: monitoring-grafana namespace: kube-system spec: replicas: 1 template: metadata: labels: task: monitoring k8s-app: grafana spec: containers: – name: grafana image: lvanneo/heapster-grafana-amd64:v4.0.2 ports: – containerPort: 3000 protocol: TCP volumeMounts: – mountPath: /var name: grafana-storage env: – name: INFLUXDB_HOST value: monitoring-influxdb – name: GRAFANA_PORT value: “3000” # The following env variables are required to make Grafana accessible via # the kubernetes api-server proxy. On production clusters, we recommend # removing these env variables, setup auth for grafana, and expose the grafana # service using a LoadBalancer or a public IP. – name: GF_AUTH_BASIC_ENABLED value: “false” – name: GF_AUTH_ANONYMOUS_ENABLED value: “true” – name: GF_AUTH_ANONYMOUS_ORG_ROLE value: Admin – name: GF_SERVER_ROOT_URL # If you’re only using the API Server proxy, set this value instead: value: /api/v1/proxy/namespaces/kube-system/services/monitoring-grafana/ #value: / volumes: – name: grafana-storage emptyDir: {} |
grafana-service.yaml
|
apiVersion: v1 kind: Service metadata: labels:
# For use as a Cluster add-on ( # If you are NOT using this as an addon, you should comment out this line. kubernetes.io/cluster-service: ‘true’ kubernetes.io/name: monitoring-grafana name: monitoring-grafana namespace: kube-system spec: # In a production setup, we recommend accessing Grafana through an external Loadbalancer # or through a public IP. # type: LoadBalancer # You could also use NodePort to expose the service at a randomly-generated port ports: – port : 80 targetPort: 3000 selector: k8s-app: grafana |
heapster-deployment.yaml
|
apiVersion: extensions/v1beta1 kind: Deployment metadata: name: heapster namespace: kube-system spec: replicas: 1 template: metadata: labels: task: monitoring k8s-app: heapster spec: serviceAccountName: heapster containers: – name: heapster image: lvanneo/heapster-amd64:v1.3.0-beta.1 imagePullPolicy: IfNotPresent command: – /heapster – –source=kubernetes:https://kubernetes.default – –sink=influxdb:http://monitoring-influxdb:8086 |
heapster-rbac.yaml
|
apiVersion: v1 kind: ServiceAccount metadata: name: heapster namespace: kube-system
—
kind: ClusterRoleBinding apiVersion: rbac.authorization.k8s.io/v1alpha1 metadata: name: heapster subjects: – kind: ServiceAccount name: heapster namespace: kube-system roleRef: kind: ClusterRole name: system:heapster apiGroup: rbac.authorization.k8s.io |
heapster-service.yaml
|
apiVersion: v1 kind: Service metadata: labels: task: monitoring
# For use as a Cluster add-on ( # If you are NOT using this as an addon, you should comment out this line. kubernetes.io/cluster-service: ‘true’ kubernetes.io/name: Heapster name: heapster namespace: kube-system spec: ports: – port: 80 targetPort: 8082 selector: k8s-app: heapster |
influxdb-cm.yaml
|
apiVersion: v1 kind: ConfigMap metadata: name: influxdb-config namespace: kube-system data: config.toml: | reporting-disabled = true bind-address = “:8088” [meta] dir = “/data/meta” retention-autocreate = true logging-enabled = true [data] dir = “/data/data” wal-dir = “/data/wal” query-log-enabled = true cache-max-memory-size = 1073741824 cache-snapshot-memory-size = 26214400 cache-snapshot-write-cold-duration = “10m0s” compact-full-write-cold-duration = “4h0m0s” max-series-per-database = 1000000 max-values-per-tag = 100000 trace-logging-enabled = false [coordinator] write-timeout = “10s” max-concurrent-queries = 0 query-timeout = “0s” log-queries-after = “0s” max-select-point = 0 max-select-series = 0 max-select-buckets = 0 [retention] enabled = true check-interval = “30m0s” [admin] enabled = true bind-address = “:8083” https-enabled = false https-certificate = “/etc/ssl/influxdb.pem” [shard-precreation] enabled = true check-interval = “10m0s” advance-period = “30m0s” [monitor] store-enabled = true store-database = “_internal” store-interval = “10s” [subscriber] enabled = true http-timeout = “30s” insecure-skip-verify = false ca-certs = “” write-concurrency = 40 write-buffer-size = 1000 [http] enabled = true bind-address = “:8086” auth-enabled = false log-enabled = true write-tracing = false pprof-enabled = false https-enabled = false https-certificate = “/etc/ssl/influxdb.pem” https-private-key = “” max-row-limit = 10000 max-connection-limit = 0 shared-secret = “” realm = “InfluxDB” unix-socket-enabled = false bind-socket = “/var/run/influxdb.sock” [[graphite]] enabled = false bind-address = “:2003” database = “graphite” retention-policy = “” protocol = “tcp” batch-size = 5000 batch-pending = 10 batch-timeout = “1s” consistency-level = “one” separator = “.” udp-read-buffer = 0 [[collectd]] enabled = false bind-address = “:25826” database = “collectd” retention-policy = “” batch-size = 5000 batch-pending = 10 batch-timeout = “10s” read-buffer = 0 typesdb = “/usr/share/collectd/types.db” [[opentsdb]] enabled = false bind-address = “:4242” database = “opentsdb” retention-policy = “” consistency-level = “one” tls-enabled = false certificate = “/etc/ssl/influxdb.pem” batch-size = 1000 batch-pending = 5 batch-timeout = “1s” log-point-errors = true [[udp]] enabled = false bind-address = “:8089” database = “udp” retention-policy = “” batch-size = 5000 batch-pending = 10 read-buffer = 0 batch-timeout = “1s” precision = “” [continuous_queries] log-enabled = true enabled = true run-interval = “1s” |
influxdb-deployment.yaml
|
apiVersion: extensions/v1beta1 kind: Deployment metadata: name: monitoring-influxdb namespace: kube-system spec: replicas: 1 template: metadata: labels: task: monitoring k8s-app: influxdb spec: containers: – name: influxdb image: lvanneo/heapster-influxdb-amd64:v1.1.1 volumeMounts: – mountPath: /data name: influxdb-storage – mountPath: /etc/ name: influxdb-config volumes: – name: influxdb-storage emptyDir: {} – name: influxdb-config configMap: name: influxdb-config |
influxdb-service.yaml
|
apiVersion: v1 kind: Service metadata: labels: task: monitoring
# For use as a Cluster add-on ( # If you are NOT using this as an addon, you should comment out this line. kubernetes.io/cluster-service: ‘true’ kubernetes.io/name: monitoring-influxdb name: monitoring-influxdb namespace: kube-system spec: type: NodePort ports: – port: 8086 targetPort: 8086 name: http – port: 8083 targetPort: 8083 name: admin selector: k8s-app: influxdb |
11-部署EFK插件
部署 EFK 插件
官方文件目录：
kubernetes/cluster/addons/fluentd-elasticsearch
$ ls
*
.yaml
es-controller.yaml es-rbac.yaml es-service.yaml fluentd-es-ds.yaml kibana-controller.yaml kibana-service.yaml fluentd-es-rbac.yaml
-
新加了
es-rbac.yaml
和
fluentd-es-rbac.yaml
文件，定义了 elasticsearch 和 fluentd 使用的 Role 和 RoleBinding；
已经修改好的 yaml 文件见：
EFK
。
配置 es-controller.yaml
$ diff es-controller.yaml.origes-controller.yaml
22a23
>
serviceAccountName: elasticsearch
24c25
<
– image: gcr.io/google_containers/elasticsearch:v2.4.1-2
—
>
– image: onlyerich/elasticsearch:v2.4.1-2
配置 es-service.yaml
无需配置；
配置 fluentd-es-ds.yaml
$ diff fluentd-es-ds.yaml.origfluentd-es-ds.yaml
23a24
>
serviceAccountName: fluentd
26c27
<
image:gcr.io/google_containers/fluentd-elasticsearch:1.22
—
>
image:onlyerich/fluentd-elasticsearch:1.22
配置 kibana-controller.yaml
$ diff kibana-controller.yaml.origkibana-controller.yaml
22c22
<
image:gcr.io/google_containers/kibana:v4.6.1-1
—
>
image: onlyerich/kibana:v4.6.1-1
给 Node 设置标签
DaemonSet
fluentd-es-v1.22
只会调度到设置了标签
beta.kubernetes.io/fluentd-ds-ready=true
的 Node，需要在期望运行 fluentd的 Node 上设置该标签；
$ kubectl get nodes
NAME STATUS AGE VERSION
10.64.3.7 Ready 1d v1.6.2
$ kubectl label nodes 10.64.3.7beta.kubernetes.io/fluentd-ds-ready=true
node
“10.64.3.7”
labeled
执行定义文件
$
pwd
/root/kubernetes/cluster/addons/fluentd-elasticsearch
$ ls
*
.yaml
es-controller.yaml es-rbac.yaml es-service.yaml fluentd-es-ds.yaml kibana-controller.yaml kibana-service.yaml fluentd-es-rbac.yaml
$ kubectl create -f
.
$
检查执行结果
$ kubectl get deployment -nkube-system
|
grep kibana
kibana-logging 1 1 1 1 2m
$ kubectl get pods -n kube-system
|
grep -E
‘elasticsearch|fluentd|kibana’
elasticsearch-logging-v1-kwc9w 1/1 Running 0 4m
elasticsearch-logging-v1-ws9mk 1/1 Running 0 4m
fluentd-es-v1.22-g76x0 1/1 Running 0 4m
kibana-logging-324921636-ph7sn 1/1 Running 0 4m
$ kubectl get service -n kube-system
|
grep-E
‘elasticsearch|kibana’
elasticsearch-logging 10.254.128.156
<
none
>
9200/TCP 3m
kibana-logging 10.254.88.109
<
none
>
5601/TCP 3m
kibana Pod 第一次启动时会用**较长时间(10-20分钟)**来优化和 Cache状态页面，可以 tailf 该 Pod 的日志观察进度：
$ kubectl logskibana-logging-324921636-ph7sn -n kube-system-f
ELASTICSEARCH_URL=http://elasticsearch-logging:9200
server.basePath:/api/v1/proxy/namespaces/kube-system/services/kibana-logging
{
“type”
:
“log”
,
“@timestamp”
:
“2017-04-08T09:30:30Z”
,
“tags”
:[
“info”
,
“optimize”
],
“pid”
:7,
“message”
:
“Optimizingand caching bundles for kibana and statusPage. This may take a fewminutes”
}
{
“type”
:
“log”
,
“@timestamp”
:
“2017-04-08T09:44:01Z”
,
“tags”
:[
“info”
,
“optimize”
],
“pid”
:7,
“message”
:
“Optimizationof bundles for kibana and statusPage complete in 811.00 seconds”
}
{
“type”
:
“log”
,
“@timestamp”
:
“2017-04-08T09:44:02Z”
,
“tags”
:[
“status”
,
“plugin:kibana@1.0.0”
,
“info”
],
“pid”
:7,
“state”
:
“green”
,
“message”
:
“Statuschanged from uninitialized to green – Ready”
,
“prevState”
:
“uninitialized”
,
“prevMsg”
:
“uninitialized”
}
访问 kibana
-
通过 kube-apiserver 访问：
获取 monitoring-grafana 服务 URL
$ kubectl cluster-info
Kubernetes master is running at
https://10.64.3.7:6443
Elasticsearch is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/elasticsearch-logging
Heapster is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/heapster
Kibana is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/kibana-logging
KubeDNS is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/kube-dns
kubernetes-dashboard is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/kubernetes-dashboard
monitoring-grafana is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/monitoring-grafana
monitoring-influxdb is running at
https://10.64.3.7:6443/api/v1/proxy/namespaces/kube-system/services/monitoring-influxdb
由于 kube-apiserver 开启了 RBAC 授权，而浏览器访问 kube-apiserver 的时候使用的是匿名证书，所以访问安全端口会导致授权失败。这里需要使用非安全端口访问 kube-apiserver：
浏览器访问 URL：
http://10.64.3.7:8080/api/v1/proxy/namespaces/kube-system/services/kibana-logging
-
通过 kubectl proxy 访问：
创建代理
$ kubectl proxy –address=
‘10.64.3.7’
–port=8086 –accept-hosts=
‘^*$’
Starting to serve on 10.64.3.7:8086
浏览器访问 URL：
http://10.64.3.7:8086/api/v1/proxy/namespaces/kube-system/services/kibana-logging

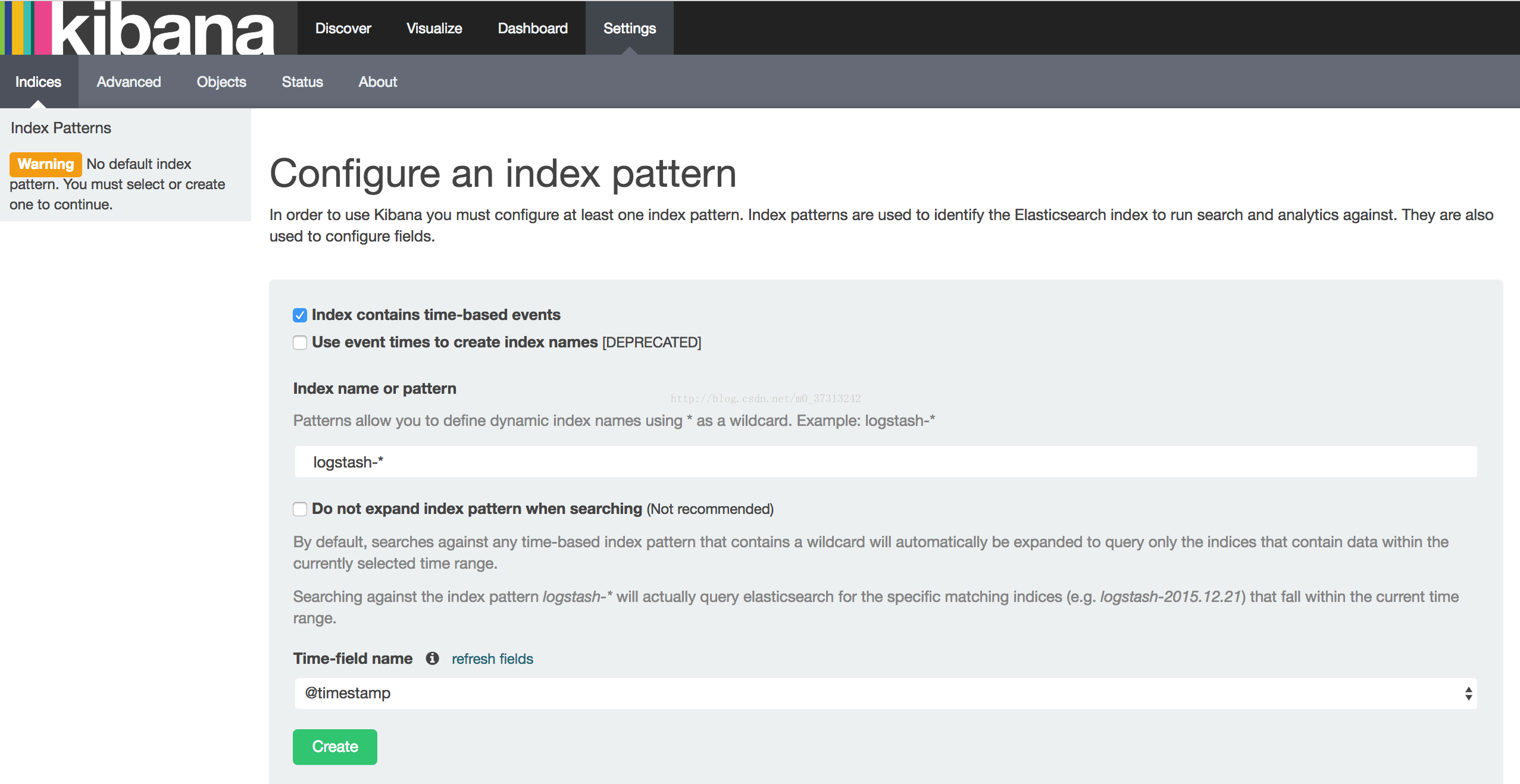

在 Settings -> Indices页面创建一个 index（相当于 mysql 中的一个 database），选中
Index contains time-based events
，使用默认的
logstash-*
pattern，点击
Create
;
创建Index后，稍等几分钟就可以在
Discover
菜单下看到 ElasticSearchlogging 中汇聚的日志；
附件：
es-controller.yaml
|
apiVersion: v1 kind: ReplicationController metadata: name: elasticsearch-logging-v1 namespace: kube-system labels: k8s-app: elasticsearch-logging version: v1 kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile spec: replicas: 2 selector: k8s-app: elasticsearch-logging version: v1 template: metadata: labels: k8s-app: elasticsearch-logging version: v1 kubernetes.io/cluster-service: “true” spec: serviceAccountName: elasticsearch containers: – image: onlyerich/elasticsearch:v2.4.1-2 name: elasticsearch-logging resources: # need more cpu upon initialization, therefore burstable class limits: cpu: 1000m requests: cpu: 100m ports: – containerPort: 9200 name: db protocol: TCP – containerPort: 9300 name: transport protocol: TCP volumeMounts: – name: es-persistent-storage mountPath: /data env: – name: “NAMESPACE” valueFrom: fieldRef: fieldPath: metadata.namespace volumes: – name: es-persistent-storage emptyDir: {} |
es-rbac.yaml
|
apiVersion: v1 kind: ServiceAccount metadata: name: elasticsearch namespace: kube-system
—
kind: ClusterRoleBinding apiVersion: rbac.authorization.k8s.io/v1alpha1 metadata: name: elasticsearch subjects: – kind: ServiceAccount name: elasticsearch namespace: kube-system roleRef: kind: ClusterRole name: view apiGroup: rbac.authorization.k8s.io |
es-service.yaml
|
apiVersion: v1 kind: Service metadata: name: elasticsearch-logging namespace: kube-system labels: k8s-app: elasticsearch-logging kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile kubernetes.io/name: “Elasticsearch” spec: ports: – port: 9200 protocol: TCP targetPort: db selector: k8s-app: elasticsearch-logging |
fluentd-es-ds.yaml
|
apiVersion: extensions/v1beta1 kind: DaemonSet metadata: name: fluentd-es-v1.22 namespace: kube-system labels: k8s-app: fluentd-es kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile version: v1.22 spec: template: metadata: labels: k8s-app: fluentd-es kubernetes.io/cluster-service: “true” version: v1.22 # This annotation ensures that fluentd does not get evicted if the node # supports critical pod annotation based priority scheme. # Note that this does not guarantee admission on the nodes (#40573). annotations: scheduler.alpha.kubernetes.io/critical-pod: ” spec: serviceAccountName: fluentd containers: – name: fluentd-es image: onlyerich/fluentd-elasticsearch:1.22 command: – ‘/bin/sh’ – ‘-c’ – ‘/usr/sbin/td-agent 2>&1 >> /var/log/fluentd.log’ resources: limits: memory: 200Mi requests: cpu: 100m memory: 200Mi volumeMounts: – name: varlog mountPath: /var/log – name: varlibdockercontainers mountPath: /var/lib/docker/containers readOnly: true nodeSelector: beta.kubernetes.io/fluentd-ds-ready: “true” tolerations: – key : “node.alpha.kubernetes.io/ismaster” effect: “NoSchedule” terminationGracePeriodSeconds: 30 volumes: – name: varlog hostPath: path: /var/log – name: varlibdockercontainers hostPath: path: /var/lib/docker/containers |
fluentd-es-rbac.yaml
|
apiVersion: v1 kind: ServiceAccount metadata: name: fluentd namespace: kube-system
—
kind: ClusterRoleBinding apiVersion: rbac.authorization.k8s.io/v1alpha1 metadata: name: fluentd subjects: – kind: ServiceAccount name: fluentd namespace: kube-system roleRef: kind: ClusterRole name: view apiGroup: rbac.authorization.k8s.io |
kibana-controller.yaml
|
apiVersion: extensions/v1beta1 kind: Deployment metadata: name: kibana-logging namespace: kube-system labels: k8s-app: kibana-logging kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile spec: replicas: 1 selector: matchLabels: k8s-app: kibana-logging template: metadata: labels: k8s-app: kibana-logging spec: containers: – name: kibana-logging image: onlyerich/kibana:v4.6.1-1 resources: # keep request = limit to keep this container in guaranteed class limits: cpu: 100m requests: cpu: 100m env: – name: “ELASTICSEARCH_URL”
value: ” – name: “KIBANA_BASE_URL” value: “/api/v1/proxy/namespaces/kube-system/services/kibana-logging” ports: – containerPort: 5601 name: ui protocol: TCP |
kibana-service.yaml
|
apiVersion: v1 kind: Service metadata: name: kibana-logging namespace: kube-system labels: k8s-app: kibana-logging kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile kubernetes.io/name: “Kibana” spec: ports: – port: 5601 protocol: TCP targetPort: ui selector: k8s-app: kibana-logging |
12-部署Docker-Registry
部署私有 docker registry
注意：本文档介绍使用 docker 官方的 registry v2镜像部署私有仓库的步骤，你也可以部署 Harbor 私有仓库（
部署Harbor 私有仓库
）。
本文档讲解部署一个 TLS 加密、HTTP Basic 认证、用 ceph rgw做后端存储的私有 docker registry 步骤，如果使用其它类型的后端存储，则可以从 “创建 docker registry” 节开始；
示例两台机器 IP 如下：
- ceph rgw: 10.64.3.9
- docker registry: 10.64.3.7
部署 ceph RGW 节点
$ ceph-deploy rgw create 10.64.3.9
# rgw 默认监听7480端口
$
创建测试账号 demo
$ radosgw-admin user create –uid=demo–display-name=
“cephrgw demo user”
$
创建 demo 账号的子账号 swift
当前 registry 只支持使用 swift 协议访问 ceph rgw 存储，暂时不支持s3 协议；
$ radosgw-admin subuser create –uid demo–subuser=demo:swift –access=full –secret=secretkey –key-type=swift
$
创建 demo:swift 子账号的 sercret key
$ radosgw-admin key create–subuser=demo:swift –key-type=swift –gen-secret
{
“user_id”
:
“demo”
,
“display_name”
:
“cephrgw demo user”
,
“email”
:
“”
,
“suspended”
: 0,
“max_buckets”
: 1000,
“auid”
: 0,
“subusers”
: [
{
“id”
:
“demo:swift”
,
“permissions”
:
“full-control”
}
],
“keys”
: [
{
“user”
:
“demo”
,
“access_key”
:
“5Y1B1SIJ2YHKEHO5U36B”
,
“secret_key”
:
“nrIvtPqUj7pUlccLYPuR3ntVzIa50DToIpe7xFjT”
}
],
“swift_keys”
: [
{
“user”
:
“demo:swift”
,
“secret_key”
:
“aCgVTx3Gfz1dBiFS4NfjIRmvT0sgpHDP6aa0Yfrh”
}
],
“caps”
: [],
“op_mask”
:
“read,write, delete”
,
“default_placement”
:
“”
,
“placement_tags”
: [],
“bucket_quota”
: {
“enabled”
: false,
“max_size_kb”
: -1,
“max_objects”
: -1
},
“user_quota”
: {
“enabled”
: false,
“max_size_kb”
: -1,
“max_objects”
: -1
},
“temp_url_keys”
: []
}
- aCgVTx3Gfz1dBiFS4NfjIRmvT0sgpHDP6aa0Yfrh 为子账号 demo:swift 的 secret key；
创建 docker registry
创建 registry 使用的 TLS 证书
$ mdir -p registry/{auth,certs}
$ cat registry-csr.json
{
“CN”
:
“registry”
,
“hosts”
: [
“127.0.0.1”
,
“10.64.3.7”
],
“key”
: {
“algo”
:
“rsa”
,
“size”
: 2048
},
“names”
: [
{
“C”
:
“CN”
,
“ST”
:
“BeiJing”
,
“L”
:
“BeiJing”
,
“O”
:
“k8s”
,
“OU”
:
“System”
}
]
}
$ cfssl gencert -ca=/etc/kubernetes/ssl/ca.pem \
-ca-key=/etc/kubernetes/ssl/ca-key.pem \
-config=/etc/kubernetes/ssl/ca-config.json \
-profile=kubernetes registry-csr.json
|
cfssljson -bare registry
$ cp registry.pem registry-key.pem registry/certs
$
- 这里复用以前创建的 CA 证书和秘钥文件；
- hosts 字段指定 registry 的 NodeIP；
创建 HTTP Baisc 认证文件
$ docker run –entrypoint htpasswdregistry:2 -Bbn foo foo123
>
auth/htpasswd
$ catauth/htpasswd
foo:$2y$05$I60z69MdluAQ8i1Ka3x3Neb332yz1ioow2C4oroZSOE0fqPogAmZm
配置 registry 参数
$
export
RGW_AUTH_URL=
“http://10.64.3.9:7480/auth/v1”
$
export
RGW_USER=
“demo:swift”
$
export
RGW_SECRET_KEY=
“aCgVTx3Gfz1dBiFS4NfjIRmvT0sgpHDP6aa0Yfrh”
$ cat
>
config.yml
<<
EOF
#
https://docs.docker.com/registry/configuration/#list-of-configuration-options
version: 0.1
log:
level: info
fromatter: text
fields:
service: registry
storage:
cache:
blobdescriptor: inmemory
delete:
enabled:
true
swift:
authurl: ${RGW_AUTH_URL}
username: ${RGW_USER}
password: ${RGW_SECRET_KEY}
container: registry
auth:
htpasswd:
realm: basic-realm
path: /auth/htpasswd
http:
addr: 0.0.0.0:8000
headers:
X-Content-Type-Options:[nosniff]
tls:
certificate:/certs/registry.pem
key: /certs/registry-key.pem
health:
storagedriver:
enabled:
true
interval: 10s
threshold: 3
EOF
- storage.swift 指定后端使用 swfit 接口协议的存储，这里配置的是 ceph rgw 存储参数；
- auth.htpasswd 指定了 HTTP Basic 认证的 token 文件路径；
- http.tls 指定了 registry http 服务器的证书和秘钥文件路径；
创建 docker registry
$ docker run -d -p 8000:8000\
-v
$(pwd)
/registry/auth/:/auth\
-v
$(pwd)
/registry/certs:/certs\
-v
$(pwd)
/config.yml:/etc/docker/registry/config.yml\
–name registry registry:2
- 执行该 docker run 命令的机器 IP 为 10.64.3.7；
向 registry push image
将签署 registry 证书的 CA证书拷贝到 /etc/docker/certs.d/10.64.3.7:8000 目录下
$ sudo mkdir -p/etc/docker/certs.d/10.64.3.7:8000
$ sudo cp /etc/kubernetes/ssl/ca.pem/etc/docker/certs.d/10.64.3.7:8000/ca.crt
$
登陆私有 registry
$ docker login 10.64.3.7:8000
Username: foo
Password:
Login Succeeded
登陆信息被写入 ~/.docker/config.json 文件
$ cat
~
/.docker/config.json
{
“auths”
: {
“10.64.3.7:8000”
: {
“auth”
:
“Zm9vOmZvbzEyMw==”
}
}
}
将本地的 image 打上私有 registry 的 tag
$ docker tagdocker.io/kubernetes/pause 10.64.3.7:8000/zhangjun3/pause
$ docker images
|
greppause
docker.io/kubernetes/pause latest f9d5de079539 2 years ago 239.8kB
10.64.3.7:8000/zhangjun3/pause latest f9d5de079539 2 years ago 239.8 kB
将 image push 到私有 registry
$ docker push10.64.3.7:8000/zhangjun3/pause
The push refers to a repository[10.64.3.7:8000/zhangjun3/pause]
5f70bf18a086: Pushed
e16a89738269: Pushed
latest: digest:sha256:9a6b437e896acad3f5a2a8084625fdd4177b2e7124ee943af642259f2f283359 size:916
查看 ceph 上是否已经有 push 的 pause 容器文件
$ radoslspools
rbd
.rgw.root
default.rgw.control
default.rgw.data.root
default.rgw.gc
default.rgw.log
default.rgw.users.uid
default.rgw.users.keys
default.rgw.users.swift
default.rgw.buckets.index
default.rgw.buckets.data
$ rados –pooldefault.rgw.buckets.data ls
|
greppause
9c2d5a9d-19e6-4003-90b5-b1cbf15e890d.4310.1_files/docker/registry/v2/repositories/zhangjun3/pause/_layers/sha256/f9d5de0795395db6c50cb1ac82ebed1bd8eb3eefcebb1aa724e01239594e937b/link
9c2d5a9d-19e6-4003-90b5-b1cbf15e890d.4310.1_files/docker/registry/v2/repositories/zhangjun3/pause/_layers/sha256/f72a00a23f01987b42cb26f259582bb33502bdb0fcf5011e03c60577c4284845/link
9c2d5a9d-19e6-4003-90b5-b1cbf15e890d.4310.1_files/docker/registry/v2/repositories/zhangjun3/pause/_layers/sha256/a3ed95caeb02ffe68cdd9fd84406680ae93d633cb16422d00e8a7c22955b46d4/link
9c2d5a9d-19e6-4003-90b5-b1cbf15e890d.4310.1_files/docker/registry/v2/repositories/zhangjun3/pause/_manifests/tags/latest/current/link
9c2d5a9d-19e6-4003-90b5-b1cbf15e890d.4310.1_files/docker/registry/v2/repositories/zhangjun3/pause/_manifests/tags/latest/index/sha256/9a6b437e896acad3f5a2a8084625fdd4177b2e7124ee943af642259f2f283359/link
9c2d5a9d-19e6-4003-90b5-b1cbf15e890d.4310.1_files/docker/registry/v2/repositories/zhangjun3/pause/_manifests/revisions/sha256/9a6b437e896acad3f5a2a8084625fdd4177b2e7124ee943af642259f2f283359/link
私有 registry 的运维操作
查询私有镜像中的 images
$ curl –user zhangjun3:xxx –cacert /etc/docker/certs.d/10.64.3.7\:8000/ca.crt
https://10.64.3.7:8000/v2/_catalog
{
“repositories”
:[
“library/redis”
,
“zhangjun3/busybox”
,
“zhangjun3/pause”
,
“zhangjun3/pause2”
]}
查询某个镜像的 tags 列表
$ curl –user zhangjun3:xxx –cacert /etc/docker/certs.d/10.64.3.7\:8000/ca.crt
https://10.64.3.7:8000/v2/zhangjun3/busybox/tags/list
{
“name”
:
“zhangjun3/busybox”
,
“tags”
:[
“latest”
]}
获取 image 或 layer 的 digest
向 v2/<repoName>/manifests/<tagName> 发 GET 请求，从响应的头部 Docker-Content-Digest 获取 image digest，从响应的body 的 fsLayers.blobSum 中获取 layDigests;
注意，必须包含请求头：Accept:application/vnd.docker.distribution.manifest.v2+json：
$ curl -v -H
“Accept:application/vnd.docker.distribution.manifest.v2+json”
–user zhangjun3:xxx –cacert/etc/docker/certs.d/10.64.3.7\:8000/ca.crt
https://10.64.3.7:8000/v2/zhangjun3/busybox/manifests/latest
>
GET /v2/zhangjun3/busybox/manifests/latest HTTP/1.1
>
User-Agent: curl/7.29.0
>
Host: 10.64.3.7:8000
>
Accept:application/vnd.docker.distribution.manifest.v2+json
>
<
HTTP/1.1 200 OK
<
Content-Length: 527
<
Content-Type:application/vnd.docker.distribution.manifest.v2+json
<
Docker-Content-Digest:sha256:68effe31a4ae8312e47f54bec52d1fc925908009ce7e6f734e1b54a4169081c5
<
Docker-Distribution-Api-Version:registry/2.0
<
Etag:
“sha256:68effe31a4ae8312e47f54bec52d1fc925908009ce7e6f734e1b54a4169081c5”
<
X-Content-Type-Options: nosniff
<
Date: Tue, 21 Mar 2017 15:19:42GMT
<
{
“schemaVersion”
: 2,
“mediaType”
:
“application/vnd.docker.distribution.manifest.v2+json”
,
“config”
: {
“mediaType”
:
“application/vnd.docker.container.image.v1+json”
,
“size”
: 1465,
“digest”
:
“sha256:00f017a8c2a6e1fe2ffd05c281f27d069d2a99323a8cd514dd35f228ba26d2ff”
},
“layers”
: [
{
“mediaType”
:
“application/vnd.docker.image.rootfs.diff.tar.gzip”
,
“size”
: 701102,
“digest”
:
“sha256:04176c8b224aa0eb9942af765f66dae866f436e75acef028fe44b8a98e045515”
}
]
}
删除 image
向 /v2/<name>/manifests/<reference> 发送 DELETE 请求，reference为上一步返回的 Docker-Content-Digest 字段内容：
$ curl -X DELETE –user zhangjun3:xxx –cacert /etc/docker/certs.d/10.64.3.7\:8000/ca.crt
https://10.64.3.7:8000/v2/zhangjun3/busybox/manifests/sha256:68effe31a4ae8312e47f54bec52d1fc925908009ce7e6f734e1b54a4169081c5
$
删除 layer
向 /v2/<name>/blobs/<digest>发送 DELETE 请求，其中 digest是上一步返回的 fsLayers.blobSum 字段内容：
$ curl -X DELETE –user zhangjun3:xxx –cacert /etc/docker/certs.d/10.64.3.7\:8000/ca.crt
https://10.64.3.7:8000/v2/zhangjun3/busybox/blobs/sha256:a3ed95caeb02ffe68cdd9fd84406680ae93d633cb16422d00e8a7c22955b46d4
$ curl -X DELETE –cacert/etc/docker/certs.d/10.64.3.7\:8000/ca.crt
https://10.64.3.7:8000/v2/zhangjun3/busybox/blobs/sha256:04176c8b224aa0eb9942af765f66dae866f436e75acef028fe44b8a98e045515
附件：
config.yml 我挂载的本地路径
|
version: 0.1 log: level: info fromatter: text fields: service: registry storage: cache: blobdescriptor: inmemory delete: enabled: true
auth: htpasswd: realm: basic-realm path: /auth/htpasswd http: addr: 0.0.0.0:8000 headers: X-Content-Type-Options: [nosniff] tls: certificate: /certs/registry.pem key: /certs/registry-key.pem health: storagedriver: enabled: true interval: 10s threshold: 3 |
13-部署harbor私有仓库
部署 harbor 私有仓库
本文档介绍使用 docker-compose 部署 harbor私有仓库的步骤，你也可以使用 docker 官方的 registry 镜像部署私有仓库(
部署Docker Registry
)。
使用的变量
本文档用到的变量定义如下：
$
export
NODE_IP=10.64.3.7
# 当前部署harbor 的节点 IP
$
下载文件
从 docker compose
发布页面
下载最新的
docker-compose
二进制文件
$ wget
https://github.com/docker/compose/releases/download/1.12.0/docker-compose-Linux-x86_64
$ mv
~
/docker-compose-Linux-x86_64/root/local/bin/docker-compose
$ chmod a+x /root/local/bin/docker-compose
$
export
PATH=/root/local/bin:$PATH
$
从 harbor
发布页面
下载最新的 harbor 离线安装包
$ wget –continue
https://github.com/vmware/harbor/releases/download/v1.1.0/harbor-offline-installer-v1.1.0.tgz
$ tar -xzvf harbor-offline-installer-v1.1.0.tgz
$
cd
harbor
$
导入 docker images
导入离线安装包中 harbor 相关的 docker images：
$ docker load -i harbor.v1.1.0.tar.gz
$
创建 harbor nginx 服务器使用的 TLS 证书
创建 harbor 证书签名请求：
$ cat
>
harbor-csr.json
<<EOF
{
“CN”: “harbor”,
“hosts”: [
“127.0.0.1”,
“$NODE_IP”
],
“key”: {
“algo”: “rsa”,
“size”: 2048
},
“names”: [
{
“C”: “CN”,
“ST”: “BeiJing”,
“L”: “BeiJing”,
“O”: “k8s”,
“OU”: “System”
}
]
}
EOF
-
hosts 字段指定授权使用该证书的当前部署节点 IP，如果后续使用域名访问 harbor则还需要添加域名；
生成 harbor 证书和私钥：
$ cfssl gencert-ca=/etc/kubernetes/ssl/ca.pem \
-ca-key=/etc/kubernetes/ssl/ca-key.pem\
-config=/etc/kubernetes/ssl/ca-config.json \
-profile=kubernetes harbor-csr.json
|
cfssljson -bare harbor
$ ls harbor
*
harbor.csr harbor-csr.json harbor-key.pem harbor.pem
$ sudo mkdir -p /etc/harbor/ssl
$ sudo mv harbor
*
.pem /etc/harbor/ssl
$ rm harbor.csr harbor-csr.json
修改 harbor.cfg 文件
$ diff harbor.cfg.origharbor.cfg
5c5
<
hostname =reg.mydomain.com
—
>
hostname = 10.64.3.7
9c9
<
ui_url_protocol = http
—
>
ui_url_protocol =https
24,25c24,25
<
ssl_cert =/data/cert/server.crt
<
ssl_cert_key =/data/cert/server.key
—
>
ssl_cert =/etc/harbor/ssl/harbor.pem
>
ssl_cert_key =/etc/harbor/ssl/harbor-key.pem
加载和启动 harbor 镜像
mkdir -p /data
$ ./install.sh
[Step 0]: checking installation environment …
Note: docker version: 17.04.0
Note: docker-compose version: 1.12.0
[Step 1]: loading Harbor images …
Loaded image: vmware/harbor-adminserver:v1.1.0
Loaded image: vmware/harbor-ui:v1.1.0
Loaded image: vmware/harbor-log:v1.1.0
Loaded image: vmware/harbor-jobservice:v1.1.0
Loaded image: vmware/registry:photon-2.6.0
Loaded image: vmware/harbor-notary-db:mariadb-10.1.10
Loaded image: vmware/harbor-db:v1.1.0
Loaded image: vmware/nginx:1.11.5-patched
Loaded image: photon:1.0
Loaded image: vmware/notary-photon:server-0.5.0
Loaded image: vmware/notary-photon:signer-0.5.0
[Step 2]: preparing environment …
Generated and saved secret to file: /data/secretkey
Generated configuration file: ./common/config/nginx/nginx.conf
Generated configuration file: ./common/config/adminserver/env
Generated configuration file: ./common/config/ui/env
Generated configuration file:./common/config/registry/config.yml
Generated configuration file: ./common/config/db/env
Generated configuration file: ./common/config/jobservice/env
Generated configuration file:./common/config/jobservice/app.conf
Generated configuration file: ./common/config/ui/app.conf
Generated certificate, key file: ./common/config/ui/private_key.pem, cert file:./common/config/registry/root.crt
The configuration files are ready, please use docker-compose to start theservice.
[Step 3]: checking existing instance of Harbor …
[Step 4]: starting Harbor…
Creating network
“harbor_harbor”
with the default driver
Creating harbor-log
Creating registry
Creating harbor-adminserver
Creating harbor-db
Creating harbor-ui
Creating harbor-jobservice
Creating nginx
✔ —-Harbor has been installed and startedsuccessfully.—-
Now you should be able to visit theadmin portal at
https://10.64.3.7
.
For more details, please visit
https://github.com/vmware/harbor
.
访问管理界面
浏览器访问
https://${NODE_IP}
，示例的是
https://10.64.3.7
用账号
admin
和 harbor.cfg配置文件中的默认密码
Harbor12345
登陆系统：

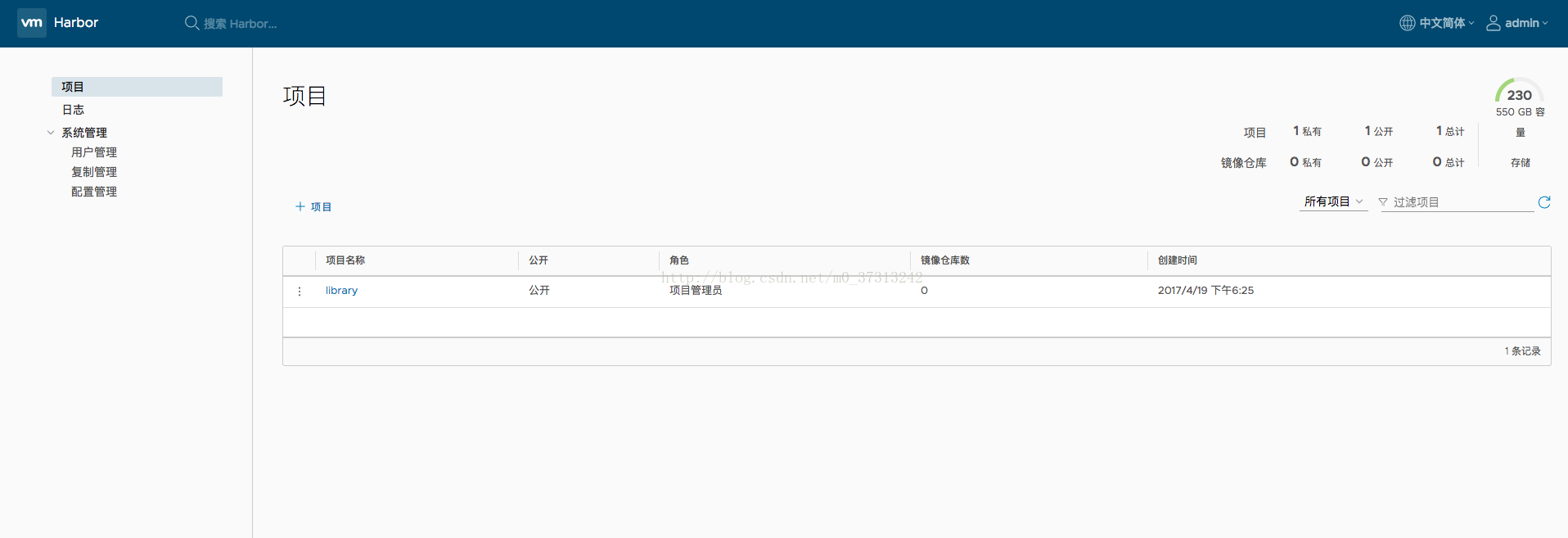

harbor 运行时产生的文件、目录
$
# 日志目录
$ ls /var/log/harbor/2017-04-19/
adminserver.log jobservice.log mysql.log proxy.log registry.log ui.log
$
# 数据目录，包括数据库、镜像仓库
$ ls /data/
ca_download config database job_logs registry secretkey
docker 客户端登陆
将签署 harbor 证书的 CA证书拷贝到
/etc/docker/certs.d/10.64.3.7
目录下
$ sudo mkdir -p /etc/docker/certs.d/10.64.3.7
$ sudo cp /etc/kubernetes/ssl/ca.pem/etc/docker/certs.d/10.64.3.7/ca.crt
$
登陆 harbor
$ docker login 10.64.3.7
Username: admin
Password:
认证信息自动保存到
~/.docker/config.json
文件。
其它操作
下列操作的工作目录均为 解压离线安装文件后 生成的 harbor 目录。
$
# 停止 harbor
$ docker-compose down -v
$
# 修改配置
$ vim harbor.cfg
$
# 更修改的配置更新到docker-compose.yml 文件
[root@tjwq01-sys-bs003007 harbor]
# ./prepare
Clearing the configuration file: ./common/config/ui/app.conf
Clearing the configuration file: ./common/config/ui/env
Clearing the configuration file:./common/config/ui/private_key.pem
Clearing the configuration file: ./common/config/db/env
Clearing the configuration file:./common/config/registry/root.crt
Clearing the configuration file:./common/config/registry/config.yml
Clearing the configuration file:./common/config/jobservice/app.conf
Clearing the configuration file: ./common/config/jobservice/env
Clearing the configuration file:./common/config/nginx/cert/admin.pem
Clearing the configuration file:./common/config/nginx/cert/admin-key.pem
Clearing the configuration file: ./common/config/nginx/nginx.conf
Clearing the configuration file: ./common/config/adminserver/env
loaded secret from file: /data/secretkey
Generated configuration file: ./common/config/nginx/nginx.conf
Generated configuration file: ./common/config/adminserver/env
Generated configuration file: ./common/config/ui/env
Generated configuration file:./common/config/registry/config.yml
Generated configuration file: ./common/config/db/env
Generated configuration file: ./common/config/jobservice/env
Generated configuration file:./common/config/jobservice/app.conf
Generated configuration file: ./common/config/ui/app.conf
Generated certificate, key file: ./common/config/ui/private_key.pem, cert file:./common/config/registry/root.crt
The configuration files are ready, please use docker-compose to start theservice.
$
# 启动 harbor
[root@tjwq01-sys-bs003007 harbor]
# docker-compose up -d
附件：
harbor.cfg
|
hostname = 192.168.1.206 ui_url_protocol = https db_password = root123 max_job_workers = 3 customize_crt = on ssl_cert = /etc/harbor/ssl/harbor.pem ssl_cert_key = /etc/harbor/ssl/harbor-key.pem secretkey_path = /data admiral_url = NA email_identity = email_server = smtp.mydomain.com email_server_port = 25 email_username = sample_admin@mydomain.com email_password = abc email_from = admin <sample_admin@mydomain.com> email_ssl = false harbor_admin_password = Harbor12345 auth_mode = db_auth ldap_url = ldaps://ldap.mydomain.com ldap_basedn = ou=people,dc=mydomain,dc=com ldap_uid = uid ldap_scope = 3 ldap_timeout = 5 self_registration = on token_expiration = 30 project_creation_restriction = everyone verify_remote_cert = on |
14-清理集群
清理集群
清理 Node 节点
停相关进程：
$ sudo systemctl stop kubelet kube-proxy flannelddocker
$
清理文件：
$
# umount kubelet 挂载的目录
$ mount
|
grep
‘/var/lib/kubelet’
|
awk
‘{print $3}’
|
xargs sudo umount
$
# 删除 kubelet 工作目录
$ sudo rm -rf /var/lib/kubelet
$
# 删除 docker 工作目录
$ sudo rm -rf /var/lib/docker
$
# 删除 flanneld 写入的网络配置文件
$ sudo rm -rf /var/run/flannel/
$
# 删除 docker 的一些运行文件
$ sudo rm -rf /var/run/docker/
$
# 删除 systemd unit 文件
$ sudo rm -rf /etc/systemd/system/{kubelet,docker,flanneld}.service
$
# 删除程序文件
$ sudo rm -rf /root/local/bin/{kubelet,docker,flanneld}
$
# 删除证书文件
$ sudo rm -rf /etc/flanneld/ssl /etc/kubernetes/ssl
$
清理 kube-proxy 和 docker 创建的 iptables：
$ sudo iptables -F
&&
sudo iptables -X
&&
sudo iptables -F -t nat
&&
sudo iptables -X -t nat
$
删除 flanneld 和 docker 创建的网桥：
$ ip link del flannel.1
$ ip link del docker0
$
清理 Master 节点
停相关进程：
$ sudo systemctl stop kube-apiserverkube-controller-manager kube-scheduler
$
清理文件：
$
# 删除 kube-apiserver 工作目录
$ sudo rm -rf /var/run/kubernetes
$
# 删除 systemd unit 文件
$ sudo rm -rf/etc/systemd/system/{kube-apiserver,kube-controller-manager,kube-scheduler}.service
$
# 删除程序文件
$ sudo rm -rf/root/local/bin/{kube-apiserver,kube-controller-manager,kube-scheduler}
$
# 删除证书文件
$ sudo rm -rf /etc/flanneld/ssl /etc/kubernetes/ssl
$
清理 etcd 集群
停相关进程：
$ sudo systemctl stop etcd
$
清理文件：
$
# 删除 etcd 的工作目录和数据目录
$ sudo rm -rf /var/lib/etcd
$
# 删除 systemd unit 文件
$ sudo rm -rf /etc/systemd/system/etcd.service
$
# 删除程序文件
$ sudo rm -rf /root/local/bin/etcd
$
# 删除 TLS 证书文件
$ sudo rm -rf /etc/etcd/ssl/
*
