前言
此为之前文章的参考，主要记录方便以后直接快速搭建
准备
| 服务器 | ip | 系统 | 角色 |
|---|---|---|---|
| master1 | 192.168.31.100 | centos7.6 | k8s-master节点1，ceph-node，ceph-osd，ceph-mds，ceph-mgr |
| node1 | 192.168.31.101 | centos7.6 | k8s-node节点1，ceph-node，ceph-osd，ceph-mds |
| node2 | 192.168.31.102 | centos7.6 | k8s-node节点2，ceph-node，ceph-osd，ceph-mds |
服务器软件准备
- 保证master1，node1，node2互通
- 配置hosts，hostname
# 配置hostname
hostnamectl set-hostname master1
hostnamectl set-hostname node1
hostnamectl set-hostname node2
# 每台机器配置hosts
cat >/etc/hosts <<EOF
192.168.31.100 master1
192.168.31.101 node1
192.168.31.102 node2
EOF
- 关闭防火墙，selinux，swap
systemctl stop firewalld
systemctl disable firewalld
setenforce 0
sed -i "s/^SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config
swapoff -a
sed -i 's/.*swap.*/#&/' /etc/fstab
- 配置内核参数，iptables
# 配置k8s iptables
cat << EOF > /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
vm.swappiness=0
EOF
# 配置ceph iptables
cat > /etc/sysctl.d/ceph.conf <<EOF
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system
第一步-配置yum国内源
root@ALL：
- 安装必要工具
yum -y install wget epel-release yum-utils
- 修改本机源
# 配置国内epel源，备份原先源
mkdir /etc/yum.repos.d/bak && mv /etc/yum.repos.d/*.repo /etc/yum.repos.d/bak
wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.cloud.tencent.com/repo/centos7_base.repo
wget -O /etc/yum.repos.d/epel.repo http://mirrors.cloud.tencent.com/repo/epel-7.repo
# 修改国内ceph源
cat << EOF >/etc/yum.repos.d/ceph.repo
[ceph-noarch]
name=Ceph noarch packages
baseurl=http://mirrors.aliyun.com/ceph/rpm-nautilus/el7/noarch/
enabled=1
gpgcheck=1
type=rpm-md
gpgkey=http://mirrors.aliyun.com/ceph/keys/release.asc
[ceph-x86_64]
name=Ceph packages
baseurl=http://mirrors.aliyun.com/ceph/rpm-nautilus/el7/x86_64/
enabled=1
gpgcheck=1
type=rpm-md
gpgkey=http://mirrors.aliyun.com/ceph/keys/release.asc
EOF
# 修改国内k8s源
cat << EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
# 配置国内docker源
wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
# 更新repo
yum clean all && yum makecache
- 安装docker，docker-compose并设置相关参数
yum -y install docker-compose docker-ce
systemctl start docker
systemctl enable docker
# 配置docker启动方式为systemd和为harbor服务器设置非https链接
cat << EOF > /etc/docker/daemon.json
{
"exec-opts": ["native.cgroupdriver=systemd"]
}
EOF
systemctl restart docker
docker info | grep Cgroup
第三步-在master1节点上搭建haproxy+keepalived框架
root@master1:
- 安装相关插件
yum install -y haproxy keepalived net-tools nmap-ncat
- 配置haproxy
sed -i '$a\
#---------------------------------------------------------------------\
# kube-api-server-listen\
#---------------------------------------------------------------------\
listen kube-api-lb\
bind 0.0.0.0:10443\
mode tcp\
balance roundrobin\
server master1 192.168.31.100:6443 weight 1 maxconn 10000 check inter 10s\
\
#---------------------------------------------------------------------\
# kube-api-haproxy-stats\
#---------------------------------------------------------------------\
listen admin_stats\
bind 0.0.0.0:8099\
mode http\
option httplog\
maxconn 10\
stats refresh 30s\
stats uri /stats' /etc/haproxy/haproxy.cfg
- 配置keepalived
mkdir -p /etc/keepalived/scripts/
cat > /etc/keepalived/scripts/haproxy_check.sh << \EOF
#!/bin/bash
if [ `ps -C haproxy --no-header |wc -l` -eq 0 ]
then
systemctl start haproxy
sleep 3
if [ `ps -C haproxy --no-header |wc -l` -eq 0 ]
then
systemctl stop keepalived
fi
fi
EOF
cat > /etc/keepalived/scripts/notifi_master.sh << \EOF
#!/bin/bash
VIP=192.xx.xx.xx
GATEWAY=192.xx.xx.xx
/sbin/arping -I eth0 -c 5 -s $VIP $GATEWAY &>/dev/null
EOF
chmod +x /etc/keepalived/scripts/haproxy_check.sh /etc/keepalived/scripts/notifi_master.sh
cp /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf.backup
-
这里把master1节点作为主节点，master2节点作为备用节点
在master1节点上配置主keepalived.conf
cat << EOF > /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
router_id Haproxy-Master
script_user root
enable_script_security
vrrp_skip_check_adv_addr
vrrp_iptables
vrrp_garp_interval 0
vrrp_gna_interval 0
# vrrp_strict
}
vrrp_script chk_haproxy
{
script "/etc/keepalived/scripts/haproxy_check.sh"
interval 5
fall 2
}
vrrp_instance haproxy {
state MASTER
interface ens33
virtual_router_id 51
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass 5e97s45a2
}
unicast_src_ip 192.168.31.100
unicast_peer {
192.168.31.101
192.168.31.102
}
track_script {
chk_haproxy
}
virtual_ipaddress {
192.168.31.150
}
notify_master "/etc/keepalived/scripts/notifi_master.sh"
}
EOF
- 启动keepalived
systemctl stop NetworkManager
systemctl start keepalived
systemctl enable keepalived
netstat -ntplu|grep 10443
第四步-部署k8s集群
root@ALL:
- 安装kubelet，kubectl，kubeadm
yum install -y kubelet-1.17.2 kubeadm-1.17.2 kubectl-1.17.2
systemctl enable kubelet
root@master1：
-
使用kubeadm部署master1
pod-network-cidr为flanneld网络默认地址
kubeadm init --kubernetes-version=1.17.2 \
--apiserver-advertise-address=192.168.31.100 \
--image-repository registry.aliyuncs.com/google_containers \
--service-cidr=10.1.0.0/16 \
--control-plane-endpoint "192.168.31.150:10443" \
--upload-certs \
--pod-network-cidr=10.244.0.0/16
- 记录加入master节点的token和加入node节点的token
- 配置kubectl工具
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
kubectl get nodes
kubectl get cs
-
部署flanneld网络
创建文件flanneld.yaml
# 生成文件夹
mkdir -p yaml/flanneld
# 写入文件
cat << EOF > yaml/flanneld/flanneld.yaml
---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
name: psp.flannel.unprivileged
annotations:
seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
privileged: false
volumes:
- configMap
- secret
- emptyDir
- hostPath
allowedHostPaths:
- pathPrefix: "/etc/cni/net.d"
- pathPrefix: "/etc/kube-flannel"
- pathPrefix: "/run/flannel"
readOnlyRootFilesystem: false
# Users and groups
runAsUser:
rule: RunAsAny
supplementalGroups:
rule: RunAsAny
fsGroup:
rule: RunAsAny
# Privilege Escalation
allowPrivilegeEscalation: false
defaultAllowPrivilegeEscalation: false
# Capabilities
allowedCapabilities: ['NET_ADMIN']
defaultAddCapabilities: []
requiredDropCapabilities: []
# Host namespaces
hostPID: false
hostIPC: false
hostNetwork: true
hostPorts:
- min: 0
max: 65535
# SELinux
seLinux:
# SELinux is unused in CaaSP
rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: flannel
rules:
- apiGroups: ['extensions']
resources: ['podsecuritypolicies']
verbs: ['use']
resourceNames: ['psp.flannel.unprivileged']
- apiGroups:
- ""
resources:
- pods
verbs:
- get
- apiGroups:
- ""
resources:
- nodes
verbs:
- list
- watch
- apiGroups:
- ""
resources:
- nodes/status
verbs:
- patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: flannel
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: flannel
subjects:
- kind: ServiceAccount
name: flannel
namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: flannel
namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
name: kube-flannel-cfg
namespace: kube-system
labels:
tier: node
app: flannel
data:
cni-conf.json: |
{
"name": "cbr0",
"cniVersion": "0.3.1",
"plugins": [
{
"type": "flannel",
"delegate": {
"hairpinMode": true,
"isDefaultGateway": true
}
},
{
"type": "portmap",
"capabilities": {
"portMappings": true
}
}
]
}
net-conf.json: |
{
"Network": "10.244.0.0/16",
"Backend": {
"Type": "vxlan"
}
}
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: kube-flannel-ds-amd64
namespace: kube-system
labels:
tier: node
app: flannel
spec:
selector:
matchLabels:
app: flannel
template:
metadata:
labels:
tier: node
app: flannel
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: beta.kubernetes.io/os
operator: In
values:
- linux
- key: beta.kubernetes.io/arch
operator: In
values:
- amd64
hostNetwork: true
tolerations:
- operator: Exists
effect: NoSchedule
serviceAccountName: flannel
initContainers:
- name: install-cni
image: quay.mirrors.ustc.edu.cn/coreos/flannel:v0.11.0-amd64
command:
- cp
args:
- -f
- /etc/kube-flannel/cni-conf.json
- /etc/cni/net.d/10-flannel.conflist
volumeMounts:
- name: cni
mountPath: /etc/cni/net.d
- name: flannel-cfg
mountPath: /etc/kube-flannel/
containers:
- name: kube-flannel
image: quay.mirrors.ustc.edu.cn/coreos/flannel:v0.11.0-amd64
command:
- /opt/bin/flanneld
args:
- --ip-masq
- --kube-subnet-mgr
resources:
requests:
cpu: "100m"
memory: "50Mi"
limits:
cpu: "100m"
memory: "50Mi"
securityContext:
privileged: false
capabilities:
add: ["NET_ADMIN"]
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: run
mountPath: /run/flannel
- name: flannel-cfg
mountPath: /etc/kube-flannel/
volumes:
- name: run
hostPath:
path: /run/flannel
- name: cni
hostPath:
path: /etc/cni/net.d
- name: flannel-cfg
configMap:
name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: kube-flannel-ds-arm64
namespace: kube-system
labels:
tier: node
app: flannel
spec:
selector:
matchLabels:
app: flannel
template:
metadata:
labels:
tier: node
app: flannel
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: beta.kubernetes.io/os
operator: In
values:
- linux
- key: beta.kubernetes.io/arch
operator: In
values:
- arm64
hostNetwork: true
tolerations:
- operator: Exists
effect: NoSchedule
serviceAccountName: flannel
initContainers:
- name: install-cni
image: quay.mirrors.ustc.edu.cn/coreos/flannel:v0.11.0-arm64
command:
- cp
args:
- -f
- /etc/kube-flannel/cni-conf.json
- /etc/cni/net.d/10-flannel.conflist
volumeMounts:
- name: cni
mountPath: /etc/cni/net.d
- name: flannel-cfg
mountPath: /etc/kube-flannel/
containers:
- name: kube-flannel
image: quay.mirrors.ustc.edu.cn/coreos/flannel:v0.11.0-arm64
command:
- /opt/bin/flanneld
args:
- --ip-masq
- --kube-subnet-mgr
resources:
requests:
cpu: "100m"
memory: "50Mi"
limits:
cpu: "100m"
memory: "50Mi"
securityContext:
privileged: false
capabilities:
add: ["NET_ADMIN"]
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: run
mountPath: /run/flannel
- name: flannel-cfg
mountPath: /etc/kube-flannel/
volumes:
- name: run
hostPath:
path: /run/flannel
- name: cni
hostPath:
path: /etc/cni/net.d
- name: flannel-cfg
configMap:
name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: kube-flannel-ds-arm
namespace: kube-system
labels:
tier: node
app: flannel
spec:
selector:
matchLabels:
app: flannel
template:
metadata:
labels:
tier: node
app: flannel
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: beta.kubernetes.io/os
operator: In
values:
- linux
- key: beta.kubernetes.io/arch
operator: In
values:
- arm
hostNetwork: true
tolerations:
- operator: Exists
effect: NoSchedule
serviceAccountName: flannel
initContainers:
- name: install-cni
image: quay.mirrors.ustc.edu.cn/coreos/flannel:v0.11.0-arm
command:
- cp
args:
- -f
- /etc/kube-flannel/cni-conf.json
- /etc/cni/net.d/10-flannel.conflist
volumeMounts:
- name: cni
mountPath: /etc/cni/net.d
- name: flannel-cfg
mountPath: /etc/kube-flannel/
containers:
- name: kube-flannel
image: quay.mirrors.ustc.edu.cn/coreos/flannel:v0.11.0-arm
command:
- /opt/bin/flanneld
args:
- --ip-masq
- --kube-subnet-mgr
resources:
requests:
cpu: "100m"
memory: "50Mi"
limits:
cpu: "100m"
memory: "50Mi"
securityContext:
privileged: false
capabilities:
add: ["NET_ADMIN"]
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: run
mountPath: /run/flannel
- name: flannel-cfg
mountPath: /etc/kube-flannel/
volumes:
- name: run
hostPath:
path: /run/flannel
- name: cni
hostPath:
path: /etc/cni/net.d
- name: flannel-cfg
configMap:
name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: kube-flannel-ds-ppc64le
namespace: kube-system
labels:
tier: node
app: flannel
spec:
selector:
matchLabels:
app: flannel
template:
metadata:
labels:
tier: node
app: flannel
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: beta.kubernetes.io/os
operator: In
values:
- linux
- key: beta.kubernetes.io/arch
operator: In
values:
- ppc64le
hostNetwork: true
tolerations:
- operator: Exists
effect: NoSchedule
serviceAccountName: flannel
initContainers:
- name: install-cni
image: quay.mirrors.ustc.edu.cn/coreos/flannel:v0.11.0-ppc64le
command:
- cp
args:
- -f
- /etc/kube-flannel/cni-conf.json
- /etc/cni/net.d/10-flannel.conflist
volumeMounts:
- name: cni
mountPath: /etc/cni/net.d
- name: flannel-cfg
mountPath: /etc/kube-flannel/
containers:
- name: kube-flannel
image: quay.mirrors.ustc.edu.cn/coreos/flannel:v0.11.0-ppc64le
command:
- /opt/bin/flanneld
args:
- --ip-masq
- --kube-subnet-mgr
resources:
requests:
cpu: "100m"
memory: "50Mi"
limits:
cpu: "100m"
memory: "50Mi"
securityContext:
privileged: false
capabilities:
add: ["NET_ADMIN"]
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: run
mountPath: /run/flannel
- name: flannel-cfg
mountPath: /etc/kube-flannel/
volumes:
- name: run
hostPath:
path: /run/flannel
- name: cni
hostPath:
path: /etc/cni/net.d
- name: flannel-cfg
configMap:
name: kube-flannel-cfg
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: kube-flannel-ds-s390x
namespace: kube-system
labels:
tier: node
app: flannel
spec:
selector:
matchLabels:
app: flannel
template:
metadata:
labels:
tier: node
app: flannel
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- key: beta.kubernetes.io/os
operator: In
values:
- linux
- key: beta.kubernetes.io/arch
operator: In
values:
- s390x
hostNetwork: true
tolerations:
- operator: Exists
effect: NoSchedule
serviceAccountName: flannel
initContainers:
- name: install-cni
image: quay.mirrors.ustc.edu.cn/coreos/flannel:v0.11.0-s390x
command:
- cp
args:
- -f
- /etc/kube-flannel/cni-conf.json
- /etc/cni/net.d/10-flannel.conflist
volumeMounts:
- name: cni
mountPath: /etc/cni/net.d
- name: flannel-cfg
mountPath: /etc/kube-flannel/
containers:
- name: kube-flannel
image: quay.mirrors.ustc.edu.cn/coreos/flannel:v0.11.0-s390x
command:
- /opt/bin/flanneld
args:
- --ip-masq
- --kube-subnet-mgr
resources:
requests:
cpu: "100m"
memory: "50Mi"
limits:
cpu: "100m"
memory: "50Mi"
securityContext:
privileged: false
capabilities:
add: ["NET_ADMIN"]
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: run
mountPath: /run/flannel
- name: flannel-cfg
mountPath: /etc/kube-flannel/
volumes:
- name: run
hostPath:
path: /run/flannel
- name: cni
hostPath:
path: /etc/cni/net.d
- name: flannel-cfg
configMap:
name: kube-flannel-cfg
EOF
- 创建flanneld网络
kubectl create -f yaml/flanneld/flanneld.yaml
# 检测集群状态
kubectl get nodes
root@node1，node2：
- 使用之前记录的加入命令加入k8s集群
kubectl get pod,svc,cs,node -Ao wide
第五步-部署ingress
root@master1
- 生成nginx-ingress部署文件
# 创建目录
mkdir yaml/nginx-ingress
# 生成文件
cat << EOF > yaml/nginx-ingress/deployment.yaml
apiVersion: v1
kind: Namespace
metadata:
name: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
kind: ConfigMap
apiVersion: v1
metadata:
name: nginx-configuration
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
kind: ConfigMap
apiVersion: v1
metadata:
name: tcp-services
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
kind: ConfigMap
apiVersion: v1
metadata:
name: udp-services
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: nginx-ingress-serviceaccount
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
name: nginx-ingress-clusterrole
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
rules:
- apiGroups:
- ""
resources:
- configmaps
- endpoints
- nodes
- pods
- secrets
verbs:
- list
- watch
- apiGroups:
- ""
resources:
- nodes
verbs:
- get
- apiGroups:
- ""
resources:
- services
verbs:
- get
- list
- watch
- apiGroups:
- ""
resources:
- events
verbs:
- create
- patch
- apiGroups:
- "extensions"
- "networking.k8s.io"
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- "extensions"
- "networking.k8s.io"
resources:
- ingresses/status
verbs:
- update
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: Role
metadata:
name: nginx-ingress-role
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
rules:
- apiGroups:
- ""
resources:
- configmaps
- pods
- secrets
- namespaces
verbs:
- get
- apiGroups:
- ""
resources:
- configmaps
resourceNames:
# Defaults to "<election-id>-<ingress-class>"
# Here: "<ingress-controller-leader>-<nginx>"
# This has to be adapted if you change either parameter
# when launching the nginx-ingress-controller.
- "ingress-controller-leader-nginx"
verbs:
- get
- update
- apiGroups:
- ""
resources:
- configmaps
verbs:
- create
- apiGroups:
- ""
resources:
- endpoints
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: RoleBinding
metadata:
name: nginx-ingress-role-nisa-binding
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: nginx-ingress-role
subjects:
- kind: ServiceAccount
name: nginx-ingress-serviceaccount
namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
name: nginx-ingress-clusterrole-nisa-binding
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: nginx-ingress-clusterrole
subjects:
- kind: ServiceAccount
name: nginx-ingress-serviceaccount
namespace: ingress-nginx
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-ingress-controller
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
spec:
replicas: 1
selector:
matchLabels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
template:
metadata:
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
annotations:
prometheus.io/port: "10254"
prometheus.io/scrape: "true"
spec:
# wait up to five minutes for the drain of connections
terminationGracePeriodSeconds: 300
serviceAccountName: nginx-ingress-serviceaccount
nodeSelector:
kubernetes.io/os: linux
containers:
- name: nginx-ingress-controller
image: quay.mirrors.ustc.edu.cn/kubernetes-ingress-controller/nginx-ingress-controller:0.26.1
args:
- /nginx-ingress-controller
- --configmap=$(POD_NAMESPACE)/nginx-configuration
- --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
- --udp-services-configmap=$(POD_NAMESPACE)/udp-services
- --publish-service=$(POD_NAMESPACE)/ingress-nginx
- --annotations-prefix=nginx.ingress.kubernetes.io
securityContext:
allowPrivilegeEscalation: true
capabilities:
drop:
- ALL
add:
- NET_BIND_SERVICE
# www-data -> 33
runAsUser: 33
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
ports:
- name: http
containerPort: 80
protocol: TCP
- name: https
containerPort: 443
protocol: TCP
livenessProbe:
failureThreshold: 3
httpGet:
path: /healthz
port: 10254
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 10
readinessProbe:
failureThreshold: 3
httpGet:
path: /healthz
port: 10254
scheme: HTTP
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 10
lifecycle:
preStop:
exec:
command:
- /wait-shutdown
---
apiVersion: v1
kind: Service
metadata:
name: ingress-nginx
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
spec:
type: NodePort
ports:
- name: http
port: 80
targetPort: 80
protocol: TCP
nodePort: 30080
- name: https
port: 443
targetPort: 443
protocol: TCP
nodePort: 30443
selector:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
---
EOF
# 部署nginx-ingress
kubectl apply -f yaml/nginx-ingress/deployment.yaml
第五步-部署dashboard
root@master1:
- 生成dashboard.yaml
# 生成文件夹
mkdir yaml/kube-dashboard
# 创建文件
cat << \EOF > yaml/kube-dashboard/deploy.yaml
# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
apiVersion: v1
kind: Namespace
metadata:
name: kubernetes-dashboard
---
apiVersion: v1
kind: ServiceAccount
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
ports:
- port: 443
targetPort: 8443
selector:
k8s-app: kubernetes-dashboard
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-certs
namespace: kubernetes-dashboard
type: Opaque
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-csrf
namespace: kubernetes-dashboard
type: Opaque
data:
csrf: ""
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-key-holder
namespace: kubernetes-dashboard
type: Opaque
---
kind: ConfigMap
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-settings
namespace: kubernetes-dashboard
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
rules:
# Allow Dashboard to get, update and delete Dashboard exclusive secrets.
- apiGroups: [""]
resources: ["secrets"]
resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
verbs: ["get", "update", "delete"]
# Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
- apiGroups: [""]
resources: ["configmaps"]
resourceNames: ["kubernetes-dashboard-settings"]
verbs: ["get", "update"]
# Allow Dashboard to get metrics.
- apiGroups: [""]
resources: ["services"]
resourceNames: ["heapster", "dashboard-metrics-scraper"]
verbs: ["proxy"]
- apiGroups: [""]
resources: ["services/proxy"]
resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
verbs: ["get"]
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
rules:
# Allow Metrics Scraper to get metrics from the Metrics server
- apiGroups: ["metrics.k8s.io"]
resources: ["pods", "nodes"]
verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: kubernetes-dashboard
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: kubernetes-dashboard
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: kubernetes-dashboard
template:
metadata:
labels:
k8s-app: kubernetes-dashboard
spec:
containers:
- name: kubernetes-dashboard
image: kubernetesui/dashboard:v2.0.0-rc3
imagePullPolicy: Always
ports:
- containerPort: 8443
protocol: TCP
args:
- --auto-generate-certificates
- --namespace=kubernetes-dashboard
# Uncomment the following line to manually specify Kubernetes API server Host
# If not specified, Dashboard will attempt to auto discover the API server and connect
# to it. Uncomment only if the default does not work.
# - --apiserver-host=http://my-address:port
volumeMounts:
- name: kubernetes-dashboard-certs
mountPath: /certs
# Create on-disk volume to store exec logs
- mountPath: /tmp
name: tmp-volume
livenessProbe:
httpGet:
scheme: HTTPS
path: /
port: 8443
initialDelaySeconds: 30
timeoutSeconds: 30
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsUser: 1001
runAsGroup: 2001
volumes:
- name: kubernetes-dashboard-certs
secret:
secretName: kubernetes-dashboard-certs
- name: tmp-volume
emptyDir: {}
serviceAccountName: kubernetes-dashboard
nodeSelector:
"beta.kubernetes.io/os": linux
# Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: dashboard-metrics-scraper
name: dashboard-metrics-scraper
namespace: kubernetes-dashboard
spec:
ports:
- port: 8000
targetPort: 8000
selector:
k8s-app: dashboard-metrics-scraper
---
kind: Deployment
apiVersion: apps/v1
metadata:
labels:
k8s-app: dashboard-metrics-scraper
name: dashboard-metrics-scraper
namespace: kubernetes-dashboard
spec:
replicas: 1
revisionHistoryLimit: 10
selector:
matchLabels:
k8s-app: dashboard-metrics-scraper
template:
metadata:
labels:
k8s-app: dashboard-metrics-scraper
annotations:
seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
spec:
containers:
- name: dashboard-metrics-scraper
image: kubernetesui/metrics-scraper:v1.0.1
ports:
- containerPort: 8000
protocol: TCP
livenessProbe:
httpGet:
scheme: HTTP
path: /
port: 8000
initialDelaySeconds: 30
timeoutSeconds: 30
volumeMounts:
- mountPath: /tmp
name: tmp-volume
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsUser: 1001
runAsGroup: 2001
serviceAccountName: kubernetes-dashboard
nodeSelector:
"beta.kubernetes.io/os": linux
# Comment the following tolerations if Dashboard must not be deployed on master
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
volumes:
- name: tmp-volume
emptyDir: {}
EOF
- 生成dahsboard
kubectl apply -f yaml/kube-dashboard/deploy.yaml
- 替换过期证书
#生成证书
mkdir -p key/kube-dashboard-key
openssl req -new -nodes -x509 \
-subj "/O=IT/CN=kube-dashboard.com" -days 3650 \
-keyout key/kube-dashboard-key/tls.key \
-out key/kube-dashboard-key/tls.crt \
-extensions v3_ca
#删除原有的证书secret
kubectl delete secret kubernetes-dashboard-certs -n kubernetes-dashboard
#创建新的证书secret
kubectl create secret tls kubernetes-dashboard-certs --cert='key/kube-dashboard-key/tls.crt' --key='key/kube-dashboard-key/tls.key' -n kubernetes-dashboard
#重启pod
kubectl delete pod $(kubectl -n kubernetes-dashboard get pod | awk '/kubernetes-dashboard/{print $1}') -n kubernetes-dashboard
- 配置ingress
# 生成ingress
openssl req -new -nodes -x509 \
-subj "/O=IT/CN=kubernetes-dashboard.com" -days 3650 \
-keyout key/nginx-ingress/kubernetes-dashboard/tls.key \
-out key/nginx-ingress/kubernetes-dashboard/tls.crt \
-extensions v3_ca
# 新建ingress的tls-secret
kubectl create secret tls ingress-kubernetes-dashboard-certs --cert='key/nginx-ingress/kubernetes-dashboard/tls.crt' --key='key/nginx-ingress/kubernetes-dashboard/tls.key' -n kubernetes-dashboard
# 生成ingress规则
cat << EOF > yaml/nginx-ingress/kubernetes-dashboard-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: ingress-kubernetes-dashboard-tls
namespace: kubernetes-dashboard
annotations:
nginx.ingress.kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
nginx.ingress.kubernetes.io/ssl-passthrough: "true"
nginx.ingress.kubernetes.io/rewrite-target: /\$1
spec:
tls:
- secretName: ingress-kubernetes-dashboard-certs
rules:
- http:
paths:
- path: /dashboard/(.*)
backend:
serviceName: kubernetes-dashboard
servicePort: 443
EOF
# 部署ingress规则
kubectl apply -f yaml/nginx-ingress/kubernetes-dashboard-ingress.yaml
- 创建账号访问
kubectl create serviceaccount dashboard-admin -n kubernetes-dashboard
kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kubernetes-dashboard:dashboard-admin
# 获取账号token
kubectl describe secrets -n kubernetes-dashboard $(kubectl -n kubernetes-dashboard get secret | awk '/dashboard-admin/{print $1}')
-

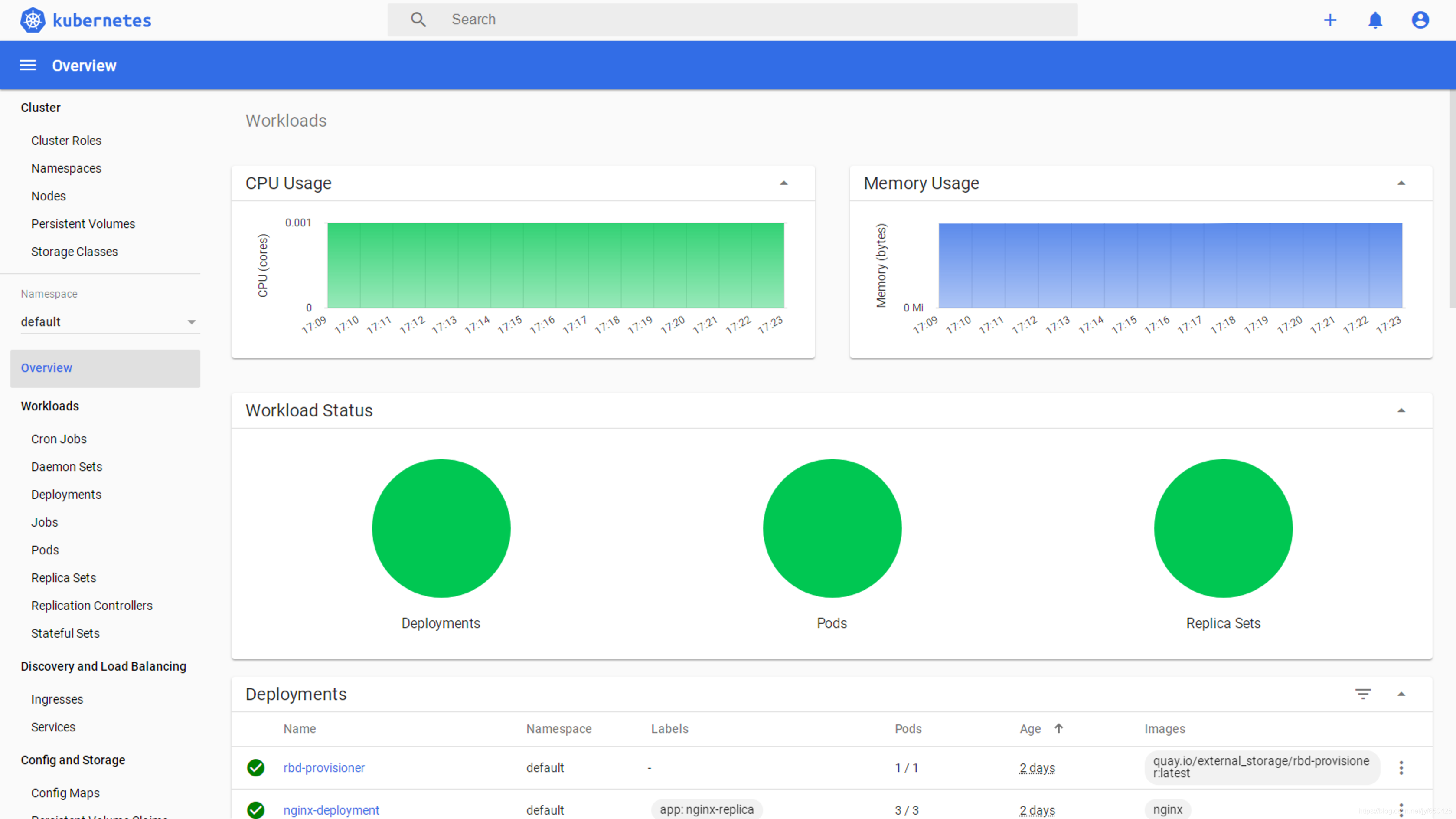

登陆dashboard
输入https://192.168.31.150:30443/dashboard/访问dashboard

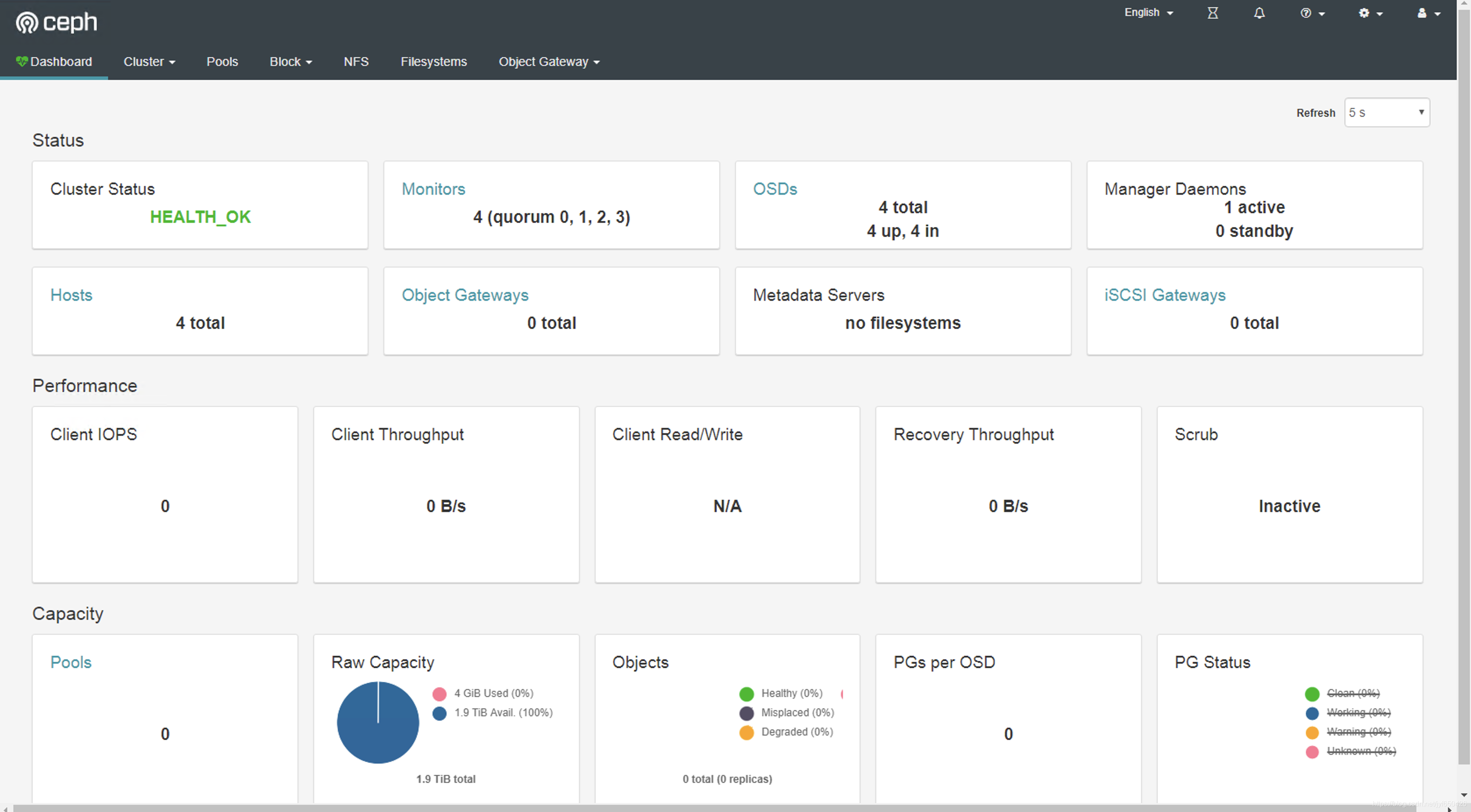

第六步-搭建ceph
root@ALL:
- 配置myceph用户
useradd -d /home/myceph -m myceph
passwd myceph
- 为myceph添加sudo权限
sed -i "/## Allow root to run any commands anywhere /a\\\myceph ALL = (ALL) ALL" /etc/sudoers
echo "myceph ALL = (root) NOPASSWD:ALL" | tee /etc/sudoers.d/myceph
sudo chmod 0440 /etc/sudoers.d/myceph
- 在所有节点安装ceph组件
yum install -y ceph-14.2.4-0.el7 ceph-radosgw-14.2.4-0.el7 yum-plugin-priorities
myceph@master1:
- 生成rsa-key实现免密登陆
# 生成key
ssh-keygen -t rsa
# 拷贝到各个节点
ssh-copy-id -i .ssh/id_rsa.pub myceph@node1
ssh-copy-id -i .ssh/id_rsa.pub myceph@node2
- 配置ssh-config
cat > ~/.ssh/config <<EOF
Host ceph-node1
Hostname master1
User myceph
Host ceph-node2
Hostname node1
User myceph
Host ceph-node3
Hostname node2
User myceph
EOF
# 配置该文件权限
sudo chmod 600 ~/.ssh/config
- 安装ceph-deploy
sudo yum install -y python-backports python-execnet python-ipaddress python-remoto python-setuptools
sudo yum install ceph-deploy -y
- 搭建ceph集群
mkdir my-cluster
cd my-cluster
# 部署mon
ceph-deploy new master1 node1 node2
- 修改ceph.conf在最后一行添加public network配置
vi ceph.conf
ceph.conf
[global]
fsid = b764d705-101f-4041-bbc1-871bbe4a8277
mon_initial_members = master1, node1, node2
mon_host = 192.168.31.100,192.168.31.101,192.168.31.102
auth_cluster_required = cephx
auth_service_required = cephx
auth_client_required = cephx
public_network = 192.168.31.0/24
- 初始化mon，mgr，osd，mds
# 部署mon
ceph-deploy mon create-initial
# 赋予节点admin权限
ceph-deploy admin master1 node1 node2
# 增加mgr
ceph-deploy mgr create master1
# 增加osd
ceph-deploy osd create --data /dev/sdb master1
ceph-deploy osd create --data /dev/sdb node1
ceph-deploy osd create --data /dev/sdb node2
# 增加mds
ceph-deploy mds create master1 node1 node2
root@node2:
- 开启dashboard
yum install -y ceph-mgr-dashboard-14.2.4-0.el7
ceph mgr module enable dashboard
# 生成证书
mkdir -p key/ceph-dashboard
openssl req -new -nodes -x509 \
-subj "/O=IT/CN=ceph-mgr-dashboard" -days 3650 \
-keyout key/ceph-dashboard/tls.key -out key/ceph-dashboard/tls.crt -extensions v3_ca
ceph dashboard set-ssl-certificate -i key/ceph-dashboard/tls.crt
ceph dashboard set-ssl-certificate-key -i key/ceph-dashboard/tls.key
# 设置端口，ip
ceph config set mgr mgr/dashboard/server_addr 192.168.31.100
ceph config set mgr mgr/dashboard/server_port 7000
ceph config set mgr mgr/dashboard/ssl_server_port 8443
# 设置用户
ceph dashboard ac-user-create admin admin administrator
# 查看地址
ceph mgr services
-
登陆ceph-dashboard
输入https://192.168.31.100:8443/ 用户admin 密码admin登陆
第七步-搭建cephFS文件系统并以storageclass方式提供服务
root@node2:
- 创建cephfs
# 创建cephfs所需pool
ceph osd pool create fs_kube_data 64
ceph osd pool create fs_kube_metadata 64
ceph fs new cephfs fs_kube_metadata fs_kube_data
- 测试挂载cephfs
yum -y install ceph-fuse-14.2.4-0.el7
mkdir /mnt/cephfs
# 将cephfs挂载在mnt目录下
ceph-fuse -m 192.168.31.100:6789 /mnt/cephfs
# 查看是否挂载成功
df -h |grep ceph-fuse
root@master1
- 创建admin-secret
ceph auth get-key client.admin > /tmp/secret
kubectl create ns ceph
kubectl create secret generic ceph-secret-admin --from-file=/tmp/secret --namespace=ceph
- 创建cephfs-provisioner文件
# 创建文件夹
mkdir -p yaml/cephfs
# 创建文件
cat << EOF > yaml/cephfs/provisioner.yaml
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: cephfs-provisioner
namespace: ceph
rules:
- apiGroups: [""]
resources: ["persistentvolumes"]
verbs: ["get", "list", "watch", "create", "delete"]
- apiGroups: [""]
resources: ["persistentvolumeclaims"]
verbs: ["get", "list", "watch", "update"]
- apiGroups: ["storage.k8s.io"]
resources: ["storageclasses"]
verbs: ["get", "list", "watch"]
- apiGroups: [""]
resources: ["events"]
verbs: ["create", "update", "patch"]
- apiGroups: [""]
resources: ["services"]
resourceNames: ["kube-dns","coredns"]
verbs: ["list", "get"]
- apiGroups: [""]
resources: ["secrets"]
verbs: ["get", "create", "delete"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: cephfs-provisioner
subjects:
- kind: ServiceAccount
name: cephfs-provisioner
namespace: ceph
roleRef:
kind: ClusterRole
name: cephfs-provisioner
apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: cephfs-provisioner
namespace: ceph
rules:
- apiGroups: [""]
resources: ["secrets"]
verbs: ["create", "get", "delete"]
- apiGroups: [""]
resources: ["endpoints"]
verbs: ["get", "list", "watch", "create", "update", "patch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: cephfs-provisioner
namespace: ceph
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: cephfs-provisioner
subjects:
- kind: ServiceAccount
name: cephfs-provisioner
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: cephfs-provisioner
namespace: ceph
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: cephfs-provisioner
namespace: ceph
spec:
replicas: 1
selector:
matchLabels:
app: cephfs-provisioner
strategy:
type: Recreate
template:
metadata:
labels:
app: cephfs-provisioner
spec:
containers:
- name: cephfs-provisioner
image: quay.azk8s.cn/external_storage/cephfs-provisioner:latest
env:
- name: PROVISIONER_NAME
value: ceph.com/cephfs
- name: PROVISIONER_SECRET_NAMESPACE
value: ceph
command:
- "/usr/local/bin/cephfs-provisioner"
args:
- "-id=cephfs-provisioner-1"
serviceAccount: cephfs-provisioner
---
EOF
- 创建cephfs-provisioner
kubectl create -f yaml/cephfs/provisioner.yaml
# 查看是否创建成功
kubectl get pod -n=ceph -o wide
- 创建storageclass文件及测试文件
# 创建storageclass文件
cat << EOF > yaml/cephfs/storageclass.yaml
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
name: cephfs
provisioner: ceph.com/cephfs
parameters:
monitors: 192.168.31.100:6789,192.168.31.101:6789,192.168.31.102:6789
adminId: admin
adminSecretName: ceph-secret-admin
adminSecretNamespace: "ceph"
claimRoot: /pvc-volumes
EOF
# 创建pvc测试文件
cat << EOF > yaml/cephfs/test-pvc.yaml
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: test-pvc
namespace: ceph
spec:
storageClassName: cephfs
accessModes:
- ReadWriteMany
resources:
requests:
storage: 5Gi
EOF
# 创建pod测试挂载pvc
cat << EOF > yaml/cephfs/test-pod.yaml
---
kind: Pod
apiVersion: v1
metadata:
name: test-pod
namespace: ceph
spec:
containers:
- name: test-pod
image: registry.aliyuncs.com/google_containers/busybox:1.24
command:
- "/bin/sh"
args:
- "-c"
- "touch /mnt/SUCCESS && exit 0 || exit 1"
volumeMounts:
- name: pvc
mountPath: "/mnt"
subPath: "test-pod"
restartPolicy: "Never"
volumes:
- name: pvc
persistentVolumeClaim:
claimName: test-pvc
EOF
- 部署storageclass以及测试pvc，pod，查看是否成功
kubectl apply -f yaml/cephfs/storageclass.yaml
kubectl apply -f yaml/cephfs/test-pvc.yaml
# 等待创建完成，再进行测试
kubectl apply -f yaml/cephfs/test-pod.yaml
# 查看是否创建成功
kubectl describe pvc -n=ceph
kubectl describe pod/test-pod -n=ceph
第八步-搭建cephRBD存储并以storageclass方式提供服务
root@node2:
- 创建ceph-pool并启用mon
# 创建pool
ceph osd pool create rbd_kube 8 8
# 启用mon
ceph osd pool application enable rbd_kube mon
# 设置读写权限
ceph auth add client.kube mon 'allow r' osd 'allow rwx pool=rbd_kube'
root@master1:
- 创建ceph-secret
ceph auth get-key client.kube > /tmp/kube-secret
kubectl create secret generic ceph-rbd-secret --from-file=/tmp/kube-secret --namespace=ceph --type=kubernetes.io/rbd
- 创建ceph-rbd-provisioner文件
# 创建文件夹
mkdir -p yaml/ceph-rbd
cat << EOF > yaml/ceph-rbd/provisioner.yaml
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: rbd-provisioner
namespace: ceph
rules:
- apiGroups: [""]
resources: ["persistentvolumes"]
verbs: ["get", "list", "watch", "create", "delete"]
- apiGroups: [""]
resources: ["persistentvolumeclaims"]
verbs: ["get", "list", "watch", "update"]
- apiGroups: ["storage.k8s.io"]
resources: ["storageclasses"]
verbs: ["get", "list", "watch"]
- apiGroups: [""]
resources: ["events"]
verbs: ["create", "update", "patch"]
- apiGroups: [""]
resources: ["services"]
resourceNames: ["kube-dns","coredns"]
verbs: ["list", "get"]
- apiGroups: [""]
resources: ["endpoints"]
verbs: ["get", "list", "watch", "create", "update", "patch"]
- apiGroups: [""]
resources: ["secrets"]
verbs: ["get", "create", "delete"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: rbd-provisioner
subjects:
- kind: ServiceAccount
name: rbd-provisioner
namespace: ceph
roleRef:
kind: ClusterRole
name: rbd-provisioner
apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: rbd-provisioner
namespace: ceph
rules:
- apiGroups: [""]
resources: ["secrets"]
verbs: ["get"]
- apiGroups: [""]
resources: ["endpoints"]
verbs: ["get", "list", "watch", "create", "update", "patch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: rbd-provisioner
namespace: ceph
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: rbd-provisioner
subjects:
- kind: ServiceAccount
name: rbd-provisioner
namespace: default
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: rbd-provisioner
namespace: ceph
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: rbd-provisioner
namespace: ceph
spec:
replicas: 1
selector:
matchLabels:
app: rbd-provisioner
strategy:
type: Recreate
template:
metadata:
labels:
app: rbd-provisioner
spec:
containers:
- name: rbd-provisioner
image: quay.azk8s.cn/external_storage/rbd-provisioner:latest
env:
- name: PROVISIONER_NAME
value: ceph.com/rbd
serviceAccount: rbd-provisioner
---
EOF
- 部署rbd-provisioner
kubectl create -f yaml/ceph-rbd/provisioner.yaml
# 查看是否已经成功部署
kubectl get pod -n=ceph -o wide
- 创建storageclass文件和测试文件
cat << EOF > yaml/ceph-rbd/storageclass.yaml
---
kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
name: rbd
provisioner: ceph.com/rbd
parameters:
monitors: 192.168.31.100:6789,192.168.31.101:6789,192.168.31.102:6789
pool: rbd_kube
adminId: admin
adminSecretNamespace: ceph
adminSecretName: ceph-secret-admin
userId: kube
userSecretNamespace: ceph
userSecretName: ceph-rbd-secret
imageFormat: "2"
imageFeatures: layering
allowVolumeExpansion: true
---
EOF
# 创建测试pvc
cat << EOF > yaml/ceph-rbd/test-pvc.yaml
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: test-pvc-rbd
spec:
accessModes:
- ReadWriteOnce
storageClassName: rbd
resources:
requests:
storage: 5Gi
---
EOF
# 创建测试pod
cat << EOF > yaml/ceph-rbd/test-pod.yaml
---
kind: Pod
apiVersion: v1
metadata:
name: test-pod
spec:
containers:
- name: test-pod
image: registry.aliyuncs.com/google_containers/busybox:1.24
command:
- "/bin/sh"
args:
- "-c"
- "touch /mnt/SUCCESS && exit 0 || exit 1"
volumeMounts:
- name: pvc
mountPath: "/mnt"
restartPolicy: "Never"
volumes:
- name: pvc
persistentVolumeClaim:
claimName: test-pvc-rbd
---
EOF
- 测试pod挂载pvc（RBD方式）
kubectl create -f yaml/ceph-rbd/storageclass.yaml
kubectl create -f yaml/ceph-rbd/test-pvc.yaml
# 等前面创建完成再创建
kubectl create -f yaml/ceph-rbd/test-pod.yaml
# 查看是否创建成功
kubectl describe pvc -n=ceph
kubectl describe pod/test-pod -n=ceph
版权声明：本文为jyf650426原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
