springcloud组件sentinel持久化
sentinel下载地址
springcloud-sentinel代码链接gitee
前期准备：
sentinel启动：
端口：8858
用户名：nacos
密码：nacos
启动命令：
java -Dserver.port=8858 -Dsentinel.dashboard.auth.username=nacos -Dsentinel.dashboard.auth.password=nacos -jar /root/sentinel/sentinel-dashboard-1.8.0.jar
nacos配置文件
demo-sentinel-degrade-rule
(json格式)
[
{
"resource": "/demo/degrade",
"limitApp": "default",
"count": 1.0,
"timeWindow": 5,
"grade": 2,
"minRequestAmount": 3,
"slowRatioThreshold": 1.0,
"statIntervalMs": 1000
}
]
demo-sentinel-flow-rule
(json格式)
[
{
"resource":"/demo/flow",
"controlBehavior":0,
"count":2,
"grade":1,
"limitApp":"default",
"strategy":0
},
{
"resource":"/假数据",
"controlBehavior":0,
"count":2,
"grade":1,
"limitApp":"default",
"strategy":0
}
]

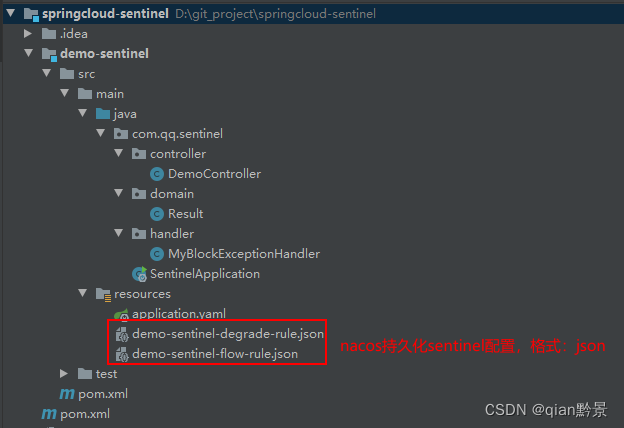

1.目录结构
2.maven依赖
springcloud-sentinel依赖
<parent>
<artifactId>spring-boot-starter-parent</artifactId>
<groupId>org.springframework.boot</groupId>
<version>2.3.2.RELEASE</version>
</parent>
<dependencyManagement>
<dependencies>
<!-- Spring Dependencies -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-dependencies</artifactId>
<version>2.3.2.RELEASE</version>
<scope>import</scope>
<type>pom</type>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>Hoxton.SR8</version>
<scope>import</scope>
<type>pom</type>
</dependency>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-alibaba-dependencies</artifactId>
<version>2.2.5.RELEASE</version>
<scope>import</scope>
<type>pom</type>
</dependency>
</dependencies>
</dependencyManagement>
demo-sentinel依赖
<dependencies>
<!-- web 启动器依赖 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- springcloud sentinel启动器-->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>
<!-- sentinel 持久化依赖 -->
<dependency>
<groupId>com.alibaba.csp</groupId>
<artifactId>sentinel-datasource-nacos</artifactId>
</dependency>
<!-- nacos 注册中心依赖 -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
</dependencies>
3.统一响应格式
/**
* @author 黔程似景
* @description 统一返回格式
* @date 2022/10/26 19:58
* @blame 黔程似景
**/
public class Result<T> {
private Integer code;
private String msg;
private T data;
public Result(Integer code, String msg, T data) {
this.code = code;
this.msg = msg;
this.data = data;
}
public Result(Integer code, String msg) {
this.code = code;
this.msg = msg;
}
public Integer getCode() {
return code;
}
public void setCode(Integer code) {
this.code = code;
}
public String getMsg() {
return msg;
}
public void setMsg(String msg) {
this.msg = msg;
}
public T getData() {
return data;
}
public void setData(T data) {
this.data = data;
}
public static Result error(Integer code, String msg){
return new Result(code,msg);
}
}
4.handler(异常监听)
/**
* @author 黔程似景
* @description sentinel控制异常监听
* @date 2022/10/26 19:59
* @blame 黔程似景
**/
@Component
public class MyBlockExceptionHandler implements BlockExceptionHandler {
Logger log= LoggerFactory.getLogger(this.getClass());
@Override
public void handle(HttpServletRequest httpServletRequest, HttpServletResponse response, BlockException e) throws Exception {
// getRule() 资源 规则的详细信息
log.info("BlockExceptionHandler BlockException================"+e.getRule());
Result r = null;
if (e instanceof FlowException) {
r = Result.error(100,"流控规则异常");
} else if (e instanceof DegradeException) {
r = Result.error(101,"降级规则异常");
} else if (e instanceof ParamFlowException) {
r = Result.error(102,"热点规则异常");
} else if (e instanceof SystemBlockException) {
r = Result.error(103,"系统规则异常");
} else if (e instanceof AuthorityException) {
r = Result.error(104,"授权规则异常");
}
//返回json数据
response.setStatus(500);
response.setCharacterEncoding("utf-8");
response.setContentType(MediaType.APPLICATION_JSON_VALUE);
new ObjectMapper().writeValue(response.getWriter(), r);
}
}
5.controller
/**
* @author 黔程似景
* @description 接口demo
* @date 2022/10/25 22:01
* @blame 黔程似景
**/
@RestController
@RequestMapping("/demo")
public class DemoController {
/**
* 流控接口
*/
@GetMapping("/flow")
public Result flow(){
return new Result(200 , "hello sentinel ! ! ! ");
}
/**
* 服务降级
*/
@GetMapping("/degrade")
public Result degrade(){
//必须存在异常，否则无法触发异常
int i = 1/0;
return new Result(200 , "hello sentinel ! ! !");
}
}
6.配置文件application.yaml
配置自己的nacos和sentinel地址
server:
port: 8300
spring:
application:
name: demo-sentinel
cloud:
sentinel:
transport:
# sentinel服务地址
dashboard: 192.168.153.199:8858
web-context-unify: true # 默认将调用链路收敛，导致链路流控失效
datasource:
flow-rule:
nacos:
# flow：流控、degrade：服务降级、param-flow：热点参数限流、system：系统保护、authority：授权规则
rule-type: flow
#nacos服务地址
server-addr: 192.168.153.199:8848
username: nacos
password: nacos
# nacos命名空间(public可以不写，其他的一定要写)
namespace: sentinel
# nacos配置的配置dataId
dataId: demo-sentinel-flow-rule
degrade-rule:
nacos:
# degrade：服务降级
rule-type: degrade
server-addr: 192.168.153.199:8848
username: nacos
password: nacos
dataId: demo-sentinel-degrade-rule
namespace: sentinel
nacos:
server-addr: 192.168.153.199:8848
discovery:
namespace: sentinel
username: nacos
password: nacos
7.启动类
/**
* @author 黔程似景
* @description sentinel 工程启动类
* @date 2022/10/25 21:53
* @blame 黔程似景
**/
@SpringBootApplication
public class SentinelApplication {
public static void main(String[] args) {
SpringApplication.run(SentinelApplication.class , args);
}
}
8.启动测试
8.1 启动nacos
8.2 启动sentinel
8.3 启动demo-sentinel微服务

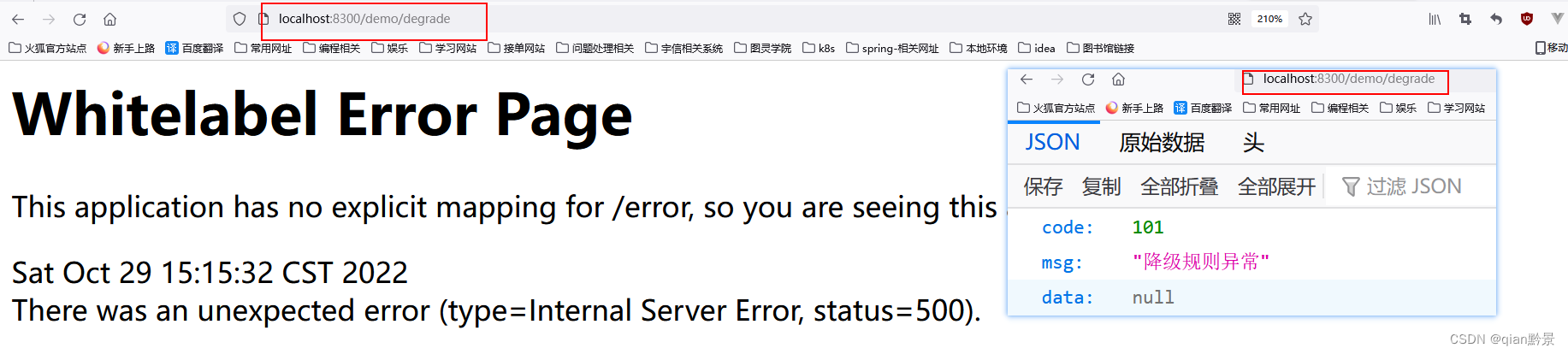

多访问几次访问端口：
http://localhost:8300/demo/degrade

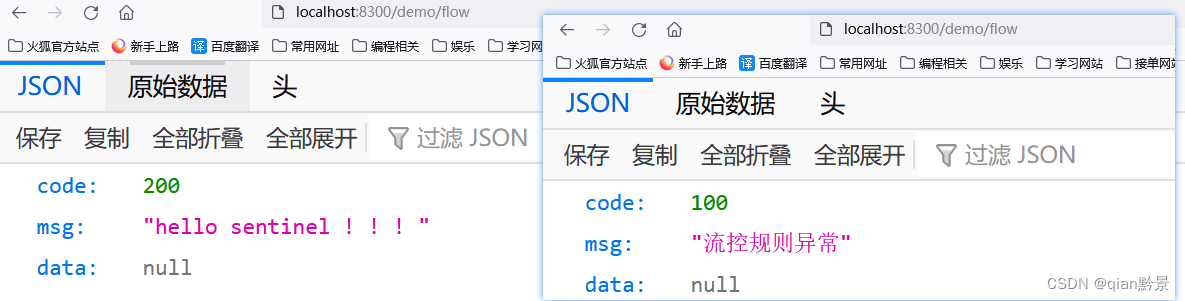

一秒内多访问几次访问端口：
http://localhost:8300/demo/flow

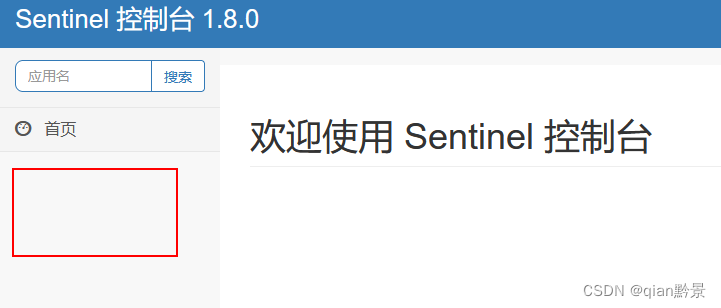

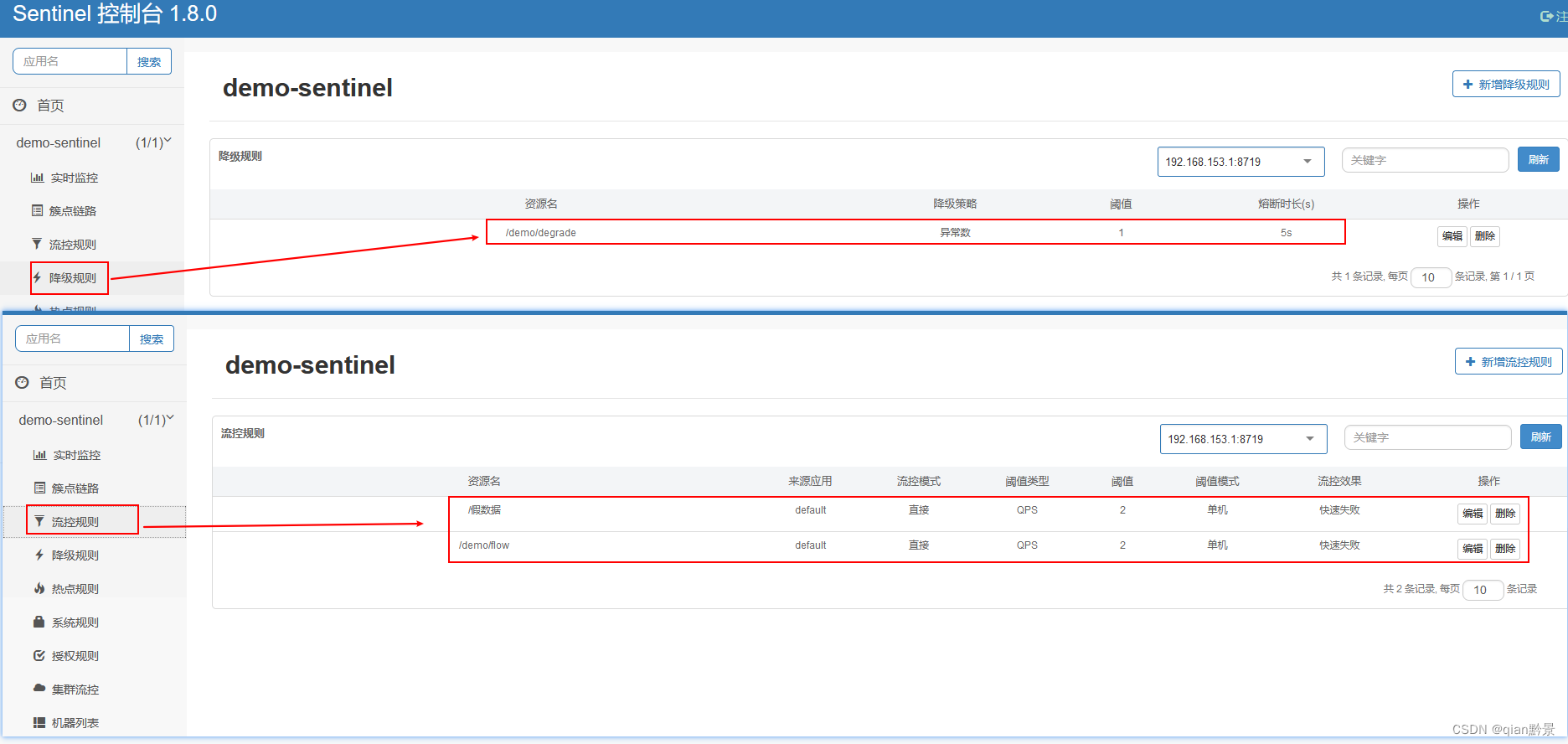

刷新sentinel
9.更加深入了解规则参数请移步到sentinel
