shader编程-2D基本图形SDF有向距离场介绍与使用
1. 有向距离场介绍
有向距离场，英文名Signed Distance Field，简称SDF，把空间中与物体表面的距离进行采样，使用负值表示物体内部，使用正值表示物体外部，与物体的表面的距离为0，大于0，小于0和等于0区分物体的区域，你很快可以联想到之前使用的step函数和smoothstep函数，是的，通过与这两个函数的配合，就可以像前面样绘制图形了
2. SDF绘制圆
先从最简单的圆开始，圆的定义就是与圆心的距离小于半径的集合，这时要祭出一个大神的网站，其中一个页面罗列了各种二维SDF的绘制方案，具体请到这里查阅
2dSDF
float sdCircle( vec2 p, float r )
{
return length(p) - r;// 到圆表面的距离
}
调用
void main( void ) {
//窗口坐标调整为[-1,1],坐标原点在屏幕中心
vec2 st = (gl_FragCoord.xy * 2. - u_resolution) / u_resolution.y;
vec3 line_color = vec3(1.0,1.0,0.0);
vec3 color = vec3(0.6);//背景色
float pct = 0.0;
pct = sdCircle(st,0.5);
color = mix(color,line_color,pct);
gl_FragColor = vec4(color, 1.0);
}
执行结果，怎么是这样，没错，开始说过物体SDF返回的距离，内部小于0，外部大于0，表面等于0，所以没毛病
要想展示我们熟悉的圆，使用smoothstep施加一点小小的魔法，具体如下
//color = mix(color,line_color,pct);
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));

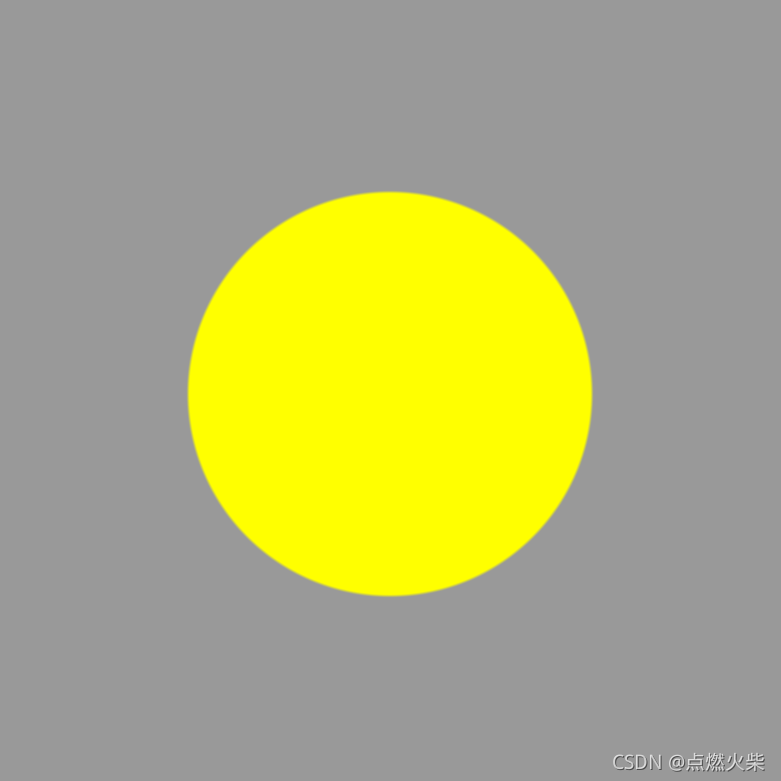

再来看看结果，一个黄色的圆出现在绘图区域了
3. SDF绘制矩形
3.1 绘制矩形
绘制矩形的SDF函数
float sdBox( in vec2 p, in vec2 b )
{
vec2 d = abs(p)-b;
return length(max(d,0.0)) + min(max(d.x,d.y),0.0);
}
调用
...
pct = sdBox(st,vec2(0.3));
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);
执行结果
3.2 绘制带圆角矩形
如果想给矩形加个圆角该怎么做呢？只需要将SDF结果减去一个数，这个数就是圆角的半径，在sdBox函数的基础上多加一个参数传入圆角半径
float sdBoxRadius( in vec2 p, in vec2 b,float radius )
{
vec2 d = abs(p)-b;
return length(max(d,0.0)) + min(max(d.x,d.y),0.0) - radius;
}
调用
...
pct = sdBoxRadius(st,vec2(0.3),0.02);
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);
执行结果，直角变成了圆角
3.3 通过两端和宽度绘制矩形
通过两端和宽度绘制矩形的SDF函数需要输入四个参数，第一个是屏幕坐标，第二个是矩形的起点，第三个是矩形的终点，第四个参数是矩形的宽度，如下
//通过端点和宽度绘制矩形
float sdOrientedBox( in vec2 p, in vec2 a, in vec2 b, float th )
{
float l = length(b-a);
vec2 d = (b-a)/l;
vec2 q = (p-(a+b)*0.5);
q = mat2(d.x,-d.y,d.y,d.x)*q;
q = abs(q)-vec2(l,th)*0.5;
return length(max(q,0.0)) + min(max(q.x,q.y),0.0);
}
调用
...
pct = sdOrientedBox(st,vec2(-0.3),vec2(0.3,0.6),0.1);
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);
执行结果
4. SDF绘制线段
绘制线段的SDF函数需要输入三个参数，第一个是屏幕坐标，第二个是线段的起点，第三个是线段的终点，具体如下
float sdSegment( in vec2 p, in vec2 a, in vec2 b )
{
vec2 pa = p-a, ba = b-a;
float h = clamp( dot(pa,ba)/dot(ba,ba), 0.0, 1.0 );
return length( pa - ba*h );
}
调用
...
pct = sdSegment(st,vec2(-0.3),vec2(0.3,0.6));
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);
执行结果
5. SDF绘制菱形
绘制菱形的SDF函数需要输入两个参数，第一个是屏幕坐标，第二个描述菱形的尺寸，是一个二维向量，x分量表示菱形顶点x轴上距离坐标中心的距离，y分量表示y轴上距离坐标中心的距离，如下
float ndot(vec2 a, vec2 b ) { return a.x*b.x - a.y*b.y; }
float sdRhombus( in vec2 p, in vec2 b )
{
p = abs(p);
float h = clamp( ndot(b-2.0*p,b)/dot(b,b), -1.0, 1.0 );
float d = length( p-0.5*b*vec2(1.0-h,1.0+h) );
return d * sign( p.x*b.y + p.y*b.x - b.x*b.y );
}
调用
...
pct = sdRhombus(st,vec2(0.5,0.3));
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);
执行结果
6. SDF绘制梯形
绘制梯形的SDF函数需要输入四个参数，第一个是屏幕坐标，第二个参数为梯形下底在x轴正方向的宽度第三个参数为梯形上底在x轴正方向的宽度，第四个参数表示梯形在y轴正方向的高度，具体实现如下
float dot2(in vec2 v ) { return dot(v,v); }
float sdTrapezoid( in vec2 p, in float r1, float r2, float he )
{
vec2 k1 = vec2(r2,he);
vec2 k2 = vec2(r2-r1,2.0*he);
p.x = abs(p.x);
vec2 ca = vec2(p.x-min(p.x,(p.y<0.0)?r1:r2), abs(p.y)-he);
vec2 cb = p - k1 + k2*clamp( dot(k1-p,k2)/dot2(k2), 0.0, 1.0 );
float s = (cb.x<0.0 && ca.y<0.0) ? -1.0 : 1.0;
return s*sqrt( min(dot2(ca),dot2(cb)) );
}
调用
...
pct = sdTrapezoid(st,0.9,0.3,0.5);
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);

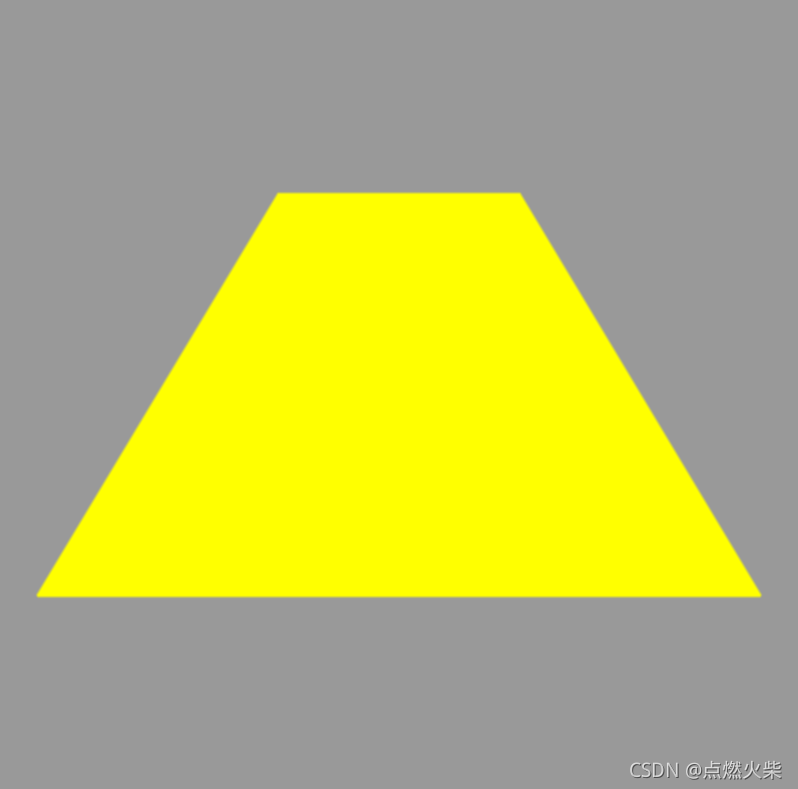

执行结果
7. SDF绘制三角形
绘制三角形的SDF函数需要输入四个参数，第一个是屏幕坐标，第二个参数为三角形左下角顶点坐标，第三个参数为三角形右下角顶点坐标，第四个参数表示三角形顶部顶点坐标，具体实现如下
float sdTriangle( in vec2 p, in vec2 p0, in vec2 p1, in vec2 p2 )
{
vec2 e0 = p1-p0, e1 = p2-p1, e2 = p0-p2;
vec2 v0 = p -p0, v1 = p -p1, v2 = p -p2;
vec2 pq0 = v0 - e0*clamp( dot(v0,e0)/dot(e0,e0), 0.0, 1.0 );
vec2 pq1 = v1 - e1*clamp( dot(v1,e1)/dot(e1,e1), 0.0, 1.0 );
vec2 pq2 = v2 - e2*clamp( dot(v2,e2)/dot(e2,e2), 0.0, 1.0 );
float s = sign( e0.x*e2.y - e0.y*e2.x );
vec2 d = min(min(vec2(dot(pq0,pq0), s*(v0.x*e0.y-v0.y*e0.x)),
vec2(dot(pq1,pq1), s*(v1.x*e1.y-v1.y*e1.x))),
vec2(dot(pq2,pq2), s*(v2.x*e2.y-v2.y*e2.x)));
return -sqrt(d.x)*sign(d.y);
}
调用
...
pct = sdTriangle(st,vec2(-0.3,0.0),vec2(0.3,0.0),vec2(0.0,0.5));
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);
执行结果
8. SDF绘制水滴形
绘制水滴形的SDF函数需要输入四个参数，分别表示屏幕坐标，底圆半径，上圆半径，高度
，具体实现如下
float sdUnevenCapsule( vec2 p, float r1, float r2, float h )
{
p.x = abs(p.x);
float b = (r1-r2)/h;
float a = sqrt(1.0-b*b);
float k = dot(p,vec2(-b,a));
if( k < 0.0 ) return length(p) - r1;
if( k > a*h ) return length(p-vec2(0.0,h)) - r2;
return dot(p, vec2(a,b) ) - r1;
}
调用
...
pct = sdUnevenCapsule(st,0.3,0.2,0.6);
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);

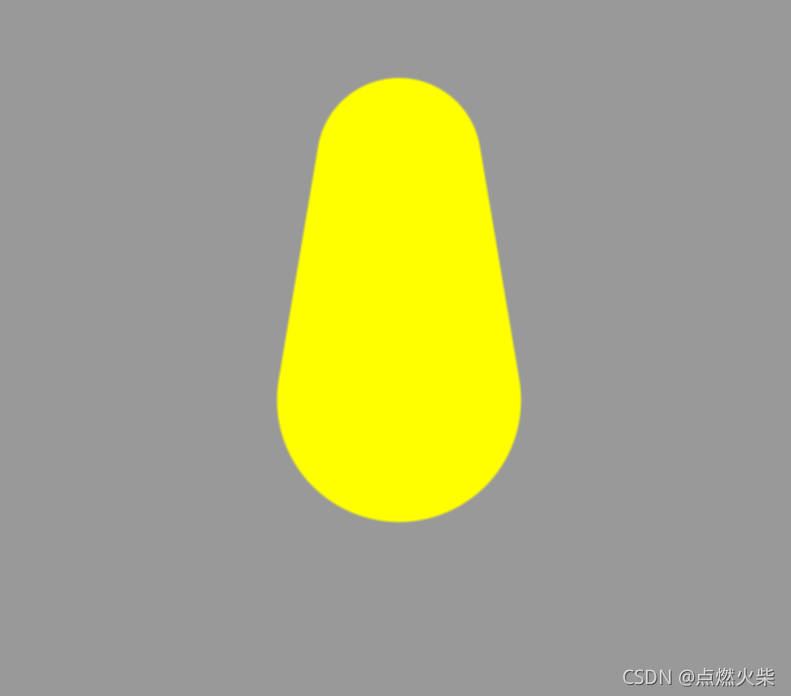

执行结果
9. SDF绘制扇形
绘制扇形的SDF函数需要输入三个参数，第一个是屏幕坐标，第二个参数用来确定扇形的大小，由x分量和y分量可以确定极坐标下第一象限的角度，第三个参数为扇形圆的半径，具体实现如下
float sdPie( in vec2 p, in vec2 c, in float r )
{
p.x = abs(p.x);
float l = length(p) - r;
float m = length(p-c*clamp(dot(p,c),0.0,r)); // c=sin/cos of aperture
return max(l,m*sign(c.y*p.x-c.x*p.y));
}
调用
...
pct = sdPie(st,vec2(0.3,0.1),0.8);
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);

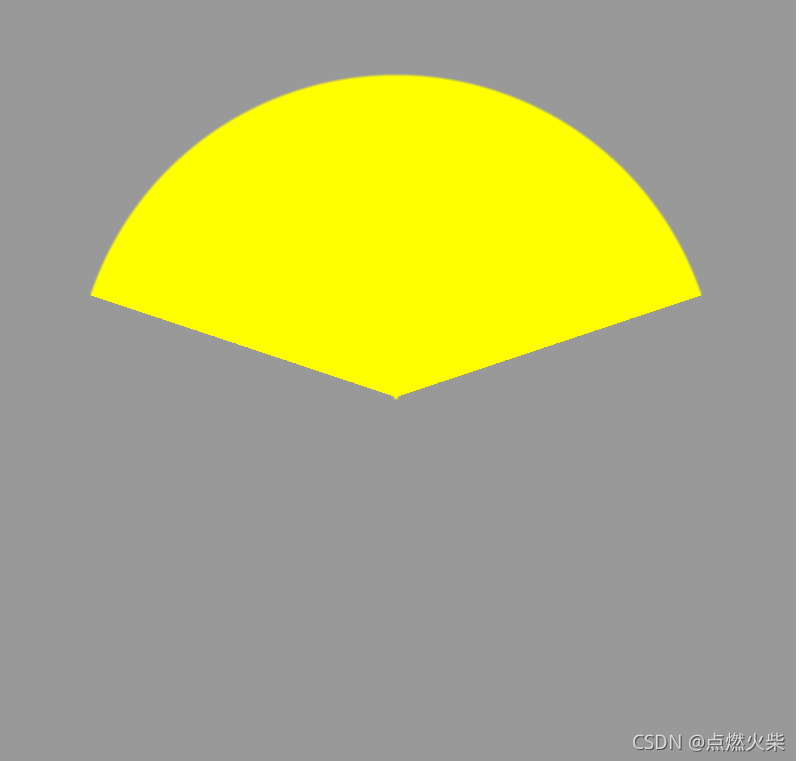

执行结果
10. SDF绘制图形圆角
前面的图形中我们绘制了一个圆角矩形，那么SDF图形是否都具有这个性质呢，肯定的都具有这个性质，即只将SDF结果减去一个数，这个数就是对应图形圆角的半径，例如我们给绘制三角的SDF函数加多一个参数表示圆角，返回时减去它
float sdTriangleRadius( in vec2 p, in vec2 p0, in vec2 p1, in vec2 p2,float cornerRadius )
{
vec2 e0 = p1-p0, e1 = p2-p1, e2 = p0-p2;
vec2 v0 = p -p0, v1 = p -p1, v2 = p -p2;
vec2 pq0 = v0 - e0*clamp( dot(v0,e0)/dot(e0,e0), 0.0, 1.0 );
vec2 pq1 = v1 - e1*clamp( dot(v1,e1)/dot(e1,e1), 0.0, 1.0 );
vec2 pq2 = v2 - e2*clamp( dot(v2,e2)/dot(e2,e2), 0.0, 1.0 );
float s = sign( e0.x*e2.y - e0.y*e2.x );
vec2 d = min(min(vec2(dot(pq0,pq0), s*(v0.x*e0.y-v0.y*e0.x)),
vec2(dot(pq1,pq1), s*(v1.x*e1.y-v1.y*e1.x))),
vec2(dot(pq2,pq2), s*(v2.x*e2.y-v2.y*e2.x)));
return -sqrt(d.x)*sign(d.y) -cornerRadius;
}
调用
...
pct = sdTriangleRadius(st,vec2(-0.3,0.0),vec2(0.3,0.0),vec2(0.0,0.5),0.05);
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);

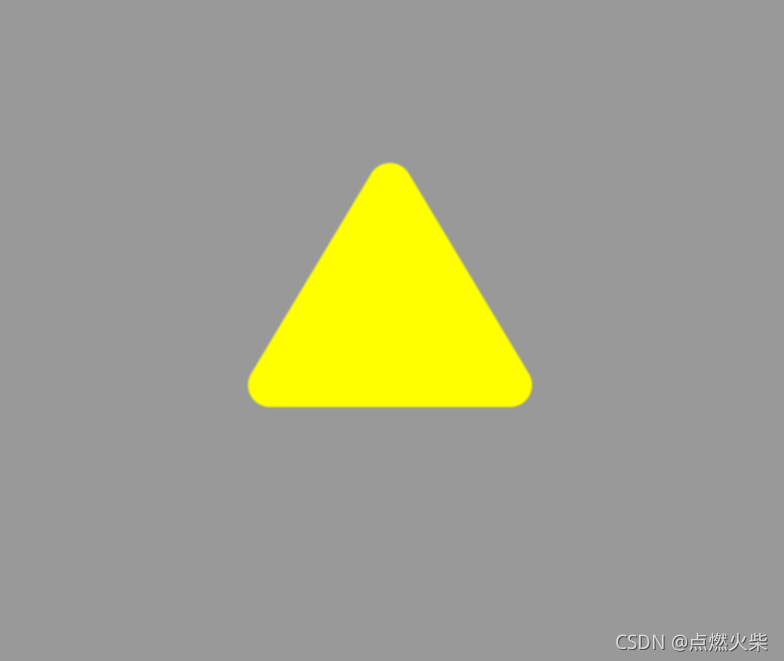

结果如下，与原三角形相比多出了圆角，其他图形请大家自行尝试
11. SDF绘制空心图形
如果你想绘制一个空心的SDF图形，可以参照以下的格式来实现，只需要将绘制图形的SDF函数替换为下面的sdShape
float opOnion( in vec2 p, in float r )
{
return abs(sdShape(p)) - r;
}
例如我们绘制一个空心梯形，这次直接使用刚刚绘制梯形的函数
float opOnion( in vec2 p, in float r )
{
return abs(sdTrapezoid(p,0.9,0.3,0.5)) - r;
}
调用
...
pct = opOnion(st,0.02);
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);

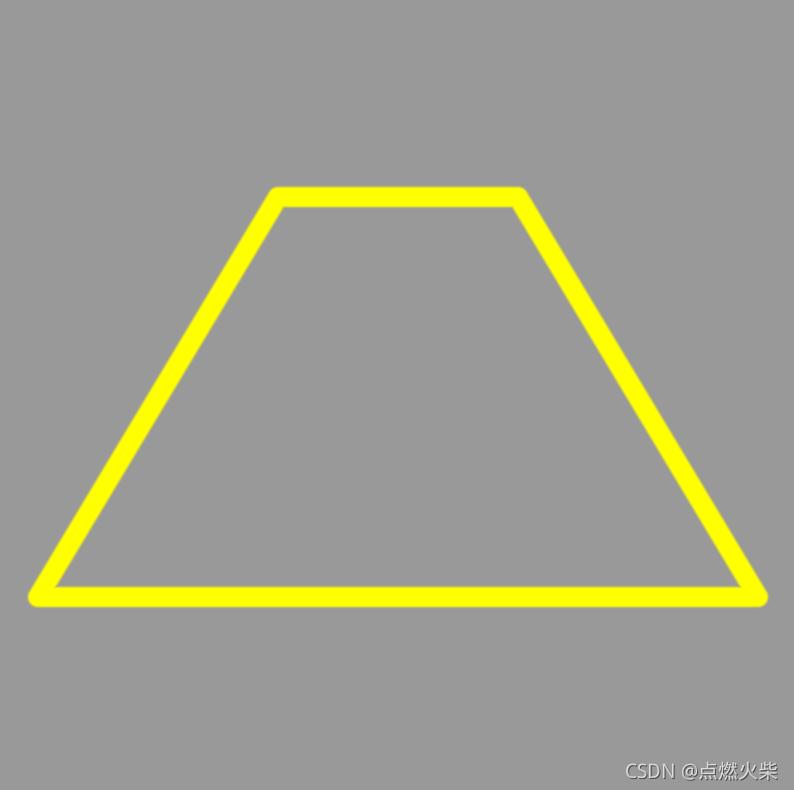

执行结果
12. demo示例代码
大神的网站上还有一些其他图形，你要你需要可以使用同样的方式进行调用，大神的代码太过简略，很多理解不了，目前只能做一个函数的搬运工，后期如果能悟出大声的设计思路再进行讲述，目前看来难度较大，老规矩，贴出这一次内容的相关代码
<body>
<div id="container"></div>
<script src="http://www.yanhuangxueyuan.com/versions/threejsR92/build/three.js"></script>
<script>
var container;
var camera, scene, renderer;
var uniforms;
var vertexShader = `
void main() {
gl_Position = vec4( position, 1.0 );
}
`
var fragmentShader = `
#ifdef GL_ES
precision mediump float;
#endif
uniform float u_time;
uniform vec2 u_mouse;
uniform vec2 u_resolution;
float sdCircle( vec2 p, float r )
{
return length(p) - r;// 到圆表面的距离
}
float sdBox( in vec2 p, in vec2 b )
{
vec2 d = abs(p)-b;
return length(max(d,0.0)) + min(max(d.x,d.y),0.0);
}
float sdBoxRadius( in vec2 p, in vec2 b,float radius )
{
vec2 d = abs(p)-b;
return length(max(d,0.0)) + min(max(d.x,d.y),0.0) - radius;
}
//通过端点和宽度绘制矩形
float sdOrientedBox( in vec2 p, in vec2 a, in vec2 b, float th )
{
float l = length(b-a);
vec2 d = (b-a)/l;
vec2 q = (p-(a+b)*0.5);
q = mat2(d.x,-d.y,d.y,d.x)*q;
q = abs(q)-vec2(l,th)*0.5;
return length(max(q,0.0)) + min(max(q.x,q.y),0.0);
}
//线段
float sdSegment( in vec2 p, in vec2 a, in vec2 b )
{
vec2 pa = p-a, ba = b-a;
float h = clamp( dot(pa,ba)/dot(ba,ba), 0.0, 1.0 );
return length( pa - ba*h );
}
//菱形
float ndot(vec2 a, vec2 b ) { return a.x*b.x - a.y*b.y; }
float sdRhombus( in vec2 p, in vec2 b )
{
p = abs(p);
float h = clamp( ndot(b-2.0*p,b)/dot(b,b), -1.0, 1.0 );
float d = length( p-0.5*b*vec2(1.0-h,1.0+h) );
return d * sign( p.x*b.y + p.y*b.x - b.x*b.y );
}
//梯形
float dot2(in vec2 v ) { return dot(v,v); }
float sdTrapezoid( in vec2 p, in float r1, float r2, float he )
{
vec2 k1 = vec2(r2,he);
vec2 k2 = vec2(r2-r1,2.0*he);
p.x = abs(p.x);
vec2 ca = vec2(p.x-min(p.x,(p.y<0.0)?r1:r2), abs(p.y)-he);
vec2 cb = p - k1 + k2*clamp( dot(k1-p,k2)/dot2(k2), 0.0, 1.0 );
float s = (cb.x<0.0 && ca.y<0.0) ? -1.0 : 1.0;
return s*sqrt( min(dot2(ca),dot2(cb)) );
}
//三角形
float sdTriangle( in vec2 p, in vec2 p0, in vec2 p1, in vec2 p2 )
{
vec2 e0 = p1-p0, e1 = p2-p1, e2 = p0-p2;
vec2 v0 = p -p0, v1 = p -p1, v2 = p -p2;
vec2 pq0 = v0 - e0*clamp( dot(v0,e0)/dot(e0,e0), 0.0, 1.0 );
vec2 pq1 = v1 - e1*clamp( dot(v1,e1)/dot(e1,e1), 0.0, 1.0 );
vec2 pq2 = v2 - e2*clamp( dot(v2,e2)/dot(e2,e2), 0.0, 1.0 );
float s = sign( e0.x*e2.y - e0.y*e2.x );
vec2 d = min(min(vec2(dot(pq0,pq0), s*(v0.x*e0.y-v0.y*e0.x)),
vec2(dot(pq1,pq1), s*(v1.x*e1.y-v1.y*e1.x))),
vec2(dot(pq2,pq2), s*(v2.x*e2.y-v2.y*e2.x)));
return -sqrt(d.x)*sign(d.y);
}
float sdTriangleRadius( in vec2 p, in vec2 p0, in vec2 p1, in vec2 p2,float cornerRadius )
{
vec2 e0 = p1-p0, e1 = p2-p1, e2 = p0-p2;
vec2 v0 = p -p0, v1 = p -p1, v2 = p -p2;
vec2 pq0 = v0 - e0*clamp( dot(v0,e0)/dot(e0,e0), 0.0, 1.0 );
vec2 pq1 = v1 - e1*clamp( dot(v1,e1)/dot(e1,e1), 0.0, 1.0 );
vec2 pq2 = v2 - e2*clamp( dot(v2,e2)/dot(e2,e2), 0.0, 1.0 );
float s = sign( e0.x*e2.y - e0.y*e2.x );
vec2 d = min(min(vec2(dot(pq0,pq0), s*(v0.x*e0.y-v0.y*e0.x)),
vec2(dot(pq1,pq1), s*(v1.x*e1.y-v1.y*e1.x))),
vec2(dot(pq2,pq2), s*(v2.x*e2.y-v2.y*e2.x)));
return -sqrt(d.x)*sign(d.y) -cornerRadius;
}
float sdUnevenCapsule( vec2 p, float r1, float r2, float h )
{
p.x = abs(p.x);
float b = (r1-r2)/h;
float a = sqrt(1.0-b*b);
float k = dot(p,vec2(-b,a));
if( k < 0.0 ) return length(p) - r1;
if( k > a*h ) return length(p-vec2(0.0,h)) - r2;
return dot(p, vec2(a,b) ) - r1;
}
//扇形
float sdPie( in vec2 p, in vec2 c, in float r )
{
p.x = abs(p.x);
float l = length(p) - r;
float m = length(p-c*clamp(dot(p,c),0.0,r)); // c=sin/cos of aperture
return max(l,m*sign(c.y*p.x-c.x*p.y));
}
float opOnion( in vec2 p, in float r )
{
return abs(sdTrapezoid(p,0.9,0.3,0.5)) - r;
}
void main( void ) {
//窗口坐标调整为[-1,1],坐标原点在屏幕中心
vec2 st = (gl_FragCoord.xy * 2. - u_resolution) / u_resolution.y;
vec3 line_color = vec3(1.0,1.0,0.0);
vec3 color = vec3(0.6);//背景色
float pct = 0.0;
pct = sdCircle(st,0.5);
pct = sdBox(st,vec2(0.3));
pct = sdBoxRadius(st,vec2(0.3),0.02);
pct = sdOrientedBox(st,vec2(-0.3),vec2(0.3,0.6),0.1);
pct = sdSegment(st,vec2(-0.3),vec2(0.3,0.6));
pct = sdRhombus(st,vec2(0.5,0.3));
pct = sdTrapezoid(st,0.9,0.3,0.5);
pct = sdTriangle(st,vec2(-0.3,0.0),vec2(0.3,0.0),vec2(0.0,0.5));
pct = sdUnevenCapsule(st,0.3,0.2,0.6);
pct = sdPie(st,vec2(0.3,0.1),0.8);
pct = sdTriangleRadius(st,vec2(-0.3,0.0),vec2(0.3,0.0),vec2(0.0,0.5),0.05);
pct = opOnion(st,0.02);
//color = mix(color,line_color,pct);
color = mix(color,line_color,1.0-smoothstep(0.0,0.01,pct));
gl_FragColor = vec4(color, 1.0);
}
`
init();
animate();
function init() {
container = document.getElementById('container');
camera = new THREE.Camera();
camera.position.z = 1;
scene = new THREE.Scene();
var geometry = new THREE.PlaneBufferGeometry(2, 2);
uniforms = {
u_time: {
type: "f",
value: 1.0
},
u_resolution: {
type: "v2",
value: new THREE.Vector2()
},
u_mouse: {
type: "v2",
value: new THREE.Vector2()
}
};
var material = new THREE.ShaderMaterial({
uniforms: uniforms,
vertexShader: vertexShader,
fragmentShader: fragmentShader
});
var mesh = new THREE.Mesh(geometry, material);
scene.add(mesh);
renderer = new THREE.WebGLRenderer();
//renderer.setPixelRatio(window.devicePixelRatio);
container.appendChild(renderer.domElement);
onWindowResize();
window.addEventListener('resize', onWindowResize, false);
document.onmousemove = function (e) {
uniforms.u_mouse.value.x = e.pageX
uniforms.u_mouse.value.y = e.pageY
}
}
function onWindowResize(event) {
renderer.setSize(800, 800);
uniforms.u_resolution.value.x = renderer.domElement.width;
uniforms.u_resolution.value.y = renderer.domElement.height;
}
function animate() {
requestAnimationFrame(animate);
render();
}
function render() {
uniforms.u_time.value += 0.02;
renderer.render(scene, camera);
}
</script>
</body>
版权声明：本文为qw8704149原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
