前言

	最近想着实现一个springboot集成dubbo的demo案例，在网上找了很多相关的资料，但是大多数都没有成功，慢慢的不断采坑才实现这个demo。现在将这个案例分享大家

1. 先引入所需要的的包

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.kevinxiaoge</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.kevinxiaoge</groupId>
            <artifactId>dubbo-interface</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <!--Dubbo集成SpringBoot起步依赖-->
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>2.7.7</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.11.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>2.11.1</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
        </resources>
    </build>

</project>

2.创建公共的接口，单独拆分成一个工程

public class Student implements Serializable {
    private Integer id;

    private String name;

    private Integer age;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", age=" + age +
                '}';
    }
}

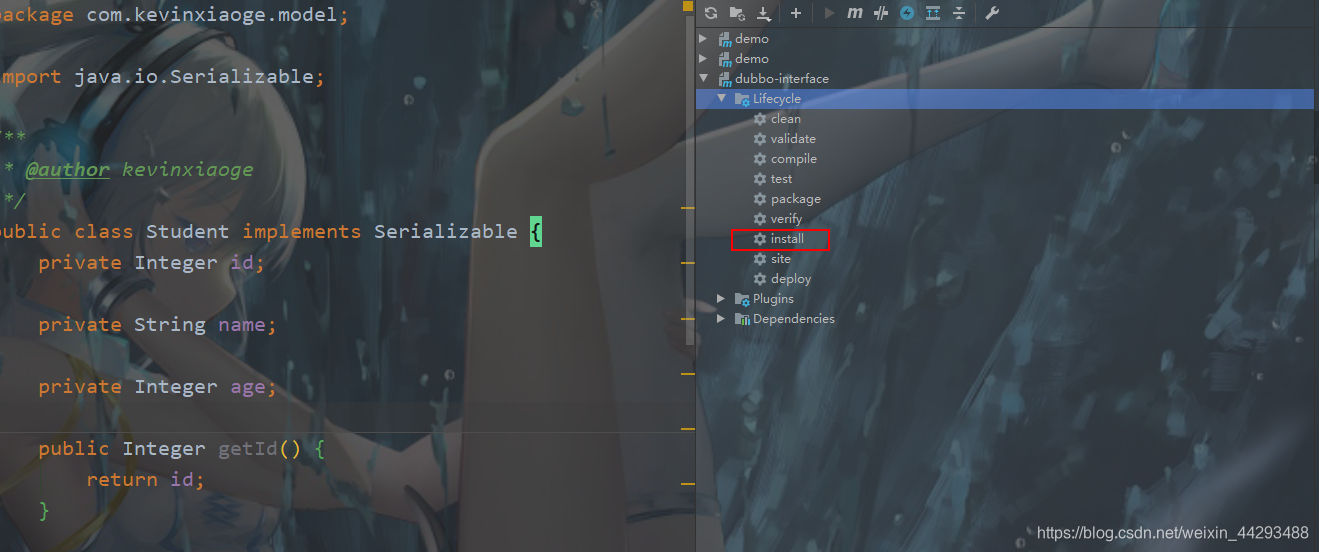

创建好公共模块后，将工程install安装到本地仓库



3.创建提供者模块，也需要将模块单独拆分成一个工程。引入的包如上所示，不要忘记将我们刚才的公共模块的包也引进来。在加入配置文件

server:
  port: 8379

dubbo:
  application:
    name: springboot-dubbo-provider-demo
  registry:
    address: zookeeper://xx.xx.51.188
    port: 2181
  protocol:
    name: dubbo
    port: 20880

提供者需要实现公共接口里面的接口

@DubboService
public class UserServiceImpl implements UserService {
    @Override
    public String sayHi(String name) {
        return "hello world!!!";
    }

    @Override
    public Student getStudent(int id) {
        return null;
    }
}
添加注解  import org.apache.dubbo.config.annotation.DubboService;

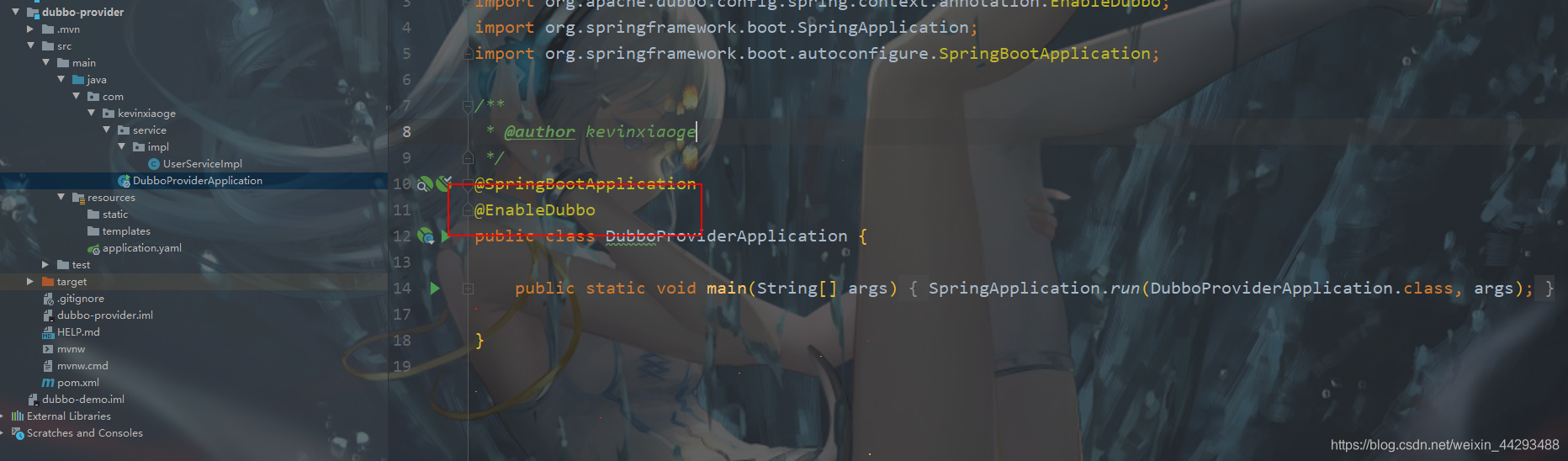

注意需要在启动类上加@EnableDubbo的注解

import org.apache.dubbo.config.spring.context.annotation.EnableDubbo;

4.创建消费者，引入相关的包

server:
  port: 8380

dubbo:
  application:
    name: springboot-dubbo-consumer-demo
  registry:
    address: zookeeper://xx.xx.51.188
    port: 2181
  protocol:
    name: dubbo
    port: 20881
# 注意：dubbo暴露的端口不要和提供者的端口重复

@RestController
public class UserController {

    @DubboReference
    private UserService userService;

    @GetMapping("/sayHello")
    public String sayHello(){
        return userService.sayHi("kevinxiaoge");
    }
}

使用注解 import org.apache.dubbo.config.annotation.DubboReference;
将所需要的接口类的实现注入进来

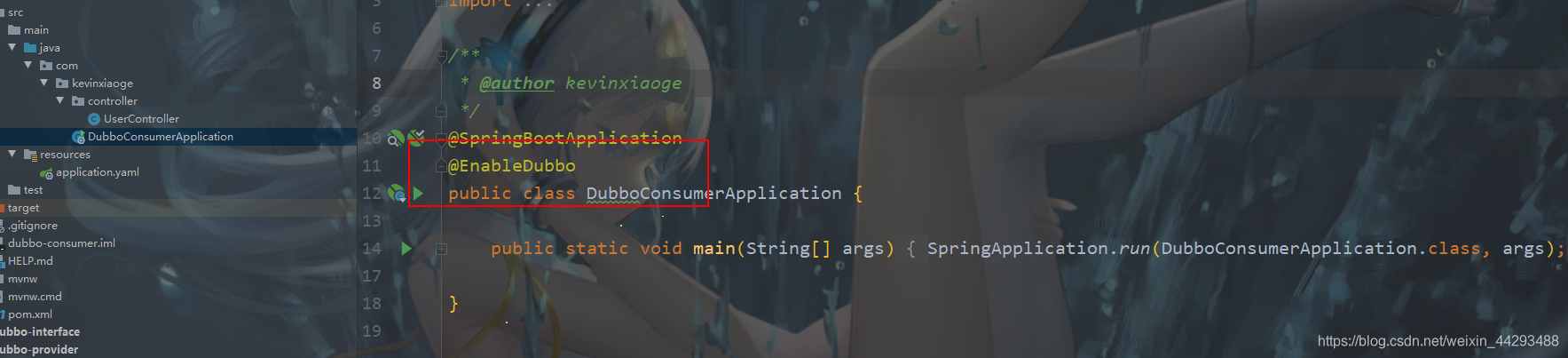

消费者的启动类上也需要注解  @EnableDubbo

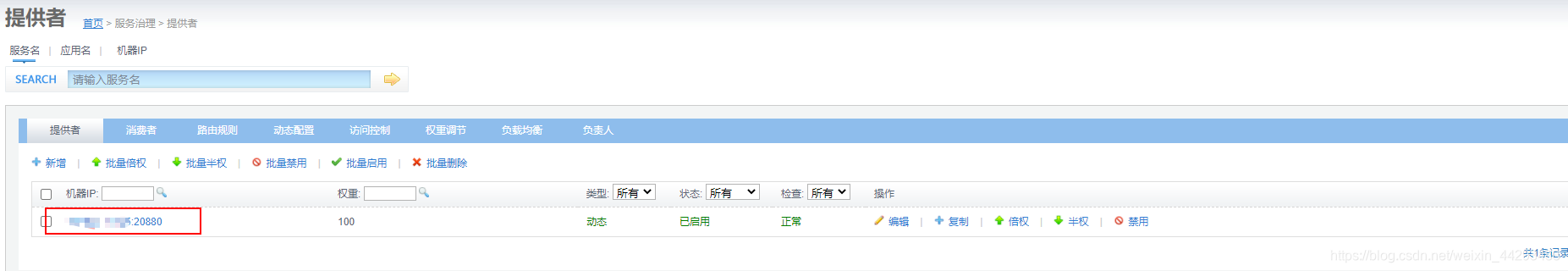

5.最后看启动项目的效果
