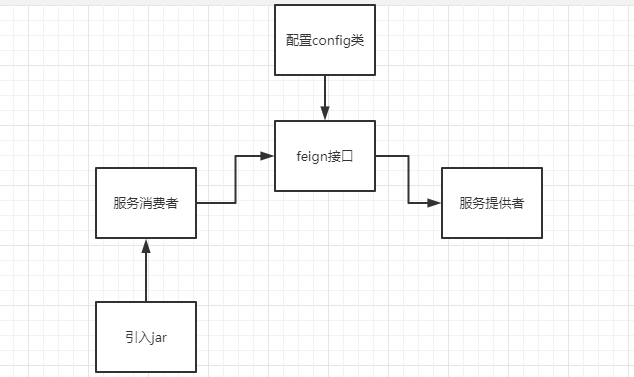

开局一张图

一. 服务双方

二. 服务提供者接口及配置

注意：用

RequestPart

绑定参数

    /**
     * 文件上传
     *
     * @param file
     * @return
     * @throws IOException
     */
    @PostMapping(value = "uploadFile", consumes = MediaType.MULTIPART_FORM_DATA_VALUE)
    public Map<String, String> uploadFile(@RequestPart("file") MultipartFile file) throws IOException {
        return upload(file);
    }

三. 服务消费者接口以及配置

1.查看项目是否已经引入如下三个jar,如果没有就需要配置：

pom文件引入jar包

 <dependency>
            <groupId>io.github.openfeign.form</groupId>
            <artifactId>feign-form</artifactId>
            <version>2.1.0</version>
        </dependency>
        <dependency>
            <groupId>io.github.openfeign.form</groupId>
            <artifactId>feign-form-spring</artifactId>
            <version>2.1.0</version>
        </dependency>
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.3</version>
        </dependency>

2.接口请求服务提供者，

重点在这里

： // 这里是从url拿到的文件，文件的来源有几种：比如1：前端传递（MultipartFile类型），2，根据路径获取（file类型），

最终都要转成流

（InputStream）

    public int insertInvoceEtc(InvoiceEtc invoiceEtc) {
        try {
            String filePath = invoiceEtc.getFilePath();
            String invoiceNum = invoiceEtc.getInvoiceNum();
            String invoiceCode = invoiceEtc.getInvoiceCode();
            String fileName = invoiceNum + invoiceCode + ".pdf";
            // 这里是从url拿到的文件，文件的来源有几种：比如1：前端传递（MultipartFile类型），2，根据路径获取（file类型），最终都要转成流（InputStream）
            URL url = new URL(filePath);
            HttpURLConnection conn = (HttpURLConnection) url.openConnection();
            // 设置超时间为5秒
            conn.setConnectTimeout(5 * 1000);
            // 防止屏蔽程序抓取而返回403错误
            conn.setRequestProperty("User-Agent", "Mozilla/4.0 (compatible; MSIE 5.0; Windows NT; DigExt)");
            // 得到输入流
            InputStream inputStream = conn.getInputStream();
            MultipartFile multipartFile = new MockMultipartFile(fileName, fileName, "application/pdf", inputStream);
            Map<String, String> fileMap = remoteCommonService.upload(multipartFile);
            if (inputStream != null) {
                inputStream.close();
            }
            if (CollectionUtil.isNotEmpty(fileMap)) {
                String localFilePath = fileMap.get("url");
                invoiceEtc.setLocalFilePath(localFilePath);
                invoiceEtc.setFileName(fileName);
            }
        } catch (Exception e) {
            log.info("insertInvoceEtc 附件信息:=============================" + e.getMessage());
        }
        return 0;
    }

四：feign接口类

package com.nanniwan.system.feign;

import com.nanniwan.common.constant.ServiceNameConstants;
import com.nanniwan.system.config.FeignSupportConfig;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.http.MediaType;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestPart;
import org.springframework.web.multipart.MultipartFile;

import java.util.Map;

@FeignClient(name = ServiceNameConstants.SYSTEM_SERVICE, configuration = FeignSupportConfig.class)
public interface RemoteCommonService {
    @PostMapping(value = "/common/transform", consumes = MediaType.MULTIPART_FORM_DATA_VALUE)
    String transform(@RequestPart("file") MultipartFile multipartFile);

    /**
     * 上传文件到服务器
     * @param file
     * @return
     */
    @PostMapping(value = "/oss/uploadFile", consumes = MediaType.MULTIPART_FORM_DATA_VALUE)
    Map<String, String> upload(@RequestPart("file") MultipartFile file);
}

五. feign实现文件上传的配置类

package com.nanniwan.system.config;

import feign.codec.Encoder;
import feign.form.spring.SpringFormEncoder;
import org.springframework.beans.factory.ObjectFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.http.HttpMessageConverters;
import org.springframework.cloud.openfeign.support.SpringEncoder;
import org.springframework.context.annotation.Bean;

public class FeignSupportConfig {

    @Autowired
    private ObjectFactory<HttpMessageConverters> messageConverters;

    @Bean
    public Encoder feignFormEncoder() {
        return new SpringFormEncoder(new SpringEncoder(messageConverters));
    }

}
