1、主题调色盘
	在使用echarts.registerTheme中定义的color:['xx',...]

2、全局调色盘
	定义后会覆盖主题调色盘,即颜色的取色从这里取
	和series同级设置

	color:['颜色',...];

3、局部调色盘
	会覆盖全局调色盘
	series:[
		{
			color:['颜色',...];   当前图表的颜色从此处取
		}
	]

渐变色:
	线性渐变
		color:{
            type: 'linear',
            x: 0,	范围从 0 - 1，相当于在图形包围盒中的百分比，用于确定方向和范围
            y: 0,
            x2: 0,
            y2: 1,
            colorStops: [{
                offset: 0, color: 'red' // 0% 处的颜色
            }, {
                offset: 1, color: 'blue' // 100% 处的颜色
            }],
            global: false,  缺省为false,true表示x、y为绝对的像素位置
   		 }
		方式二:
		   new echarts.graphic.LinearGradient(x1, y1, x2, y2, [
           {
             offset: 0,
             color: '#5052EE'
           },
           {
             offset: 1,
             color: '#AB6EE5'
           }
         ])

	径向渐变
	color: {
	   type: 'radial',
	    x: 0.5,
	    y: 0.5,
	    r: 0.5,
	    colorStops: [{
	        offset: 0, color: 'red' // 0% 处的颜色
	    }, {
	        offset: 1, color: 'blue' // 100% 处的颜色
	    }],
	    global: false, 	缺省为 false
	}

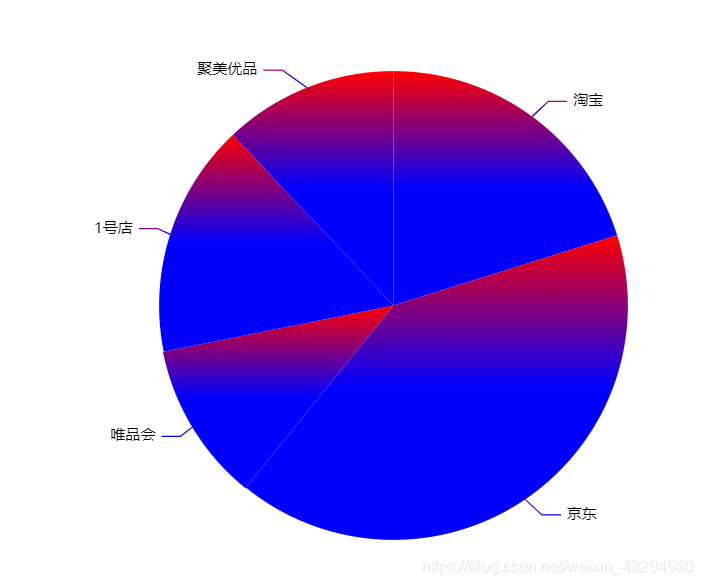

效果图:




方向示意图:

代码示例:

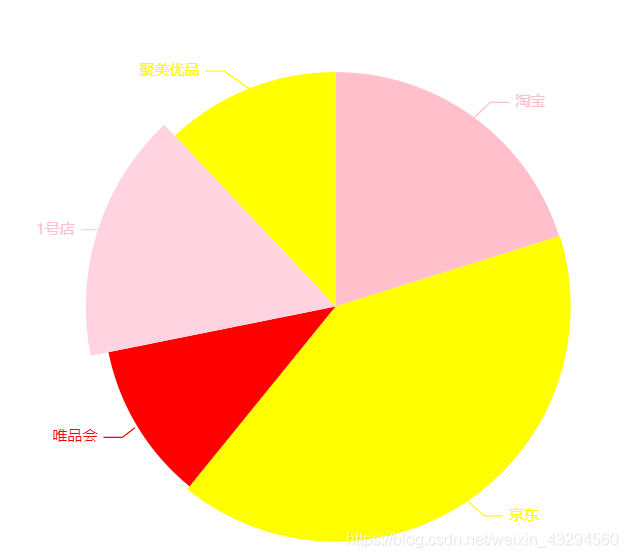

调色盘:

export default {
  name: 'App',
  mounted:async function(){


    var myMap=echarts.init(document.querySelector('.map'));

    var xData=['张三','彭万里','高大山','谢大海','马宏宇','林莽','黄强辉','章汉夫']
    var yData1=[88,92,63,77,94,80,72,86];
    var yData2=[80,90,60,70,90,70,62,76];
    var pieData=[{name:'淘宝',value:'11231'},{name:'京东',value:'22673'},{name:'唯品会',value:'6123'},{name:'1号店',value:'8989'},{name:'聚美优品',value:'6700'}]

    var radaData=[{name: '华为手机1',value: [80, 90, 80, 82, 90]},{name: '中兴手机1',value: [70, 82, 75, 70, 78]}]
    var dataMax = [
      {
        name: '易用性',
        max: 100
      },
      {
        name: '功能',
        max: 100
      },
      {
        name: '拍照',
        max: 100
      },
      {
        name: '跑分',
        max: 100
      },
      {
        name: '续航',
        max: 100
      }
    ]



    var option = {
      color:['orange','green','blue','purple','skyblue'],
      series:[
        {
          type:'pie',
          data:pieData,
          color:['pink','yellow','red']


        }
      ],


    };

    myMap.setOption(option);


  }
}

渐变色:

export default {
  name: 'App',
  mounted:async function(){


    var myMap=echarts.init(document.querySelector('.map'));

    var xData=['张三','彭万里','高大山','谢大海','马宏宇','林莽','黄强辉','章汉夫']
    var yData1=[88,92,63,77,94,80,72,86];
    var yData2=[80,90,60,70,90,70,62,76];
    var pieData=[{name:'淘宝',value:'11231'},{name:'京东',value:'22673'},{name:'唯品会',value:'6123'},{name:'1号店',value:'8989'},{name:'聚美优品',value:'6700'}]

    var radaData=[{name: '华为手机1',value: [80, 90, 80, 82, 90]},{name: '中兴手机1',value: [70, 82, 75, 70, 78]}]
    var dataMax = [
      {
        name: '易用性',
        max: 100
      },
      {
        name: '功能',
        max: 100
      },
      {
        name: '拍照',
        max: 100
      },
      {
        name: '跑分',
        max: 100
      },
      {
        name: '续航',
        max: 100
      }
    ]



    var option = {
      color:['orange','green','blue','purple','skyblue'],
      series:[
        {
          type:'pie',
          data:pieData,
          color:['pink','yellow','red'],
          itemStyle:{color: {
            type: 'linear',
            x: 0,
            y: 0,
            x2: 0,
            y2: 0.5,
            colorStops: [{
                offset: 0, color: 'red' // 0% 处的颜色
            }, {
                offset: 1, color: 'blue' // 100% 处的颜色
            }],
            global: false // 缺省为 false
        }}


        }
      ],


    };

    myMap.setOption(option);


  }
}
