1.schedutil governor相关的结构体说明
struct sugov_policy {
struct cpufreq_policy *policy; /*cpu freq的policy*/
struct sugov_tunables *tunables; /*tunable结构体，根据用户需求改变*/
struct list_head tunables_hook;/*tunable结构体元素链表*/
raw_spinlock_t update_lock; /* For shared policies */
/*下面四个时间参数，第一个是上次频率变化的时间，后面三个是频率变化的颗粒度*/
u64 last_freq_update_time;
s64 min_rate_limit_ns;
s64 up_rate_delay_ns;
s64 down_rate_delay_ns;
/*选择的next freq，cached freq是保存在cache的频率*/
unsigned int next_freq;
unsigned int cached_raw_freq;
/*slack定时器，针对idle cpu的*/
struct timer_list slack_timer;
/* The next fields are only needed if fast switch cannot be used. */
/*下面四个work相关最后调用的路径一样的*/
struct irq_work irq_work;
struct kthread_work work;
struct mutex work_lock;
struct kthread_worker worker;
/*governor thread*/
struct task_struct *thread;
/*是否在频率调节过程中，频率调节完毕清标志位*/
bool work_in_progress;
/*频率限制改变会置这个标志位，并在频率update的时候，清这个标志位*/
bool need_freq_update;
};
/*每个cpu都存在一个这样的结构体，如果频率是shared的，则调节人一个cpu的频率会同时影响
其他cpu，一般policy都是一样的。
*/
struct sugov_cpu {
struct update_util_data update_util;
/*每个cpu都是同一个sugov_policy，也是同一个cpufreq_policy*/
struct sugov_policy *sg_policy;
unsigned int cpu; /*关联的cpu id*/
/*是否处于iowait状态，iowait_boost频率及其boost最高频率*/
bool iowait_boost_pending;
unsigned int iowait_boost;
unsigned int iowait_boost_max;
u64 last_update; /*cpu util，max最后update时间*/
/* The fields below are only needed when sharing a policy. */
unsigned long util;
unsigned long max;
unsigned int flags;
/* The field below is for single-CPU policies only. */
#ifdef CONFIG_NO_HZ_COMMON
unsigned long saved_idle_calls;
#endif
};
/*tunable使用，即用户空间可调的*/
struct sugov_tunables {
struct gov_attr_set attr_set;/*sys接口属性*/
unsigned int up_rate_limit_us; /*频率上升的时间间隔限制*/
unsigned int down_rate_limit_us;/*频率下降的时间间隔限制*/
unsigned int timer_slack_val_us; /*cpuidle期间，启动timer修改
idlecpuidle的频率*/
int freq_margin; /*频率余量，可以修改，区分big/little core*/
};
2.schedutil governor如何调节cpu频率
static inline void cfs_rq_util_change(struct cfs_rq *cfs_rq)
{
struct rq *rq = rq_of(cfs_rq);
if (&rq->cfs == cfs_rq) {
/*
* There are a few boundary cases this might miss but it should
* get called often enough that that should (hopefully) not be
* a real problem -- added to that it only calls on the local
* CPU, so if we enqueue remotely we'll miss an update, but
* the next tick/schedule should update.
*
* It will not get called when we go idle, because the idle
* thread is a different class (!fair), nor will the utilization
* number include things like RT tasks.
*
* As is, the util number is not freq-invariant (we'd have to
* implement arch_scale_freq_capacity() for that).
*
* See cpu_util().
*/
cpufreq_update_util(rq, 0);
}
}
继续
#ifdef CONFIG_CPU_FREQ
DECLARE_PER_CPU(struct update_util_data *, cpufreq_update_util_data);
/**
* cpufreq_update_util - Take a note about CPU utilization changes.
* @rq: Runqueue to carry out the update for.
* @flags: Update reason flags.
*
* This function is called by the scheduler on the CPU whose utilization is
* being updated.
*
* It can only be called from RCU-sched read-side critical sections.
*
* The way cpufreq is currently arranged requires it to evaluate the CPU
* performance state (frequency/voltage) on a regular basis to prevent it from
* being stuck in a completely inadequate performance level for too long.
* That is not guaranteed to happen if the updates are only triggered from CFS,
* though, because they may not be coming in if RT or deadline tasks are active
* all the time (or there are RT and DL tasks only).
*
* As a workaround for that issue, this function is called by the RT and DL
* sched classes to trigger extra cpufreq updates to prevent it from stalling,
* but that really is a band-aid. Going forward it should be replaced with
* solutions targeted more specifically at RT and DL tasks.
*/
static inline void cpufreq_update_util(struct rq *rq, unsigned int flags)
{
struct update_util_data *data;
data = rcu_dereference_sched(*per_cpu_ptr(&cpufreq_update_util_data,
cpu_of(rq)));
if (data)
data->func(data, rq_clock(rq), flags);
}
#else
static inline void cpufreq_update_util(struct rq *rq, unsigned int flags) {}
#endif /* CONFIG_CPU_FREQ */
关键点是struct update_util_data这个结构体，仅仅是一个callback函数：
#ifdef CONFIG_CPU_FREQ
struct update_util_data {
void (*func)(struct update_util_data *data, u64 time, unsigned int flags);
};
void cpufreq_add_update_util_hook(int cpu, struct update_util_data *data,
void (*func)(struct update_util_data *data, u64 time,
unsigned int flags));
void cpufreq_remove_update_util_hook(int cpu);
#endif /* CONFIG_CPU_FREQ */
接下来看下这个结构体与函数cpufreq_add_update_util_hook的关系是什么：
DEFINE_PER_CPU(struct update_util_data *, cpufreq_update_util_data);
/**
* cpufreq_add_update_util_hook - Populate the CPU's update_util_data pointer.
* @cpu: The CPU to set the pointer for.
* @data: New pointer value.
* @func: Callback function to set for the CPU.
*
* Set and publish the update_util_data pointer for the given CPU.
*
* The update_util_data pointer of @cpu is set to @data and the callback
* function pointer in the target struct update_util_data is set to @func.
* That function will be called by cpufreq_update_util() from RCU-sched
* read-side critical sections, so it must not sleep. @data will always be
* passed to it as the first argument which allows the function to get to the
* target update_util_data structure and its container.
*
* The update_util_data pointer of @cpu must be NULL when this function is
* called or it will WARN() and return with no effect.
*/
void cpufreq_add_update_util_hook(int cpu, struct update_util_data *data,
void (*func)(struct update_util_data *data, u64 time,
unsigned int flags))
{
if (WARN_ON(!data || !func))
return;
if (WARN_ON(per_cpu(cpufreq_update_util_data, cpu)))
return;
data->func = func;
rcu_assign_pointer(per_cpu(cpufreq_update_util_data, cpu), data);
}

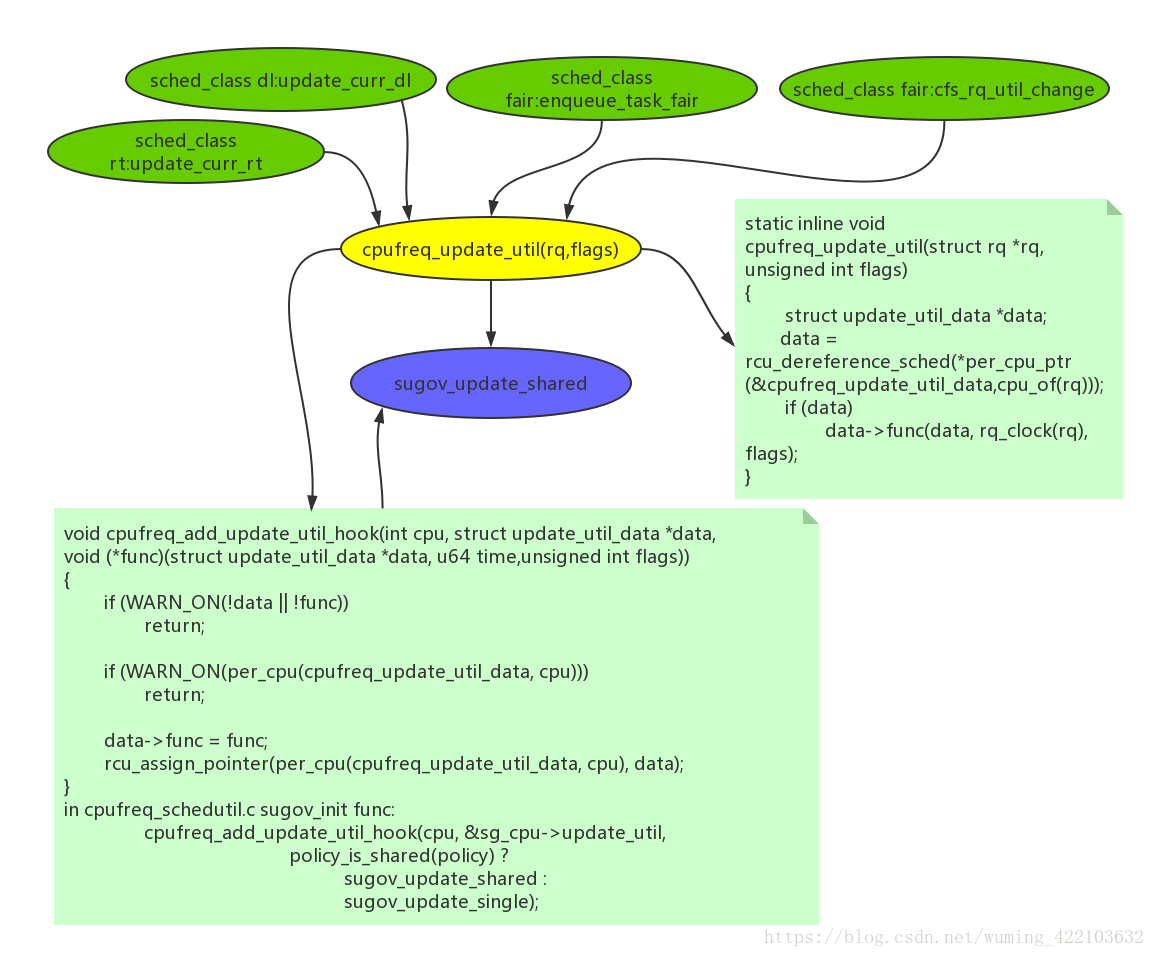

可以看到结构体update_util_data的callback函数指向了函数cpufreq_add_update_util_hook钩子函数的形参：
void (*func)(struct update_util_data *data, u64 time,
unsigned int flags)
那么这个函数在哪里赋值呢？
我们看到在kernel/sched/cpufreq_schedutil.c文件，就是最新的cpu调节频率的governor，不在是原先的interactive或者ondemand governor了。
作为频率调节的governor编写流程与其他governor类型，先注册名字为schedutil governor：
#ifndef CONFIG_CPU_FREQ_DEFAULT_GOV_SCHEDUTIL
static
#endif
struct cpufreq_governor cpufreq_gov_schedutil = {
.name = "schedutil",
.governor = cpufreq_schedutil_cb,
.owner = THIS_MODULE,
};
static int __init sugov_register(void)
{
return cpufreq_register_governor(&cpufreq_gov_schedutil);
}
fs_initcall(sugov_register);
之后之后，governor开始走governor的callback函数cpufreq_schedutil_cb，
static int cpufreq_schedutil_cb(struct cpufreq_policy *policy,
unsigned int event)
{
switch(event) {
case CPUFREQ_GOV_POLICY_INIT:
return sugov_init(policy);
case CPUFREQ_GOV_POLICY_EXIT:
return sugov_exit(policy);
case CPUFREQ_GOV_START:
return sugov_start(policy);
case CPUFREQ_GOV_STOP:
return sugov_stop(policy);
case CPUFREQ_GOV_LIMITS:
return sugov_limits(policy);
default:
BUG();
}
}
开始执行init，然后执行start，根据event类型来执行。系统刚刚起来执行init和start动作，init是一些参数的初始化，而start才是真正的governor开启work了。
static int sugov_start(struct cpufreq_policy *policy)
{
struct sugov_policy *sg_policy = policy->governor_data;
unsigned int cpu;
sg_policy->up_rate_delay_ns =
sg_policy->tunables->up_rate_limit_us * NSEC_PER_USEC;
sg_policy->down_rate_delay_ns =
sg_policy->tunables->down_rate_limit_us * NSEC_PER_USEC;
update_min_rate_limit_us(sg_policy);
sg_policy->last_freq_update_time = 0;
sg_policy->next_freq = UINT_MAX;
sg_policy->work_in_progress = false;
sg_policy->need_freq_update = false;
sg_policy->cached_raw_freq = UINT_MAX;
for_each_cpu(cpu, policy->cpus) {
struct sugov_cpu *sg_cpu = &per_cpu(sugov_cpu, cpu);
memset(sg_cpu, 0, sizeof(*sg_cpu));
sg_cpu->cpu = cpu;
sg_cpu->sg_policy = sg_policy;
sg_cpu->flags = SCHED_CPUFREQ_DL;
sg_cpu->iowait_boost_max = policy->cpuinfo.max_freq;
/*OK，真正的struct update_util_data的元素的callback函数现真身了。*/
cpufreq_add_update_util_hook(cpu, &sg_cpu->update_util,
policy_is_shared(policy) ?
sugov_update_shared :
sugov_update_single);
}
return 0;
}
/*这个函数肯定返回true*/
static inline bool policy_is_shared(struct cpufreq_policy *policy)
{
return cpumask_weight(policy->cpus) > 1;
}
3.sugov_upodate_shared函数怎么计算得到next_freq
可以看到这个函数的实现code如下：
static void sugov_update_shared(struct update_util_data *hook, u64 time,
unsigned int flags)
{
struct sugov_cpu *sg_cpu = container_of(hook, struct sugov_cpu, update_util);
struct sugov_policy *sg_policy = sg_cpu->sg_policy;
unsigned long util, max;
unsigned int next_f;
sugov_get_util(&util, &max, time, sg_cpu->cpu);
raw_spin_lock(&sg_policy->update_lock);
sg_cpu->util = util;
sg_cpu->max = max;
sg_cpu->flags = flags;
sugov_set_iowait_boost(sg_cpu, time, flags);
sg_cpu->last_update = time;
if (sugov_should_update_freq(sg_policy, time)) {
if (flags & SCHED_CPUFREQ_DL)
next_f = sg_policy->policy->cpuinfo.max_freq;
else
next_f = sugov_next_freq_shared(sg_cpu, time);
sugov_update_commit(sg_policy, time, next_f);
}
raw_spin_unlock(&sg_policy->update_lock);
}
分别来讲解各个重要的函数
3.1 sugov_get_util(&util, &max, time, sg_cpu->cpu)怎么获取util/max的数值的。
函数实现如下：
static void sugov_get_util(unsigned long *util, unsigned long *max, u64 time, int cpu)
{
struct rq *rq = cpu_rq(cpu);
unsigned long max_cap, rt;
s64 delta;
/*不同cluster max_cap不同，我们平台上，cluster0:782，cluster1:1024*/
max_cap = arch_scale_cpu_capacity(NULL, cpu);
sched_avg_update(rq);
delta = time - rq->age_stamp;
if (unlikely(delta < 0))
delta = 0;
rt = div64_u64(rq->rt_avg, sched_avg_period() + delta);
rt = (rt * max_cap) >> SCHED_CAPACITY_SHIFT;
*util = boosted_cpu_util(cpu);
if (likely(use_pelt()))
*util = *util + rt;
*util = min(*util, max_cap);
*max = max_cap;
}
sched_avg_update(rq)，是一个update sched avg负载使用的：
const_debug unsigned int sysctl_sched_time_avg = MSEC_PER_SEC;
static inline u64 sched_avg_period(void)
{
return (u64)sysctl_sched_time_avg * NSEC_PER_MSEC / 2;
}
void sched_avg_update(struct rq *rq)
{ /*500ms一次update sched avg*/
s64 period = sched_avg_period();
/*age_stamp是当前cpu rq的启动时间，有两个目的：
* 1. 衰减rt负载，即每个period，衰减一半,也叫老化周期
* 2. 将age_stamp的启动窗口累加到接近rq_clock的窗口，目的是每次仅仅计算
* 本period内的load
*/
while ((s64)(rq_clock(rq) - rq->age_stamp) > period) {
/*
* Inline assembly required to prevent the compiler
* optimising this loop into a divmod call.
* See __iter_div_u64_rem() for another example of this.
*/
asm("" : "+rm" (rq->age_stamp));
rq->age_stamp += period;
rq->rt_avg /= 2;
}
}
下面这段代码的意思是，计算一个周期内的rt负载并归一化为capacity数值：
delta = time - rq->age_stamp;
if (unlikely(delta < 0))
delta = 0;
rt = div64_u64(rq->rt_avg, sched_avg_period() + delta);
rt = (rt * max_cap) >> SCHED_CAPACITY_SHIFT;
boosted_cpu_util(cpu)怎么得到util的，对于函数schedtune_cpu_margin的实现以后在仔细check（看这篇文章：
https://blog.csdn.net/wukongmingjing/article/details/81739394），本文不讲解。
unsigned long
boosted_cpu_util(int cpu)
{
unsigned long util = cpu_util_freq(cpu);
/*仔细check怎么计算的*/
long margin = schedtune_cpu_margin(util, cpu);
trace_sched_boost_cpu(cpu, util, margin);
return util + margin;
}
static inline unsigned long cpu_util_freq(int cpu)
{
unsigned long util = cpu_rq(cpu)->cfs.avg.util_avg;
/*各个cluster的max_capacity*/
unsigned long capacity = capacity_orig_of(cpu);
/*按照walt 在各个窗口累加的runnable time/walt_ravg_window归一化
*load作为cpu的util数值
* util范围在0～capacity之间。 util从walt获取。
*/
#ifdef CONFIG_SCHED_WALT
if (!walt_disabled && sysctl_sched_use_walt_cpu_util)
util = div64_u64(cpu_rq(cpu)->cumulative_runnable_avg,
walt_ravg_window >> SCHED_LOAD_SHIFT);
#endif
return (util >= capacity) ? capacity : util;
}
最后得到util和max数值。由于使用WALT来计算cpu util，所以util = util(普通进程) + rt(实时进程)。最后util = min(util,max_cap),max=max_cap；计算完毕。max就是各个cluster的每个core的capacity，是一个固定数值，可能在thermal起作用的情况下会变小，这个需要仔细check下。
3.2 sugov_set_iowait_boost(sg_cpu, time, flags)怎么设置iowait_boost数值。
- 继续执行sugov_update_shared函数，更新sugov_cpu结构体元素；
- 根据flags数值：如果flags为2，则是iowait boost情况，并且有一个iowait_boost_pending标志位判断当前是否已经是iowait状态。如果已经是则直接return，否则根据iowait_boost是否有数值来设定iowait_boost的频率数值。
- 如果flags为其他数值，并且iowait_boost存在数值，如果计算load的间隔超过一个tickless时间，则判断是idle状态，将iowait_boost和pending标志位清零。等待下次计算周期在查看iowait状态。
- flags为0，是没有iowait的普通进程。
#define SCHED_CPUFREQ_RT (1U << 0) /*sched_class rt*/
#define SCHED_CPUFREQ_DL (1U << 1) /*sched_class */
#define SCHED_CPUFREQ_IOWAIT (1U << 2) /*sched_class fair && task->in_iowait!=0*/
3.3 sugov_should_update_freq(sg_policy, time)是否需要进行频率update，判定若干个标志位
- dvfs_possible_from_any_cpu，即每个cpu可以单独调节电压并传递给其他cpu一起调节，默认为true
- fast_switch_enabled，快速频率切换是否enable，默认false
- work_in_progress：是否正在调节频率，调节频率之前置为true，调节频率之后置为false，默认false
- need_freq_update，默认false，只有在governor limit阶段置为true。
- 最后判定rq_clock-last_freq_update_time的数值与min_rate_limit_ns比较得出是否需要update frequency。也就是频率调节的最小间隔，小于此间隔不予调节。
static void update_min_rate_limit_us(struct sugov_policy *sg_policy)
{
mutex_lock(&min_rate_lock);
/*min(500,1000),unit:us,也就是
min(up_rate_limit_us,down_rate_limit_us)*/
sg_policy->min_rate_limit_ns = min(sg_policy->up_rate_delay_ns,
sg_policy->down_rate_delay_ns);
mutex_unlock(&min_rate_lock);
}
如果3.3函数返回true，则执行3.4/3.5，否则直接返回，不做频率调整。
3.4 flags不同，如何选择next_f，即下一个cpu frequency
- flags==SCHED_CPUFREQ_DL，next_f = cpuinfo.max_freq
- 其他flags走下面的，对所有cpu，根据sugov_cpu的util，max，iowait_boost，iowait_boost_max数值选择所有cpu里面的max*util最大的一对。每个cpu都有一个util，max，iowait_boost,iowait_boost_max=cpuinfo.max_freq，具体怎么计算的看下code一目了然。比较简单。在函数sugov_next_freq_shared里面实现的。
3.4.1 在函数sugov_next_freq_shared里面会遍历所有的cpu，遍历规则如下：
- 在sugov_update_shared函数一开始，我们就获取了当前cpu的util和max；
- 每次遍历一个cpu，比较(j_util *max > j_max *util),则util=j_util,max=j_max，目的挑选最大的。max一般都是固定数值，还是选择cpu最大的util作为调节频率的依据，有点像ondemand governor，采集cpuloading，也是选择比较各个cpuloading最大的作为调节频率的依据。
- 这是cpu 的util和max的选择，还需要根据iowait_boost和iowait_boost_max来确认最终选择的util和max的数值。iowait boost与正常的util是两个独立的分支，需要互相参考挑选最大数值作为最后的调节频率的依据。
3.4.2 最后会根据util,max选择next_f，具体实现在get_next_freq(sg_policy, util, max)
static unsigned int get_next_freq(struct sugov_policy *sg_policy,
unsigned long util, unsigned long max)
{
struct cpufreq_policy *policy = sg_policy->policy;
/*freq为max_freq*/
unsigned int freq = arch_scale_freq_invariant() ?
policy->cpuinfo.max_freq : policy->cur;
/*freq_margin是一开始就设定好的，区分big/little core,根据min_cap_cpu_mask*/
int freq_margin = sg_policy->tunables->freq_margin;
/*对最小cluster的util进行调整，变大util数值，capa_margin=1138*/
if (cpumask_test_cpu(policy->cpu, &min_cap_cpu_mask))
util = util * capacity_margin / SCHED_CAPACITY_SCALE;
/*根据设定的margin来决定next freq*/
if (freq_margin > -100 && freq_margin < 100) {
**/*这条语句有一个bug,就是当freq_margin设置为负值的时候,会设置失败,
fixed method: freq_margin = ((int)freq * freq_margin) / 100; */**
freq_margin = (freq * freq_margin) / 100;
freq = ((int)freq + freq_margin) * util / max;
} else
freq = (freq + (freq >> 2)) * util / max; /*1.25 freq*/
if (freq == sg_policy->cached_raw_freq && sg_policy->next_freq != UINT_MAX)
return sg_policy->next_freq;
sg_policy->cached_raw_freq = freq;
return cpufreq_driver_resolve_freq(policy, freq); /*选择target_freq*/
}
cached_raw_freq是保存的上次频率值，如果一致的话就直接调整，不用再次选择target_freq
3.5 sugov_update_commit(sg_policy, time, next_f)触发变频需求
- sugov_up_down_rate_limit这个函数用来作为频率调整的判断依据，比如是否符合升频的时间限制，降频的时间限制。
- 根据选择的next freq数值来修订slack_timer是否执行
- 如果选择的next freq==sg_policy->next_freq频率不做调整
- 更新sg_policy->next_freq=next_freq，sg_policy->last_freq_update_time=time
- 最后设置work_in_process标志位为true，同时执行worker里面函数，执行sugov_irq_work—->sugov_work—> __cpufreq_driver_target(sg_policy->policy, sg_policy->next_freq,CPUFREQ_RELATION_L);基本上频率调节结束了。
4.kernel在什么时候触发governor去做频率的调整
以前我们知道interactive/ondemand governor都自带timer去主动收集cpu loading来做决策是否需要频率的调整，但是从schedutil governor看，并没有看到什么时候主动去计算负载，然后做频率的调整。
从第一章，看到，集中点都在这个函数上：cpufreq_update_util，下面是系统调用的地方
kernel/sched/fair.c:3163: cpufreq_update_util(rq, 0);
kernel/sched/fair.c:4847: cpufreq_update_util(rq, SCHED_CPUFREQ_IOWAIT);
kernel/sched/rt.c:1007: cpufreq_update_util(rq, SCHED_CPUFREQ_RT);
kernel/sched/deadline.c:759: cpufreq_update_util(rq, SCHED_CPUFREQ_DL);
可以看到flags参数分类三类sched_class，RT(flags=1)，DL(flags=2)，FAIR(iowait(flags=4) or not iowait(flags=0))
目的是在什么实际调用cpufreq_update_util函数：
对于sched class怎么去调用，从何处去调用，后面在研究。如有错误请及时的告知，谢谢。
最后，对于现存的cpufreq governor全部分析完毕：
- powersave
- performance
- userspace
- ondemand
- conservative
- interactive
- schedutil
-
sched(schedfreq)
https://blog.csdn.net/wukongmingjing/article/details/81949693
