这个标题是什么意思呢，原因是上一篇章：使用维护在Nacos中的一个限流Json来做Sentinel限流规则的持久化，这里有的同学就会问了：不是已经实现了吗？为啥还要再说一遍，其实啊，Nacos在上个篇章做了持久化，那他在跟Sentinel做集成的时候，大家想想，Nacos充当什么角色呢？我们平常开发，说到数据持久化，第一时间会想到谁？不出意外应该都是MySQL，所以，在上述的关系里面，Nacos也充当是一个“数据库”的角色，但有一个风险，我单独写一下：

所有的限流规则都持久化到了Nacos，这句话没问题，但有问题的是，我们在Nacos控制台上直接修改了限流规则并且同步了，但由于项目开发人员过多呢，就会出现一个问题：人员信息不同步，什么意思呢，就是，有些开发可能并不知道限流规则都在Nacos上维护，默认会去Dashboard上直接操作了，这样，就会导致很难管理的问题，而且Nacos的定位是注册中心和配置中心，如果直接操作Nacos来做Sentinel的规则持久化多多少少有点不太合适！

那上述的问题怎么解决呢？解决思路很简单，那就是：修改Sentinel源码，在Dashboard上维护限流规则同时直接调用Nacos服务，同步到Nacos上面即可，不用维护两套(先维护Nacos，再维护Sentinel Dashboard)

同步实现

1、源码先知道

Sentinel控制台在做流控规则的时候，都会调用SentinelDashboard源码中的一个名叫：FlowControllerV1的接口类，因为流控规则的所有操作，调用的接口都是如图所示：

这个路径对应的就是FlowControllerV1这个类，但是同时还存在一个FlowControllerV2的接口类，这个类主要提供的是流控规则的CURD，这两者有啥区别呢？

和V1不同之处在于：V2可以实现指定数据源的规则拉取和发布

反正Sentinel也是Java代码，那就废话不多数，直接上代码：

@RestController
@RequestMapping(value = "/v2/flow")
public class FlowControllerV2 {

    private final Logger logger = LoggerFactory.getLogger(FlowControllerV2.class);

    @Autowired
    private InMemoryRuleRepositoryAdapter<FlowRuleEntity> repository;

    @Autowired
    @Qualifier("flowRuleDefaultProvider")
    private DynamicRuleProvider<List<FlowRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("flowRuleDefaultPublisher")
    private DynamicRulePublisher<List<FlowRuleEntity>> rulePublisher;

    @GetMapping("/rules")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<FlowRuleEntity>> apiQueryMachineRules(@RequestParam String app) {

        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        try {
            List<FlowRuleEntity> rules = ruleProvider.getRules(app);
            if (rules != null && !rules.isEmpty()) {
                for (FlowRuleEntity entity : rules) {
                    entity.setApp(app);
                    if (entity.getClusterConfig() != null && entity.getClusterConfig().getFlowId() != null) {
                        entity.setId(entity.getClusterConfig().getFlowId());
                    }
                }
            }
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {
            logger.error("Error when querying flow rules", throwable);
            return Result.ofThrowable(-1, throwable);
        }
    }

    private <R> Result<R> checkEntityInternal(FlowRuleEntity entity) {
        if (entity == null) {
            return Result.ofFail(-1, "invalid body");
        }
        if (StringUtil.isBlank(entity.getApp())) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getLimitApp())) {
            return Result.ofFail(-1, "limitApp can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getResource())) {
            return Result.ofFail(-1, "resource can't be null or empty");
        }
        if (entity.getGrade() == null) {
            return Result.ofFail(-1, "grade can't be null");
        }
        if (entity.getGrade() != 0 && entity.getGrade() != 1) {
            return Result.ofFail(-1, "grade must be 0 or 1, but " + entity.getGrade() + " got");
        }
        if (entity.getCount() == null || entity.getCount() < 0) {
            return Result.ofFail(-1, "count should be at lease zero");
        }
        if (entity.getStrategy() == null) {
            return Result.ofFail(-1, "strategy can't be null");
        }
        if (entity.getStrategy() != 0 && StringUtil.isBlank(entity.getRefResource())) {
            return Result.ofFail(-1, "refResource can't be null or empty when strategy!=0");
        }
        if (entity.getControlBehavior() == null) {
            return Result.ofFail(-1, "controlBehavior can't be null");
        }
        int controlBehavior = entity.getControlBehavior();
        if (controlBehavior == 1 && entity.getWarmUpPeriodSec() == null) {
            return Result.ofFail(-1, "warmUpPeriodSec can't be null when controlBehavior==1");
        }
        if (controlBehavior == 2 && entity.getMaxQueueingTimeMs() == null) {
            return Result.ofFail(-1, "maxQueueingTimeMs can't be null when controlBehavior==2");
        }
        if (entity.isClusterMode() && entity.getClusterConfig() == null) {
            return Result.ofFail(-1, "cluster config should be valid");
        }
        return null;
    }

    @PostMapping("/rule")
    @AuthAction(value = AuthService.PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiAddFlowRule(@RequestBody FlowRuleEntity entity) {

        Result<FlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        entity.setId(null);
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        entity.setLimitApp(entity.getLimitApp().trim());
        entity.setResource(entity.getResource().trim());
        try {
            entity = repository.save(entity);
            publishRules(entity.getApp());
        } catch (Throwable throwable) {
            logger.error("Failed to add flow rule", throwable);
            return Result.ofThrowable(-1, throwable);
        }
        return Result.ofSuccess(entity);
    }

    @PutMapping("/rule/{id}")
    @AuthAction(AuthService.PrivilegeType.WRITE_RULE)

    public Result<FlowRuleEntity> apiUpdateFlowRule(@PathVariable("id") Long id,
                                                    @RequestBody FlowRuleEntity entity) {
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "Invalid id");
        }
        FlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofFail(-1, "id " + id + " does not exist");
        }
        if (entity == null) {
            return Result.ofFail(-1, "invalid body");
        }

        entity.setApp(oldEntity.getApp());
        entity.setIp(oldEntity.getIp());
        entity.setPort(oldEntity.getPort());
        Result<FlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }

        entity.setId(id);
        Date date = new Date();
        entity.setGmtCreate(oldEntity.getGmtCreate());
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            if (entity == null) {
                return Result.ofFail(-1, "save entity fail");
            }
            publishRules(oldEntity.getApp());
        } catch (Throwable throwable) {
            logger.error("Failed to update flow rule", throwable);
            return Result.ofThrowable(-1, throwable);
        }
        return Result.ofSuccess(entity);
    }

    @DeleteMapping("/rule/{id}")
    @AuthAction(PrivilegeType.DELETE_RULE)
    public Result<Long> apiDeleteRule(@PathVariable("id") Long id) {
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "Invalid id");
        }
        FlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }

        try {
            repository.delete(id);
            publishRules(oldEntity.getApp());
        } catch (Exception e) {
            return Result.ofFail(-1, e.getMessage());
        }
        return Result.ofSuccess(id);
    }

    private void publishRules(/*@NonNull*/ String app) throws Exception {
        List<FlowRuleEntity> rules = repository.findAllByApp(app);
        rulePublisher.publish(app, rules);
    }
}

其中啊，看一下最上面的俩Qualifier注解修饰的对象：

DynamicRuleProvider：动态规则的拉取，从指定的数据源里面获取数据并回显在Sentinel控制台上

DunamicRulePublisher：动态规则的发布，将Sentinel控制台上操作的数据，同步到指定的数据源上

所以，我们要想实现，入口都走Sentinel控制台的话，就要从这俩对象入手

1、修改Sentinel Dashboard源码

我这里使用的是Sentinel1.8.1版本，其实差不多

1、先将sentinel-datasource-nacos一来的scope去掉(maven的声明周期就不说了)

2、进入resources/app/scripts/directives/sidebar这个目录，找到sidebar.html文件，全局搜一下“dashboard.flowV1”，将V1去除：去除之后就会调用FlowControllerV2中的CURD的接口

3、在com.alibaba.csp.sentinel.dashboard.rule下创建一个nacos包，创建一个配置类，定义nacos的基本属性，代码如下：

@ConfigurationProperties(prefix = "sentinel.nacos")
public class NacosPropertiesConfiguration {
    private String serverAddr;
    private String dataId;
    private String groupId="DEFAULT_GROUP";
    private String namespace;

    public String getServerAddr() {
        return serverAddr;
    }
    public void setServerAddr(String serverAddr) {
        this.serverAddr = serverAddr;
    }
    public String getDataId() {
        return dataId;
    }
    public void setDataId(String dataId) {
        this.dataId = dataId;
    }
    public String getGroupId() {
        return groupId;
    }
    public void setGroupId(String groupId) {
        this.groupId = groupId;
    }
    public String getNamespace() {
        return namespace;
    }
    public void setNamespace(String namespace) {
        this.namespace = namespace;
    }
}

4、创建一个Nacos的配置类NacosConfiguration，代码如下：

@EnableConfigurationProperties(NacosPropertiesConfiguration.class)
@Configuration
public class NacosConfiguration {
    @Bean
    public Converter<List<FlowRuleEntity>,String> flowRuleEntityEncoder(){
        return JSON::toJSONString;
    }

    /**
     * @Description: 注入一个转换器，将FlowRuleEntity转换成FlowRule，以及上下两个方法的正反向转换
     * @Author: caobing
     * @Date: 2022/2/25 21:18
     * @Param: []
     * @Return: com.alibaba.csp.sentinel.datasource.Converter<java.lang.String,java.util.List<com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity>>
     */
    @Bean
    public Converter<String,List<FlowRuleEntity>> flowRuleEntityDecoder(){
        return s->JSON.parseArray(s,FlowRuleEntity.class);
    }
    /***
     * @Description: 注入Nacos配置服务ConfigSerice
     * @Author: caobing
     * @Date: 2022/2/25 22:09
     * @Param: [config]
     * @Return: com.alibaba.nacos.api.config.ConfigService
     */
    @Bean
    public ConfigService nacosConfigService(NacosPropertiesConfiguration config) throws NacosException {
        Properties properties=new Properties();
        properties.put(PropertyKeyConst.SERVER_ADDR,config.getServerAddr());
        properties.put(PropertyKeyConst.NAMESPACE,config.getNamespace());
        return ConfigFactory.createConfigService(properties);
    }
}

5、再定义一个常量类

public class NacosConstants {
    public static final String DATA_ID_POSTFIX="-sentinel-flow";
    public static final String GROUP_ID="DEFAULT_GROUP";
}

6、实现动态从Nacos配置中心获取流控规则

@Service
public class FlowRuleNacosProvider implements DynamicRuleProvider<List<FlowRuleEntity>>{
    private static Logger logger=LoggerFactory.getLogger(FlowRuleNacosProvider.class);

    @Autowired
    private NacosPropertiesConfiguration nacosPropertiesConfiguration;
    @Autowired
    private ConfigService configService;
    @Autowired
    private Converter<String,List<FlowRuleEntity>> converter;

    /**
     * @Description: 通过ConfigService.getConfig方法从
        NacosConfigServer中读取指定配置信息，通过converter转化为FlowRule规则
     * @Author: caobing
     * @Date: 2022/2/25 22:41
     * @Param: [appName]
     * @Return: java.util.List<com.alibaba.csp.sentinel.dashboard.datasource.entity.rule.FlowRuleEntity>
     */
    @Override
    public List<FlowRuleEntity> getRules(String appName) throws Exception {
        String dataId = new StringBuilder(appName).append(NacosConstants.DATA_ID_POSTFIX).toString();
        String rules=configService.getConfig(dataId,nacosPropertiesConfiguration.getGroupId(),3000);
        if(StringUtils.isEmpty(rules)){
            return new ArrayList<>();
        }
        return converter.convert(rules);
    }
}

7、创建一个流控规则发布类

这个类，是为了在Sentinel控制台修改规则时，调用次类将数据持久化到nacos上，代码如下

@Service
public class FlowRuleNacosPublisher implements DynamicRulePublisher<List<FlowRuleEntity>> {
    @Autowired
    private NacosPropertiesConfiguration nacosPropertiesConfiguration;
    @Autowired
    private ConfigService configService;
    @Autowired
    private Converter<List<FlowRuleEntity>, String> converter;

    @Override
    public void publish(String app, List<FlowRuleEntity> rules) throws Exception {
        AssertUtil.notEmpty(app, "appName connot be empty");
        if (rules == null) {
            return;
        }
        String dataId = new StringBuilder(app).append(NacosConstants.DATA_ID_POSTFIX).toString();

        configService.publishConfig(dataId, nacosPropertiesConfiguration.getGroupId(), converter.convert(rules));
    }
}

8、修改FlowControllerV2类

将上面配置的两个类引入进来，拉取和发布用这两个类实现即可，修改@Qualifier中的参数即可，代码如下：

@RestController
@RequestMapping(value = "/v2/flow")
public class FlowControllerV2 {

    private final Logger logger = LoggerFactory.getLogger(FlowControllerV2.class);

    @Autowired
    private InMemoryRuleRepositoryAdapter<FlowRuleEntity> repository;

    @Autowired
    @Qualifier("flowRuleNacosProvider") //修改
    private DynamicRuleProvider<List<FlowRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("flowRuleNacosPublisher") //修改
    private DynamicRulePublisher<List<FlowRuleEntity>> rulePublisher;

9、在yml配置文件中添加Nacos的配置信息

sentinel.nacos.serverAddr=127.0.0.1:8848
sentinel.nacos.namespace=
sentinel.nacos.group-id=DEFAULT_GROUP

10、使用mvn clean package打包运行jar即可，记住哈，是全局打包

2、规则数据同步

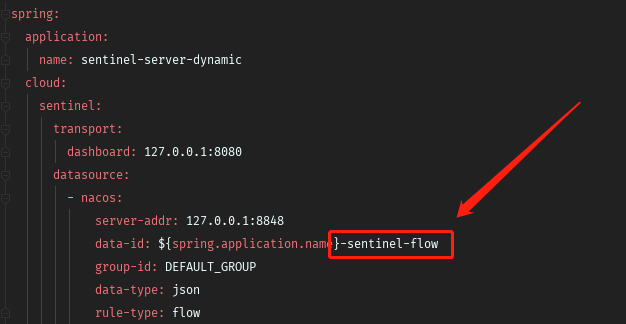

在上述步骤中，我们定义了一个常量类，其中data-id定义为了-sentinel-flow结尾，所以，我们集成nacos的时候，也需要以此结尾，如图：

3、启动服务

启动Sentinel Dashboard和集成工程服务，启动nacos控制台

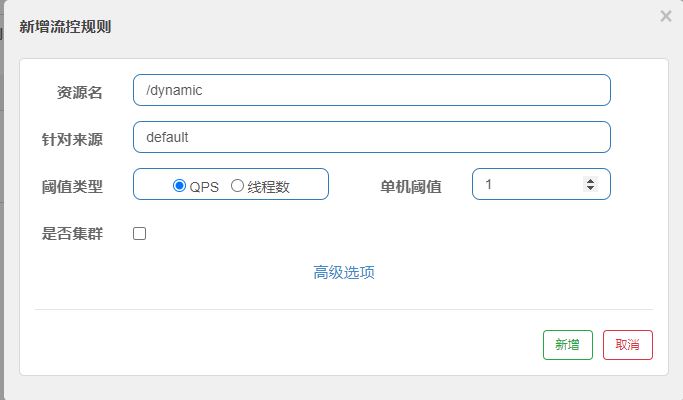

1、在Sentinel控制台进入流控规则>新增流控规则，如图：

点击新增的时候，调试接口看一下调用的接口是不是V2的

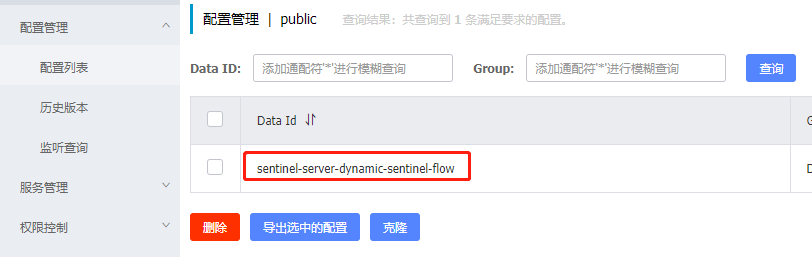

2、新增之后的数据之后，再去Nacos控制台看一下配置列表，会发现一个

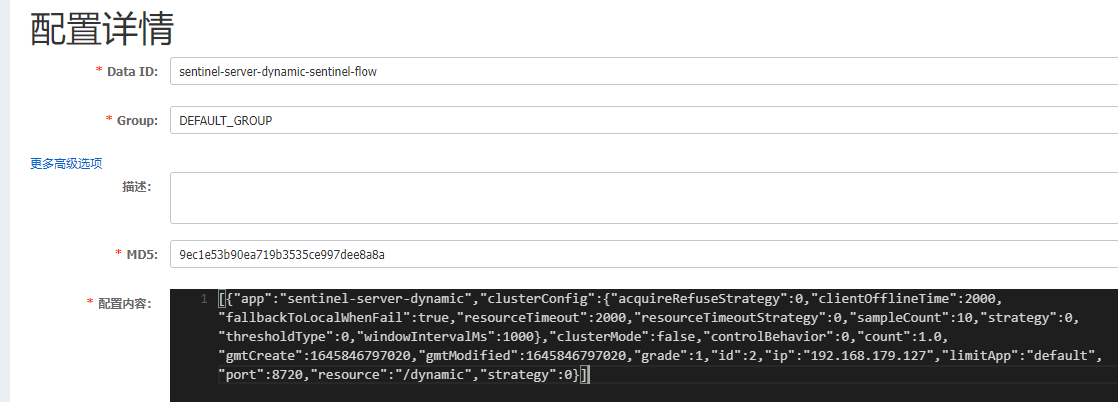

这个就是我们在Sentinel控制台新增的规则持久化配置，我们看一下详情

关于json的字段这里就不做陈述解释了，然后重启Sentinel，会发现流控规则中走V2接口的数据都会自动加载出来，那就证明整合完成并且成功了
