Java_ODPS-D2-离线数仓-4-自定义函数UDTF，一进多出，处理复杂事件json串

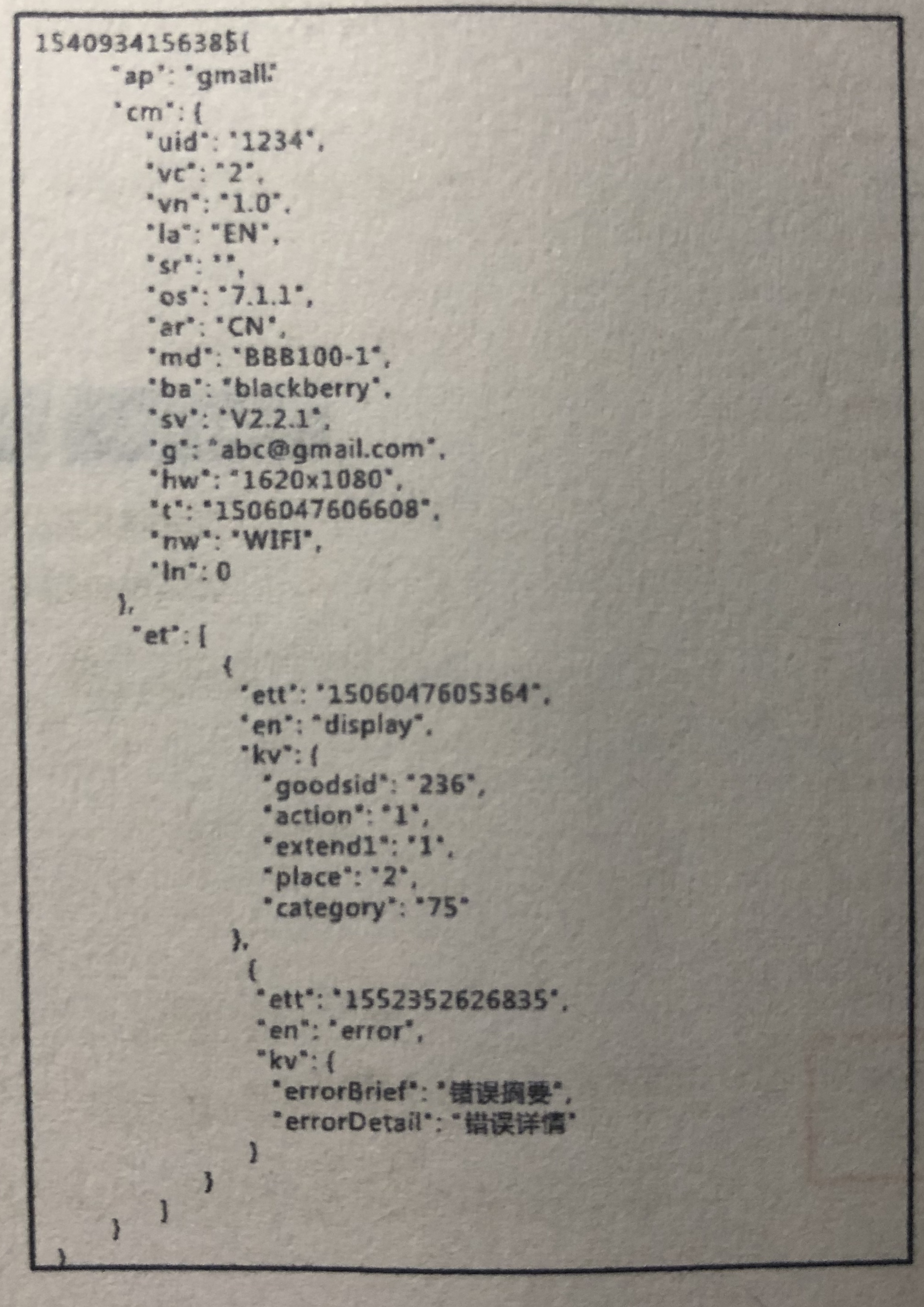

原始数据和结果都自行想象吧 或者 翻翻笔记p89 p92

FuntionStudio

1. 新建一个项目gmall_udtf，运行环境选udfjava

2. 新建一个FlatEventUDTF

3. pom.xml中加入fastjson依赖

  <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>fastjson</artifactId>
      <version>1.2.28.odps</version>
  </dependency>

4. 编辑udtf，导包

package com.alibaba.dataworks.udtf;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import com.aliyun.odps.udf.ExecutionContext;
import com.aliyun.odps.udf.UDFException;
import com.aliyun.odps.udf.UDTF;
import com.aliyun.odps.udf.annotation.Resolve;

// TODO define input and output types, e.g. "string,string->string,bigint".
@Resolve({"string->bigint,string,string"})
public class FlatEventUDTF extends UDTF {

    @Override
    public void setup(ExecutionContext ctx) throws UDFException {

    }

    @Override
    public void process(Object[] args) throws UDFException {
        // TODO
        String event = (String) args[0]; //传进来唯一的et字串
        JSONArray jsonArray= JSON.parseArray(event); //把字串json格式化

        // 循环遍历出每一块，再把每一块中的三个字段解析出来
        for(int i=0;i<jsonArray.size();i++ ){
            JSONObject jsonObject = jsonArray.getJSONObject(i);
            String ett = jsonObject.getString("ett");
            String eventName = jsonObject.getString("en");
            String eventJson = jsonObject.getString("kv");

            // 返回的数据 注意输出字段类型
            forward(Long.parseLong(ett),eventName,eventJson);
        }
    }

    @Override
    public void close() throws UDFException {

    }

}

DataStudio

5. 提交到DataStudio后，测试一下

--测试FlatEventUDTF自定义函数 一进多出
SELECT
    FLATEVENTUDTF(GET_JSON_OBJECT(log_string,'$.et')) as (event_time,event_name,event_json) --$.et 就是事件
FROM ods_base_log
WHERE ds='00000000';

6. UDTF在sql中的实际应用

   列转行

   LATERAL VIEW FLATEVENTUDTF(GET_JSON_OBJECT(log_string,’$.et’)) event_view AS event_time,event_name,event_json

 --手动将ods层数据导入到dwd层
 INSERT OVERWRITE TABLE dwd_start_log PARTITION(ds,hh,mm)
 SELECT  GET_JSON_OBJECT(log_string,'$.cm.mid') mid
         ,GET_JSON_OBJECT(log_string,'$.cm.uid') user_id
         ,GET_JSON_OBJECT(log_string,'$.cm.vc' ) version_code
         ,GET_JSON_OBJECT(log_string,'$.cm.vn') version_name
         ,GET_JSON_OBJECT(log_string,'$.cm.l') lang
         ,GET_JSON_OBJECT(log_string,'$.cm.sr') source
         ,GET_JSON_OBJECT(log_string,'$.cm.os') os
         ,GET_JSON_OBJECT(log_string,'$.cm.ar') area
         ,GET_JSON_OBJECT(log_string,'$.cm.md') model
         ,GET_JSON_OBJECT(log_string,'$.cm.ba') brand
         ,GET_JSON_OBJECT(log_string,'$.cm.sv') sdk_version
         ,GET_JSON_OBJECT(log_string,'$.cm.hw') height_width
         ,GET_JSON_OBJECT(log_string,'$.cm.g') email
         ,GET_JSON_OBJECT(log_string,'$.cm.hw') sv
         ,GET_JSON_OBJECT(log_string,'$.cm.ln') ln
         ,GET_JSON_OBJECT(log_string,'$.cm.la') la
         ,GET_JSON_OBJECT(event_view.event_json,'$.entry') entry
         ,GET_JSON_OBJECT(event_view.event_json,'$.loading_time') loading_time
         ,GET_JSON_OBJECT(event_view.event_json,'$.action') action
         ,GET_JSON_OBJECT(event_view.event_json,'$.open_ad_type') open_ad_type
         ,GET_JSON_OBJECT(event_view.event_json,'$.detail') detail
         ,event_view.event_time
         ,ds
         ,hh
         ,mm
 FROM    ods_base_log
 LATERAL VIEW FLATEVENTUDTF(GET_JSON_OBJECT(log_string,'$.et')) event_view AS event_time,event_name,event_json
 WHERE   ds = '00000000'
 AND     event_view.event_name = 'start'
 ;

 --查看导入结果
 SELECT * from dwd_start_log WHERE ds='20200308' LIMIT 3;

 -- mid	user_id	version_code	version_name	lang	source	os	area	model	brand	sdk_version	email	height_width	network	lng	lat	entry	open_ad_type	action	loading_time	detail	event_time	ds	hh	mm
 -- 0	0	9	1.0.7	es	V	8.1.1	MX	HTC-0	HTC	V2.5.9	640*960	QED8OB5D@gmail.com	640*960	-112.5	29.2	3	13	1	2		1583531265269	00000000	01	15
