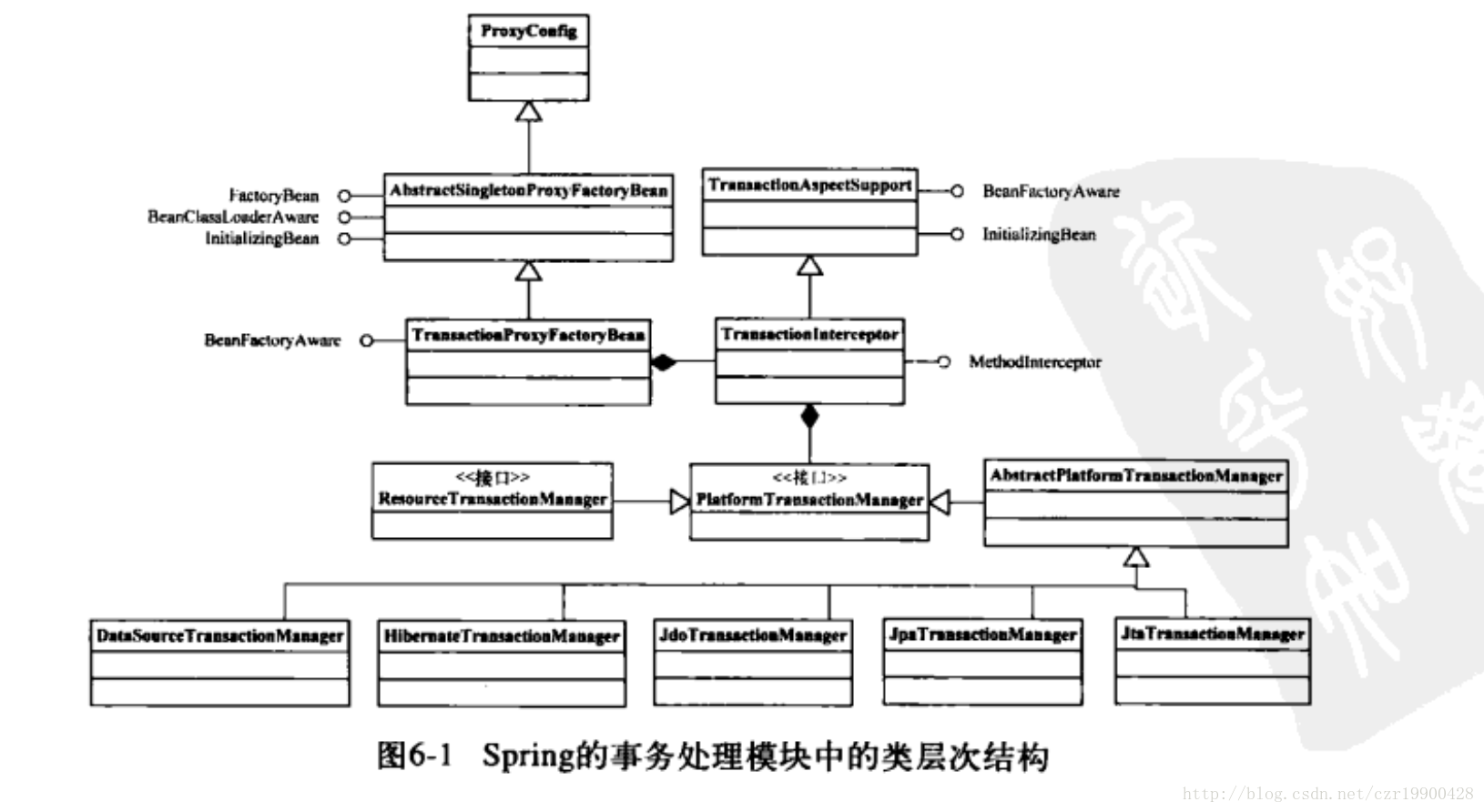

事务模块类结构

声明式事务

声明式事务处理大致分为以下几个步骤

1）从配置文件中读取事务配置，并将事务元数据转化为spring内部元数据对象。

涉及类：TransactionAttributeSourceAdvisor（此通知器类会将事务处理的属性信息抽象到TransactionAttribute对象中）

2）将事务处理对象与当前线程绑定，通过TransactionInfo和TransactionStatus这两个数据对象进行事务处理过程中相关执行场景的记录和传递。

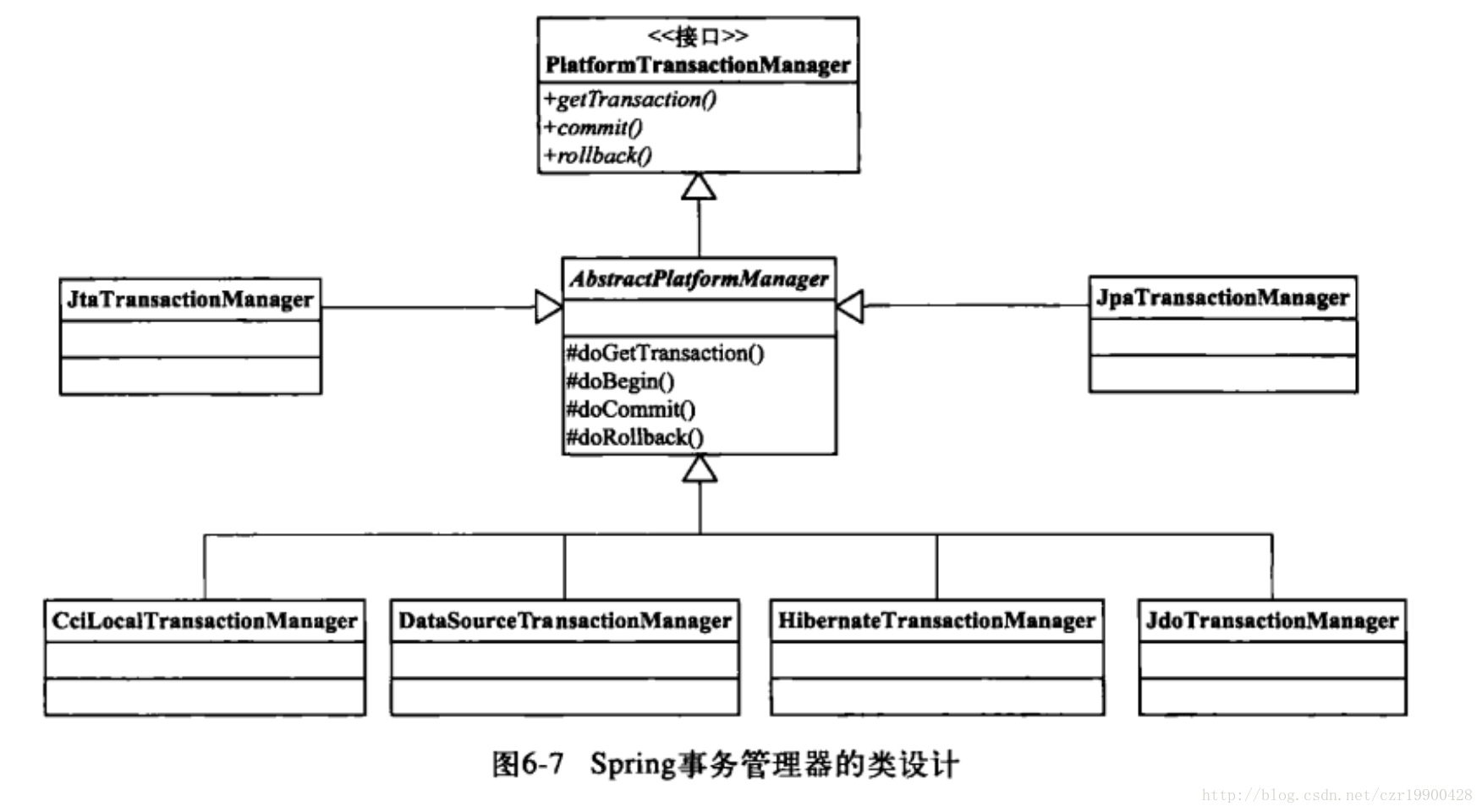

3）PlatformTransactionManager对事务的具体实现。

• 声明式事务处理启动

声明式事务配置

<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <property name="dataSource" ref="dataSource" />
</bean>

<bean id="toBeTestService" class="org.springframework.transaction.interceptor.TransactionProxyFactoryBean">
    <property name="target">
      <!--被代理目标类-->
      <bean class="com.test.m.service.ToBeTestService"/>
    </property>
    <property name="transactionManager" ref="transactionManager"/>
     <property name="transactionAttributes">
       <props>
         <prop key="insert*">PROPAGATION_REQUIRED</prop>
         <prop key="update*">PROPAGATION_REQUIRED</prop>
         <prop key="select*">PROPAGATION_REQUIRES_NEW</prop>
         <prop key="*">PROPAGATION_REQUIRED,readOnly</prop>
       </props>
     </property>
  </bean>

transactionAttributes中的属性为事务处理的拦截规则，由NameMatchTransactionAttributeSource实现，规则会被封装到一个map中



如：key为insert*，value为PROPAGATION_REQUIRED

TransactionProxyFactoryBean是个FactoryBean，是生成具有事务特性代理类的入口。

TransactionProxyFactoryBean继承关系

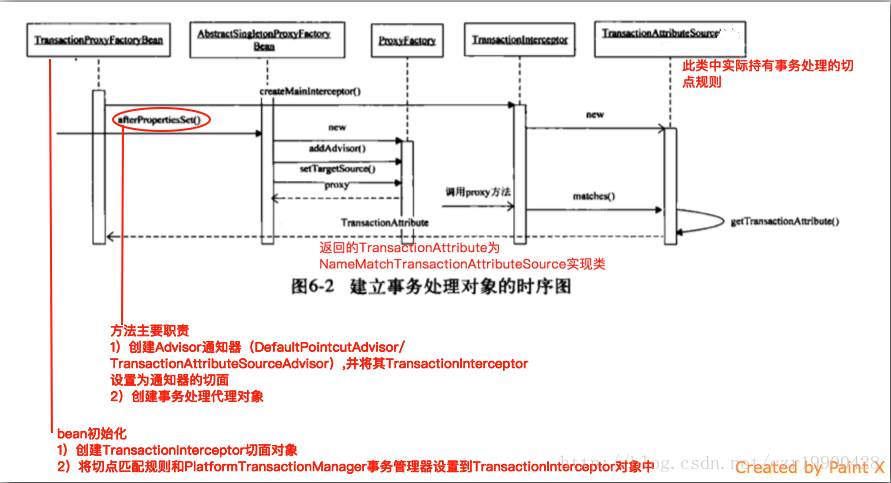

先大致看一下事务处理代理对象的建立流程

下面来具体分析

TransactionProxyFactoryBean实现了InitializingBean与FactoryBean，所以TransactionProxyFactoryBean的IoC容器初始化方法为afterPropertiesSet方法。

@Override
public void afterPropertiesSet() {
    if (this.target == null) {
        throw new IllegalArgumentException("Property 'target' is required");
    }
    if (this.target instanceof String) {
        throw new IllegalArgumentException("'target' needs to be a bean reference, not a bean name as value");
    }
    if (this.proxyClassLoader == null) {
        this.proxyClassLoader = ClassUtils.getDefaultClassLoader();
    }
    //创建事务代理对象
    ProxyFactory proxyFactory = new ProxyFactory();
    //设置自定义前置拦截器
    if (this.preInterceptors != null) {
        for (Object interceptor : this.preInterceptors) {
            proxyFactory.addAdvisor(this.advisorAdapterRegistry.wrap(interceptor));
        }
    }
    //创建事务处理的AOP通知器
    proxyFactory.addAdvisor(this.advisorAdapterRegistry.wrap(createMainInterceptor()));
    //设置自定义后置拦截器
    if (this.postInterceptors != null) {
        for (Object interceptor : this.postInterceptors) {
            proxyFactory.addAdvisor(this.advisorAdapterRegistry.wrap(interceptor));
        }
    }
    proxyFactory.copyFrom(this);
    //创建AOP的目标源
    TargetSource targetSource = createTargetSource(this.target);
    proxyFactory.setTargetSource(targetSource);
    if (this.proxyInterfaces != null) {
        proxyFactory.setInterfaces(this.proxyInterfaces);
    }
    else if (!isProxyTargetClass()) {
        // Rely on AOP infrastructure to tell us what interfaces to proxy.
        proxyFactory.setInterfaces(
                ClassUtils.getAllInterfacesForClass(targetSource.getTargetClass(), this.proxyClassLoader));
    }
    postProcessProxyFactory(proxyFactory);
    //创建事务代理对象
    this.proxy = proxyFactory.getProxy(this.proxyClassLoader);
}

/**
 * 创建事务处理的AOP通知器
 */
protected Object createMainInterceptor() {
    this.transactionInterceptor.afterPropertiesSet();
    if (this.pointcut != null) {
        //使用默认通知器，并配置事务处理拦截器
        return new DefaultPointcutAdvisor(this.pointcut, this.transactionInterceptor);
    }
    else {
        //若没有配置切点，使用TransactionAttributeSourceAdvisor通知器，并配置事务处理拦截器
        return new TransactionAttributeSourceAdvisor(this.transactionInterceptor);
    }
}

• 事务处理通知器初始化

这里通过TransactionAttributeSourceAdvisor通知器来进行分析

Advisor需要有两个元素，切点（Pointcut）和切面（Interceptor）这里的切点为TransactionAttributeSourceAdvisor类中声明的TransactionAttributeSourcePointcut，并通过TransactionAttributeSourcePointcut内部的matches方法来做目标方法是否拦截的规则匹配

@Override
public boolean matches(Method method, Class<?> targetClass) {
    if (TransactionalProxy.class.isAssignableFrom(targetClass)) {
        return false;
    }
    //从TransactionInterceptor中获取TransactionAttributeSource（声明中配置的拦截规则）对象，具体实现为
    //NameMatchTransactionAttributeSource实现类
    TransactionAttributeSource tas = getTransactionAttributeSource();
    return (tas == null || tas.getTransactionAttribute(method, targetClass) != null);
}

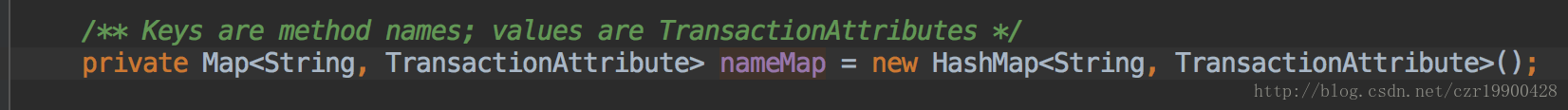

具体的匹配规则实现（NameMatchTransactionAttributeSource.getTransactionAttribute）

/**
 * 根据方法名进行正则匹配看是否有对应的事务属性对象（主要是一些配置的隔离级别，readonly等等），若呢个匹配
 * 到具体的TransactionAttribute对象，说明TransactionInterceptor做好了对调用目标的方法添加事务处理
 * 的准备
 */
@Override
public TransactionAttribute getTransactionAttribute(Method method, Class<?> targetClass) {
    if (!ClassUtils.isUserLevelMethod(method)) {
        return null;
    }
    // Look for direct name match.
    String methodName = method.getName();
    TransactionAttribute attr = this.nameMap.get(methodName);
    if (attr == null) {
        // Look for most specific name match.
        String bestNameMatch = null;
        for (String mappedName : this.nameMap.keySet()) {
            if (isMatch(methodName, mappedName) &&
                    (bestNameMatch == null || bestNameMatch.length() <= mappedName.length())) {
                attr = this.nameMap.get(mappedName);
                bestNameMatch = mappedName;
            }
        }
    }
    return attr;
}

• 事务拦截器的具体实现

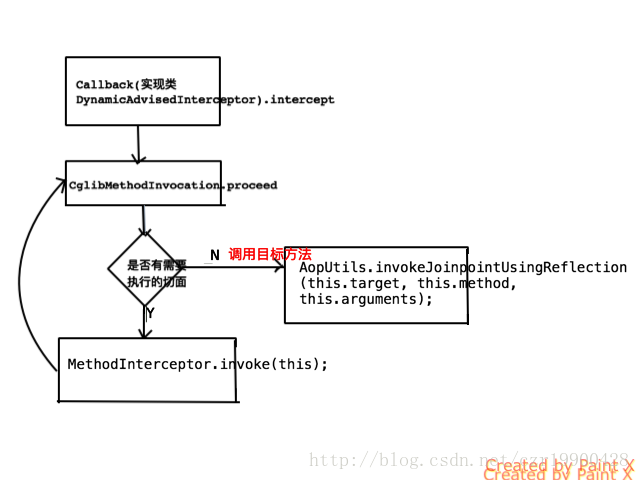

由于事务AOP是通过CglibAopProxy实现的，大概说明下调用流程

所以我们看TransactionInterceptor中的invoke方法

@Override
public Object invoke(final MethodInvocation invocation) throws Throwable {
    Class<?> targetClass = (invocation.getThis() != null ? AopUtils.getTargetClass(invocation.getThis()) : null);
    return invokeWithinTransaction(invocation.getMethod(), targetClass, new InvocationCallback() {
        @Override
        public Object proceedWithInvocation() throws Throwable {
            return invocation.proceed();
        }
    });
}

protected Object invokeWithinTransaction(Method method, Class<?> targetClass, final InvocationCallback invocation)
        throws Throwable {
    // 通过TransactionAttributeSource对象取得事务的属性配置
    final TransactionAttribute txAttr = getTransactionAttributeSource().getTransactionAttribute(method, targetClass);
    // 根据TransactionProxyFactoryBean的配置信息获得具体的事务处理器
    final PlatformTransactionManager tm = determineTransactionManager(txAttr);
    final String joinpointIdentification = methodIdentification(method, targetClass);
    // 不同类型的PlatformTransactionManager调用方式不同，CallbackPreferringPlatformTransactionManager需要回调函数来实现事务流程，而我们常用的DataSourceTransactionManager就不是CallbackPreferringPlatformTransactionManager
    if (txAttr == null || !(tm instanceof CallbackPreferringPlatformTransactionManager)) {
        // 创建事务对象，其中保存了事务状态对象
        // TransactionInfo是一个事务对象，对象中包含事务的所有属性，包括PlatformTransactionManager、TransactionAttribute、TransactionStatus
        // ⚠️事务的管理都是通过TransactionInfo对象来完成，它封装了事务对象和事务处理的状态信息
        TransactionInfo txInfo = createTransactionIfNecessary(tm, txAttr, joinpointIdentification);
        Object retVal = null;
        try {
            // 进行拦截器和目标方法的调用
            retVal = invocation.proceedWithInvocation();
        }
        catch (Throwable ex) {
            // 回滚
            completeTransactionAfterThrowing(txInfo, ex);
            throw ex;
        }
        finally {
            cleanupTransactionInfo(txInfo);
        }
        // 提交
        commitTransactionAfterReturning(txInfo);
        return retVal;
    }
    else {
        // It's a CallbackPreferringPlatformTransactionManager: pass a TransactionCallback in.
        try {
            Object result = ((CallbackPreferringPlatformTransactionManager) tm).execute(txAttr,
                    new TransactionCallback<Object>() {
                        @Override
                        public Object doInTransaction(TransactionStatus status) {
                            TransactionInfo txInfo = prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);
                            try {
                                return invocation.proceedWithInvocation();
                            }
                            catch (Throwable ex) {
                                if (txAttr.rollbackOn(ex)) {
                                    // A RuntimeException: will lead to a rollback.
                                    if (ex instanceof RuntimeException) {
                                        throw (RuntimeException) ex;
                                    }
                                    else {
                                        throw new ThrowableHolderException(ex);
                                    }
                                }
                                else {
                                    // A normal return value: will lead to a commit.
                                    return new ThrowableHolder(ex);
                                }
                            }
                            finally {
                                cleanupTransactionInfo(txInfo);
                            }
                        }
                    });
            // Check result: It might indicate a Throwable to rethrow.
            if (result instanceof ThrowableHolder) {
                throw ((ThrowableHolder) result).getThrowable();
            }
            else {
                return result;
            }
        }
        catch (ThrowableHolderException ex) {
            throw ex.getCause();
        }
    }
}

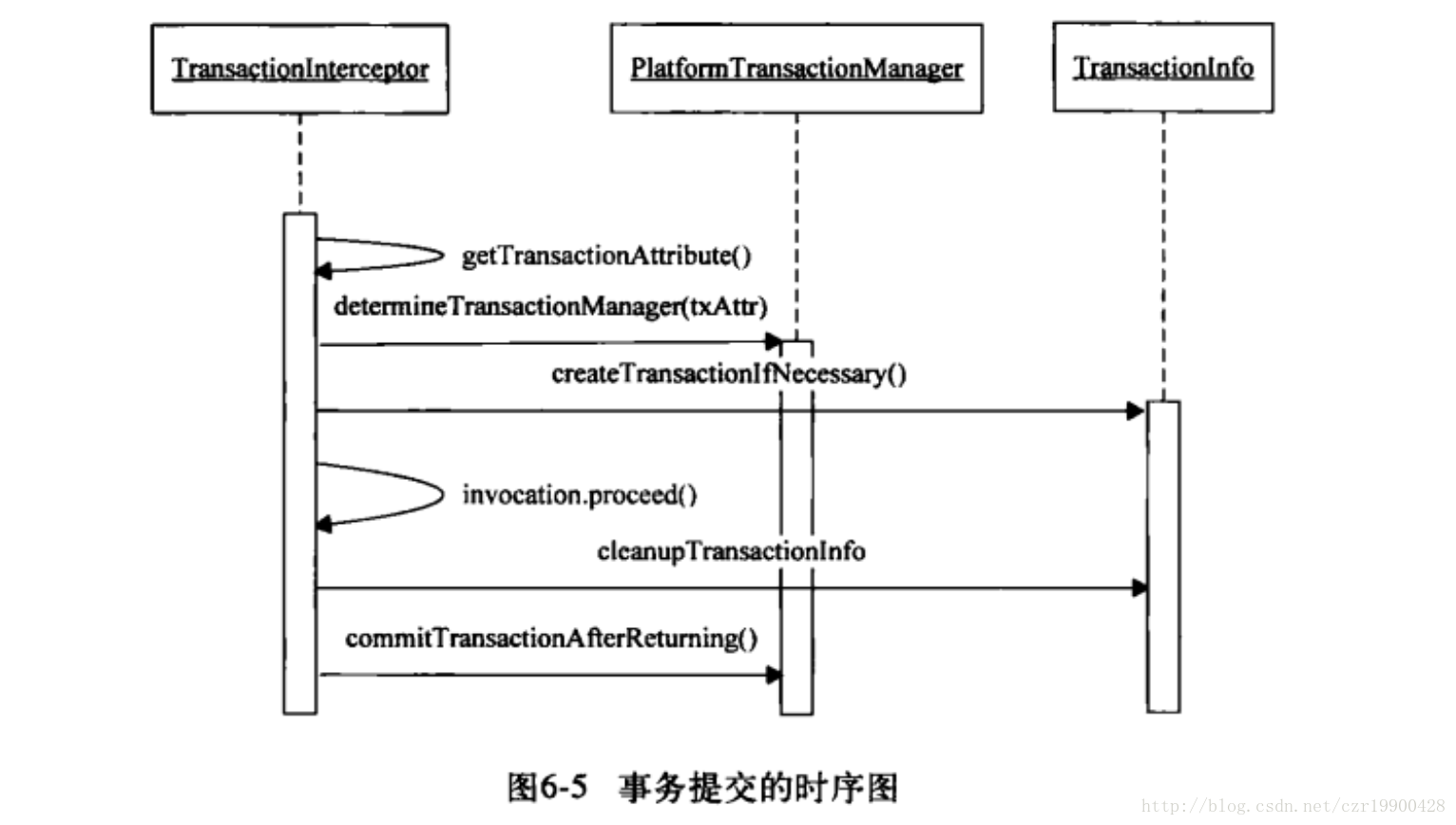

流程图



1）读取事务方法的事务属性配置

2）获取PlatformTransactionManager事务处理器的具体实现

3）决定是否创建新的事务（后面会具体分析）

4）对拦截器和目标对象进行调用

5）根据执行进行commit或rollback

• 事务的创建

编程式创建事务

        DataSourceTransactionManager manager = new DataSourceTransactionManager();
        TransactionDefinition td = new DefaultTransactionDefinition();
        TransactionStatus transaction = manager.getTransaction(td);
        try{
            //todo
        }catch (Exception e){
            manager.rollback(transaction);
        }
        manager.commit(transaction);

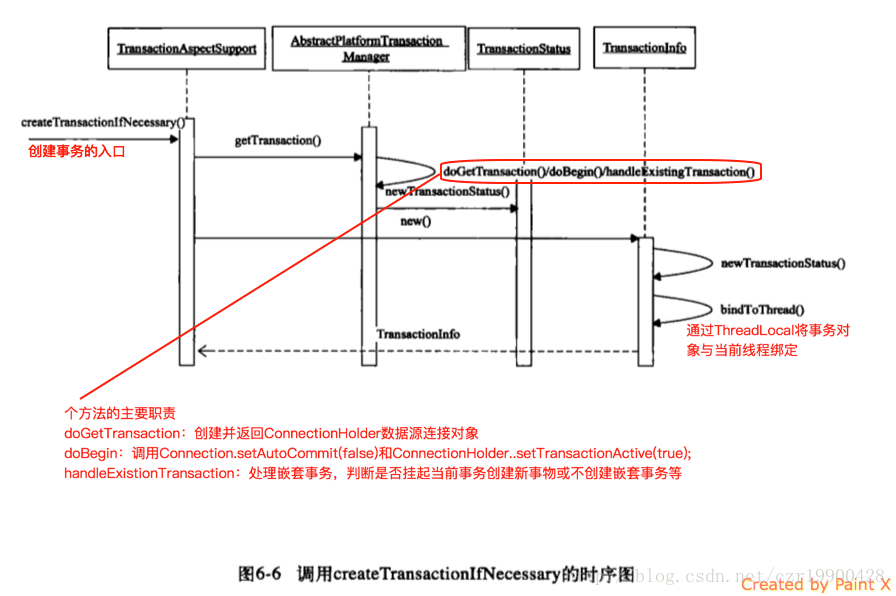

事务创建流程图

大致过程一句话：通过DataSourceTransactionManager创建一个TransactionStatus，并将TransactionStatus设置到当前的TransactionInfo中，同时将此TransactionInfo与当前线程绑定。

下面我们来分析DataSourceTransactionManager.getTransaction方法

@Override
public final TransactionStatus getTransaction(TransactionDefinition definition) throws TransactionException {

    // 获取ConnectionHolder数据源连接对象
    Object transaction = doGetTransaction();
    boolean debugEnabled = logger.isDebugEnabled();
    if (definition == null) {
        definition = new DefaultTransactionDefinition();
    }
    // 是否是嵌套事务，若是，则根据事务的传播属性来处理事务的产生
    if (isExistingTransaction(transaction)) {
        return handleExistingTransaction(definition, transaction, debugEnabled);
    }
    // 检查事务属性中timeout的设置是否合理
    if (definition.getTimeout() < TransactionDefinition.TIMEOUT_DEFAULT) {
        throw new InvalidTimeoutException("Invalid transaction timeout", definition.getTimeout());
    }
    // 根据事务的传播属性进行相应的处理
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_MANDATORY) {
        throw new IllegalTransactionStateException(
                "No existing transaction found for transaction marked with propagation 'mandatory'");
    }
    else if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED ||
            definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW ||
            definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
        SuspendedResourcesHolder suspendedResources = suspend(null);
        if (debugEnabled) {
            logger.debug("Creating new transaction with name [" + definition.getName() + "]: " + definition);
        }
        try {
            boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
            // 创建TransactionStatus
            DefaultTransactionStatus status = newTransactionStatus(
                    definition, transaction, true, newSynchronization, debugEnabled, suspendedResources);

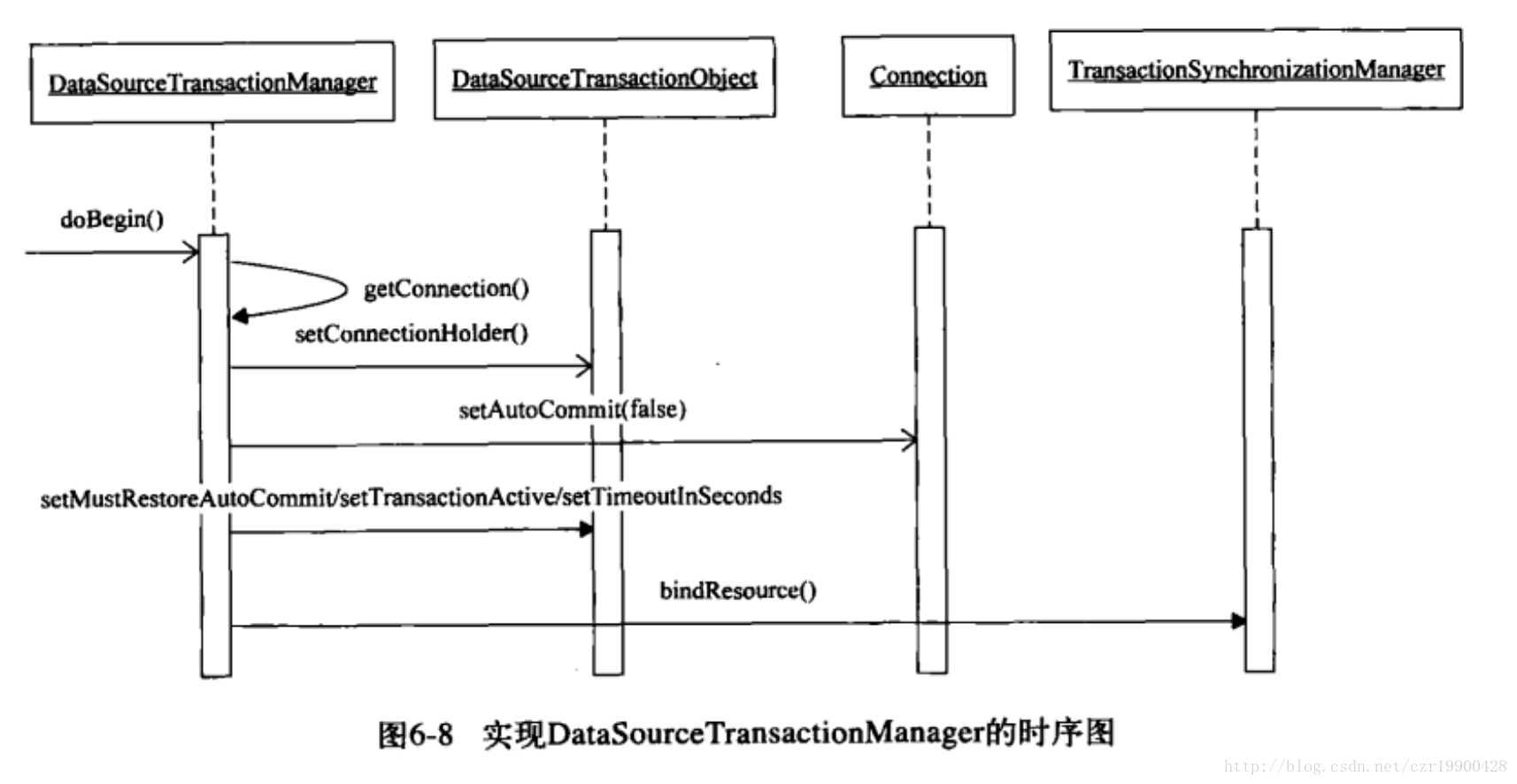

            // 开启事务（调用connect对象的setAutoCommit(false)和setTransactionActive(true)）
            doBegin(transaction, definition);
            // 初始化当前线程的threadlocal对象
            prepareSynchronization(status, definition);
            return status;
        }
        catch (RuntimeException ex) {
            resume(null, suspendedResources);
            throw ex;
        }
        catch (Error err) {
            resume(null, suspendedResources);
            throw err;
        }
    }
    else {
        // Create "empty" transaction: no actual transaction, but potentially synchronization.
        if (definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT && logger.isWarnEnabled()) {
            logger.warn("Custom isolation level specified but no actual transaction initiated; " +
                    "isolation level will effectively be ignored: " + definition);
        }
        boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
        return prepareTransactionStatus(definition, null, true, newSynchronization, debugEnabled, null);
    }
}

创建新事物比较好理解，根据事务属性的配置创建事务对象并保存到TransactionStatus中，并将事务属性信息与当前线程绑定。

对于嵌套式事务，需要关注下AbstractPlatformTransactionManager.handleExistingTransaction方法，会根据事务属性中配置的传播属性进行事务的处理。

private TransactionStatus handleExistingTransaction(
        TransactionDefinition definition, Object transaction, boolean debugEnabled)
        throws TransactionException {
    // 事务传播属性为不容许存在事务
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NEVER) {
        throw new IllegalTransactionStateException(
                "Existing transaction found for transaction marked with propagation 'never'");
    }
    // 事务传播属性为不开启新事务
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NOT_SUPPORTED) {
        if (debugEnabled) {
            logger.debug("Suspending current transaction");
        }
        // 将当前事务挂起
        Object suspendedResources = suspend(transaction);
        boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
        // 这里transaction为null，newTransaction为false，说明事务方法不需要放在事务环境中执行，会将之前的事务信息保存在当前的TransactionStatus对象中
        return prepareTransactionStatus(
                definition, null, false, newSynchronization, debugEnabled, suspendedResources);
    }
    // 事务传播属性为开启新事物
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW) {
        if (debugEnabled) {
            logger.debug("Suspending current transaction, creating new transaction with name [" +
                    definition.getName() + "]");
        }
        SuspendedResourcesHolder suspendedResources = suspend(transaction);
        try {
            boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
            DefaultTransactionStatus status = newTransactionStatus(
                    definition, transaction, true, newSynchronization, debugEnabled, suspendedResources);
            doBegin(transaction, definition);
            prepareSynchronization(status, definition);
            return status;
        }
        catch (RuntimeException beginEx) {
            resumeAfterBeginException(transaction, suspendedResources, beginEx);
            throw beginEx;
        }
        catch (Error beginErr) {
            resumeAfterBeginException(transaction, suspendedResources, beginErr);
            throw beginErr;
        }
    }
    // 嵌套事务的创建
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
        if (!isNestedTransactionAllowed()) {
            throw new NestedTransactionNotSupportedException(
                    "Transaction manager does not allow nested transactions by default - " +
                    "specify 'nestedTransactionAllowed' property with value 'true'");
        }
        if (debugEnabled) {
            logger.debug("Creating nested transaction with name [" + definition.getName() + "]");
        }
        if (useSavepointForNestedTransaction()) {
            // Create savepoint within existing Spring-managed transaction,
            // through the SavepointManager API implemented by TransactionStatus.
            // Usually uses JDBC 3.0 savepoints. Never activates Spring synchronization.
            DefaultTransactionStatus status =
                    prepareTransactionStatus(definition, transaction, false, false, debugEnabled, null);
            status.createAndHoldSavepoint();
            return status;
        }
        else {
            // Nested transaction through nested begin and commit/rollback calls.
            // Usually only for JTA: Spring synchronization might get activated here
            // in case of a pre-existing JTA transaction.
            boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
            DefaultTransactionStatus status = newTransactionStatus(
                    definition, transaction, true, newSynchronization, debugEnabled, null);
            doBegin(transaction, definition);
            prepareSynchronization(status, definition);
            return status;
        }
    }
    // Assumably PROPAGATION_SUPPORTS or PROPAGATION_REQUIRED.
    if (debugEnabled) {
        logger.debug("Participating in existing transaction");
    }
    // 判断当前事务与已有的事务属性是否一致，若不一致会抛出异常
    if (isValidateExistingTransaction()) {
        if (definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT) {
            Integer currentIsolationLevel = TransactionSynchronizationManager.getCurrentTransactionIsolationLevel();
            if (currentIsolationLevel == null || currentIsolationLevel != definition.getIsolationLevel()) {
                Constants isoConstants = DefaultTransactionDefinition.constants;
                throw new IllegalTransactionStateException("Participating transaction with definition [" +
                        definition + "] specifies isolation level which is incompatible with existing transaction: " +
                        (currentIsolationLevel != null ?
                                isoConstants.toCode(currentIsolationLevel, DefaultTransactionDefinition.PREFIX_ISOLATION) :
                                "(unknown)"));
            }
        }
        if (!definition.isReadOnly()) {
            if (TransactionSynchronizationManager.isCurrentTransactionReadOnly()) {
                throw new IllegalTransactionStateException("Participating transaction with definition [" +
                        definition + "] is not marked as read-only but existing transaction is");
            }
        }
    }
    boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
    // 第三个参数false代表当前事务方法没有使用新事务
    return prepareTransactionStatus(definition, transaction, false, newSynchronization, debugEnabled, null);
}

• 事务的挂起

事务的挂起原理机制大概理解为

1）获取上一次事务的数据源对象封装并返回SuspendedResourcesHolder对象

2）调用doBegin方法创建新的数据源连接对象与新的事务信息对象

2）将SuspendedResourcesHolder设置到新的TransactionStatus中

protected final SuspendedResourcesHolder suspend(Object transaction) throws TransactionException {
    if (TransactionSynchronizationManager.isSynchronizationActive()) {
        List<TransactionSynchronization> suspendedSynchronizations = doSuspendSynchronization();
        try {
            Object suspendedResources = null;
            if (transaction != null) {
                // 获取上一次事务的数据源对象
                suspendedResources = doSuspend(transaction);
            }
            String name = TransactionSynchronizationManager.getCurrentTransactionName();
            TransactionSynchronizationManager.setCurrentTransactionName(null);
            boolean readOnly = TransactionSynchronizationManager.isCurrentTransactionReadOnly();
            TransactionSynchronizationManager.setCurrentTransactionReadOnly(false);
            Integer isolationLevel = TransactionSynchronizationManager.getCurrentTransactionIsolationLevel();
            TransactionSynchronizationManager.setCurrentTransactionIsolationLevel(null);
            boolean wasActive = TransactionSynchronizationManager.isActualTransactionActive();
            TransactionSynchronizationManager.setActualTransactionActive(false);
            // 封装并返回上一次事务的事务对象
            return new SuspendedResourcesHolder(
                    suspendedResources, suspendedSynchronizations, name, readOnly, isolationLevel, wasActive);
        }
        catch (RuntimeException ex) {
            // doSuspend failed - original transaction is still active...
            doResumeSynchronization(suspendedSynchronizations);
            throw ex;
        }
        catch (Error err) {
            // doSuspend failed - original transaction is still active...
            doResumeSynchronization(suspendedSynchronizations);
            throw err;
        }
    }
    else if (transaction != null) {
        // Transaction active but no synchronization active.
        Object suspendedResources = doSuspend(transaction);
        return new SuspendedResourcesHolder(suspendedResources);
    }
    else {
        // Neither transaction nor synchronization active.
        return null;
    }
}

@Override
protected Object doSuspend(Object transaction) {
    DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
    txObject.setConnectionHolder(null);
    // 获取上一次事务的数据源连接对象，并将其从当前ThreadLocal中移除
    ConnectionHolder conHolder = (ConnectionHolder)
            TransactionSynchronizationManager.unbindResource(this.dataSource);
    return conHolder;
}

• 事务的提交

直接看事务提交的流程AbstractPlatformTransactionManager.processCommit

private void processCommit(DefaultTransactionStatus status) throws TransactionException {
    try {
        boolean beforeCompletionInvoked = false;
        try {
            // 事务提交的准备工作，如果集成了mybatis，事务的真正提交在此方法中完成，spring的事务对象仅仅做事务状态的记录
            prepareForCommit(status);
            triggerBeforeCommit(status);
            triggerBeforeCompletion(status);
            beforeCompletionInvoked = true;
            boolean globalRollbackOnly = false;
            if (status.isNewTransaction() || isFailEarlyOnGlobalRollbackOnly()) {
                globalRollbackOnly = status.isGlobalRollbackOnly();
            }
            // 嵌套事务的处理
            if (status.hasSavepoint()) {
                if (status.isDebug()) {
                    logger.debug("Releasing transaction savepoint");
                }
                status.releaseHeldSavepoint();
            }
            // 是否是一个新事物
            else if (status.isNewTransaction()) {
                if (status.isDebug()) {
                    logger.debug("Initiating transaction commit");
                }
                // 具体的事务提交由具体的事务处理器来完成
                doCommit(status);
            }
            // Throw UnexpectedRollbackException if we have a global rollback-only
            // marker but still didn't get a corresponding exception from commit.
            if (globalRollbackOnly) {
                throw new UnexpectedRollbackException(
                        "Transaction silently rolled back because it has been marked as rollback-only");
            }
        }
        catch (UnexpectedRollbackException ex) {
            // can only be caused by doCommit
            triggerAfterCompletion(status, TransactionSynchronization.STATUS_ROLLED_BACK);
            throw ex;
        }
        catch (TransactionException ex) {
            // can only be caused by doCommit
            if (isRollbackOnCommitFailure()) {
                doRollbackOnCommitException(status, ex);
            }
            else {
                triggerAfterCompletion(status, TransactionSynchronization.STATUS_UNKNOWN);
            }
            throw ex;
        }
        catch (RuntimeException ex) {
            if (!beforeCompletionInvoked) {
                triggerBeforeCompletion(status);
            }
            doRollbackOnCommitException(status, ex);
            throw ex;
        }
        catch (Error err) {
            if (!beforeCompletionInvoked) {
                triggerBeforeCompletion(status);
            }
            doRollbackOnCommitException(status, err);
            throw err;
        }
        // Trigger afterCommit callbacks, with an exception thrown there
        // propagated to callers but the transaction still considered as committed.
        try {
            triggerAfterCommit(status);
        }
        finally {
            triggerAfterCompletion(status, TransactionSynchronization.STATUS_COMMITTED);
        }
    }
    finally {
        cleanupAfterCompletion(status);
    }
}

⚠️：如果是mybatis集成模式下，spring不负责具体的提交回滚操作，只是做事务状态的记录！！具体可以参考mybatis源码org.mybatis.spring.SqlSessionUtils.SqlSessionSynchronization类

• 事务回滚

直接看代码吧

private void processRollback(DefaultTransactionStatus status) {
    try {
        try {
            // 若集成了mybatis，真正数据源的回滚操作发生在这里
            triggerBeforeCompletion(status);
            if (status.hasSavepoint()) {
                if (status.isDebug()) {
                    logger.debug("Rolling back transaction to savepoint");
                }
                status.rollbackToHeldSavepoint();
            }
            else if (status.isNewTransaction()) {
                if (status.isDebug()) {
                    logger.debug("Initiating transaction rollback");
                }
                doRollback(status);
            }
            else if (status.hasTransaction()) {
                if (status.isLocalRollbackOnly() || isGlobalRollbackOnParticipationFailure()) {
                    if (status.isDebug()) {
                        logger.debug("Participating transaction failed - marking existing transaction as rollback-only");
                    }
                    doSetRollbackOnly(status);
                }
                else {
                    if (status.isDebug()) {
                        logger.debug("Participating transaction failed - letting transaction originator decide on rollback");
                    }
                }
            }
            else {
                logger.debug("Should roll back transaction but cannot - no transaction available");
            }
        }
        catch (RuntimeException ex) {
            triggerAfterCompletion(status, TransactionSynchronization.STATUS_UNKNOWN);
            throw ex;
        }
        catch (Error err) {
            triggerAfterCompletion(status, TransactionSynchronization.STATUS_UNKNOWN);
            throw err;
        }
        triggerAfterCompletion(status, TransactionSynchronization.STATUS_ROLLED_BACK);
    }
    finally {
        cleanupAfterCompletion(status);
    }
}

PlatformTransactionManager具体实现

事务处理最重要的4个方法

1）doGetTrancation：创建数据源对象并封装返回事务对象

2）doBegin：开启事务

3）doCommit：提交

4）doRollback：回滚

都是由在TransactionProxyFactoryBean中配置的具体的TransactionManager实现

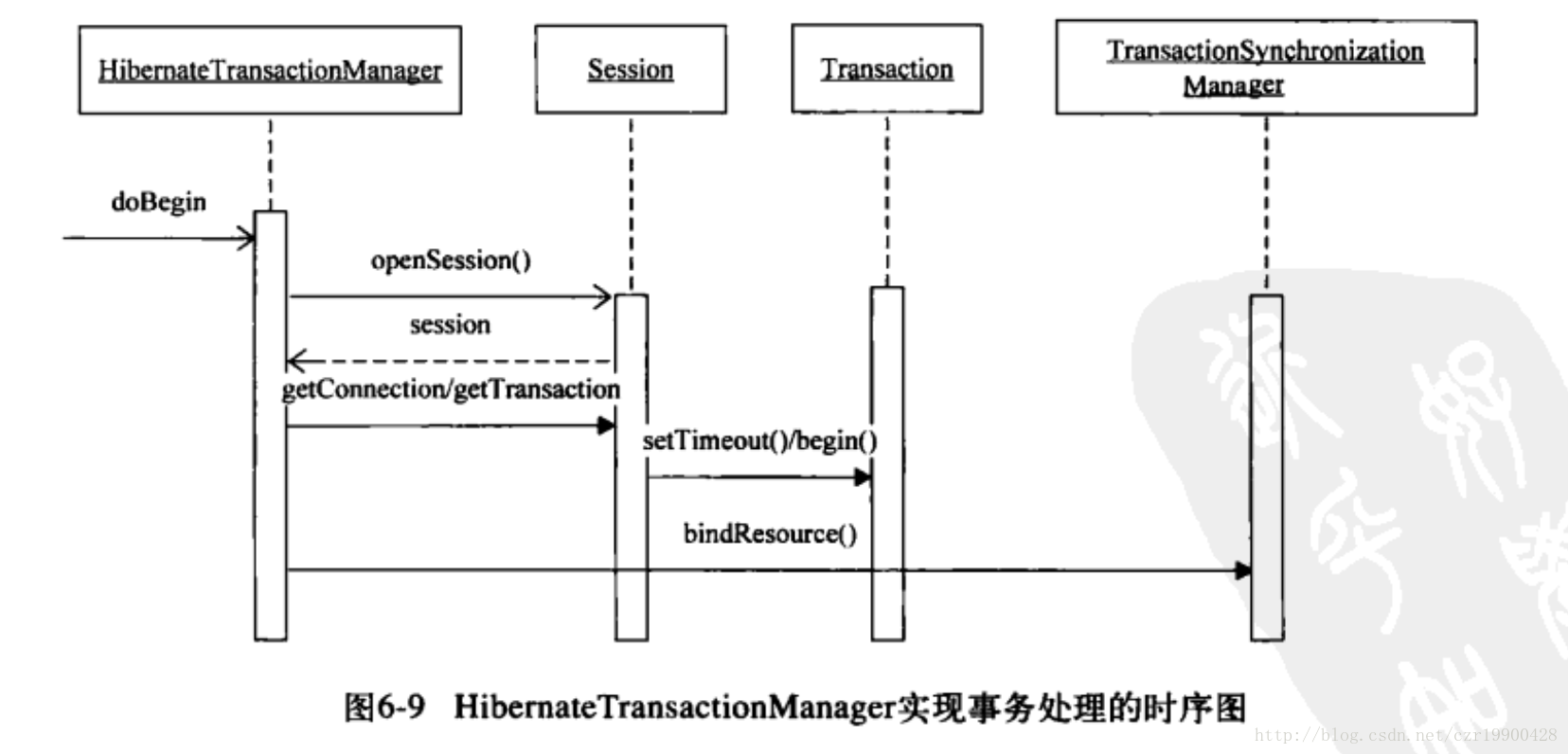

大致看下DataSourceTransactionManager和HibernateTransactionManager的执行流程，源码比较简单，暂不做分析了
