把onnx模型转TensorRT模型的trt模型报错：Your ONNX model has been generated with INT64 weights. while TensorRT

  • Post author:
  • Post category:其他





欢迎大家关注笔者，你的关注是我持续更博的最大动力



原创文章，转载告知，盗版必究

把onnx模型转TensorRT模型的trt模型报错：[TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.

文章目录：


本人环境声明：


  • 系统环境

    ：

    Ubuntu18.04.1

  • cuda版本

    ：

    10.2.89

  • cudnn版本

    ：

    7.6.5

  • torch版本

    ：

    1.5.0

  • torchvision版本

    ：

    0.6.0

  • mmcv版本

    ：

    0.5.5
  • 项目代码

    mmdetection v2.0.0

    ，

    官网

    是在

    20200506

    正式发布的

    v2.0.0版本

  • TensorRT-7.0.0.11

  • uff0.6.5



1 错误原因分析

我是在把mmdetection的模型转换为onnx模型之后，再把onnx模型转化为trt模式的时候，遇到的这个错误。从

Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.

提示信息可以看出;


  • 我们转化后的ONNX模型的参数类型是INT64
  • 然而：

    TensorRT本身不支持INT64
  • 而对于：

    INT32的精度，TensorRT是支持的

    ，因此可以尝试把ONNX模型的精度改为

    INT32

    ，然后再进行转换

错误代码内容：

(mmdetection) shl@zfcv:~/TensorRT-7.0.0.11/bin$ ./trtexec --onnx=retinate_hat_hair_beard.onnx --saveEngine=retinate_hat_hair_beard.trt --device=1
&&&& RUNNING TensorRT.trtexec # ./trtexec --onnx=retinate_hat_hair_beard.onnx --saveEngine=retinate_hat_hair_beard.trt --device=1
[07/31/2020-13:56:39] [I] === Model Options ===
[07/31/2020-13:56:39] [I] Format: ONNX
[07/31/2020-13:56:39] [I] Model: retinate_hat_hair_beard.onnx
[07/31/2020-13:56:39] [I] Output:
[07/31/2020-13:56:39] [I] === Build Options ===
[07/31/2020-13:56:39] [I] Max batch: 1
[07/31/2020-13:56:39] [I] Workspace: 16 MB
[07/31/2020-13:56:39] [I] minTiming: 1
[07/31/2020-13:56:39] [I] avgTiming: 8
[07/31/2020-13:56:39] [I] Precision: FP32
[07/31/2020-13:56:39] [I] Calibration:
[07/31/2020-13:56:39] [I] Safe mode: Disabled
[07/31/2020-13:56:39] [I] Save engine: retinate_hat_hair_beard.trt
[07/31/2020-13:56:39] [I] Load engine:
[07/31/2020-13:56:39] [I] Inputs format: fp32:CHW
[07/31/2020-13:56:39] [I] Outputs format: fp32:CHW
[07/31/2020-13:56:39] [I] Input build shapes: model
[07/31/2020-13:56:39] [I] === System Options ===
[07/31/2020-13:56:39] [I] Device: 1
[07/31/2020-13:56:39] [I] DLACore:
[07/31/2020-13:56:39] [I] Plugins:
[07/31/2020-13:56:39] [I] === Inference Options ===
[07/31/2020-13:56:39] [I] Batch: 1
[07/31/2020-13:56:39] [I] Iterations: 10
[07/31/2020-13:56:39] [I] Duration: 3s (+ 200ms warm up)
[07/31/2020-13:56:39] [I] Sleep time: 0ms
[07/31/2020-13:56:39] [I] Streams: 1
[07/31/2020-13:56:39] [I] ExposeDMA: Disabled
[07/31/2020-13:56:39] [I] Spin-wait: Disabled
[07/31/2020-13:56:39] [I] Multithreading: Disabled
[07/31/2020-13:56:39] [I] CUDA Graph: Disabled
[07/31/2020-13:56:39] [I] Skip inference: Disabled
[07/31/2020-13:56:39] [I] Input inference shapes: model
[07/31/2020-13:56:39] [I] Inputs:
[07/31/2020-13:56:39] [I] === Reporting Options ===
[07/31/2020-13:56:39] [I] Verbose: Disabled
[07/31/2020-13:56:39] [I] Averages: 10 inferences
[07/31/2020-13:56:39] [I] Percentile: 99
[07/31/2020-13:56:39] [I] Dump output: Disabled
[07/31/2020-13:56:39] [I] Profile: Disabled
[07/31/2020-13:56:39] [I] Export timing to JSON file:
[07/31/2020-13:56:39] [I] Export output to JSON file:
[07/31/2020-13:56:39] [I] Export profile to JSON file:
[07/31/2020-13:56:39] [I]
----------------------------------------------------------------
Input filename:   retinate_hat_hair_beard.onnx
ONNX IR version:  0.0.6
Opset version:    9
Producer name:    pytorch
Producer version: 1.5
Domain:
Model version:    0
Doc string:
----------------------------------------------------------------
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
[07/31/2020-13:56:40] [W] [TRT] onnx2trt_utils.cpp:198: Your ONNX model has been generated with INT64 weights, while TensorRT does not natively support INT64. Attempting to cast down to INT32.
While parsing node number 191 [Upsample]:
ERROR: builtin_op_importers.cpp:3240 In function importUpsample:
[8] Assertion failed: scales_input.is_weights()
[07/31/2020-13:56:40] [E] Failed to parse onnx file
[07/31/2020-13:56:40] [E] Parsing model failed
[07/31/2020-13:56:40] [E] Engine creation failed
[07/31/2020-13:56:40] [E] Engine set up failed
&&&& FAILED TensorRT.trtexec # ./trtexec --onnx=retinate_hat_hair_beard.onnx --saveEngine=retinate_hat_hair_beard.trt --device=1
(mmdetection) shl@zfcv:~/TensorRT-7.0.0.11/bin$ ls



2 错误解决方式



2.1 错误解决方式一（亲测可行）

可能是我们生成的

.onnx模型的graph太复杂

，我们先把它变

简单点

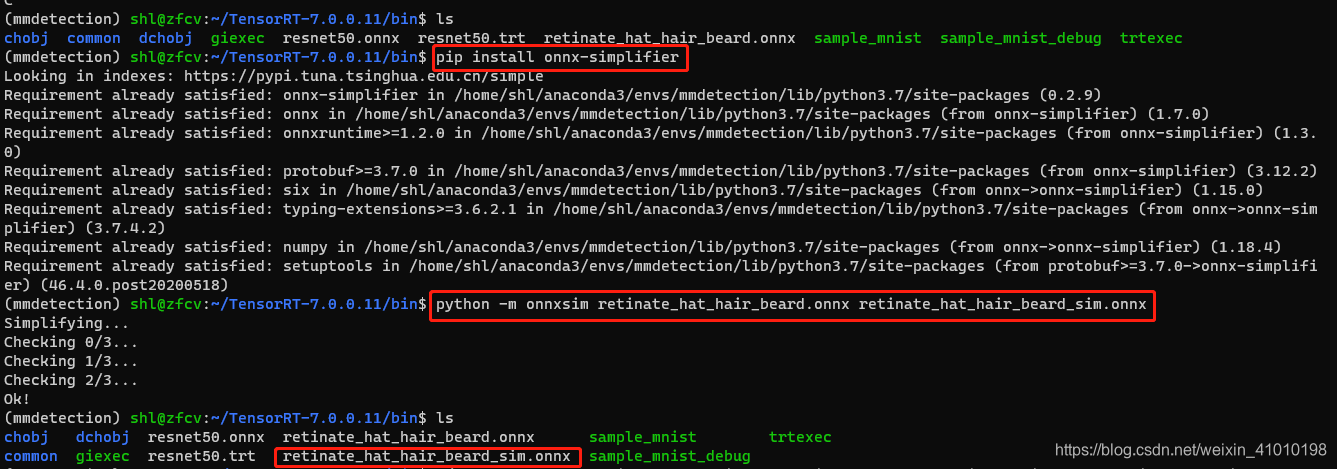

1、安装

onnx-simplifier


pip install onnx-simplifier

2、把之前转化的onnx模型转化为更简单的onnx模型


python -m onnxsim retinate_hat_hair_beard.onnx retinate_hat_hair_beard_sim.onnx

在这里插入图片描述

3、然后在把onnx模型转换为TensorRT的trt模型


./trtexec --onnx=retinate_hat_hair_beard_sim.onnx --saveEngine=retinate_hat_hair_beard_sim.trt --device=1


(mmdetection) shl@zfcv:~/TensorRT-7.0.0.11/bin$ ./trtexec --onnx=retinate_hat_hair_beard_sim.onnx --saveEngine=retinate_hat_hair_beard_sim.trt --device=1
&&&& RUNNING TensorRT.trtexec # ./trtexec --onnx=retinate_hat_hair_beard_sim.onnx --saveEngine=retinate_hat_hair_beard_sim.trt --device=1
[07/31/2020-14:15:14] [I] === Model Options ===
[07/31/2020-14:15:14] [I] Format: ONNX
[07/31/2020-14:15:14] [I] Model: retinate_hat_hair_beard_sim.onnx
[07/31/2020-14:15:14] [I] Output:
[07/31/2020-14:15:14] [I] === Build Options ===
[07/31/2020-14:15:14] [I] Max batch: 1
[07/31/2020-14:15:14] [I] Workspace: 16 MB
[07/31/2020-14:15:14] [I] minTiming: 1
[07/31/2020-14:15:14] [I] avgTiming: 8
[07/31/2020-14:15:14] [I] Precision: FP32
[07/31/2020-14:15:14] [I] Calibration:
[07/31/2020-14:15:14] [I] Safe mode: Disabled
[07/31/2020-14:15:14] [I] Save engine: retinate_hat_hair_beard_sim.trt
[07/31/2020-14:15:14] [I] Load engine:
[07/31/2020-14:15:14] [I] Inputs format: fp32:CHW
[07/31/2020-14:15:14] [I] Outputs format: fp32:CHW
[07/31/2020-14:15:14] [I] Input build shapes: model
[07/31/2020-14:15:14] [I] === System Options ===
[07/31/2020-14:15:14] [I] Device: 1
[07/31/2020-14:15:14] [I] DLACore:
[07/31/2020-14:15:14] [I] Plugins:
[07/31/2020-14:15:14] [I] === Inference Options ===
[07/31/2020-14:15:14] [I] Batch: 1
[07/31/2020-14:15:14] [I] Iterations: 10
[07/31/2020-14:15:14] [I] Duration: 3s (+ 200ms warm up)
[07/31/2020-14:15:14] [I] Sleep time: 0ms
[07/31/2020-14:15:14] [I] Streams: 1
[07/31/2020-14:15:14] [I] ExposeDMA: Disabled
[07/31/2020-14:15:14] [I] Spin-wait: Disabled
[07/31/2020-14:15:14] [I] Multithreading: Disabled
[07/31/2020-14:15:14] [I] CUDA Graph: Disabled
[07/31/2020-14:15:14] [I] Skip inference: Disabled
[07/31/2020-14:15:14] [I] Input inference shapes: model
[07/31/2020-14:15:14] [I] Inputs:
[07/31/2020-14:15:14] [I] === Reporting Options ===
[07/31/2020-14:15:14] [I] Verbose: Disabled
[07/31/2020-14:15:14] [I] Averages: 10 inferences
[07/31/2020-14:15:14] [I] Percentile: 99
[07/31/2020-14:15:14] [I] Dump output: Disabled
[07/31/2020-14:15:14] [I] Profile: Disabled
[07/31/2020-14:15:14] [I] Export timing to JSON file:
[07/31/2020-14:15:14] [I] Export output to JSON file:
[07/31/2020-14:15:14] [I] Export profile to JSON file:
[07/31/2020-14:15:14] [I]
----------------------------------------------------------------
Input filename:   retinate_hat_hair_beard_sim.onnx
ONNX IR version:  0.0.6
Opset version:    9
Producer name:    pytorch
Producer version: 1.5
Domain:
Model version:    0
Doc string:
----------------------------------------------------------------
[07/31/2020-14:15:16] [I] [TRT] Some tactics do not have sufficient workspace memory to run. Increasing workspace size may increase performance, please check verbose output.
[07/31/2020-14:15:57] [I] [TRT] Detected 1 inputs and 10 output network tensors.
[07/31/2020-14:16:03] [W] [TRT] Current optimization profile is: 0. Please ensure there are no enqueued operations pending in this context prior to switching profiles
Cuda failure: out of memory
已放弃 (核心已转储)

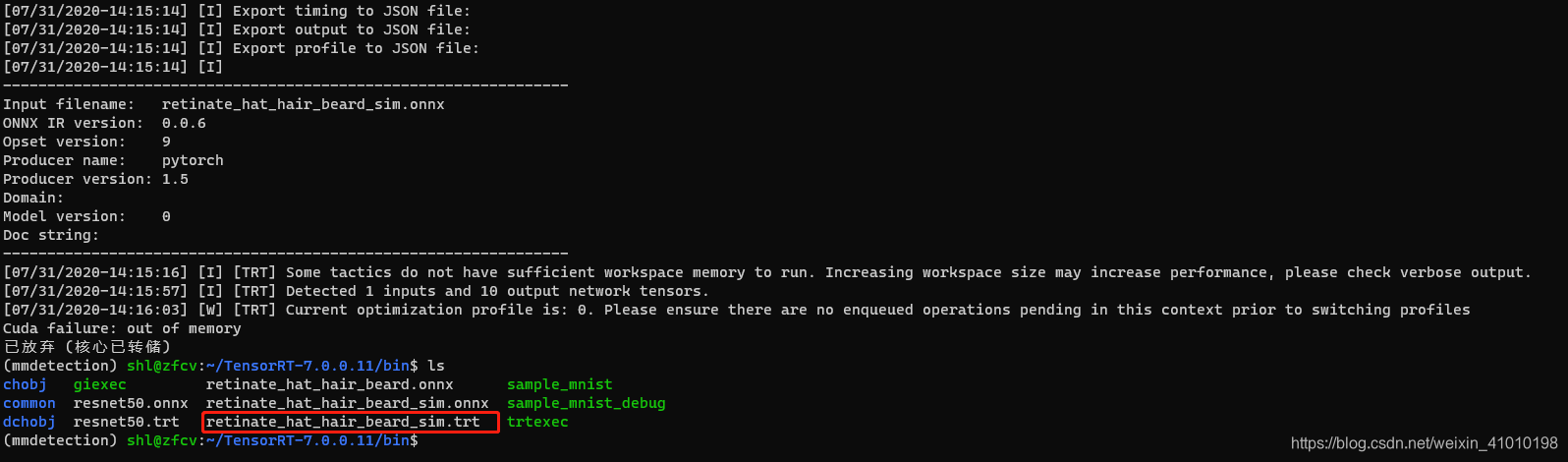

转后后结果，可以看到有生成

.trt

文件：

在这里插入图片描述



2.2 解决方法二：从新生成onnx模型的精度为INT32（还没有尝试）

在这里插入图片描述





在这里插入图片描述

♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠ ⊕ ♠
