xml

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"

    tools:context="com.example.mapp.MainActivity$PlaceholderFragment" >



  <com.amap.api.maps2d.MapView
      android:layout_marginTop="5dp"
            android:id="@+id/map_map01"
            android:layout_width="fill_parent"
            android:layout_height="fill_parent"

     />

  <LinearLayout
      android:layout_width="fill_parent"
      android:layout_height="30dp"
      android:orientation="horizontal">


         <TextView
             android:textSize="15sp"
             android:layout_width="wrap_content"
             android:layout_height="fill_parent"

             android:text="起点 终点:"/>
         <TextView
             android:textColor="#FF0000"
             android:id="@+id/text_address"
             android:textSize="12sp"
             android:layout_width="0dp"
             android:layout_height="fill_parent"
              android:layout_weight="1"
              android:text="大兴------->通州"/>


  </LinearLayout>

  <LinearLayout
      android:layout_alignParentBottom="true"
      android:layout_width="fill_parent"
      android:layout_height="40dp"
      android:orientation="horizontal">

      <Button
          android:id="@+id/but_bus"
          android:layout_width="0dp"
          android:layout_weight="1"
          android:layout_height="fill_parent"
          android:text="公交"/>
       <Button
            android:id="@+id/but_drive"
          android:layout_width="0dp"
          android:layout_weight="1"
          android:layout_height="fill_parent"
          android:text="自驾"/>
        <Button
             android:id="@+id/but_walk"
          android:layout_width="0dp"
          android:layout_weight="1"
          android:layout_height="fill_parent"
          android:text="步行"/>

  </LinearLayout>
</RelativeLayout>

android代码

package com.example.mapp;

import java.util.List;

import com.amap.api.location.AMapLocation;
import com.amap.api.location.AMapLocationListener;
import com.amap.api.location.LocationManagerProxy;
import com.amap.api.location.LocationProviderProxy;
import com.amap.api.maps2d.AMap;
import com.amap.api.maps2d.AMap.OnMapClickListener;
import com.amap.api.maps2d.MapView;
import com.amap.api.maps2d.model.BitmapDescriptorFactory;
import com.amap.api.maps2d.model.LatLng;
import com.amap.api.maps2d.overlay.BusRouteOverlay;
import com.amap.api.maps2d.overlay.DrivingRouteOverlay;
import com.amap.api.maps2d.overlay.WalkRouteOverlay;
import com.amap.api.services.core.LatLonPoint;
import com.amap.api.services.geocoder.GeocodeResult;
import com.amap.api.services.geocoder.GeocodeSearch;
import com.amap.api.services.geocoder.GeocodeSearch.OnGeocodeSearchListener;
import com.amap.api.services.geocoder.RegeocodeQuery;
import com.amap.api.services.geocoder.RegeocodeResult;
import com.amap.api.services.route.BusPath;
import com.amap.api.services.route.BusRouteResult;
import com.amap.api.services.route.DrivePath;
import com.amap.api.services.route.DriveRouteResult;
import com.amap.api.services.route.RouteSearch;
import com.amap.api.services.route.RouteSearch.BusRouteQuery;
import com.amap.api.services.route.RouteSearch.DriveRouteQuery;
import com.amap.api.services.route.RouteSearch.OnRouteSearchListener;
import com.amap.api.services.route.RouteSearch.WalkRouteQuery;
import com.amap.api.services.route.WalkPath;
import com.amap.api.services.route.WalkRouteResult;

import android.support.v4.app.Fragment;
import android.telephony.SmsManager;
import android.app.Activity;
import android.content.Context;
import android.location.Location;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;
import android.os.Build;

public class MainActivity extends Activity implements OnRouteSearchListener {

    private MapView mapView;
    private AMap aMap;
    private Boolean isFirst;
    private LatLng lat_star;
    private LatLng lat_end;
    private TextView text_address;
    private StringBuffer sb = new StringBuffer();
    private DriveRouteQuery query;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.fragment_main);
        mapView = (MapView) findViewById(R.id.map_map01);
        mapView.onCreate(savedInstanceState);
        aMap = mapView.getMap();
        text_address = (TextView) findViewById(R.id.text_address);
        findViewById(R.id.but_bus).setOnClickListener(new OnClickListener() {

            @Override
            public void onClick(View v) {
                rote("bus");

            }
        });
        findViewById(R.id.but_drive).setOnClickListener(new OnClickListener() {

            @Override
            public void onClick(View v) {
                rote("drive");

            }
        });
        findViewById(R.id.but_walk).setOnClickListener(new OnClickListener() {

            @Override
            public void onClick(View v) {
                rote("walk");

            }
        });

        isFirst = true;
        aMap.setOnMapClickListener(new OnMapClickListener() {

            @Override
            public void onMapClick(LatLng lat) {
                if (isFirst) {
                    lat_star = new LatLng(lat.latitude, lat.longitude);
                    CodeToString(lat_star, MainActivity.this);

                } else {
                    lat_end = new LatLng(lat.latitude, lat.longitude);
                    CodeToString(lat_end, MainActivity.this);
                }

            }
        });

    }

    @Override
    protected void onResume() {
        super.onResume();
        mapView.onResume();
    }

    @Override
    protected void onPause() {
        super.onPause();
        mapView.onPause();
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        mapView.onDestroy();
    }

    /**
     * @param arg0坐标
     * @param con
     *            坐标和字符串地址转换
     */
    public void CodeToString(LatLng arg0, Context con) {
        System.out.println("--------------CodeToString---------------------"+ arg0.latitude + "---" +

                arg0.longitude);
        GeocodeSearch geo = new GeocodeSearch(con);
        geo.setOnGeocodeSearchListener(new OnGeocodeSearchListener() {

            private String address = "";

            @Override
            public void onRegeocodeSearched(RegeocodeResult result, int rCode) {
                System.out
                        .println("----------onRegeocodeSearched------------------");
                if (result != null
                        && result.getRegeocodeAddress() != null
                        && result.getRegeocodeAddress().getFormatAddress() != null) {

                    address = result.getRegeocodeAddress().getFormatAddress();

                    if (isFirst) {
                        if(sb.length()>2){
                            sb.delete(0, sb.length() - 1);// 清空
                        }

                        sb.append(address + "----");
                        text_address.setText(sb.toString());
                        System.out.println("------address---aa------------"+address+isFirst);
                        isFirst = false;
                    } else {

                        sb.append(address);
                        text_address.setText(sb.toString());
                        System.out.println("------address-----bb----------"+address+isFirst);
                        isFirst = true;

                    }

                } else {
                    System.out.println("坐标转换不成功" + rCode);
                }

            }

            @Override
            public void onGeocodeSearched(GeocodeResult arg0, int arg1) {
                System.out.println("--------onGeocodeSearched---------------");

            }

        });

        LatLonPoint point = new LatLonPoint(arg0.latitude, arg0.longitude);
        RegeocodeQuery query = new RegeocodeQuery(point, 100,
                GeocodeSearch.AMAP);
        geo.getFromLocationAsyn(query);

    }

    /**
     * 路径规划
     */
    protected void rote(String str) {
        System.out.println("-----------------进入路线规划-----------------");
        RouteSearch routeSerch = new RouteSearch(MainActivity.this);
        routeSerch.setRouteSearchListener(MainActivity.this);
        LatLonPoint start_lat = new LatLonPoint(lat_star.latitude,
                lat_star.longitude);
        LatLonPoint end_lat = new LatLonPoint(lat_end.latitude,
                lat_end.longitude);
        RouteSearch.FromAndTo fromAndTo = new RouteSearch.FromAndTo(start_lat,
                end_lat);
        if ("bus".equals(str)) {
            BusRouteQuery query=new BusRouteQuery(fromAndTo,RouteSearch.BusDefault,null,0);
            routeSerch.calculateBusRouteAsyn(query);// 异步路径规划驾车模式查询 //
        } else if ("drive".equals(str)) {
            query = new DriveRouteQuery(fromAndTo, RouteSearch.DrivingDefault,
                    null, null, "");
            routeSerch.calculateDriveRouteAsyn(query);// 异步路径规划驾车模式查询 //
        } else {
            WalkRouteQuery query=new WalkRouteQuery(fromAndTo, RouteSearch.WalkDefault);
            routeSerch.calculateWalkRouteAsyn(query);// 异步路径规划驾车模式查询 //
        }



    }

    // 公交
    @Override
    public void onBusRouteSearched(BusRouteResult result, int rCode) {
        System.out.println("-------------------------公交路径规划回调方法-------------------------"+ rCode + "---"+ result);
       if(rCode==0){
           if(result != null && result.getPaths() != null
                    && result.getPaths().size() > 0){
                BusRouteResult busRouteResult=result;
                BusPath busPath=busRouteResult.getPaths().get(0);
                aMap.clear();
                BusRouteOverlay busRouteOverlay=new BusRouteOverlay(this,aMap, busPath, busRouteResult.getStartPos(), busRouteResult.getTargetPos());
                busRouteOverlay.removeFromMap();
                busRouteOverlay.addToMap();
                busRouteOverlay.zoomToSpan();
           }else {

                Toast.makeText(MainActivity.this, "对不起 没有搜索到相关数据", 0).show();
            }
       }else if (rCode == 27) {
            Toast.makeText(MainActivity.this, "搜索失败 请检查网络连接", 0).show();
        } else if (rCode == 32) {
            Toast.makeText(MainActivity.this, "验证无效", 0).show();
        } else {

            Toast.makeText(getApplicationContext(), "错误码" + rCode, 0).show();

        }
    }

    // 自驾
    @Override
    public void onDriveRouteSearched(DriveRouteResult result, int rCode) {
        System.out.println("-------------------------驾车路径规划回调方法-------------------------"+ rCode + "---"+ result);

        if (rCode == 0) {
            if (result != null && result.getPaths() != null
                    && result.getPaths().size() > 0) {
                DriveRouteResult driveRouteResult = result;
                DrivePath drivePath = driveRouteResult.getPaths().get(0);
                aMap.clear();// 清理地图上的所有覆盖物
                DrivingRouteOverlay drivingRouteOverlay = new DrivingRouteOverlay(
                        this,aMap, drivePath, driveRouteResult.getStartPos(),
                        driveRouteResult.getTargetPos());
                drivingRouteOverlay.removeFromMap();
                drivingRouteOverlay.addToMap();
                drivingRouteOverlay.zoomToSpan();

            } else {

                Toast.makeText(MainActivity.this, "对不起 没有搜索到相关数据", 0).show();
            }
        } else if (rCode == 27) {
            Toast.makeText(MainActivity.this, "搜索失败 请检查网络连接", 0).show();
        } else if (rCode == 32) {
            Toast.makeText(MainActivity.this, "验证无效", 0).show();
        } else {

            Toast.makeText(getApplicationContext(), "错误码" + rCode, 0).show();

        }

    }

    // 步行
    @Override
    public void onWalkRouteSearched(WalkRouteResult result, int rCode) {
        System.out.println("路径规划回调 --------------------------  步行");
        if (rCode == 0) {
            if (result != null && result.getPaths() != null && result.getPaths().size() > 0) {
                WalkRouteResult walkRouteResult = result;
                WalkPath walkPath = walkRouteResult.getPaths().get(0);
                aMap.clear();// 清理地图上的所有覆盖物
                WalkRouteOverlay walkRouteOverlay = new WalkRouteOverlay(this, aMap, walkPath, walkRouteResult.getStartPos(), walkRouteResult.getTargetPos());
                walkRouteOverlay.removeFromMap();
                walkRouteOverlay.addToMap();
                walkRouteOverlay.zoomToSpan();
            } else {

                Toast.makeText(MainActivity.this, "对不起 没有搜索到相关数据", 0).show();
            }
        } else if (rCode == 27) {
            Toast.makeText(MainActivity.this, "搜索失败 请检查网络连接", 0).show();
        } else if (rCode == 32) {
            Toast.makeText(MainActivity.this, "验证无效", 0).show();
        } else {

            Toast.makeText(getApplicationContext(), "错误码" + rCode, 0).show();

        }
    }
}

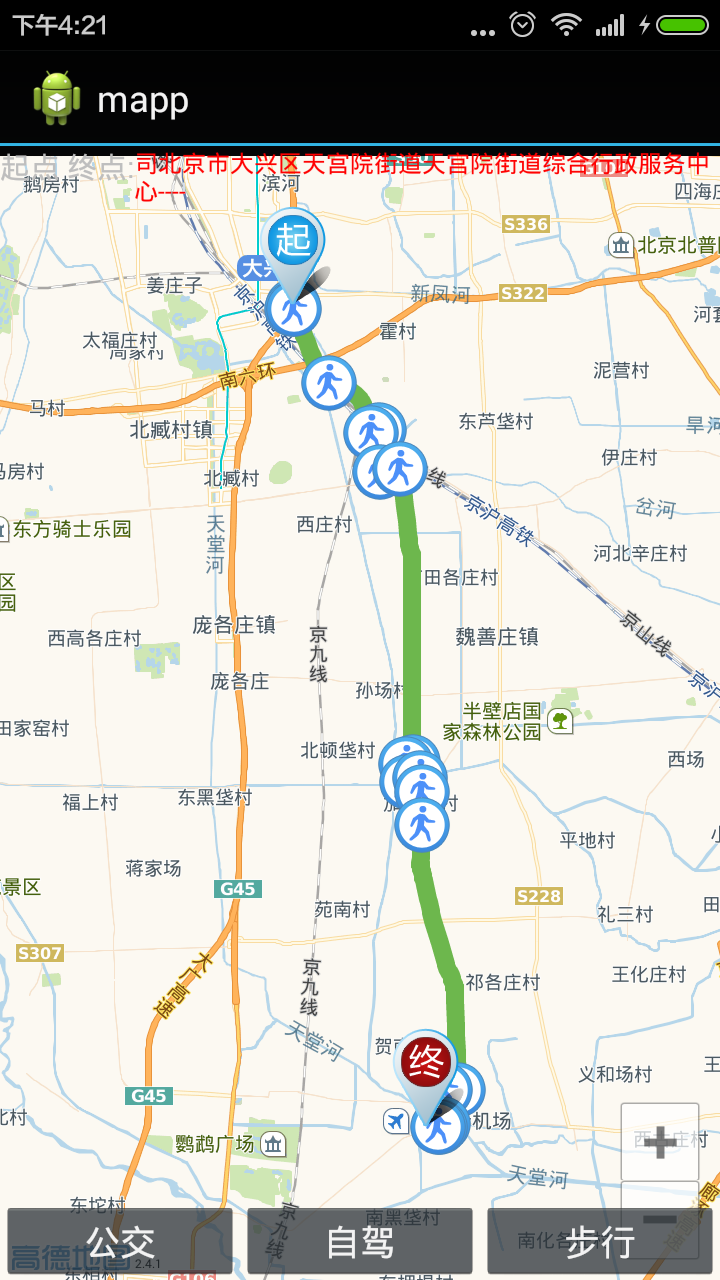

效果图
