这是第一篇的链接，主要介绍IIC通信协议STM32软件模拟IIC 控制OLED显示——IIC篇](https://blog.csdn.net/lgyLGY35/article/details/118693991)
这是第二篇的链接，主要介绍OLED的显示 代码编写方式二
STM32软件模拟IIC 控制OLED显示——OLED篇二
DC脚的处理：在IIC通信中DC的高低电平是用来选择IIC通信地址的；当DC接地时IIC从机地址为:0x78,当DC接高电平时IIC地址为0x7A；测试程序中所用的为0x78;也就是说大家需要将DC接地
OLED显示方式一（未采用更新缓存）
SSD1306指令
这个博文是少有的介绍指令的
SSD1306(OLED驱动芯片)指令详解
- 比如设置坐标的函数
void OLED_Set_Pos(unsigned char x, unsigned char y)
{
OLED_WrCmd(0xb0+y);
OLED_WrCmd(((x&0xf0)>>4)|0x10);
OLED_WrCmd((x&0x0f)|0x01);
}
-
行地址（也就是页地址）
-
列地址

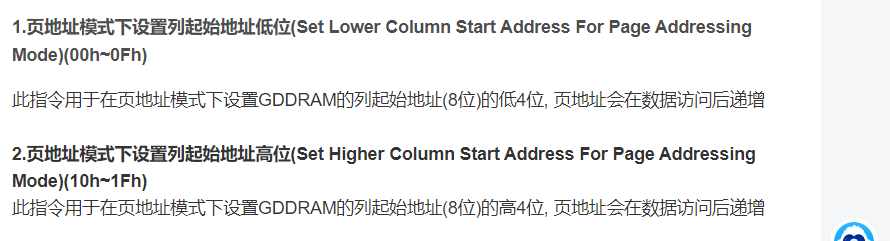

一共128列，范围是0-127，也就是2的7次方减1. 第128列二进制表示为 0111 1111。 高位地址就是上面的 0111，低位地址就是上面的 1111。
设置低四位：0000 0000 – 0000 1111 设置高四位：0001 0000 – 0001 1111 区别就在于第五位是0还是1 -
那么在页地址下寻址就需要如此步骤

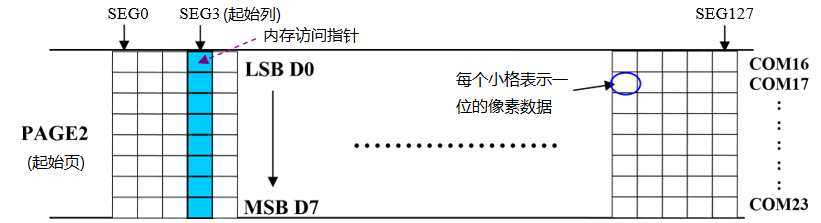

例如, 如果页地址是B2h, 列地址低位是03h, 列地址高位是10h, 起始列将为PAGE2的SEG3, GDDRAM访问指针的指向如下图所示
显示字符顺序
/***************功能描述：显示6*8一组标准ASCII字符串 显示的坐标（x,y），y为页范围0～7****************/
void OLED_P6x8Str(unsigned char x,unsigned char y,unsigned char ch[])
{
unsigned char c=0,i=0,j=0;
while (ch[j]!='\0')
{
c =ch[j]-32; //空格的ASCII码
if(x>121) //121+6 = 127
{
x=0;
y++;
}
OLED_Set_Pos(x,y);
for(i=0;i<6;i++)
OLED_WrDat(F6x8[c][i]);
x += 6;
j++;
}
}

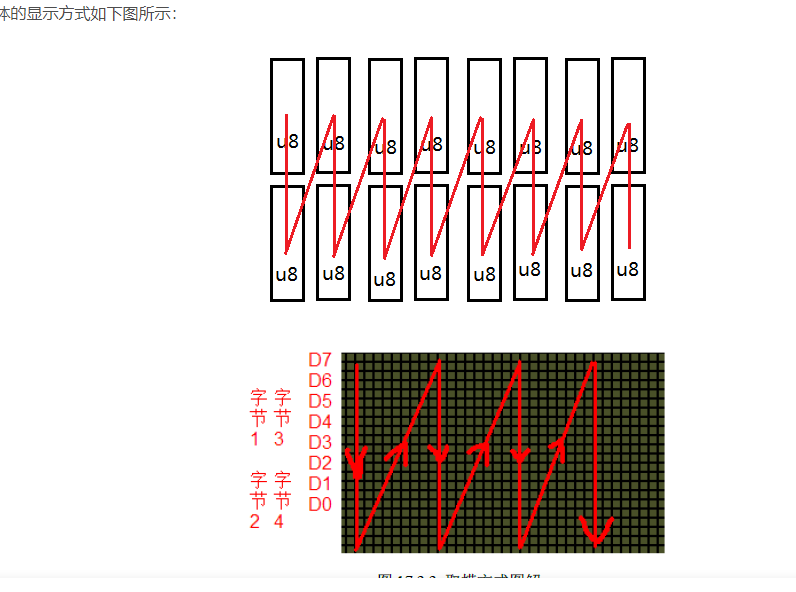

对于显示一个字符，将一个字符分成多个8位二进制数，每次分列写，如下如，把字符表的一行写完就会在屏幕上显示一个字符。
比如6*8的显示，x取0-127，y取0-7
那么如果OLED_P6x8Str(122,0,“WAITING”); 会发现第一个w的一部分在第一行的最后，也就是y=0这第一页的最后，而w的另一部分以及其他的字母在第二行。 OLED_P6x8Str(121,0,“WAITING”); 这样，121+6 = 127，这样就正好w在最后一行的6列完全显示，其他的字母显示在第二行。
我们也可以看出，显示方式，就是把字母的一个二进制写在第一列然后写第二列，直到第六列写完这一个字母，如果到了这一行的最后就自动换行，但是这个自动换行不是SSD自动的，而是程序设置的，因为前面第一部分设置的是页地址模式，所以每次到了一行的最后，列地址重新回到0，行地址不变，但是我们在OLED_P6x8Str函数中，加了
if(x>126) //121+6 = 127
{
x=0;
y++;
}
这样实现换行

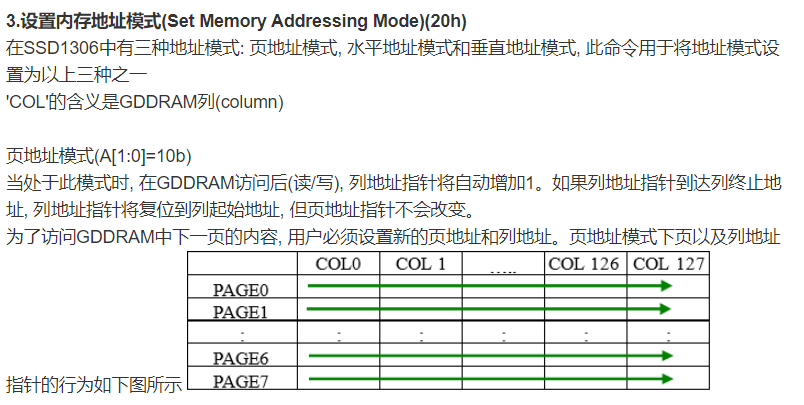

关于换行这个，寻址模式在下面博文有介绍
代码
IIC代码在第一篇
/***************************************************************************************************************************/
/********************* OLED显示函数 *****************/
/*********************OLED 设置坐标************************************/
void OLED_Set_Pos(unsigned char x, unsigned char y)
{
OLED_WrCmd(0xb0+y);
OLED_WrCmd(((x&0xf0)>>4)|0x10);
OLED_WrCmd((x&0x0f)|0x01);
}
/*********************OLED全屏************************************/
//这个函数写的时候，形参bmp_dat是一个八位二进制数，也就是在一行中的一列的8个点中有几个亮，所以这个没有参考表
void OLED_Fill(unsigned char bmp_dat)
{
unsigned char y,x;
for(y=0;y<8;y++)
{
OLED_WrCmd(0xb0+y);
OLED_WrCmd(0x01);
OLED_WrCmd(0x10);
for(x=0;x<X_WIDTH;x++)
OLED_WrDat(bmp_dat);
}
}
/*********************OLED复位************************************/
void OLED_CLS(void)
{
unsigned char y,x;
for(y=0;y<8;y++)
{
OLED_WrCmd(0xb0+y);
OLED_WrCmd(0x01);
OLED_WrCmd(0x10);
for(x=0;x<X_WIDTH;x++)
OLED_WrDat(0);
}
}
//--------------------------------------------------------------
// Prototype : void OLED_OFF(void)
// Calls :
// Parameters : none
// Description : 让OLED休眠 -- 休眠模式下,OLED功耗不到10uA
//--------------------------------------------------------------
void OLED_OFF(void)
{
OLED_WrCmd(0X8D); //设置电荷泵
OLED_WrCmd(0X10); //关闭电荷泵
OLED_WrCmd(0XAE); //OLED休眠
}
//--------------------------------------------------------------
// Prototype : void OLED_ON(void)
// Calls :
// Parameters : none
// Description : 将OLED从休眠中唤醒
//--------------------------------------------------------------
void OLED_ON(void)
{
OLED_WrCmd(0X8D); //设置电荷泵
OLED_WrCmd(0X14); //开启电荷泵
OLED_WrCmd(0XAF); //OLED唤醒
}
/*********************OLED初始化************************************/
void OLED_Init(void)
{
delay_ms(500);//初始化之前的延时很重要！
OLED_WrCmd(0xae);//--turn off oled panel
OLED_WrCmd(0x00);//---set low column address
OLED_WrCmd(0x10);//---set high column address
OLED_WrCmd(0x40);//--set start line address Set Mapping RAM Display Start Line (0x00~0x3F)
OLED_WrCmd(0x81);//--set contrast control register
OLED_WrCmd(Brightness); // Set SEG Output Current Brightness 亮度调节 0x00~0xff
OLED_WrCmd(0xa1);//--Set SEG/Column Mapping 0xa0左右反置 0xa1正常
OLED_WrCmd(0xc8);//Set COM/Row Scan Direction 0xc0上下反置 0xc8正常
OLED_WrCmd(0xa6);//--set normal display
OLED_WrCmd(0xa8);//--set multiplex ratio(1 to 64)
OLED_WrCmd(0x3f);//--1/64 duty
OLED_WrCmd(0xd3);//-set display offset Shift Mapping RAM Counter (0x00~0x3F)
OLED_WrCmd(0x00);//-not offset
OLED_WrCmd(0xd5);//--set display clock divide ratio/oscillator frequency
OLED_WrCmd(0x80);//--set divide ratio, Set Clock as 100 Frames/Sec
OLED_WrCmd(0xd9);//--set pre-charge period
OLED_WrCmd(0xf1);//Set Pre-Charge as 15 Clocks & Discharge as 1 Clock
OLED_WrCmd(0xda);//--set com pins hardware configuration
OLED_WrCmd(0x12);
OLED_WrCmd(0xdb);//--set vcomh
OLED_WrCmd(0x40);//Set VCOM Deselect Level
OLED_WrCmd(0x20);//-Set Page Addressing Mode (0x00/0x01/0x02)
OLED_WrCmd(0x02);//
OLED_WrCmd(0x8d);//--set Charge Pump enable/disable
OLED_WrCmd(0x14);//--set(0x10) disable
OLED_WrCmd(0xa4);// Disable Entire Display On (0xa4/0xa5)
OLED_WrCmd(0xa6);// Disable Inverse Display On (0xa6/a7)
OLED_WrCmd(0xaf);//--turn on oled panel
OLED_Fill(0x00); //初始清屏
OLED_Set_Pos(0,0);
}
/***************功能描述：显示6*8一组标准ASCII字符串 显示的坐标（x,y），y为页范围0～7****************/
void OLED_P6x8Str(unsigned char x,unsigned char y,unsigned char ch[])
{
unsigned char c=0,i=0,j=0;
while (ch[j]!='\0')
{
c =ch[j]-32; //减去空格的ASCII码，得到在码表中的偏移量
if(x>121) //121+6 = 127
{
x=0;
y++;
}
OLED_Set_Pos(x,y);
for(i=0;i<6;i++)
OLED_WrDat(F6x8[c][i]);
x += 6;
j++;
}
}
/*******************功能描述：显示8*16一组标准ASCII字符串 显示的坐标（x,y），y为页范围0～7****************/
void OLED_P8x16Str(unsigned char x,unsigned char y,unsigned char ch[])
{
unsigned char c=0,i=0,j=0;
while (ch[j]!='\0')
{
c =ch[j]-32;
if(x>120){x=0;y++;}
OLED_Set_Pos(x,y);
for(i=0;i<8;i++)
OLED_WrDat(F8X16[c*16+i]);
OLED_Set_Pos(x,y+1);
for(i=0;i<8;i++)
OLED_WrDat(F8X16[c*16+i+8]);
x+=8;
j++;
}
}
//--------------------------------------------------------------
// Prototype : OLED_P16x16Ch(unsigned char x, unsigned char y, unsigned char N)
// Calls :
// Parameters : x,y -- 起始点坐标(x:0~127, y:0~7); N:汉字在codetab.h中的索引
// Description : 显示codetab.h中的汉字,16*16点阵
//--------------------------------------------------------------
/*****************功能描述：显示16*16点阵 显示的坐标（x,y），y为页范围0～7****************************/
void OLED_P16x16Ch(unsigned char x,unsigned char y,unsigned int N)
{
unsigned char wm=0;
unsigned int adder=32*N;
OLED_Set_Pos(x , y);
for(wm = 0;wm < 16;wm++)
{
OLED_WrDat(F16x16[adder]);
adder += 1;
}
OLED_Set_Pos(x,y + 1);
for(wm = 0;wm < 16;wm++)
{
OLED_WrDat(F16x16[adder]);
adder += 1;
}
}
/***********功能描述：显示显示BMP图片128×64起始点坐标(x,y),x的范围0～127，y为页的范围0～7*****************/
void Draw_BMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[])
{
unsigned int j=0;
unsigned char x,y;
if(y1%8==0) y=y1/8;
else y=y1/8+1;
for(y=y0;y<y1;y++)
{
OLED_Set_Pos(x0,y);
for(x=x0;x<x1;x++)
{
OLED_WrDat(BMP[j++]);
}
}
}
void Draw_DATA(unsigned char x,unsigned char y,unsigned int N){
u8 i=0,j;
u16 C=N;
while(C){
i++;
C/=10;
}
i--;
while(N){
j=N%10;
OLED_Set_Pos(x+i,y);
switch(j){
case 0:if(i==0)break;OLED_P8x16Str(x+8*i,y,"0");break;
case 1:OLED_P8x16Str(x+8*i,y,"1");break;
case 2:OLED_P8x16Str(x+8*i,y,"2");break;
case 3:OLED_P8x16Str(x+8*i,y,"3");break;
case 4:OLED_P8x16Str(x+8*i,y,"4");break;
case 5:OLED_P8x16Str(x+8*i,y,"5");break;
case 6:OLED_P8x16Str(x+8*i,y,"6");break;
case 7:OLED_P8x16Str(x+8*i,y,"7");break;
case 8:OLED_P8x16Str(x+8*i,y,"8");break;
case 9:OLED_P8x16Str(x+8*i,y,"9");break;
}
N=N/10;
i--;
delay_ms(10);
}
}
#ifndef __OLED_H
#define __OLED_H
#include "sys.h"
//IO方向设置
#define OLED_SDA_IN() {GPIOC->CRH&=0XF0FFFFFF;GPIOC->CRH|=(u32)8<<24;} //1000
#define OLED_SDA_OUT() {GPIOC->CRH&=0XF0FFFFFF;GPIOC->CRH|=(u32)2<<24;} //0010
#define OLED_IIC_SCL PCout(15) //SCL //串行时钟
#define OLED_IIC_SDA PCout(14) //SDA //串行数据
#define OLED_WRITE_SDA PCin(14) //输入SDA //输入SDA
#define high 1
#define low 0
#define Brightness 0xCF
#define X_WIDTH 128
#define Y_WIDTH 64
///oled.c调用函数
void OLED_IIC_Start(void);// -- 开启I2C总线
void OLED_IIC_Stop(void);// -- 关闭I2C总线
void Write_IIC_Byte(unsigned char IIC_Byte);// -- 通过I2C总线写一个byte的数据
void OLED_WrDat(unsigned char dat);// -- 向OLED屏写数据
void OLED_WrCmd(unsigned char cmd);// -- 向OLED屏写命令
u8 OLED_IIC_Wait_Ack(void);
void OLED_I2C_ACK(void);//产生 ACK 应答
void OLED_I2C_NoACK(void);//不产生 ACK 应答
/************************************************* OLED显示函数 ***********************************************************/
void OLED_IIC_GPIO_Init(void);//初始化GPIO
void OLED_Init(void);// -- OLED屏初始化程序，此函数应在操作屏幕之前最先调用
void OLED_Set_Pos(unsigned char x, unsigned char y);// -- 设置显示坐标
void OLED_Fill(unsigned char bmp_dat);// -- 全屏显示(显示BMP图片时才会用到此功能)
void OLED_CLS(void);// -- 复位/清屏
void OLED_P6x8Str(unsigned char x,unsigned char y,unsigned char ch[]);// -- 6x8点整，用于显示ASCII码的最小阵列，不太清晰
void OLED_P8x16Str(unsigned char x,unsigned char y,unsigned char ch[]);// -- 8x16点整，用于显示ASCII码，非常清晰
void OLED_P16x16Ch(unsigned char x,unsigned char y,unsigned int N);// -- 16x16点整，用于显示汉字的最小阵列，可设置各种字体、加粗、倾斜、下划线等
void Draw_BMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[]);// -- 将128x64像素的BMP位图在取字软件中算出字表，然后复制到codetab中，此函数调用即可
void Draw_DATA(unsigned char x,unsigned char y,unsigned int N);
#endif
#ifndef __OLEDFONT_H
#define __OLEDFONT_H
//常用ASCII表
//偏移量32
//ASCII字符集: !"#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcdefghijklmnopqrstuvwxyz{|}~
//PC2LCD2002取模方式设置：阴码+逐列式+顺向+C51格式
//总共：3个字符集（12*12、16*16和24*24），用户可以自行新增其他分辨率的字符集。
//每个字符所占用的字节数为:(size/8+((size%8)?1:0))*(size/2),其中size:是字库生成时的点阵大小(12/16/24...)
//16*8就是 2个十六进制数就是一个列，表格一行有16个数，/2 就是要显示几行
//12*8 就是 1.5个十六进制数是一个列，12/1.5就是8列
/***************************16*16的点阵字体取模方式：共阴——列行式——逆向输出*********/
const unsigned char F16x16[] =
//const unsigned char F16x16[][16] =
{
0x00,0x00,0xFC,0x04,0x44,0x84,0x04,0x25,0xC6,0x04,0x04,0x04,0x04,0xE4,0x04,0x00,
0x40,0x30,0x0F,0x40,0x40,0x41,0x4E,0x40,0x40,0x63,0x50,0x4C,0x43,0x40,0x40,0x00,/*"应",0*/
0x80,0x70,0x00,0xFF,0x08,0x50,0x20,0x10,0x0C,0x23,0xCC,0x10,0x20,0x40,0x40,0x00,
0x00,0x00,0x00,0xFF,0x00,0x00,0x01,0x09,0x11,0x21,0xD1,0x0D,0x03,0x00,0x00,0x00,/*"怜",1*/
0x00,0x00,0xFE,0x8A,0x4A,0x2A,0x0A,0x4A,0x4A,0x4A,0xFA,0x4A,0x4A,0x4E,0x40,0x00,
0x40,0x30,0x0F,0x08,0x04,0xFE,0x81,0x82,0x4E,0x52,0x23,0x52,0x4A,0x86,0x80,0x00,/*"屐",2*/
0x40,0x40,0x40,0x7C,0x40,0x40,0x40,0x7F,0x44,0x44,0x44,0x44,0x44,0x40,0x40,0x00,
0x00,0x00,0x7F,0x40,0x50,0x48,0x44,0x43,0x44,0x48,0x50,0x40,0xFF,0x00,0x00,0x00,/*"齿",3*/
0x00,0xFC,0x44,0x44,0x44,0x42,0x42,0x00,0xFC,0x04,0x04,0x04,0x04,0xFC,0x00,0x00,
0x00,0x1F,0x10,0x10,0x08,0x08,0x08,0x00,0xFF,0x00,0x08,0x10,0x08,0x07,0x00,0x00,/*"印",4*/
0x04,0x04,0x04,0x04,0x9F,0x44,0x24,0x14,0x24,0x44,0x9F,0x04,0x04,0x04,0x04,0x00,
0x02,0x02,0x01,0x01,0x7E,0x82,0x82,0x82,0x92,0xA2,0x9E,0x81,0xF1,0x02,0x02,0x00,/*"苍",5*/
0x04,0x04,0x84,0xC4,0xAF,0x94,0x84,0x84,0x84,0x84,0xAF,0xC4,0x84,0x04,0x04,0x00,
0x00,0x00,0x00,0xFC,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0xFC,0x01,0x00,0x00,0x00,/*"苔",6*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",7*/
0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x20,0x40,0x80,0x00,0x00,
0x08,0x04,0x03,0x00,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00,0x01,0x0E,0x00,/*"小",8*/
0x10,0x10,0x10,0xFF,0x10,0x90,0x00,0xFC,0x04,0x04,0x04,0x04,0x04,0xFC,0x00,0x00,
0x04,0x44,0x82,0x7F,0x01,0x00,0x00,0x7F,0x20,0x20,0x20,0x20,0x20,0x7F,0x00,0x00,/*"扣",9*/
0x80,0x80,0xFC,0x80,0x7F,0x48,0x48,0x00,0x7F,0x90,0x88,0x84,0x82,0xE0,0x00,0x00,
0x44,0x44,0x24,0x24,0x14,0x0C,0x04,0xFF,0x04,0x0C,0x14,0x24,0x24,0x44,0x44,0x00,/*"柴",10*/
0x00,0x00,0xFC,0x94,0x94,0x94,0x94,0xF5,0x16,0x14,0xF4,0x94,0x94,0x9C,0x80,0x00,
0x40,0x30,0x0F,0x20,0x24,0x24,0x24,0xFF,0x00,0x00,0xFF,0x24,0x24,0x24,0x20,0x00,/*"扉",11*/
0x00,0x00,0x80,0x40,0x30,0x0F,0x08,0x08,0x08,0xC8,0x38,0x00,0x00,0x00,0x00,0x00,
0x80,0x81,0x40,0x40,0x20,0x10,0x08,0x04,0x03,0x0C,0x10,0x20,0x40,0x80,0x80,0x00,/*"久",12*/
0x00,0x02,0x02,0x02,0x02,0x82,0x42,0xF2,0x0E,0x42,0x82,0x02,0x02,0x02,0x00,0x00,
0x10,0x08,0x04,0x02,0x01,0x00,0x00,0xFF,0x00,0x00,0x00,0x01,0x02,0x0C,0x00,0x00,/*"不",13*/
0x80,0x82,0x82,0x82,0xFE,0x82,0x82,0x82,0x82,0x82,0xFE,0x82,0x82,0x82,0x80,0x00,
0x00,0x80,0x40,0x30,0x0F,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,/*"开",14*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",15*/
0x40,0x44,0x54,0x54,0xD4,0x54,0x74,0x5F,0x54,0x54,0xD4,0x54,0x54,0x44,0x40,0x00,
0x04,0x04,0x02,0x01,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x01,0x02,0x04,0x04,0x00,/*"春",16*/
0x20,0x10,0xE8,0x24,0x27,0x24,0x24,0xE4,0x24,0x34,0x2C,0x20,0xE0,0x00,0x00,0x00,
0x00,0x00,0x3F,0x42,0x42,0x42,0x42,0x43,0x42,0x42,0x42,0x42,0x43,0x40,0x78,0x00,/*"色",17*/
0x10,0x60,0x02,0x8C,0x00,0x24,0x24,0x2F,0xE4,0x24,0x24,0xE4,0x2F,0x24,0x24,0x00,
0x04,0x04,0x7E,0x01,0x00,0xFF,0x11,0x09,0x07,0x19,0x09,0x07,0x49,0x91,0x7F,0x00,/*"满",18*/
0x00,0xFE,0x02,0x42,0x4A,0xCA,0x4A,0x4A,0xCA,0x4A,0x4A,0x42,0x02,0xFE,0x00,0x00,
0x00,0xFF,0x40,0x50,0x4C,0x43,0x40,0x40,0x4F,0x50,0x50,0x5C,0x40,0xFF,0x00,0x00,/*"园",19*/
0x00,0x00,0x10,0x11,0x16,0x10,0x10,0xF0,0x10,0x10,0x14,0x13,0x10,0x00,0x00,0x00,
0x81,0x81,0x41,0x41,0x21,0x11,0x0D,0x03,0x0D,0x11,0x21,0x41,0x41,0x81,0x81,0x00,/*"关",20*/
0x00,0x02,0x02,0x02,0x02,0x82,0x42,0xF2,0x0E,0x42,0x82,0x02,0x02,0x02,0x00,0x00,
0x10,0x08,0x04,0x02,0x01,0x00,0x00,0xFF,0x00,0x00,0x00,0x01,0x02,0x0C,0x00,0x00,/*"不",21*/
0x00,0x80,0x60,0xF8,0x07,0x08,0x08,0x08,0x09,0xFA,0x08,0x08,0x08,0x08,0x00,0x00,
0x01,0x00,0x00,0xFF,0x40,0x41,0x41,0x41,0x41,0x7F,0x41,0x41,0x41,0x41,0x40,0x00,/*"住",22*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",23*/
0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*"一",24*/
0x10,0x10,0xD0,0xFF,0x90,0x10,0x08,0x88,0x88,0x88,0xFF,0x88,0x88,0x88,0x08,0x00,
0x04,0x03,0x00,0xFF,0x00,0x83,0x80,0x40,0x43,0x2C,0x10,0x28,0x46,0x81,0x80,0x00,/*"枝",25*/
0x20,0x30,0xAC,0x63,0x20,0x18,0x00,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0x00,0x00,
0x22,0x67,0x22,0x12,0x12,0x12,0x40,0x40,0x40,0x40,0x7F,0x40,0x40,0x40,0x40,0x00,/*"红",26*/
0x80,0x84,0x44,0x44,0x24,0x14,0x0C,0xFF,0x0C,0x14,0x24,0x44,0x44,0x84,0x80,0x00,
0x00,0x00,0x00,0xFE,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0xFE,0x00,0x00,0x00,0x00,/*"杏",27*/
0x00,0x00,0x7C,0x40,0x40,0x40,0x40,0xFF,0x40,0x40,0x40,0x40,0xFC,0x00,0x00,0x00,
0x00,0x7C,0x40,0x40,0x40,0x40,0x40,0x7F,0x40,0x40,0x40,0x40,0x40,0xFC,0x00,0x00,/*"出",28*/
0x20,0x20,0xFF,0x20,0x20,0x44,0x54,0x64,0x44,0x7F,0x44,0x64,0x54,0x44,0x40,0x00,
0x10,0x30,0x1F,0x08,0x08,0x00,0xFF,0x41,0x5D,0x55,0x5D,0x41,0xFF,0x00,0x00,0x00,/*"墙",29*/
0x00,0x08,0x08,0x28,0xC8,0x08,0x08,0xFF,0x08,0x08,0x88,0x68,0x08,0x08,0x00,0x00,
0x21,0x21,0x11,0x11,0x09,0x05,0x03,0xFF,0x03,0x05,0x09,0x11,0x11,0x21,0x21,0x00,/*"来",30*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",31*/
};
/************************************6*8的点阵************************************/
//二维数组
const unsigned char F6x8[][6] =
{
0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
/****************************************8*16的点阵************************************/
//一维数组
const unsigned char F8X16[]=
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};
#endif
版权声明：本文为lgyLGY35原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
