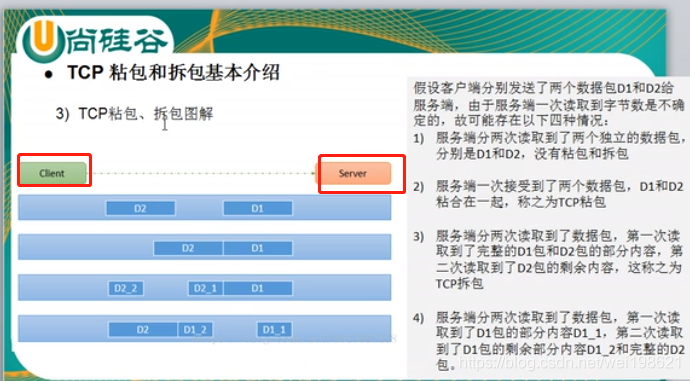

TCP 粘包拆包基本介绍

接收端很难分辨出完整的数据包,因为 面向流的通信是无消息保护边界的

https://www.bilibili.com/video/BV1jK4y1s7GV?p=87

https://www.bilibili.com/video/BV1jK4y1s7GV?p=88

https://www.bilibili.com/video/BV1jK4y1s7GV?p=89

https://www.bilibili.com/video/BV1jK4y1s7GV?p=90

https://www.bilibili.com/video/BV1jK4y1s7GV?p=91

在这里插入图片描述
在这里插入图片描述

=











client











=====

package com.atguigu.tcp.client;

import com.atguigu.tcp.client.MyClientInitializer;
import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioSocketChannel;

/**
 * Author: tz_wl
 * Date: 2020/9/28 15:50
 * Content:
 *
 * https://www.bilibili.com/video/BV1jK4y1s7GV?p=88
 */
public class MyClient {
    public static void main(String[] args) throws Exception {
        EventLoopGroup group = new NioEventLoopGroup();

        try {
            Bootstrap bootstrap = new Bootstrap();
            bootstrap.group(group)
                    .channel(NioSocketChannel.class)
                    .handler(new MyClientInitializer());

            ChannelFuture channelFuture = bootstrap.connect("localhost", 8087).sync();
            channelFuture.channel().closeFuture().sync();
        } finally {
            group.shutdownGracefully();
        }
    }
}

package com.atguigu.tcp.client;

import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.socket.SocketChannel;

/**
 * Author: tz_wl
 * Date: 2020/9/28 19:38
 * Content:
 */
public class MyClientInitializer extends ChannelInitializer<SocketChannel> {
    @Override
    protected void initChannel(SocketChannel sc) throws Exception {
        ChannelPipeline pipeline = sc.pipeline();
        pipeline.addLast(new MyClientHandler());
    }
}

package com.atguigu.tcp.client;

import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.util.CharsetUtil;

/**
 * Author: tz_wl
 * Date: 2020/9/28 19:39
 * Content:
 */
public class MyClientHandler extends SimpleChannelInboundHandler<ByteBuf> {

    private int count;
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        //使用客户端发送10 条数据   hello,server
        for (int i=0;i<100;++i){
            ByteBuf byteBuf = Unpooled.copiedBuffer("hello,server" + i, CharsetUtil.UTF_8);
            ctx.writeAndFlush(byteBuf);
        }
    }

    //接收从服务器发送的数据
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, ByteBuf msg) throws Exception {
        byte[] bytes = new byte[msg.readableBytes()];
        msg.readBytes(bytes);
        String message = new String(bytes,CharsetUtil.UTF_8);
        System.out.println("客户端接收到消息==="+message);
        System.out.println("客户端接收到消息的数量===="+(++this.count));
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        cause.printStackTrace();
        ctx.close();
    }
}

=











server











======

package com.atguigu.tcp.server;

import com.atguigu.tcp.server.MyServerInitializer;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;

/**
 * Author: tz_wl
 * Date: 2020/9/28 14:30
 * Content:
 *
 * https://www.bilibili.com/video/BV1jK4y1s7GV?p=88
 */
public class MyServer {
    public static void main(String[] args) throws Exception {
        EventLoopGroup bossGroup = new NioEventLoopGroup(1);
        EventLoopGroup workerGroup = new NioEventLoopGroup();
        try {
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(bossGroup,workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .childHandler(new MyServerInitializer());
            ChannelFuture future = serverBootstrap.bind(8087).sync();
            future.channel().closeFuture().sync();
        } finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }

    }
}

package com.atguigu.tcp.server;

import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.socket.SocketChannel;

/**
 * Author: tz_wl
 * Date: 2020/9/28 19:42
 * Content:
 */
public class MyServerInitializer extends ChannelInitializer<SocketChannel>{
    @Override
    protected void initChannel(SocketChannel sc) throws Exception {

        ChannelPipeline pipeline = sc.pipeline();
        pipeline.addLast(new MyServerHandler());
    }
}

package com.atguigu.tcp.server;

import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.util.CharsetUtil;

import java.util.UUID;

/**
 * Author: tz_wl
 * Date: 2020/9/28 19:43
 * Content:
 */
public class MyServerHandler extends SimpleChannelInboundHandler<ByteBuf> {

    private int count;

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, ByteBuf msg) throws Exception {
        byte[] bytes=new byte[msg.readableBytes()];
        msg.readBytes(bytes);
        //将buffer转换成字符串
        String s = new String(bytes, CharsetUtil.UTF_8);
        System.out.println("服务端接收到 客户端 "+ ctx.channel().remoteAddress()+"发来的数据: "+s);
        System.out.println("服务器端接收到消息量"+ (++this.count));

        //服务器回送数据给客户端,看客户端如何接收
        ByteBuf responseBody = Unpooled.copiedBuffer(UUID.randomUUID().toString(), CharsetUtil.UTF_8);
        ctx.writeAndFlush(responseBody);
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        cause.printStackTrace();
        ctx.close();
    }
}
