FPGA IIC 协议
主控芯片不能设置SDA高电平，能用高阻态，外部上拉电阻拉上去。可以直接设置高电平。

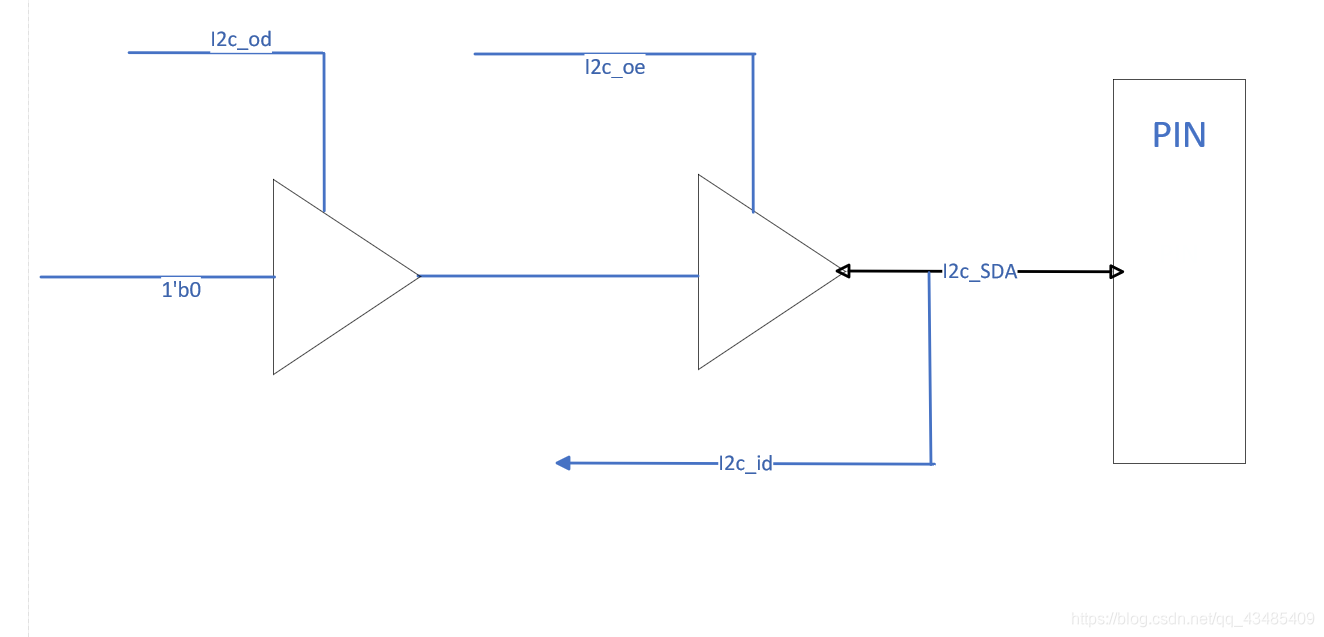

三态门
oe为0：
开关断开作为输入，i2c_id=i2c_SDA ;
oe为1：
若od为1，做输出，高阻态，外部上拉电阻拉高。
若od为0，做输出，输出为低电平。
I2C 协议起始位： SCL 为高电平时， SDA 出现下降沿，产生一个起始位；
I2C 协议结束位： SCL 为高电平时， SDA 出现上升沿，产生一个结束位；

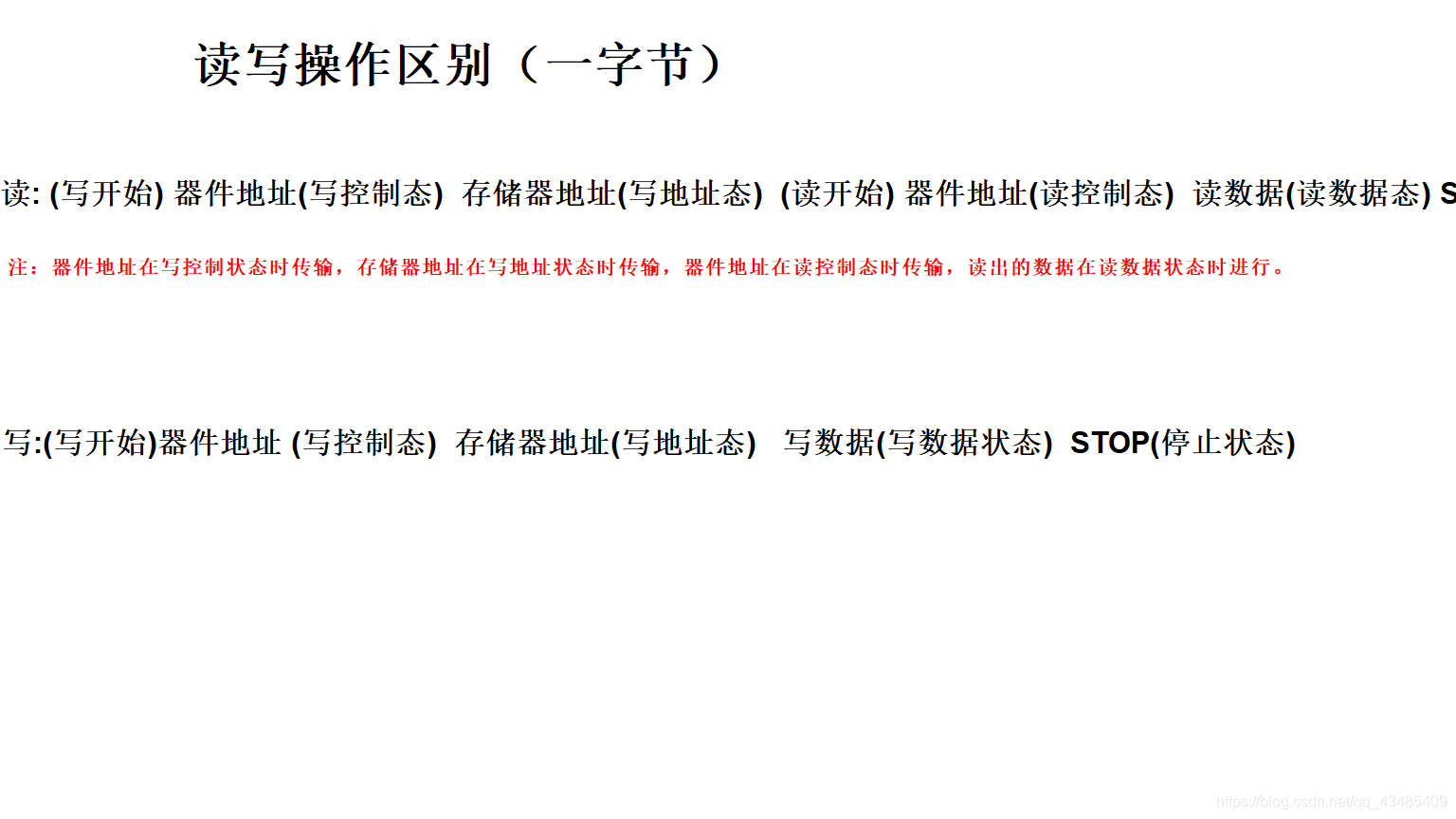

I2C器件地址，I2C存储器地址
当主机像从机写入数据时，SDA 上的每一位数据在 SCL 的高电平期间被写入从机中。从主机角度来看，需要在 SCL 低电平期间改变要写入的数据。
而当主机读取从机中数据时，从机在 SCL 低电平期间将数据输出到 SDA总线上，在 SCL 的高电平期间保持数据稳定，从主机角度来看，需要在SCL 的高电平期间将 SDA 线上的数据读取并存储。
不管对于从机还是主机， SDA 上的每一位数据在 SCL 的高电平期间保持不变，而数据的改变总是在 SCL 的低电平期间发生。
SDA 上的每一位数据在 SCL 的高电平期间保持不变，而数据的改变总是在SCL 的低电平期间发生。

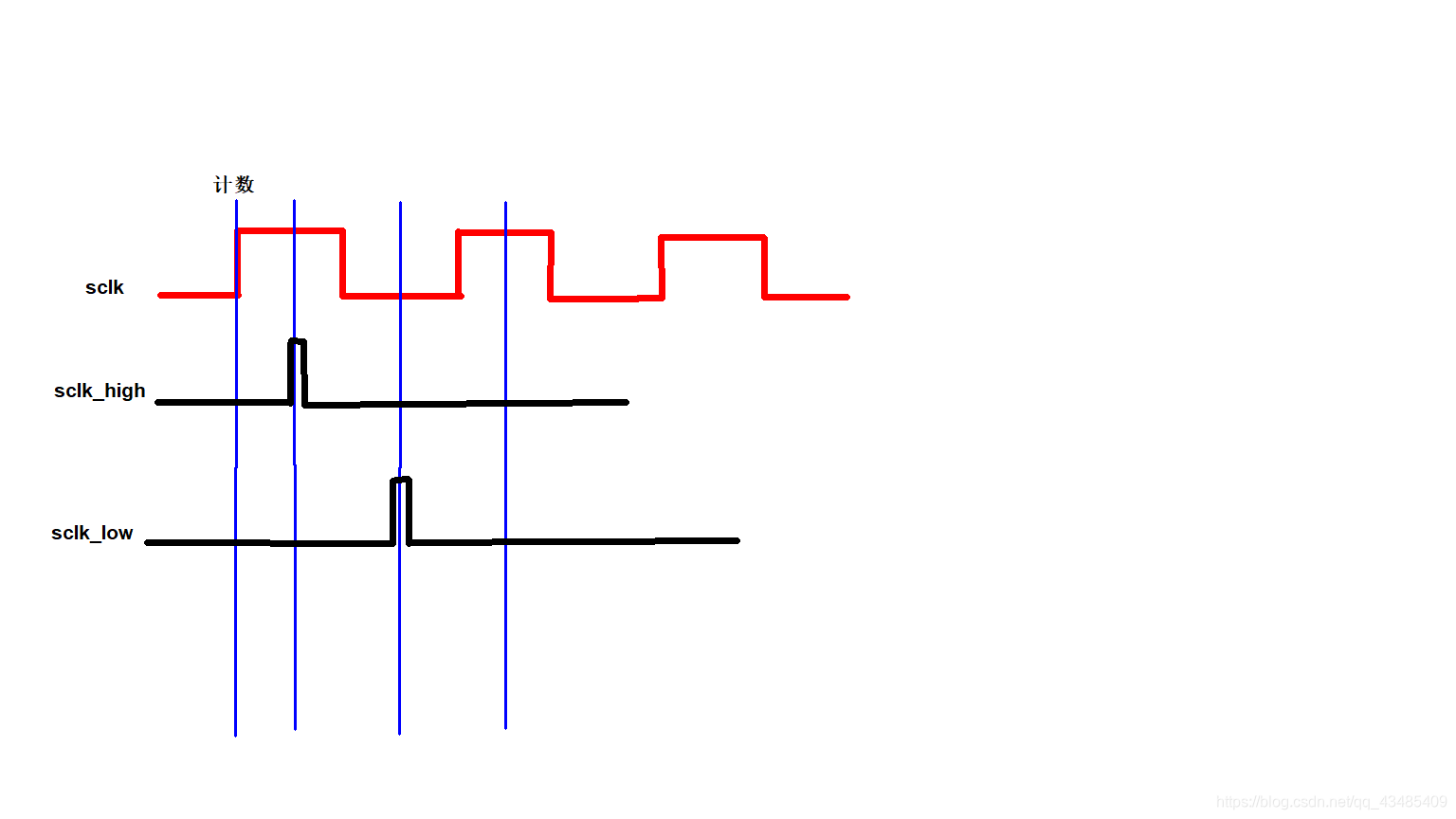

I2C_CLK高低电平计数器计数。高电平开始计数。
状态图
IIC文件
module IIC(
Clk,
Rst_n,
Wr,
Read,
Wdata_num,
Rdata_num,
Address_num,
Device_adress,
Word_adrr,
Wr_data,
Rd_data,
Wr_data_vaule,
Rd_data_vaule,
Done,
Sda,
Iic_clk
);
input Clk;
input Rst_n;
input Wr;
input Read;
input [5:0]Wdata_num; //连续写数据存储单元个数
input [5:0]Rdata_num; //连续读存储单元个数
input [1:0]Address_num; //单字节/双字节地址段选择
input [2:0]Device_adress; //器件片选地址
input [15:0]Word_adrr; //存储单元地址
input [7:0]Wr_data;//写入的数据
output reg[7:0]Rd_data;//读出的数据
output Wr_data_vaule;//读数据有效标志信号
output reg Rd_data_vaule;//写数据有效标志信号
inout Sda;
output reg Done;
output reg Iic_clk;
parameter CLK_FREQUENCY = 50_000_000;
parameter IIC_CLK_FREQUENCY = 400_000; //I2c clk时钟频率400KHZ
localparam COUNT_MAX = CLK_FREQUENCY/IIC_CLK_FREQUENCY;
//独热码
localparam IDLE = 9'b000_000_001,
WR_START = 9'b000_000_010,
WR_CTRL = 9'b000_000_100,//写控制 写器件地址
WR_ADDRE = 9'b000_001_000,//写地址
WR_DATA = 9'b000_010_000,//写数据
RD_START = 9'b000_100_000,//读开始
RD_CTRL = 9'b001_000_000,//读控制
RD_DATA = 9'b010_000_000,//读数据
STOP = 9'b100_000_000;
reg iic_free_n;//i2c空闲标志位，低电平有效
wire [7:0]waddress_data;//器件地址数据写
wire [7:0]raddress_data;//器件地址数据读
reg [7:0]iic_count; //产生i2C_CLK信号计数寄存器
reg iic_high;
reg iic_low;
reg [4:0]half_clk_cnt;//计数一个状态中高低电平计数器
reg [8:0]main_state;//主状态机状态寄存器
reg ack;//数据接收方对发送方的响应标志位
reg send_en;//控制Sda线输入输出开关
reg sda_reg;//sda信号线寄存器
reg task_en_n;//任务开始结束控制寄存器
reg [7:0]sda_data_out;//sda待输出的数据
reg [7:0]sda_data_in;//sda待写入的数据
reg [5:0]wdata_cnt;//连续写个数计数器
reg [5:0]rdata_cnt;//连续读个数计数器
reg [1:0]adress_cnt;//器件地址个数计数器 1/2
wire be_rd_data_vaule;//读数据有效前寄存器
reg w_flag;
reg r_flag;
//写/读器件地址8位
assign waddress_data = {4'b1010 , Device_adress , 1'b0};
assign raddress_data = {4'b1010 , Device_adress , 1'b1};
assign Sda = send_en?sda_reg:1'bz;
//iic_free_n状态判断
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
iic_free_n <= 1'b0;
else if(Wr|Read)
iic_free_n <= 1'b1;
else if(Done)
iic_free_n <= 1'b0;
else
iic_free_n <= iic_free_n;
//iic_count计数
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
iic_count <= 1'b0;
else if(iic_free_n)
begin
if(iic_count == COUNT_MAX - 1'b1)
iic_count <= 1'b0;
else
iic_count <= iic_count + 1'b1;
end
else
iic_count <= 1'b0;
//Iic_clk产生
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
Iic_clk <= 1'b1;
else if(iic_count == COUNT_MAX >> 1)
Iic_clk <= 1'b0;
else if(iic_count == 1'b0)
Iic_clk <= 1'b1;
else
Iic_clk <= Iic_clk;
//标志Iic_clk高电平 iic_high产生
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
iic_high <= 1'b0;
else if(iic_count == (COUNT_MAX >> 2) )
iic_high <= 1'b1;
else
iic_high <= 1'b0;
//标志Iic_clk低电平 iic_low产生
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
iic_low <= 1'b0;
else if(iic_count == (COUNT_MAX >> 2 )+ (COUNT_MAX >> 1) )
iic_low <= 1'b1;
else
iic_low <= 1'b0;

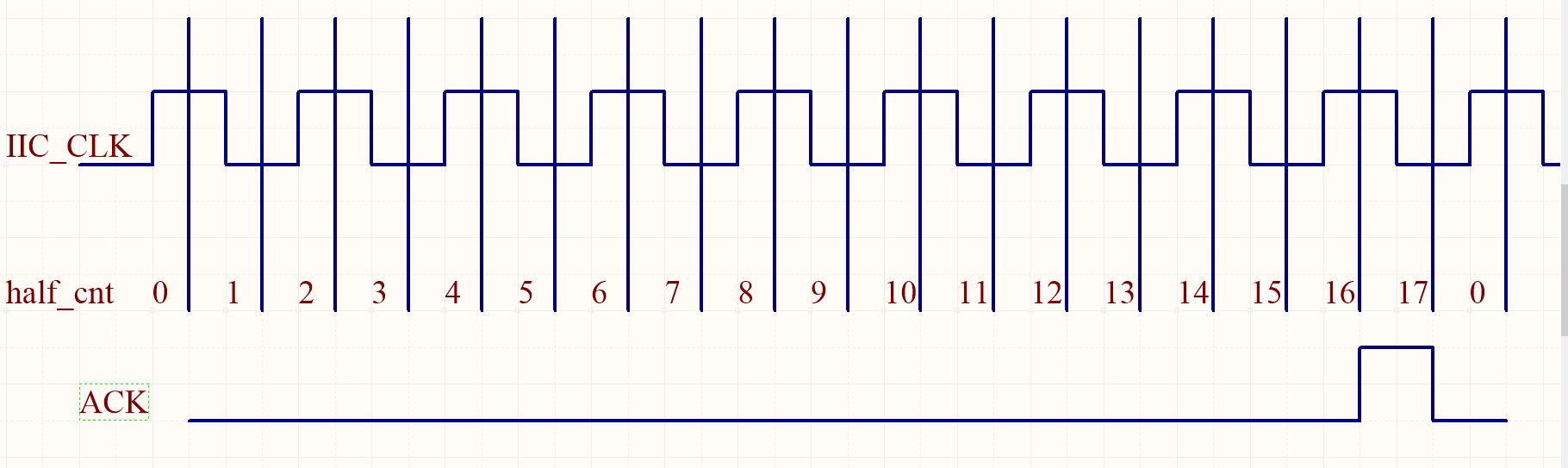

//sda串行收发Iic_clk高低电平计数器
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
half_clk_cnt <= 5'b0;
else
if((main_state == WR_CTRL) || (main_state ==WR_ADDRE)|| (main_state ==WR_DATA) || (main_state ==RD_CTRL) ||(main_state ==RD_DATA))
begin
if(iic_high || iic_low)
begin
if(half_clk_cnt == 5'd17)
half_clk_cnt <= 5'b0;
else
half_clk_cnt <= half_clk_cnt + 1'b1;
end
else
half_clk_cnt <= half_clk_cnt;
end
else
half_clk_cnt <= 1'b0;
//数据接收方对发送方的响应标志位ACK
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
ack <= 1'b0;
else
if((half_clk_cnt == 5'd16) && iic_high && (Sda == 1'b0))
ack <= 1'b1;
else
if(half_clk_cnt == 5'd17 && iic_low)
ack <= 1'b0;
else
ack <= ack;
//输出串行数据任务
task send_eight_data;
if(iic_high && (half_clk_cnt == 5'd16))
task_en_n <= 1'b1;
else
if(half_clk_cnt < 5'd17)
begin
sda_reg <= sda_data_out[7];
if(iic_low)
sda_data_out <= {sda_data_out[6:0],1'b0};
else
sda_data_out <= sda_data_out;
end
endtask
//输入串行任务
task get_eight_data;
if(iic_low && (half_clk_cnt == 5'd15))
task_en_n <= 1'b1;
else
if(half_clk_cnt < 5'd15)
begin
if(iic_high)
sda_data_in <= {sda_data_in[6:0],Sda};
else
sda_data_in <= sda_data_in;
end
endtask
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
begin
sda_reg <= 1'b1;
wdata_cnt <= 1'b1;
rdata_cnt <= 1'b1;
adress_cnt <= 1'b1;
Done <= 1'b0;
w_flag <= 1'b0;
r_flag <= 1'b0;
end
else
begin
case(main_state)
IDLE :
begin
sda_reg <= 1'b1;
rdata_cnt <= 1'b1;
wdata_cnt <= 1'b1;
adress_cnt <=1'b1;
w_flag <= 1'b0;
r_flag <= 1'b0;
Done <= 1'b0;
if(Wr)
begin
main_state <= WR_START;
w_flag <= 1'b1;
end
else if(Read)
begin
main_state <= WR_START;
r_flag <= 1'b1;
end
end
WR_START: //10
begin
if(iic_low)
begin
main_state <= WR_CTRL;
sda_data_out <= waddress_data;
task_en_n <= 1'b0;
end
else if(iic_high)
begin
sda_reg <= 1'b0;
main_state <= WR_START;
end
else
main_state <= WR_START;
end
WR_CTRL: //100
begin
if(task_en_n == 1'b0)
send_eight_data;
else
if(ack == 1'b1)
begin
if(iic_low)
begin
main_state <= WR_ADDRE;
task_en_n <= 1'b0;
if(adress_cnt == Address_num)
sda_data_out <= Word_adrr[7:0];
else
sda_data_out <= Word_adrr[15:8];
end
else
main_state <= WR_CTRL;
end
else
main_state <= IDLE;
end
WR_ADDRE: //1000
begin
if(task_en_n == 1'b0)
send_eight_data;
else
if(ack == 1'b1)
begin
if(adress_cnt == Address_num)
begin
if(iic_low && w_flag)
begin
main_state <= WR_DATA;
adress_cnt <= 1'b1;
task_en_n <= 1'b0;
sda_data_out <= Wr_data;
end
else
if(iic_low && r_flag)
begin
main_state <= RD_START;
sda_reg <= 1'b1;
end
else
main_state <= WR_ADDRE;
end
else
begin
main_state <= WR_ADDRE;
sda_data_out <= Word_adrr[7:0];
task_en_n <= 1'b0;
adress_cnt <= adress_cnt + 1'b1;
end
end
else
main_state <= IDLE;
end
WR_DATA: //10_000
begin
if(task_en_n == 1'b0)
send_eight_data;
else
if(ack == 1'b1)
begin
if(wdata_cnt == Wdata_num)
begin
if(iic_low)
begin
wdata_cnt <= 1'b1;
main_state <= STOP;
sda_reg <= 1'b0; //上升沿停止
end
else
main_state <= WR_DATA;
end
else
if(iic_low)
begin
wdata_cnt <= wdata_cnt + 1'b1;
main_state <= WR_DATA;
sda_data_out <= Wr_data;
task_en_n <= 1'b0;
end
else
main_state <= WR_DATA;
end
else
main_state <= IDLE;
end
RD_START:
begin
if(iic_low)
begin
main_state <= RD_CTRL;
task_en_n <= 1'b0;
sda_data_out <= raddress_data;
end
else
if(iic_high)
begin
main_state <= RD_START;
sda_reg <= 1'b0;
end
else
main_state <= RD_START;
end
RD_CTRL:
begin
if(task_en_n == 1'b0)
send_eight_data;
else
if(ack == 1'b1)
begin
if(iic_low)
begin
main_state <= RD_DATA;
task_en_n <= 1'b0;
end
else
main_state <= RD_CTRL;
end
else
main_state <= IDLE;
end
RD_DATA:
begin
if(task_en_n == 1'b0)
get_eight_data;
else
if(rdata_cnt == Rdata_num)
begin
sda_reg <= 1'b1; //产生NOack信号表示不读
if(iic_low)
begin
main_state <= STOP;
sda_reg <= 1'b0; //产生上升沿停止位
end
else
main_state <= RD_DATA;
end
else
begin
sda_reg <= 1'b0; //产生ack信表示再读
if(iic_low)
begin
main_state <= RD_DATA;
rdata_cnt <= rdata_cnt + 1'b1;
task_en_n <= 1'b0;
end
else
main_state <= RD_DATA;
end
end
STOP:
begin
if(iic_high)
begin
sda_reg <= 1'b1; //产生上升沿停止态
main_state <= IDLE;
Done <= 1'b1;
end
else
main_state <= STOP;
end
default : main_state <= IDLE;
endcase
end
//控制sda开关闭合关闭
always @(*) //描述组合逻辑电路
begin
case(main_state)
IDLE:
send_en = 1'b0;
RD_START,WR_START,STOP: //写/读开始 停止位
send_en = 1'b1;
RD_CTRL,WR_CTRL,WR_ADDRE,WR_DATA:
if(half_clk_cnt < 16)
send_en = 1'b1;
else
send_en = 1'b0;
RD_DATA:
if(half_clk_cnt < 16)
send_en = 1'b0;
else
send_en = 1'b1;
default:send_en = 1'b0;
endcase
end
//写输入有效标志位
assign Wr_data_vaule = ((main_state == WR_ADDRE) && (w_flag && iic_low) && (ack == 1'b1) && (adress_cnt == Address_num))||((main_state == WR_DATA) && (ack == 1'b1) && (iic_low)&&(wdata_cnt != Wdata_num));
//读数据有效标志位前寄存器
assign be_rd_data_vaule = ((main_state == RD_DATA) && (half_clk_cnt == 5'd15) && (iic_low));
//读数据有效标志位
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
Rd_data_vaule <= 1'b0;
else if(be_rd_data_vaule)
Rd_data_vaule <= 1'b1;
else
Rd_data_vaule <= 1'b0;
//读出的有效数据
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
Rd_data <= 8'd0;
else if(be_rd_data_vaule)
Rd_data <= sda_data_in;
else
Rd_data <= Rd_data;
endmodule

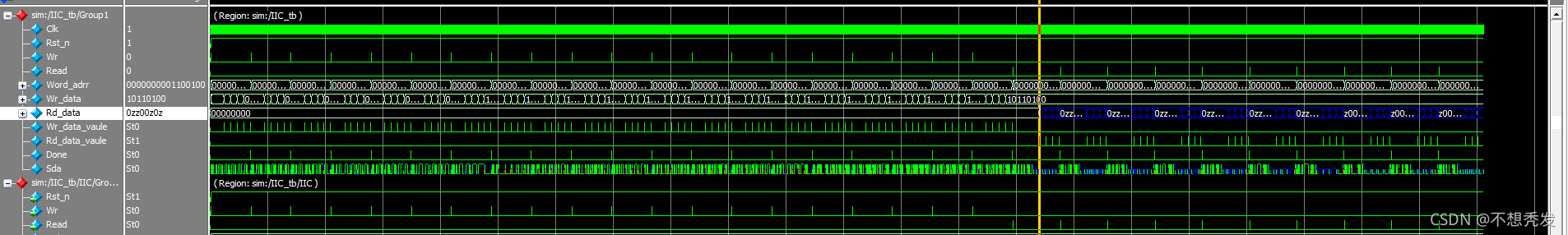

IIC仿真文件
`timescale 1ns/1ns
`define CLK_CYCLE 20
//`define TEST_M24LC64 //24LC64 1字节存储器地址
`define TEST_M24LC04 //24LC04B 2字节存储器地址
module IIC_tb;
localparam NUM = 6'd4; //连续读写数据个数
reg Clk;
reg Rst_n;
reg Wr;
reg Read;
reg [15:0]Word_adrr;
reg [7:0]Wr_data;
wire [7:0]Rd_data;
wire Wr_data_vaule;
wire Rd_data_vaule;
wire Done;
wire Sda;
wire Iic_clk;
`ifdef TEST_M24LC64
localparam Device_adress = 3'b000;//器件地址
localparam Address_num = 2'd2; //存储器地址字节数
`elsif TEST_M24LC04
localparam Device_adress = 3'b001;
localparam Address_num = 2'd1;
`endif
IIC IIC(
.Clk(Clk),
.Rst_n(Rst_n),
.Wr(Wr),
.Read(Read),
.Wdata_num(NUM),
.Rdata_num(NUM),
.Address_num(Address_num),
.Device_adress(Device_adress),
.Word_adrr(Word_adrr),
.Wr_data(Wr_data),
.Rd_data(Rd_data),
.Wr_data_vaule(Wr_data_vaule),
.Rd_data_vaule(Rd_data_vaule),
.Done(Done),
.Sda(Sda),
.Iic_clk(Iic_clk)
);
`ifdef TEST_M24LC64
M24LC64 M24LC64(
.A0(1'b0),
.A1(1'b0),
.A2(1'b0),
.WP(1'b0),
.SDA(Sda),
.SCL(Iic_clk),
.RESET(!Rst_n)
);
`elsif TEST_M24LC04
M24LC04B M24LC04(
.A0(1'b1),
.A1(1'b0),
.A2(1'b0),
.WP(1'b0),
.SDA(Sda),
.SCL(Iic_clk),
.RESET(!Rst_n)
);
`endif
initial Clk = 1;
always #(`CLK_CYCLE/2) Clk = ~Clk;
initial
begin
Rst_n = 0;
Wr = 0;
Read = 0;
Word_adrr = 0;
Wr_data = 0;
#(`CLK_CYCLE*200 + 1);
Rst_n = 1;
#200;
`ifdef TEST_M24LC64//仿真24LC64模型
Word_adrr = 0;
Wr_data = 0;
repeat(20)
begin
Wr = 1'b1;
#(`CLK_CYCLE);
Wr = 1'b0;
repeat(NUM)
begin
@(posedge Wr_data_vaule)
Wr_data = Wr_data + 1;
end
@(posedge Done)
#1000;
Word_adrr = Word_adrr + NUM;
end
#2000;
//读出数据
Word_adrr = 0;
repeat(20)
begin
Read = 1'b1;
#(`CLK_CYCLE);
Read = 1'b0;
@(posedge Done)
#1000;
Word_adrr = Word_adrr + NUM; //?????
end
`elsif TEST_M24LC04
Word_adrr = 100;
Wr_data = 100;
repeat(20)
begin
Wr = 1;
#(`CLK_CYCLE);
Wr = 0;
repeat(NUM)
begin
@(posedge Wr_data_vaule)
Wr_data = Wr_data + 1;
end
@(posedge Done);
#1000;
Word_adrr = Word_adrr + NUM;
end
#2000;
//读出数据
Word_adrr = 100;
repeat(20)
begin
Read = 1;
#(`CLK_CYCLE);
Read = 0;
@(posedge Done);
#1000;
Word_adrr = Word_adrr + NUM;
end
`endif
#4000;
$stop;
end
endmodule
仿真结果第一个读取的数据为01100101，刚好是十进制数101也是第一个存储的数据。
UART串口读写EEPROM存储器任意地址数据
编写RX接收数据分析模块

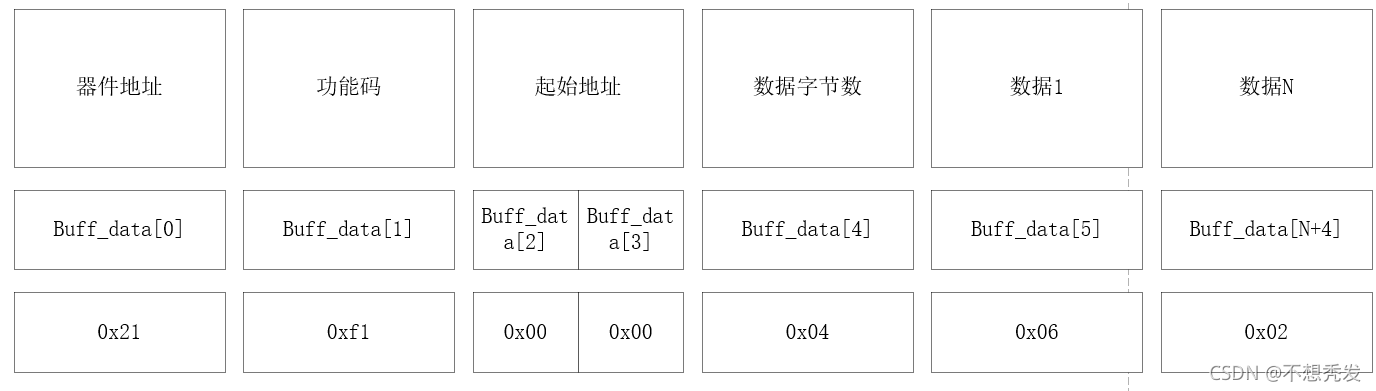

规定电脑端发送的数据格式为
其中，器件地址包括器件的地址字节数和 3 位的器件地址，具体分配如图所示。
使用左移循环动态判断数据的帧头，判断功能码（功能码为0xf1 表示写数据操作，0xf2 表示读数据操作）。
module DATA_ANALYSIS(
Clk,
Rst_n
Rx_data,
Rx_done,
Wfifo_reg,
Wfifo_data,
Rdata_num,
Wdata_num,
Address_num,
Device_address,
Word_adrr,
Rd, //EEPROM读请求信号
);
input Clk;
input Rst_n;
input [7:0]Rx_data;
input Rx_done;
output Wfifo_reg;
output [7:0]Wfifo_data;
output [5:0]Rdata_num;
output [5:0]Wdata_num;
output [1:0]Address_num;
output [2:0]Device_address;
output [7:0]Word_adrr;
output Rd; //EEPROM读请求信号
reg [7:0]an_cnt;//串口数据接收个数计数器
reg[7:0] buff_data[5:0];
reg analysis_done;
//串口接收数据计数器
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
an_cnt <= 8'd0;
else
if((an_cnt==8'd4)&&Rx_done)
begin
if(buff_data[1] == 8'hf2)//读操作命令
an_cnt <= 8'd0;
else
if(buff_data[1] == 8'hf1)//写操作命令
an_cnt <= an_cnt + 1'b1;
else
an_cnt <= 1'b0; //错误指令
end
else
if(Rx_done)
begin
if(an_cnt == (8'd4 + buff_data[4]))
an_cnt <= 8'd0;
else
an_cnt <= an_cnt + 1'b1;
end
else an_cnt <= an_cnt ;
//串口缓冲寄存器
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
begin
buff_data[0] <= 8'd0;
buff_data[1] <= 8'd0;
buff_data[2] <= 8'd0;
buff_data[3] <= 8'd0;
buff_data[4] <= 8'd0;
end
else
if((an_cnt < 8'd5) && Rx_done)
buff_data[an_cnt] <= Rx_data;
else ;
//WFIFO写请求使能信号
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
Wfifo_reg <= 1'b0;
else
if((an_cnt > 8'd4)&& Rx_done)
Wfifo_reg <= 1'b1;
else
Wfifo_reg <= 1'b0;
//WFIFO写入的数据
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
Wfifo_data <= 1'b0;
else
if((an_cnt > 8'd4)&& Rx_done)
Wfifo_data <= Rx_data;
else
Wfifo_data <= Wfifo_data;
//IIC读使能信号
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
Rd <= 1'b0;
else
if((an_cnt == 8'd4) && (buff_data[1] == 8'hf2) && Rx_done)
Rd <= 1'b1;
else
Rd <= 1'b0;
//指令完成标志
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
analysis_done <= 1'b0;
else
if((an_cnt == 8'd4)&& Rx_done)
analysis_done <= 1'd1;
else
analysis_done <= 1'd0;
//EEPROM存储器地址
always @(posedge Clk or negedge Rst_n)
if(!Rst_n)
begin
Rdata_num <= 1'b0;
Wdata_num <= 1'b0;
Address_num <= 1'b0;
Device_address <= 3'b0;
Word_adrr <= 16'b0;
end
else
if(analysis_done == 1'b1)
begin
Rdata_num <= buff_data[4][5:0];
Wdata_num <= buff_data[4][5:0];
Address_num <= buff_data[0][5:4];
Device_address <= buff_data[0][2:0];
Word_adrr <= {buff_data[2],buff_data[3]};
end
else
;
endmodule
串口读写EEPROM系统设计
编写系统文件
module UART_EEPROM(
Clk,
Rst_n,
Rx,
Tx,
Iic_clk,
Sda
);
input Clk;
input Rst_n;
input Rx;
output Tx;
output Iic_clk;
inout Sda;
parameter BPS_SET = 3'd4;
wire [7:0]rx_data;
wire Done_rx;
wire Wfifo_reg;
wire [7:0]wfifo_data;
wire [5:0]rdata_num;//连续读存储单元个数
wire [5:0]wdata_num;//连续写数据存储单元个数
wire [1:0]address_num;//单字节/双字节地址段选择
wire [2:0]device_address;//器件片选地址
wire [15:0]word_adrr;//存储单元地址
wire rd; //EEPROM读请求信号
wire [7:0]q_wfifo;
wire [7:0]q_rfifo;
wire [5:0]wfifo_usedw;
wire wr;
wire [7:0]rd_data;//读出的数据
wire wr_data_vaule;//写数据有效标志信号
wire rd_data_vaule;//读数据有效标志信号
wire done;
wire en_tx;
wire [6:0]rfifo_usedw;
wire rfifo_req;
wire done_tx;
uart_data_rx uart_data_rx( //串口接收模块
.Clk(Clk),
.Rst_n(Rst_n),
.Rs232_rx(Rx),
.Bps_set(BPS_SET),
.Data_out(rx_data),
.Rx_done(Done_rx)
);
DATA_ANALYSIS DATA_ANALYSIS(
.Clk(Clk),
.Rst_n(Rst_n),
.Rx_data(rx_data),
.Rx_done(Done_rx),
.Wfifo_reg(Wfifo_reg),
.Wfifo_data(wfifo_data),
.Rdata_num(rdata_num),
.Wdata_num(wdata_num),
.Address_num(address_num),
.Device_address(device_address),
.Word_adrr(word_adrr),
.Rd(rd) //EEPROM读请求信号
);
//写缓存FIFO
Wfifo Wfifo(
.clock(Clk),
.data(wfifo_data),
.rdreq(wr_data_vaule),
.wrreq(Wfifo_reg),
.empty(),
.full(),
.q(q_wfifo),
.usedw(wfifo_usedw)
);
assign wr = ((wdata_num == wfifo_usedw) && (wfifo_usedw != 1'b0));
//IIC
IIC IIC(
.Clk(Clk),
.Rst_n(Rst_n),
.Wr(wr),
.Read(rd),
.Wdata_num(wdata_num),
.Rdata_num(rdata_num),
.Address_num(address_num),
.Device_adress(device_address),
.Word_adrr(word_adrr),
.Wr_data(q_wfifo),
.Rd_data(rd_data),
.Wr_data_vaule(wr_data_vaule),
.Rd_data_vaule(rd_data_vaule),
.Done(done),
.Sda(Sda),
.Iic_clk(Iic_clk)
);
//读FIFO
Rfifo Rfifo(
.clock(Clk),
.data(rd_data),
.rdreq(rfifo_req),
.wrreq(rd_data_vaule),
.empty(),
.full(),
.q(q_rfifo),
.usedw(rfifo_usedw)
);
//串口发送使能
assign en_tx = ((rdata_num == rfifo_usedw) && done) || ((rdata_num > rfifo_usedw) && (rfifo_usedw > 1'b0)&& done_tx );
//读FIFO使能
assign rfifo_req = en_tx;
//tx模组
UART_TX UART_TX(
.Clk(Clk),
.Rst_n(Rst_n),
.Bps_set(BPS_SET),
.Con_en(en_tx),
.Data_in(q_rfifo),
.Rs232_tx(Tx),
.Done_tx(done_tx),
.Uart_state()
);
endmodule
编写系统仿真文件tb
`timescale 1ns/1ns
`define Clk_period 20
module UART_EEPROM_tb;
localparam DEV_ADDRESS = 3'b000; //器件地址
localparam BPS_SET = 3'd4; //波特率
localparam ADDRESS_NUM = 2'd2;
reg Clk;
reg Rst_n;
wire rx;
wire tx;
wire iic_clk;
wire sda;
reg con_en;
reg [7:0]data_in_tx;
wire done_tx;
reg [15:0]addr;
reg [7:0]data_num;
reg [39:0]wdata_cmd;
reg [39:0]rdata_cmd;
reg [7:0]tx_data;
//数据发送TX
UART_TX UART_TX(
.Clk(Clk),
.Rst_n(Rst_n),
.Bps_set(BPS_SET),
.Con_en(con_en),
.Data_in(tx_data),
.Rs232_tx(rx),
.Done_tx(done_tx),
.Uart_state()
);
UART_EEPROM #(.BPS_SET(BPS_SET))
UART_EEPROM(
.Clk(Clk),
.Rst_n(Rst_n),
.Rx(rx),
.Tx(tx),
.Iic_clk(iic_clk),
.Sda(sda)
);
//EEPROM模型例化
M24LC64 M24LC64(
.A0(1'b0),
.A1(1'b0),
.A2(1'b0),
.WP(1'b0),
.SDA(sda),
.SCL(iic_clk),
.RESET(!Rst_n)
);
initial Clk = 1;
always #(`Clk_period/2) Clk = ~Clk;
initial
begin
Rst_n = 0;
addr = 0;
data_num = 0;
wdata_cmd = 0;
rdata_cmd = 0;
con_en = 0;
data_in_tx = 0;
tx_data = 0;
#(`Clk_period*20 + 1);
Rst_n = 1;
#200;
addr= 0;
data_num = 4;
data_in_tx = 0;
send_write_bite;
@(posedge UART_EEPROM.IIC.Done);
#500;
send_read_bite;
@(posedge UART_EEPROM.IIC.Done);
#500;
addr= 0;
data_num = 8;
data_in_tx = 20;
send_write_bite;
@(posedge UART_EEPROM.IIC.Done);
#300;
send_read_bite;
@(posedge UART_EEPROM.IIC.Done);
repeat (data_num)
begin
@(posedge UART_EEPROM.done_tx);
end
#500;
$stop;
end
task send_write_bite;
begin
wdata_cmd = {{2'b00,ADDRESS_NUM,1'b0,DEV_ADDRESS},8'hf1,addr[15:8],addr[7:0],data_num};
//传入待写入的命令数据
repeat(5)
begin
tx_data = wdata_cmd[39:32];
con_en = 1;
#(`Clk_period)
con_en = 0;
@(posedge done_tx)
#100;
wdata_cmd = {wdata_cmd[31:0],8'h00};
end
//数据
tx_data = data_in_tx;
repeat(data_num)
begin
con_en = 1;
tx_data = tx_data + 1'b1;
#(`Clk_period)
con_en = 0;
@(posedge done_tx)
#200;
end
end
endtask
task send_read_bite;
begin
rdata_cmd = {{2'b00,ADDRESS_NUM,1'b0,DEV_ADDRESS},8'hf2,addr[15:8],addr[7:0],data_num};
repeat(5)
begin
tx_data = rdata_cmd[39:32];
con_en = 1;
#(`Clk_period)
con_en = 0;
@(posedge done_tx)
#100;
rdata_cmd = {rdata_cmd[31:0],8'h00};
end
end
endtask
endmodule
仿真波形
tx信号成功输出。
版权声明：本文为qq_43485409原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
