本文主要是在工工作中遇到的一些问题总结,PS:如有不正确的地方请指出来,谢谢!

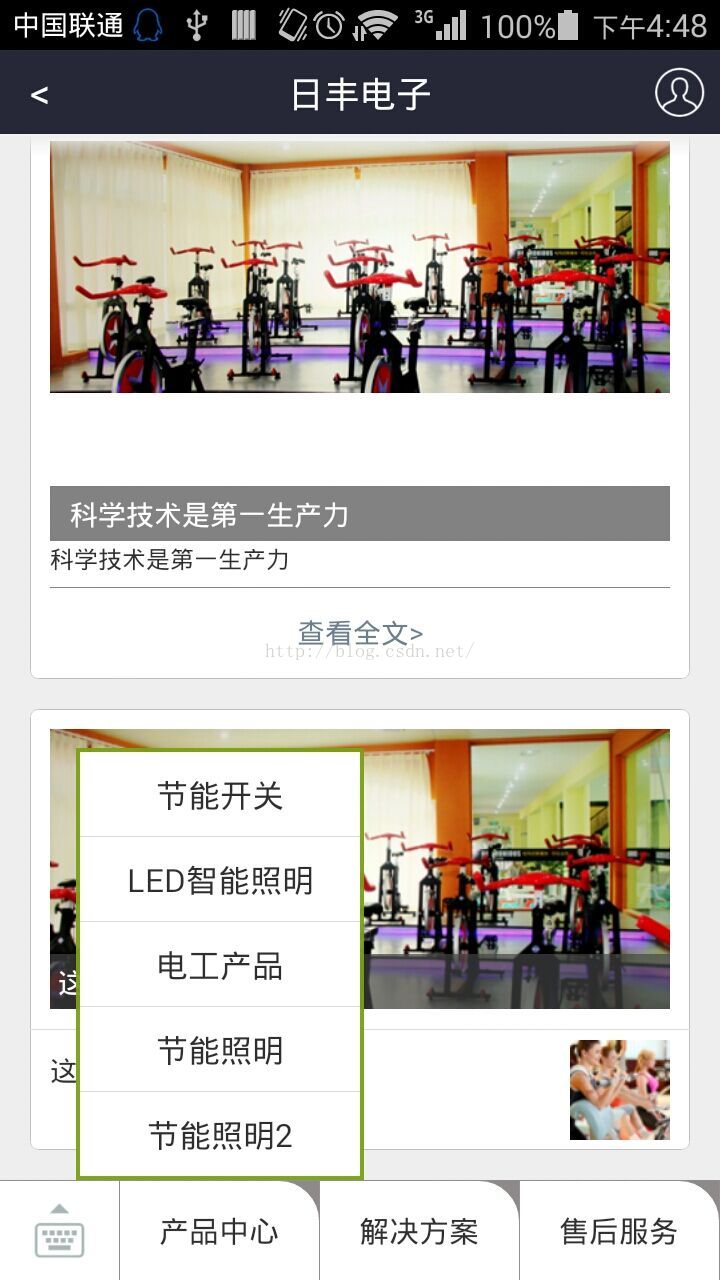

首先,需求就是做一个类似微信公众号一样的界面,我做出来的效果如下图所示,
下面的菜单按钮像微信公众号一样的popupwindow,因为菜单是从服务器上获取的,用过微信公众号的朋友也知道微信公众号这个菜单是可以编辑的,也就是说菜单数量是可变的,不确定的,所以这里只能用listView作为popupwindow的内容界面。
popwindow.xml内容
<?xml version=”1.0″ encoding=”utf-8″?>
<LinearLayout xmlns:android=”http://schemas.android.com/apk/res/android”
android:layout_width=”match_parent”
android:layout_height=”match_parent”
android:paddingBottom=”50dp”
android:orientation=”vertical” >
<ListView
android:id=”@+id/lvPopwindow_direct”
android:layout_width=”wrap_content”
android:layout_height=”wrap_content”
android:scrollbars=”@null”
android:padding=”2dp”
android:background=”@drawable/bg_pop_listview”
android:listSelector=”@drawable/selector_listview”
>
</ListView>
</LinearLayout>
里面其实就是一个listView,但注意我的linearLayout里面有一个paddingBottom属性,它的值就是你下面菜单的高度,listView的padding主要是做一个边框用的,没什么多大问题。
最后,我显示popwindow时的代码
protected void showPopWindow(final View v, List<String> data) {
WindowManager wm = (WindowManager) myContext.getSystemService(Context.WINDOW_SERVICE);
int width = wm.getDefaultDisplay().getWidth();
//
int srceenHeight = wm.getDefaultDisplay().getHeight();
if (popupWindow == null || lvPop == null ) {
LayoutInflater layoutInflater = (LayoutInflater) getSystemService(Context.LAYOUT_INFLATER_SERVICE);
View popView = layoutInflater.inflate(R.layout.direct_popupwindow, null);
lvPop = (ListView) popView.findViewById(R.id.lvPopwindow_direct);
popView.measure(MeasureSpec.UNSPECIFIED, MeasureSpec.UNSPECIFIED);
popupWindow = new PopupWindow(popView, 2*width/5, LayoutParams.WRAP_CONTENT);
}
//设置adapter
AdapterDirectPop adapterDirectPop = new AdapterDirectPop(myContext, data);
lvPop.setAdapter(adapterDirectPop);
popupWindow.setFocusable(true);
popupWindow.setOutsideTouchable(false);
// 这个是为了点击“返回Back”也能使其消失,并且并不会影响你的背景
popupWindow.setBackgroundDrawable(new BitmapDrawable());
//仿微信的popwindow 水平偏移根据popwindow的宽度改变 屏幕宽度的三分之一,水平偏移距离必须165以上才会显示距离
//
popupWindow.showAsDropDown(v,-210,1);
int[] location = new int[2];
v.getLocationOnScreen(location);
popupWindow.getContentView().measure(MeasureSpec.UNSPECIFIED, MeasureSpec.UNSPECIFIED);
int w = popupWindow.getContentView().getMeasuredWidth();
//根据屏幕宽度计算出比例值
srceenHeight*21/32
popupWindow.showAtLocation(v, Gravity.NO_GRAVITY, location[0] – w/4 , location[1]);
}
这里主要是因为是显示在点击的View的上方,而不是下方,所以只能用showAtLocation,不能用showAsDropDown这个方法,这样就解决了popupwindow中用listView作为数据显示的问题。该代码有一个BUG就是设置了paddingBottom之后,你显示了popupwindow后你再次点击同一个Views 是没用的,因为你点击的那个View被透明层覆盖了,不能再次获得焦点,所以也不能获得点击事件,必须点击其他地方popupwindow才会消失。PS:能解决这个问题的朋友请跟我说下,谢谢了!或者你有更好的办法来解决我这种情况的也可以联系我,一起探讨下。
demo下载地址:http://download.csdn.net/detail/ling9400/9548293
