Hadoop高可用搭建超详细

实验环境
- 安装步骤

实验环境

master：192.168.10.128
slave1：192.168.10.129
slave2：192.168.10.130
操作系统ubuntu-16.04.3
hadoop-2.7.1
zookeeper-3.4.8

安装步骤

1.安装jdk

tar -zvxf jdk-8u221-linux-x64.tar.gz

配置环境变量

vim etc/profile
#jdk
export JAVA_HOME=/opt/jdk1.8.0_221
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:$PATH
source etc/profile

下面附上我使用的jdk链接

链接：https://pan.baidu.com/s/1kClYS7PFMvlysLl1saDPSQ

提取码：r67l

2.修改hostname

分别将三台虚拟机的修改为master、slave1、slave2

vim  /etc/hostname

3.修改hosts映射，并配置ssh免密登录

修改hosts文件，每台主机都需进行以下操作

vim /etc/hosts

192.168.10.128 master
192.168.10.129 slave1
192.168.10.130 slave2

配置ssh免密

首先需要关闭防火墙

1、查看端口开启状态
sudo ufw status
2、开启某个端口，比如我开启的是8381
sudo ufw allow 8381
3、开启防火墙
sudo ufw enable
4、关闭防火墙
sudo ufw disable
 5、重启防火墙
 sudo ufw reload
 6、禁止外部某个端口比如80
 sudo ufw delete allow 80
 7、查看端口ip
 netstat -ltn

集群在启动的过程中需要ssh远程登录到别的主机上，为了避免每次输入对方主机的密码，我们需要配置免密码登录（提示操作均按回车）

ssh-keygen -t rsa

将每台主机的公匙复制给自己以及其他主机

ssh-copy-id -i ~/.ssh/id_rsa.pub root@master
ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave1
ssh-copy-id -i ~/.ssh/id_rsa.pub root@slave2

4.设置时间同步

安装ntpdate服务

apt-get install ntp

修改ntp配置文件

vim /etc/ntp.conf

# /etc/ntp.conf, configuration for ntpd; see ntp.conf(5) for help

driftfile /var/lib/ntp/ntp.drift

# Enable this if you want statistics to be logged.
#statsdir /var/log/ntpstats/

statistics loopstats peerstats clockstats
filegen loopstats file loopstats type day enable
filegen peerstats file peerstats type day enable
filegen clockstats file clockstats type day enable

# Specify one or more NTP servers.

# Use servers from the NTP Pool Project. Approved by Ubuntu Technical Board
# on 2011-02-08 (LP: #104525). See http://www.pool.ntp.org/join.html for
# more information.
#pool 0.ubuntu.pool.ntp.org iburst
#pool 1.ubuntu.pool.ntp.org iburst
#pool 2.ubuntu.pool.ntp.org iburst
#pool 3.ubuntu.pool.ntp.org iburst

# Use Ubuntu's ntp server as a fallback.
#pool ntp.ubuntu.com

# Access control configuration; see /usr/share/doc/ntp-doc/html/accopt.html for
# details.  The web page <http://support.ntp.org/bin/view/Support/AccessRestrictions>
# might also be helpful.
#
# Note that "restrict" applies to both servers and clients, so a configuration
# that might be intended to block requests from certain clients could also end
# up blocking replies from your own upstream servers.

# By default, exchange time with everybody, but don't allow configuration.
restrict -4 default kod notrap nomodify nopeer noquery limited
restrict -6 default kod notrap nomodify nopeer noquery limited

# Local users may interrogate the ntp server more closely.
restrict 127.0.0.1
restrict ::1

# Needed for adding pool entries
restrict source notrap nomodify noquery


# Clients from this (example!) subnet have unlimited access, but only if
# cryptographically authenticated.
# 允许局域网内设备与这台服务器进行同步时间.但是拒绝让他们修改服务器上的时间
#restrict 192.168.10.131 mask 255.255.255.0 nomodify notrust
#statsdir /var/log/ntpstats/

statistics loopstats peerstats clockstats
filegen loopstats file loopstats type day enable
filegen peerstats file peerstats type day enable
filegen clockstats file clockstats type day enable

# Specify one or more NTP servers.

# Use servers from the NTP Pool Project. Approved by Ubuntu Technical Board
# on 2011-02-08 (LP: #104525). See http://www.pool.ntp.org/join.html for
# more information.
#pool 0.ubuntu.pool.ntp.org iburst
#pool 1.ubuntu.pool.ntp.org iburst
#pool 2.ubuntu.pool.ntp.org iburst
#pool 3.ubuntu.pool.ntp.org iburst

# Use Ubuntu's ntp server as a fallback.
#pool ntp.ubuntu.com

# Access control configuration; see /usr/share/doc/ntp-doc/html/accopt.html for
# details.  The web page <http://support.ntp.org/bin/view/Support/AccessRestrictions>
# might also be helpful.
#
# Note that "restrict" applies to both servers and clients, so a configuration
# that might be intended to block requests from certain clients could also end
# up blocking replies from your own upstream servers.

# By default, exchange time with everybody, but don't allow configuration.
restrict -4 default kod notrap nomodify nopeer noquery limited
restrict -6 default kod notrap nomodify nopeer noquery limited

# Local users may interrogate the ntp server more closely.
restrict 127.0.0.1
restrict ::1

# Needed for adding pool entries
restrict source notrap nomodify noquery


# Clients from this (example!) subnet have unlimited access, but only if
# cryptographically authenticated.
# 允许局域网内设备与这台服务器进行同步时间.但是拒绝让他们修改服务器上的时间
#restrict 192.168.10.128 mask 255.255.255.0 nomodify notrust
restrict 192.168.10.129 mask 255.255.255.0 nomodify notrust
restrict 192.168.10.130 mask 255.255.255.0 nomodify notrust

# 允许上层时间服务器修改本机时间
#restrict times.aliyun.com nomodify
#restrict ntp.aliyun.com  nomodify
#restrict cn.pool.ntp.org nomodify

# 定义要同步的时间服务器
server 192.168.10.128 perfer
#server times.aliyun.com iburst prefer    # prefer表示为优先，表示本机优先同步该服务器时间
#server ntp.aliyun.com iburst
#server cn.pool.ntp.org iburst

#logfile /var/log/ntpstats/ntpd.log    # 定义ntp日志目录
#pidfile  /var/run/ntp.pid    # 定义pid路径

# If you want to provide time to your local subnet, change the next line.
# (Again, the address is an example only.)
#broadcast 192.168.123.255

# If you want to listen to time broadcasts on your local subnet, de-comment the
# next lines.  Please do this only if you trust everybody on the network!
#disable auth
#broadcastclient

#Changes recquired to use pps synchonisation as explained in documentation:
#http://www.ntp.org/ntpfaq/NTP-s-config-adv.htm#AEN3918

#server 127.127.8.1 mode 135 prefer    # Meinberg GPS167 with PPS
#fudge 127.127.8.1 time1 0.0042        # relative to PPS for my hardware

#server 127.127.22.1                   # ATOM(PPS)
#fudge 127.127.22.1 flag3 1            # enable PPS API
server 127.127.1.0
fudge 127.127.1.0 stratum 10

启动ntpd服务，并查看ntp同步状态

service ntpd start　　#启动ntp服务
ntpq -p　　　　　　  #观察时间同步状况
ntpstat　　　　　　   #查看时间同步结果

重启服务，与master主机时间同步

/etc/init.d/ntp restart
ntpdate 192.168.10.128

5.安装hadoop至/opt/data目录下

cd /opt
mkdir Data

下载并解压hadoop至/opt/data目录

wget https://archive.apache.org/dist/hadoop/common/hadoop-2.7.1/
tar -zvxf hadoop-2.7.1.tar /opt/Data

配置环境变量

# HADOOP
export HADOOP_HOME=/opt/Data/hadoop-2.7.1
export HADOOP_CONF_DIR=${HADOOP_HOME}/etc/hadoop
export PATH=${HADOOP_HOME}/bin:${HADOOP_HOME}/sbin:$PATH
export HADOOP_YARN_HOME=$HADOOP_HOME

6.修改hadoop配置文件

文件目录hadoop-2.7.1/etc/hadoop

修改hadoop-env.sh

export JAVA_HOME=/opt/jdk1.8.0_221

修改core-site.xml

<configuration>
<!-- 指定hdfs的nameservice为ns1 -->
    <property>
        <name>fs.defaultFS</name>
        <value>hdfs://ns1/</value>
    </property>

<!-- 指定hadoop临时目录 -->
    <property>
        <name>hadoop.tmp.dir</name>
        <value>/opt/Data/hadoop-2.7.1/tmp</value>
    </property>

<!-- 指定zookeeper地址 -->
    <property>
        <name>ha.zookeeper.quorum</name>
        <value>slave1:2181,slave2:2181</value>
    </property>

<!--修改core-site.xml中的ipc参数,防止出现连接journalnode服务ConnectException-->
    <property>
        <name>ipc.client.connect.max.retries</name>
        <value>100</value>
    <description>Indicates the number of retries a client will make to establish a server connection.</description>
    </property>
</configuration>

修改hdfs-site.xml

<configuration>
<!--指定hdfs的nameservice为ns1，需要和core-site.xml中的保持一致 -->
   <property>
      <name>dfs.nameservices</name>
      <value>ns1</value>
   </property>

<!-- ns1下面有两个NameNode，分别是nn1，nn2 -->
   <property>
      <name>dfs.ha.namenodes.ns1</name>
      <value>nn1,nn2</value>
   </property>

<!-- nn1的RPC通信地址 -->
   <property>
      <name>dfs.namenode.rpc-address.ns1.nn1</name>
      <value>master:9820</value>
   </property>

<!-- nn1的http通信地址 -->
   <property>
      <name>dfs.namenode.http-address.ns1.nn1</name>
      <value>master:9870</value>
   </property>

<!-- nn2的RPC通信地址 -->
   <property>
      <name>dfs.namenode.rpc-address.ns1.nn2</name>
      <value>slave1:9820</value>
   </property>

<!-- nn2的http通信地址 -->
   <property>
      <name>dfs.namenode.http-address.ns1.nn2</name>
      <value>slave1:9870</value>
   </property>

<!-- 指定NameNode的日志在JournalNode上的存放位置 -->
   <property>
      <name>dfs.namenode.shared.edits.dir</name>
<value>qjournal://master:8485;slave1:8485;slave2:8485/ns1</value>
   </property>

<!-- 指定JournalNode在本地磁盘存放数据的位置 -->
   <property>
      <name>dfs.journalnode.edits.dir</name>
      <value>/opt/Data/hadoop-2.7.1/journal</value>
   </property>

<!-- 开启NameNode失败自动切换 -->
   <property>
      <name>dfs.ha.automatic-failover.enabled</name>
      <value>true</value>
   </property>

<!-- 配置失败自动切换实现方式 -->
   <property>
      <name>dfs.client.failover.proxy.provider.ns1</name>
<value>org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider</value>
   </property>

<!-- 配置隔离机制方法，多个机制用换行分割，即每个机制暂用一行-->
   <property>
      <name>dfs.ha.fencing.methods</name>
      <value>
      sshfence
      shell(/bin/true)
     </value>
   </property>

<!-- 使用sshfence隔离机制时需要ssh免登陆 -->
   <property>
      <name>dfs.ha.fencing.ssh.private-key-files</name>
      <value>/root/.ssh/id_rsa</value>
   </property>

<!-- 配置sshfence隔离机制超时时间 -->
   <property>
      <name>dfs.ha.fencing.ssh.connect-timeout</name>
      <value>30000</value>
   </property>

   <!--配置namenode存放元数据的目录，可以不配置，如果不配置则默认放到hadoop.tmp.dir下-->
   <property>
      <name>dfs.namenode.name.dir</name>
      <value>/opt/Data/hadoop-2.7.1/data/name</value>
   </property>

   <!--配置datanode存放元数据的目录，可以不配置，如果不配置则默认放到hadoop.tmp.dir下-->
   <property>
      <name>dfs.datanode.data.dir</name>
      <value>/opt/Data/hadoop-2.7.1/data/data</value>
   </property>

    <!--配置复本数量-->
   <property>
      <name>dfs.replication</name>
      <value>2</value>
   </property>

   <!--设置用户的操作权限，false表示关闭权限验证，任何用户都可以操作-->
   <property>
      <name>dfs.webhdfs.enabled</name>
      <value>true</value>
   </property>

</configuration>

修改mapred-site.xml

将文件名修改为mapred-site.xml
cp mapred-queues.xml.template mapred-site.xml


<configuration>
    <property>
       <name>mapreduce.framework.name</name>
       <value>yarn</value>
    </property>

</configuration>

修改yarn-site.xml

<configuration>
<!-- 指定nodemanager启动时加载server的方式为shuffle server -->
<property>
<name>yarn.nodemanager.aux-services</name>
<value>mapreduce_shuffle</value>
</property>

<!--配置yarn的高可用-->
<property>
<name>yarn.resourcemanager.ha.enabled</name>
<value>true</value>
</property>

<!--执行yarn集群的别名-->
<property>
<name>yarn.resourcemanager.cluster-id</name>
<value>cluster1</value>
</property>

<!--指定两个resourcemaneger的名称-->
<property>
<name>yarn.resourcemanager.ha.rm-ids</name>
<value>rm1,rm2</value>
</property>

<!--配置rm1的主机-->
<property>
<name>yarn.resourcemanager.hostname.rm1</name>
<value>master</value>
</property>

<!--配置rm2的主机-->
<property>
<name>yarn.resourcemanager.hostname.rm2</name>
<value>slave1</value>
</property>

<!--配置2个resourcemanager节点-->
<property>
<name>yarn.resourcemanager.zk-address</name>
<value>slave1:2181,slave2:2181</value>
</property>

<!--zookeeper集群地址-->
<property>
<name>yarn.nodemanager.vmem-check-enabled</name>
<value>false</value>
<description>Whether virtual memory limits will be enforced for containers</description>
</property>

<!--物理内存8G-->
<property>
<name>yarn.nodemanager.vmem-pmem-ratio</name>
<value>8</value>
<description>Ratio between virtual memory to physical memory when setting memory limits for containers</description>
</property>
</configuration>

修改slave

master
slave1
slave2

7.zookeeper集群安装配置

下载并解压zookeeper-3.4.8.tar.gz

wget https://archive.apache.org/dist/zookeeper/zookeeper-3.4.8/zookeeper-3.4.8.tar.gz
tar -zvxf zookeeper-3.4.8.tar.gz /opt/Data

修改配置文件

#zookeeper
export ZOOKEEPER_HOME=/opt/Data/zookeeper-3.4.8
export PATH=$PATH:$JAVA_HOME/bin:$ZOOKEEPER_HOME/bin

进入conf目录，复制zoo-sample.cfg为zoo.cfg

cp zoo-sample.cfg zoo.cfg

修改zoo.cfg

dataDir=/opt/Data/zookeeper-3.4.8/tmp  //需要在zookeeper-3.4.8目录下新建tmp目录

server.1=master:2888:3888
server.2=slave1:2888:3888
server.3=slave2:2888:3888

vim myid

1     //其他主机需要修改该编号  2,3

启动zookeeper(三台主机均执行)

zkServer.sh start

8.启动集群

格式化master主机namenode。/etc/hadoop目录下输入该命令

hadoop namenode -format

scp -r /opt/Data root@slave1:/opt
scp -r /opt/Data root@slave2:/opt

启动zookeeper,所有节点均执行

hadoop-daemon.sh start zkfc

格式化zookeeper,所有节点均执行

hdfs zkfc -formatZK

启动journalnode，namenode备用节点相同（hadoop-2.7.1目录下执行）

hadoop-daemon.sh start journalnode

启动集群

start-all.sh

查看端口

netstat -ntlup  #可以查看服务端占用的端口

查看进程jps

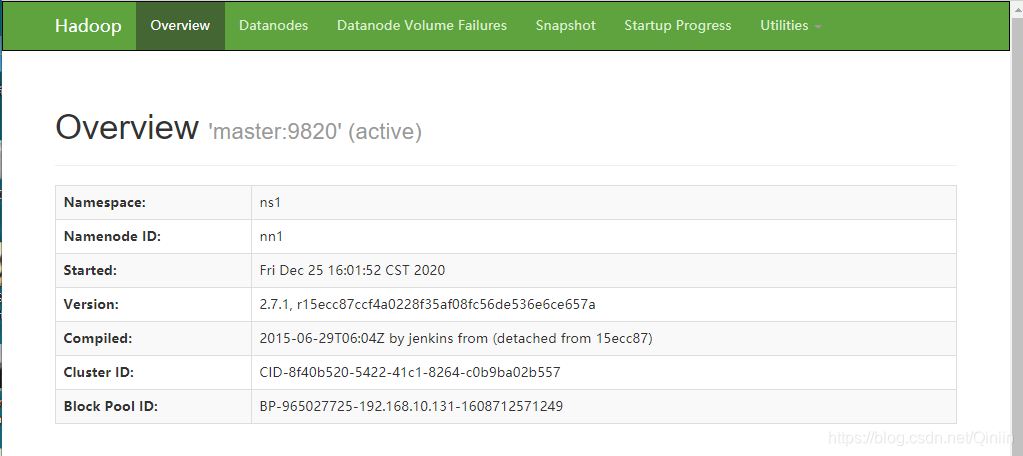

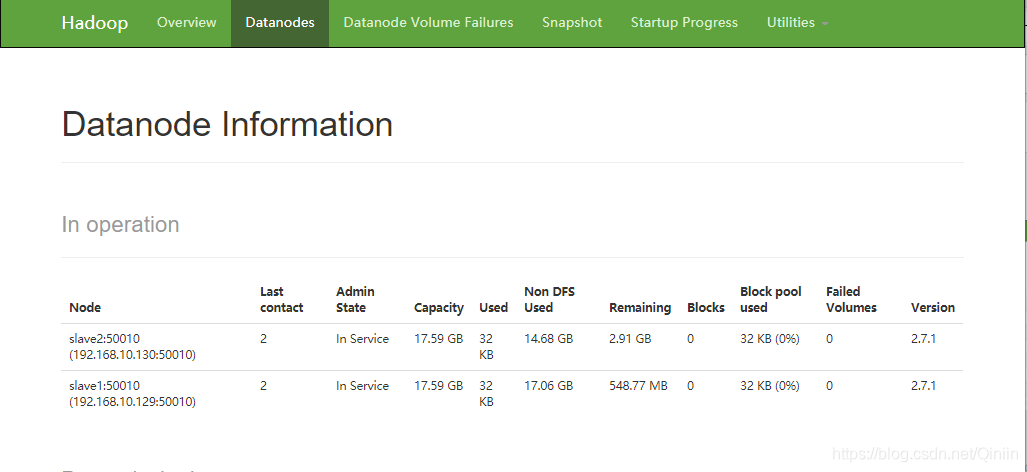

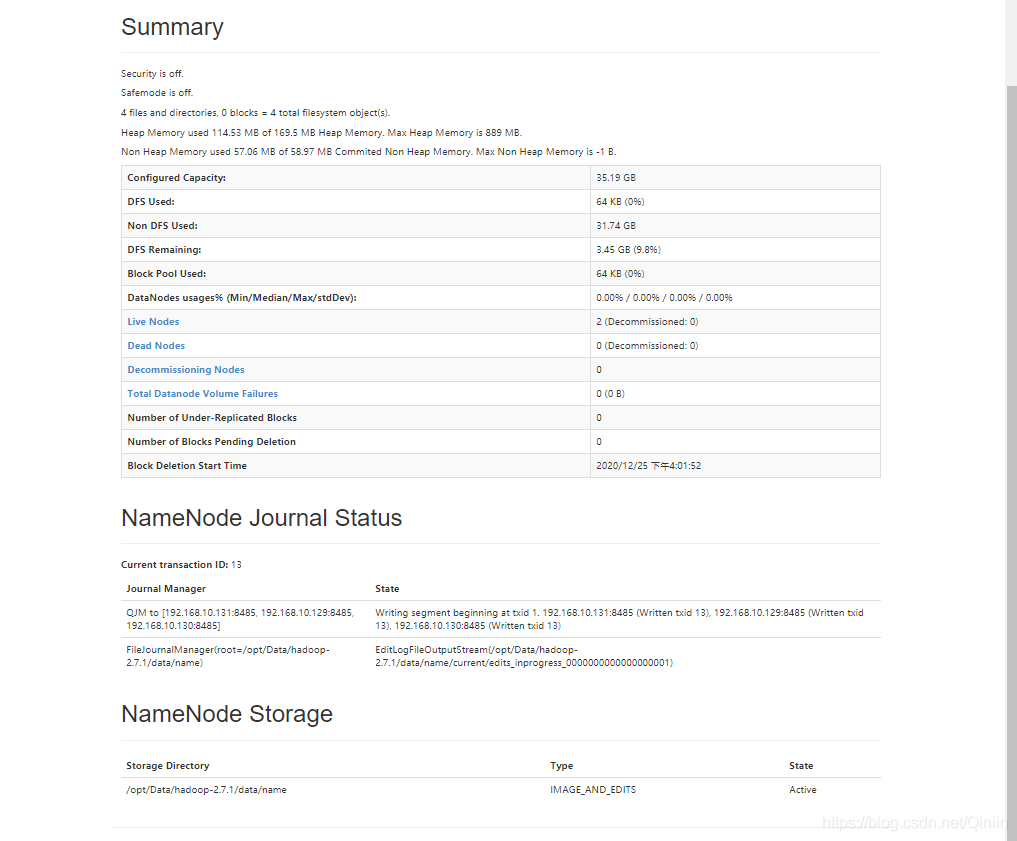

Web查看集群情况

（namenode节点ip地址：9870）

在这里插入图片描述

原文链接：https://blog.csdn.net/Qiniin/article/details/112273742
