SpringBoot2.x 集成 lettuce与Redis的sentinel哨兵模式开发配置

基于已搭建好的哨兵模式的redis，创建一个springBoot使用lettuce连接Redis的测试项目。

使用idea创建springBoot项目

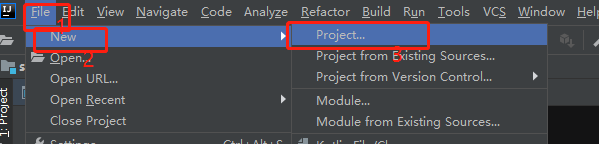

1. 在菜单File–new –project 打开新建项目框

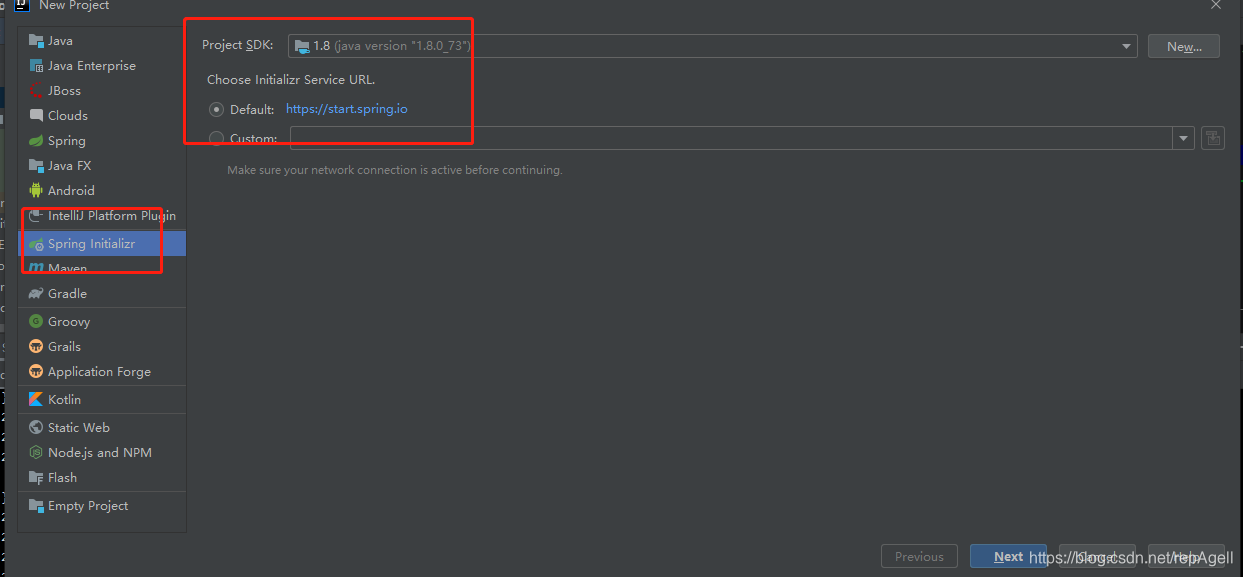

2. 打开新建项目框，选择项如图，点击next后，设置包名及项目名

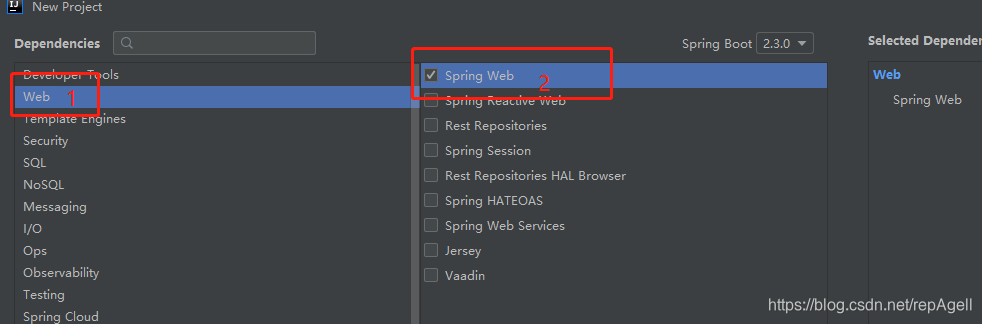

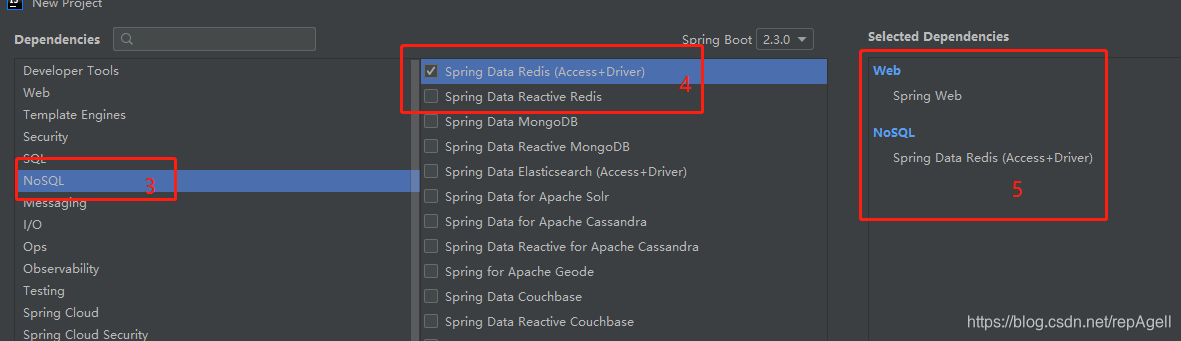

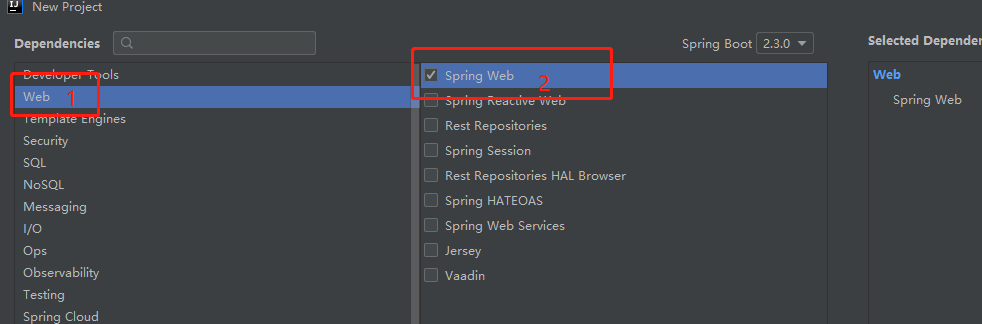

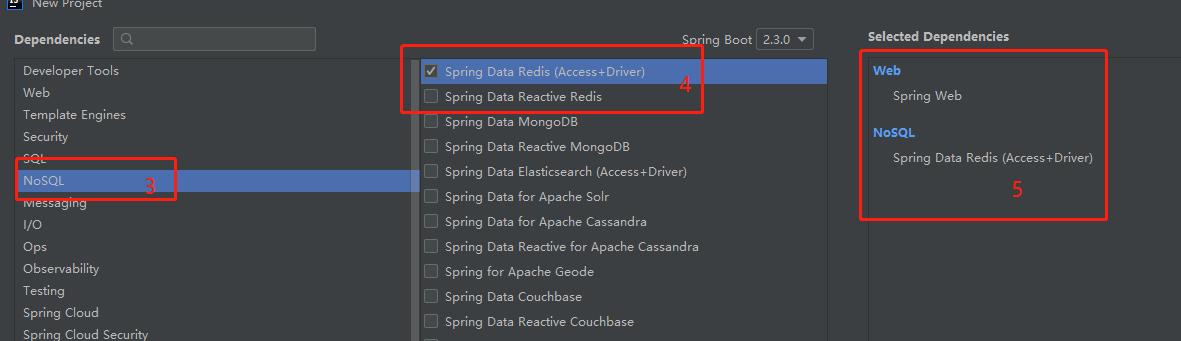

3. 在新建项目中选择web及redis组件
4. ，一路next直到finish即可

pom.xml文件中的配置：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.7.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.demo</groupId>
    <artifactId>spring-boot-demo</artifactId>
    <version>0.0.1</version>
    <name>spring-boot-demo</name>
    <description>springboot相关的服务</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

将src/main/resources/application.properties改为application.yml,具体内容如下：

server:
  port: 10089
spring:
  redis:
    database: 11
    sentinel:
      master: mymaster
      nodes:
        - 10.10.55.51:26379
        - 10.10.55.51:26380
        - 10.10.55.51:26381
    lettuce:
      pool:
        max-active: 1000
        max-idle: 10
        min-idle: 5
        max-wait: -1

RedisConfig 的源码

package com.demo.springbootdemo.config;

import org.apache.commons.pool2.impl.GenericObjectPoolConfig;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.data.redis.RedisProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisNode;
import org.springframework.data.redis.connection.RedisSentinelConfiguration;
import org.springframework.data.redis.connection.lettuce.LettuceClientConfiguration;
import org.springframework.data.redis.connection.lettuce.LettuceConnectionFactory;
import org.springframework.data.redis.connection.lettuce.LettucePoolingClientConfiguration;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.GenericJackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

import java.util.ArrayList;
import java.util.List;

/**
 * @program: spring-boot-demo
 * @description: redis配置
 * @date: 2020/6/72:22
 **/
@Configuration
public class RedisConfig {

    @Autowired
    RedisProperties redisProperties;

    //读取pool配置
    @Bean
    public GenericObjectPoolConfig poolConfig() {
        GenericObjectPoolConfig config = new GenericObjectPoolConfig();
        config.setMinIdle(redisProperties.getLettuce().getPool().getMinIdle());
        config.setMaxIdle(redisProperties.getLettuce().getPool().getMaxIdle());
        config.setMaxTotal(redisProperties.getLettuce().getPool().getMaxActive());
        config.setMaxWaitMillis(redisProperties.getLettuce().getPool().getMaxWait().toMillis());
        return config;
    }
    /**
    * @Description:  将哨兵信息放到配置中
    * @date 2020/6/7 14:42
    */
    @Bean
    public RedisSentinelConfiguration configuration() {
        RedisSentinelConfiguration redisConfig = new RedisSentinelConfiguration();
        redisConfig.setMaster(redisProperties.getSentinel().getMaster());
//        redisConfig.setPassword(RedisPassword.of(redisConfigThree.getPassword()));
        if(redisProperties.getSentinel().getNodes()!=null) {
            List<RedisNode> sentinelNode=new ArrayList<RedisNode>();
            for(String sen : redisProperties.getSentinel().getNodes()) {
                String[] arr = sen.split(":");
                sentinelNode.add(new RedisNode(arr[0],Integer.parseInt(arr[1])));
            }
            redisConfig.setSentinels(sentinelNode);
        }
        return redisConfig;
    }
    @Bean("lettuceConnectionFactory")
    public LettuceConnectionFactory lettuceConnectionFactory(@Qualifier("poolConfig") GenericObjectPoolConfig config,
                                             @Qualifier("configuration") RedisSentinelConfiguration redisConfig) {//注意传入的对象名和类型RedisSentinelConfiguration
        LettuceClientConfiguration clientConfiguration = LettucePoolingClientConfiguration.builder().poolConfig(config).build();
        return new LettuceConnectionFactory(redisConfig, clientConfiguration);
    }

    @Bean("stringObjectRedisTemplate")
    public RedisTemplate<String, Object> stringObjectRedisTemplate(@Qualifier("lettuceConnectionFactory")LettuceConnectionFactory connectionFactory) {
        RedisTemplate<String, Object> redisTemplate = new RedisTemplate<>();
        redisTemplate.setConnectionFactory(connectionFactory);

        StringRedisSerializer stringRedisSerializer = new StringRedisSerializer();
        GenericJackson2JsonRedisSerializer genericJackson2JsonRedisSerializer = new GenericJackson2JsonRedisSerializer();

        //设置序列化器
        redisTemplate.setKeySerializer(stringRedisSerializer);
        redisTemplate.setValueSerializer(genericJackson2JsonRedisSerializer);
        redisTemplate.setHashKeySerializer(stringRedisSerializer);
        redisTemplate.setHashValueSerializer(genericJackson2JsonRedisSerializer);
        redisTemplate.afterPropertiesSet();

        return redisTemplate;
    }
}

使用controller测一笔调用

package com.demo.springbootdemo.controller;

import org.apache.logging.log4j.LogManager;
import org.apache.logging.log4j.Logger;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;

/**
 * @program: spring-boot-demo
 * @description: redis操作
 * @date: 2020/6/513:13
 **/
@RestController
public class RedisController {

    private Logger log = LogManager.getLogger(RedisController.class);
    @Autowired
    RedisTemplate<String,String> redisTemplate;

    @PostMapping("/redis/write")
    public String writeRedis(@RequestBody String name){
        log.info("redis写入操作，入参[{}]",name);
        redisTemplate.opsForValue().set("name",name);
        return redisTemplate.opsForValue().get("name");
    }

}

注意：yml中的配置，因为使用的是哨兵模式，所以配置需要使用 spring.redis.sentinel 属性，一定别写错了，否则连接不上
