【Python】 利用现成的QT Designer 的ui界面快速转换成py脚本

  • Post author:
  • Post category:python


Python 提供了很多个UI制作的库，例如Tkinter、wxPython、PyGTK、PySide、PyQt等等。那小Y君今天主要介绍的就是利用QTDesigner已有设计的界面快速生成py文件。由于小Y君是一个很懒的人，所以就选择了这个懒人制作UI界面的方式。使用的Python库就是PyQt5。那小Y君就不啰嗦其他的了，直奔主题(->. <-)


小Y君使用的环境

：

Ubuntu 18.04.1 LTS

QT Designer 4.8.7

Pycharm Community 2018.2

(Python 3.6  PyQt5)

注：如不知道怎么安装PyQt5或者其他需要使用的环境，请回复留言即可。


Qt Designer 界面

Qt Designer是直接用来做QT程序界面的，使用起来也比较简单，易上手，使用方式就是拖拽需要材料至主界面上即可。

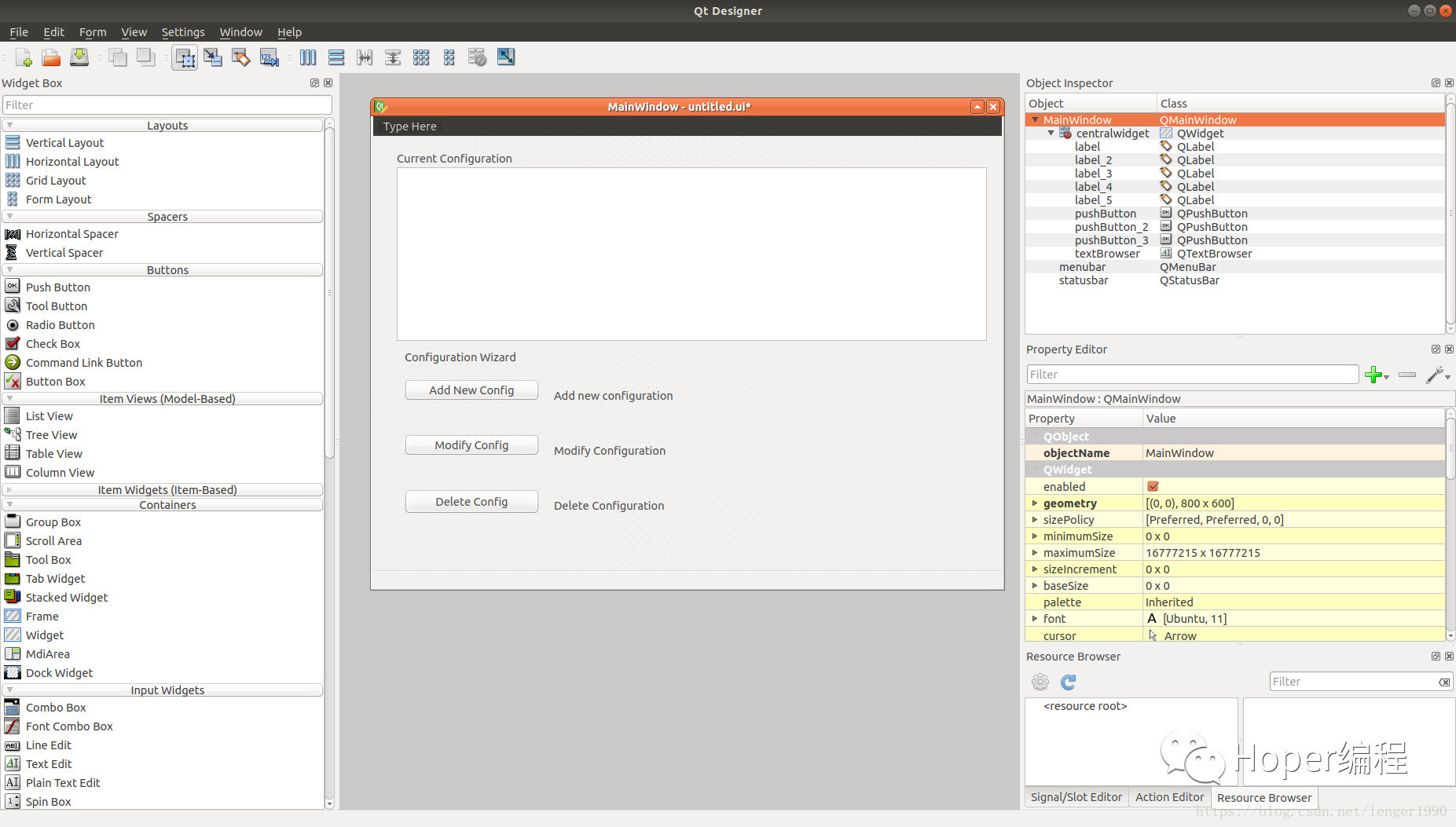

下图是小编简单制作的一个界面

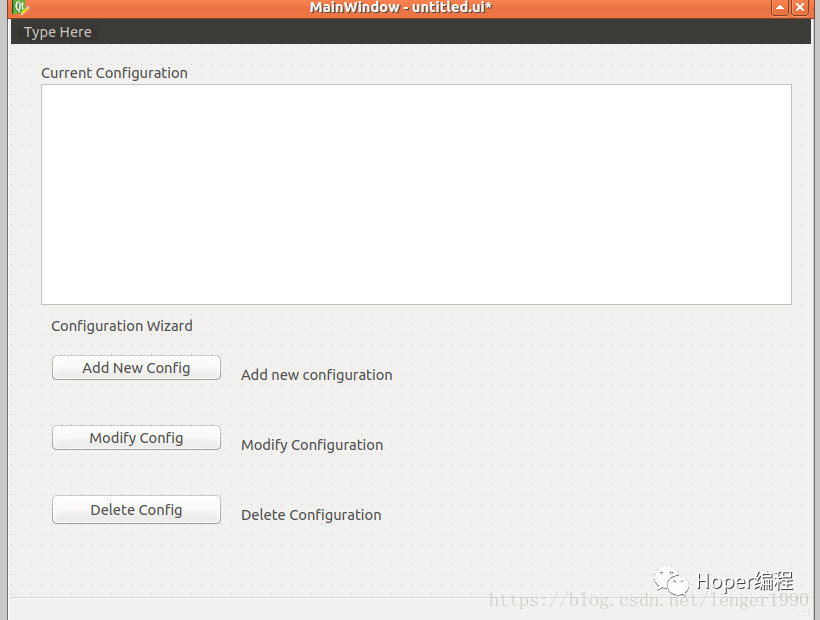

这个界面很简单了，一个显示当前配置的文字窗口，加上三个按钮，增加，修改，和删除配置项的按钮，点击Add按钮跳转到增加配合项页面，进行设定。

设计好界面呢，下一步就是保存该ui文件


将Qt Designer 所生成的ui文件转换成Python脚本

转换的指令非常简单

pyuic5 -o mainpage.py /home/ubuntu1710/py_GUI/mainpage.ui

-o 后的参数为输出文件的名称

-o 后第二个参数即为生成的ui文件的名称


生成的code 如下所示


# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file '/home/ubuntu1710/py_GUI/untitled.ui'
#
# Created by: PyQt5 UI code generator 5.10.1
#
# WARNING! All changes made in this file will be lost!

from PyQt5 import QtCore, QtGui, QtWidgets

class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(800, 600)
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setMouseTracking(False)
        self.centralwidget.setObjectName("centralwidget")
        self.textBrowser = QtWidgets.QTextBrowser(self.centralwidget)
        self.textBrowser.setGeometry(QtCore.QRect(30, 40, 751, 221))
        self.textBrowser.setObjectName("textBrowser")
        self.label = QtWidgets.QLabel(self.centralwidget)
        self.label.setGeometry(QtCore.QRect(30, 20, 191, 17))
        self.label.setObjectName("label")
        self.label_2 = QtWidgets.QLabel(self.centralwidget)
        self.label_2.setGeometry(QtCore.QRect(40, 306, 171, 31))
        self.label_2.setObjectName("label_2")
        self.pushButton = QtWidgets.QPushButton(self.centralwidget)
        self.pushButton.setGeometry(QtCore.QRect(40, 350, 171, 27))
        self.pushButton.setCursor(QtGui.QCursor(QtCore.Qt.PointingHandCursor))
        self.pushButton.setObjectName("pushButton")
        self.pushButton_2 = QtWidgets.QPushButton(self.centralwidget)
        self.pushButton_2.setGeometry(QtCore.QRect(40, 420, 171, 27))
        self.pushButton_2.setCursor(QtGui.QCursor(QtCore.Qt.PointingHandCursor))
        self.pushButton_2.setObjectName("pushButton_2")
        self.pushButton_3 = QtWidgets.QPushButton(self.centralwidget)
        self.pushButton_3.setGeometry(QtCore.QRect(40, 490, 171, 31))
        self.pushButton_3.setCursor(QtGui.QCursor(QtCore.Qt.PointingHandCursor))
        self.pushButton_3.setObjectName("pushButton_3")
        self.label_3 = QtWidgets.QLabel(self.centralwidget)
        self.label_3.setGeometry(QtCore.QRect(230, 350, 531, 41))
        self.label_3.setObjectName("label_3")
        self.label_4 = QtWidgets.QLabel(self.centralwidget)
        self.label_4.setGeometry(QtCore.QRect(230, 420, 531, 41))
        self.label_4.setObjectName("label_4")
        self.label_5 = QtWidgets.QLabel(self.centralwidget)
        self.label_5.setGeometry(QtCore.QRect(230, 490, 531, 41))
        self.label_5.setObjectName("label_5")
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 800, 25))
        self.menubar.setObjectName("menubar")
        MainWindow.setMenuBar(self.menubar)
        self.statusbar = QtWidgets.QStatusBar(MainWindow)
        self.statusbar.setObjectName("statusbar")
        MainWindow.setStatusBar(self.statusbar)

        self.retranslateUi(MainWindow)
        QtCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
        self.label.setText(_translate("MainWindow", "Current Configuration"))
        self.label_2.setText(_translate("MainWindow", "Configuration Wizard"))
        self.pushButton.setText(_translate("MainWindow", "Add New Config"))
        self.pushButton_2.setText(_translate("MainWindow", "Modify Config"))
        self.pushButton_3.setText(_translate("MainWindow", "Delete Config"))
        self.label_3.setText(_translate("MainWindow", "Add new configuration"))
        self.label_4.setText(_translate("MainWindow", "Modify Configuration"))
        self.label_5.setText(_translate("MainWindow", "Delete Configuration"))


使用pycharm创建工程，新建一个main.py文件

创建main.py 文件，调用代码如下

# -*- coding: utf-8 -*-

import sys

from PyQt5.QtWidgets import QApplication , QMainWindow

from page import *


if __name__ == '__main__':

    app = QApplication(sys.argv)
    mainWindow = QMainWindow()
    ui = Ui_MainWindow()
    ui.setupUi(mainWindow)
    mainWindow.show()
    sys.exit(app.exec_())

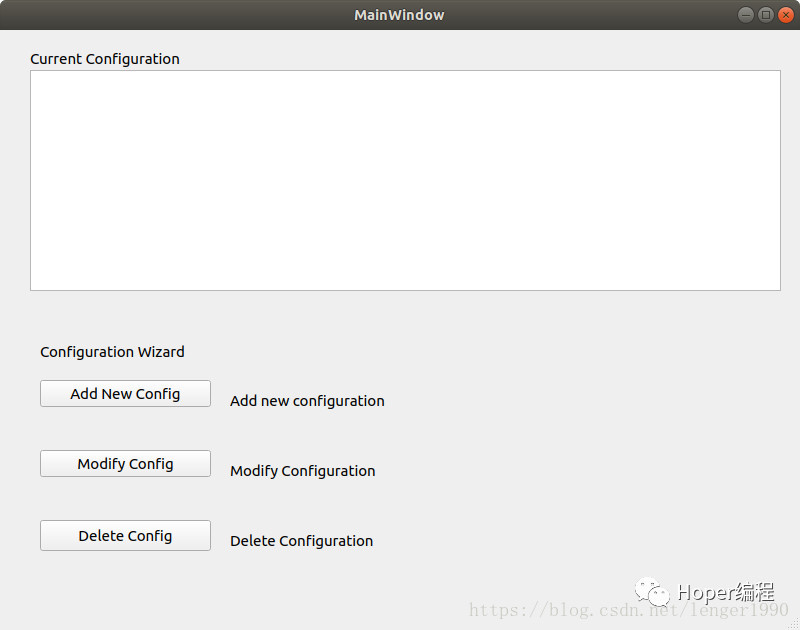

执行起来，跟QT Designer 是一模一样的


点击Add config 按钮，弹出设置页面

重复使用Qt Designer制作Ui界面，在使用pyuic5生成py脚本

在刚才的主界面code中增加代码

将制作的add 页面生成的code addPage.py 加入mainpage.py中

import addPage

mainpage.py-> setupUi中增加红色字体Highlight部分

class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(800, 600)
        self.mainwindows = MainWindow

mainpage.py-> retranslateUi中增加红色字体Highlight部分

def retranslateUi(self, MainWindow):
    _translate = QtCore.QCoreApplication.translate
    MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
    self.label.setText(_translate("MainWindow", "Current Configuration"))
    self.label_2.setText(_translate("MainWindow", "Configuration Wizard"))
    self.pushButton.setText(_translate("MainWindow", "Add New Config"))
    self.pushButton_2.setText(_translate("MainWindow", "Modify Config"))
    self.pushButton_3.setText(_translate("MainWindow", "Delete Config"))
    self.label_3.setText(_translate("MainWindow", "Add new configuration"))
    self.label_4.setText(_translate("MainWindow", "Modify Configuration"))
    self.label_5.setText(_translate("MainWindow", "Delete Configuration"))
    self.pushButton.clicked.connect(self.addClicked)

mainpage.py-> class Ui_MainWindow中addClicked

def addClicked(self):
    self.mainwindows.hide()
    page_add = QtWidgets.QDialog()
    ui_add = addPage.AddDlg()
    ui_add.setupUi(page_add)
    page_add.show()
    page_add.exec_()
    self.mainwindows.show()

再次运行Python脚本main.py

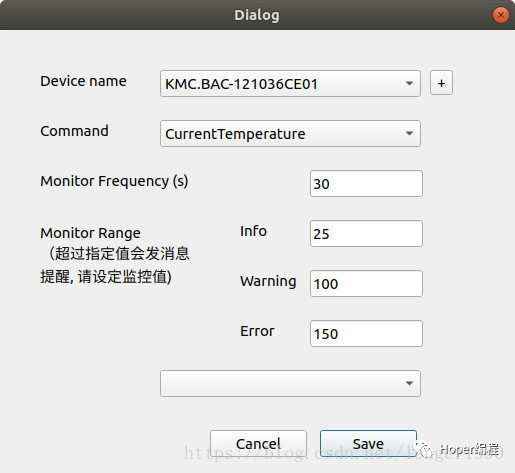

点击Add new config Button，将弹出如下图

mainpage.py完整代码

# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file '/home/ubuntu1710/py_GUI/untitled.ui'
#
# Created by: PyQt5 UI code generator 5.10.1
#
# WARNING! All changes made in this file will be lost!

from PyQt5 import QtCore, QtGui, QtWidgets
import addPage


class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(800, 600)
        self.mainwindows = MainWindow
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setMouseTracking(False)
        self.centralwidget.setObjectName("centralwidget")
        self.textBrowser = QtWidgets.QTextBrowser(self.centralwidget)
        self.textBrowser.setGeometry(QtCore.QRect(30, 40, 751, 221))
        self.textBrowser.setObjectName("textBrowser")
        self.label = QtWidgets.QLabel(self.centralwidget)
        self.label.setGeometry(QtCore.QRect(30, 20, 191, 17))
        self.label.setObjectName("label")
        self.label_2 = QtWidgets.QLabel(self.centralwidget)
        self.label_2.setGeometry(QtCore.QRect(40, 306, 171, 31))
        self.label_2.setObjectName("label_2")
        self.pushButton = QtWidgets.QPushButton(self.centralwidget)
        self.pushButton.setGeometry(QtCore.QRect(40, 350, 171, 27))
        self.pushButton.setCursor(QtGui.QCursor(QtCore.Qt.PointingHandCursor))
        self.pushButton.setObjectName("pushButton")
        self.pushButton_2 = QtWidgets.QPushButton(self.centralwidget)
        self.pushButton_2.setGeometry(QtCore.QRect(40, 420, 171, 27))
        self.pushButton_2.setCursor(QtGui.QCursor(QtCore.Qt.PointingHandCursor))
        self.pushButton_2.setObjectName("pushButton_2")
        self.pushButton_3 = QtWidgets.QPushButton(self.centralwidget)
        self.pushButton_3.setGeometry(QtCore.QRect(40, 490, 171, 31))
        self.pushButton_3.setCursor(QtGui.QCursor(QtCore.Qt.PointingHandCursor))
        self.pushButton_3.setObjectName("pushButton_3")
        self.label_3 = QtWidgets.QLabel(self.centralwidget)
        self.label_3.setGeometry(QtCore.QRect(230, 350, 531, 41))
        self.label_3.setObjectName("label_3")
        self.label_4 = QtWidgets.QLabel(self.centralwidget)
        self.label_4.setGeometry(QtCore.QRect(230, 420, 531, 41))
        self.label_4.setObjectName("label_4")
        self.label_5 = QtWidgets.QLabel(self.centralwidget)
        self.label_5.setGeometry(QtCore.QRect(230, 490, 531, 41))
        self.label_5.setObjectName("label_5")
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 800, 25))
        self.menubar.setObjectName("menubar")
        MainWindow.setMenuBar(self.menubar)
        self.statusbar = QtWidgets.QStatusBar(MainWindow)
        self.statusbar.setObjectName("statusbar")
        MainWindow.setStatusBar(self.statusbar)

        self.retranslateUi(MainWindow)
        QtCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
        self.label.setText(_translate("MainWindow", "Current Configuration"))
        self.label_2.setText(_translate("MainWindow", "Configuration Wizard"))
        self.pushButton.setText(_translate("MainWindow", "Add New Config"))
        self.pushButton_2.setText(_translate("MainWindow", "Modify Config"))
        self.pushButton_3.setText(_translate("MainWindow", "Delete Config"))
        self.label_3.setText(_translate("MainWindow", "Add new configuration"))
        self.label_4.setText(_translate("MainWindow", "Modify Configuration"))
        self.label_5.setText(_translate("MainWindow", "Delete Configuration"))

        self.pushButton.clicked.connect(self.addClicked)

    def addClicked(self):
        self.mainwindows.hide()
        page_add = QtWidgets.QDialog()
        ui_add = addPage.AddDlg()
        ui_add.setupUi(page_add)
        page_add.show()
        page_add.exec_()
        self.mainwindows.show()
